360 BANDIT™
INSTALLATION INSTRUCTIONS
KINZE 3000 MODELS
• • •
1.3.20 • V5
360 BANDIT
•••
All trademarks are the property of 360 Yield Center, its ailiates and/or its licensors. ©2019 360 Yield Center. All rights reserved.
FOR QUESTIONS PLEASE CONTACT OUR
PRODUCT SUPPORT TEAM AT 309-300-3120

INSTALLATION INSTRUCTIONS
KINZE 3000
Using a 9/16” socket, remove the bolt that holds the closing
wheel arm stop 5to the row unit between the gauge
wheels.
NOTE: The gauge wheels may need to be held up to remove
the bolt.
Using a 3/4” socket remove the nut from the carriage bolt
that secures the closing system arms on the row unit.
Remove carriage bolt and remove closing system arms 6
from the row unit. Discard carriage bolt, nut and washers.
Retain two piece bushing 7.
Remove spring from closing wheel arm stop and set closing
wheel arm stop to the side.
NOTE: Retain closing wheel arm stop in a safe location for
installation of closing system without 360 BANDIT.
Hammer/Mallet
Wrench Sizes: 3/4”, 9/16” and 15/16”
Socket Sizes: 3/4”, 9/16” and 15/16”
Impact Driver/ Socket Wrench
Release spring 1to remove tension from closing system.
Remove closing wheels with a 15/16” socket and wrench 2.
Retain the closing wheels, bolts, and nuts for re-installation
later in the instructions.
If present, remove insecticide attachment.
NOTES:
Removal of the closing wheels is necessary to facilitate the
ease of removing and reinstalling the spring.
If you are installing the optional chains kit, the bolts and
nuts 3can be discarded but the bushings 4need to be
kept.
1
2
345
6
7
BEFORE YOU BEGIN...
HELPFUL TOOLS
STEP 1
REMOVE CLOSING WHEELS
STEP 2
REMOVE CLOSING SYSTEM ARMS
PAGE 2

Attach the rock guard 8to the underside of the extention
bracket 9using two bolts 10 . Secure with nut.
Align holes in extension bracket with the holes on the
row unit 15 . Install flat washer on the 1/2” x 1-1/2” bolt
from hardware kit #540615. Slide bolt through extension
bracket and row unit hole (bolt head on the outside). Install
another washer and hand tighten with nyloc nut from
hardware kit #540615. Do not tighten.
NOTE: Leave nyloc nuts loose on both sides until after the
support strap is installed in STEP 5.
Repeat for other side.
Slide the BANDIT arm assembly 11 over the extension
bracket 9, ensuring BANDIT arms 12 are facing in the
rearward direction, towards the spring hook 13 .
Secure arm assembly to the front holes 14 on the extension
bracket with (2) 3/8” X 1-1/2” bolts and 3/8” flange nuts.
Tighten with 9/16” socket and wrench.
INSTALLATION INSTRUCTIONS
KINZE 3000
STEP 3
INSTALL ROCK GUARD
STEP 4
INSTALL BANDIT ARM ASSEMBLY
STEP 5
INSTALL EXTENSION BRACKET
8
9
10
11 9
12
13
14
15
PAGE 3

Remove the bolt on the bottom of the depth adjustment
assembly and discard.
Secure the top of the support strap 16 to the depth
adjustment assembly using the supplied 3/8” x 1-1/4” bolt
and washer from hardware kit #540615 17 . Ensure all
bracketry is flush when bolt is installed.
Attach the support strap to the back holes on the extension
bracket with (2) 3/8” x 1-1/4” bolts and 3/8” flange nuts
from hardware kit #540615 18 . Tighten bolts with 9/16”
socket and wrench.
NOTE: The extension bracket may need lifted up to align
bolt holes. Tighten the bolt down until there is a flat
connection between the support strap and the depth
adjustment assembly.
Tighten the nyloc nuts that were left loose in STEP 5 with
3/4” socket and wrench securing the BANDIT extension
bracket to the row unit 15 .
Using side-cutters, cut the two hose guides apart 22 .
Route the hose through the top two holes in the hose guide
23 .
Hose guides are labeled “L” left and “R” right 24 .
NOTE: When installing hoseguides on the row unit, left and
right are determined from the operators seat.
Attach the tensioning spring on the closing system to the
spring hook on the BANDIT extension bracket 19 .
Align square holes in extension bracket with holes in closing
system arms. From the inside to the outside, using the thick
spacer washer (one per side), slide supplied 2-1/4” carriage
bolt through all parts (carriage bolt head on the inside) 20
. Secure all parts with the previously set aside two-piece
bushing and provided 1/2” nyloc nut 21 . Tighten with 1/2”
socket. Adjust bushings according to OEM specs.
INSTALLATION INSTRUCTIONS
KINZE 3000
STEP 6
INSTALL SUPPORT STRAP
STEP 7
REINSTALL CLOSING SYSTEM
STEP 8
PREPARE HOSE GUIDES
5
CUT
7
5
6
16
22
22
23
24
17
18
16
17
18
15
2121 21
PAGE 4
20

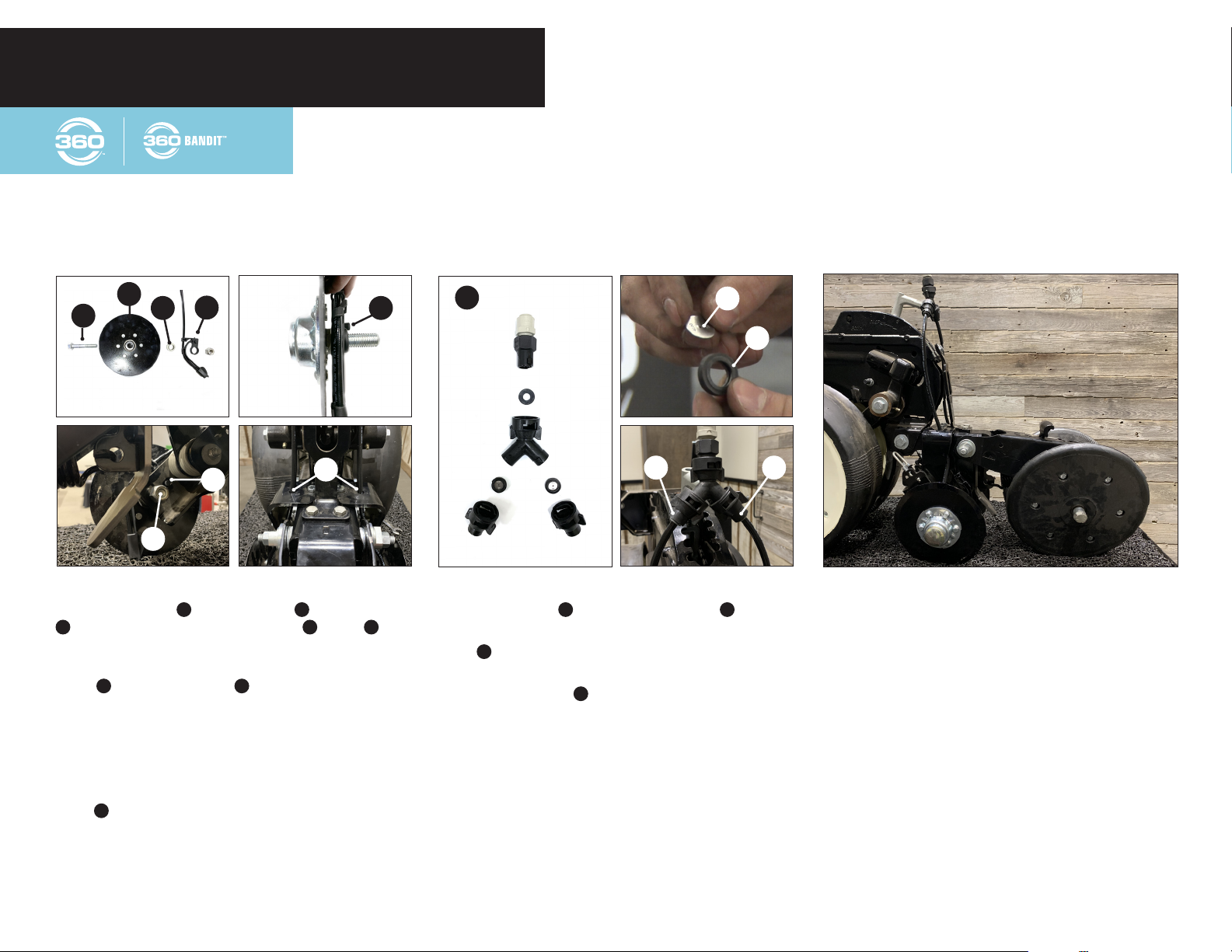

Insert 5/8” X 3” bolt 25 through the disk 26 . Insert bushing
27 (large side first) and hose guide assembly 28 (ear tab 29
facing in).
Slide bolt of the disk assembly into the lower hole on the
bandit 25 , aligning the ear tab 29 with corresponding upper
hole and secure with lock nut.
Tighten with 15/16” socket and wrench.
Using a mallet, install provided dust caps over disk bolt
heads.
Route application hose through hole in top of 360 BANDIT
frame 30 .
Repeat for other side.
Using 15/16” socket and wrench, reinstall closing wheels.
NOTE: If the optional Chain Kit is being installed, do not
reinstall the closing wheels.
Install orifice plates 31 in the rubber grommets 32 .
Assemble pluming components in the arrangement shown
above 33 .
Attach the plumbing assembly to each of the hoses coming
from the house guides 34 .
NOTE: If hoses are not fully seated in the push to connect,
they will leak. Hoses seat 7/8” of an inch deep or until you
hear a snap.
The supplied push to connect adapter in the 360 BANDIT kit
connects to 3/8” push to connect compatible hose.
Secure hoses to row unit with provided zip ties.
INSTALLATION INSTRUCTIONS
KINZE 3000
STEP 9
INSTALL DISK ASSEMBLY
STEP 10
ASSEMBLE PLUMBING
32
32
23
3434
PLUMBING RECOMMENDATIONS:
To prevent excess fertilizer from dribbling out of the hoses
when product application is shut o, install one push to
connect polypropylene (Inlet x Outlet) 3/8” O.D. check valve
(not included) in the plumbing to each row prior to the 360
BANDIT orifices. Check valve is available at Dultmeier Sales
(Item #BUCV1103-P38).
A 50 mesh strainer (not included) can be used in the
complete plumbing system between tanks and 360
BANDIT to help prevent debris from blocking orifices.
INSTALLATION COMPLETE
27 28 29
25
29
25
26
PAGE 5
30
