Aaeon IMBA-H110A User manual

Industrial Motherboard
IMBA-H110A
E13195_IMBA-H110A_Guide.indb 1 2017/9/25 14:05:08

ii
E13521
Revised Edition
September 2017
Copyright Notice
This document is copyrighted, 2017. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described
in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted
in any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use,
or for any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to
change without notice. While reasonable efforts have been made in the preparation
of this document to assure its accuracy, the original manufacturer assumes no
liabilities resulting from errors or omissions in this document, or from the use of the
information contained herein.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
Acknowledgments
All other products’ name or trademarks are properties of their respective owners.
• AMI is a trademark of American Megatrends Inc.
• Intel®, Core™ are trademarks of Intel®Corporation.
• Microsoft Windows®is a registered trademark of Microsoft Corp.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
All other product names or trademarks are properties of their respective owners.
E13195_IMBA-H110A_Guide.indb 2 2017/9/25 14:05:08

iii
Contents
Chapter 1: Product overview
1.1 Package contents......................................................................... 1-1
1.2 Features ........................................................................................ 1-1
1.3 Specications............................................................................... 1-2
Chapter 2: Motherboard information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard layout...................................................................... 2-2

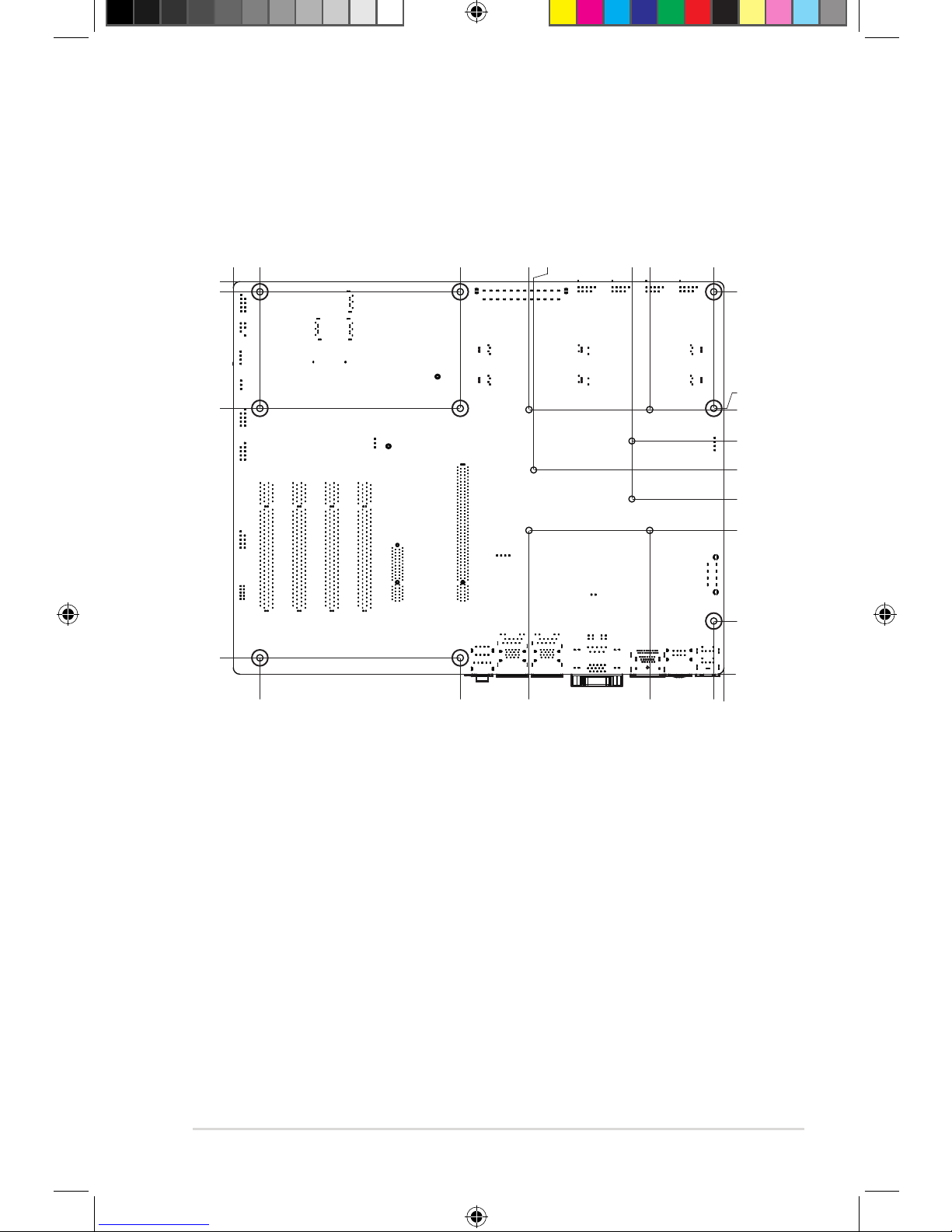

2.3 Screw size..................................................................................... 2-4
2.3.1 Component side.............................................................. 2-4
2.3.2 Solder side ...................................................................... 2-5
2.4 Central Processing Unit (CPU) ................................................... 2-6
2.4.1 Installing the CPU ........................................................... 2-7
2.4.2 CPU heatsink and fan assembly installation................... 2-9
2.5 System memory ......................................................................... 2-10
2.6 Jumpers ...................................................................................... 2-12
2.7 Connectors ................................................................................. 2-15
2.7.1 Rear panel connectors.................................................. 2-15
2.7.2 Internal connectors ....................................................... 2-17
Chapter 3: BIOS setup
3.1 BIOS setup.................................................................................... 3-1
3.2 Main menu .................................................................................... 3-2
3.2.1 System Date [Day MM/DD/YYYY] .................................. 3-2
3.2.2 System Time [HH:MM:SS] .............................................. 3-2
3.3 Advanced menu ........................................................................... 3-2
3.3.1 CPUConguration .......................................................... 3-3
3.3.2 Trusted Computing ......................................................... 3-3
3.3.3 SATAConguration ........................................................ 3-4
3.3.4 PCH-FWConguration ................................................... 3-5
3.3.5 SIOConguration ........................................................... 3-5
3.3.6 NCT6791D HW Monitor .................................................. 3-6
3.3.7 USBConguration .......................................................... 3-9
3.3.8 DigitalIOPortConguration ........................................... 3-9
3.3.9 Power Management........................................................ 3-9
3.4 Chipset menu ............................................................................. 3-10
E13195_IMBA-H110A_Guide.indb 3 2017/9/25 14:05:08

iv
3.4.1 SystemAgent(SA)Conguration ................................. 3-10
3.4.2 PCH-IOConguration ................................................... 3-11
3.5 Security menu ............................................................................ 3-11
3.5.1 Administrator Password ................................................ 3-11
3.5.2 User Password.............................................................. 3-12
3.6 Boot menu .................................................................................. 3-12
3.6.1 BootConguration ........................................................ 3-12
3.6.2 Boot Option Priorities .................................................... 3-13
3.7 Save & Exit menu....................................................................... 3-13
Appendix
Notices.......................................................................................................A-1
E13195_IMBA-H110A_Guide.indb 4 2017/9/25 14:05:08

1-1
Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x SATA 6.0Gb/s cable
1 x COM cable
1 x I/O Shield
1 x Support CD
If any of the above items is damaged or missing, contact your distributor or
sales representative immediately.
1.2 Features
• Intel®7th/ 6th Generation Core™ i7/ i5/ i3, Pentium®and Celeron®14nm
LGA1151 socket processor
• 2 x DIMMs, max. 32GB, DDR4 2400 / 2133/ 1867 MHz, non-ECC,
un-buffered memory
• 3 x SATA III 6.0 Gb/s, 4x USB 3.0, 6 x USB 2.0
• Realtek®ALC8876-ChannelHighDenitionAudioCODEC
• Multi Display: VGA+HDMI, VGA+DP, HDMI+DP
• Dual Ethernet LAN: 1 x Intel®PHY i219V Giga LAN, 1 x Intel®i211AT Giga
LAN, RJ45 x 2
• 1 x PCIe 3.0/2.0 [x16] slot, 1 x PCIe 2.0 [x4] slot, 4 x PCI slots
• 1 x M.2 M key (22 x 80mm) slot for SATA
Chapter 1
Product overview
E13195_IMBA-H110A_Guide.indb 1 2017/9/25 14:05:08

IMBA-H110A
1-2
1.3 Specications
(continued on the next page)
SYSTEM
CPU Intel®7th/ 6th Generation (Kaby Lake-S/ Skylake-S) Core™ i7/ i5/ i3,
Pentium®and Celeron®14nm LGA1151 socket processor
Chipset Intel®H110 Express Chipset
Memory 2 x DIMMs, max. 32 GB, DDR4 2400*/ 2133/ 1867 MHz, non-ECC,
un-buffered memory
Dual channel memory architecture
*2400 MHz can only be reached when a Kaby Lake processor is used.
I/O Chipset NCT6791D + F81216HD
Ethernet 1 x Intel®PHY i219V Giga LAN
1 x Intel®i211AT Giga LAN, RJ45 x 2
Audio Realtek®ALC8876-ChannelHighDenitionAudioCODEC
(Colay/ALC886)
TPM Nuvoton NPCT650ABBYX TPM2.0 onboard (optional)
Expansion slots 1 x PCIe 3.0/2.0 [x16] slot
1 x PCIe 2.0 [x4] slot (open edge)
4 x PCI slots
1 x M.2 M-key (22 x 80mm) slot for SATA
BIOS 1 x 128Mbit Flash ROM, AMI BIOS
Added Buffer IC
H/W Status Monitor Monitors CPU/chasiss temperature
Monitors Vcore/5V/3.3V/12V/3VSB/VBAT voltages
Monitors CPU/chassis fan speed
Watchdog Timer 1~255 steps by software program
Smart Fan Control CPU Fan / Chassis Fan x 2
Wake On LAN / PXE Yes ( WOL, PXE)
Power States S3, S4, S5
Graphics
Graphics Chipset Intel®HD Graphics
VGA support via RTD2168
Graphics Multi Display VGA+HDMI, VGA+DP, HDMI+DP
Resolution VGA: Up to 1920 x 1200 @60Hz (via RTD2168)
HDMI1.4: Up to 4096 x 2304 @24Hz
DP1.2: Up to 4096 x 2304 @60Hz
Environment, Power, and ME
Battery Lithium battery
Power requirement 1 x 24-pin ATX connector
1 x 8-pin (2x4) ATX 12V power connector
Operating temperature 32oF~140oF (0oC~60oC)
Storage temperature -40oF~185oF (-40oC~85oC)
Operating humidity 0%~90% relative humidity, non-condensing
Certicate CE & FCC class A
Form factor ATX form factor: 12 in. x 9.6 in. (305 mm x 244 mm)
Weight 1.76 lb (0.8 Kg)
E13195_IMBA-H110A_Guide.indb 2 2017/9/25 14:05:08

1-3
Chapter 1: General information
Back I/O
USB 4 x USB 3.0 ports
2 x USB 2.0 ports
Display 1 x HDMI ports
1 x VGA port
1 x Disaplay port
Serial port 1 x RS-232/422/485 COM port (COM1, supports 5V/12V/RI, optional)
PS/2 port 1 x PS/2 stack port (keyboard & mouse)
LAN 2 x LAN (RJ-45) ports
Audio 3 x Audio jacks: Line-in, Mic-in, Line-out
Internal I/O
Storage 3 x SATA III 6.0Gb/s ports
1 x M.2 M-Key slot (22 x 80mm)
USB 2 x USB 2.0 connectors support additional 4 USB ports
Audio 1 x AMP speaker header (Line-out)
Serial port 5 x RS-232 headers
DIO 1 x 8-bit Digital I/O interface (In/Out programmable)
Fan 1 x CPU Fan connector (4-pin)
2 x Chassis Fan connectors (4-pin)
Power 1 x 24-pin EATX Power header
1 x 8-pin EATX 12V Power connector
Others 1 x Chassis Intrusion
1 x AT/ATX mode select jumper
1 x Front panel header
1 x Clear CMOS jumper
Others
OS support Windows®10 64-bit
Windows®8.1 64-bit (not supported when using a Kaby Lake processor)
Windows®7 32-bit / 64-bit (not supported when using a Kaby Lake
processor)
Linux Fedora 64bit
Accessories 1 x SATA 6.0Gb/s cable
1 x COM cable
1 x I/O shield
1 x Support DVD
NOTE: Specicationsaresubjecttochangewithoutnotice.
E13195_IMBA-H110A_Guide.indb 3 2017/9/25 14:05:08

IMBA-H110A
1-4
E13195_IMBA-H110A_Guide.indb 4 2017/9/25 14:05:08

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplugthepowercordfromthewallsocketbeforetouchingany
component.
• Beforehandlingcomponents,useagroundedwriststraportouchasafely
groundedobjectorametalobject,suchasthepowersupplycase,toavoid
damaging them due to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistatic
pad or in the bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpower
supply is switched off or the power cord is detached from the power
supply.Failuretodosomaycauseseveredamagetothemotherboard,
peripherals,orcomponents.
E13195_IMBA-H110A_Guide.indb 1 2017/9/25 14:05:08

IMBA-H110A
2-2
IMBA-H110A
PCIEX16_1
M2_TYPE_M1
2280
PCIEX4
PCI1
PCI2
PCI3
PCI4
F_PANEL1
CLRTC1
AT_ATX
CHASSIS
USB910 USB78
EATX_PWR1
CPU_FAN1
CHA_FAN1
CHA_FAN2
BATTERY1
Super
I/O
Super
I/O
ASM
1085
ALC
887
COM1_V1
J3
J1
J2
COM1
VGA
J4
ASM
1442K
RTD
2168
LGA1151
Intel®
H110
Intel®
PHY i219V
Intel®
i211AT
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_B1 (64bit, 288-pin module)
SATA6G_2
SPI_1
SATA6G_1
SATA6G_3
BUZZER1
AUDIO1
KBMS
24.4cm(9.6in)
128Mb
BIOS
EATX_PWR2
HDMI
_DP1
USB56
30.5cm(12.0in)
COM3COM4
COM2
COM5COM6
DIO
AMP_CON
LAN2_USB3_34
LAN1_USB3_12
5 42 431 6
7
2
15
8
10
11
9
12134141617 7

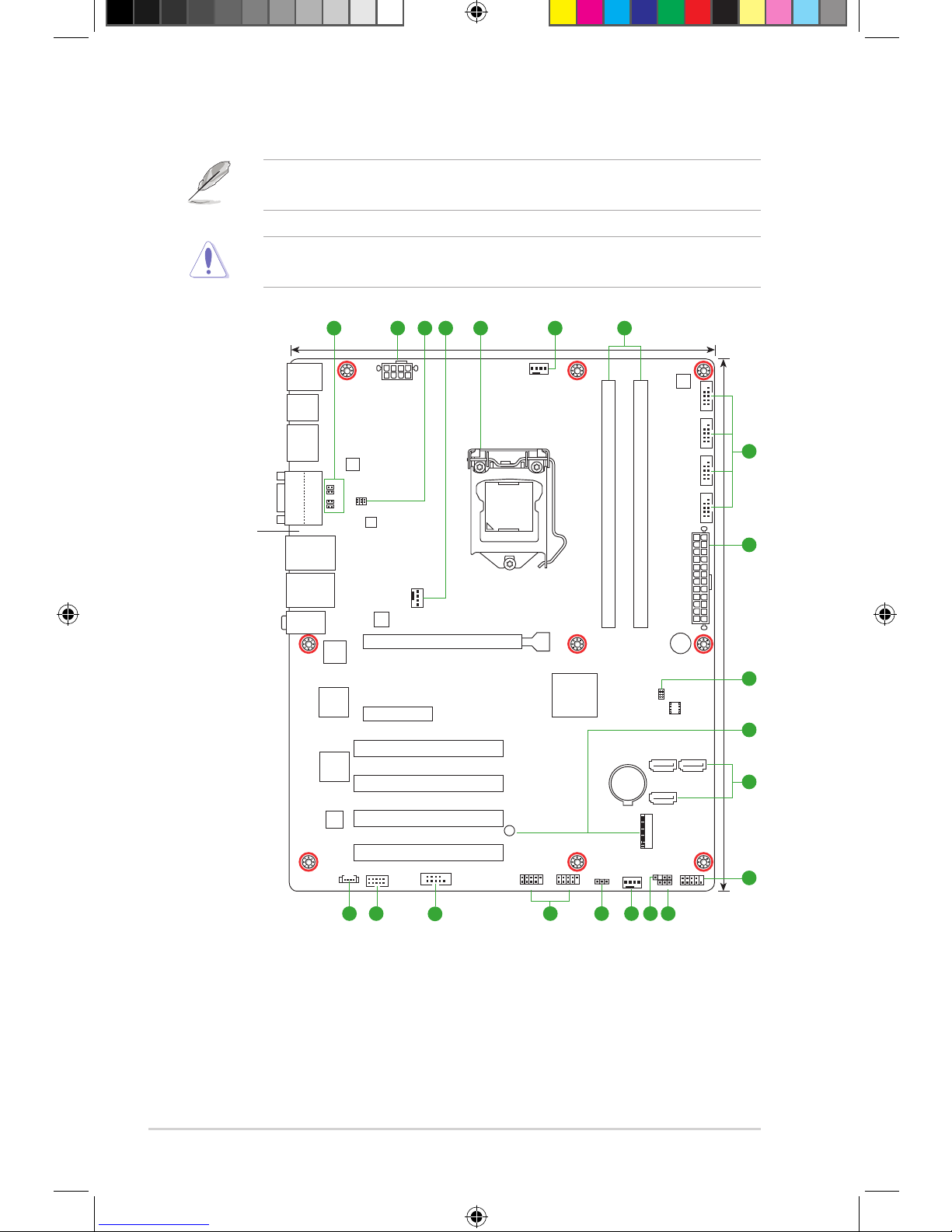

2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Place nine screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION!Donotovertightenthescrews!Doingsocandamagethe
motherboard.
E13195_IMBA-H110A_Guide.indb 2 2017/9/25 14:05:08

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. COM1operatingmodeselectionjumpers(2-pinJ1/J2/J3/J4) 2-13
2. ATXpowerconnectors(24-pinEATXPWR1,8-pinEATX_PWR2) 2-17
3. COM1Ring/+5V/+12Vselectionjumper(6-pinCOM1_V1) 2-13
4. CPUandchassisfanconnectors(4-pinCPU_FAN1,4-pinCHA_FAN1/2) 2-18
5. Intel® LGA1151CPUsocket 2-6
6. DDR4DIMMslots 2-10
7. Serialportconnectors(10-1pinCOM2~6) 2-21
8. BIOSprogrammableconnector(8-pinSPI_1) 2-19
9. M.2M-Keyslot 2-22
10. SerialATA6.0Gb/sconnectors(7-pinSATA6G_1~3) 2-18
11. Systempanelconnector(10-1pinF_PANEL) 2-20
12. AT/ATXmodeselection(3-pinAT_ATX) 2-14
13. Chassisintrusionjumper(4-1pinCHASSIS) 2-14
14. ClearRTCRAM(3-pinCLRTC1) 2-12
15. USB2.0connectors(10-1pinUSB78andUSB910) 2-19
16. DigitalI/Oconnector(10-pinDIO) 2-22
17. Speakeroutconnector(4-pinAMP_CON) 2-17
E13195_IMBA-H110A_Guide.indb 3 2017/9/25 14:05:08

IMBA-H110A
2-4
2.3 Screw size
2.3.1 Component side
304.80
243.84
11.32 24.35 53.62 73.38 83.25 73.41 76.07 81.41 84.07 82.30
106.42 127.92 150.12 140.97 161.01 201.65 219.41 239.73 260.05 280.37
10.12
300.23 300.10
5.72 83.03 27.05 19.64 48.13 69.22 90.30 148.96 193.42 199.39 230.78 253.60 255.06 262.09 260.64 280.64 299.97 297.56 300.10 300.15 299.97
0.00
7.36
11.84
14.63
21.99
16.68
5.85
38.77
10.49
7.06
68.15
49.40
126.81
146.81
179.94
199.24
240.28
232.96
73.66
33.56
46.74
41.28
45.45
163.20
78.49
133.35
154.31
177.17
200.41
193.80
210.42
227.44
210.31
212.85
203.45
225.43
218.33
0.00
10.03 27.85 47.42 78.92
109.92 131.42 150.12 304.80
0.00
35.52
125.85
163.85
270.64
E13195_IMBA-H110A_Guide.indb 4 2017/9/25 14:05:10

2-5
Chapter 2: Motherboard information
2.3.2 Solder side
304.80
243.84
6.35 6.35
163.83 288.29 46.14 121.15
46.14
121.15 163.83 288.29
57.22 118.24
33.02
165.10
89.31
108.81
126.81
144.81
164.31
10.16
165.10
237.49 237.49
0.00
0.00
E13195_IMBA-H110A_Guide.indb 5 2017/9/25 14:05:10

IMBA-H110A
2-6
2.4 Central Processing Unit (CPU)
ThismotherboardcomeswithanIntel®7th/6thGenerationCore™i7/i5/i3,
Pentium®andCeleron® 14nmLGA1151socketprocessor.
IMPORTANT:UnplugallpowercablesbeforeinstallingtheCPU.
CAUTION!
• Uponpurchaseofthemotherboard,ensurethatthePnPcapison
thesocketandthesocketcontactsarenotbent.Contactyourretailer
immediatelyifthePnPcapismissing,orifyouseeanydamagetothePnP
cap/socketcontacts/motherboardcomponents.
• Keepthecapafterinstallingthemotherboard.Themanufacturerwill
processReturnMerchandiseAuthorization(RMA)requestsonlyifthe
motherboardcomeswiththecapontheLGA1151socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontacts
resultingfromincorrectCPUinstallation/removal,ormisplacement/loss/
incorrectremovalofthePnPcap.
IMBA-H110A
IMBA-H110A CPU socket LGA1151
E13195_IMBA-H110A_Guide.indb 6 2017/9/25 14:05:11

2-7
Chapter 2: Motherboard information
2.4.1 Installing the CPU
1
A
B
2 3
CAUTION! EnsurethatyouinstallthecorrectCPUdesignedforLGA1151only.
DONOTinstallaCPUdesignedforLGA1155andLGA1156socketsonthe
LGA1151socket.
E13195_IMBA-H110A_Guide.indb 7 2017/9/25 14:05:11

IMBA-H110A
2-8

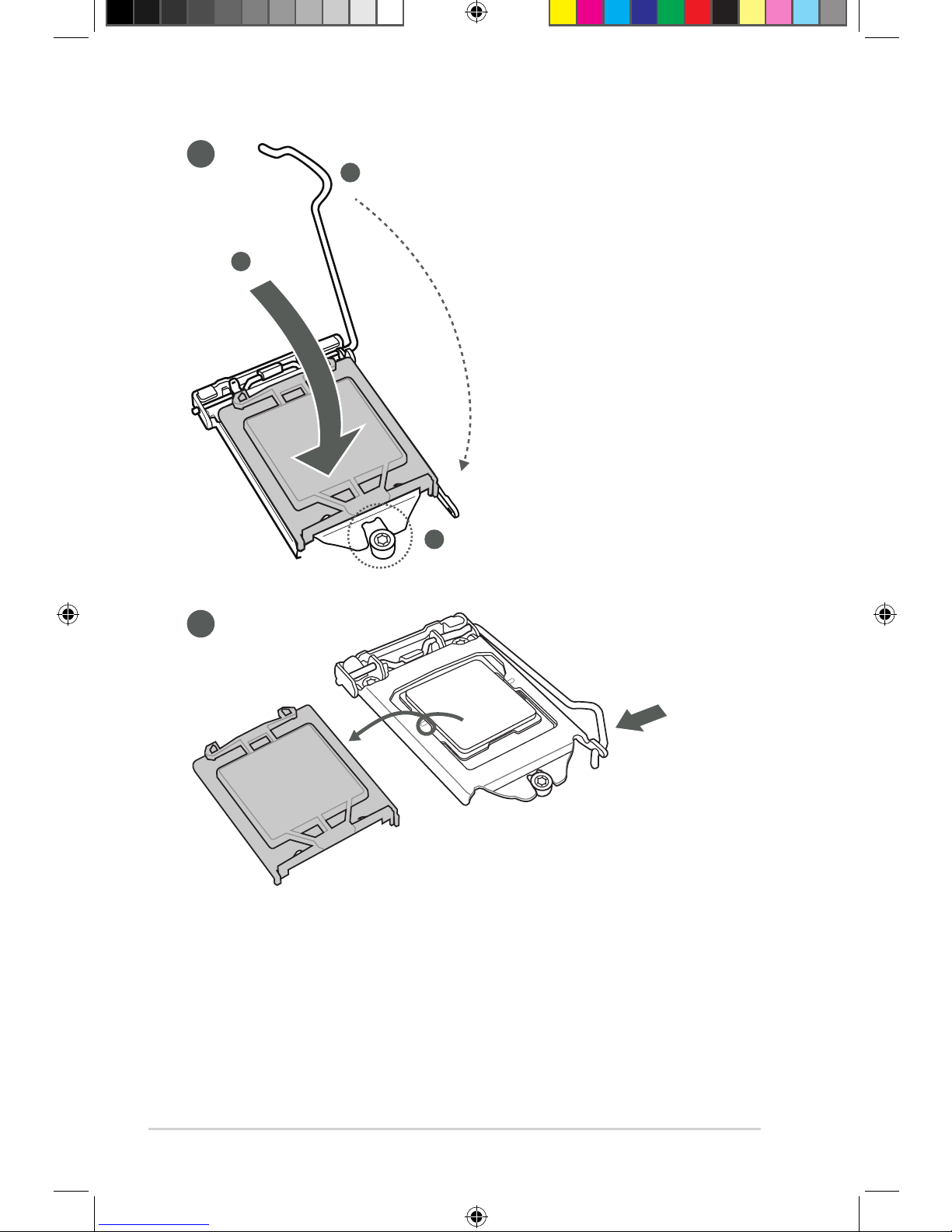

A
B
C
4
5
E13195_IMBA-H110A_Guide.indb 8 2017/9/25 14:05:11

2-9
Chapter 2: Motherboard information
2.4.2 CPU heatsink and fan assembly installation
CAUTION!ApplytheThermal
InterfaceMaterialtotheCPU
heatsinkandCPUbeforeyou
install the heatsink and fan if
necessary.
To install the CPU heatsink and fan assembly
B
A
A
B
1
2
3 4
E13195_IMBA-H110A_Guide.indb 9 2017/9/25 14:05:12

IMBA-H110A
2-10
2.5 System memory
ThismotherboardcomeswithtwoDoubleDataRate4(DDR4)DualInlineMemory
Modules(DIMM)sockets.ThegureillustratesthelocationoftheDDR4DIMM
sockets:
To uninstall the CPU heatsink and fan assembly
A
B
B
A
2
1
IMBA-H110A
IMBA-H110A 288-pin DDR4 DIMM sockets
DIMM_A1 DIMM_B1
E13195_IMBA-H110A_Guide.indb 10 2017/9/25 14:05:12

2-11
Chapter 2: Motherboard information
Installing a DIMM
To remove a DIMM
A
B
1
2
3
E13195_IMBA-H110A_Guide.indb 11 2017/9/25 14:05:13

IMBA-H110A
2-12
2.6 Jumpers

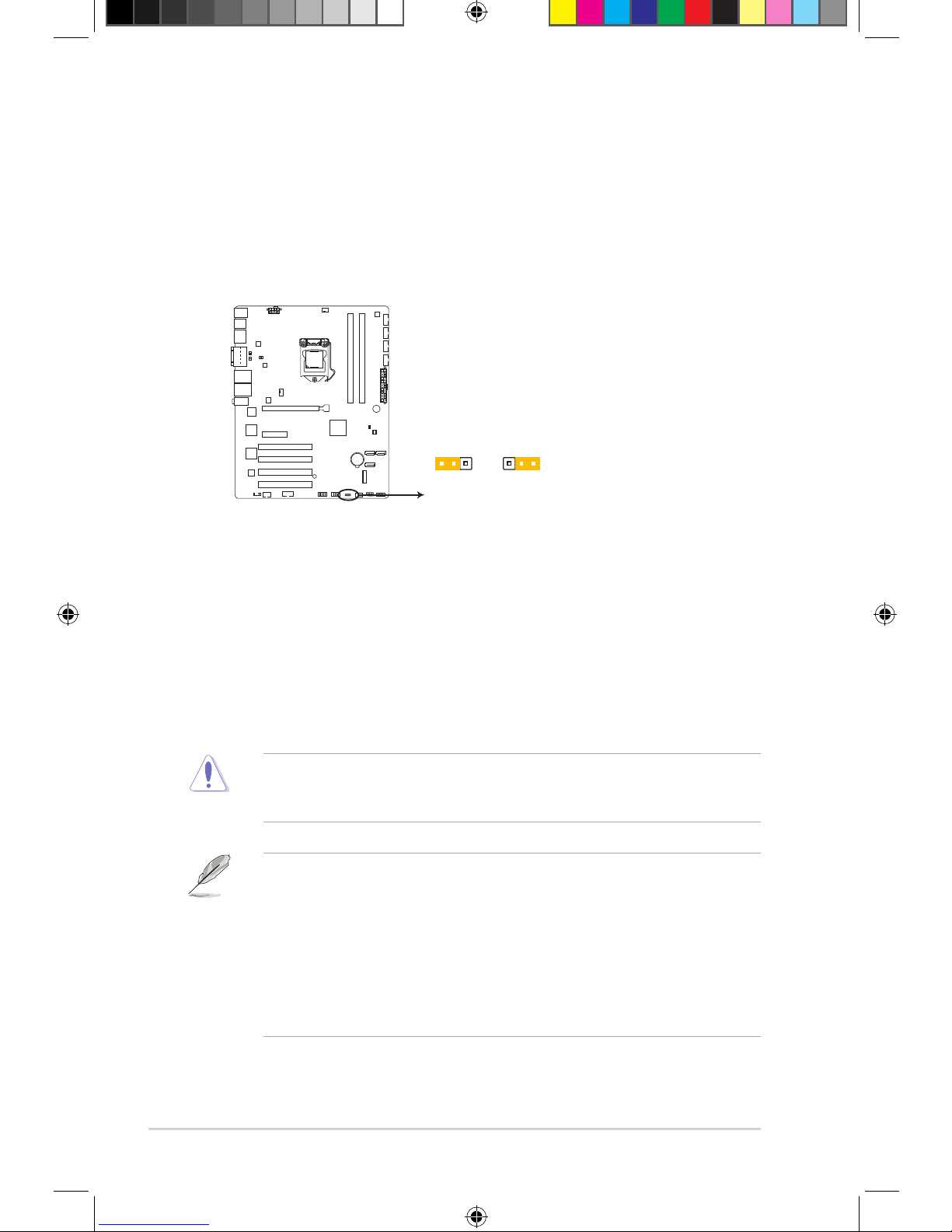

1. Clear RTC RAM (3-pin CLRTC1)
ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.
YoucancleartheCMOSmemoryofsystemsetupparametersbyerasing
theCMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAM
datainCMOS,whichincludesystemsetupinformationsuchassystem
passwords.
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Movethejumpercapfrompins1-2(default)topins2-3.Keepthecapon
pins2-3forabout5~10seconds,thenmovethecapbacktopins1-2.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetup
to reenter data.
CAUTION!ExceptwhenclearingtheRTCRAM,neverremovethecapon
CLRTCjumperdefaultposition.Removingthecapwillcausesystemboot
failure!
NOTES:
• Ifthestepsabovedonothelp,removetheonboardbatteryandmovethe
jumperagaintocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,
reinstall the battery.
• YoudonotneedtocleartheRTCwhenthesystemhangsdueto
overclocking.Forsystemfailureduetooverclocking,usetheCPU
ParameterRecall(C.P.R)feature.Shutdownandrebootthesystemsothe
BIOScanautomaticallyresetparametersettingstodefaultvalues.
IMBA-H110A
IMBA-H110A Clear RTC RAM
21 2 3
Normal
(Default)
Clear RTC
CLRTC1
E13195_IMBA-H110A_Guide.indb 12 2017/9/25 14:05:13
