Aaeon HSB-525I User manual

Half-size SBC HSB-525I
HSB-525I
Intel®AtomD525 Processor
ISA Expansion Half-size SBC
Two 204-pin DDR3 800 SODIMM
3 SATA 3.0 Gb/s/ 1 IDE/ 1 CompactFlash™
5 USB2.0/ 2 COM/ 1 VGA/ 1 LVDS
HSB-525I Manual Rev.A 1st Ed.
August 2011

Half-size SBC HSB-525I
i
Copyright Notice
This document is copyrighted, 2011. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Half-size SBC HSB-525I
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
AMI is a trademark of American Megatrends Inc.
CompactFlash™ is a trademark of the Compact Flash
Association.
Intel®, and Atomare trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
SoundBlaster is a trademark of Creative Labs, Inc.
All other product names or trademarks are properties of their
respective owners.

Half-size SBC HSB-525I
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
1 ATA100 Cable
1 USB Cable
1 Keyboard & Mouse Cable
1 Serial + Parallel Cable
1 Serial Cable
2 SATA Cable
1 Product CD (manual in PDF format and drivers)
1 HSB-525I CPU Card
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Half-size SBC HSB-525I
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specification..............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers..........................................................2-6
2.5 List of Connectors .....................................................2-7
2.6 Setting Jumpers ........................................................2-9
2.7 CF Selection (JP1)....................................................2-10
2.8 LVDS Voltage Selection (JP2)..................................2-10
2.9 LVDS Backlight Selection (JP3)................................2-10
2.10 Clear CMOS (JP4) ..................................................2-10
2.11 Auto Power Button (JP5).........................................2-10
2.12 Front Panel Connector (FP1)..................................2-11
2.13 Front Panel Connector (FP2)..................................2-11
2.14 USB Connector (USB1/2) .......................................2-11
2.15 RS-232/422/485 Serial Port Connector (COM2).....2-11
2.16 RS-232 Serial Port Connector (COM1)...................2-12
2.17 Caseopen Connector (CN1)....................................2-12
2.18 HD Audio Codec with Realtek ALC888 (Optional)

Half-size SBC HSB-525I
v
Connector (CN2).............................................................2-12
2.19 LVDS Connector (CN3)...........................................2-12
2.20 Keyboard Connector (CN5).....................................2-13
2.21 LVDS Backlight Connector (CN6)...........................2-13
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 AMI BIOS Setup........................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 W83627DHG Watchdog Timer Initial Program......A-2
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments .................................B-4
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

Half-size SBC HSB-525I
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Half-size SBC HSB-525I
Chapter 1 General Information 1- 2
1.1 Introduction
The HSB-525I utilizes the Intel® AtomD525 and ICH8M chipset,
supporting Intel®Atom D525 processor with a FSB of 800MHz up to
1.8GHz. Offering two 204-pin DDR3 SODIMM sockets, the
HSB-525I supports DDR3 800 SODIMM system memory up to 4
GB.
This model offers a multitude of I/O including two COM ports and
five USB2.0 ports. To meet today’s increasing storage demands it
also supports three SATA 3.0 Gb/s, one Type II CompactFlash™ to
share IDE channel, and oneATA100 sockets. The flexible
expansion and storage makes the HSB-525I a great solution for
your vital applications.
In addition to the comprehensive COM and USB offering the
HSB-525I can also be configured with two Gigabit Ethernet ports to
meet the needs of high bandwidth connectivity. Supporting CRT &
LCD simultaneously along with the optional high definition audio
board, the HSB-525I is an ideal solution for demanding multimedia
based applications.

Half-size SBC HSB-525I
Chapter 1 General Information 1- 3
1.2 Features
Intel®Atom™ D525 Processor
Intel®Atom™ D525 + ICH8M
204-Pin 800 MHz DDR3 SODIMM Memory x 2, Up to 4 GB
Gigabit Ethernet x 2
Intel®Atom™ D525 Integrated VGA, Shared Memory Up To
324MB With DVMT4.0.
Optional HD Codec Audio Daughter Board
SATA 3.0Gb/s x 3, CompactFlash™ Type 2 x 1, ATA100 x 1
USB2.0 x 5, RS-232/422/485 x 1, RS-232 x 1, Parallel x 1
ISA Expansion
+5V, +12V Operation, AT Power
Note: HSB-525I has to be operated with an ISA backplane to supply +5V,
+12V, and -12V power inputs to make COM1 work functionally.

Half-size SBC HSB-525I
Chapter 1 General Information 1- 4
1.3 Specification
System
Form Factor ISA Half-size Board
CPU Onboard Intel® Atom™ D525
Processor up to 1.8GHz with a 1
MB L2 cache
System Memory Two 204-pin 800 MHz DDR3
SODIMM, up to 4 GB
Chipset Intel® Atom™D525 + Intel®ICH8M
Ethernet Realtek RTL 8111C x 2,
Gigabit Ethernet, RJ-45 x 2
Audio (Optional HD Audio Codec with Realtek
Daughter Board) ALC888
BIOS AMI Plug & Play SPI BIOS –
4 MB ROM
I/O Chip Winbond 83627DHG-P
Storage 40-pin IDE slot x 1 (Slave), SATA
3.0 Gb/s x 3,
SSD CompactFlash™ Type II
connector, shares IDE channel
(Master)
Watchdog Timer 1~255 steps, can be set with
software on Super I/O
RTC Internal RTC

Half-size SBC HSB-525I
Chapter 1 General Information 1- 5
H/W Status Monitor Monitoring system temperature,
voltage, and cooling fan status
Battery Lithium battery
Power Requirement +5V, ±12V by ISA bus, onboard
4-pin power connector (+5V,
+12V)
Note: HSB-525I has to be operated with an ISA backplane.
Normally, onboard 4-pin power connector can supply power (+5V
and +12V) to operate the board. But the COM1 will need +5V and
±12V power supplied through the ISA bus.
Board Size 7.3”(L) x 4.8” (W)
(185mm x 122mm)
Gross Weight 0.71lb (0.3kg)
Operating Temperature 32oF~140oF(0oC~60oC)
Storage Temperature -4oF~158oF(-20oC~70oC)
Operating Humidity 10%~80%, non-condensing
EMI CE/FCC Class A
Display

Chipset Intel® Atom™D525 + ICH8M
Graphic Engine Intel® Atom™D525 with
integrated Graphics Core
Resolutions Up to 2048x1536 @ 60 Hz for
CRT; 1366x768 @ 60 Hz for
LCD
Output Interface VGA x 1, LVDS x 1

Half-size SBC HSB-525I
Chapter 1 General Information 1- 6
I/O
Serial Port COM1: RS-232
COM2: RS-232/422/485
Parallel Port Supports SPP/EPP/ECP mode
Keyboard/Mouse Keyboard/Mouse x 1
Universal Serial Bus USB2.0 x 5, 5x2-pin header x 2,
Type A x 1
Audio Audio Jack x 2
Ethernet RJ-45 x 2
Display VGA x 1, LVDS x 1

Half-size SBC HSB-525I
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Chapter
2
Guide

Half-size SBC HSB-525I
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Half-size SBC HSB-525I
Chapter2QuickInstallationGuide2 - 3

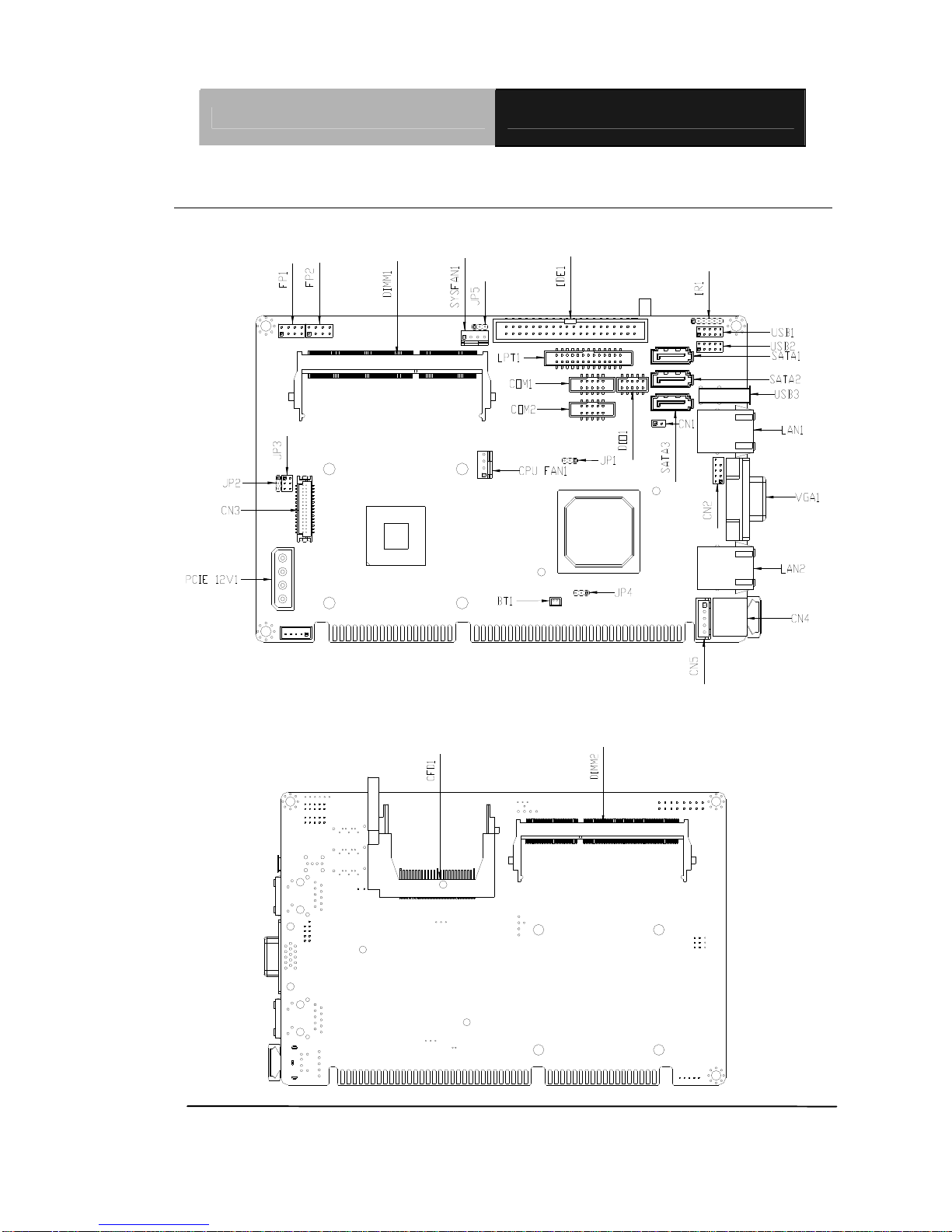

2.2 Location of Connectors and Jumpers
Component Side
Solder Side

Half-size SBC HSB-525I
Chapter 2 Quick Installation Guide 2 - 4

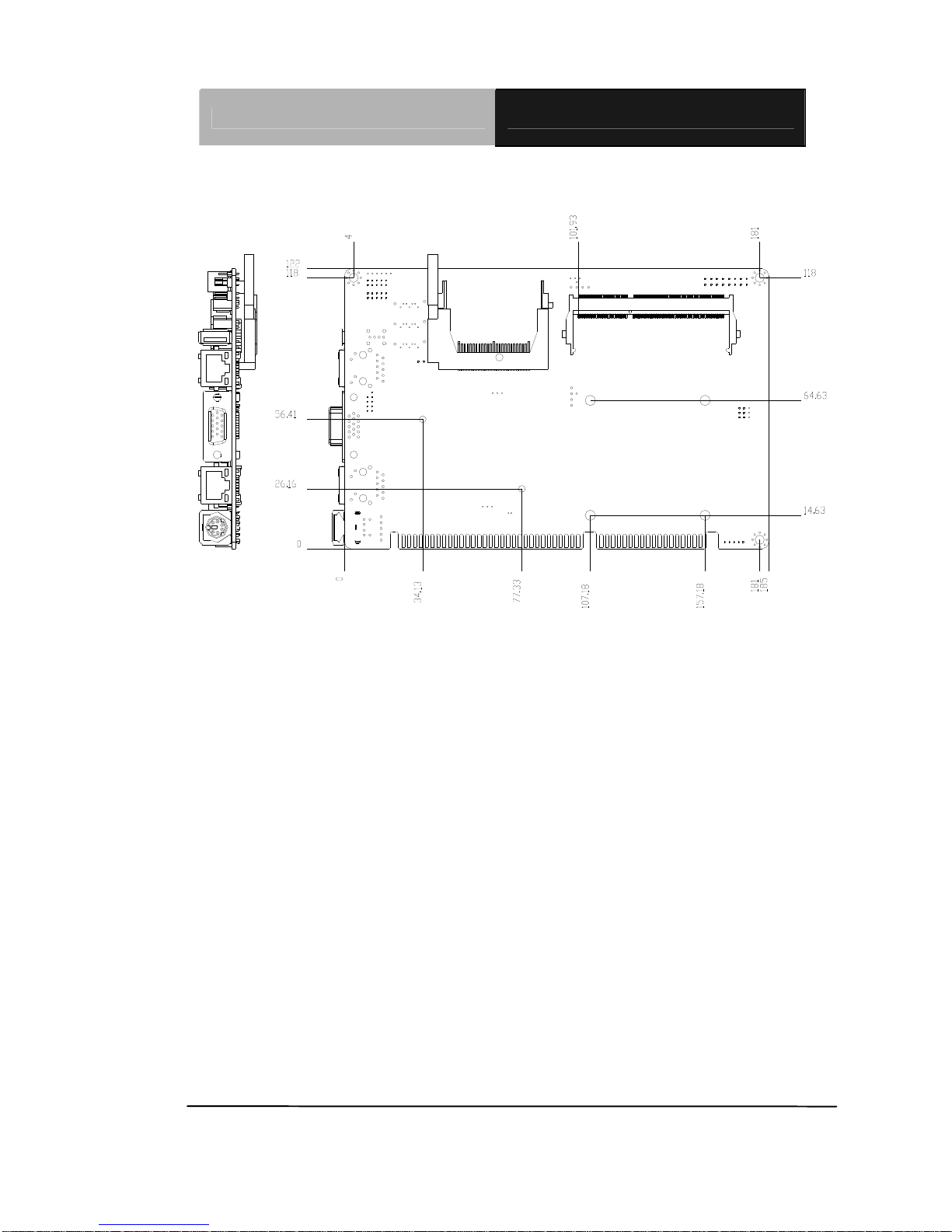

2.3 Mechanical Drawing
Component Side

Half-size SBC HSB-525I
Chapter2QuickInstallationGuide2 - 5
Solder Side

Half-size SBC HSB-525I
Chapter 2 Quick Installation Guide 2 - 6
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP1 CF Select
JP2 LCD Panel Voltage Selection
JP3 LCD Backlight Voltage Selection
JP4 Clear CMOS
JP5 Auto power Button

Half-size SBC HSB-525I
Chapter2QuickInstallationGuide2 - 7
2.5 List of Connectors
The board has a number of connectors that allow you to configure your
system to suit your application. The table below shows the function of
each board's connectors:
Connectors
Label Function
FP1 Front Panel Connector 1
FP2 Front Panel Connector 2
VGA1 VGA Port Connector
COM2 RS-232/485/422 Serial Connector
COM1 RS-232 Serial Connector
CN1 Caseopen Pin Header
CN2 HD Audio Codec with Realtek ALC888
( Optional ) Connector
CN3 LVDS Connector
CN4 PS2 Keyboard/Mouse Connector
CN5 Keyboard Connector
CN6 LVDS Backlight Connector
LAN1 100/1000Base-TX Ethernet Connector
LAN2 100/1000Base-TX Ethernet connector
DIMM1 DDR3 SODIMM Slot
DIMM2 DDR3 SODIMM Slot
USB1 USB Connector
USB2 USB Connector
USB3 USB Connector
CPU_FAN1, 4-Pin CPU Fan Connector

Half-size SBC HSB-525I
Chapter 2 Quick Installation Guide 2 - 8
SYS_FAN1 4-Pin System Fan Connector
PCIE_12V1 4-Pin ATX Power Connector
BT1 Battery
SATA1~SATA3 SATA Connector
SPI1 BIOS DEBUG PORT
IDE1 IDE Connector
LPT1 Parallel Port Connector
CFD1 CF Card Connector
