Aaeon GENE-9310 User manual

SubCompact Board GENE-9310
GENE-9310
Intel
®Core 2 Duo/ Core Duo/
Core Solo/ Celeron®M (Yonah)
Processors
With LVDS, Ethernet,
2 Channel Audio & Mini PCI
GENE-9310 Rev. A Manual 1st Ed.
Jan. 2007

SubCompact Board GENE-9310
i
Copyright Notice
This document is copyrighted, 2007. All rights are reserved. The
original manufacturer reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated,
or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable.
However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third
parties that may result from its use.
The material in this document is for product information only
and is subject to change without notice. While reasonable
efforts have been made in the preparation of this document to
assure its accuracy, AAEON assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein.
AAEON reserves the right to make changes in the product
design without notice to its users.

SubCompact Board GENE-9310
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 Intel®, Pentium®M, and Celeron®M are trademarks of Intel®
Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.
Please be notified that all other products’ name or trademarks not be
mentioned above are properties of their respective owners.

SubCompact Board GENE-9310
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• GENE-9310 CPU Card
• Quick Installation Guide
• CD-ROM for manual (in PDF format) and drivers
• 9681931000 Cable Kit for GENE-9310
• 9657666600 Jumper Cap
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

SubCompact Board GENE-9310
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-4
1.3 Specifications............................................................1-5
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-8
2.5 List of Connectors .....................................................2-9
2.6 Setting Jumpers ........................................................2-11
2.7 LVDS (1)-LCD (CN12) Voltage Selection (JP1)........2-12
2.8 COM2 Ring/ +5V/ +12V Selection (JP3)...................2-12
2.9 Clear CMOS (JP6) ....................................................2-12
2.10 ATX Power Simulate AT Power (JP7).....................2-12
2.11 Buzzer Header (JP8)...............................................2-12
2.12 Digital I/O Connector (CN2)....................................2-13
2.13 TV_Out Connector (CN3)........................................2-14
2.14 AC97 Audio Connector (CN6).................................2-14
2.15 COM2 RS-232/422/485 Serial Port Connector (CN9)
.........................................................................................2-14
2.16 COM1 RS-232 Serial Port Connector (CN11) ........2-15
2.17 LVDS (1)-LCD Connector (CN12)...........................2-15

SubCompact Board GENE-9310
v
2.18 Fan Connector (CN15)............................................2-16
2.19 DC 12V Power Connector (CN19)..........................2-16
2.20 USB Connector (CN20)...........................................2-16
2.21 PS2 Keyboard/ Mouse Connector (CN21)..............2-16
2.22 EIDE Connector (CN22)..........................................2-17
2.23 Front Panel Connector (CN23) ...............................2-18
2.24 Compact Flash Slot (CN24)....................................2-18
2.25 Expansion Board 140-pin Slot (CN25)....................2-19
2.26 VGA Display Connector (CN26)..............................2-22
2.27 SPDIF IN/OUT Connector (CN28)..........................2-22
2.28 RTC BATTERY Connector (BAT1).........................2-22
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 IT8712 Watchdog Timer Initial Program................A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-3
B.3 IRQ Mapping Chart................................................B-4

SubCompact Board GENE-9310
vi
B.4 DMA Channel Assignments...................................B-4
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

SubCompact Board GENE-9310
Chapter1GeneralInformation1- 1
General
Chapter
1
Information

SubCompact Board GENE-9310
Chapter 1 General Information 1-2
1.1 Introduction
AAEON Technology is announcing a cutting-edge 3.5” and ECX
form factor single board computer, GENE-9310 which supports the
innovative Intel Core 2 Duo, Core Duo, Core Solo & Celeron M
(Yonah) processors. As a leading Industrial PC manufacturer,
AAEON initiates the new product to fulfill the needs from versatile
market segments.
GENE-9310 features one DDR SODIMM that supports DDRII
400/533/667 up to 2GB. The VGA/ LCD controller integrated in
the Mobile Intel®945GM Express chipset which supports dual
view/simultaneous display on the configuration of CRT/LCD,
LCD/TV, CRT/TV, CRT/DVI, or LCD/DVI. (DVI port is on expansion
card). This controller supports up to 36-bit dual channel LVDS
TFT panel, DVI LCD panel and additional 48-bit Dual Channel
LVDS LCD through expansion card. In addition, GENE-9310
offers two COM ports through one D-sub connector and the other
internal pin-header. Furthermore, through expansion interface,
customers can get four additional COM ports. Concerning the
USB ports, GENE-9310 features a total of five USB 2.0 ports. Two
are standard ports, and two are internal pin headers with the last
one is extended from the extension card.
The Intel®Core™ 2 Duo processor and the integrated graphics

SubCompact Board GENE-9310
Chapter 1 General Information 1-3
engine of the Mobile Intel®945GM Express chipset offer one of the
best combinations in revolutionary dual-core performance and
breakthrough processor energy efficiency for versatile applications.
In addition to making use of Intel’s revolutionary platform,
GENE-9310 also offers flexibility of expansion requirements in
terms of the above characteristics.

SubCompact Board GENE-9310
Chapter 1 General Information 1-4
1.2 Features
 Intel®Core 2 Duo/ Core Duo/ Core Solo/ Celeron®M
(Yonah) Processors
 Supports 36-bit Dual Channel LVDS TFT Panel
 Supports TV-Out
 Supports DDRII 400/533/667 SODIMM Memory up to
2GB
 2 CH AC97 2.3 Audio Codec
 Supports Mini PCI and CompactFlash Type II slots
 Supports 8-bit Digital I/O, 4 USB, 2 COM
 Optional Extension Board Supports 48-bit Dual Channel
LVDS or DVI, USB x 1, SATA x 2 (w/ RAID 0 & RAID 1
Functions), PCI-E Lane 1 x 1, COM x 4 (RS-232), PCI x 1,
LPC x 1

SubCompact Board GENE-9310
Chapter 1 General Information 1-5
1.3 Specifications
System
• CPU: Intel®Core 2 Duo/ Core Duo/
Core Solo/ Celeron®M (Yonah)
Processors, FSB 533/667MHz
 Memory: 200-pin DDRII SODIMM x 1,
Max. 2GB (DDRII 400/533/667
MHz)
 Chipset: Intel®945GM + ICH7M
 I/O Chipset: IT8712
 Ethernet: Intel®82573L,
10/100/1000Base-TX,RJ-45 x 1
 BIOS: AWARD512KB FLASH ROM
 Watchdog Timer: Generates a Time-out System
Reset
 H/W Status Monitoring: Supports Power Supply
Voltages, Fan Speed and
Temperatures Monitoring
 SSD: Type II CompactFlash™ slot x 1
 Expansion Interface: Mini PCI x 1, Proprietary
Expansion Connector x 1
 Battery: Lithium battery
 Power Supply Voltage:+12V, AT/ATX
 Board Size: 5.75”(L) x 4”(W) (146mm x

SubCompact Board GENE-9310
Chapter 1 General Information 1-6
101.6mm)
 Gross Weight: 0.88lb (0.4kg)
 Operating Temperature: 32°F~140°F (0°C~60°C)
 Storage Temperature:-40°F~176°F (-40°C~80°C)
 Operating Humidity: 0%~90% relative humidity,
non-condensing
Display: Supports CRT/LCD, CRT/TV, LCD/TV,
simultaneous/dual view displays
 Chip: Intel®945GM
 Memory: Shared System Memory Up to
128MB with DVMT 3.0
 Resolutions: Up to 2048 x 1536 @ 32bpp
Colors for CRT;
Up to 1280 x 1024 @ 36bpp
Colors for LCD
 TV-Out: Supports NTSC and PAL
Standard, S-terminal and
Composite video
 LCD Interface: 36-bit Dual channel TTL/LVDS
TFT LCD
I/O
 MIO: EIDE x 1(UDMA33 x 1),
SATA-150 x 2, Keyboard +
Mouse x 1, RS-232 x 1,

SubCompact Board GENE-9310
Chapter 1 General Information 1-7
RS-232/422/485 x 1
 Audio: MIC-in, Line-in, Line-out, CD-in
& S/P DIF in/out
 USB: 4 USB 2.0 Ports, Tow onboard
and one 5x2 box header
supports two USB ports
 Digital I/O: Supports 8-bit (Programmable)

SubCompact Board GENE-9310
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007931010 Printed in Taiwan Jan. 2007

SubCompact Board GENE-9310
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

SubCompact Board GENE-9310
Chapter2QuickInstallationGuide2-3

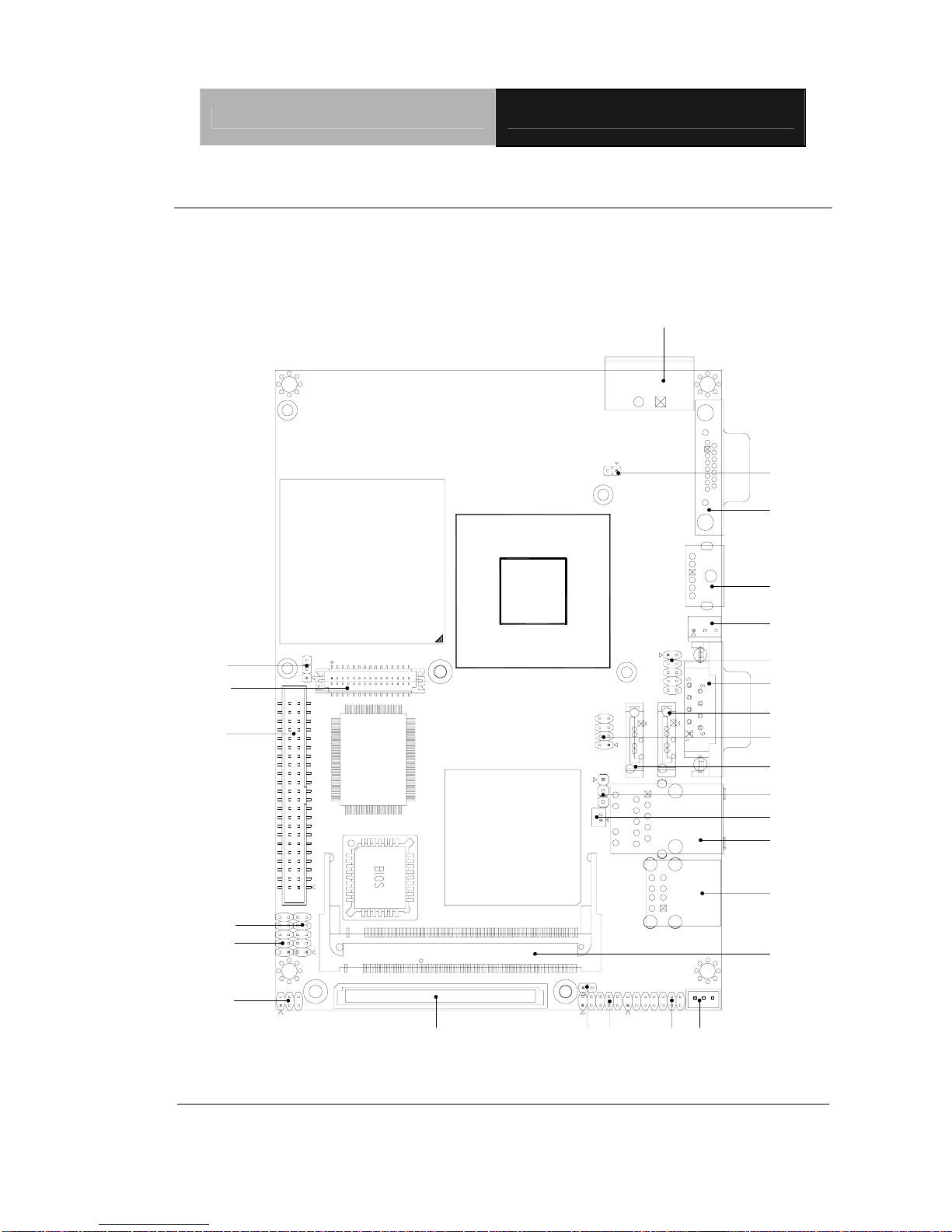

2.2 Location of Connectors and Jumpers
Component Side
JP7
JP1
JP3
CN9
CN2 MPCI1
CN22
CN12
CN19
CN26
CN20
CN21
CN15
CN11
SATA1
CN3
SATA2
JP6
BAT1
LAN1
USB1
CN28
CN6
CN25
JP8
CN23

SubCompact Board GENE-9310

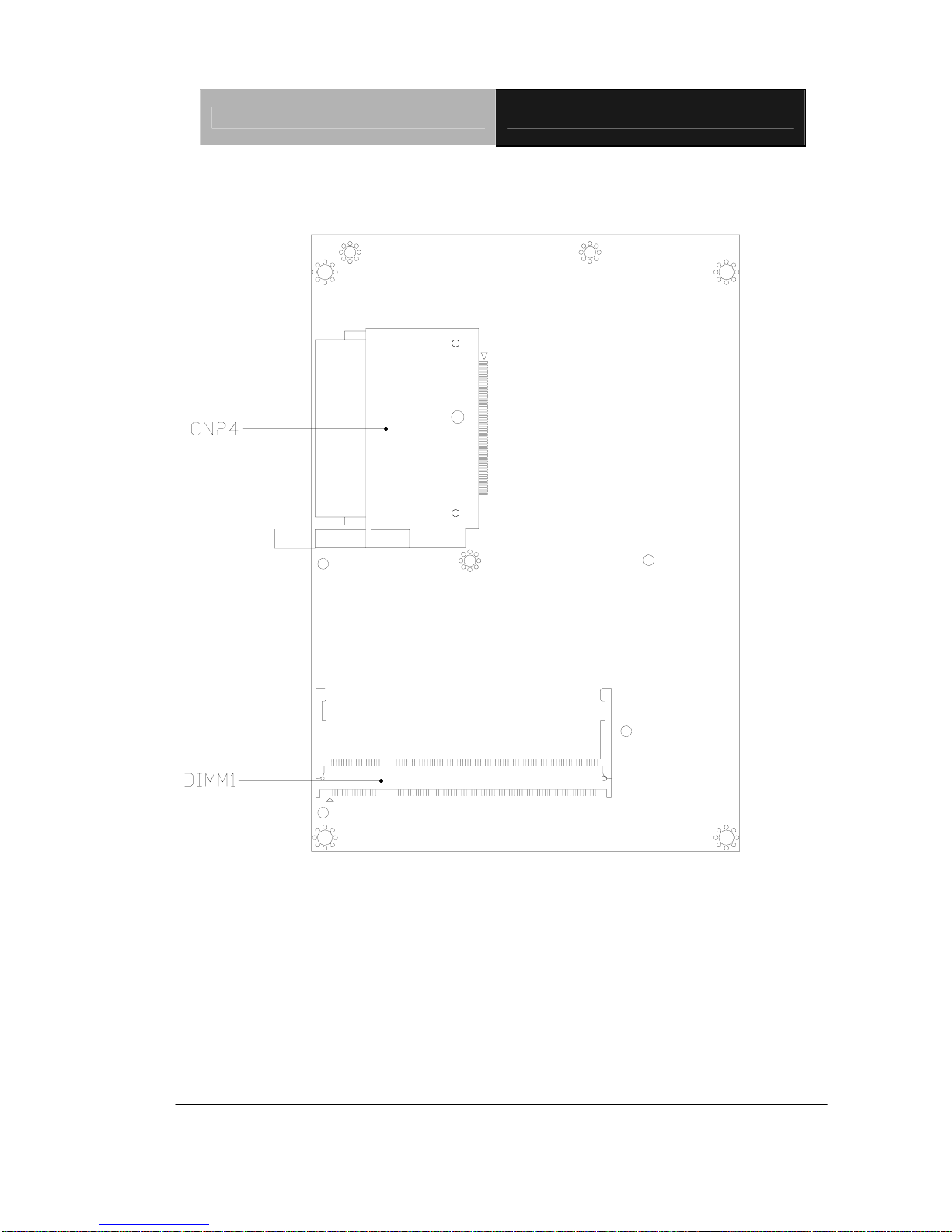

Solder Side
Chapter 2 Quick Installation Guide 2-4

SubCompact Board GENE-9310
Chapter2QuickInstallationGuide2-5

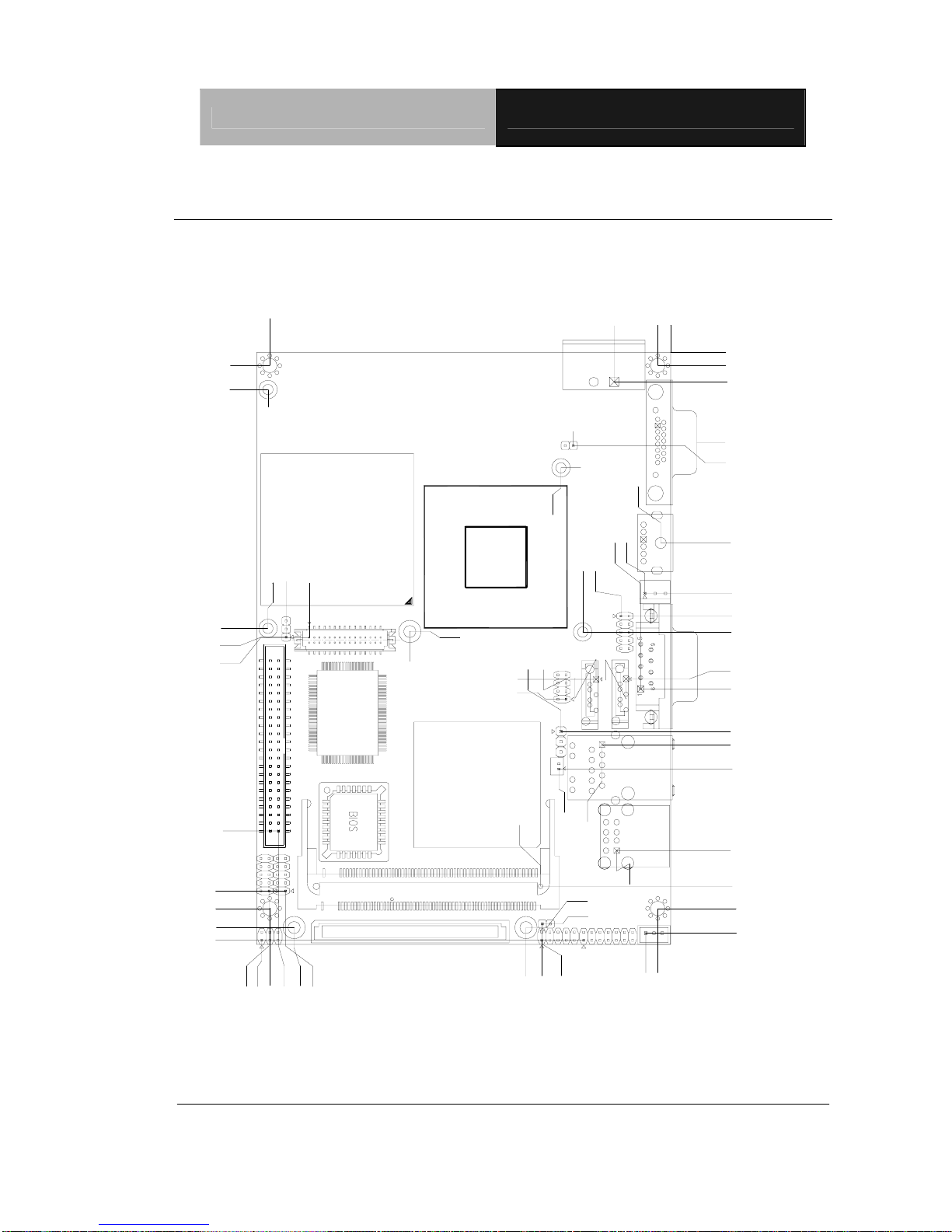

2.3 Mechanical Drawing
Component Side
71.45 74.50
114.17
4.01
66.93
71.45
43.69
9.69
0.00
133.93
128.02
0.43
108.71
68.33
34.37
0.43
69.09
76.78
68.20
129.91
98.37
137.16
95.20
133.93
114.94
95.93
90.17
92.02
77.72
86.18
72.14
91.00
54.15
72.70
51.61
80.06
87.43
70.94
34.43
81.55
85.12
14.28
4.70
62.87
5.97
4.70 0.00
95.20
6.10
92.28
3.81
66.88 66.75
19.12
3.89
0.18
4.32
0.00
0.00
7.88
1.96
2.12
5.46
66.44
40.44
61.21 61.34
84.49
66.83

SubCompact Board GENE-9310
Chapter 2 Quick Installation Guide 2-6
DC FAN
HEATSINK
(39.60)
(17.30)
(13.35)
(12.55)
(12.90)
(119.38)
(103.24)
(77.47)
(46.99)
(22.22)
(14.20)
(7.90)
(8.40)
(1.60)
(61.70) (60.00)
