A&D AD-4406A User manual

INSTRUCTION MANUAL
1WMPD4002536A
AD-4406A
OP-03/04/05/07/08/11
WEIGHING INDICATOR
INSTRUCTION MANUAL

This Manual and Warning Definitions
The warnings described in this manual have the following meanings:
CAUTION Disregarding the caution could result in loss of
important data or damage to the instrument
Note Provides information useful for the user to operate the
instrument.
This is a hazard alert mark.
© 2015 A&D Company, Limited. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, or translated
into any language in any form by any means without the written permission of A&D
Company, Limited.
The contents of this manual and the specifications of the instrument covered by this
manual are subject to change for improvement without notice.

AD-4406A Weighing Indicator Page 1
Contents
1. Compliance ....................................................................................................................3
1.1. Compliance with FCC Rules ............................................................................................. 3
1.2. Compliance with European Directive ................................................................................ 3
2. Introduction....................................................................................................................4
3. Installation and Precautions.........................................................................................5
3.1. Installation and Precautions .............................................................................................. 5
3.2. Power Supply.................................................................................................................... 5
3.3. The Load Cell Connections............................................................................................... 6
3.4. Adjustment of the Load Cell Output .................................................................................. 6
3.5. Verifying Load Cell Output and Input Sensitivity............................................................... 7
3.6. Installing an Option Board.................................................................................................7
3.7. Attaching the Display Stand (OP-11) ................................................................................ 7
4. Description of Panels and Symbols.............................................................................8

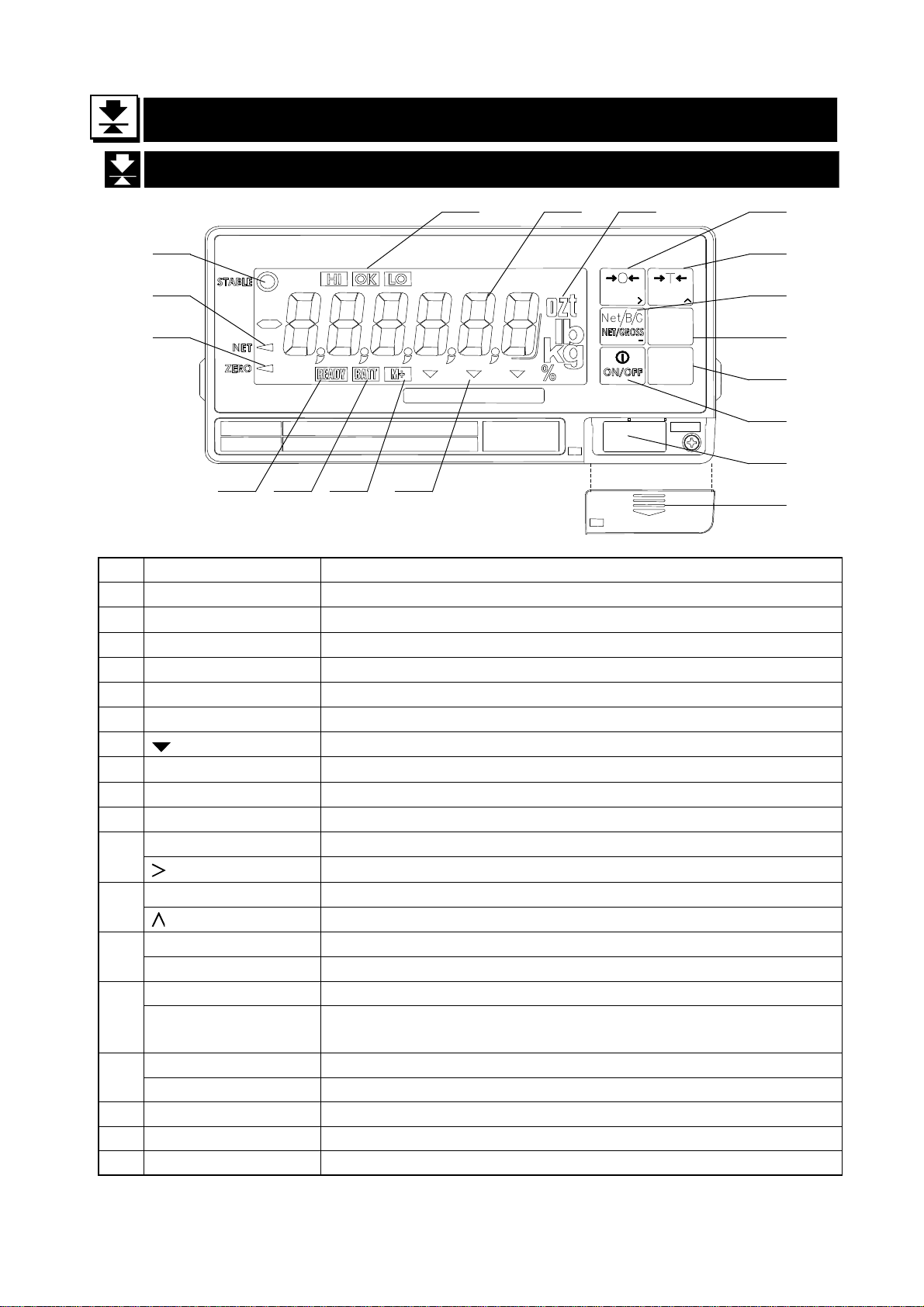

4.1. Front Panel Description..................................................................................................... 8

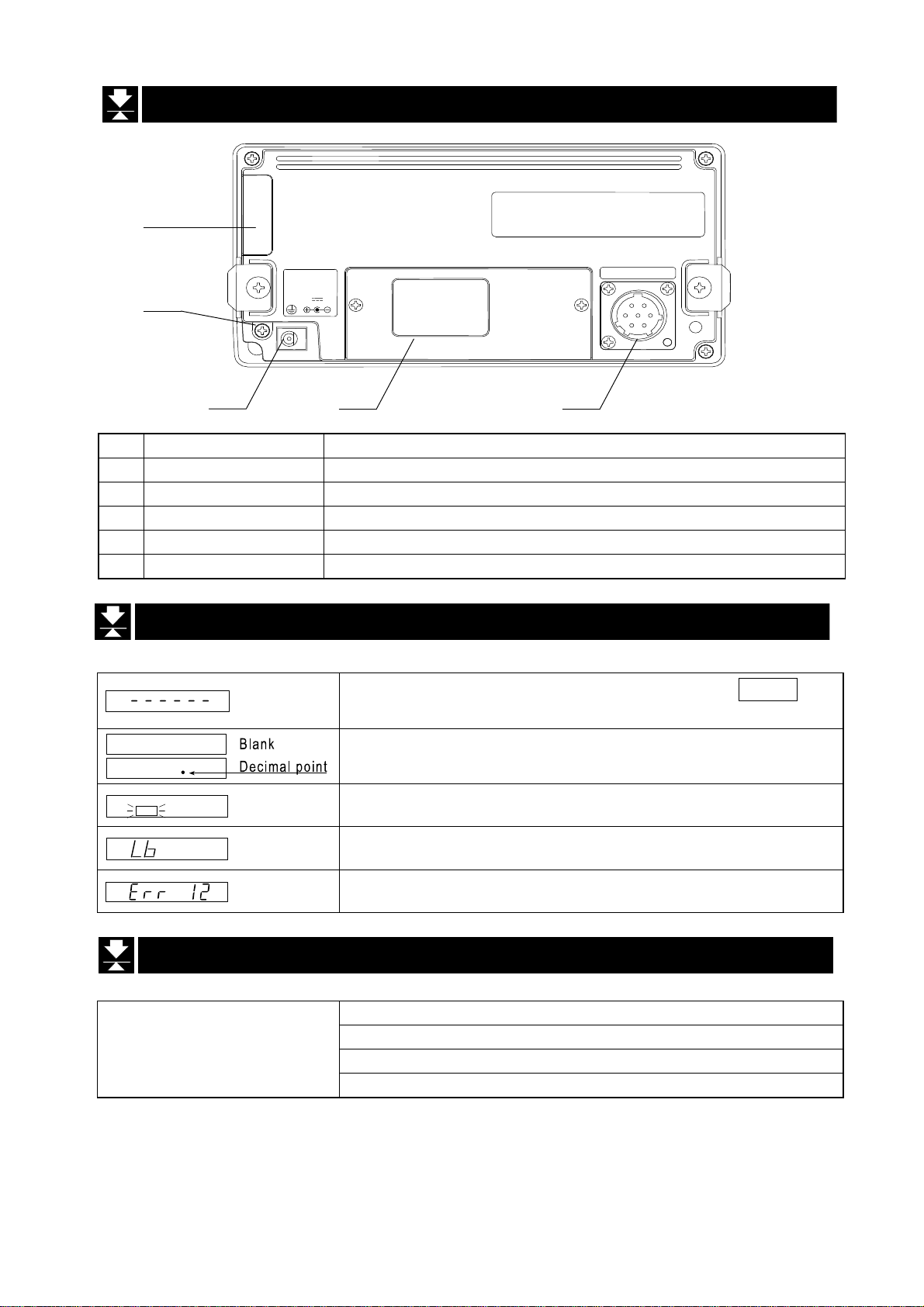

4.2. Rear Panel Description .....................................................................................................9
4.3. Other Displays and Symbols............................................................................................. 9
4.4. Accessories....................................................................................................................... 9
5. Calibration....................................................................................................................10
5.1. Items of the Calibration Mode ......................................................................................... 10
5.2. Calibration Procedure...................................................................................................... 11
5.2.1. Configuring a Weighing Instrument............................................................................. 11
5.2.2. Specifying the Range and Unit.................................................................................... 12
5.2.3. Specifying the Resolution, Decimal Point Position and Format .................................. 12
5.2.4. Specifying the Weighing Capacity of the First Range................................................. 13
5.2.5. Specifying the Second Range Resolution................................................................... 13
5.2.6. Specifying the Second Range Capacity...................................................................... 13
5.2.7. To Get Stabilized Data................................................................................................ 13
5.2.8. Zero Calibration........................................................................................................... 14
5.2.9. Span Calibration.......................................................................................................... 14
5.2.10.Exiting the Calibration Mode ....................................................................................... 15
5.3. Weighing Range Function............................................................................................... 16
5.3.1. Setting the Division and Range................................................................................... 17
5.4. Digital Linearization Function.......................................................................................... 17
5.5. Gravity Compensation Function......................................................................................... 18
5.5.1. The Gravity Acceleration Table................................................................................... 19
5.6. Calibration Error Code List................................................................................................. 20

Page 2 AD-4406A Weighing Indicator
6. Functions......................................................................................................................21
6.1. Changing the Function Settings......................................................................................... 21
6.2. F-Functions ..................................................................................................................... 22
6.3. CF-Functions.................................................................................................................... 29
7. Function keys F1 and F2.............................................................................................30
8. Tare...............................................................................................................................31
9. Accumulation...............................................................................................................32
9.1. Preparation and Specification ......................................................................................... 32
9.2. Display and Operation.....................................................................................................33
10. Code Memory.............................................................................................................35
11. Comparison................................................................................................................36
11.1. Weight Check Mode........................................................................................................ 36
11.1.1.Condition Formula for Comparison ............................................................................. 37
11.1.2.Setting the Upper/Lower Limit Values......................................................................... 37
11.2. Setpoint Comparison....................................................................................................... 39
11.2.1.Description of Input Parameters and Outputs............................................................. 39
11.2.2.Simple Batch............................................................................................................... 40
11.2.3.Setting the Parameters of Setpoint Comparison......................................................... 41
12. Hold Function.............................................................................................................42
12.1. Setting the Hold Functions.............................................................................................. 42
13. RS-232C Interface (OP-04, OP-05, OP-08)................................................................44
13.1. Specifications.................................................................................................................. 44
13.2. Data Format .................................................................................................................... 45
13.3. Command Format ...........................................................................................................45
13.3.1.Commands to Request Data....................................................................................... 46
13.3.2.Commands to Control the Indicator............................................................................. 47
13.3.3.Commands to Set Parameters.................................................................................... 49
13.3.4.Commands for Hold Function...................................................................................... 49
13.3.5.Commands to Set Serial Data Output Format (UFC).................................................. 50
13.4. UFC Command ............................................................................................................... 50
14. RS-422/RS-485, Relay Output (OP-03)......................................................................52
15. Relay Output & Control Input (OP-05)......................................................................54
16. 4-20 mA Analog Output (OP-07) ...............................................................................55
17. Current Loop Output (OP-08)....................................................................................56
18. Specifications ............................................................................................................58
18.1. Dimensions...................................................................................................................... 59

AD-4406A Weighing Indicator Page 3
1. Compliance
1.1. Compliance with FCC Rules
Please note that this equipment generates, uses and can radiate radio frequency
energy. This equipment has been tested and has been found to comply with the
limits of a Class A computing device pursuant to Subpart J of Part 15 of FCC rules.
These rules are designed to provide reasonable protection against interference
when this equipment is operated in a commercial environment. If this unit is
operated in a residential area it may cause some interference and under these
circumstances the user would be required to take, at his own expense, whatever
measures are necessary to eliminate the interference.
(FCC = Federal Communications Commission in the U.S.A.)
1.2. Compliance with European Directive
This appliance complies with the statutory EMC (Electromagnetic Compatibility)
directive 89/336/EEC and the Low Voltage Directive 73/23/EEC for safety of
electrical equipment designed for certain voltages.
Note The displayed value may be adversely affected under extreme
electromagnetic influences.
1. Compliance

Page 4 AD-4406A Weighing Indicator
2. Introduction
The AD-4406A is a compact weighing indicator that amplifies the signal from a load
cell, converts it to digital data and displays it as a mass value.
This indicator has the following performance:
Input sensitivity:.........................0.15 µV/division
Maximum display:......................40000 divisions
Display update rate:................... 10 times/second approximately
Input voltage range:...................-35 mV to +35 mV
The following standard functions are available:
The HiHi/Hi/OK/Lo/LoLo limit comparison to check a mass value.
The setpoint comparison for batching applications.
Four code memories to store the above mentioned data.
The accumulation function to totalize these mass values and to count the
number of accumulations.
The hold function enables weighing a live animal.
UFC (Universal Flexi Coms) function to customize the protocol of outputting data
using the serial interface.
The following interfaces and the display stand are available as an option:
The RS-232C serial interface to communicate with a computer, printer or remote
display. This interface outputs data and can request weight data, enter
parameters and control the state of the indicator. (Options: OP-04, OP-05,
OP-08)
RS-422/485, 3-Relay Outputs (Option: OP-03)
RS-232C, 3-Relay Outputs and 3-Control Inputs (Option: OP-05)
Analog Output (4-20 mA) (Option: OP-07)
RS-232C, Current Loop Output, 3-Relay Outputs and 1-Control Input (Option:
OP-08)
Only one interface can be installed at a time.
Display stand (Option: OP-11)
The calibration mode includes the following functions:
Setting of the minimum division (weighing interval) and the maximum capacity
Zero and span calibration
The weighing range function of the multi-interval weighing instrument (scale)
Digital linearization function
Gravity compensation function
2. Introduction

AD-4406A Weighing Indicator Page 5
3. Installation and Precautions
3.1. Installation and Precautions
The AD-4406A weighing indicator is a precision electronic instrument. Handle the
indicator carefully.
The operating temperature is -10 to +40 (14 to 104 ).
Do not install the indicator in direct sunlight.
A malfunction or other problems may be caused by an unstable power source including
momentary power failure or instantaneous noise. Use a stable power source.
When an AC Adapter is used, please confirm that the local voltage and receptacle type
are correct for your indicator.
Use shielded cables for all connections. Connect the cable shields to the shield
terminal or case as an earth terminal.
Earth ground the indicator. Do not share the earth ground line with other electrical
power equipment.
Do not install the indicator in a place where it is apt to be charged with static
electricity, or where the relative humidity is less than 45%. Plastic and isolators are
apt to be charged with static electricity.
3.2. Power Supply
When an AC adapter is used
A stable power source must be used; an unstable power source which includes an
instantaneous noise component may result in a malfunction.
When standard batteries are used
Use six new size C batteries, preferably alkaline type.
Remove the battery cover. Press in and up on the end of the battery box. Slowly
release pressure on the battery box while holding it against the top of the battery
compartment. The battery box will slide out.
Insert the batteries into the battery box, taking care of the polarity of the batteries.
Then, insert the battery box, contact end first, into the battery compartment. Push it
in and towards the bottom. The battery box will hook onto the edge of the
compartment. Attach the cover over the battery box so that it will not fall out.
Rechargeable size C batteries can be used in place of standard batteries. For
details on how to use and charge the rechargeable batteries, refer to the battery
instruction manual.
3. Installation and Precautions

Page 6 AD-4406A Weighing Indicator
3.3. Load Cell Connections
Connect the load cell wires to the connector (receptacle), at the rear panel, using
the accessory load cell plug.
It is possible to connect a 4 wire cable provided that pins 1-2 and pins 3-4 are
connected, if the distance between the indicator and a load cell is shorter than 5m.
The output voltage of a load cell is a very sensitive signal. Place the load cell cable
away from any noise source.
It is possible to connect four 350 ohm load cells.
The load cell drive is 5VDC 5% between EXC+ and EXC-, the maximum current 60
mA.
3.4. Adjustment of the Load Cell Output
Caution Use a metal film resistor in the range of 50kohm to 500kohm with a
good temperature coefficient, when adding a resistor to adjust a load
cell output. Use the largest resistance value possible in the range in
which zero adjustment is possible. Solder this resistor at a point near
the load cell or the indicator.
In Case of Reducing the Output Voltage
When the zero output is too large, add a resistor
between EXC+ and SIG-.
In Case of Adding an Offset Voltage to the Output
When the zero output is too small, add a resistor
between EXC+ and SIG+.
3. Installation and Precautions
Connection available for
a cable shorter than 5 m.
(Recommended wire cross-
sectional area: 0.5 mm2or greater)
Cable
Shield
Load cell
Cable
Positive Signal Output
Negative Signal Output
Negative Sense
Negative Excitation Input
Positive Excitation Input
Positive Sense
Shield
Standard
connection
Load Cell Plug
Additi
ona
l
resistor
Additi
ona
l
resistor

AD-4406A Weighing Indicator Page 7
3.5. Verifying Load Cell Output and Input Sensitivity
The input sensitivity of the indicator is 0.15 µV/division or more. Satisfy the following
inequality, when you design a weighing instrument using the indicator and load
cell(s).
Caution A change in input voltage sensitivity is required to cause a one division
change in the display. Select as large an input sensitivity voltage as
possible so that the weighing interval becomes stable.
Consider the leverage if a lever is used.
Weighing instrument
using one load cell.
Weighing instrument
using multi-load cell
A:Rated capacity of load cell [kg]
B:Rated output [mV/V]
D:Weighing interval [kg]
E:Excitation voltage [mV]
N:Number of load cells
Verification Example
Design:
Load cell N=1
Rated capacity A=750 [kg]
Rated output B=3 [mV/V]
Excitation voltage E=5000 [mV]
Weighing interval D=0.05 [kg]
Weighing capacity 300 [kg]
Therefore, regard the instrument as a
good design.
3.6. Installing an Option Board
Caution Do not remove any screws other than described below.
This is the procedure for the interface (OP-03, OP-04, OP-05, OP-07 and OP-08).
Step 1 Remove the batteries or AC adapter from the indicator.
Step 2 Remove two screws from the rear blank panel.
Step 3 Remove the rear blank panel.
Step 4 Align the option board with both board guides and insert the board. Then the
connector between the main board and the option board will connect properly. If
the option board panel will not close completely, retry step 4 to insert the option
board correctly.
Step 5 Secure the option board panel using two screws.
3.7. Attaching the Display Stand (OP-11)
Caution Do not remove any screws other than described below.
Step 1 Remove the batteries or AC adapter from the indicator.
Step 2 Secure the stand to both slide-rails with the bolts provided.
3. Installation and Precautions
ADBE
15.0 

NA DBE
15.0 


15.01
750 05.035000 


Page 8 AD-4406A Weighing Indicator
4. Description of Panels and Symbols
4.1. Front Panel Description
No. Name Description
1 STABLE Indicates when the display is stable.
2 NET Indicates when the weight is the net weight.
3 ZERO Indicates when the displayed weight is in the Zero range.
4 READY Indicates the state of comparison or batching.
5 BATT Indicates when the battery is low.
6 M+ (Accumulation) Indicates when there is a result of addition or accumulation.
7 (Triangle mark) Depending on the function selected, indicates various states.
8 HI/OK/LO Indicates the results of comparison.
9 Data display Displays the weight data.
10 Unit of measure Unit used to weigh
ZERO key The key to zero the current display.
11 key The key to select the digit while in the setting mode.
TARE key The key to perform tare.
12 key The key to select a value while in the setting mode.
NET/GROSS key The key to select net or gross weight in the display.
13 +/- key The key to select + or – of a value.
F1 key The key to execute the setting.
14 ESC key The key to proceed to the next step without storing the data
set.
F2 key The key to execute the setting.
15 ENTER key Confirms settings and stores the value.
16 ON/OFF key Turns the indicator on and off.
17 CAL key The key to select calibration.
18 CAL cover Calibration protection cover.
4. Description of Panels and Symbols
CAPACITY
AD-4406A WEIGHING INDICATOR
F 2
ENTER
+/
1
2
3
F 1
ESC
TAREZERO
CAL.
1
8
2
3
9 10 11
12
4 5 6 7
13
14
15
16
17
18
