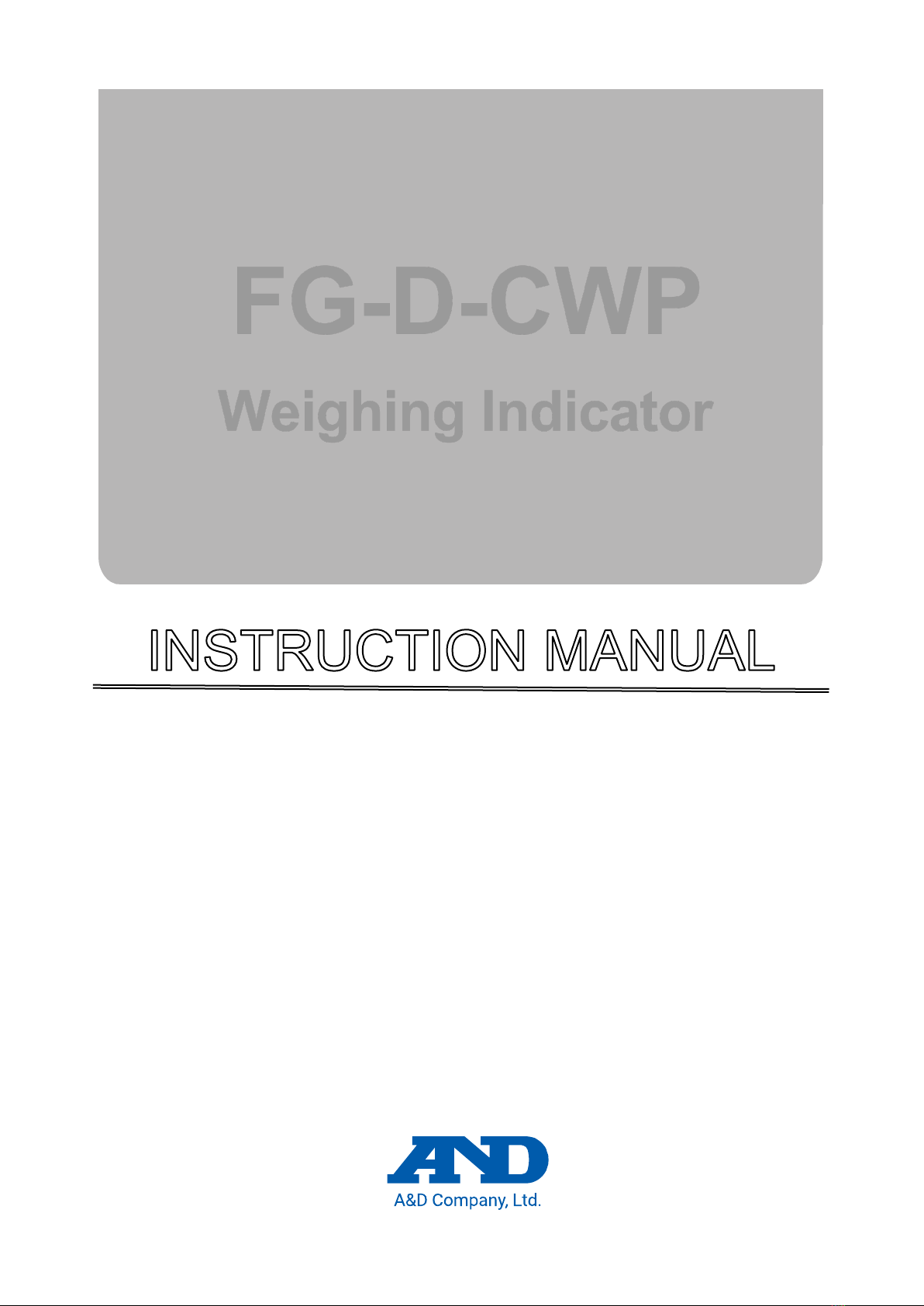

A&D FG-D-CWP User manual

FG-D-CWP
Weighing Indicator
For Waterproof Digital Platform Scale
1WMPD4004854

This Manual and Marks
All safety messages are identified by the following, “WARNING” or “CAUTION”, of
ANSI Z535.4 (American National Standard Institute: Product Safety Signs and
Labels). The meanings are as follows:
This is a hazard alert mark.
© 2022 A&D Company Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, or translated into any
language in any form by any means without the written permission of A&D Company Ltd.
The contents of this manual and the specifications of the instrument covered by this manual
are subject to change for improvement without notice.
Windows, Word and Excel are registered trademarks of the Microsoft Corporation.
WARNING
A potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
A potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.

3
Contents
1. COMPLIANCE ......................................................................................................................................... 4
1.1. COMPLIANCE WITH FCC RULES .......................................................................................................... 4
1.2. CLASSIFICATION OF PROTECTION PROVIDED BY ENCLOSURES.............................................................4
2. INTRODUCTION ..................................................................................................................................... 5
3. OUTLINE AND FEATURES..................................................................................................................... 5
4. ITEMS INCLUDED................................................................................................................................... 6
5. INSTALLATION AND PRECAUTIONS.................................................................................................... 7
5.1. PRECAUTIONS FOR INSTALLING THE INDICATOR ...................................................................................7
5.2. LOAD CELL CONNECTION .................................................................................................................. 7
5.3. HOW TO CONNECT THE LOAD CELL .................................................................................................... 9
5.4. VERIFYING LOAD CELL OUTPUT AND INPUT SENSITIVITY ...................................................................10
5.5. SETTING UP THE INDICATOR ........................................................................................................... 11
5.6. SENSITIVITY ADJUSTMENT AND PARAMETER SETTINGS .................................................................... 11
6. PART NAMES ...................................................................................................................................... 12
6.1. DISPLAY AND SYMBOLS....................................................................................................................12
6.2. OPERATION KEYS ............................................................................................................................ 13
7. SENSITIVITY ADJUSTMENT................................................................................................................ 14
7.1. SENSITIVITY ADJUSTMENT ITEMS ......................................................................................................14
7.2. SETTING OF THE WEIGHING CAPACITY /MINIMUM DIVISION /DECIMAL POINT POSITION ......................16
7.3. SENSITIVITY ADJUSTMENT USING A WEIGHT .....................................................................................17
7.4. CORRECTING FOR GRAVITATIONAL ACCELERATION ...........................................................................18
8. SETTING FUNCTIONS OR UNITS FOR USE ...................................................................................... 19
8.1. SETTING OF THE CF FUNCTION ........................................................................................................ 19
8.2. SETTING UNITS FOR USE ................................................................................................................. 20
8.3. CF FUNCTION LIST ..........................................................................................................................21
9. OPTIONS ............................................................................................................................................... 22
9.1. OPTION LIST.................................................................................................................................... 22
10.MAINTENANCE ..................................................................................................................................... 23
10.1. REPAIR ...........................................................................................................................................23
10.2. ERROR DISPLAY ..............................................................................................................................23
10.3. ERROR CODE TABLE........................................................................................................................ 24
11.SPECIFICATIONS ................................................................................................................................. 25
11.1. SPECIFICATIONS LIST....................................................................................................................... 25
11.2. DIMENSIONS....................................................................................................................................26
11.3. GRAVITY ACCELERATION MAP ..........................................................................................................27

4
1. Compliance
1.1. Compliance with FCC rules
Please note that this equipment generates, uses and can radiate radio frequency energy.
This equipment has been tested and has been found to comply with the limits of a Class A
computing device pursuant to Subpart J of Part 15 of FCC rules. These rules are designed to
provide reasonable protection against interference when this equipment is operated in a
commercial environment. If this unit is operated in a residential area, it might cause some
interference and under these circumstances the user would be required to take, at his own
expense, whatever measures are necessary to eliminate the interference.
(FCC = Federal Communications Commission in the U.S.A.)
1.2. Classification of Protection Provided by Enclosures
This equipment complies with the IP Code IEC 60529.
The meaning of the IP67 code is as follows:
IP : International Protection.
6 : Protection against ingress of dust and airborne particles.
7 : Protection against water and liquids, up to and included submersion of up to one meter.

5
2. Introduction
Thank you for purchasing an A&D FG-D-CWP weighing indicator (for the IP67 waterproof digital platform
scale). This instruction manual mainly describes installation. Please refer to it when connecting or
installing the FG-D-CWP to a weighing platform (load cell). Also, the FG-D-CWP has the same functions
as that of the indicator for the FG-CWP series. Although this manual covers some of the functions and
how to use the series, the following instruction manual explains all of them.
[The instruction manual of the FG-CWP series]
The instruction manual for understanding and fully utilizing the waterproof digital platform scale, the FG-
CWP series, can be downloaded from the A&D website (https://www.aandd.jp).
3. Outline and Features
The FG-D-CWP is an electronic indicator that is appropriate for composing an IP67 waterproof digital
platform scale by connecting to a weighing platform (load cell), and it has the following features.
The indicator made of all stainless steel and has waterproof/dustproof performance compliant with IP67.
(Intrusion of water into the device is prevented even when submerged to a depth of 1 m
for 30 minutes.)
Operating up to four 350Ω load cells is available.
Available range selection, for the display resolution, is 1/20 to 1/100,000.
Free setting of the weighing capacity, within the display resolution of 1/100,000, is available.
Available weighing units are kg (kilogram), g (gram), Ib (pound), oz (ounce), t (ton), and
pcs (pieces for the counting mode).
It has similar specifications and functions as an indicator of the FG-CWP series.
