ABB Relion 615 series User manual

Relion® 615 series
Grid Automation

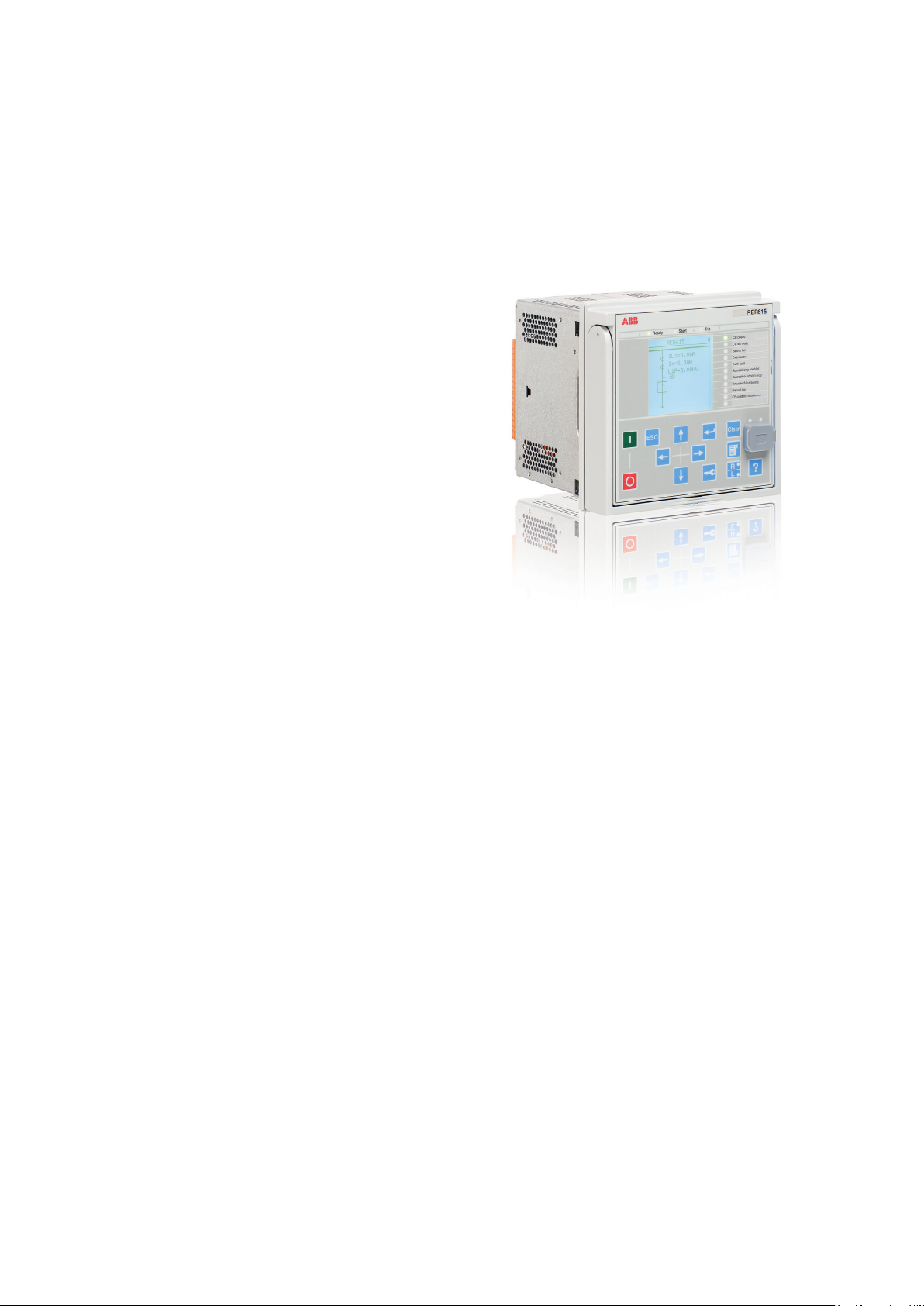

Recloser Protection and Control RER615
DNP3 Point List Manual

Document ID: 1MRS757823
Issued: 2013-09-17
Revision: A
Product version: 1.0
© Copyright 2013 ABB. All rights reserved

Copyright
This document and parts thereof must not be reproduced or copied without written
permission from ABB, and the contents thereof must not be imparted to a third
party, nor used for any unauthorized purpose.
The software or hardware described in this document is furnished under a license
and may be used, copied, or disclosed only in accordance with the terms of such
license.
Trademarks
ABB and Relion are registered trademarks of the ABB Group. All other brand or
product names mentioned in this document may be trademarks or registered
trademarks of their respective holders.
Warranty
Please inquire about the terms of warranty from your nearest ABB representative.
http://www.abb.com/substationautomation

Disclaimer
The data, examples and diagrams in this manual are included solely for the concept
or product description and are not to be deemed as a statement of guaranteed
properties. All persons responsible for applying the equipment addressed in this
manual must satisfy themselves that each intended application is suitable and
acceptable, including that any applicable safety or other operational requirements
are complied with. In particular, any risks in applications where a system failure and/
or product failure would create a risk for harm to property or persons (including but
not limited to personal injuries or death) shall be the sole responsibility of the
person or entity applying the equipment, and those so responsible are hereby
requested to ensure that all measures are taken to exclude or mitigate such risks.
This product has been designed to be connected and communicate data and
information via a network interface which should be connected to a secure
network. It is the sole responsibility of the person or entity responsible for network
administration to ensure a secure connection to the network and to take the
necessary measures (such as, but not limited to, installation of firewalls, application
of authentication measures, encryption of data, installation of anti virus programs,
etc.) to protect the product and the network, its system and interface included,
against any kind of security breaches, unauthorized access, interference, intrusion,
leakage and/or theft of data or information. ABB is not liable for any such damages
and/or losses.
This document has been carefully checked by ABB but deviations cannot be
completely ruled out. In case any errors are detected, the reader is kindly requested
to notify the manufacturer. Other than under explicit contractual commitments, in
no event shall ABB be responsible or liable for any loss or damage resulting from
the use of this manual or the application of the equipment.

Conformity
This product complies with the directive of the Council of the European
Communities on the approximation of the laws of the Member States relating to
electromagnetic compatibility (EMC Directive 2004/108/EC) and concerning
electrical equipment for use within specified voltage limits (Low-voltage directive
2006/95/EC). This conformity is the result of tests conducted by ABB in
accordance with the product standards EN 50263 and EN 60255-26 for the EMC
directive, and with the product standards EN 60255-1 and EN 60255-27 for the low
voltage directive. The product is designed in accordance with the international
standards of the IEC 60255 series.

Table of contents
Section 1 Introduction.......................................................................7
This manual........................................................................................7
Intended audience..............................................................................7
Product documentation.......................................................................7
Product documentation set............................................................7
Document revision history.............................................................8
Related documentation..................................................................8
Symbols and conventions...................................................................8
Symbols.........................................................................................8
Document conventions..................................................................9
Functions, codes and symbols......................................................9
Section 2 DNP3 data mappings.....................................................15
Overview...........................................................................................15
Supported functions..........................................................................15
Binary inputs.....................................................................................17
System functions.........................................................................18
CTRL.LLN0 Local/remote state (also present in DNP IIN-
bits).........................................................................................18
LD0.LLN0 Settings supervision..............................................18
LD0.GSEGGIO1 Goose supervision......................................18
Switchgear functions...................................................................18
CTRL.Cxxxxx1 Circuit breaker (1) CB object and failure
protection................................................................................18
Sensors and monitoring functions...............................................19
LD0.SSCBR1 Circuit-breaker condition monitoring................19
LD0.TCSSCBR1 Trip circuit supervision (1)..........................19
LD0.TCSSCBR2 Trip circuit supervision (2)..........................19
Metering and measurand functions.............................................20
LD0.CMMXU1 Phase currents (1) limit supervision...............20
LD0.RESCMMXU1 Residual current limit supervision...........20
LD0.VMMXU1 Three-phase voltage limit supervision............20
LD0.VMMXU2 Three-phase voltage limit supervision
(2)...........................................................................................20
Power quality functions................................................................21
LD0.CMHAI1 Power quality - current total demand
distortion.................................................................................21
LD0.PH1QVVR1 PQ - Voltage variation signals....................21
LD0.VMHAI1 PQ - Voltage total harmonic distortion..............21
LD0.VSQVUB1 PQ Voltage unbalance detection..................21
Table of contents
Recloser Protection and Control RER615 1
Point List Manual

Protection functions.....................................................................22
LD0.LEDPTRC1 Global protection signals.............................22
LD0.TRPPTRC1 Global conditioning (1)................................22
LD0.TRPPTRC2 Global conditioning (2)................................22
LD0.DEFHPDEF1 Directional earth-fault protection -
high stage 1............................................................................22
LD0.DPHHPDOC1 Three-phase directional overcurrent
protection - high stage (1)......................................................23
LD0.EFHPTOC1 Non-directional earth-fault and
sensitive earth-fault protection - high stage 1.........................23
LD0.EFIPTOC1 Non-directional earth-fault and sensitive
earth-fault protection - instantaneous stage 1........................23
LD0.EFPADM1 Admittance-based earth-fault protection
(1)...........................................................................................23
LD0.EFPADM2 Admittance-based earth-fault protection
(2)...........................................................................................24
LD0.EFPADM3 Admittance-based earth-fault protection
(3)...........................................................................................24
LD0.FPHLPTOC1 FA-Phase overcurrent protection –
low stage (1)...........................................................................24
LD0.FDPHLPDOC1 FA-Three-phase directional
overcurrent protection – low stage (1)....................................24
LD0.FDPHLPDOC2 FA-Three-phase directional
overcurrent protection – low stage (2)....................................24
LD0.FEFLPTOC1 FA-Non-directional earth-fault
protection – low stage (1).......................................................25
LD0.FDEFLPDEF1 FA-Directional earth-fault protection
– low stage (1)........................................................................25
LD0.FDEFLPDEF2 FA-Directional earth-fault protection
– low stage (2)........................................................................25
LD0.FRPFRQ1 Frequency protection (1)...............................25
LD0.FRPFRQ2 Frequency protection (2)...............................26
LD0.HAEFPTOC1 Harmonics-based earth-fault
protection................................................................................26
LD0.INPHAR1 Three-phase inrush detection........................26
LD0.NSPTOC1 Negative-sequence overcurrent
protection (1)..........................................................................26
LD0.NSPTOC2 Negative-sequence overcurrent
protection (2)..........................................................................27
LD0.NSPTOV1 Negative-sequence overvoltage
protection - stage 1.................................................................27
LD0.PDNSPTOC1 Phase discontinuity protection.................27
LD0.PHHPTOC1 Phase overcurrent protection - high
stage 1 ...................................................................................27
LD0.PHIPTOC1 Phase overcurrent protection -
instantaneous stage 1 ...........................................................27
Table of contents
2Recloser Protection and Control RER615
Point List Manual

LD0.PHPTOV1 Phase overvoltage protection - stage 1........28
LD0.PHPTOV2 Phase overvoltage protection - stage 2........28
LD0.PHPTOV3 Phase overvoltage protection - stage 3........28
LD0.PHPTUV1 Phase undervoltage protection - stage
1.............................................................................................28
LD0.PHPTUV2 Phase undervoltage protection - stage
2.............................................................................................28
LD0.PHPTUV3 Phase undervoltage protection - stage
3.............................................................................................29
LD0.PSPTUV1 Positive-sequence undervoltage
protection - stage 1.................................................................29
LD0.ROVPTOV1 Residual overvoltage protection (1)...........29
LD0.ROVPTOV2 Residual overvoltage protection (2)...........29
LD0.T1PTTR1 Thermal protection (1)....................................29
LD0.WPWDE1 Wattmetric-based earth-fault protection
(1)...........................................................................................30
LD0.WPWDE2 Wattmetric-based earth-fault protection
(2)...........................................................................................30
LD0.WPWDE3 Wattmetric-based earth-fault protection
(3)...........................................................................................30
Protection-related functions.........................................................30
LD0.SEQRFUF1 Fuse failure protection................................30
LD0.DARREC1 Autorecloser.................................................31
DR.RDRE1 Disturbance recorder..........................................31
LD0.SECRSYN1 Synchrocheck ............................................32
Generic functions.........................................................................32
LD0.MVGAPC1 Multipurpose binary inputs (1)......................32
LD0.MVGAPC2 Multipurpose binary inputs (2)......................32
LD0.MAPGAPC1 Multipurpose analog protection
function (1).............................................................................33
LD0.MAPGAPC2 Multipurpose analog protection
function (2).............................................................................33
LD0.MAPGAPC3 Multipurpose analog protection
function (3).............................................................................33
LD0.MAPGAPC4 Multipurpose analog protection
function (4).............................................................................33
LD0.MAPGAPC5 Multipurpose analog protection
function (5).............................................................................33
LD0.MAPGAPC6 Multipurpose analog protection
function (6).............................................................................34
LD0.SPCGGIO1 Multipurpose binary outputs - status
(1)...........................................................................................34
LD0.SPCGGIO2 Multipurpose binary outputs - status
(2)...........................................................................................34
Table of contents
Recloser Protection and Control RER615 3
Point List Manual

LD0.SPCLGGIO1 Multipurpose binary outputs - status
(1)...........................................................................................35
LD0.SPCRGGIO1 Multipurpose binary outputs - status
(1)...........................................................................................36
Physical and raw I/O data............................................................36
LD0.XGGIO100 Physical I/O..................................................36
LD0.XGGIO110 Physical I/O..................................................37
LD0.XGGIO120 Physical I/O..................................................37
Binary outputs...................................................................................37
System functions.........................................................................38
LD0.LLN0/LPHD1 Reset indications and LEDs, reset
device.....................................................................................38
LD0.DNPGGIO1 Parameter setting group control.................38
Switchgear functions...................................................................38
CTRL.CBCSWI1 Circuit breaker control ...............................38
Sensors and monitoring functions...............................................39
LD0.SSCBR1 Reset signals of CB condition monitoring........39
Metering and measurand functions.............................................39
LD0.PEMMXU1 Reset accumulated energy values...............39
Protection-related functions.........................................................39
LD0.DARREC1 Autoreclosing reset signals...........................39
DR.RDRE1 Disturbance recorder..........................................39
Generic functions.........................................................................40
LD0.SPCGGIO1 Multipurpose binary outputs (1)..................40
LD0.SPCGGIO2 Multipurpose binary outputs (2)..................40
LD0.SPCRGGIO1 Multipurpose binary outputs (1)................41
LD0.SRGAPC1 Multipurpose binary outputs - flip-flop
resets (1)................................................................................42
LD0.SRGAPC2 Multipurpose binary outputs - flip-flop
resets (2)................................................................................42
Analog inputs....................................................................................42
System functions.........................................................................43
CTRL.LLN0 Local remote station off......................................43
LD0.LPHD1 System values....................................................43
LD0.DNPGGIO1 Active parameter setting group...................43
Switchgear functions...................................................................44
CTRL.CBCSWI1 CB 4-pole (2 bit) position value..................44
CTRL.DCSXSWI1 Disconnector 1, 4-pole (2 bit)
position values........................................................................44
CTRL.DCSXSWI2 Disconnector 2, 4-pole (2 bit)
position values........................................................................44
CTRL.ESSXSWI1 Earth switch 1, 4-pole (2 bit) position
values.....................................................................................44
Table of contents
4Recloser Protection and Control RER615
Point List Manual

CTRL.ESSXSWI2 Earth switch 2, 4-pole (2 bit) position
values.....................................................................................44
Metering and measurand functions.............................................45
LD0.CMMXU1 Phase currents (1)..........................................45
LD0.RESCMMXU1 Residual current (1)................................45
LD0.CSMSQI1 Sequence of currents....................................45
LD0.VMMXU1 Voltage measurement ...................................45
LD0.VMMXU2 Voltage measurement (2)...............................46
LD0.VSMSQI1 Sequence of voltage measurement...............46
LD0.VSMSQI2 Sequence of voltage measurement (2)..........47
LD0.PEMMTR1 Power measurement and accumulated
power values..........................................................................47
LD0.FMMXU1 Frequency measurement ...............................47
LD0.LEDGGIO1 LHMI LED indications (3 states)..................47
LD0.HAEFMHAI1 Current harmonics ....................................48
Protection functions.....................................................................48
LD0.T1PTTR1 Temperature protection values (1).................48
Protection-related functions.........................................................49
LD0.DARREC1 Autoreclosing values....................................49
DR.RDRE1 Disturbance recorder values...............................49
LD0.SECRSYN1 Synchrocheck line and bus state................49
Section 3 DNP3 protocol implementation.......................................51
DNP3 device profile..........................................................................51
DNP3 implementation table..............................................................53
Section 4 Glossary.........................................................................57
Table of contents
Recloser Protection and Control RER615 5
Point List Manual

6

Section 1 Introduction
1.1 This manual
The point list manual describes the outlook and properties of the data points
specific to the IED. The manual should be used in conjunction with the
corresponding communication protocol manual.
1.2 Intended audience
This manual addresses the communication system engineer or system integrator
responsible for pre-engineering and engineering for communication setup in a
substation from an IED perspective.
The system engineer or system integrator must have a basic knowledge of
communication in protection and control systems and thorough knowledge of the
specific communication protocol.
1.3 Product documentation
1.3.1 Product documentation set
The application engineering guide contains application descriptions and setting
guidelines sorted per function. The manual can be used to find out when and for
what purpose a typical protection function can be used. The manual can also be
used when calculating settings.
The communication protocol manual describes a communication protocol
supported by the IED. The manual concentrates on vendor-specific implementations.
The engineering guide provides information for IEC 61850 engineering of the
protection IEDs with PCM600 and IET600. This guide concentrates especially on
the configuration of GOOSE communication with these tools. The guide can be
used as a technical reference during the engineering phase, installation and
commissioning phase, and during normal service. For more details on tool usage,
see the PCM600 documentation.
The engineering manual contains instructions on how to engineer the IEDs using
the different tools in PCM600. The manual provides instructions on how to set up a
PCM600 project and insert IEDs to the project structure. The manual also
1MRS757823 A Section 1
Introduction
Recloser Protection and Control RER615 7
Point List Manual

recommends a sequence for engineering of protection and control functions, LHMI
functions as well as communication engineering for IEC 61850 and other
supported protocols.
The installation manual contains instructions on how to install the IED. The
manual provides procedures for mechanical and electrical installation. The chapters
are organized in chronological order in which the IED should be installed.
The operation manual contains instructions on how to operate the IED once it has
been commissioned. The manual provides instructions for monitoring, controlling
and setting the IED. The manual also describes how to identify disturbances and
how to view calculated and measured power grid data to determine the cause of a
fault.
The point list manual describes the outlook and properties of the data points
specific to the IED. The manual should be used in conjunction with the
corresponding communication protocol manual.
The technical manual contains application and functionality descriptions and lists
function blocks, logic diagrams, input and output signals, setting parameters and
technical data sorted per function. The manual can be used as a technical reference
during the engineering phase, installation and commissioning phase, and during
normal service.
1.3.2 Document revision history
Document revision/date Product version History
A/2013-09-17 1.0 First release
Download the latest documents from the ABB Website
http://www.abb.com/substationautomation.
1.3.3 Related documentation
Name of the document Document ID
DNP3 Communication Protocol Manual 1MRS757820
1.4 Symbols and conventions
1.4.1 Symbols
The caution icon indicates important information or warning related
to the concept discussed in the text. It might indicate the presence
Section 1 1MRS757823 A
Introduction
8Recloser Protection and Control RER615
Point List Manual

of a hazard which could result in corruption of software or damage
to equipment or property.
The information icon alerts the reader of important facts and
conditions.
The tip icon indicates advice on, for example, how to design your
project or how to use a certain function.
Although warning hazards are related to personal injury, it is necessary to
understand that under certain operational conditions, operation of damaged
equipment may result in degraded process performance leading to personal injury
or death. Therefore, comply fully with all warning and caution notices.
1.4.2 Document conventions
A particular convention may not be used in this manual.
• Abbreviations and acronyms in this manual are spelled out in the glossary. The
glossary also contains definitions of important terms.
• The example figures in this manual illustrate the IEC display variant.
• HMI menu paths are presented in bold.
Select Main menu/Settings.
• LHMI messages are shown in Courier font.
To save the changes in non-volatile memory, select Yes and press .
• Parameter names are shown in italics.
The function can be enabled and disabled with the Operation setting.
• Parameter values are indicated with quotation marks.
The corresponding parameter values are "On" and "Off".
• IED input/output messages and monitored data names are shown in Courier font.
When the function starts, the START output is set to TRUE.
1.4.3 Functions, codes and symbols
All available functions are listed in the table. All of them may not be applicable to
all products.
1MRS757823 A Section 1
Introduction
Recloser Protection and Control RER615 9
Point List Manual

Table 1: Functions included in the IED
Function IEC 61850 IEC 60617 IEC-ANSI
Protection
Three-phase non-directional
overcurrent protection, low stage,
instance 1
FPHLPTOC1 3I> (1) 51P-1 (1)
Three-phase non-directional
overcurrent protection, high stage,
instance 1
PHHPTOC1 3I>> (1) 51P-2 (1)
Three-phase non-directional
overcurrent protection,
instantaneous stage, instance 1
PHIPTOC1 3I>>> (1) 50P/51P (1)
Three-phase directional overcurrent
protection, low stage, instance 1 FDPHLPTOC1 3I> -> (1) 67-1 (1)
Three-phase directional overcurrent
protection, low stage, instance 2 FDPHLPTOC2 3I> -> (2) 67-1 (2)
Three-phase directional overcurrent
protection, high stage, instance 1 DPHHPDOC1 3I>> -> (1) 67-2 (1)
Non-directional earth-fault protection,
low stage, instance 1 FEFLPTOC1 Io> (1) 51N-1 (1)
Non-directional earth-fault protection,
high stage, instance 1 EFHPTOC1 Io>> (1) 51N-2 (1)
Non-directional earth-fault protection,
instantaneous stage, instance 1 EFIPTOC1 Io>>> (1) 50N/51N (1)
Directional earth-fault protection, low
stage, instance 1 FDEFLPDEF1 Io> -> (1) 67N-1 (1)
Directional earth-fault protection, low
stage, instance 2 FDEFLPDEF2 Io> -> (2) 67N-1 (2)
Directional earth-fault protection,
high stage, instance 1 DEFHPDEF1 Io>> -> (1) 67N-2 (1)
Admittance-based earth-fault
protection, instance 1 EFPADM1 Yo> -> (1) 21YN (1)
Admittance-based earth-fault
protection, instance 2 EFPADM2 Yo> -> (2) 21YN (2)
Admittance-based earth-fault
protection, instance 3 EFPADM3 Yo> -> (3) 21YN (3)
Wattmetric-based earth-fault
protection, instance 1 WPWDE1 Po> -> (1) 32N (1)
Wattmetric-based earth-fault
protection, instance 2 WPWDE2 Po> -> (2) 32N (2)
Wattmetric-based earth-fault
protection, instance 3 WPWDE3 Po> -> (3) 32N (3)
Harmonics-based earth-fault
protection, instance 1 HAEFPTOC1 Io>HA (1) 51NHA (1)
Negative-sequence overcurrent
protection, instance 1 NSPTOC1 I2> (1) 46 (1)
Negative-sequence overcurrent
protection, instance 2 NSPTOC2 I2> (2) 46 (2)
Phase discontinuity protection,
instance 1 PDNSPTOC1 I2/I1> (1) 46PD (1)
Table continues on next page
Section 1 1MRS757823 A
Introduction
10 Recloser Protection and Control RER615
Point List Manual

Function IEC 61850 IEC 60617 IEC-ANSI
Residual overvoltage protection,
instance 1 ROVPTOV1 Uo> (1) 59G (1)
Residual overvoltage protection,
instance 2 ROVPTOV2 Uo> (2) 59G (2)
Three-phase undervoltage
protection, instance 1 PHPTUV1 3U< (1) 27 (1)
Three-phase undervoltage
protection, instance 2 PHPTUV2 3U< (2) 27 (2)
Three-phase undervoltage
protection, instance 3 PHPTUV3 3U< (3) 27 (3)
Three-phase overvoltage protection,
instance 1 PHPTOV1 3U> (1) 59 (1)
Three-phase overvoltage protection,
instance 2 PHPTOV2 3U> (2) 59 (2)
Three-phase overvoltage protection,
instance 3 PHPTOV3 3U> (3) 59 (3)
Positive-sequence undervoltage
protection, instance 1 PSPTUV1 U1< (1) 47U+ (1)
Negative-sequence overvoltage
protection, instance 1 NSPTOV1 U2> (1) 47O- (1)
Frequency protection, instance 1 FRPFRQ1 f>/f<,df/dt (1) 81 (1)
Frequency protection, instance 2 FRPFRQ2 f>/f<,df/dt (2) 81 (2)
Three-phase thermal protection for
feeders, cables and distribution
transformers, instance 1
T1PTTR1 3Ith>F (1) 49F (1)
Circuit-breaker failure protection,
instance 1 CCBRBRF1 3I>/Io>BF (1) 51BF/51NBF (1)
Three-phase inrush detector,
instance 1 INRPHAR1 3I2f> (1) 68 (1)
Master trip, instance 1 TRPPTRC1 Master Trip (1) 94/86 (1)
Master trip, instance 2 TRPPTRC2 Master Trip (2) 94/86 (2)
Multi-purpose protection, instance 1 MAPGAPC1 MAP (1) MAP (1)
Multi-purpose protection, instance 2 MAPGAPC2 MAP (2) MAP (2)
Multi-purpose protection, instance 3 MAPGAPC3 MAP (3) MAP (3)
Multi-purpose protection, instance 4 MAPGAPC4 MAP (4) MAP (4)
Multi-purpose protection, instance 5 MAPGAPC5 MAP (5) MAP (5)
Multi-purpose protection, instance 6 MAPGAPC6 MAP (6) MAP (6)
Power quality
Current total demand distortion,
instance 1 CMHAI1 PQM3I (1) PQM3I (1)
Voltage total harmonic distortion,
instance 1 VMHAI1 PQM3U (1) PQM3V (1)
Voltage variation, instance 1 PHQVVR1 PQMU (1) PQMV (1)
Voltage unbalance, instance 1 VSQVUB1 PQUUB (1) PQVUB (1)
Control
Circuit-breaker control, instance 1 CBXCBR1 I <-> O CB (1) I <-> O CB (1)
Table continues on next page
1MRS757823 A Section 1
Introduction
Recloser Protection and Control RER615 11
Point List Manual

Function IEC 61850 IEC 60617 IEC-ANSI
Disconnector position indication,
instance 1 DCSXSWI1 I <-> O DC (1) I <-> O DC (1)
Disconnector position indication,
instance 2 DCSXSWI2 I <-> O DC (2) I <-> O DC (2)
Earthing switch indication, instance 1 ESSXSWI1 I <-> O ES (1) I <-> O ES (1)
Earthing switch indication, instance 2 ESSXSWI2 I <-> O ES (2) I <-> O ES (2)
Autoreclosing, instance 1 DARREC1 O -> I (1) 79 (1)
Synchronism and energizing check,
instance 1 SECRSYN1 SYNC (1) 25 (1)
Condition monitoring
Circuit-breaker condition monitoring,
instance 1 SSCBR1 CBCM (1) CBCM (1)
Trip circuit supervision, instance 1 TCSSCBR1 TCS (1) TCM (1)
Trip circuit supervision, instance 2 TCSSCBR2 TCS (2) TCM (2)
Fuse failure supervision, instance 1 SEQRFUF1 FUSEF (1) 60 (1)
Measurement
Disturbance recorder, instance 1 RDRE1 DR (1) DFR (1)
Three-phase current measurement,
instance 1 CMMXU1 3I (1) 3I (1)
Sequence current measurement,
instance 1 CSMSQI1 I1, I2, I0 (1) I1, I2, I0 (1)
Residual current measurement,
instance 1 RESCMMXU1 Io (1) In (1)
Three-phase voltage measurement,
instance 1 VMMXU1 3U (1) 3V (1)
Three-phase voltage measurement,
instance 2 VMMXU2 3U (B) (1) 3V (B) (1)
Sequence voltage measurement,
instance 1 VSMSQI1 U1, U2, U0 (1) V1, V2, V0 (1)
Sequence voltage measurement,
instance 2 VSMSQI2 U1, U2, U0 (B) (1) V1, V2, V0 (B) (1)
Three-phase power and energy
measurement, instance 1 PEMMXU1 P, E (1) P, E (1)
Frequency measurement, instance 1 FMMXU1 f (1) f (1)
Load profile, instance 1 LDPMSTA1 LOADPROF (1) LOADPROF (1)
Other
Minimum pulse timer (2 pcs),
instance 1 TPGAPC1 TP (1) TP (1)
Minimum pulse timer (2 pcs),
instance 2 TPGAPC2 TP (2) TP (2)
Minimum pulse timer (2 pcs, second
resolution), instance 1 TPSGAPC1 TPS (1) TPS (1)
Minimum pulse timer (2 pcs, minute
resolution), instance 1 TPMGAPC1 TPM (1) TPM (1)
Pulse timer (8 pcs), instance 1 PTGAPC1 PT (1) PT (1)
Pulse timer (8 pcs), instance 2 PTGAPC2 PT (2) PT (2)
Table continues on next page
Section 1 1MRS757823 A
Introduction
12 Recloser Protection and Control RER615
Point List Manual

Function IEC 61850 IEC 60617 IEC-ANSI
Time delay off (8 pcs), instance 1 TOFGAPC1 TOF (1) TOF (1)
Time delay off (8 pcs), instance 2 TOFGAPC2 TOF (2) TOF (2)
Time delay on (8 pcs), instance 1 TONGAPC1 TON (1) TON (1)
Time delay on (8 pcs), instance 2 TONGAPC2 TON (2) TON (2)
Set reset (8 pcs), instance 1 SRGAPC1 SR (1) SR (1)
Set reset (8 pcs), instance 2 SRGAPC2 SR (2) SR (2)
Move (8 pcs), instance 1 MVGAPC1 MV (1) MV (1)
Move (8 pcs), instance 2 MVGAPC2 MV (2) MV (2)
Generic control point (16 pcs),
instance 1 SPCGGIO1 SPCGGIO (1) SPCGGIO (1)
Generic control point (16 pcs),
instance 2 SPCGGIO2 SPCGGIO (2) SPCGGIO (2)
Remote generic control points,
instance 1 SPCRGGIO1 SPCRGGIO (1) SPCRGGIO (1)
Local generic control points, instance
1SPCLGGIO1 SPCLGGIO (1) SPCLGGIO (1)
Generic up-down counters, instance 1 UDFCNT1 UDCNT (1) UDCNT (1)
Generic up-down counters, instance 2 UDFCNT2 UDCNT (2) UDCNT (2)
Generic up-down counters, instance 3 UDFCNT3 UDCNT (3) UDCNT (3)
1MRS757823 A Section 1
Introduction
Recloser Protection and Control RER615 13
Point List Manual

14
