ABB VM3D User manual

Commissioning instructions CI/VM3D-EN Rev. B
VM3D
Volumetric laser scanner
Measurement made easy
Volumetric laser scanner
Level products
Features
−Range up to 93 m (305 ft)
−Resolution 10 mm (0.39 po)
−Operating temperature –20°C to +50°C (–4°F to +122°F)
For more information
Complete specifications on the VM3D laser level transmitter
are available for free download from www.abb.com/level (see
links and reference numbers below) or by scanning this code:
Search for or click on:
Operating Instruction VM3D OI/VM3D-EN
Data Sheet VM3D DS/VM3D-EN
VM3D Safety Specifications SM/VM3D-EN-FR-DE

2 CI/VM3D-EN Rev B |VM3D Volumetric laser scanner
Read VM3D user manual carefully before working with the
product. For personal and system safety and for optimum
performance, make sure you thoroughly understand the
contents before installing, using or maintaining this instrument.
All servicing of the equipment is to be
performed at factory by qualified service
personnel only.
No user/operator adjustments inside the VM3D
volumetric laser scannerr are necessary or
recommended by the manufacturer.
−Do not drop the instrument or expose the internals to water
and dirt
−Do not open the terminal compartment in a possibly
explosive atmosphere
−Do not install or connect with the power on
−Use appropriate insulated lugs or ferrules with stainless
washers for connections
−Keep the terminal compartment seal clean and lightly
lubricated with Vaseline®
−Ensure that the terminal compartment lid, cable gland
or conduit are tight after installation
−Only use glands that have been suitably certified by a
notified body
−Do not install conduit so that it can drain into the VM3D
terminal compartment
−Remove dirt from the lenses with a clean, damp cloth only
−Aim perpendicular to liquids and avoid aiming into the
vessel fill path or at the sun
Standard precautions

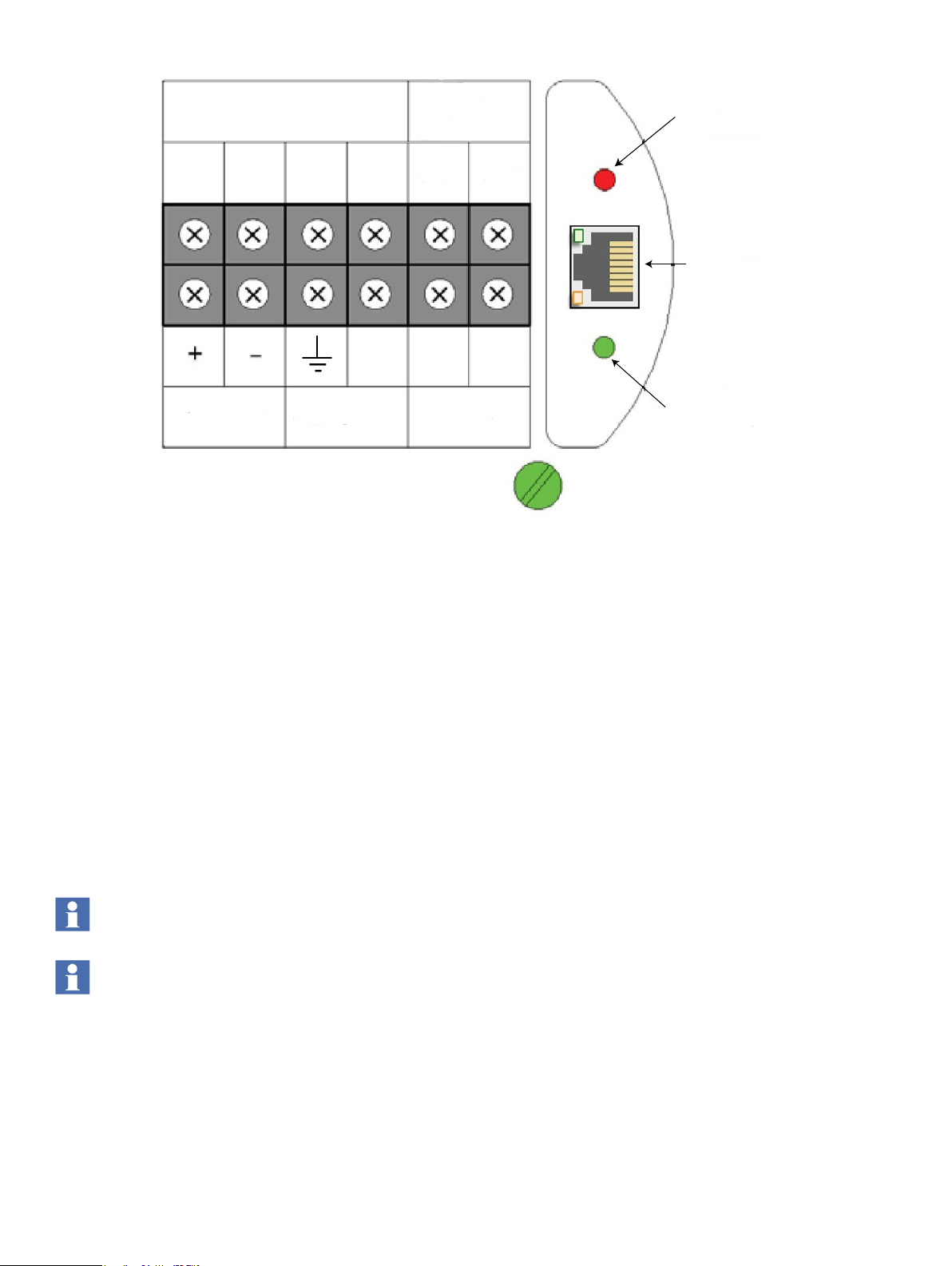

Typical VM3D 24V DC electrical installation
Power
Indicator
Ethernet port
Scanning
indicator
24V DC Earth
Ext
Com Sig

VM3D Volumetric laser scanner |CI/VM3D-EN Rev B 3
VM3D Topology
The VM3D scanner uses a near infrared laser for distance
measurements. The VM3D scanner is classified as a class
1M laser device according to IEC60825-1, Ed 1.2, 2001-
08. Class 1M devices are considered eye safe and cannot
lead to eye injury unless an optical instrument that focuses
down the energy is used.
During standard operation:
Class 1M laser (905nm) is safe for all
conditions of use except when passed
through magnifying optics such as
microscopes and telescopes. Do not view
directly with optical instruments (binoculars or
telescopes).
Laser safety
C2 C3
C2 C3
C2 C3
C2 C3
C2
C3
C1
C1
C4
C4
Power cable, 115/230 VAC, 3 conductors, 14 AWG
Catagory 5e Ethernet Cable, stranded
shielded, 24 AWG, ≤ 100 m
Power cable, 24 Vdc,
3 conductors, shielded, 16 AWG, ≤ 100 m
RF cable, LMR400, N-type connectors
C1
C2
C3
C4
Power cable: 115/230 VAC, 3
conductors, 14 AWG
Category 5 Ethernet cable,
stranded, shielded, 24 AWG, ≤ 100
RF cable, LMR400, N-type
connectors
Power cable, 24 Vdc,
3 conductors, shielded, 16 AWG,
≤ 100 m
Antenna
VM3D Control Box
115/230 V.c.a.
Scanner
#1
Scanner
#2
Scanner
#3
Scanner
#4
