CONTENTS
4 Important Safety Information
5 Assembly Instructions
7 Getting On and Off the Ab Coaster®
7 Exercise Instructions
8 Free-Style Motion Seat
9 Resistance Training
9 Digital Counter
9 Moving, Storing & Maintaining the Ab Coaster®
10 Parts List and View
11 Warranty Information
AbC_Black_Manual_V1_120511.indd 3 11/29/12 10:54 AM

11
Manufacturer’s Limited Warranty – AB COASTER®PS750
The manufacturer warrants that your Ab Coaster® is free of defects in materials and
workmanship and will, at its option, repair or replace any defective Ab Coaster® that is
returned to it. Except as described in the following sentence, all parts and components
of the Ab Coaster® are warranted for one (1) year from the original date of purchase.
The roller bearings are warranted for ninety (90) days from the date of original purchase
and all pads are warranted for ninety (90) days from the date of original purchase.
This warranty is valid only in accordance with the conditions set forth below:
1. Normal wear and tear are not covered by this warranty. This warranty applies
to consumer use only, and is void when the product is used in a commercial or
institutional setting.
2. The warranty extends only to the original consumer purchaser and is not transferable.
In addition, proof of purchase must be demonstrated. This warranty is void if the
product has been subject to accident, misuse, abuse, improper maintenance or repair,
or unauthorized modification.
3. This limited warranty is the only written or express warranty given by the
manufacturer. Any implied warranty of merchantability or fitness for a particular purpose
on this product is limited in duration to the duration of this warranty. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you.
4. Repair or replacement of the product (or, if repair or replacement is not feasible,
a refund of the purchase price) is the exclusive remedy of the consumer under this
warranty. The manufacturer shall not be liable for any incidental or consequential
damages for breach of this warranty or any implied warranty on this product. Some
states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
AbC_Black_Manual_V1_120511.indd 4 11/29/12 10:54 AM

10
PARTS LIST AND VIEW
NO. Part Name Specification QTY (PCS)
01 foot grip match 70*35*1.5 elliptical tubing 4
02 front leg 1
03 M10*45 screw M10*45(15mm thread) 4
04 R71 arc washer ø25*d10*2.0_R71 4
05 M10 nut M10 4
06 M6*50 flanged-hex screw M6*50(15mm thread) 2
07 ø13 flat washer ø13*d6*1.2 4
08 front leg wheel ø20*ø7*25 2
09 m6 nut M6 2
10 front support post 1
11 M8*20 lock hex screw M8*20 2
12 ø16 flat washer ø16*d8*1.5 14
13 front support brace 1
14 wire clip ø15*12 2
15 M8*20 hex screw M8*20 8
16 ø8 spring washer ø8 6
17 R12.5 ø16 arc washer ø16*d8*1.5, R12.5 2
18 M6*40 hex screw M6*40 4
19 R12.7 ø16 arc washer ø16*d6*1.2_R12.7 4
20 M6*15 screw M6*15 4
21 ST4.8*15 self-drilling phillips screw ST4.8*15 4
22 ø18 flat washer ø18*d6*1.2 6
NO. Part Name Specification QTY (PCS)
23 arm cushion 2
24 handlebar frame 1
25 handlebar grip ø29*ø23*220 2
26 circular piston match ø25.4*1.5 tubing 6
27 arm plate 337*267*_24 1
28 counter including sensor, magnet, and ø76 wire 1set
29 ST2.9*8 self-drilling phillips screw ST2.9*8 2
30 ab coaster track 1
31 ball piston match ø38*1.5 tubing 4
32 bumper ø32*26.5 2
33 ø10 flat washer ø10*d5*1.0 8
34 M5*10 phillips screw M5*10 2
35 M8 nut M8 6
36 spacing wheel ø32*42 2
37 M8*55 hex screw M8*55(15mm thread) 2
38 bearing 608ZZ_ABEC-5 8
39 roller wheel ø54*48 4
40 spacing wheel bushing 12*1.5*44 2
41 M8*75 hex screw M8*75_15mm thread) 4
42 M10*25 hex screw M10*25 1
43 ø10 spring washer ø10 1
44 lifted washer ø38*ø10.5*2 1
NO. Part Name Specification QTY (PCS)
45 nylon bushing ø70*ø40*20 1
46 ø38 nylon sleeve ø38*ø25*19 2
47 weight post collar ø70*12 2
48 weight plate 2.5KG/pcs, ø26.5 4
49 weight plate clip ø25.4*1.5__ 2
50 M8*15 hex screw M8*15 4
51 seat swivel bushings ø25*20 4
52 M5*20 phillips screw M5*20 4
53 seat plate 1
54 seat cushion 1
55 U shape seat carriage 1
56 rear leg 70*35*1.5 1
57 M10 nut cover S17 4
58 leg support pad ø25*10 2
59 muffler ø28*13 1
60 seat swivel bushing ø23*37 2
61 tool A S5 1
62 tool B S10/S13/S17 1
63 front logo plate 1
64 wire protection cover ø14.2*90*0.8 2
AbC_Black_Manual_V1_120511.indd 5 11/29/12 10:54 AM

3
SAFETY LABELS
CAUTION: PINCH POINT
Make sure locking pin is fully
engaged before beginning
forward and side lift exercises.
CAUTION: PINCH POINT
Make sure locking pin is fully
engaged before beginning
forward and side lift exercises.
AbC_Black_Manual_V1_120511.indd 6 11/29/12 10:54 AM

4
IMPORTANT SAFETY INFORMATION
IMPORTANT: Please read and follow all instructions thoroughly before using your Ab Coaster®.
• Maximum user weight is 300 lbs.
• ALWAYS USE CAUTION WHEN GETTING ON AND OFF THE Ab Coaster®. READ INSTRUCTIONS ABOUT PROPER WAYS TO GET
ON AND OFF THE Ab Coaster®.
• KEEP BODY PARTS, HANDS AND FEET AWAY FROM THE SEAT, WHEELS AND THE CURVED TRACK WHILE USING THE Ab
Coaster®. SEVERE INJURY CAN RESULT IF BODY PARTS, HANDS OR FEET ARE PLACED ON TRACK WHILE SOMEONE IS USING
THE UNIT.
• KEEP THE Ab Coaster® OUT OF THE REACH OF CHILDREN. The Ab Coaster® is not a toy and is not meant to be used by
or near children and pets. Please keep children and pets away from the Ab Coaster® and during use, as well as when the
product is left unattended. If you have children, it is your responsibility to ensure that they do not place any part of their body
such as their fingers near the unit while you are exercising.
• Consult your physician before beginning any exercise or diet program, especially if you have concerns about your physical
and fitness levels and overall suitability for exercising with the Ab Coaster®.
• If you experience any pain or unusual discomfort during exercising, stop your workout at once and consult a physician
before continuing.
• When using the Ab Coaster®, follow the instructions provided in this booklet. Do not use the product for any other exercises
or motions which are not contained herein.
• ONLY USE THE Ab Coaster® ON A FLAT, STABLE SURFACE. DO NOT USE THE Ab Coaster® ON A SMALL AREA RUG THAT
MAY TEND TO MOVE WHILE EXERCISING.
• DO NOT ATTEMPT TO USE THE Ab Coaster® PS750 WITHOUT RESTING YOUR ARMS ON THE ARM REST AND HOLDING ONTO
THE HANDLES.
• Do not pick up the Ab Coaster® to move it. Follow the instructions in this booklet for moving the Ab Coaster®.
• Do not leave the Ab Coaster® in the direct sun for extended periods of time.
• Use only accessories and attachments recommended by the manufacturer. Use of any other attachments or accessories not
recommended by the manufacturer will void the warranty and could possibly cause serious personal injury or damage to you
and the unit.
• Always choose the proper workout level which best suits your physical strength and flexibility.
• Know your limits and train within them. Always use common sense when exercising. If you have any questions regarding your
exercise program, please see your physician.
• DO NOT USE THE Ab Coaster® if it is damaged in any manner. Inspect before each use. Failure to observe this warning could
result in personal injury while exercising.
• Use the machine only for intended use as described herein. DO NOT modify the machine.
• Do not replace any parts with parts from other equipment or other manufacturers. Use only parts provided by
the manufacturer.
• This product is intended for Residential use only and is not intended for commercial facilities such as Health Clubs,
Hotels or Fitness Centers.
SAVE THESE INSTRUCTIONS AND ENSURE THAT OTHER EXERCISERS READ
THESE INSTRUCTIONS PRIOR TO USING THE Ab Coaster® FOR THE FIRST TIME.
AbC_Black_Manual_V1_120511.indd 7 11/29/12 10:54 AM

9
MOVING STORING AND MAINTAINING
THE AB COASTER®
Moving
and Storing:
There are 2 wheels
attached to the front
leg support of the Ab
Coaster® in order
to aid in the moving
and storage of the
unit. Stand in the
front of the unit and
grasp the handle
bars. Push down
on the handle bars
tilting the rear up
until the front wheels
are engaged.
For storage, keep the
unit in a dry place If
placed in long-term
storage, you should
cover the unit with a cloth or other material to protect the unit from
excessive dust or dirt accumulation.
Maintenance:
Keep curved track clean and free of debris. Wipe periodically with
cloth to keep track smooth and clean.
DIGITAL
REPETITION COUNTER
The digital repetition counter helps to keep your workout
on track. You focus on exercising correctly and the
counter keeps track of your repetitions.
Requires 2 “AAA” batteries (included).
Press the mode key to start the count function.
To reset the counter,
press and hold the button for 3 seconds.
RESISTANCE TRAINING (Weights Not Included)
Using Added Weight for Resistance: There are 2 weight posts on the sides of the Ab Coaster® Seat for adding weights (not included) for extra
resistance during exercise.
CAUTION: Do not add more than 20 lbs. of weight in total to the posts (4 plates of 5 lbs. each). Before adding any weight, ensure that you are
able to perform the exercise with proper form without any additional weights.
Please visit www.AbCoaster.com to view video of proper usage of the machine.
AbC_Black_Manual_V1_120511.indd 8 11/29/12 10:54 AM

8
FREE-STYLE MOTION SEAT
The Seat is free-moving so that you can turn your knees and work on your obliques. Turn knees to right to exercise left oblique; turn knees to
left to exercise right oblique. Move side to side for free-style motion training.
EXERCISE INSTRUCTIONS
1. Adjust Hand Grip and place forearms and elbows on arm pads. Lightly grasp handles.
2. Kneel on Seat so that your feet are hooked on the back edge of the pad.
3. Keeping your back straight, pull your knees forward until you fully contract your abs. DO NOT move your upper body while performing
exercise. Make sure you use your abs to lift the Seat carriage, not your upper body.
4. Return slowly to starting position, and repeat. Do not bang Seat carriage when lifting or when returning to starting position.
Please visit www.AbCoasterClub.com and www.AbCoasterBlog.com to view videos of proper exercise usage of the machine.
AbC_Black_Manual_V1_120511.indd 9 11/29/12 10:54 AM

5

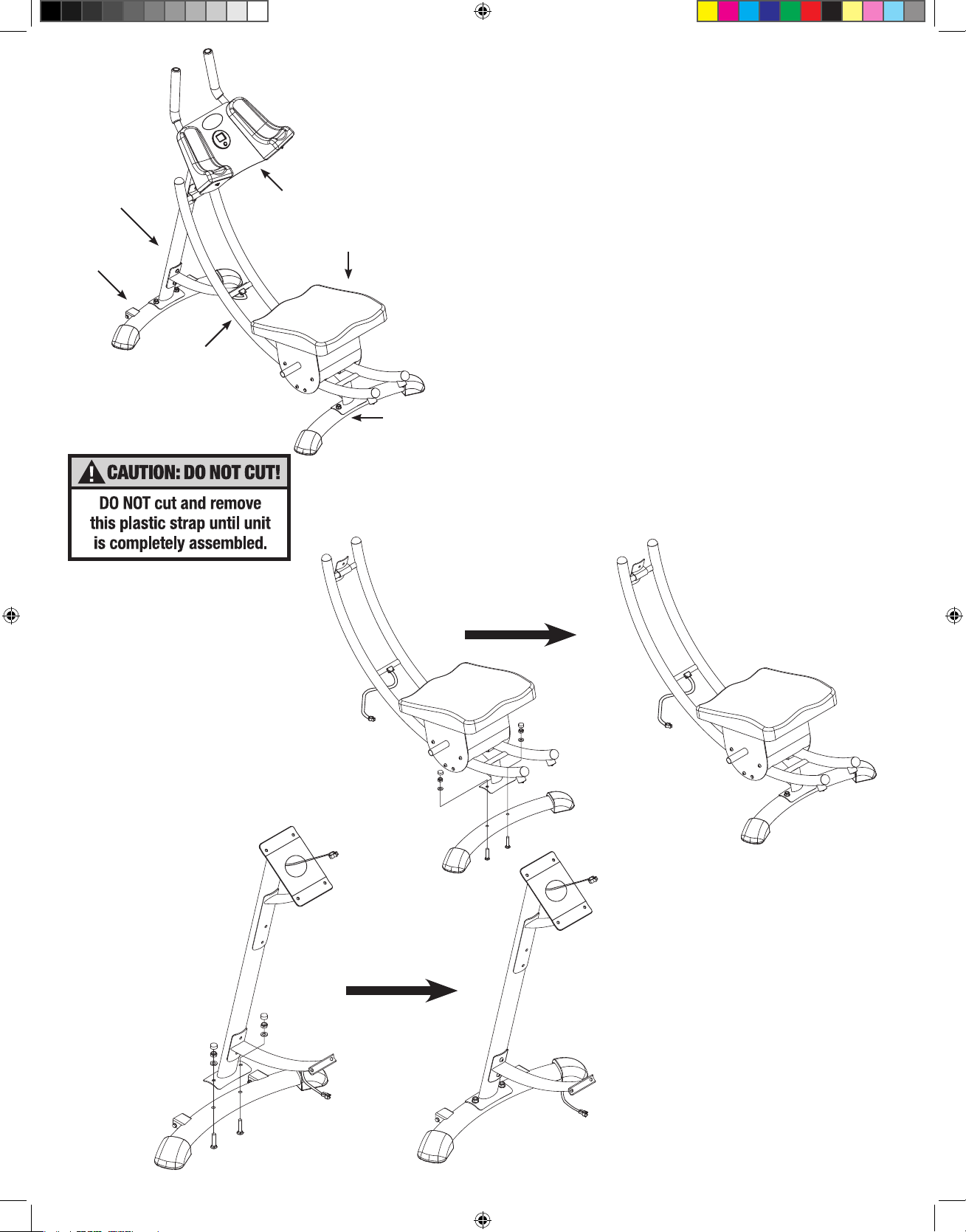

Step 1: Attach rear foot (without
wheels) to rear of curved track.
Remove the 2 bolts which have
been pre-attached to the rear foot,
then re-attach the bolts to connect
foot to track. Finger tighten bolts
only. Do not tighten bolts with tool
until unit is fully assembled.
Step 2: Attach front foot (with
wheels) to front post using the
2 pre-attached bolts. Finger
tighten only.
ASSEMBLY INSTRUCTIONS
IMPORTANT: Remove all parts from packing and inspect for
damage. Retain packing materials if possible.
CAUTION: Do not cut and remove the plastic strap with this label attached until
unit is completely assembed. The strap keeps the SEAT secure to the CURVED
TRACK for easy assembly.
FRONT POST
CURVED
TRACK
ARMREST
CONSOLE
SEAT
REAR
FOOT
Your Ab Coaster® has been thoroughly inspected and partly assembled before shipment. You will
need to take a few additional steps as described below to complete assembly.
Step 1: Attach Rear Foot
Step 2: Attach Front Foot
Step 3: Attach Front Post
Step 4: Attach Armrest Console
Step 5: Connect Wires
FRONT
FOOT
AbC_Black_Manual_V1_120511.indd 10 11/29/12 10:54 AM

6
Step 4: Attach armrest console
to top of front post using the 4
pre-attached Allen head screws.
Tighten all bolts and screws
using tools provided. Cover
bolts with black plastic caps.
Step 3: Attach front post to curved
track. The front post is attached to
track in 2 locations as shown using
the 2 pre-attached Allen head screws
for each location. Finger tighten only.
Step 5: Connect counter wires
in 2 locations as shown. Install
wire protection covers to cover
wire connections.
Now you may safely cut the
strap that secures the SEAT.
(The strap with the Caution
label that says “Do Not Cut”).
AbC_Black_Manual_V1_120511.indd 11 11/29/12 10:54 AM

GETTING ON AND OFF THE Ab Coaster®
EXERCISE INSTRUCTIONS
How It Works: The Ab Coaster® is designed to help you exercise your abdominal muscles via a leg lift motion. Unlike the popular sit-up or ab
crunch exercise, which works your abdominals from the “top down”, the Ab Coaster® moves in the opposite direction, working your abs from
the “bottom up.” The basic motion requires you to lift your knees and legs while contracting your abs.
The Ab Coaster® features a Seat moving along a curved track to aid you in performing the abdominal lifting motion. The starting position requires
you to kneel on the Seat while resting your arms on the arm rests. The exercise requires you to lift the Seat along the track by using your abdominal
muscles, not by using your arms or your upper body. The key to performing the exercise properly is to concentrate on contracting your ab muscles
prior to and while you lift the Seat. Your upper body should be stable and should not be moving or swaying while you exercise.
Step 1: Make sure the Ab Coaster® is placed on a flat, stable surface.
Step 2: Approach the Ab Coaster® from the side, not the back, of the unit.
Step 3: Place forearms and elbows on arm pads. Grasp handles to maintain
your balance.
Step 4: While grasping handles, place knees on Seat so that your feet
are hooked on the back edge of the seat. You are now ready
to exercise.
WRONG!
1 2
7
AbC_Black_Manual_V1_120511.indd 12 11/29/12 10:54 AM
