Abus SHMK10000 User manual

1
SHMK10000
ABUS Z-Wave Magnetic contact
Important information and FAQs about this product and other
products can be found on the website
www.abus.com
Version 1.0 Original operating instructions in English.
Keep for future use!

2
English
Summary
1. Introduction....................................................................................................................................... 3
1.1. Declaration of Conformity........................................................................................................ 3
1.2. Disclaimer of Liability............................................................................................................... 3
2. Important Safety Informations.......................................................................................................... 4
2.1. Intended Use ........................................................................................................................... 4
2.2. Unboxing.................................................................................................................................. 4
2.3. Installation location / operating environment........................................................................... 4
2.4. Children ................................................................................................................................... 4
2.5. Information on handling batteries............................................................................................ 4
2.6. Important information on battery disposal ............................................................................... 5
2.7. Cleaning................................................................................................................................... 5
2.8. Information on device disposal................................................................................................ 5
3. Product introduction ......................................................................................................................... 6
3.1. Scope of delivery..................................................................................................................... 6
3.2. Device features........................................................................................................................ 6
3.3 Operating principle .................................................................................................................. 6
3.3. Performance features.............................................................................................................. 7
3.4. Use in systems of different manufacturers.............................................................................. 7
4. Overview of functions....................................................................................................................... 7
4.1. Inclusion / Add Device............................................................................................................. 7
4.2. Mounting & Installation ............................................................................................................ 8
4.3. Exclusion / Remove Device..................................................................................................... 9
4.4. Reset (Factory-Reset) ........................................................................................................... 10
5. Advanced Z-Wave Parameter........................................................................................................ 10
5.1. Association Group Information .............................................................................................. 10
5.2. Unterstützte Command Classes............................................................................................ 11
6. Technical Specifications................................................................................................................. 11

3
English
1. Introduction
Dear customer,
We are pleased that you have chosen our product and thank you for your trust! You
made a good choice.
This Magnetic contact (hereinafter referred to as the "device") has been developed and
manufactured with the utmost care. Please read these operating instructions
completely and observe all operating and safety instructions, as this ensures the best
possible handling of the device. This document is an installation and maintenance
manual.
All contained company names and product designations are trademarks of the
respective owners. All rights reserved.
If you have any questions, please contact your specialist installer or specialist trade
partner!
1.1. Declaration of Conformity
ABUS Security-Center hereby declares that the enclosed product comply with
the requirements of the following directives
RED Directive (2014/53/EU), EMC Directive (2014/30/EU), Low Voltage Directive
(2014/35/EU) and RoHS Directive (2011/65/EU). The full EU Declaration of
Conformity text can be found at:
www.abus.com/product/SHMK10000
It can also be obtained at the following adress:
ABUS Security-Center GmbH & Co. KG,
Linker Kreuthweg 5, 86444 Affing, GERMANY
1.2. Disclaimer of Liability
These operating instructions have been prepared with the greatest care. Should you
nevertheless notice omissions or inaccuracies, please inform us in writing at the above
address.
Your rights are limited to the repair or replacement of this product as delivered. ABUS
Security Center assumes no liability for any special, incidental or consequential
damages, including but not limited to loss of revenue, loss of profit, restrictions in the
use of the software, loss or recovery of data, costs for replacement equipment,
downtime, property damage and claims of third parties, as a result of and in connection
with the use of the software.a. warranty, contractual, legal or claims for damages
notwithstanding other limited or implied warranty provisions or in the event that the
limited warranty does not apply, the scopeof liabilityof ABUS Security Center is limited
to the purchase price of the product.
The contents of this manual are subject to change without notice.
© ABUS Security-Center GmbH & Co. KG, 09/2018

4
English
2. Important Safety Informations
2.1. Intended Use
Only use the device for the purpose for which it was built and designed. Any other use
is considered unintended.
All guarantee claims are invalid in the event of damage caused by non-
compliance with this safety information. We cannot be held liable for resulting
damage.
2.2. Unboxing
Handle the device with extreme care when unpacking it.
Packaging and packaging aids can be reused and, as far as possible, should be sent
for recycling.
If the original packaging has been damaged, inspect the device first. If the
device shows signs of damage, return it in the original packaging and inform
the delivery service.
2.3. Installation location / operating environment
Do not place any heavy objects on the device.The device is only designed for
operation in spaces with appropriate temperatures or humidity (e.g. bathrooms), or
excessive accumulation of dust. Please refer to the individual devices' technical data
for more detailed information. Ensure that: adequate ventilation is always guaranteed;
no direct sources of heat can affect the device; interior devices are not exposed to
direct sunlight or strong artificial light; the device is not in the immediate vicinity of
magnetic fields (e.g. loudspeakers); no naked flames (e.g. lit candles) are placed on
or next to the device; sprayed or dripping water is prevented from coming into contact
with interior devices and caustic fluids are avoided; the device is not operated in the
vicinity of water, in particular, the device should never be submerged (do not place
objects containing fluids, e.g. vases or drinks, on or near the device); no foreign bodies
penetrate the device; the device is not exposed to wide temperature variations, as
otherwise there may be condensation from humidity causing electrical short circuits;
the device is not exposed to excessive shock or vibration.
2.4. Children
Keep electrical devices out of reach of children. Never allow children to use electrical
devices unsupervised. Children may not always properly identify possible hazards.
Small parts may be fatal if swallowed. Keep packaging film away from children. There
is a risk of suffocation. This device is not intended for children. If usedincorrectly, parts
under spring tension may fly out and cause injury to children (e.g. to eyes).
2.5. Information on handling batteries
- Make sure that batteries are kept away from small children. Children may put
batteries in their mouths and swallow them. This can cause serious harm to their
health. If this happens, consult a doctor immediately.
- Do not charge normal batteries, heat them up or throw them into naked flames
(they may explode).

5
English
- The battery must not be directly exposed to heat or sunlight, and must not be
stored in a place with a very high temperature.
- The battery must not come into contact with water.
- The battery must not be dismantled, pierced or otherwise damaged.
- The battery contacts must not be short-circuited.
- Change low batteries in good time.
- Always change all the batteries at the same time and use batteries of the same
type.
- Leaky or damaged batteries can cause chemical burns on contact with the skin.
In this case, wear protective gloves. Clean the battery compartment with a dry
cloth.
2.6. Important information on battery disposal
Batteries with this label do not contain harmful substances such as
cadmium, lead and mercury. However, used batteries must not be
disposed of along with household waste in accordance with the battery
directive. To protect natural resources and promote the recycling of
materials, separate the batteries from other waste and deposit them at a
local recycling center. An additional label with the chemical symbols for
Hg, Cd or Pb means that the batteries contain quantities of mercury, cadmium or lead
which exceed the restrictions set by the EU Directive 2006/66/EG. If batteries are not
disposed of properly, these substances can cause harm to human health or the
environment
2.7. Cleaning
- Dusty devices must be cleaned. You can clean dust from the air vents using a
vacuum cleaner or compressed air. If necessary, you can remove the dust with
a brush.
- You can clean the surface using a cloth slightly dampened in soapy water. Only
use suitable microfiber cloths for high-gloss surfaces.
- Do not allow water to penetrate the device.
- Do not clean the device in a dishwasher.
- Do not use sharp, pointed, abrasive or corrosive cleaning materials or hard
brushes.
- Do not use chemicals.
- Do not use flammable liquids for cleaning the device.
2.8. Information on device disposal
Important: The EU Directive 2012/19/EU regulates the proper return,
treatment and recycling of used electronic devices. This symbol means
that in the interest of environmental protection the device must be
disposed of separately from household or industrial waste at the end of
its service life in accordance with applicable local legal guidelines.
Disposing of used devices can be done at official recycling centers in your
country. Obey local regulations when disposing of material. Further details on returns

6
English
(also for non-European countries) can be obtained at your local authority. Separate
collection and recycling saves natural resources and ensures that all the provisions
for protecting health and environment are observed when recycling the product.
3. Product introduction
3.1. Scope of delivery
- ABUS Z-Wave Magnetic Contact & Battery
- Quickguide & Safety instructions
3.2. Device features
Front Back
Nr
Label
Comment
1
Device
2
Magnet
3
Status-LED
Serves as status display for various processes
4
Tamper-Button
For inclusion / exclusion of the detector in a Z-Wave
gateway, factory reset and tamper alarm
5
Battery case
For CR2 Batterien (3V DC)
3.3 Operating principle
The SHMK10000 was developed for use in home automation systems that use the Z-
Wave wireless standard. The sensor enables the monitoring of windows and doors and
can be installed comfortably without drilling and wiring thanks to battery operation and
adhesive mounting. When the battery level is low, the detector automatically gives
feedback to the gateway.
1
4
3
2
5

7
English
In conjunction with configurable scenes, smart functions can also be initiated in
addition to monitoring, e.g. door open, light on. The integrated sabotage button also
reliably reports possible manipulation attempts to the gateway.
3.3. Performance features
The ABUS Z-Wave SHMK10000...:
- …is a battery-operated radio magnetic contact
- …is Z-Wave PLUS compatible & certified
- …supports the Z-Wave S2 Standard (Security 2)
- …detects opening/closing by removing sensor and magnet
- …detects tampering when the housing is opened
- ...has a battery-empty warning function
- …was developed for indoor installation
3.4. Use in systems of different manufacturers
Communication is via the Z-Wave EU frequency (868.42 Mhz). You can integrate the
device into any Z-Wave network with a certified Z-Wave gateway, regardless of
manufacturer. All non-battery powered nodes in the networkact as repeater to increase
the durability of the network.
4. Overview of functions
4.1. Inclusion / Add Device

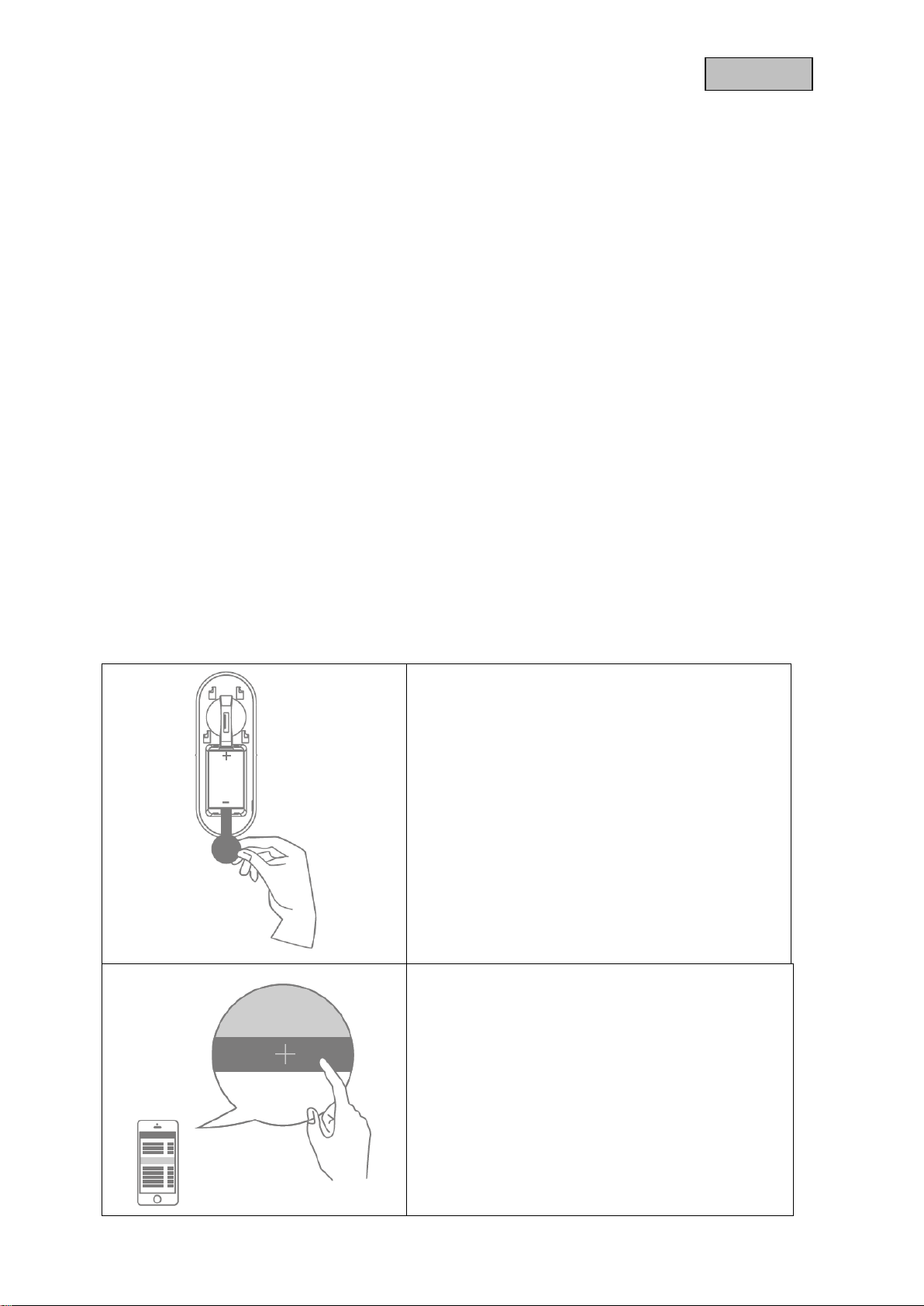

A
Slide the base unit from the mounting plate
and remove the safety strip from the battery
compartment
B
Click the + (Add) button in your Z-Wave App
and follow the further instructions

8
English

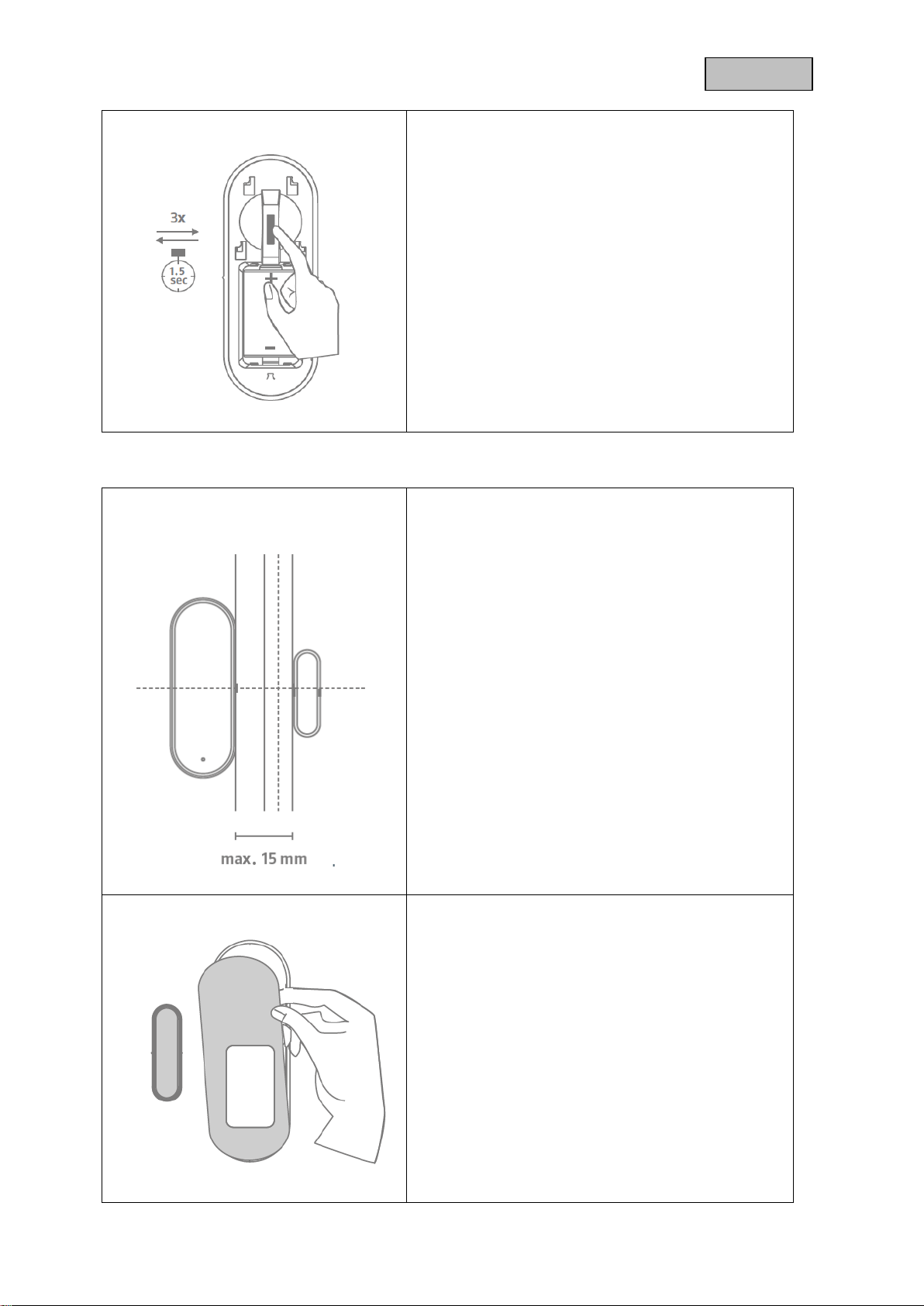

C
Press the Tamper-button 3 times within 1.5
seconds and the Status-LED on the base unit
front will flash 3 times
The App will show if the Add device process
was successful and the Status-LED will turn
off
Repeat the inclusion process from step B if it
was not successful.
4.2. Mounting & Installation
A
Test the release behaviour at the desired
mounting position in advance.
The magnet should be mounted no more than
15 mm from the sensor.
Note:
Do not mount the detector...
...on or near metal surfaces!
...in close proximity (< 1m) to gas, water and
power lines!
...near electrical devices e.g. PC, copier or
other transmitters
Installation site:
Optimum mounting location for the door,
window contact is the upper corner of your
window or door frame.
B
Remove the adhesive strip cover from the
sensor and magnets and attach it to the
desired mounting position.
The magnet can be mounted to the right or
left of the sensor.

9
English
C
Center the magnet on the sensor (see
marking strip).
When the sensor is opened or closed, the
status LED lights up once.
4.3. Exclusion / Remove Device
A
Click the - (Remove) button in your Z-Wave
App and follow the further instructions
B
Press the Tamper-button 3 times within 1.5
seconds and the Status-LED on the base unit
front will flash 3 times
The App will show if the Remove device
process was successful and the Status-LED
on device will flash 6 times
Repeat the exclusion process from step A if it
was not successful.

10
English

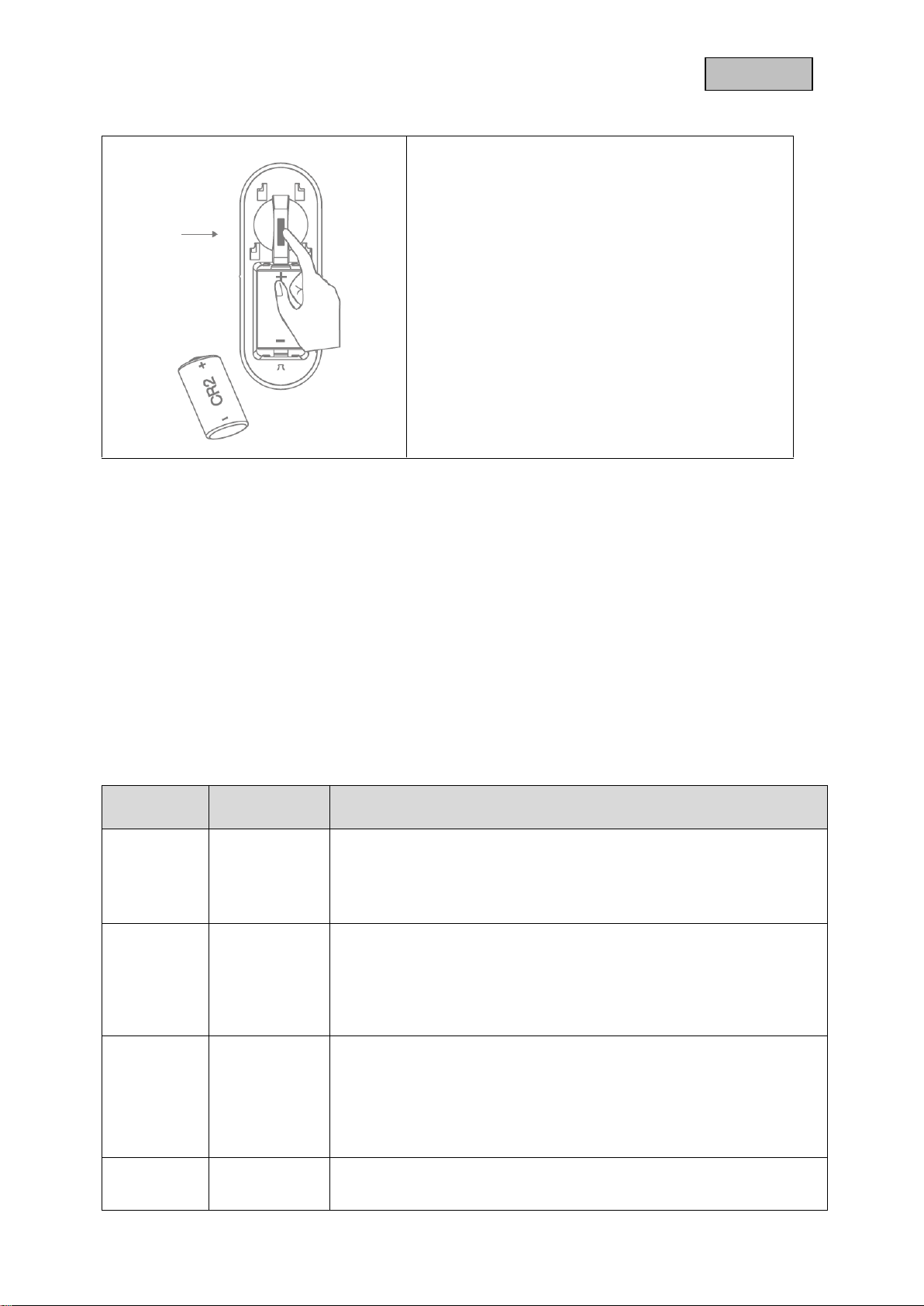

4.4. Reset (Factory-Reset)
1. Press theTamper-button 3 times within 1.5
Seconds
2. The device is now restored to factory
settings
Note:
1, This procedure should only be used if the
primary gateway is not capable of acting.
2, If the multi-sensor is set to the factory
setting, the status is set to "not included", the
association settings and possible
configurations are reset to default.
5. Advanced Z-Wave Parameter
5.1. Association Group Information
Z-Wave devices can control other devices directly. This direct control is called in Z-
Wave association. For this purpose, the device ID of the device to be controlled must
be stored in the controlling devices. This is done in so-called association groups. An
association group is always linked to an event in the controlling device (pressing a key
or triggering a sensor). When this event occurs, a control command - usually a BASIC
SET - is sent to all devices stored in an association group.
The magnetic contact supports the following association group:
Group
Number
Maximum
Devices
Transmitted Content
Group 1
0x05
Lifeline association group Include command classe:
Battery report, Notification report, and Device Reset Locally
notification, Binary report.
Group 2
0x05
Root Device group(Binary Sensor) Binary Sensor
Command Class:Compatible with 300 series 1-Binary
Sensor reports status of open or close door via Lifeline. 2-
When the sensor detects status change between close
door and open door, the device will be triggered.
Group 3
0x05
Root Device group(Binary Sensor) Binary Sensor
Command Class:Compatible with 300 series
1-Binary Sensor reports the removed status of door sensor.
2-When the sensor detects status change of tamper, the
device will be triggered.
Group 4
0x05
Root Device group(Notification)
1-Notification report open door or close status via Lifeline.

11
English
2- When the sensor detects status change between close
door and open door, the device will be triggered.
Group 5
0x05
Root Device group(Notification)
1-Binary Sensor reports the removed status of door sensor.
2- When the sensor detects status change of tamper, the
device will be triggered.
5.2. Supported Command Classes
1 Z-Wave plus Info Version 2
2 Notification Version 8
3 Association Version 2
4 Association Group Info Version 1
5 Transport Service Version 2
6 Version Version 3
7 Manufacturer Specific Version 2
8 Device Reset Locally Version 1
9 Powerlevel Version 1
10 Battery Version 1
11 Security 2 Version 1
12 Supervision Version 1
13 Wake Up Version 2
6. Technical Specifications
Parameters
Unit
SHMK10000
Dimensions
mm
72 x 21 x 26 (Sensor) / 35 x 11 x 13 (Magnet)
Weight
g
45
Operating Temperature
°C
0 –40
Max. Humidity
%
95
IP Class
20
Radio frequency
MHz
868,42 (Z-Wave PLUS, Europe)
Modulation
FSK/GFSK
Transmission power
db
< 4,5
Power supply
3 V DC
Battery type
CR2
Power consumption standby
mA
0,005
Power consumption trigger
mA
38
Battery-life
3 Years (10 triggers per day)
Range (open field)
m
100
Range (building)
m
20, related to material of walls
Tamper protection
Yes
Firmware updateable
No
Support Z-Wave Beaming
No
SmartStart supported
No
Z-Wave Network Security
Yes
Z-Wave AES-128 Security
Yes
Z-Wave Plus
Yes

12
English
Security S2 Classes
Yes
Z-Wave Chip Generation
500
Z-Wave Sensor-Typ
Open/Closed (Binary)
Zwave library type
Routing Slave
Device Type / Role type
Notification sensor /
Reporting sleeping slave
