AccuBANKER AB7500 User manual

AB7500
Dual Pocket Mixed Bill Counter
USER GUIDE www.AccuBANKER.com

Thank you for trusting AccuBANKER with your cash
handling needs. In order to optimize the performance
of your equipment, we encourage you to thoroughly
read this user guide prior to use.
®

3
Table of Contents
Table of Contents .............................................................................................1
1. Introduction ..................................................................................................4
2. Safety Instructions........................................................................................4
3. Equipment Overview....................................................................................6
3.1 Part Description ......................................................................................6
3.2 Control Panel Description ......................................................................7
4. Configurations Menu Description................................................................9
5. Bill Rejection Codes Descriptions .............................................................14
6. Warning and Error Messages .....................................................................15
7. Unit Maintenance .......................................................................................16
7.1 Periodic Cleaning Routines ..................................................................16
8. Software Updates .......................................................................................17
9. Specifications .............................................................................................18

4
!
!
1. Introduction
The AB7500 is a double pocket bill counter designed to accelerate the cash
counting process, as it does not stop its operation when a suspicious bill is
detected; instead, it is sent directly into the rejection pocket. The final count
result shows the total value as well as the number of bills counted.
2. Safety Instructions
Warning
Do not use this product in areas where it may be exposed to water or other
liquids.
Unplug this product from the electric outlet before cleaning. Do not use liquid
oraerosol cleaners. To clean, use a damp cloth.
To reduce the risk of electric shock, do not disassemble this product. Take
it to qualified service personnel when service or repair work is required.
Opening or removing covers may expose you to dangerous voltages or other
risks. Incorrect reassembly can cause electric shock when the appliance is
subsequently used.
Only use the cable provided with the unit. The use of other cables may result
in electric shock, fire, or cause serious damage to the unit.
Do not operate the unit in areas with high temperature or high humidity sinceit
may prevent it from working correctly.
Caution
When unplugging the power cord, do not pull it by the cord, but rather grip the
plug to pull it out. Not following these instructions may result in electricshock,
fire, or damage to the unit.
Do not use the unit if the power cord is damaged or if the plug socket contactis
loose. Not following these instructions may result in electric shock, fire, or
other hazards.
Do not place heavy objects over the cord and do not bend it excessively since
it could get damaged. Not following these instructions may result in electric
shock, fire, or other hazards.
When not using the unit for a long time, remove the power plug from the electric
outlet.

5
2. Safety Instructions (continued)
•Read and understand all of the safety instructions.
•Follow all warnings and instructions marked on the unit.
•This product is meant to be operated in an indoor environment with
proper ventilation.
•Do not place near direct sunlight, heat sources, or air conditioners.
•This product should only be operated with the power cord supplied and
the type of power source indicated in this user guide. If you are not sure
of the type of power supply in your location, consult your vendor or local
power company.
•To avoid the risk of fire or electric shock, never push objects into the unit
through the case slots or openings, since they may touch dangerous
voltage points or shortcut parts. Do not disassemble the unit.
•Never spill liquids of any kind on the product.
•Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
- When the power supply cord or plug is damaged or frayed*
- If liquid has been spilled into the unit, or it has been exposed to rain
or water*
- If the product has been dropped or the case has been damaged*
- If the product shows a noticeable change in performance
*Not covered under warranty
NOTE:Do not remove the "ground" prong from the power cord. It is a safety
feature meant to protect the user from harm and the equipment from damage.
!
If the unit does not operate normally while following the
instructions, adjust only those controls covered by the operating
instructions. Improper adjustment of other controls may result in
damage and will often require extensive work by a qualified
technician to restore the product to normal operation.

6
3. Equipment Overview
3.1 Part Description
a- Hopper
b- Bill Guiders
c- Control Panel
d- Rejection Pocket
e- Stacker
f- Bill Thickness Adjustment
Screw
g- Serial ports
R- For printer
L- For service
h- USB port for updates
i- External display port
j- Power switch
k- Power Jack
g
h
i
j
k

7
3. Equipment Overview (continued)

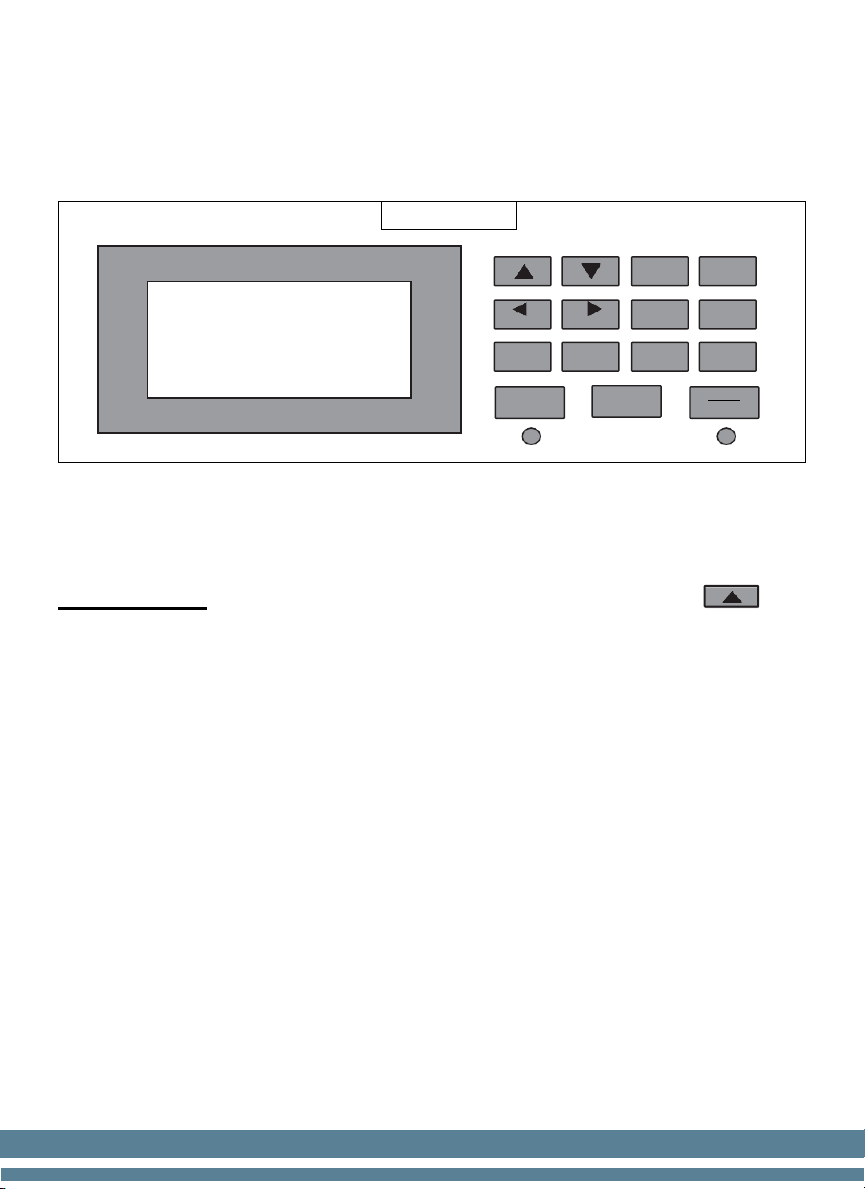

3.2 Control Panel Description
AccuBANKER
AB7500
Up / Down / Left / Right BUTTONS
Used to move the cursor in the configuration menu.
IMPORTANT: When there are bills in the rejection pocket, press to
see why a bill was rejected. A rejection code will appear on the screen. For a
brief description of what each code means, see Section 5.
BATCH
Select the desired batch quantity (5-10-20-25-50-100-200).
MODE
MDC- Mixed: Used for counting mixed denominations all together.
SDC- Sort: Memorizes the first denomination counted and all others will be
rejected; only the denomination counted first will be accepted by the
machine.
CNT- Count: basic bill count; counts the number of bills but does not
calculate the total count value. Used for currencies not programmed on the
unit.
MODE
BATCH
FACE/ORT
PRINT
ADD
CURRENCY
TOTAL
SET
C
DISPLAY
ACCEPT
START
STOP

8
3. Equipment Overview (continued)
3.2 Control Panel Description (continued)
PRINT
Prints detailed count reports.
FACE/ORT
Organizes the bills FACE UP, FACE DOWN, LEFT, or RIGHT.
CURRENCY
Used to change the currency that will be counted.
ADD
Activates ADDING function.
TOTAL
Shows the TOTAL VALUE COUNT.
DISPLAY
Displays the breakdown details of the counting.
C
Erases data on the screen or erases error messages.
ACCEPT
Confirms any changes made to the “Configurations” screen as well as count
results.
START / STOP
Starts and stops counting operations.
SET
Enters the “Configurations” menu. Keep the key pressed down for 6 sec.

9
4. Configurations Menu Description
The user menu allows the operator to configure the unit based on their
working preferences. The different points to be defined are described below:
a- Press the SET key until the menu appears on the screen.
b- Use the “direction” keys to select and change the parameters.
c- Always press “ACCEPT” to save each change made.
d- Press C (one or more times) to exit the User Menu.
REJECT LED
Used to activate/deactivate the notification light of the machine’s rejection
pocket.
CURRENCY SELECT
Used to activate/deactivate currencies programmed into the unit.
DEFAULT
Restores unit to its original factory settings.
DUAL USAGE: NOT AVAILABLE.
AUTO-START
Used to set the unit to MANUAL start mode, or to vary the machine’s start
time after the first bills are detected by the Hopper sensor.
REPEAT START
Used in BATCH mode to set the unit to AUTO / MANUAL mode during the
batching process.
BUZZER
Used to Activate / Deactivate the notification buzzer when working with the
unit’s keypad.

10
4. Configurations Menu Description (continued)
OFF LCD LIGHT
Enables / Disables the display standby function when the unit is not in use for
long periods of time.
MODE KEY SWITCH
Used to select the operation mode (MDC, SCD, or CNT).
SPEED
Allows varying the counting speed of the machine between 800/900/1000
bills/min. The speed variation applies only to CNT mode.
REJECT FULL
To set the maximum amount allowed in the rejection pocket; Once this
quantity is reached, the unit stops (25/50/75/100).
REJECT CHECK
When this function is enabled (ON), the unit automatically stops when at
least one bill enters the rejection pocket and requires to be removed to
continue the counting.
CNT MODE
Enables / Disables the CNT (basic count) mode.
CNT CF CHECK
Enables / Disables the verification of banknote security features in CNT
(basic count) mode.
ASSIGN OPERATOR: NOT AVAILABLE.

11
4. Configurations Menu Description (continued)
CURRENCY CF
In this section, the operator configures the sensitivity of the detection sensors
of the various banknote security verification functions.
•DD: Bill Size Detection.
•DB: Double Bill Verification.
•UV: Ultraviolet Detection.
•MG: Magnetic Detection.
•MT: Metal Thread Detection.
•IR: Infrared Detection.
With the keys select the specific denomination to configure. Press
ACCEPT to display the functions menu for that specific denomination. Use
the keys to change the sensitivity to the desired value. Press
ACCEPT to save the changes made.
MANUAL INPUT
Enables / Disables the option to save a certain count in the unit’s memory
(Grand Total option).
PORT L MODE / PORT R MODE
Set the L (left) or R (right) port function to be connected to a computer
(TERMINAL) or to be connected to a printer (PRINTER).
PORT L RATE / PORT R RATE
Configures the communication speed of the serial port
(9600/19200/38400/115200).
•PRINTER: Data bits: 8 / Stop bits: 1 / Parity: None.
•TERMINAL (PC): Data bits: 7 / Stop bits:1 / Parity: None.

12
4. Configurations Menu Description (continued)
CIS SELECT
Activates / Deactivates the CIS sensor in CNT mode (basic counting)
SELECT DIGIT
Allows operator to select the format in which to separate the digits on the
display or during printing
EXTERNAL DISPLAY
Activates / Deactivates external display’s connection
TIME CHECK
Allows operator to configure the unit to the date and time desired
STACKER FULL
Allows operator to set the maximum capacity of the stacker OFF/100/200.
ADD FUNCTION (SDC mode)
During operation in SDC mode, with ADD function active, the user can
select manual or automatic operation. In both operations, if there is a specific
denomination in the stacker, and the user tries to count a different
denomination, it will be rejected. The user must remove the bills from the
stacker to proceed with a new denomination.
•Manual: When the user removes the bills of the current denomination
from the stacker, the new denomination will be counted and added to the
previous count unless the clear button is pressed.
•Automatic: When the user removes the bills of the current denomination
from the stacker, the new denomination will be counted and the previous
count will clear (will start from zero).

13
4. Configurations Menu Description (continued)
BATCH FUNCTION (MDC mode)
During operation in MDC mode with the BATCH function active, the total
accumulated value can be set to return to ZERO (this restarts the count for
every batch) or ADD (this sums the total amount of all batches counted)
every time the selected grouping quantity is reached.
PRINTER CONTROL (PRINTER sold separately)
•MANUAL: Press the PRINT key to print.
•AUTO 1: Prints automatically every time the stacker is emptied.
•AUTO 2: Prints automatically each time the hopper and stacker are
emptied.
•REPEAT: 2- Duplicates the printout / 3- Triplicates the printout.
•LINES: Number of blank lines after each printed item.
•LIST: Shows in the printing all denominations, or only the denominations
detected in the count.

14
5. Bill Rejection Codes Descriptions
During the count, suspicious bills are rejected directly into the rejection
pocket. To determine the specific cause of rejection, simply press the
key and the display will show the rejection details using the following error
codes described below:
•TYPE 1: Communication failure between Image Software and Control
Software.
•IMAGE: The CIS was unable to identify the rejected bill.
•MT: Rejected for suspicious Metal Thread.
•UV: Rejected for suspicious Ultraviolet.
•MG: Rejected for suspicious Magnetic Ink.
•IR: Rejected for suspicious Infrared.
•DOUBLE: Rejected because two bills passed stuck together.
•CHAIN: Chaining problems (adjust the gap thickness screw).
NOTE: When a unit reports multiple CHAIN events, the thickness
calibration must be checked before taking other measures. Poor thickness
calibration also affects the unit in other aspects of its operation.

15

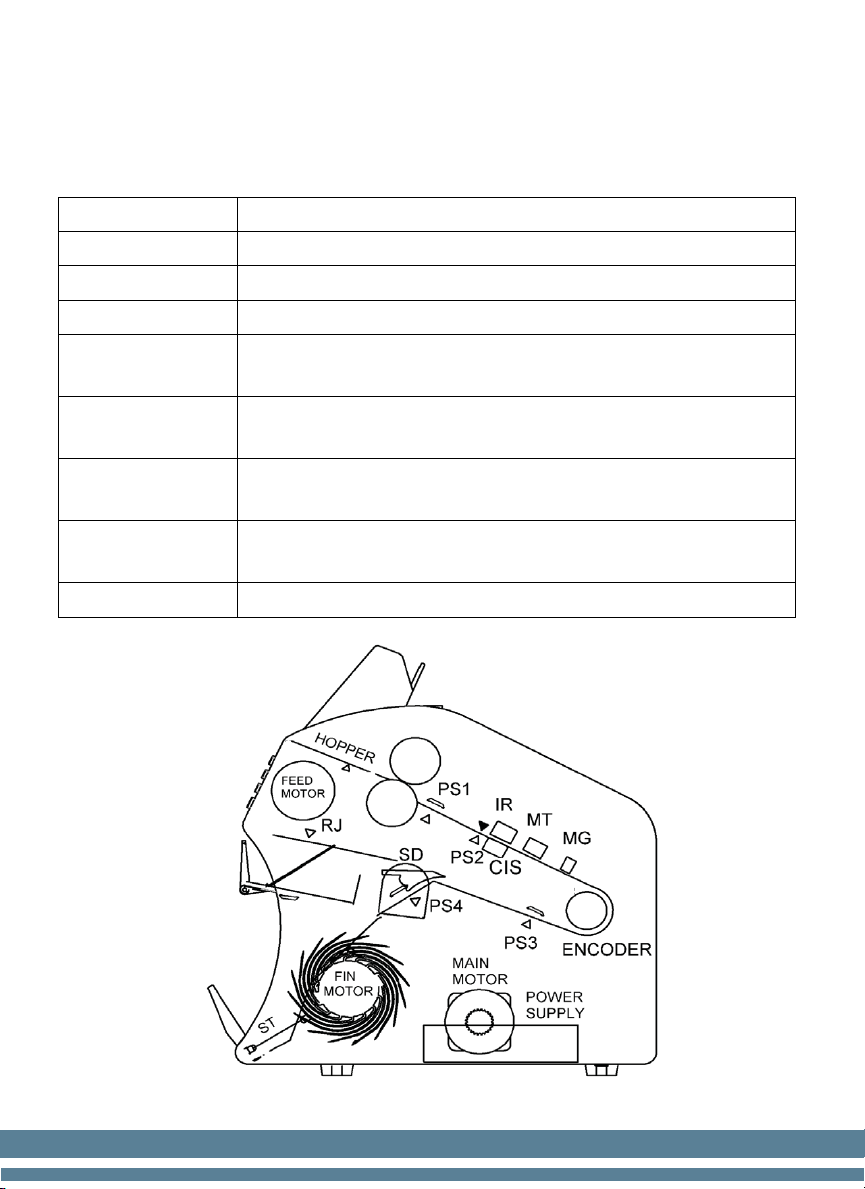

6. Warning and Error Messages
Error messages reported during unit’s operation:
ERROR
CAUSE & SOLUTION
SKEW
Bill entered skewed.
TYPE 2
Rejected because BATCH is full.
REJ DENO
Rejected by denomination.
JAM PS1
PS1 Sensor obstructed, open-top cover and remove the
jammed bill, press C to continue.
JAM PS2
PS2 Sensor obstructed, open-top cover and remove the
jammed bill, press C to continue.
JAM PS3
PS3 Sensor obstructed, open-top cover and remove the
jammed bill, press C to continue.
JAM PS4
PS4 Sensor obstructed, open-top cover and remove the
jammed bill, press C to continue.
JAM CIS
Clean CIS Sensor.

16
7. Unit Maintenance
7.1 Periodic Cleaning Routines
Follow the recommendations below to minimize possible errors during the
operation of the unit and to extend the life of the unit.
Daily routine: Perform the following steps on a daily basis:
a. Turn Off the Turn OFF the unit.
b. At the end of each work session, use a cloth to remove dust and dirt
accumulated during the day.
c. With the brush, remove the dust accumulated in the exposed optical
sensors.
Weekly routine: Perform the following steps on a weekly basis:
a. Turn OFF the unit.
b. Open the unit’s top cover.
c. Use a brush and a compressed air can to remove dust and debris from the
inside of the unit as well as the rollers and transport mechanisms.
d. Use a clean cloth moistened with alcohol to properly clean the CIS
sensors as well as the rollers.
NOTE: Be careful during the cleaning routine to avoid any damage to the
unit, especially the CIS sensors.

17
8. Software Updates
Steps to perform software update:
Proceed to update the machine's firmware when new bills are launched by the
Central Bank.
1. Copy the update file into a USB memory. The memory capacity must be
lower than 32GB.
2. Plug the USB memory into the USB port at the back of the machine.
3. Press and hold down the yellow key on the control panel then turn ON the
machine then release the key when the message READ USB DISK is
shown.
4. The screen will show the update file copied on the USB then press the
key ACCEPT.
5. The screen will show "DOWNLOADING………1" which means the
firmware installation has begun.
6. The installation is completed when the message "SUCCESS" is shown.
7. Turn the machine OFF and ON again and resume counting.

18
9. Specifications
Counting Speed: 800 bills/min (MDC and SDC)
Operating Modes: MIXED (MDC), SORT (SDC), BASIC COUNT (CNT)
Detection Technology: Contact Image Sensors (CIS)
Detection Functions: UV-MG-IR-MT
Interface: USB- For Updates / RS232- For Printer and External Display
Feeding System: Friction Rollers
Hopper Capacity: 500 bills Stacker
Capacity: 200 bills
Bill Dimensions: 10 x 5 - 18 x 9 cm
Display: High Resolution LCD screen
Power Source: 100-240 VAC, 60/50 Hz
Weight: 30 lbs (13.5 Kg)
Dimensions (W x D x H) : 11.8” x 14.1” x 14.1” (30 x 36 x 36 cms)

AccuBANKER USA
7104 NW 50th St
Miami, FL 33166
9AM- 5PM ET Monday through Friday
www.AccuBANKER.com
Please give us a call at 1-888-993-2228
®
