ACME Theatre LED Colour Flood User manual

User Manual
Please read the instrucon carefully before use
CYC-200 FC

CONTENTS
1. Safety Introductions.............................................................................................. 2
2. Technical Specifications......................................................................................... 3
3. How To Set The Fixture ......................................................................................... 4
3.1 Control Panel................................................................................................... 4
3.2 The Plate for Color Filter & Barn Door Installation .......................................... 5
3.3 Main Function ................................................................................................. 6
4. How To Control The Unit..................................................................................... 10
4.1 Master/Slave Function .................................................................................. 10
4.2 DMX Controller ............................................................................................. 10
4.3. DMX512 Configuration................................................................................. 11
4.4. DMX512 Connections................................................................................... 13
5. Troubleshooting .................................................................................................. 14
6. Fixture Cleaning .................................................................................................. 14
1B

1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cables when fixing this unit.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature
is higher than this.
Turn off the power and allow about 15 minutes for the unit to cool down before servicing.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any cables during operation as high voltage may cause electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
The housing and lenses must be replaced if they are visibly damaged.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
2B

Caution:
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Make sure that the structure to which
you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
The equipment must be installed by professionals. It must be fixed at a place where is out of the
reach of people and no one pass by or under it.
2. Technical Specifications
◆Theatre LED Flood is a powerful cyclorama projector,with innovative optics,featuring high
power quad color LED and 90°x 113°beam angle, delivering excellent color mixing, even and
wide-field projection.
◆Control Mode: DMX, Master/Slave
◆DMX Channel: 4 / 9 Channels
◆0~100% smooth dimming
◆Color frame for use of color filters and barn doors included
◆Variable strobe speed
◆LCD display for easy navigation
Power Voltage: AC 100 ~ 240V, 50/60Hz
Power Consumption: 155W
Light Sources: 1x 150W RGBW LEDs
Beam angle: 90°x 113°
Weight: 6.2 Kgs
Dimension: 425 x 364 x 419mm
3B

3. How To Set The Fixture
3.1 Control Panel
4
1. Display: Shows the various menus and the selected functions;
2. DMX IN : For DMX 512 link, use 5-pin XLR cable to link the unit to a DMX controller;
3. POWER IN: Connects to mains supply power;
4. POWER OUT: Connects to the next unit;
4B

5. DMX OUT: For DMX 512 link, use 5-pin XLR cable to link to the next unit and output DMX
signal;
6. Power Switch: Turns On/Off the power.
7. Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
8. Fuse (T3.15A):To protect the unit from damage of over current.
3. 2 The Plate for Color Filter & Barn Door Installation
Please insert the Barn Door into the outside slot from topside as arrow ○ 1E A, and fasten the lock
(Note: the Barn Door must be fastened into the inside of the lock’s hook);
Finally, as arrow A○ 2E A, (Note: the lock must turn right to move) flip down the lock cap again as
arrowA○ 3E A, in order to fasten the Barn Door.
5B

3.3 Main Function
To select any of the given functions, press the MENU button up to the required selection as shown
on the display. Select the function with the ENTER button and the display will blink. Use the
DOWN/UP buttons to change the mode. Once the required mode has been selected, press the
ENTER button to confirm. To go back to the main functions without any changes press the MENU
button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
the current mode.
The main functions are shown below:
Mode1(4ch)
Red Value
Green Value
Blue Value
White Value
6B

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address,Channel Mode or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the address from 1to 512, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode 1 (4 ch) or Mode 2 (9 ch) mode, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to
select Red, Green, Blue or White mode, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display, use
the UP/DOWN button to select Mode 1,Mode 2,Mode 3 or Mode 4. Once selected, press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
Linear: The increase in light intensity appears to be linear as DMX value is increased.
7B

S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select the SMOOTH (dimmer speed smooth) or FAST(dimmer speed
fast) press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Display Settings
Enter menu mode, select Display Settings, press ENTER button to confirm, use UP/DOWN button
to select Display Inverse,Backlight Auto Off, Contrast Ratio, Temperature Unit or Language.
Display Inverse
To select Display Inverse, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select the No (normal display) or Yes (inverse display),
press the ENTER button to save. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Backlight Auto Off
To select Backlight Auto Off, press the ENTER button to confirm, present mode will blink on
the display, use the UP/DOWN button to select Yes (display goes off one minute after exiting
menu mode) or No (display always on), press the ENTER button to save. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Contrast Ratio
To select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust the value from 1 to 30, press the ENTER button
to save. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Language
To select Language, press the ENTER button to confirm, present mode will blink on the
8B

display, use the UP/DOWN button to select the English or Chinese, press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Fixture Test
To select Fixture Test press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select the Auto Test or Manual Test press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select the Fixture Use Time,LED Temp. or Firmware Version.
Fixture Use Time
To select Fixture Use Time, press the ENTER button to confirm, and running time of the
fixture will show on the display. Press the MENU button back to exit.
LED Temp.
To select LED Temp., press the ENTER button to confirm, the current running temperature of
the fixture will show on the display. Press the MENU button back to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, the software version will
show on the display. Press the MENU button back to exit.
Factory Setting
Select Factory Setting,press the ENTER button to confirm, present mode will blink on the display.
Use the DOWN and UP button to select the No or Yes (Switch back to default settings). Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
9B

4. How To Control The Unit
You can operate the unit in two ways:
1. By master/slave function
2. By DMX controller
You do not need to turn the unit off when you change the DMX address, the new DMX address
setting will take effect immediately.
4.1 Master/Slave Function
By linking the units in master/slave connection, the first unit will be master automatically. You
should set the master unit effect via its knobs, then the other units (slave) will lighting as the
same.
4.2 DMX Controller
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm,
the present address will blink on the display. Use the UP/DOWN button to adjust the address from
1 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Please refer to the following diagram to set the address for the first 4 units.
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
4 channels 1 5 9 13
9 channels 1 10 19 28
10B

4.3. DMX512 Configuration
4 Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000 ~ 255
RED
0% 100%
2
000 ~ 255
GREEN
0% 100%
3
000 ~ 255
BLUE
0% 100%
4
000 ~ 255
WHITE
0% 100%
9 Channel Mode:
CHANNEL
VALUE
FUNCTIONS
1
000 ~ 255
RED
0% 100%
2
000 ~ 255
GREEN
0% 100%
3
000 ~ 255
BLUE
0% 100%
4
000 ~ 255
WHITE
0% 100%
5
000
001 ~ 006
007 ~ 013
014 ~ 020
021 ~ 027
028 ~ 034
035 ~ 041
042 ~ 048
049 ~ 055
056 ~ 062
063 ~ 069
070 ~ 076
077 ~ 083
084 ~ 090
091 ~ 097
098 ~ 104
COLOR MACRO
Open
LEE 790 – Moroccan Pink
LEE 157 – Pink
LEE 332 – Special Rose Pink
LEE 328 – Follies Pink
LEE 345 – Fuchsia Pink
LEE 194 – Surprise Pink
LEE 181 – Congo Blue
LEE 071 – Tokyo Blue
LEE 120 – Deep Blue
LEE 079 – Just Blue
LEE 132 – Medium Blue
LEE 200 – Double CT Blue
LEE 161 – State Blue
LEE 201 – Full CT Blue
LEE 202 – Half CT Blue
11B

105
~
111
112 ~ 118
119 ~ 125
126 ~ 132
133 ~ 139
140 ~ 146
147 ~ 153
154 ~ 160
161 ~ 167
168 ~ 174
175 ~ 181
182~ 188
189 ~ 195
196 ~ 202
203 ~ 209
210 ~ 216
217 ~ 223
224 ~ 255
LEE 117 – Steel Blue
LEE 353 – Lighter Blue
LEE 118 – Light Blue
LEE 116 – Medium Blue Green
LEE 124 – Dark Green
LEE 139 – Primary Green
LEE 089 – Moss Green
LEE 122 – Fern Green
LEE 738 – JAS Green
LEE 088 – Lime Green
LEE 100 – Spring Yellow
LEE 104 – Deep Amber
LEE 179 – Chrome Orange
LEE 105 – Orange
LEE 021 – Gold Amber
LEE 778 – Millennium Gold
LEE 135 – Deep Gold Amber
LEE 164 – Flame Red
6
000 ~ 041
042 ~ 083
084 ~ 125
126 ~ 167
168 ~ 209
210 ~ 255
LEE FILTRES
2800K
3200K
4400K
5200K
5600K
6000K
7
000 ~ 007
008 ~ 015
016 ~ 131
132 ~ 139
140 ~ 181
182 ~ 189
190 ~ 231
232 ~ 239
240 ~ 247
248 ~ 255
STROBE
Off
Open
Strobe: Slow →Fast
open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
8
000 ~ 255
DIMMER
0-100%
9
000 ~ 255
DIMMER FINE
0-100%
12B

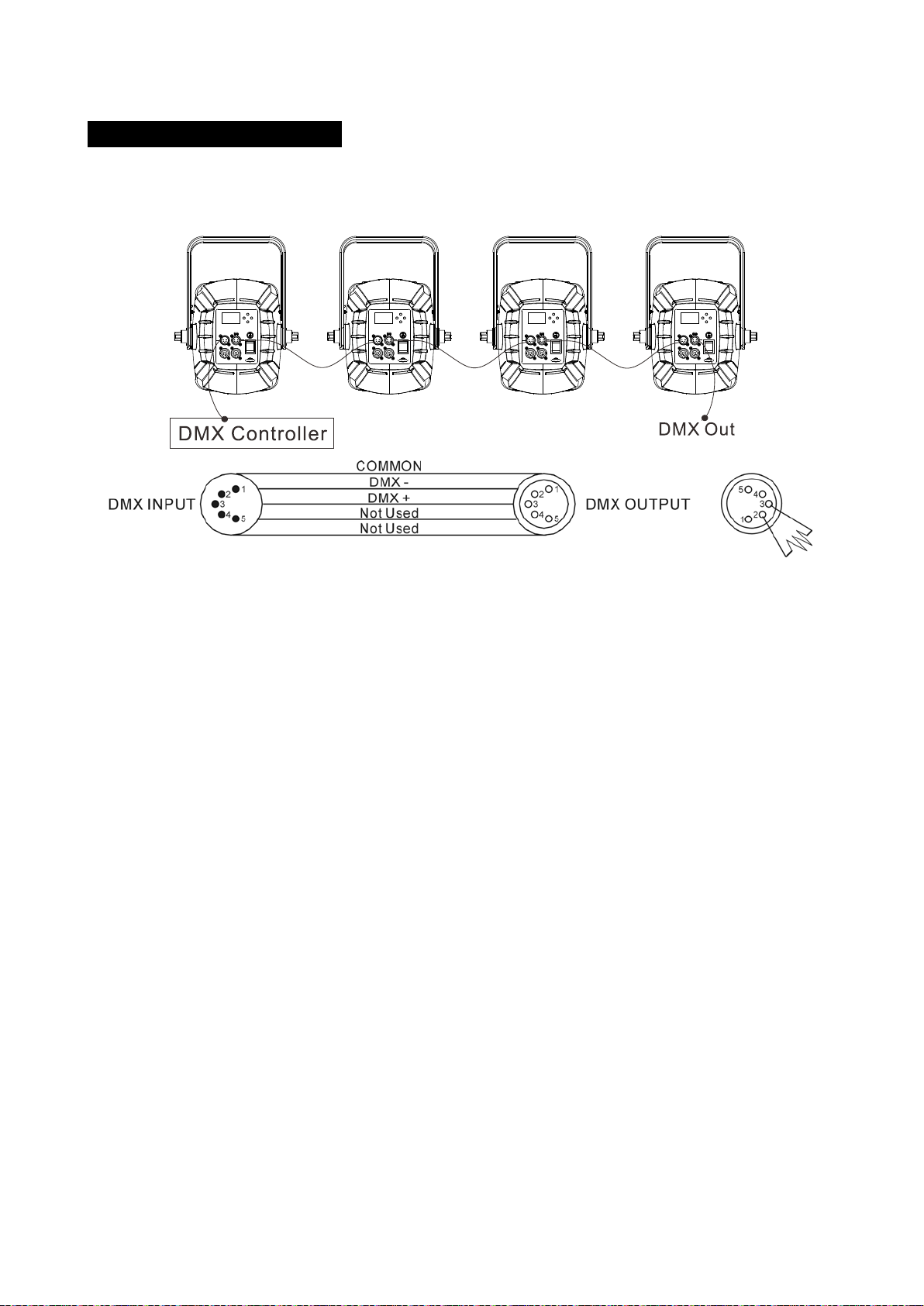

4.4. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a
very high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors
can easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
13B

5. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
6. Fixture Cleaning
Cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: moist, smoky or particularly dirty surroundings can
cause a greater accumulation of dirt on the fixture.
Clean with soft cloth using normal glass cleaning fluid or mild soapy water.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
14B

Innovation, Quality, Performance
0BDeclaration of Conformity
We declare that our products (lighting equipment) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
1BHarmonized Standard
EN 60598-1:2015; EN 60598-2-17:1989 + A2:1991; EN 62471:2008;
EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
