ACME DVS-2500 User manual

DigiVideo Spot 2500
DVS-2500
User Guide
Please read these instructions carefully before use

DVS-2500
1-

DVS-2500
2-
CONTENTS
1. Safety Instruction ...............................................................................................................3
2. Installation................................................................................................................................5
3. Technical Specification ..................................................................................................7
4. Description ............................................................................................................................11
4.1 Description of the fixture.....................................................................11
4.2 Control Panel..................................................................................... 12
5. Lamp.......................................................................................................................................... 13
6. How To Set The Unit ...................................................................................................... 14
6.1 Display Status When Power On......................................................... 14
6.2 Main Function .................................................................................... 15
6.3. Home Position Adjustment ............................................................... 24
6.4. Memory card..................................................................................... 25
6.5. Error Information............................................................................... 28
7. Control By Universal DMX Controller............................................................... 28
7.1 Connection ........................................................................................ 28
7.2 Channel Mode Setting ....................................................................... 29
7.3 Address Setting ................................................................................. 30
7.4 DMX 512 Configuration ..................................................................... 30
8. Update Software................................................................................................................ 38
9. Troubleshooting................................................................................................................ 38
10. Fixture Cleaning............................................................................................................. 40

DVS-2500
3-
1. Safety Instruction
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
yUnpack and check carefully that there is no transportation damage before using the
unit.
yThe unit is for indoor use only. Use only in a dry location.
yDo install and operate by qualified operator.
yDo not allow children to operate the fixture.
yUse safety chain when fixing the unit. Handle the unit only by carrying its base instead
of head .
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
yBe sure that no ventilation slots are blocked, otherwise the unit will be overheated.
yBefore operating, ensure that the voltage and frequency of power supply matches the
power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yDon’t connect the device to any dimmer pack.
yDuring initial start-up, some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, and it will decrease gradually
within 15 minutes.
yMake sure there are no flammable materials close to the unit while operating to avoid
fire hazard.
yExamine the power wires carefully; replace them immediately if there is any damage.
yUnit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed
during its operation, and allow about 15 minutes for cooling the unit down before
replacing bulb or maintenance as it could be very hot.
Please read carefully the instruction manual which includes
important information about the installation usage and maintenance.

DVS-2500
4-
yAvoid any inflammable liquids, water or metal objects entering the unit. Once it
happens, cut off the mains power immediately.
yDo not operate in dirty or dusty environment; do clean the fixture regularly.
yDo not touch any wire during operation as there might be a hazard of electric shock.
yAvoid power wires and other cables twisted.
yThe minimum distance between light output and the illuminated surface must be more
than 2.5 meters.
yDisconnect mains power before fuse/lamp replacement or servicing.
yReplace fuse/lamp only with the same type.
yIn the event of serious operating problem, stop using the unit immediately.
yNever turn on and off the unit time after time.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
yDo not open the unit as there are no user serviceable parts inside.
yNever try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical assistance
center if needed.
yDisconnect the mains power if the fixture has not been used for a long time.
yDo use the original packing materials before transporting it once again.
Caution
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
yHot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
yDo replace the bulb once it is damaged, deformed or life-expired.
yDo not look directly at the light while the bulb is on.
yNever touch bulb with bare fingers, as it is very hot after using.
yDo not start on the unit without bulb enclosure or when housing is damaged.
WARNING!
Maximum ambient temperature TA: 40 ℃ . Don’t operate it when the
temperature is higher.

DVS-2500
5-
Product Items
yDigital Video Spot 2500
yUser manual
y2 x Omega clamps
y8GB memory SD card (packaged with user manual)
2. Installation
1. Bolt each clamp (1) to the Omega holder with screw and lock nut through the hole in the
holder.
2. Fasten the omega holders (2) on the bottom of the base by inserting quick-lock
fasteners (3) into the holes of the base and tighten fully clockwise.
3. Hang the fixture to the support (4) through clamp and fasten the screws (5). Fasten the
safety cable (6) through the bottom of the base and over the support.
90 °
1
2
3
4
65
Fig.1 Fig.2
4. Please refer to the diagram to know how to install the fixture in correct position.

DVS-2500
6-
Fig.3
Attention:
yAlways ensure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight.
yAlso always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
yMake absolute sure that the unit is firmly fixed in a way that no vibrating or slipping
would occur during operation.
yThe equipment must be installed beyond the areas where persons may walk by or be
seated.
yThe rigging has to be operated by a skilled person.

DVS-2500
7-
3. Technical Specification
Power supply
- AC 120V~240V 50/60Hz
Power Consumption
- 250W at 230V 50Hz
- 260W at 120V 60Hz
Fuse
- T 5A
Projector
- Display technology: DLP by Texas Instruments
- Lamp: Osram E20.8 180W Lamp
- Lamp life time: 1,000 hrs (In the moving head)
- Beam angle: 24 degree
- Brightness(ANSI Lumens): 2500
- Contrast Ratio (Full on/ Full off): 1800:1 (typical)
- Resolution: SVGA 800 x 600
- Built-in Image size: 720 x 480
Wireless control
- Wirelessly controlled by W-DMX (option).
- Each W-DMX is sending out 512 channels of DMX.
-License free band of 2.45 GHz
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt position correction.
- Built-in Pan/Tilt macro effects
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Image/ Video inputs:
- Data projector: 1x15-pin VGA port, 1xS-Video (NTSC or PAL) port, 1xComposite (CVBS)
port
- Supported image file types: JPG (Max. image resolution is 720 x 480)

DVS-2500
8-
- Supported video file types: AVI, MJPEG
(From SD card: Max. video resolution is 720 x 480)
(From computer: Max. video resolution is 800 x 600 )
Shutter
- Blackout
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Memory card
- Memory card slot, hot swappable, max. 32 GB (Built in 8GB)
Weight
- 17.5kgs
Dimension
- 550 × 296 × 518 mm

DVS-2500
9-
DMX Channels
Mode
Channel
Mode 1
54-CH
Mode 2
29-CH
1 Pan Pan
2 Pan Fine Pan Fine
3 Tilt Tilt
4 Tilt Fine Tilt Fine
5 Pan/Tilt Speed Pan/Tilt Speed
6 Pan/Tilt Macro Shutter
7 Shutter Picture/Video
8 Picture/Video Video Number
9 Video Number Video Speed
10 Video Speed Layer1 Picture Directory /Color
11 Red Layer1 Picture Number/Preset Color
12 Green Layer2 Picture Directory
13 Blue Layer2 Picture Number
14 Layer1 Picture Directory /Color Layer3 Picture Directory/Filter Picture
15 Layer1 Picture Number/Preset
Color Layer3 Picture Number
16 Layer1 Center Offset Picture Macro
17 Layer1 Center Rotation Picture Macro Center Offset
18 Layer1 X Zoom Picture Macro Center Rotation
19 Layer1 Y Zoom Picture Macro X Zoom
20 Layer1 Zoom Macro Picture Macro Y Zoom
21 Layer1 Rotation Picture Macro Zoom Macro
22 Layer2 Picture Directory Picture Macro Rotation
23 Layer2 Picture Number Focus
24 Layer2 Center Offset Color mode
25 Layer2 Center Rotation Screen Format
26 Layer2 X Zoom Mirror
27 Layer2 Y Zoom Keystone
28 Layer2 Zoom Macro Source
29 Layer2 Rotation Special Function
30 Layer3 Picture Directory/Filter
31 Layer3 Picture Number

DVS-2500
10-
32 Layer3 Center Offset
33 Layer3 Center Rotation
34 Layer3 X Zoom
35 Layer3 Y Zoom
36 Layer3 Zoom Macro
37 Layer3 Rotation
38 Picture Macro
39 Picture Macro Center Offset
40 Picture Macro Center Rotation
41 Picture Macro X Zoom
42 Picture Macro Y Zoom
43 Picture Macro Zoom Macro
44 Picture Macro Rotation
45 Focus
46 Color mode
47 Screen Format
48 Mirror
49 Keystone
50 Brightness
51 Contrast
52 Freeze
53 Source
54 Special Function

DVS-2500
11-
4. Description
4.1 Description of the fixture
For transportation protection, please set the tilt lock/unlock (2) and the pan lock/unlock
lever (3) in the lock position before any transportations. To unlock the head, move the tilt
lock/unlock (2) and the pan lock/unlock lever (3) to unlock position.
Caution: The head and arm must be unlocked before operation!
1.Head
2.Tilt lock
3.Pan lock
4.Front panel
5.Memory card slot
6.Arm
7.Handle
8.Back panel

DVS-2500
12-

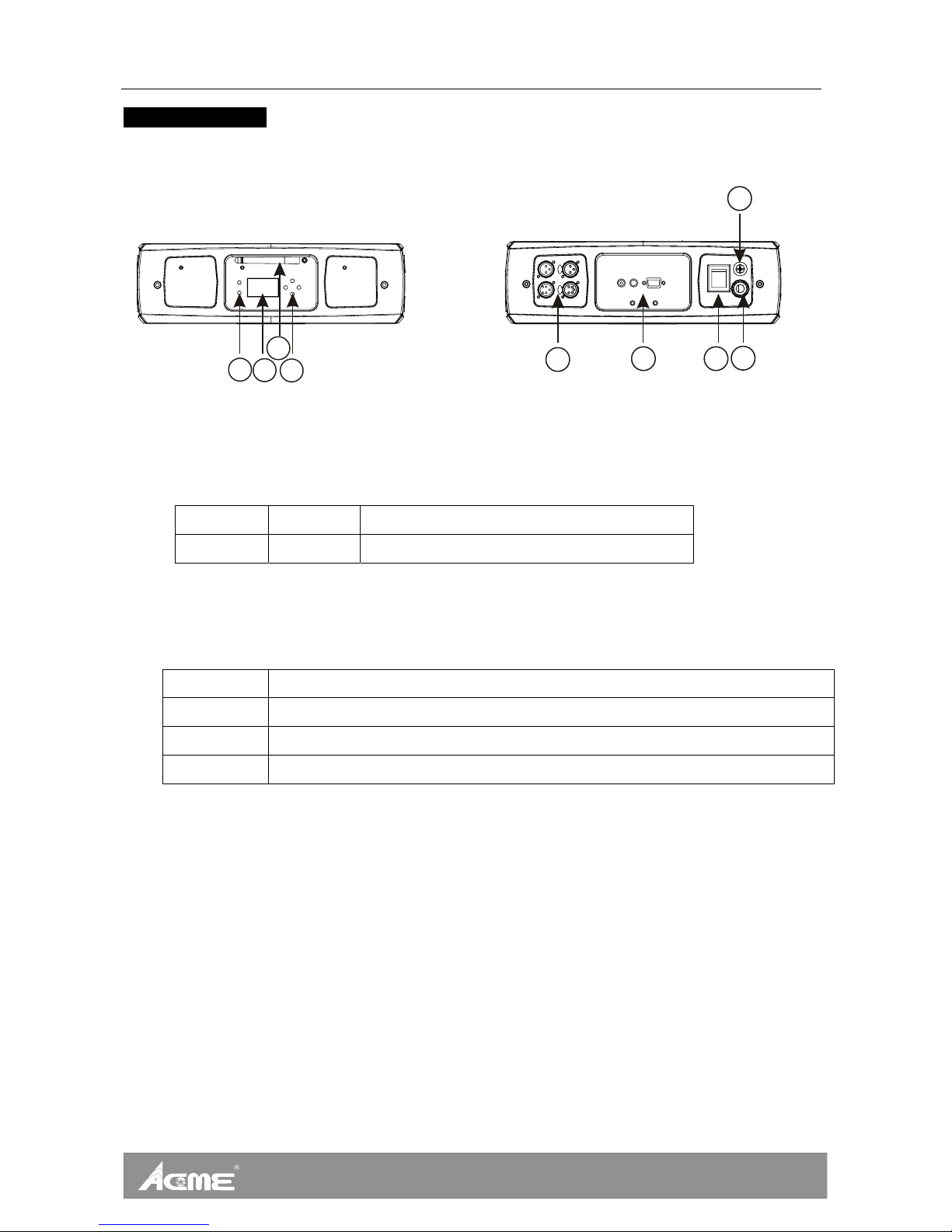

4.2 Control Panel
FrontView RearView
○
1LCD Display: shows the various menus and the selected functions.
○
2LED
POWER On Power on
DMX On DMX input present
○
3 Antenna
W-DMX wireless receiver receive signal from a wide range.
○
4Button
MENU Used to select the different menu items
UP To go up in the menu and to increase the values shown on the display
DOWN To go back in the menu and to lower the values shown on the display
ENTER Used to confirm your choice.
○
5 DMX input/output sockets:
For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together
○
6 Video input sockets:
Composite video in (CVBS): (the length limit to 3 meters in normal operation.)
S-Video in (NTSC or PAL): (the length limit to 3 meters in normal operation.)
15-pin VGA in: (the length limit to 10 meters in normal operation.)
○
7 Power Switch:
Turns On/Off the power
56 7 8
9
1
234

DVS-2500
13-
○
8 PowerCable:
To connect to the mains AC outlet
○
9 Fuse (T 5 A):
Protect the unit from damage of over current.
5. Lamp
Osram E20.8 180W Lamp
yBecause of its high internal pressure, there might be a risk that the discharge
lamp would explode during operation. The lamp emits intense UV radiation which
is harmful to the eyes and skin. The high luminance of the arc can cause severe
damage to the retina if you take a close look at the lamp.
yTo protect the lamp, always turn off the lamp first (via control panel or DMX
controller) and let the unit’s fan run at least five minutes to cool down before
switching off the mains supply. Never handle the lamp or luminarie when it is hot.
yDo not touch the bulb with bare hands. If this happens, clean the lamp with
denatured alcohol and wipe it with a lint free cloth before installation.
yThe lamp generates UV radiation. Never operate the lamp without appropriate
shielding.
yWhen lighting up, the lamp operates at high pressure and there is a slight risk of arc
tube rupture. The risk increases with age, temperature and improper handling of the
lamp. Do not use the lamp longer than its lifespan.
yMake sure the lamp is located in the right position of the unit for the best projection.

DVS-2500
14-
Change Lamp
WARNING
1. Turn off the power.
2. Unscrew the four screws (A), open the cover, and move it as
the sketch shown.
3. Unscrew the two screws (B), hold and pull the handle (C) to
remove the lamp. (If you want to change a
lamp, you must change the lamp-socket
together)
4. Inset a new lamp follow the groove.
5. Tighten the screws (B) to fix the lamp.
6. Put the cover back to the device and
Tighten the screws (A) to finish changing lamp.
6. How To Set The Unit
6.1 Display Status When Power On
Every time you turn on the unit, it will run built-in program to reset all motors to their home
position, the display will show as fig.4, you may hear some noises for about 20 seconds. It
will show warning sign if it goes wrong during resetting and you can press the MENU button
to view the error information. After that the unit will be ready to receive DMX signal and the
display will show as fig.5.
DVS-2500
Fig.4 Fig.5
In case of replacement of the lamp or maintenance, do not open the
fixture within 15 minutes until the unit cools down after switching off.

DVS-2500
15-
Explanation of fig.5:
Base 30°CPresent temperature of base CPU is 30°C
001 Present DMX start address
Md.1 54Ch Present channel mode is mode 1 (54 channels mode)
Warning signal blinking indicates resetting error, press Enter for
more details.
6.2 Main Function
Turn on the unit, press MENU button into menu mode, press UP and DOWN button until the
required function is shown on the monitor. Select the function by ENTER button. Use UP
and DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press MENU button or let the unit idle one minute to
exit menu mode.
The main functions are shown below:

DVS-2500
16-

DVS-2500
17-
DMX Settings
Enter menu mode, select DMX Settings, press ENTER button to confirm, press
UP/DOWN button to select DMX Address, DMX Channel Mode, View DMX Value or
WDMX Setting
DMX Address—DMX512 address setting
Select DMX Address, press ENTER button to confirm, the present address will blink on
the display, press UP/DOWN button to adjust the address from 1to 512, press ENTER
button to store. Press MENU button back to the last menu or let the unit idle one minute
to exit menu mode.

DVS-2500
18-
DMX Channel Mode—channel mode
Select DMX Channel Mode, press ENTER button to confirm, present channel mode
will blink on the display, press UP/DOWN button to select Mode1 (54 channels mode)
or Mode 2 (29 channels mode), press ENTER button to store. Press MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
Select View DMX Value, press ENTER button to confirm. Channel function and its
value will show on the display, press UP/DOWN button to view other DMX value. Press
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
WDMX Setting—wireless control setting
Select WDMX Setting, press ENTER button to confirm. Press UP/DOWN button to
select Active, Retransmit or Reset Memory, press ENTER button to store. Press
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Active
Select Active, press ENTER button to confirm, press UP/DOWN button to select
Yes (wireless control available) or No (wireless control unavailable), press
ENTER button to store. Press MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
(Set wireless control to be available, the power indicate LED will blink)
Retransmit
Select Retransmit, press ENTER button to confirm, press UP/DOWN button to
select Yes (Retransmit DMX signal to the next units in the same line) or No (No
Retransmit), press ENTER button to store. Press MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Reset Memory
Select Reset Memory, press ENTER button to confirm, press UP/DOWN button
to select Yes (Clear original learning code, and save the new learning code.) or
No (No Reset), press ENTER button to store. Press MENU button back to the
last menu or let the unit idle one minute to exit menu mode.

DVS-2500
19-
Standby Settings
Enter menu mode, select Stand Settings, press ENTER button to confirm, press
UP/DOWN button to select Standby Mode or Eidt Standby Scene, press ENTER button
to store. Press MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Standby Mode
Select Standby Mode, press ENTER button to confirm, press UP/DOWN button to
select Keep (When the DMX signal is cut off, the fixture will remain on its last status.)
or Scene (You can edit your own scene for the Standby Mode, when the DMX signal is
off, the fixture will remain on the scene that you edited), and press ENTER button to
store. Press MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Fixture Settings
Enter menu mode, select Fixture Settings, press ENTER button to confirm, press
UP/DOWN button to select Pan Inverse, Tilt Inverse, BL.O. P/T Moving, or Image
Auto Inverse.
Pan Inverse
Select Pan Inverse, press ENTER button to confirm, present mode will blink on the
display, press UP/DOWN button to select No (normal) or Yes (pan inverse), press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Tilt Inverse
Select Tilt Inverse, press ENTER button to confirm, present mode will blink on the
display, press UP/DOWN button to select No (normal) or Yes (tilt inverse), press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
BL.O. P/T Moving—Blackout while pan/tilt moving
Select BL.O. P/T Moving, press ENTER button to confirm, present mode will blink on
the display, press UP/DOWN button to select No (normal while pan/tilt moving) or Yes
(blackout while pan/tilt moving), press ENTER button to store. Press MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
