ACME XP-1200F User manual

Technical Specifications
Power AC 230V~50/60Hz
Fuse 6 x 30 mm Glass T15A
Lamp MSI 1200W/S / HMI 1200/S K SFc10-4
Dimension
1170 x 330 x 225 mm
405 x 360 x 35 mm (Controller)
Weight 42.4 kg
Innovation, Quality, Performance
Professional Intelligent Follow Spot
User Guide
Professional Entertainment Technology

EC－Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN 55103-1:1996, EN 55103-2:1996, EN 61000-3-2:2006,
EN 61000-3-3:1995+A1:2001+A2:2005
&
Harmonized Standard
EN 60598-2-17:1989+A2:1991,EN 60598-1:2008
Part 1:General requirements and test
Following the provisions of the low voltage directive 73/23/EEC and
93/68/EEC

XP-1200F
17-
3. Try to use another DMX controller.
4. Check in the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the main voltage either too high or too low.
2. Internal temperature may be too high. Check and if necessary replace the fan.
9. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
XP-1200F
2-
CONTENTS
1. Safety Instruction...................................................................................... 3
2. Installation ................................................................................................. 5
3. Technical Specification ............................................................................ 6
4. Control Panel............................................................................................. 7
5. Lamp .......................................................................................................... 8
6. How To Set The Unit ................................................................................. 9
6.1 Main Function ...................................................................................... 9
6.2 Home Position Adjust .........................................................................11
7. How To Control The Unit ........................................................................ 12
7.1 DMX512 Connection ......................................................................... 12
7.2 Dedicated Controller.......................................................................... 13
7.3 DMX Controller .................................................................................. 14
7.4 DMX512 Configuration ...................................................................... 15
8. Troubleshooting ...................................................................................... 16
9. Fixture Cleaning...................................................................................... 17

XP-1200F
3-
1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
Important:
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
yUnpack and check carefully that there is no transportation damage before using the
unit.
yThe unit is for indoor use only. Use only in a dry location.
yDo install and operate by operator.
yUse safety chain when fixes the unit. Don’t handle the unit by taking its head only, but
always by taking its base.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
yBe sure that no ventilation slots are blocked, otherwise the unit will be overheated.
yBefore operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yMaximum ambient temperature TA: 40 . Don’t operate it where the temperature is℃
higher than this.
yDon’t connect the device to any dimmer pack.
yDuring initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
yMake sure there are no flammable materials close to the unit while operating, as it is
fire hazard.
yLook over power wires carefully, replace immediately if there is any damage.
yUnit surface temperature may reach up to 85 . Don’t touch the housing bare℃-hand
during its operation, and allow about 15 minutes to cool down before replacing bulb or
serving, as the unit could be very hot.
yNever run on for a long time lest shortening lifespan.
Please read carefully the instruction, which includes important
information about the installation, usage and maintenance.
XP-1200F
16-
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. Check the address settings and DMX polarity.
2. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the unit or the previous one.

XP-1200F
15-
from 1 to 512 channels so that the units can receive DMX signal.
Press the MENU button up to when the is shown on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press and keep ENTER button pressed up
to when the display stops blinking or storing automatically 8 seconds later. To go back to
the functions without any change press the MENU button again.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.

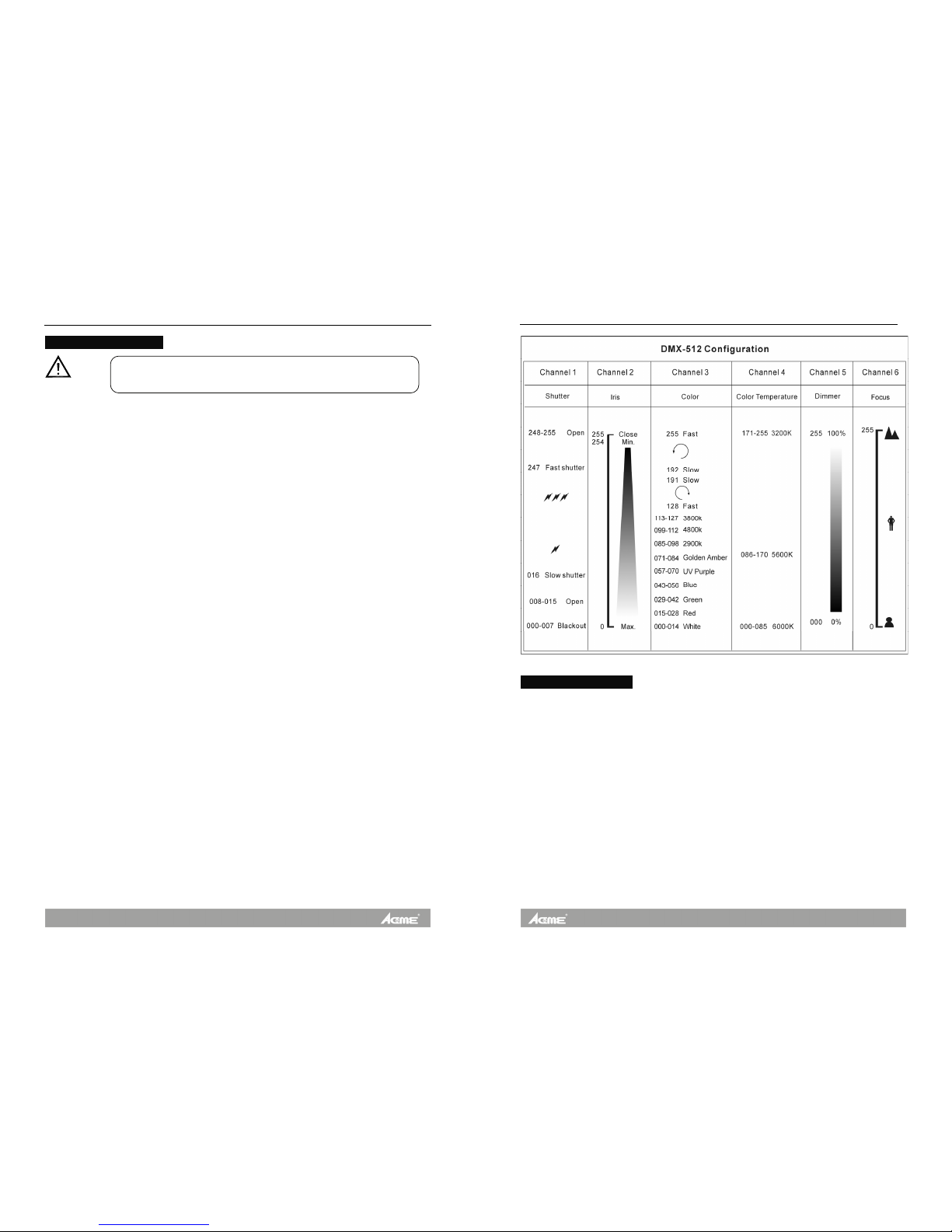

6 Channels：
7.4 DMX512 Configuration
XP-1200F
4-
yAvoid any inflammable liquids, water or metal objects entering the unit. Once it happen,
cut off the mains power immediately.
yDo not operate in dirty and dusty environment, also cleaning fixtures regularly.
yDo not allow children to operate the fixture.
yDo not touch any wire during operation as there might be a hazard of electric shock.
yAvoid power wires together arounding other cables.
yThe minimum distance between light output and the illuminate surface must be more
than 2.5 meters.
yDisconnect mains power before fuse/lamp replacement or servicing.
yReplace fuse/lamp only with the same type.
yIn the event of serious operating problem, stop using the unit immediately.
yNever turn on and off the unit time after time.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
yDo not open the unit as there are no user serviceable parts inside.
yNever try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical assistance
center.
yDisconnect the mains power if the fixture is not used for a long time.
yDo use original packing materials once transport it again.
Caution
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
yHot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
yDo replace the bulb once it is damaged, distortion or over lifespan.
yDo not look directly at the light while the bulb is on.
yNever touch bulb with bare fingers, as it is very hot after using.
yDo not start on the unit without bulb enclosure or when housing is damaged.
Product Items
yUser manual
y2 x Omega clamps

XP-1200F
5-
2. Installation
Unpacking the fixture (for flight case pack only)
1. Stop the flight case via the brake sheet above the
wheels.
2. Unlock the lock modules and move the cover away.
3. Take out the fixture.
Installation:
1. Unscrew A, set up the tripod.
2. Unscrew B to adjust the height of the tripod,
after that lock screws B well.
3. Take off the screw C, install the fixture via its
screw holes on the bracket and lock screw C
well.
Attention:
yAlways ensure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight.
yAlways ensure that the unit is firmly fixed to avoid vibration and slipping while
operating.
yThe equipment must be fixed by professionals.
XP-1200F
14-
1.DIMMER BLACKOUT button: Press this button to blackout the unit.
2.DIMMER OPEN button: Press this button, the dimmer will obtain max. Value.
3.IRIS CLOSED button: Press this button, the light iris will become the smallest.
4.IRIS OPEN button: Press this button, the light iris will become the biggest.
5.FIXED COLOURS & RAINBOW switch: Turning the switch on the COLOR SCROLL
position, enable the rainbow function, you can set different rainbow speed by pressing
COLOUR buttons from slow to fast. Turning the switch on the FIXED COLOUR
position, enable the fixed colors function and disable the rainbow function. They will
save last setting automatically in each step.
6.COLOUR buttons: There are 9 color buttons of white, red, green, blue, purple, golden
amber, 2900k, 5600k and 4800k. Select the light beam colors by pressing the relative
color buttons.
7.COLOUR TEMPERATURE switch: Adjusting this switch to obtain 3 kinds of color
temperature: Standard 6500K, frost and 2800K.
8.DIMMER slider: Adjusting the slider from 0% to 100% position, the light beam will
become stronger and stronger till the dimmer reach 100%.
9.SHUTTER slider: Adjusting the slider from slow to fast position, the strobe speed will
change from slow to fast.
10.IRIS slider: Adjusting the slider from min. to max. position, the light beam size will
become bigger and bigger till the iris opened fully.
11.FOCUS slider: Adjusting the suitable focus by pushing this slider from left to right.
7.3 DMX Controller
If you use a universal DMX controller to control the units, you have to set DMX address

XP-1200F
13-
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm
1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in
the DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit
to the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX
512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or
corroded connectors can easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit,
when one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5
not used.
7.2 Dedicated Controller
IF-series has 6 channels for international protocol DMX512. It can finish all operations via
dedicated controller without using other controllers. When the power is switched on, the
projector automatically starts to run the self-test. After finishing these, the fixture is ready for
operation.
ATTENTION
Only connect the universal controller to the “DMX IN” connector, or it wil burnt out!
Termination reduces signal errors and to avoid signal transmission problems and
interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W
between
p
in2
(
DMX-
)
and
p
in3
(
DMX+
)
of the last fixture
)
.
XP-1200F
6-
3. Technical Specification
Power supply
- 230V~50/60Hz
Lamp
- MSI 1200W/S / HMI 1200/S K SFc10-4
Optical system
- High efficiency optical system
- High quality optical lens and dichroic colors
- Beam angle: 13°
Shutter/Dimmer
- Blackout, 0~100% smooth dimming and strobe speed variable (1~12 flashes per second)
Color Wheel
- 8 dichroic colors plus white color
- Rainbow effect at variable speeds
Color Temperature
- Standard 6000K, adjustable 5600K and 3200K

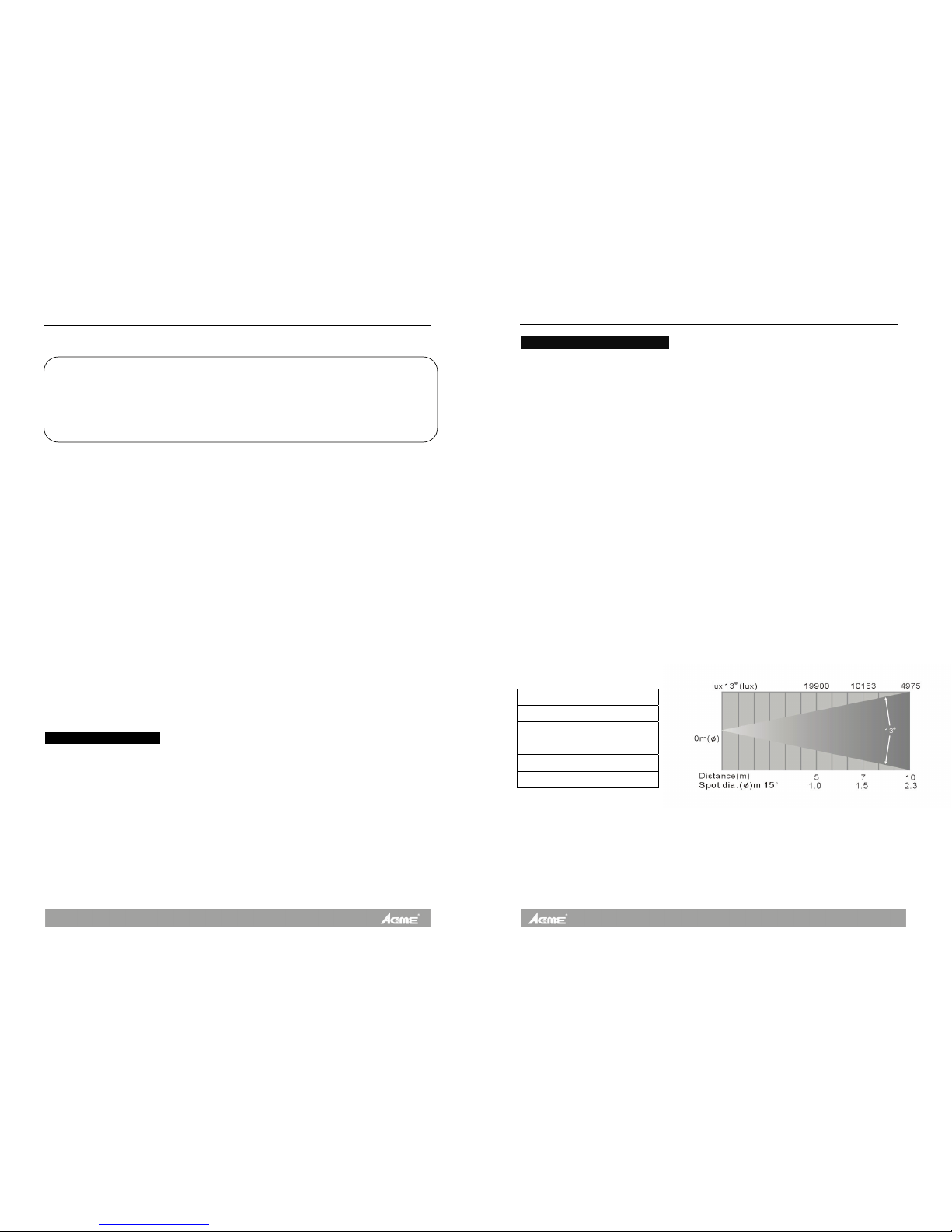

DMXChannels Luminousintensity:(HMI1200W)
Standard DMX512 signal
addressing and controlled by
any universal DMX controller
Channel 1 = Shutter
Channel 2 = Iris
Channel 3 = Color
Channel 4 = Color temperature
Channel 5 = Dimmer
Channel 6 = Focus

XP-1200F
7-
4. Control Panel
○
1 Display
To show the various menu and to select functions.
○
2 Button
MENU To select the programming functions
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
○
3 Power Switch: Turns On/Off the mains power.
○
4 Fuse: Protect the unit from damage of current.
○
5 Power Cable: Connect to mains power.
○
6 DMX input: Connect with dedicate controller for signal input
○
7 DMX input: Connect with usual controller for DMX signal input
○
8 DMX output: Connect with next unit to transmit DMX signal
XP-1200F
12-
blink. Use DOWN and UP button to adjust the effect home position. Once the effect has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
Dimmer offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display will
blink. Use DOWN and UP button to adjust the dimmer home position. Once the effect has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
7. How To Control The Unit
Two ways to operate:
1. By dedicated controller
2. By universal DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address
setting will be effected at once. Every time you turn the unit on, it will show 1200 on the
display and move all the motors to their ‘home’ position and you may hear some noises for
about 20 seconds. After that the unit will be ready to receive DMX signal.
7.1 DMX512 Connection
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

XP-1200F
11-
Lamp ON/OFF
Press the MENU button until the is blinking on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to select the (Lamp on) or
(Lamp off) mode. Once the mode has been selected, press the ENTER button to
setup or automatically return to the main functions without any change after 8 seconds. To
go back to the functions without any change press the MENU button again.
Reset
Press the MENU button until the is blinking on the display. Pressing ENTER button
and all channels of the unit will return to their standard position. To go back to the functions
press the MENU button again.
6.2 Home Position Adjust
Press MENU button for at least 5 seconds into offset mode to adjust the home position,
when you want to adjust gobo and color home position, you should be run mode
first , the functions are shown below:
Effect offset (-127~127)
Color offset (-127~127)
MENU
Dimmer offset (-127~127)
Color offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display
will blink. Use DOWN and UP button to adjust the color home position. Once the color has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
Effect offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display will
XP-1200F
8-
5. Lamp
MSI 1200W/S / HMI 1200/S K SFc10-4
yBecause of its high internal pressure, there might be a risk that the Discharge
lamp would explode during operation. The lamp emits intense UV radiation which
is harmful to the eyes and skin. The high luminance of the arc can cause severe
damage to the retina if looks directly at the lamp.
yTo protect the lamp, always turn off the lamp first (via control panel or DMX
controller) and let the unit run at least five minutes before switching off the mains
supply, never handle the lamp or luminaire when it is hot.
yDo not touch the bulb with bare hands. If this happens, clean the lamp with
denatured alcohol and wipe it with a lint free cloth before installation.
yThe lamp generates UV radiation. Never operate the lamp without appropriate
shielding.
yWhen lighting up, the lamp operates at high pressure and there is a slight risk of arc
tube rupture. The risk increases with age, temperature and improper handling of the
lamp. Do not use the lamp longer than its lifespan.
yMake sure the lamp is located in the center of the reflector for the best projection.

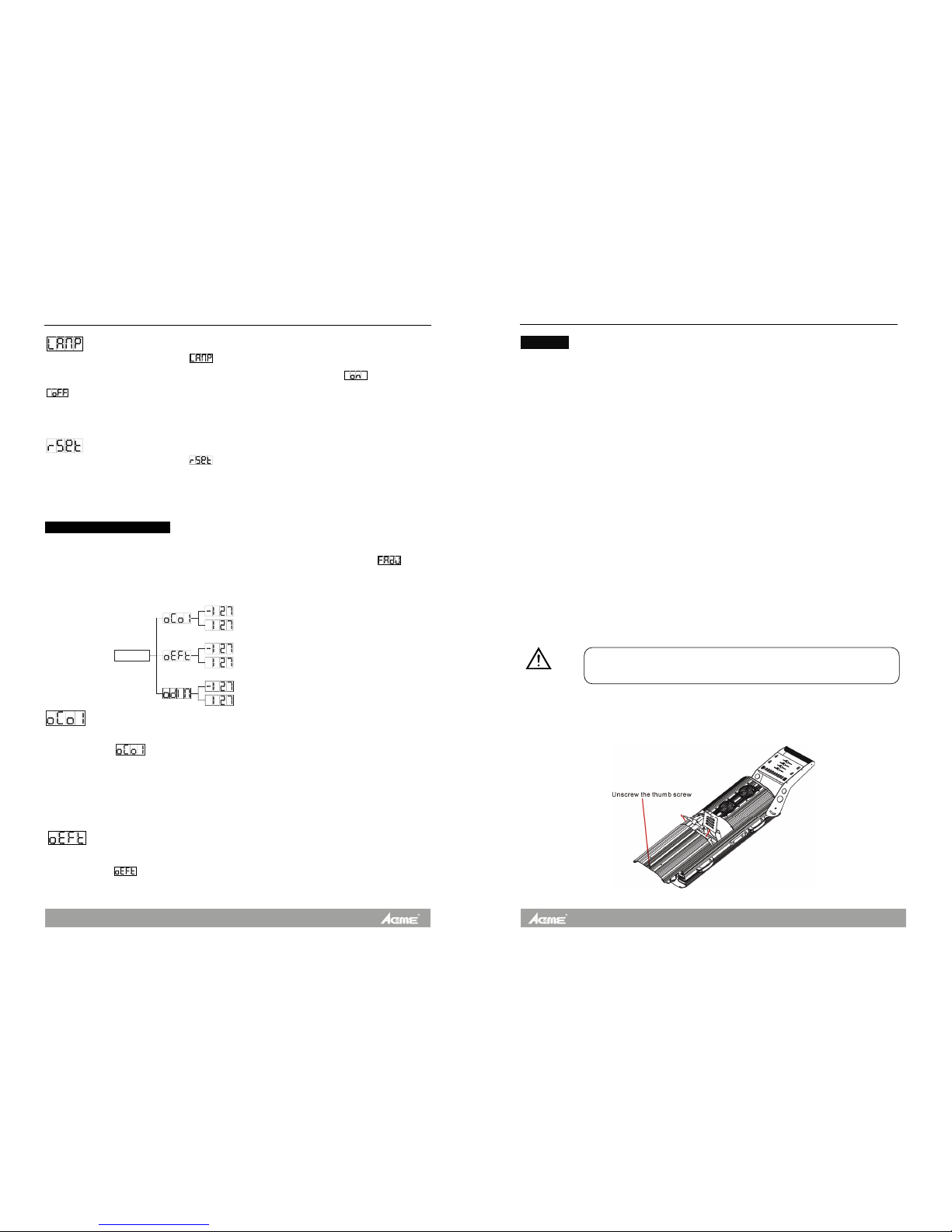

Change Lamp
WARNING
1. Turn off the power.
2. Turn the head in horizontal position. Hinge must be on the upper side of the head. Turn
screws left and remove plastic cover. Loosen head screw and open the lamp cover
In case of replacement of the lamp or maintenance, do not open the
fixture within 15 minutes until the unit cools down after switching off.

XP-1200F
9-
3. If changing the lamp, remove old lamp from lamp socket. Hold the new lamp only by its
ceramic base. Never touch the glass bulb. Insert the new lamp in the lamp socket.
4. With the nipple of the lamp facing the back insert one end of the lamp into the socket.
Pull up the spring of the other side of the socket and snap the other end of the lamp into
place. Make sure it fits correctly into the socket. Please refer to the diagram to know how
to put the lamp in correct position.
6. How To Set The Unit
6.1 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup or it will automatically return to the main functions without
any change after idling 8 seconds. To go back to the functions without any change press
the MENU button. The main functions are showing below:
XP-1200F
10-
Address Setting
MENU
Control Setting
Self-Test
Fixture Hours
Lamp On/Off
Reset
DMX 512 Address Setting
Press the MENU button until the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to change the DMX512 address. Once
the address has been selected, press the ENTER button to setup or automatically return to
the main functions without any change after 8 seconds. To go back to the functions without
any change press the MENU button again.
Control Setting
Press the MENU button until the is blinking on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to select the (Enable the black
out while changing colors) or (Unable the black out while changing colors) mode.
Once the mode has been selected, press the ENTER button to setup or automatically
return to the main functions without any change after 8 seconds. To go back to the functions
without any change press the MENU button again.
Self-Test
Press the MENU button until the is blinking on the display. Pressing ENTER
button and the unit will run self-test by built in program. To go back to the functions press
the MENU button again.
Fixture Hours
Press the MENU button until the is blinking on the display. Pressing ENTER button
and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button again.
