ACME GLORY PROFILE User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 4
3. Control Panel ................................................................................................. 6
4. Effect Wheels and Lamp................................................................................. 7
4.1 Effect Wheels ........................................................................................... 7
4.2 Light Source ............................................................................................. 7
4.3 Change The Lamp..................................................................................... 8
5. How To Set The Unit....................................................................................... 9
5.1 Main Function.......................................................................................... 9
5.2 Home Position Adjustment .................................................................... 18
6. Control By Universal DMX Controller ........................................................... 22
6.1 DMX512 Connection.............................................................................. 22
6.2 Address Setting ...................................................................................... 23
6.3 DMX512 Configuration........................................................................... 23
7. Troubleshooting........................................................................................... 44
8. Fixture Cleaning ........................................................................................... 45
1B

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2B

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 2.5 meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
Avoid direct eye exposure to the light source while the product is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.
Installation:
The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid
vibration and slipping off during operation. Ensure that the trussing or area of installation must be
able to hold 10 times the weight without any deformation. Always install a safety cable that can
hold at least 12 times the weight of the fixture when installing.
DO install and operate by qualified operator. It must be installed in a place where there is out of the
reach of people.
3B

2. Technical Specifications
Power Voltage:
230V~ 50Hz
Power Consumption:
1330W
Light Source:
OSRAM HTI 1000W
Color Temperature:
6000K
Zoom Range:
9°~61°
Movement:
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16 bit
Fixation: Pan/Tilt lock
Dimmer/Shutter:
Smooth dimming from 0-100%; outstanding strobe effect with variable speed
Color Wheel:
1 x color wheel with 6 fixed colors plus open, and rainbow effect
Gobo Wheel:
1 x static gobo wheel with 4 gobos and a 135˚ linear effect plus open
2 x rotating gobo wheels both with 5 gobos plus open, convenient replacement
Control:
DMX Channel: 26/34/28/24/21 channels
Control Mode: DMX512, RDM, Art-Net, Wireless(optional)
Firmware upgrade via DMX link
4B

Construction:
Display: LCD display
Battery backup for user setup without mains connection
Data In/Out: 3/5 -pin XLR; RJ45
Power In/Out: Power Connector in
Protection Rating: IP20
Features:
Motorized focus
CMY color mixing + Linear CTO color correction
Outstanding color macro effect
Motorized linear iris
4-facet prism, rotatable in both directions
Independent frost effect

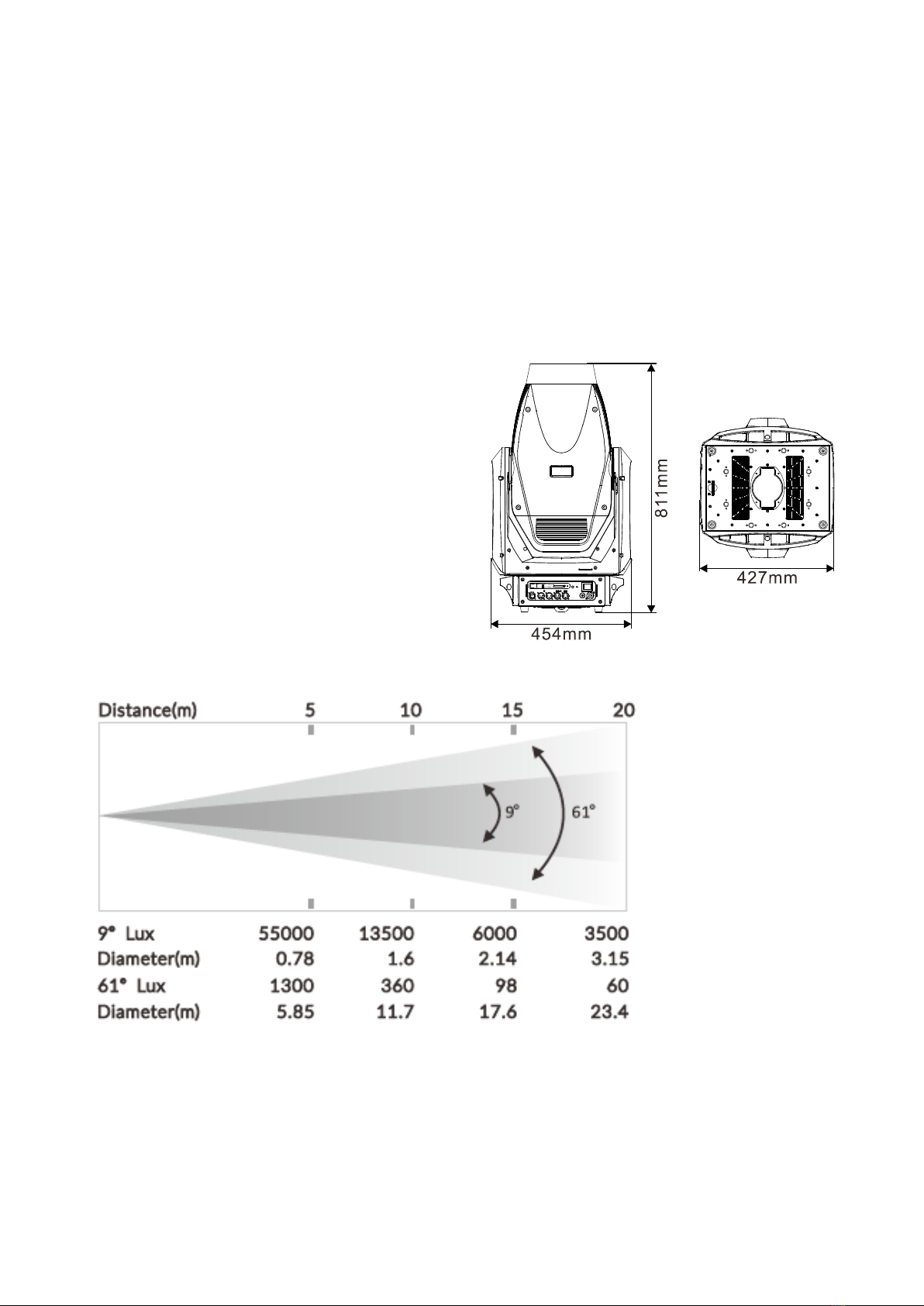

Dimension/Weight:
454x427x811mm, 40kgs
17.9"x16.8"x31.9"in, 88.2lbs
Photometric Diagram:
5B

3. Control Panel
1. Display: To show the various menus and the selected functions
2. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. WIRELESS RECEIVER: Receive the wireless DMX signal
4. ETHERNET: Transfers fixture’s information to a main controller
5. DMX IN: For DMX512 link, use 3/5 -pin XLR cable to link the unit and DMX controller
6. DMX OUT: For DMX512 link, use 3/5 -pin XLR cable to link the next units
7. BATTERY DISPLAY
8. FUSE(T 15A): Protects the unit from damage of over-voltage or short circuit
9. POWER: To connect to supply power
10. POWER SWITCH: Turns on/off the power
6B

4. Effect Wheels and Lamp
4.1 Effect Wheels
DANGER!
Install the rotating gobos with the device switched off only.
Unplug from mains before changing the rotating gobos!
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
4.2 Light Source
OSRAM HTI 1000W
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can cause severe damage to the
retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
7B

4.3 Change The Lamp
Attention: The entire light path and lens of the luminaire must be thoroughly cleaned before
changing the bulb.
Do not use this lamp more than 750 hours, using the lamp any longer than its set life could seriously
damage your unit. Periodically checking the lamp running time, when the lamp reaches the 750
hour mark, or close to it, we strongly suggest you switch the lamp out. Reset the lamp time after
you have replaced the lamp.

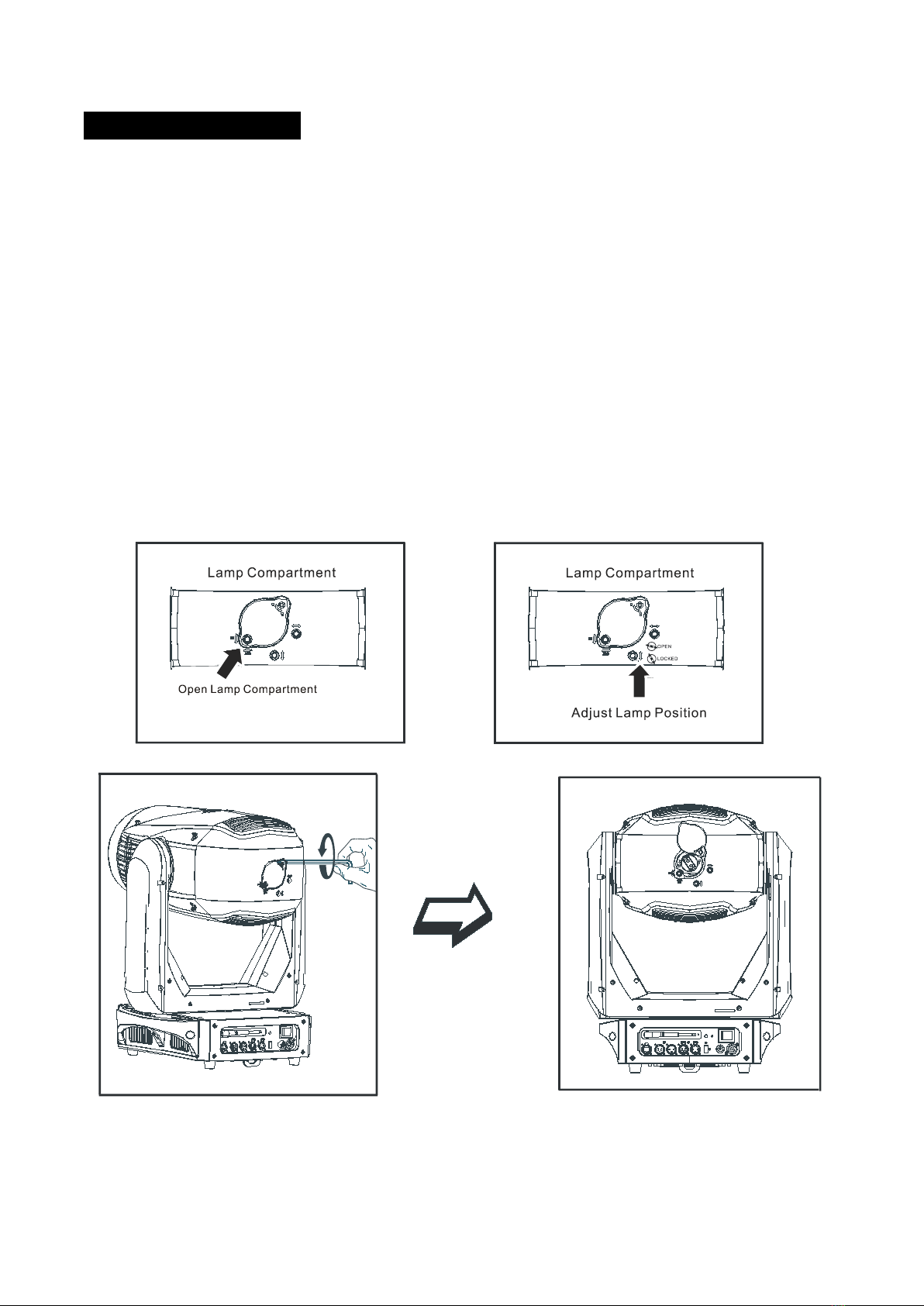

To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good
idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the
cooling fans have time to works.
2. Loosen the screws on the head of the fixture and open the fixture head covers.
8B

3. Unplug the leads of the lamp and lift the lamp out of its recess, disconnect the lamp and
connect a new lamp that must be the same type with the old one. And then place the new lamp
into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
Attention: Damages caused by the failure to replace the bulb in time are not subject to warranty.
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by pressing the ENTER button.
Use the UP/DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit
menu mode.

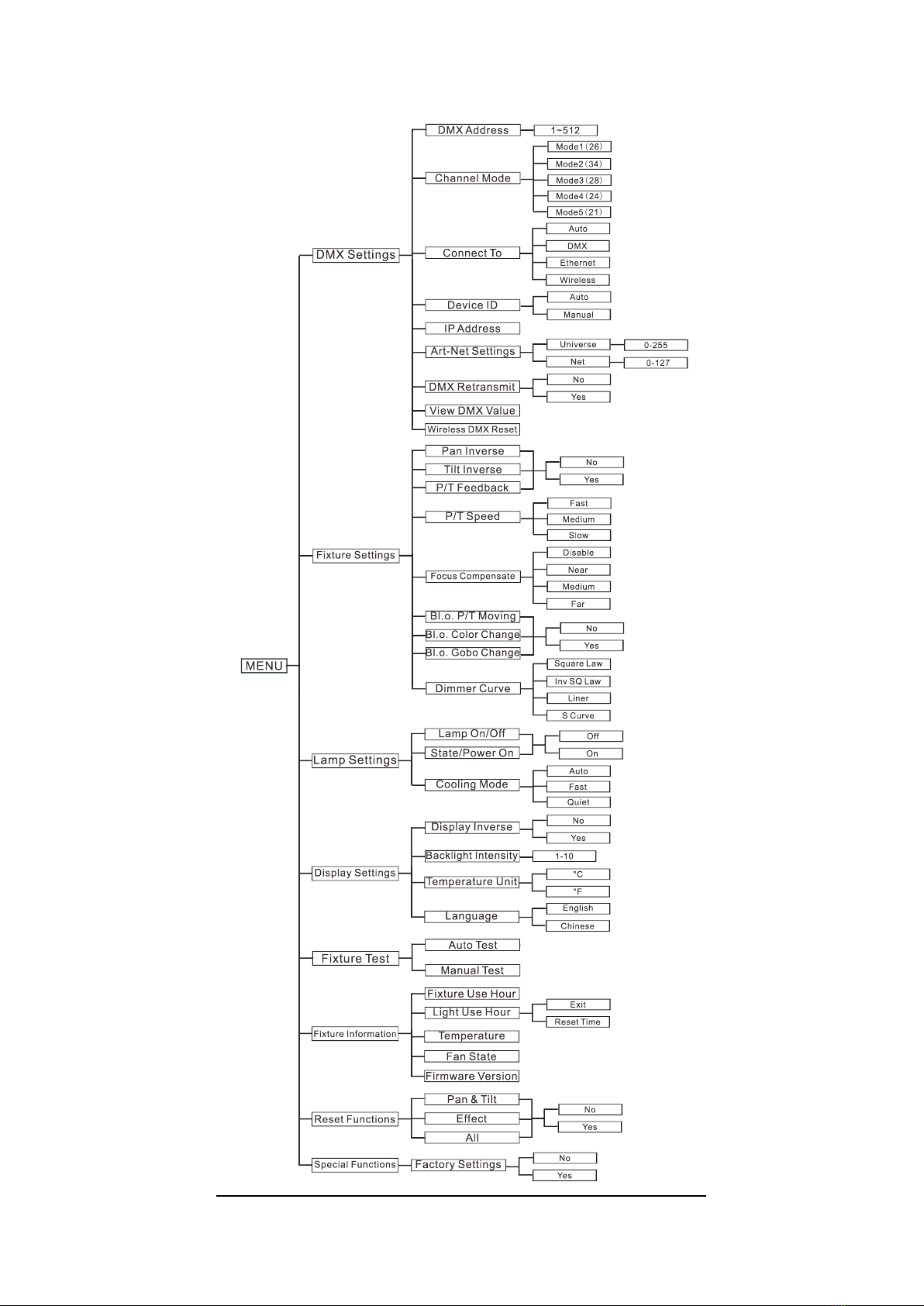

The main functions are shown below:
9B

10B

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, Channel Mode, Connect To, Device ID, IP Address, Art-Net Settings, DMX
Retransmit, View DMX Value or Wireless DMX Reset.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle 30 seconds to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Mode1 (26), Mode2 (34), Mode3 (28), Mode4 (24), or Mode5 (21), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Connect To
To select Connect To, press the ENTER button to confirm. Use the UP/DOWN button to select Auto,
DMX, Ethernet or Wireless, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
Device ID
To select Device ID, press the ENTER button to confirm. Use the UP/DOWN button to select Auto or
Manual, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
IP Address
To select IP Address, press the ENTER button to confirm. Use the UP/DOWN button to set the IP
address, press the ENTERbutton to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Art-Net Settings
To select Art-Net Settings, press the ENTER button to confirm. Use the UP/DOWN button to select
Universe or Net,press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
11B

DMX Retransmit
To select DMX Retransmit, press the ENTER button to confirm. Use the UP/DOWN button to select
No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Wireless DMX Reset
To select Wireless DMX Reset, press the ENTER button to confirm. Use the UP/DOWN button to
select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select

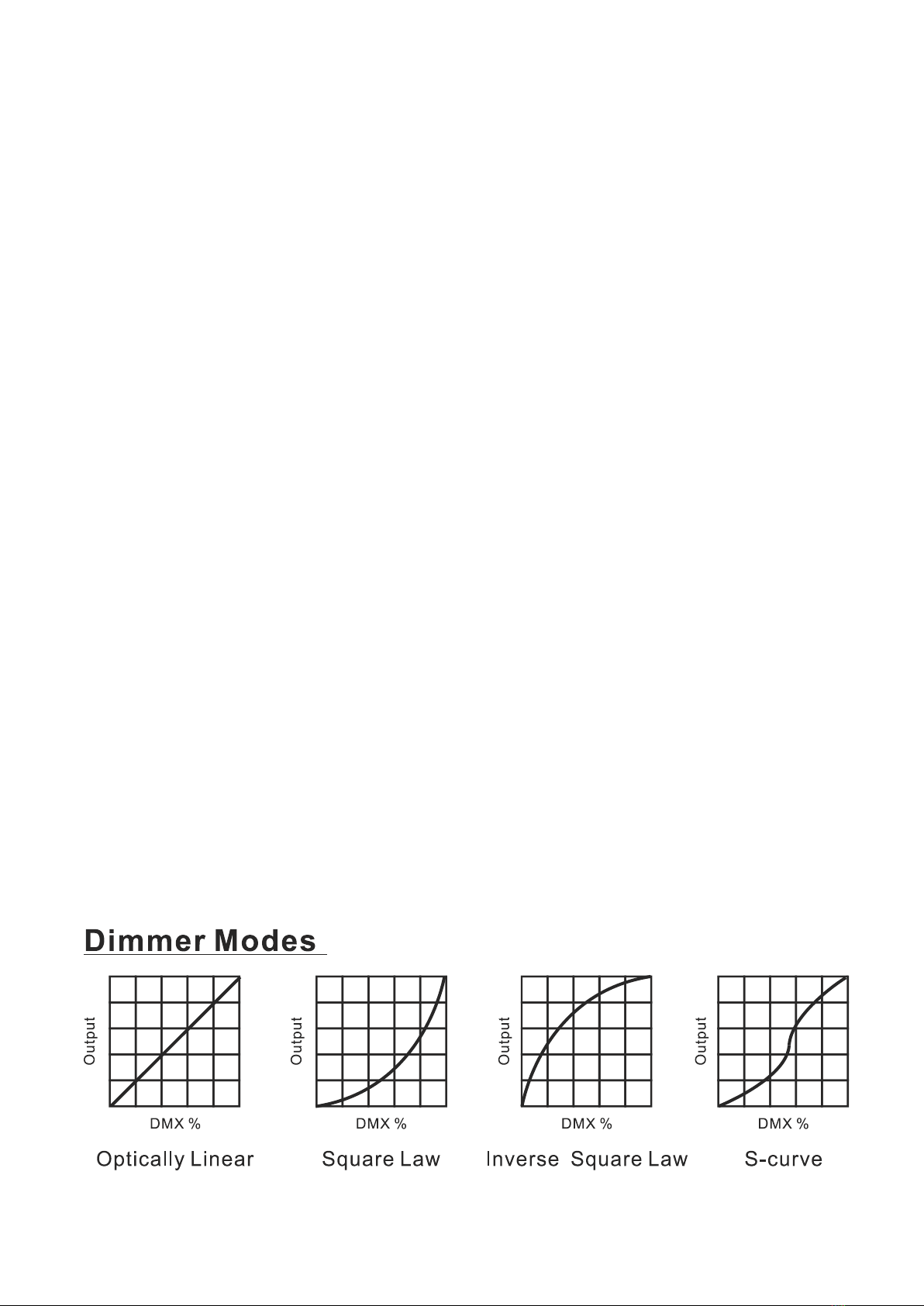

Pan Inverse, Tilt Inverse, P/T Feedback, P/T Speed, Focus Compensate, Bl.o. P/T Moving, Bl.o.
Color Change, Bl.o.Gobo Change or Dimmer Curve.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (pan invert), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
Tilt Inverse
To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select No
(Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
30 seconds to exit menu mode.
12B

P/T Speed
To select P/T Speed, press the ENTER button to confirm. Use the UP/DOWN button to select Fast,
Medium or Slow, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Focus Compensate
To select Focus Compensate, press the ENTER button to confirm. Use the UP/DOWN button to
select Disable, Near, Medium or Far, press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle 30 seconds to exit menu mode.
Bl.o. P/T Moving
To select Bl.o. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to select
No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
Bl.o. Color Change
To select Bl.o. Color Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Bl.o. Gobo Change
To select Bl.o. Gobo Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select
Square Law, Inv SQ Law, Liner or S Curve, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
13B

Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Lamp On/Off, State/Power On or Cooling Mode.
Lamp On/Off
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
Off(lamp off) or On(lamp on), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle 30 seconds to exit menu mode.
State/Power On
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select
Off(Lamp off while power on) or On(Lamp on while power on), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Cooling Mode
To select Cooling Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Auto, Fast or Quiet, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle 30 seconds to exit menu mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Inverse, Backlight Intensity, Temperature Unit or Language.
Display Inverse
Select Display Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal display) or Yes (invert display), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
14B

Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button to adjust
backlight intensity from 1 (dark) to 10 (bright), press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
Language
Select Language, press the ENTER button to confirm. Use the UP/DOWN button to select English or
Chinese, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle 30 seconds to exit menu mode.
F ixture Test
To select F ix ture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test.
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test its functions. Press the MENU button back to the last menu or exit menu mode
after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode idling
30 seconds.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to
select Fixture Use Hour, Light Use Hour, Temperature, Fan State or Firmware Version.
15B

Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use hour will show on the
display, press the MENU button to exit.
Light Use Hour
Select Light Use Hour, press the ENTER button to confirm. Use the UP/DOWN button to select Exit
or Reset Time, press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
Temperature
Select Temperature, press the ENTER button to confirm, fixture temperature will show on the
display, press the MENU button to exit.
Fan State
Select Fan State, press the ENTER button to confirm, fan state will show on the display, press the
MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
To select Reset Functions, press the ENTER button to confirm, use the UP/DOWN button to select
Pan&Tilt, Effect or All.
Pan&Tilt
Select Pan&Tilt, press the ENTER button to confirm, use the UP/DOWN button to select No(normal)
or Yes (the unit will run built-in program to reset pan and tilt to their home positions), press the
ENTER button to store. Press the MENU button to exit.
Effect
Select Effect,press the ENTER button to confirm, use the UP/DOWN button to select No(normal) or
Yes (the unit will run built-in program to reset effect to their home positions), press the ENTER
button to store. Press the MENU button to exit.
16B

All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select No(normal) or
Yes (the unit will run built-in program to reset all motors to their home positions), press ENTER
button to store. Press the MENU button to exit.
Special Functions
Factory Settings
Select Factory Settings,press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes (the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (26/34/28/24/21 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the LAMP HOURS menu to display the running time of the lamp.
Select the LAMP STATE menu to turn on/off the lamp.
Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
17B

5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by pressing the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
18B

Encoder Calibrate
Enter offset mode, Select Encoder Calibrate, press the ENTER button to confirm, the present
position will blink on the display, press the ENTER button to confirm, the fixture will automatically
calibrate the encoder.
Pan
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Tilt
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Shutter
Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Dimmer
Enter offset mode, Select Dimmer, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
Color
Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Gobo1
Enter offset mode, Select Gobo1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
R-Gobo1
Enter offset mode, Select R-Gobo1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
19B
