ACME LP-TS200 CW User manual

LP-TS200 CW
LP-TS200 WW
User Manual
Please read the instruction carefully before use

CONTENTS
1. Safety Instructions..........................................................................................2
2. Technical Specifications..................................................................................4
3. Accessories.....................................................................................................5
4. The Plate for Color Filter & Barn Door Installation .........................................6
5. How To Set The Unit.......................................................................................7
5.1 Control panel............................................................................................7
5.2 Main Functions.........................................................................................8
6. How to Control the Unit ...............................................................................12
6.1 Master/Slave Function ...........................................................................12
6.2 DMX Controller ......................................................................................12
6.3 DMX 512 Configurations ........................................................................13
7. DMX 512 Connections..................................................................................13
8. Troubleshooting ...........................................................................................14
9. Fixture Cleaning ...........................................................................................15
1C

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
All fixtures are intact from the manufacturer, please operate follow up the user manual,
artificial fault are not under guarantee repair.
Please unpack and check carefully that there is no transportation damage before using the
unit.
The unit is for indoor use only. Use only in a dry location.
Please install and operate by operator.
Please use safety chain when fixes the unit. DO NOT handle the unit by taking its head only,
but always by taking its base.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure to locate the unit in a place away from adjacent surfaces at least 1M.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. DO NOT operate it where the temperature is higher
than this.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed
during its operation, and allow about 15 minutes for cooling the unit down before replacing
bulb or maintenance as it could be very hot.
DO NOT connect the device to any dimmer pack.
Please read the instruction carefully, it includes important
information about the installation, usage and maintenance.
2C

Please make sure there are no flammable materials close to the unit while operating, as it is
fire hazard.
Please look over power wires carefully, replace immediately if there is any damage.
Never run on for a long time lest shortening lifespan.
Please avoid any inflammable liquids, water or metal objects entering the unit. Once it
happened, cut off the mains power immediately.
DO NOT operate in dirty and dusty environment, also cleaning fixtures regularly.
DO NOT allow children to operate the fixture.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Please avoid power wires twist other cables.
Please disconnect mains power before fuse/lamp replacement or servicing.
Please replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center.
Please disconnect the mains power if the fixture is not used for a long time.
DO use original packing materials once transport it again
DO NOT look directly at the LED light beam while the fixture is on.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the
unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit
when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of
the touch of people and has no one pass by or under it.
Note: the range of mounting height is 0~30 meters.
3C

2. Technical Specifications
DMX512 control: 2 channels (Dimmer, Zoom).
Focus: Automatic focus by DMX control
Dimmer: 0 ~ 100%
Beam Angle: 12 ° ~ 40 °
Color Temperature: 5600+200K (LP-TS200 CW)
3200+200K (LP-TS200 WW)
Rotating filter and hanger
Thermo-optical cooling technology with quiet
Suitable for theaters, studios, retail stores, and other similar locations.
Power supply: AC 100~240V, 50/60Hz
Power consumption: 226W
Physical temperature: <56 ° C
Working life: 50,000 hours
CRI: Ra>=90
Weight: 19.3Kgs
Dimension: 438×368.7×624.1mm
400
438
368 7.
344.6
512.2
624.1
111 9.
4C

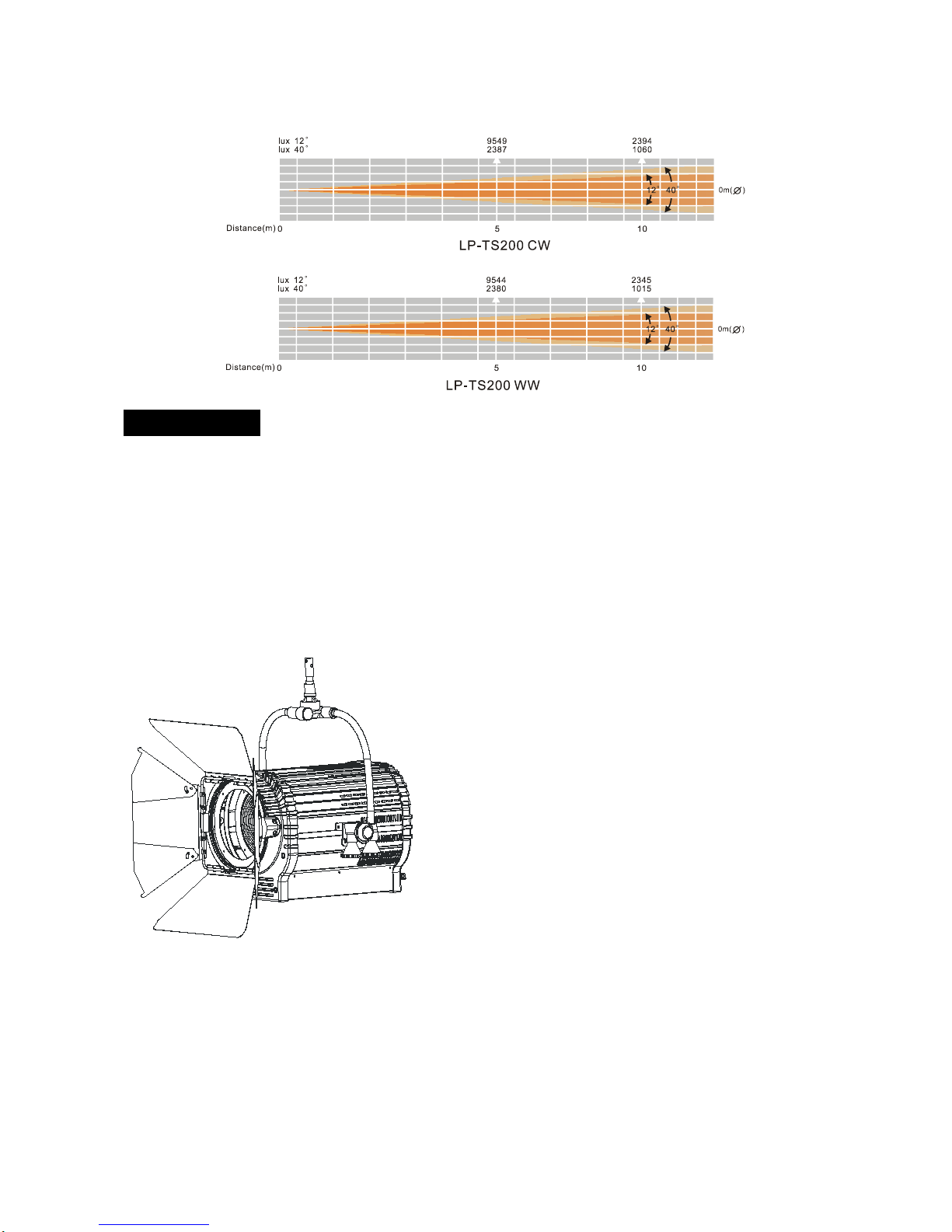

Photometric Diagram:
3. Accessories
Standard Accessories
Simple Bracket
Optional Accessories
Adjustable Bracket
5C

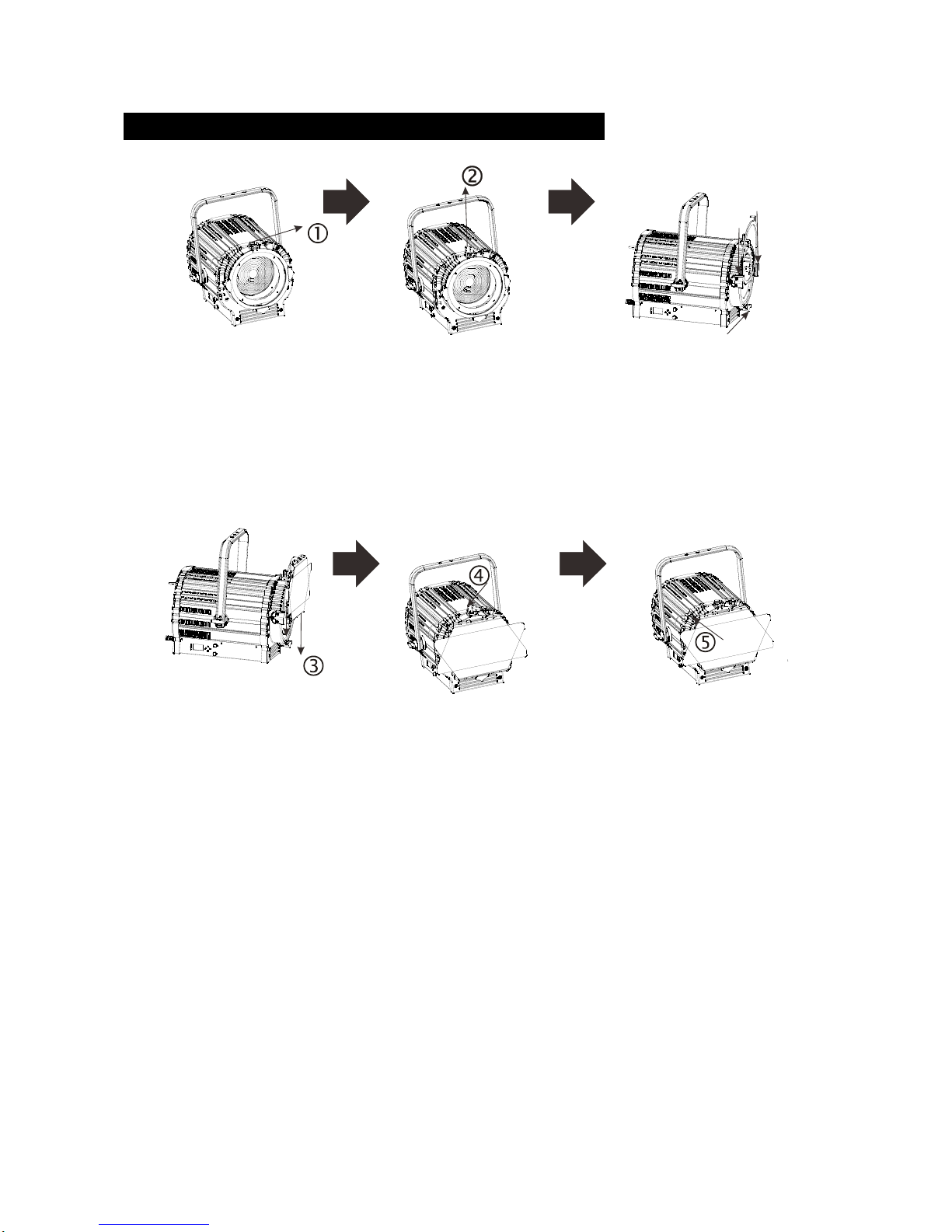

4. The Plate for Color Filter & Barn Door Installation
Fig 1
At first, please push the Lock Cap by hand as the arrow ○ 1E A, and move away the Lock as the
arrow A○ 2E A; Then insert the Plate for Color Filter into the inside slot from topside;
Fig 2
Secondly, please insert the Barn Door into the outside slot from topside as arrow A○ 3E A,and fasten
the lock (Note: the Barn Door must be fastened into the inside of the lock’s hook ); then flip down
the lock cap again as arrow A○ 4E A;
Finally, as arrow A○ 5E A, please fasten the safety cable in the iron coils of Barn Door.
6C

5. How To Set The Unit
5.1 Control panel
1
23
4
5
6
7
891112
1. Display:
Show the various menus and the selected functions
2. LED:
DMX On DMX input present
POWER On Power On
3. Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
4. Zoom: Manual adjust the zoom value.
5. Dimmer: Manual adjust the dimmer value.
6. Power Switch:
Used to turn On/Off the fixture.
7. Fuse(T 5A):
Used to protect the unit from damage of the over current.
7C

8. Power Cable:
Used to connect the main power supply.
9. DMX input:
For DMX512 link, use 5-pin XLR cable to link the unit together.
10. DMX output:
For DMX512 link, use 5-pin XLR cable to link the unit together.
11/12. Ethernet Connectors:
Used to transfer fixture’s information to a main controller.
5.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by ENTER button and the display will blink. Use the DOWN and UP button to
change the mode. Once the required mode has been selected, press the ENTER button to setup or
it will automatically return to the main functions without any change after idling one minute. Back
to the functions without any change press the MENU button.

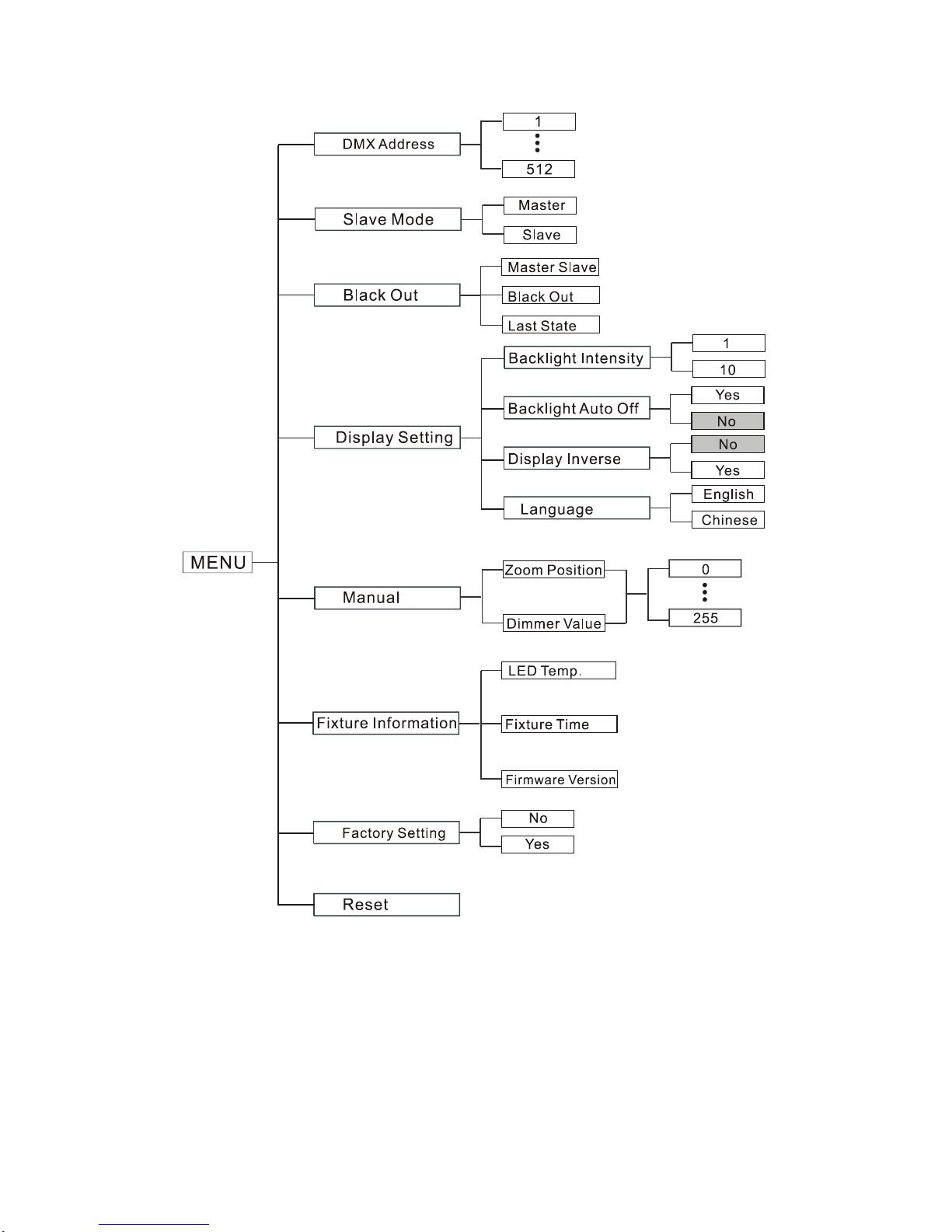

The main functions are shown below:
8C

DMX Address
Select DMX Address, press the ENTER button to confirm, the present address will blink on the
display. Use the UP and DOWNbutton to adjust the DMX address from 1to 512. Once the address
has been selected, press the ENTER button to save. Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
9C

Slave Mode
Select Slave Mode, press the ENTERbutton to confirm, present mode will blink on the display. Use
the DOWN and UP button to select the Master or Slave mode. Once the mode has been selected,
press the ENTER button to save. Hold and press the MENU button about one second or wait for
one minute to exit the menu mode.
Note: Only when selected the “Master Slave” in the “Black Out” function, the “Slave Mode”
function will be effective.
Black Out
Select Black Out, press the ENTER button to confirm, present mode will blink on the display. Use
theDOWN and UP button to select the Master Slave (Master/Slave mode) or Blackout (blackout
mode) or Last State (If the DMX signal is lost, the fixture will stay in the last DMX set up.). Once
the mode has been selected, press the ENTER button to save. Hold and press the MENU button
about one second or wait for one minute to exit the menu mode.
Display Settings
Enter menu mode, select Display Settings, press ENTER button to confirm, use UP/DOWN button
to select Backlight Intensity, Backlight Auto Off, Display Inverse or Language.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright),
press the ENTER button to save. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Backlight Auto Off
Select Backlight Auto Off, press the ENTER button to confirm, present mode will blink on
the display, use the UP/DOWN button to select Yes(display goes off one minute after exiting
menu mode) or No (display always on), press the ENTER button to save. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
10C

Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select the No (normal display) or Yes (inverse display),
press the ENTER button to save. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Language
Select Language, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select the English or Chinese, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Manual Test
Select Manual Test, press the ENTER button to confirm. Use the DOWN and UP button to select
the Zoom Position or Dimmer Value mode. Once selected, use the DOWN and UP button to adjust
the value (0~255), and press the ENTER button to save. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select the LED Temp., Fixture Time or Firmware Version.
LED Temp.
Select LED Temp., press the ENTER button to confirm, the current running temperature of the
fixture will show on the display. Press the MENU button back to exit.
Fixture Time
Select Fixture Time, press the ENTER button to confirm, and running time of the fixture will
show on the display. Press the MENU button back to exit.
11C

Firmware Version
Select Firmware Version, press the ENTER button to confirm, the software version will show
on the display. Press the MENU button back to exit.
Factory Setting
Select Factory Setting,press the ENTER button to confirm, present mode will blink on the display.
Use the DOWN and UP button to select the No or Yes (Switch back to default settings). Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
Reset
Select Reset, press the ENTER button and the fixture will now reset.
6. How to Control the Unit
You can operate the unit in two ways:
1. Master/slave built-in preprogram functions
2. Universal DMX controller
6.1 Master/Slave Function
By linking the units in master/slave connection without DMX control, the first unit will control the
other units to give a synchronized light show.
6.2 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channels so that the units can receive DMX signal.
Press the MENU button, and the display will blink. Use DOWN and UP button to change the
DMX512 address. Once the address has been selected, press and keep ENTER button pressed up to
when the display stops blinking or storing automatically one minute later. To go back to the
functions without any change press the MENU button again.
If you use please refer to the following diagram to address your DMX512 channel for the first 4
units.
12C

Channel Mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
2 Channels
1
3
5
7
6.3 DMX 512 Configurations
2 Channels Mode:

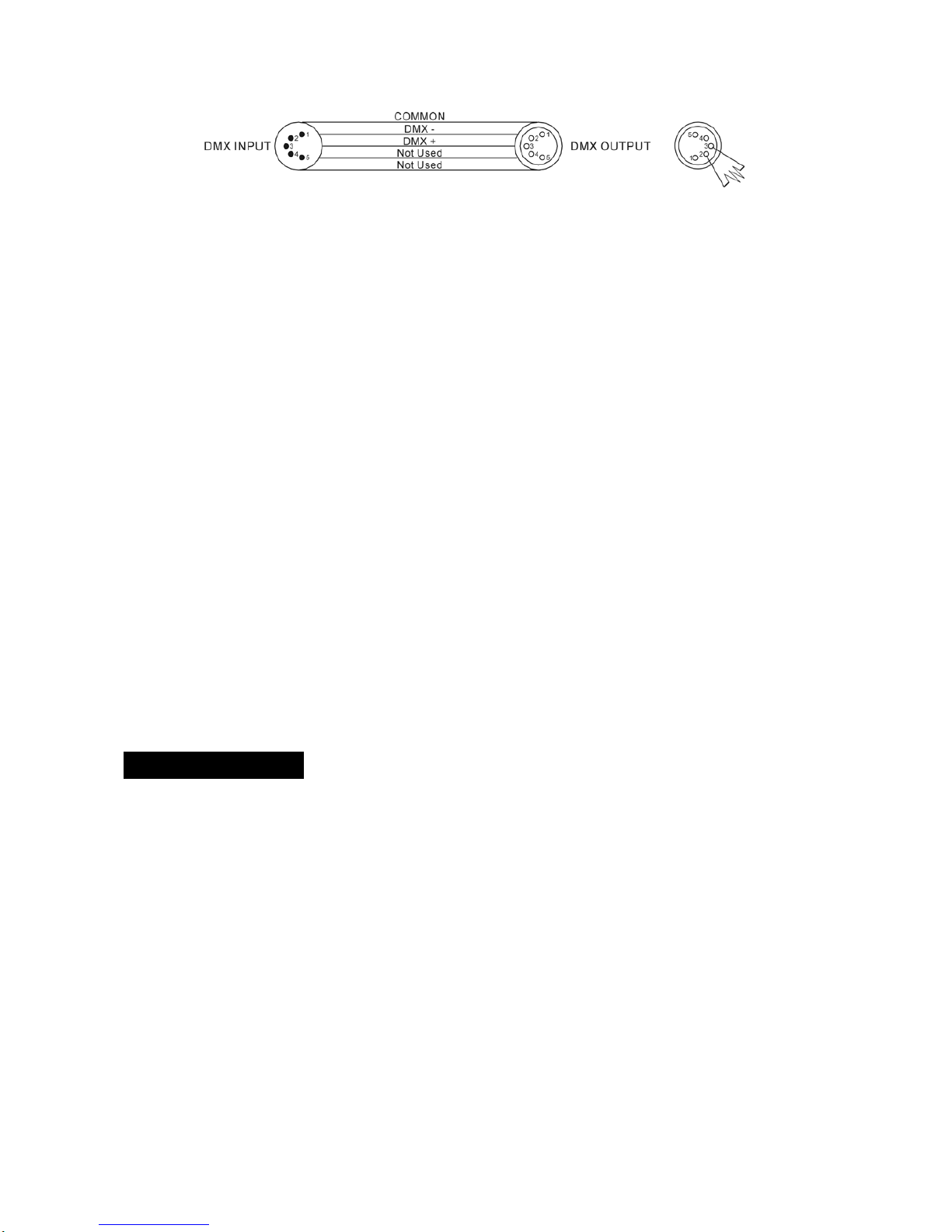

7. DMX 512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
output
13C

1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture
to the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the
signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one
of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug
and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/5: not used
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on Lamp.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
14C

DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition
9. Fixture Cleaning
The cleaning must be carried out periodically to optimize light output. Cleaning frequency
depends on the environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
15C

0BDeclaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
1BHarmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991; EN 62471:2008;
EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
16C
