ACME GLAMOUR 700Z RGBY User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 4
3. How To Set The Unit....................................................................................... 5
3.1 Control Panel ........................................................................................... 5
3.2 Main Function.......................................................................................... 6
3.3 Home Position Adjustment .................................................................... 13
4. Control By Universal DMX Controller ........................................................... 14
4.1 DMX512 Connection.............................................................................. 14
4.2 Address Setting ...................................................................................... 15
4.3 DMX512 Configuration........................................................................... 15
5. Troubleshooting........................................................................................... 23
6. Fixture Cleaning........................................................................................... 24
1E

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 75℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2E

off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse replacement or servicing.
Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
DO NOT look directly at the light while the LED is on.
DO NOT start on the unit without LED enclosure or when housing is damaged.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of the
fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when
installing.
The equipment must be installed by professionals. It must be installed in a place where is out of the
reach of people and no one can pass by or under it.
3E

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
680W
Light Source:
19x40W RGBY LED
Zoom Range:
5°~50°
Movement:
Pan: 540°
Tilt: 220°
Pan/Tilt Resolution: 16 bit
Dimming/Strobe:
Smooth dimming from 0~100%; outstanding strobe effect with variable speed
Control:
DMX channel: 15/27/17 channels
Control Mode: DMX512, RDM
Firmware Upgrade: Update via DMX link
Construction:
Display: LCD display
Data In/Out: 3-pin & 5-pin XLR
Power In/Out: Power Connector in
Protection Rating: IP20
Features:
Electronic linear zoom system
3 rings control, outstanding color macro effect
Integrated powerful beam and wash features
Dimension/Weight:
429.8×335×540.9mm, 22kgs
16.9"x13.2"x21.3"in, 48.5lbs
4E

3. How To Set The Unit
3.1 Control Panel
1. DISPLAY:To show the various menus and the selected functions
2. Button:
MENU
To enter into move backward or leave the menu
DOWN
To go forward in the selected functions
UP
To go backward in the selected functions
ENTER
To confirm the selected functions
5E

3. DMX IN:
DMX512 link, use 3/5 -pin XLR cable to link the unit and the DMX controller
4. DMX OUT:
DMX512 link, use 3/5-pin XLR cable to link the next unit and output DMX signal
5. POWER SWITCH:
Turns on/off the power
6. Fuse(T 15A):
Protects the unit from over-voltage or short circuit
7. POWER:
To connect to supply power
3.2 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.

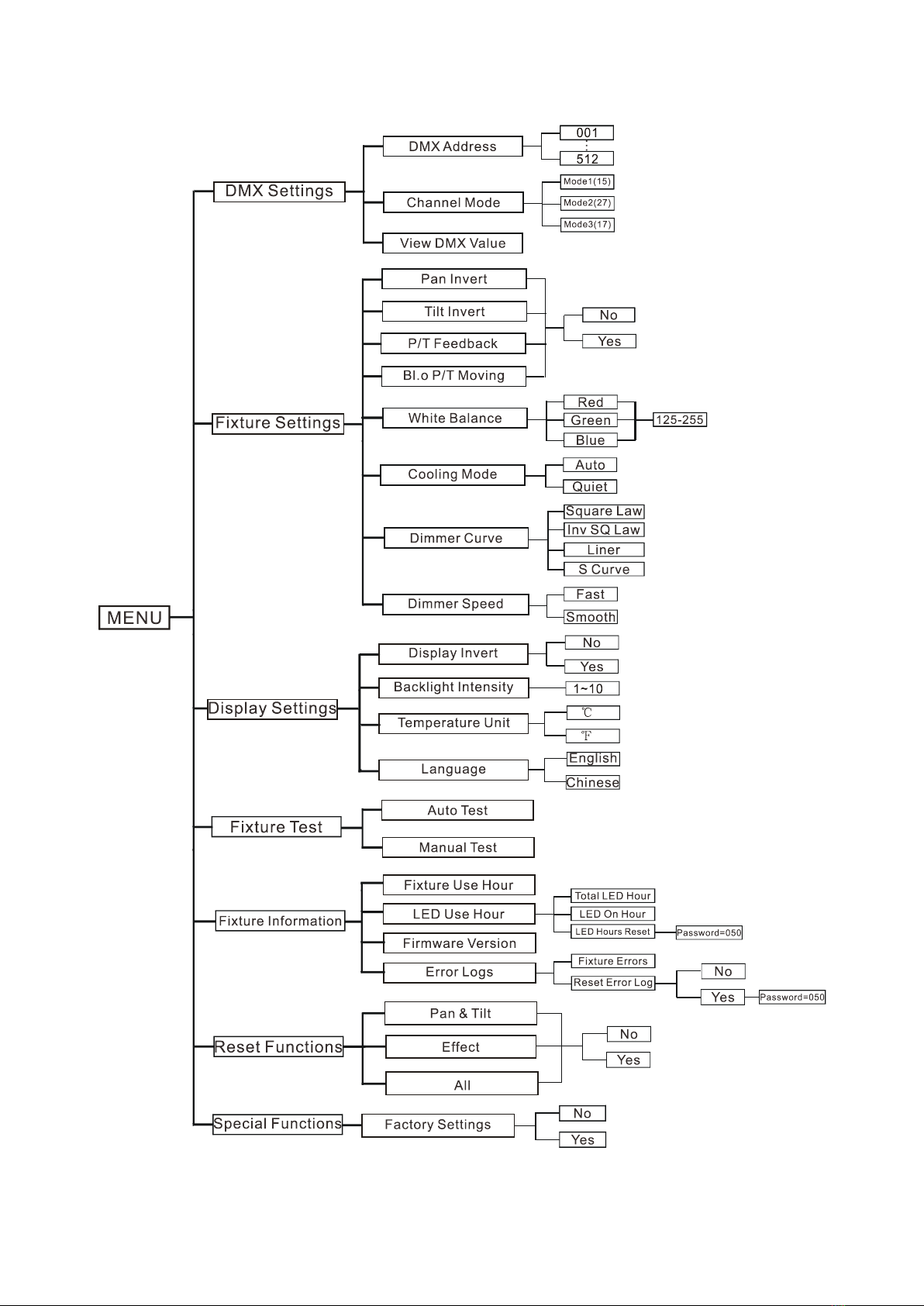

The main functions are shown below:
6E

7E

DMX Settings
Enter MENU mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN
button to select DMX Address, Channel Mode or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 512, press the ENTER button to setup. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Mode1 (15), Mode2 (27) or Mode3 (17), press the ENTER button to setup. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel values. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Fixture Settings
Enter MENU mode, select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN
button to select Pan Invert, Tilt Invert, P/T Feedback,BL.O. P/T Moving, White Balance, Cooling
Mode,Dimmer Curve or Dimmer Speed.
Pan Invert
To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (pan invert), press the ENTER button to setup. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Tilt Invert
To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt invert), press the ENTER button to setup. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
8E

P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select No
(Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step),
press the ENTER button to setup. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
BL.O. P/T Moving
To select BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the ENTER button
to setup. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
White Balance
To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select
Red, Green or Blue. Once selected, press the ENTER button to confirm, and use the UP/DOWN
button to adjust the value from 125 to 255, press the ENTER button to setup. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Cooling Mode
To select Cooling Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Auto or Quiet. Once selected, press the ENTER button to setup. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.

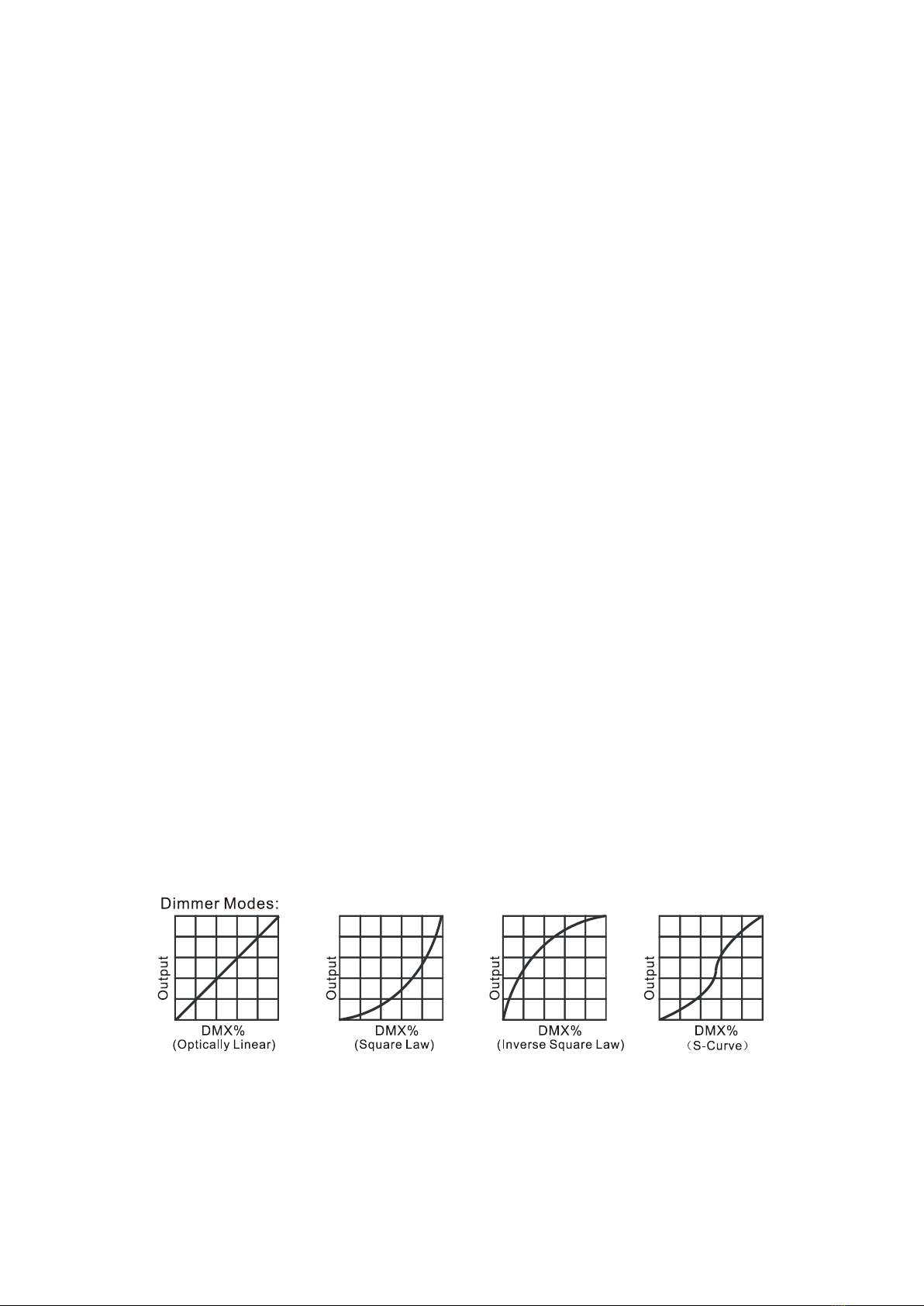

Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the UP/DOWN button to select
Square Law, Inv. SQ Law,Linear or S-Curve. Once selected, press the ENTER button to store. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
9E

Dimmer Speed
To select Dimmer Speed, press the ENTERbutton to confirm. Use the UP/DOWN button to select
Fast or Smooth. Once selected, press the ENTER button to setup. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Display Settings
Enter MENU mode, select Display Settings, press the ENTER button to confirm, use the UP/DOWN
button to select Display Invert, Backlight Intensity, Temperature Unit or Language.
Display Invert
To select Display Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (display invert). Once selected, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the intensity from 1 (dark) to 10 (bright). Once selected, press the ENTER button to setup and
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Temperature Unit
To Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Language
To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select English
or Chinese, press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
F ixture Test
Enter MENU mode, select F i xture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
10E

Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, dimmer, shutter, spe.fun and etc. Press the MENU button back to the
last menu or exit menu mode after auto test.
Manual Test
To select Manual Test, press the ENTER button to confirm. Use the UP/DOWN button to select
channel, and adjust the channel value. Once selected, press the ENTER button to setup, the fixture
will run as the channel value indicates. Press the MENU button back to the last menu or exit menu
mode let the unit idle one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter MENU mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Use Hour, LED Use Hour, Firmware Version or Error Logs.
Fixture Use Hour
To select Fixture Use Hour, press the ENTER button to confirm, the fixture working hours will show
on the display. Press the MENU button to exit.
LED Use Hour
To select LED Use Hour, press the ENTER button to confirm, use the UP/DOWN button to select
Total LED Hour, LED On Hour or LED Hours Reset, press the ENTER button to store. Use the
UP/DOWN button to select LED Hours Reset, press the ENTER button to confirm, use the
UP/DOWN button to set the password 050 to reset the LED hours, press the ENTER button to store.
Press the MENU button back to the last menu or exit menu mode let the unit idle one minute.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, the fixture software version will
show on the display. Press the MENU button to exit.
11E

Error Logs
Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture
Errors or Reset Error Log, press the ENTER button to store. Select Reset Error Log, press the ENTER
button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store.
Select Yes, press the ENTER button to confirm. Use the UP/DOWN button to set the password 050,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Reset Functions
Enter MENU mode, select Reset Functions, press the ENTER button to confirm, use the UP/DOWN
button to select Pan&Tilt, Effect or All.
Pan&Tilt
To Select Pan&Tilt, press the ENTER button to confirm. Use the UP/DOWN button to select No or
Yes (the unit will run built-in program to reset pan and tilt to their home positions), press the ENTER
button to store. Press the MENU button to exit menu mode.
Effect
To select Effect, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes
(the unit will run built-in program to reset effect to its home positions), press the ENTER button to
store. Press the MENU button to exit menu mode.
All
To select All, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes (the
unit will run built-in program to reset all motors to their home positions), press ENTER button to
store. Press MENU button to exit menu mode.
Special Functions
Enter MENU mode, select Special Functions, press the ENTER button to confirm, use the
UP/DOWN button to select Factory Settings.
Factory Settings
To select Factory Settings, press the ENTER button to confirm. Use the UP/DOWN button to select
No or Yes (the fixture will reset to factory settings and exit menu mode).
12E

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (1 5/2 7/1 7 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
3.3 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
In the main functions, hold the ENTER button for at least 3 seconds into offset mode, use the
DOWN/UP button up to select Pan, Tilt or Zoom, and press the ENTER button to confirm. Use the
DOWN/UP button to adjust the home position of the Pan, Tilt or Zoom, once the position has been
selected, press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Press and hold the MENU button about one second or wait for about one
minute to exit the menu mode.
13E

4. Control By Universal DMX Controller
4.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the
input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
14E

4.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blinking the display, use the UP/DOWN button to adjust the address from 001
to 512, press the ENTER button to store. Press the MENU button back to the last menu or idling let
the unit idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
15 channels 1 16 31 46
27 channels 1 28 55 82
17 channels 1 18 35 52
4.3 DMX512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 5 seconds, then the corresponding function
will take into effect.
15 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
PAN
0°

540°
2 000-255 PAN FINE
3
000-255
TILT
0°

220°
4 000-255 TILT FINE
5
000-255
PAN/TILT SPEED
fastslow
15E

6
000-126
127-199
200-209
210-255
SPECIAL FUNCTIONS
No function
Focus compensate enable
Reset
No function
7
000-255
DIMMER
0%

100%
8 000-255 DIMMER FINE
9
000-019
020-024
025-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
190-204
205-209
210-224
225-229
230-244
245-255
SHUTTER
Blackout
Open
Strobe 1: fastslow
Open
Strobe 2: opening pulse, fastslow
Open
Strobe 3: closing pulse, fastslow
Open
Strobe 4: random strobe, fastslow
Open
Strobe 5: random opening pulse, fastslow
Open
Strobe 6: random closing pulse, fastslow
Open
Strobe 7: burst pulse, fastslow
Open
Strobe 8: random burst pulse, fastslow
Open
Strobe 9: sine wave, fastslow
Open
Strobe 10: burst, fastslow
Open
10 000-255 RED (0%100%)
11 000-255 GREEN (0%100%)
12 000-255 BLUE (0%100%)
13 000-255 YELLOW (0%100%)
14
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
COLOR MACRO
Open
Color1
Color2
Color3
Color4
Color5
Color6
Color7
16E

045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
090-094
095-099
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-201
202-207
208-229
230-234
235-239
240-244
245-249
250-255
Color8
Color9
Color10
Color11
Color12
Color13
Color14
Color15
Color16
Color17
Color18
Color19
Color20
Color21
Color22
Color23
Color24
Color25
Color26
Color27
Color28
Color29
Color30
Color31
Color32
Color33
Open
Color33Color1
Stop
Color1Color33
Open
Fast macro
Medium macro
Slow macro
Open
15
000-255
ZOOM
60°

10°
27 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
PAN
0°540°
2 000-255 PAN FINE
3 TILT
17E

000-255
0°220°
4 000-255 TILT FINE
5
000-255
PAN/TILT SPEED
fastslow
6
000-255
ZOOM
60°

10°
7
000-126
127-199
200-209
210-255
SPECIAL FUNCTIONS
No function
Focus compensate enable
Reset
No function
8
000-255
DIMMER
0%

100%
9 000-255 DIMMER FINE
10
000-019
020-024
025-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
190-204
205-209
210-224
225-229
230-244
245-255
SHUTTER
Blackout
Open
Strobe 1: fastslow
Open
Strobe 2: opening pulse, fastslow
Open
Strobe 3: closing pulse, fastslow
Open
Strobe 4: random strobe, fastslow
Open
Strobe 5: random opening pulse, fastslow
Open
Strobe 6: random closing pulse, fastslow
Open
Strobe 7: burst pulse, fastslow
Open
Strobe 8: random burst pulse, fastslow
Open
Strobe 9: sine wave, fastslow
Open
Strobe 10: burst, fastslow
Open
11 000-255 RED 1(0%100%)
12 000-255 GREEN 1 (0%100%)
13 000-255 BLUE 1 (0%100%)
14 000-255 YELLOW 1 (0%100%)
15 COLOR 1
18E

000-009
010-017
018-024
025-032
033-039
040-047
048-054
055-061
062-069
070-076
077-084
085-091
092-099
100-106
107-113
114-121
122-128
129-136
137-143
144-151
152-158
159-165
166-173
174-180
181-188
189-195
196-203
204-210
211-217
218-225
226-232
233-240
241-247
248-255
Open
Color1
Color2
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
Color12
Color13
Color14
Color15
Color16
Color17
Color18
Color19
Color20
Color21
Color22
Color23
Color24
Color25
Color26
Color27
Color28
Color29
Color30
Color31
Color32
Color33
16 000-255 RED 2 (0%100%)
17 000-255 GREEN 2 (0%100%)
18 000-255 BLUE 2 (0%100%)
19 000-255 YELLOW 2 (0%100%)
20
000-255
COLOR 2
(The same as CH15: COLOR 1)
21 000-255 RED 3 (0%100%)
22 000-255 GREEN 3 (0%100%)
23 000-255 BLUE 3 (0%100%)
19E
