ACME xperior 15R spot XP-15R SZ User manual

XP-15R SZ
User Manual
Please read the instruction carefully before use

CONTENTS
1. Safety Instructions.................................................................................................. 2
2. Technical Specifications .......................................................................................... 3
3. Description............................................................................................................. 6
3.1 Description of the fixture................................................................................ 6
3.2 Control Panel .................................................................................................. 6
4. Gobo and Lamp ...................................................................................................... 7
4.1 Gobo Wheel ................................................................................................... 7
4.2 Lamp .............................................................................................................. 8
4.3 Changing the Lamp......................................................................................... 8
5. How To Set The Unit ............................................................................................. 10
5.1 Main Function .............................................................................................. 10
5.2 Home Position Adjustment........................................................................... 19
5.3 Error Information.......................................................................................... 22
6. Control By Universal DMX Controller.................................................................... 23
6.1 Connection ................................................................................................... 23
6.2 Address Setting............................................................................................. 24
6.3 DMX 512 Configuration ................................................................................ 24
7. Troubleshooting ................................................................................................... 28
8. Maintenance and Cleaning................................................................................... 29
1D

1. Safety Instructions
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. DO NOT operate it when the temperature is higher.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
the mains power immediately.
Please read carefully the instruction manual, which includes important
information about the installation, usage and maintenance.
2D

DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Cautions:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
2. Technical Specifications
Power supply
- AC 100~240V 50/60Hz
Power Consumption
- 476W
Fuse
-T 10A
-
3D

Light Source
- Philips MSD Platinum 15R
Battery backup display
- Setting DMX address or other functions without connecting to mains power.
- Battery for LCD display charges automatically when the fixtures connects to the mains power.
- No need to change battery.
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Dimmer/Shutter
- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Color wheel
- Color wheel: 7 dichroic colors + open.
- Rainbow effect in both directions.
- Easy calibration and maintenance by magnetic home positioning.
CMY
- CMY speed adjustable.
- Optional multiple preset colors and macros available.
Gobo wheel
- Gobo Wheel 1: 8 rotating, indexable, easily replaceable gobos + open.
- Gobo Wheel 2: 14 metallic gobos + open.
- Easy calibration and maintenance by magnetic home positioning.
- Module design for easy assembly and service.
Prism
- 3 facets prism with rotating effect.
4D

Frost
- Variable, separate effect.
Focus
- Focus effect.
Iris
-Motorized
Zoom
- Motorized linear zoom for smooth adjustment of beam size and beam sharpness.
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Weight
- 23Kg
Dimension
- 435× 344×649mm
5D

3. Description
3.1 Description of the fixture
3.2 Control Panel
Front view Rear view
1. Monitor (Batter Back-up display):
2. LED:
POWER
On
Power on
BATTERY
On
Battery status
WIRELESS
On
Receive the wireless signal
DMX
On
DMX input present
3. Button:
MENU
To enter into move backward or leave the menu
UP To go backward to move up in the menu
DOWN
To go to move down in the menu
ENTER To perform the desired functions
1.Front panel
2.Base
3.Tilt lock
4.head
5.Arm
6.Pan lock
7.Handle
6D

4. DMX input/output:
For DMX 512 operation, use 3/5 -pin XLR plug cable to link the units together
5. Power Cable:
To connect to the mains supply
6. Fuse (T 10A):
Protect the unit from damage of over current.
7. Power Switch:
Turns On/Off the power
4. Gobo and Lamp
4.1 Gobo Wheel
GOBO WHEEL 1 GOBO WHEEL 2
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
7D

4.2 Lamp
Philips MSD Platinum 15R
Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the eyes
and skin. The high luminance of the arc can cause severe damage to the retina if you take a
close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller) and
let the unit run at least five minutes to cool down before switching off the mains supply.
Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
4.3 Changing the Lamp
Do not use this lamp more than 2000 hours, Using the lamp any longer than its set life could seriously
damage your unit. Periodically checking the lamp running time, when the lamp reaches the 2000 hour
mark, or close to it, we strongly suggest you switch the lamp out. Clear the RESET TIME after you have
replaced the lamp.

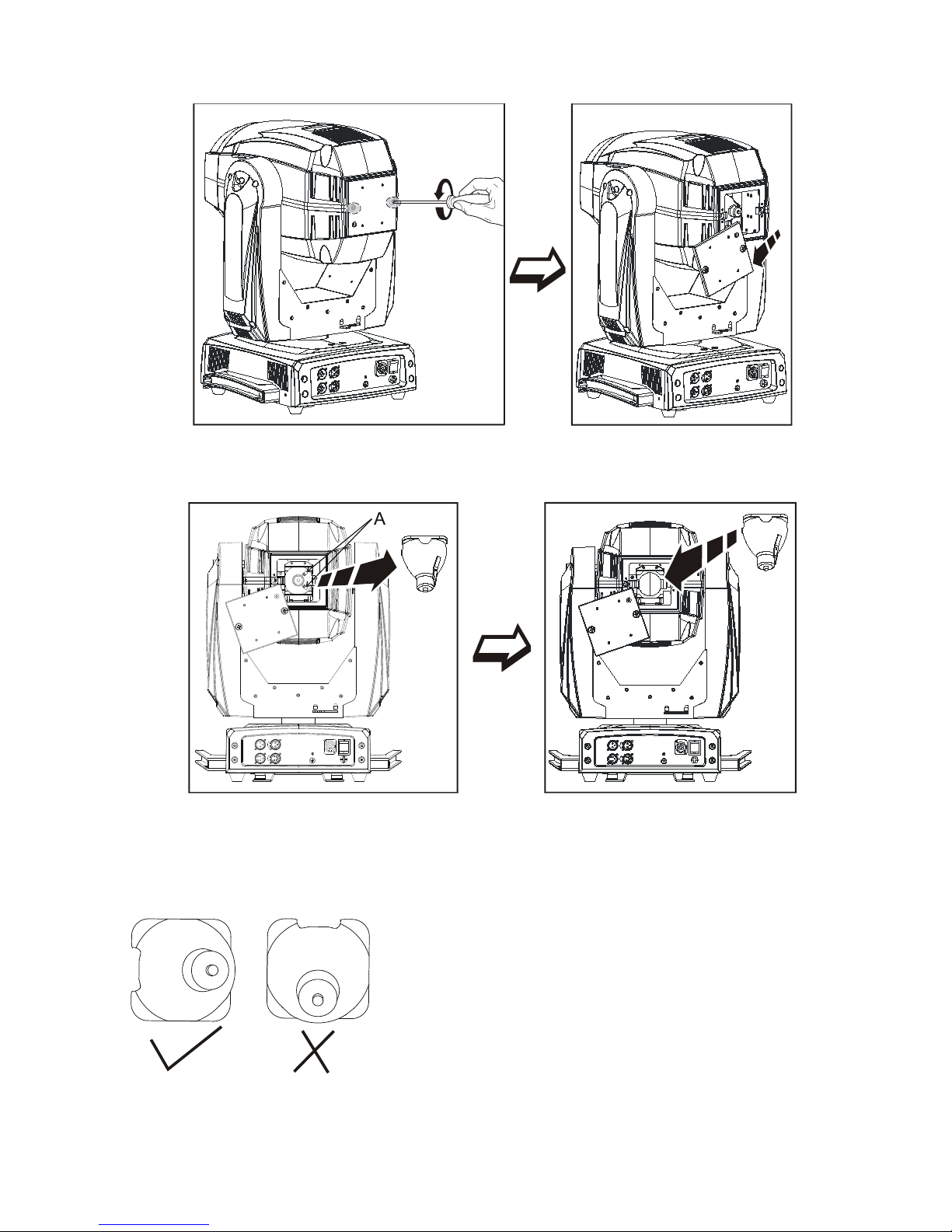

To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good idea to
allow the fixture to run for 10 minutes after the lamp has been turned off, so that the cooling fans
have time to works.
2. Loosen the two screws and open the fixture head covers.
8D

3. Lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the same
type with the old one. And then place the new lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
Warning:
The installing direction of lamp:
9D

5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to
the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into menu
mode. Press MENU button or let the unit idle one minute to exit.

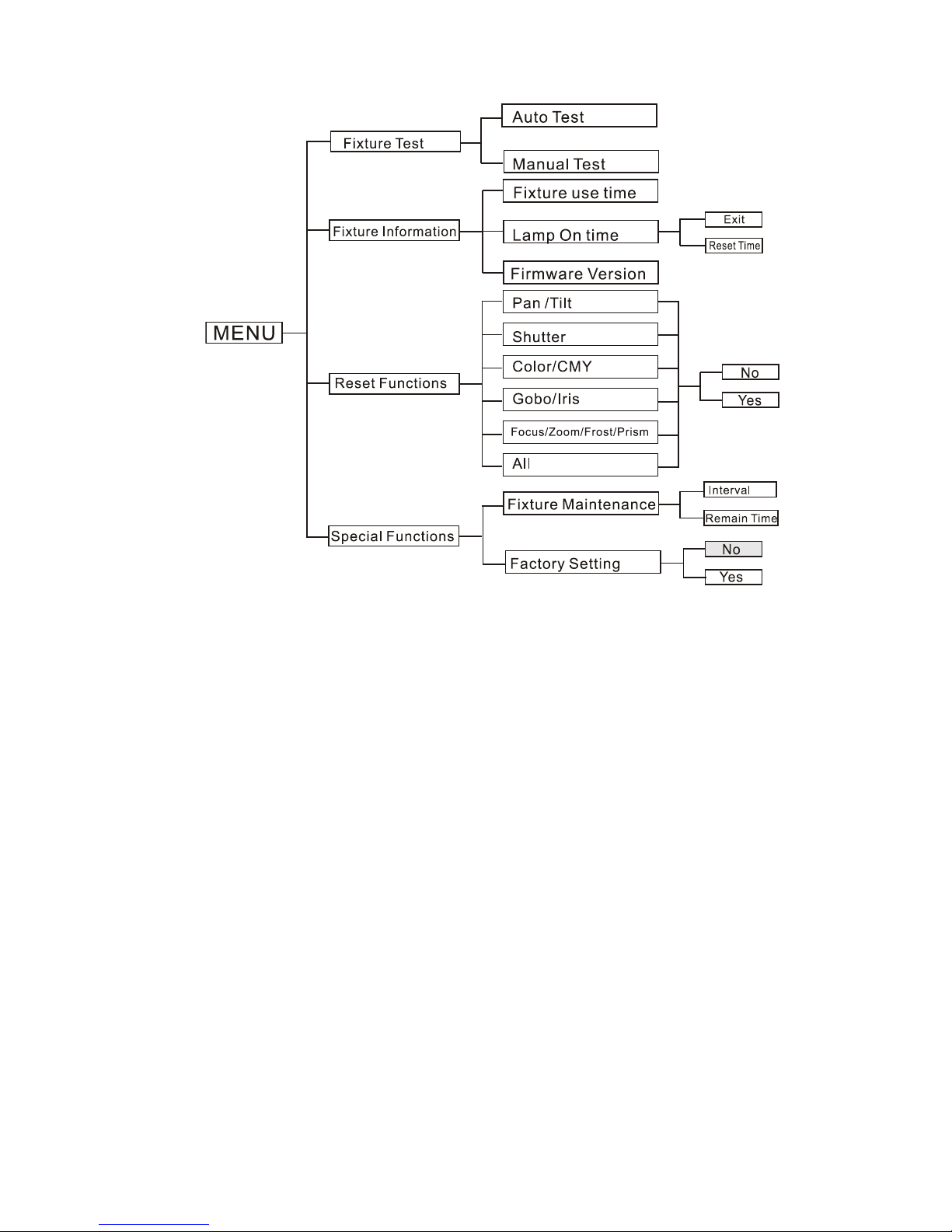

The main functions are shown below（the grayed boxes are preset settings）:
10D

11D

DMX Functions
To select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, DMX Channel Mode or View DMX Value.
DMX Address —DMX512 address setting
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode — channel mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode1 (23) channels mode, press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
12D

Fixture Setting
To select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN button to select
Pan Inverse, Tile Inverse, P/T Feedback, BL.O. P/T Moving, BL.O. Color Change or BL.O. Gobo
Change.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select No
(Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
BL.O. P/T Moving —Blackout while pan/tilt moving
To select BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
BL.O. Color Change — Blackout while change color
To select BL.O. Color Change, press the ENTER button to confirm. Use UP/DOWN button to select
No (normal while changing color) or Yes (blackout while change color), press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
BL.O. Gobo Change — Blackout while change gobo
To select BL.O. Gobo Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while changing gobo) or Yes (blackout while changing gobo), press the ENTER
13D

button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Lamp Setting
To select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN button to select
On/Off, State/Power on, Off via DMX, On if DMX on, Off if DMX off, Ignition Delay or Low Power
Delay..
On/Off —Turn on/off the lamp
To select On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select On (lamp
on) or Off (lamp off), press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
State/Power On — Lamp state while power on
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select
On (Lamp on while power on) or Off (Lamp off while power on), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Off via DMX — Turn off the unit via DMX controller
To select Off Via DMX, press the ENTER button to confirm, present mode will blink on the display,
use the UP/ DOWN button to select Yes (turn off the unit via DMX controller available) or No (turn
off the unit via DMX controller impracticable), press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
(When you operate the unit via DMX controller, set the value of channel “special function” to
“lamp off”, waiting for 5 seconds, then the lamp will be off if you choose “yes” mode).
On if DMX On — Lamp turns on when DMX signal is detected
Select On if DMX On, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select Yes (Lamp turns on when DMX signal is detected) or No (keep
the present state), press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.(If the lamp is off via DMX signal, you can
reconnect the DMX controller to make the lamp on).
Off if DMX Off — Lamp turns off when DMX signal is cut off
Select Off if DMX Off, press the ENTERbutton to confirm, present mode will blink on the display,
14D

use the UP/DOWN button to select Yes (Lamp turns off when DMX signal is cut off), press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Ignition Delay — Delay time between power on and lamp on
Select Ignition Delay, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to adjust the delay time from 0S to 255S, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Low Power Delay —Delay time between reduce lamp power and shutter off the unit
Select Low Power Delay, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to adjust the delay time from 0S to 255S, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Display Setting
Enter menu mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Auto Off, Backlight Intensity or Temperature Unit and
Language.
Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No (normal display) or Yes (inverse display), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Backlight Auto Off
Select Backlight Auto Off, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select No (display always on) or Yes (display goes off one
minute after exiting menu mode), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
15D

display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Language
Select Language, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select English or Chinese. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Fixture Test
Enter menu mode, select F ixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris, frost,
zoom, focus, dimmer and lamp on/off. Press the MENU button back to the last menu or exit menu
mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP and DOWN button to adjust the value, press the ENTER button to store, the fixture will run
as the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
16D

UP/DOWN button to select Fixture use time, Lamp On time or Firmware Version.
Fixture use time
Select Fixture use time, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Lamp On time
Select Lamp On time, press the ENTER button to confirm, lamp on time will show on the display,
press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset Time, press
the ENTER button to confirm. Press the MENU button back to the last menu or exit menu mode
idling one minute.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN
button to select Pan/Tilt, Shutter, Color/CMY, Gobo/Iris, Focus/ Zoom/Frost / Prism or All.
Pan/Tilt —Reset Pan/Tilt
Select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset pan and tilt to their home positions) or No, press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Shutter — Reset Shutter
Select Shutter, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset shutter to their home positions) or No, and press the ENTER
button to store. Press the MENU button to exit.
Color/CMY — Reset Color/CMY
Select Color/CMY, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset color and CMY to their home positions) or No, and press the
ENTER button to store. Press the MENU button to exit.
17D

Gobo/Iris — Reset Gobo/Iris
Select Gobo/Iris, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset Gobo wheel and Iris to their home positions) or No, press the
ENTER button to store. Press the MENU button to exit.
Focus/Zoom /Frost/Prism — Reset Focus/Zoom /Frost/Prism
Select Focus/Zoom/Frost/Prism, press the ENTER button to confirm, use the UP/DOWN button to
select Yes (the unit will run built-in program to reset focus, zoom, frost and prism to their home
positions) or No, and press the ENTER button to store. Press the MENU button to exit.
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will
run built-in program to reset all motors to their home positions) or No, press ENTER button to store.
Press the MENU button to exit.
Special Functions
Enter menu mode, select Special Functions, press the ENTER button to confirm, use the UP/
DOWN button to select Fixture Maintenance or Factory Setting.
Fixture Maintenance
Select Fixture Maintenance, press the ENTER button to confirm, use the UP/DOWN button to
select Interval or Remain Time.
Interval
Select Interval, press the ENTER button to confirm, the interval time will show on the
display. Press the MENU button to exit.
Remain Time
Select Remain Time, press the ENTER button to confirm, the remaining time will show on
the display, press the ENTER button to confirm, use the UP/DOWN button to select Exit or
Reset time, press the MENU button to exit.
Factory Setting
Select Factory Setting, press the ENTER button to confirm, the fixture will reset to factory settings
and exit menu mode.
18D

5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button
to choose the submenu, press the ENTER button to store and automatically return to the last menu.
Press MENU button to exit.
Pan—pan home position adjustment
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on the
display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on the
display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
Press the MENU button to exit.
Shutter—Shutter home position adjustment
Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
19D
