ACME Xperior XP-16R BEAM II User manual

XP-16R BEAM II
User Manual
Please read these instructions carefully before use

TABLE OF CONTENTS
1. Safety Instruction ................................................................................................... 2
2. Technical Specification ........................................................................................... 4
3. Description............................................................................................................. 6
3.1 Control Panel .................................................................................................. 6
4. Gobo-wheel and Lamp ........................................................................................... 7
4.1 Gobo-wheel.................................................................................................... 7
4.2 Lamp .............................................................................................................. 7
5. How To Set The Unit ............................................................................................... 8
5.1 Main Function ................................................................................................ 8
5.2 Home Position Adjustment........................................................................... 15
5.3 Error Information.......................................................................................... 17
6. Control By Universal DMX Controller.................................................................... 18
6.1 DMX Connection .......................................................................................... 18
6.2 Channel Mode Setting .................................................................................. 19
6.3 Address Setting............................................................................................. 19
6.4 DMX 512 Configuration ................................................................................ 19
7. Troubleshooting ................................................................................................... 25
8. Maintenance and Cleaning................................................................................... 26
1. Safety Instruction
WARNING
Please read the instruction manual carefully which includes important
information about the installation, usage and maintenance.
2

Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
Do install and operate by qualified operator.
Do not allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked; otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply matches the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. Don’t operate it when the temperature is higher.
Don’t connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed
during its operation, and allow about 15 minutes for cooling the unit down before replacing
bulb or maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
off the mains power immediately.
Do not operate in dirty or dusty environment; do clean the fixture regularly.
Do not touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires twist other cables.
The minimum distance between light output and the illuminated surface must be more than
3

12 meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Do not open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
Do use the original packing materials before transporting it once again.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
Do replace the bulb once it is damaged, deformed or life-expired.
Do not look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
Do not start on the unit without bulb enclosure or when housing is damaged.
2. Technical Specification
Power supply:
- AC 100~240V, 50/60Hz
Power Consumption:
- 484W
4

Lamp:
- PHILIPS MSD Platinum 16R 330W
Optical system:
- High efficient Optical system.
- Delivering extremely powerful output.
- High quality lens.
Movement:
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Dimmer/Shutter:
- Mechanical dimmer
- Mechanical shutter and adjustable speed strobe effect
Color wheel:
- Color wheel: 12 fixed colors
- Rainbow effect in both directions.
Gobo wheel:
- Gobo Wheel: 12 rotation gobos, index able,
Prism:
-8 facet prism + 16 facet prism, both of them can rotate in both directions and overlay
Focus:
-Motorized
Cooling:
- Fan cooling
Weight:
- 22.5kg
517
394
392
5

Dimension:
- 517 × 394 ×392mm
3. Description

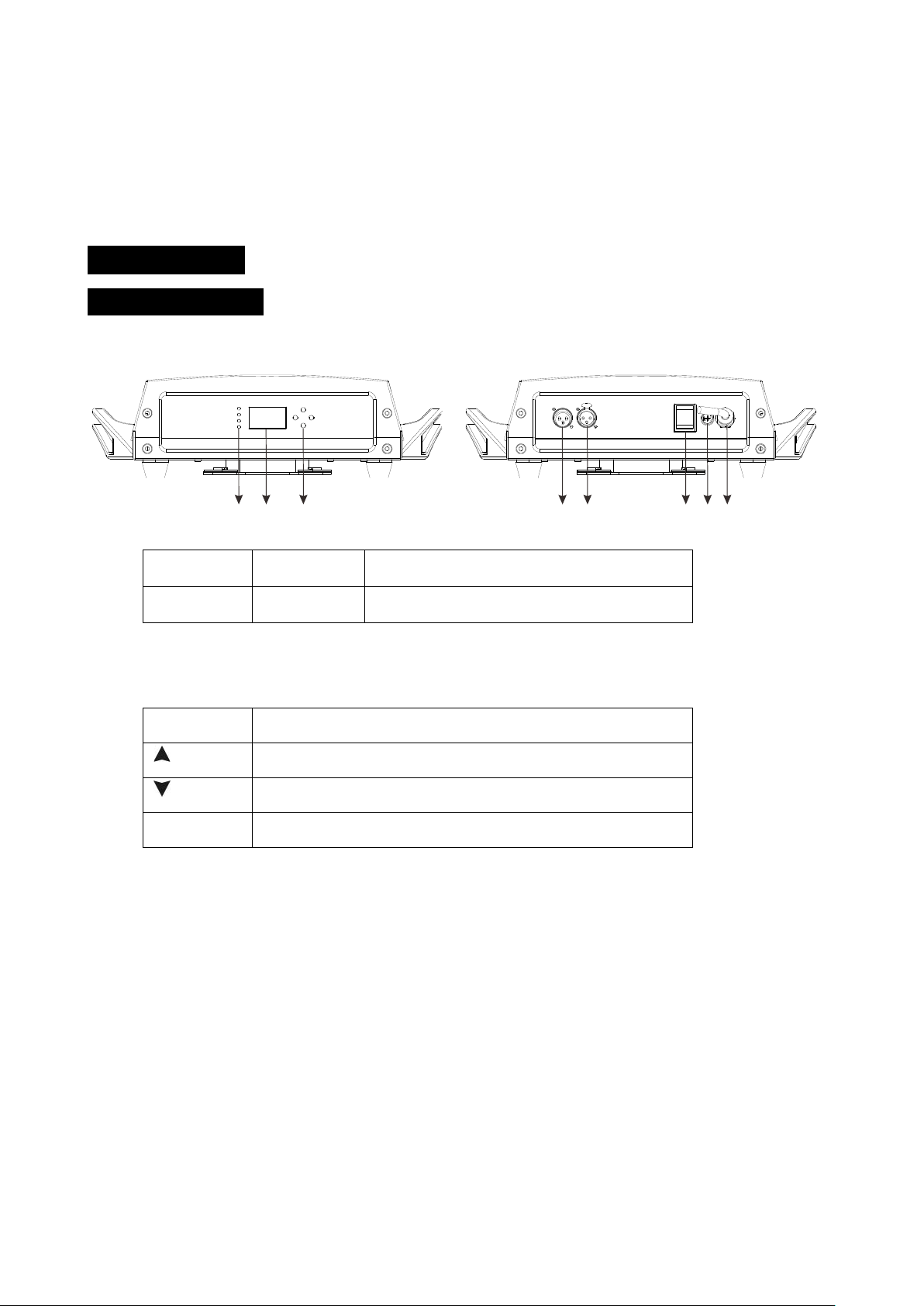

3.1 Control Panel
Front view Rear view
1
234567 8
1.LED:
POWER On Power On
DMX
Om
DMX input present
2.Function Display: To show the various menus and the selected function.
3.Button:
MENU
To enter into, move backward or leave the menu
UP
Move up in the menu
DOWN
Move down in the menu
ENTER
Enter the desired functions
4. DMX IN:
DMX 512 operation, use 3-pin XLR cable to link the unit and DMX controller;
5.DMX OUT:
DMX 512 operation, use 3-pin XLR cable to link the next units;
6.Fuse (T 10A):
Protect the unit from damage of over voltage or short circuit;
7.Power Switch:
Turns On/Off the power;
8.Power Cable:
Connect to the mains supply.
6

4. Gobo-wheel and Lamp

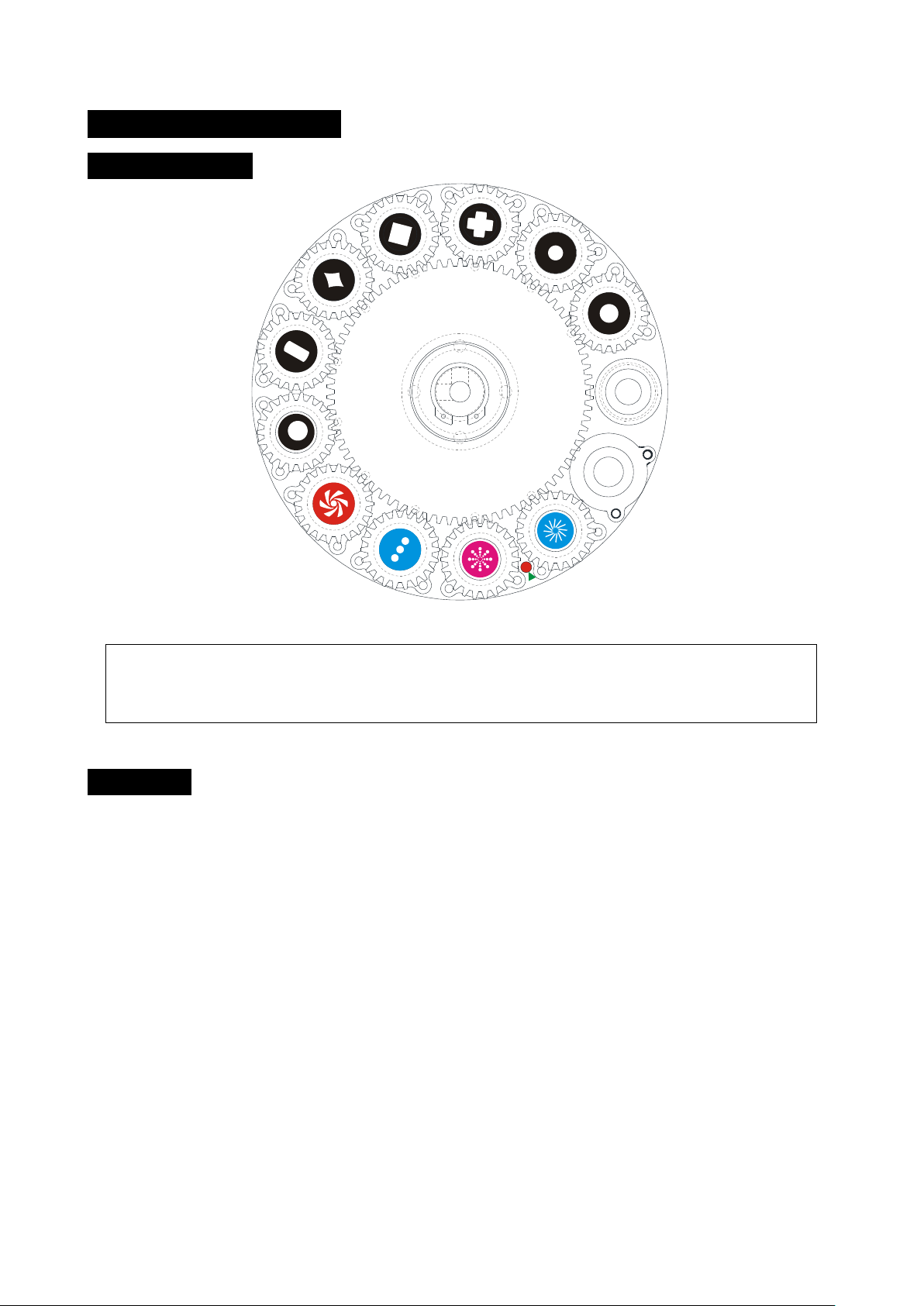

4.1 Gobo-wheel
DANGER!
Install/change the gobo-wheel with the device switched off only.
4.2 Lamp
PHILIPS MSD Platinum 16R 330W
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can cause severe damage to the
retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
7

When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do
not use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into
menu mode. Press MENU button or let the unit idle one minute to exit.
The main functions are shown below（the grayed boxes are preset settings）:
8

Channel Mode
DMX State
Mode1 15()
Mode2 17
()
Blackout
Hold
Backlight Intensity
Contrast Radio
1
10
0
30
Pan Tilt﹠
Effect
Lamp Use Hour
Temperature
Exit
ResetTime
View DMX Value
Language
English
Chinese
9

DMX Functions
To select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to
select DMX Address, Channel Mode , DMX State or View DMX Value.
DMX Address
To select DMX Address, press the ENTERbutton to confirm. Use the UP/DOWN button to
adjust the address from 1to 512, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select 15 Channel or 17 Channel mode, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
DMX State
To select DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout (If DMX signal stops, fixture blacks out)or Hold (If no DMX signal, fixture continues
its last effect) mode, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to
view the DMX channel value. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to
select Pan Inverse, Tile Inverse or P/T Feedback,.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
10

Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to
select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while
pan/tilt out of step), press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to
select Lamp On/Off or State/Power on.
Lamp On/Off —Turn on/off the lamp
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to
select Off (lamp off) or On (lamp on), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
State/Power On — Lamp state while power on
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to
select Off (Lamp off while power on) or On (Lamp on while power on), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Display Settings
Enter menu mode, select Display Settings, press the ENTER button to confirm, use the
UP/DOWN button to select Display Inverse, Backlight Intensity,Contrast Ratio,Temperature
Unit or Language.
11

Display Inverse
To select Display Inverse, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select No (normal display) or Yes (inverse display), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm, present mode will blink on
the display, use the UP/DOWN button to adjust b value from 1 (dark) to 10 (bright), press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Contrast Ratio
To select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust value from 0 (dark) to 30 (bright), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute
to exit menu mode.
Temperature Unit
To select Temperature Unit, press the ENTER button to confirm, present mode will blink on
the display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Language
To select Language, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select English or Chinese, press the ENTER button to store. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Fixture Test
Enter menu mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
12

button to select Auto Test or Manual Test.
Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, gobo, gobo rotation, prism, prism rotation, focus,
dimmer and lamp on/off. Press the MENU button back to the last menu or exit menu mode
after auto test.
Manual Test
To select Manual Test, press the ENTER button to confirm, the present channel will show on
the display, use the UP/DOWN button to select channel, press the ENTER button to confirm,
then use the UP/DOWN button to adjust the value, press the ENTER button to store, the
fixture will run as the channel value indicates. Press the MENU button back to the last menu or
exit menu mode idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Use Hour, Lamp Use Hour,Temperature or Firmware
Version.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Lamp Use Hour
To select Lamp Use Hour, press the ENTER button to confirm, lamp on time will show on the
display, press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset
Time, press the ENTER button to confirm. Press the MENU button back to the last menu or
exit menu mode idling one minute.
Temperature
13

To select Temperature, press the ENTER button to confirm, temperature of the fixture will
show on the display, press the MENU button back to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, firmware version will show on
the display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Function, press the ENTER button to confirm, use the
UP/DOWN button to select Pan/Tilt, Efffect or All.
Pan/Tilt —Reset Pan/Tilt
To select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes
(the unit will run built-in program to reset pan and tilt to their home positions) or No, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Effect —Reset Effect
To select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes
(the unit will run built-in program to reset shutter, color, gobo…… to their home positions) or
No, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
All — Reset All
To select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset all motors to their home positions) or No, press ENTER
button to store. Press the MENU button to exit.
Special Functions
Enter menu mode, select Special Functions, press the ENTER button to confirm, and select
Factory Settings.
14

Factory Settings
To Select Factory Setting, press the ENTER button to confirm, the fixture will reset to factory
settings and exit menu mode.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN
button to choose the submenu, press the ENTER button to store and automatically return to the
last menu. Press MENU button to exit.
Offset Menu
Pan
Tilt
Shutter
Color
Gobo
Rgobo
Prism
Rprism
Sulsp2
Rprism2
Frost
Focus
-128~127
-128~127
-128~127
-128~127
0 255~
-128~127
-128~127
-128~127
-128~127
-128~127
0 255~
-128~127
Pan - pan home position adjustment
Enter offset mode, select Pan, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
15

Tilt - Tilt home position adjustment
Enter offset mode, select Tilt, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Shutter – Shutter home position adjustment
Enter offset mode, select Shutter, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Color - Color1 home position adjustment
Enter offset mode, select Color, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Gobo - Gobo home position adjustment
Enter offset mode, select Gobo, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
R Gobo – Gobo1 rotation home position adjustment
Enter offset mode, select RGobo, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to
exit.
Prism – Prism1 home position adjustment
Enter offset mode, select Prism, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
R Prism – Prism1 rotation home position adjustment
Enter offset mode, select R Prism, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from -128 to 127,, press the ENTER button to store. Press the MENU button to
exit.
Prism2 – Prism2 home position adjustment
Enter offset mode, select Prism2, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
R Prism2 – Prism2 rotation home position adjustment
Enter offset mode, select R Prism2, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to
exit.
16

Frost - Frost home position adjustment
Enter offset mode, select Frost, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Focus - Focus home position adjustment
Enter offset mode, select Focus, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
5.3 Error Information
Lamp Startup Fail
It appears when there is no lamp or some wires are damaged.
Temperature Sense Error
It appears when temperature check board is damaged.
Lamp Too Hot Power Off
It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated,
or fans or temperature check board may is damaged.
Lamp Too Hot Low Power
It appears when temperature is detected higher than 105℃, the unit will run on a low power level.
Maintenance Fixture
It appears when the maintenance remaining time becomes 0S, please enter menu mode and reset
the time.
Lamp On Over 700 Hour
It appears when the lamp has been on over 700 hours, please turn off the lamp.
Memory Initial Fail
It appears when the memory IC is damaged.
CPU-B Error, CPU-C Error, CPU-D Error
They appear when board P.C or some wires are damaged.
Pan Reset Error, Pan Encode Error, Tilt Reset Error, Tilt Encode Error, Shutter Reset Fail, Dimmer
17

Reset Fail, Color Reset Fail, , Gobo Reset Fail, Focus Reset fail.
They may appear when turning on or resetting the unit, for some parts such as board P.C are
damaged. Please contact the qualified maintenance.
6. Control By Universal DMX Controller
6.1 DMX Connections
unit 1 unit 2 unit3 unit 4
DMX 输出
DMX 512 控台
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the
input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
18

4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
6.2 Channel Mode Setting
Enter menu mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN
button to select Mode, press the ENTER button to confirm, present channel mode will blink on the
display, use the UP/DOWN button to select 21 Channel or 19 Channel Mode, and press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
6.3 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm,
the present address will blink on the display. Use the UP/DOWN button to adjust the address from
1 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Please refer to the following diagram to set the address for the first 4 units.
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
15 channels
1
16
31
46
17 channels
1
18
35
52
6.4 DMX 512 Configuration
15 Channels Mode:
19

CHANNEL VALUE FUNCTION
1
PAN
0-255
0° - 540°
2
TILT
0-255
0° - 270°
3
PAN /TILT SPEED
0-255
Fast Slow
4
COLOR
000-004
Open
005-009
Color 1
010-014
Color 2
015-019
Color 3
020-024
Color 4
025-029
Color 5
030-034
Color 6
035-039
Color 7
040-044
Color 8
045-049
Color 9
050-054
Color 10
055-059
Color 11
060-064
Color 12
065-127
Index
128-189
Clockwise rotation fast to slow
190-193
Stop
194-255
Clockwise rotation slow to fast
5
GOBO
000-004
Open
005-009
Gobo 1
010-014
Gobo 2
015-019
Gobo 3
020-024
Gobo 4
025-029
Gobo 5
030-034
Gobo 6
035-039
Gobo 7
040-044
Gobo 8
045-049
Gobo 9
050-054
Gobo 10
055-059
Gobo 11
060-063
Gobo 12
064-127
Gobo Shaking
20
