ACME XP-5000 SZ NF User manual

User Manual
Please read the instruc on carefully before use
XP-5000 SZ NF

CONTENTS
1. Safety Instruction ................................................................................................... 2
2. Technical Specification ........................................................................................... 4
3. Control Panel.......................................................................................................... 6
4. Gobo Wheel and Lamp........................................................................................... 7
4.1 Gobo Wheel ................................................................................................... 7
4.2 Lamp .............................................................................................................. 7
4.3 Change The Lamp ........................................................................................... 8
5. How To Set The Unit ............................................................................................... 9
5.1 Main Function ................................................................................................ 9
5.2 Home Position Adjustment........................................................................... 16
5.3 Error Information.......................................................................................... 20
6. Control By Universal DMX Controller.................................................................... 21
6.1 DMX Connections ......................................................................................... 21
6.2 Channel Mode Setting .................................................................................. 22
6.3 Address Setting............................................................................................. 22
6.4 DMX Control................................................................................................. 23
7. Troubleshooting ................................................................................................... 28
8. Maintenance and Cleaning................................................................................... 29
A 1B

1. Safety Instruction
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
Do install and operate by qualified operator.
Do not allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked; otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply matches the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. Don’t operate it when the temperature is higher.
Don’t connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed during its
operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction manual carefully which includes important
information about the installation, usage and maintenance.
A 2B

Do not operate in dirty or dusty environment; do clean the fixture regularly.
Do not touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Do not open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
Do use the original packing materials before transporting it once again.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
Do replace the bulb once it is damaged, deformed or life-expired.
Do not look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
Do not start on the unit without bulb enclosure or when housing is damaged.
Caution:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
Do replace the bulb once it is damaged, deformed or life-expired.
Do not look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
Do not start on the unit without bulb enclosure or when housing is damaged.
A 3B

2. Technical Specification

Power supply:
AC 230V, 50/60Hz

Power Consumption:
1790W

Lamp:
OSRAM Lok-it 1400/PS Brilliant

Optical system:
-High efficient Optical system.
- Delivering extremely powerful output.
- High quality lens.

Movement:
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.

Dimmer/Shutter:
- Mechanical dimmer
-Mechanical shutter and adjustable speed strobe effect

CMY color mixing + Linear CTO

Color wheel:
- Color wheel: 6 fixed colors
- Rainbow effect in both directions.
- Easy calibration and maintenance by magnetic home positioning

Gobo wheel:
- Gobo Wheel: 1 rotation gobos with 5gobos plus white
- Easy calibration and maintenance by magnetic home positioning
A 4B


Animation Wheel:
Perfect water wave and flame effects, rotating and index able

Framing System
：
- 4 fast, smooth framing shutters, each shutter blade position and angle can be controlled
individually
- Completed framing module can be rotated at 90°

Iris:
Linear iris

Prism:
Four facet prism, rotating in both direction

Focus:
Motorize focus

Beam Angle:
5° ~ 35°

Weight:
41.5 Kgs


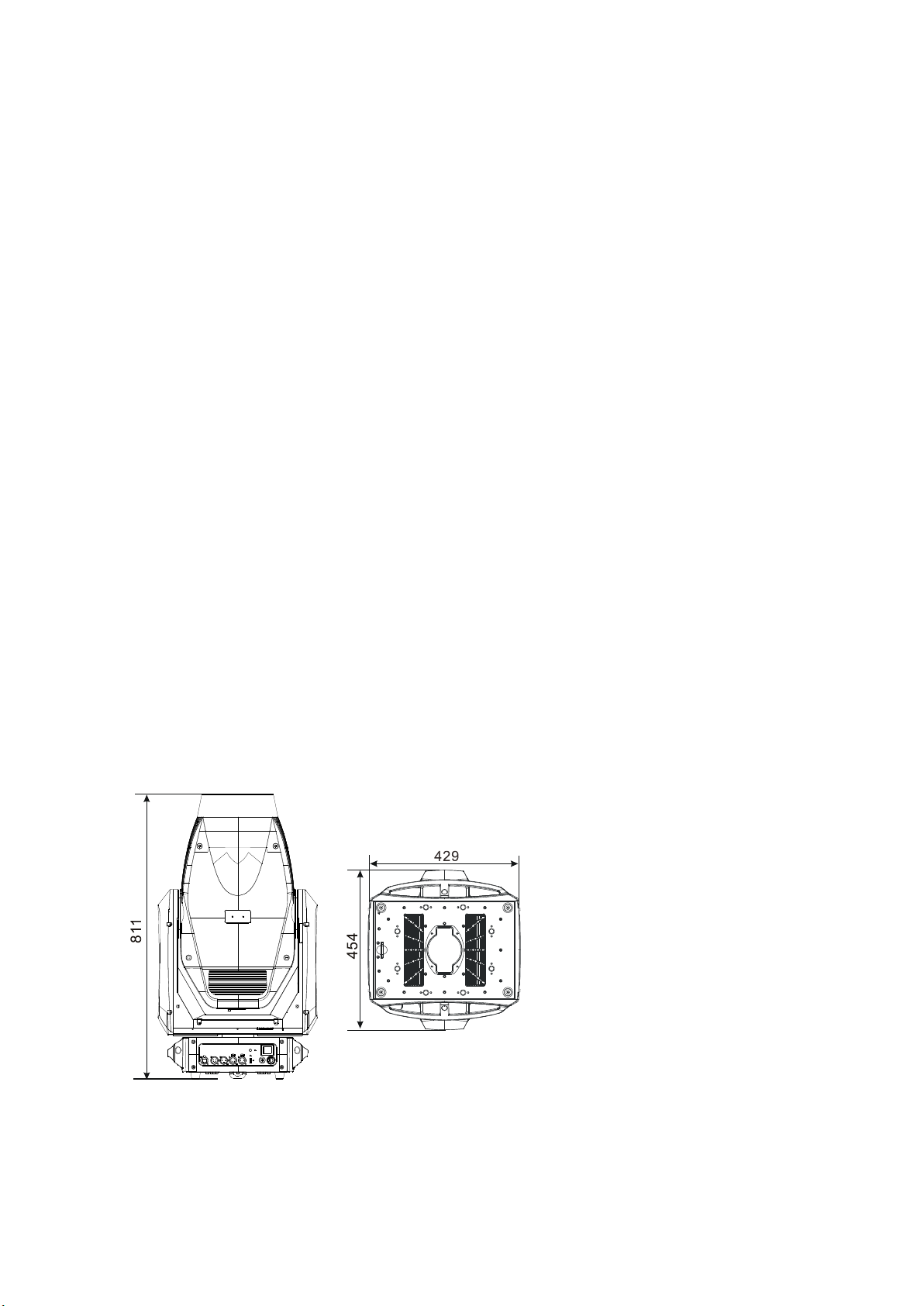

Dimension:
454 × 429 × 811mm
A 5B

3. Control Panel
Front View Rear View
1. FUNCTION DISPLAY:
Shows the various menus and the selected functions;
2. ETHERNET:
Transfers fixture’s information to a main controller;
3. DMX IN:
DMX 512 operation, use 5-pin XLR cable to link the unit and DMX controller;
4. DMX IN:
DMX 512 link, use 3-pin XLR cable to link the unit and DMX controller;
5. DMX OUT:
DMX 512 operation, use 5-pin XLR cable to link the next units;
A 6B

6. DMX OUT:
DMX 512 operation, use 3-pin XLR cable to link the next units;
7. BATTERY DISPLAY:
Shows the battery status;
8. FUSE (AC250V/T 15A):
Protect the unit from damage of over voltage or short circuit;
9. POWER:
Connect to the mains supply.
10. POWER SWITCH:
Turns On/Off the power;
4. Color Wheel and Lamp
4.1Color Wheel
4.2 Lamp
OSRAM Lok-it 1400/PS Brilliant:
1. Because of its high internal pressure, there might be a risk that the Discharge lamp would
DANGER!
Install/change the gobo-wheel with the device switched off only.
A 7B

explode during operation. The lamp emits intense UV radiation which is harmful to the eyes
and skin. The high luminance of the arc can cause severe damage to the retina if you take a
close look at the lamp.
2. To protect the lamp, always turn off the lamp first (via control panel or DMX controller) and let
the unit run at least five minutes to cool down before switching off the mains supply. Never
handle the lamp or luminary when it is hot.
3. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured alcohol
and wipe it with a lint free cloth before installation.
4. The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
5. When ling up, the lamp operates at high pressure and there is a slight risk of arc tube rupture. The
risk increases with age, temperature and improper handling of the lamp. Do not use the lamp longer
than its lifespan.
6. Make sure the lamp is located in the center of the reflector for the best projection.
4.3 Change The Lamp
Loosen the screw at the rear side of the fixture and open the lamp compartment cover.
A 8B

Remove the old lamp and turn the lamp left in order to take the lamp out, put a new lamp that
must be the same type as the old one. And then place the new lamp into the lamp holder and turn
the lamp right in order to fix. Finally reinstall the lamp compartment cover, fastening it securely
before turning on po we r.
5. How To Set The Unit

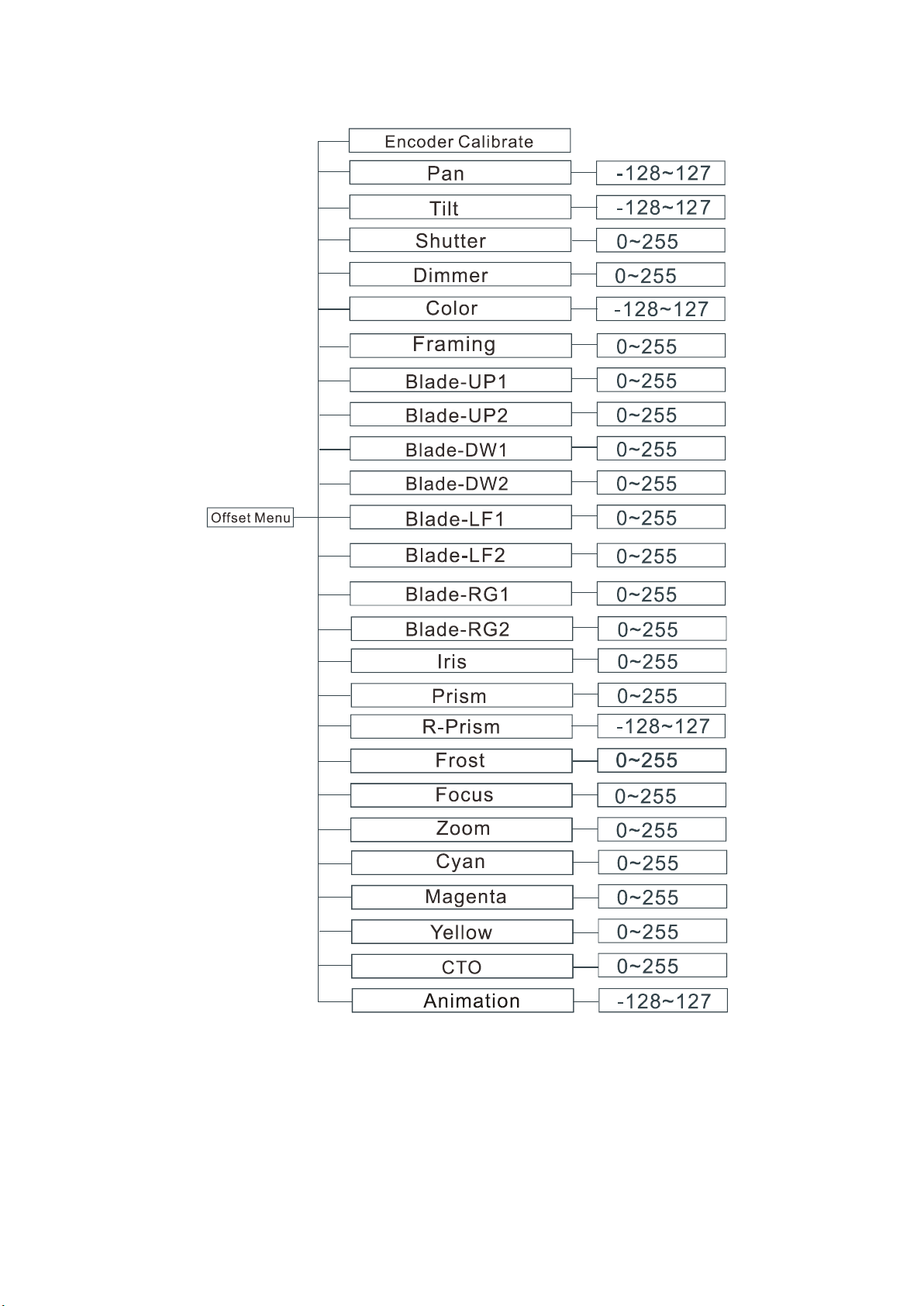

5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return
to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into
menu mode. Press MENU button or let the unit idle one minute to exit.
The main functions are shown below（the grayed boxes are preset settings）:
A 9B

A 10B

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX
Address,Channel Mode or View DMX Value.
.DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 1to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Mode1 (26) or Mode2 (28) Channel mode, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Pan
Inverse,Tile Inverse,P/T Feedback, P/T Speed,BL.O. P/T Moving,BL.O. Color Change or Dimmer
Curve.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
A 11B

No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
P/T Speed
To select P/T Speed, press the ENTER button to confirm. Use the UP/DOWN button to select Slow
or Fast, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
BL.O. P/T Moving —Blackout while pan/tilt moving
To select BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
BL.O. Color Change — Blackout while color changing
To select BL.O. Color Change, press the ENTER button to confirm. Use UP/DOWN button to select
No (normal while changing color) or Yes (blackout while color changing), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Dimmer Curve

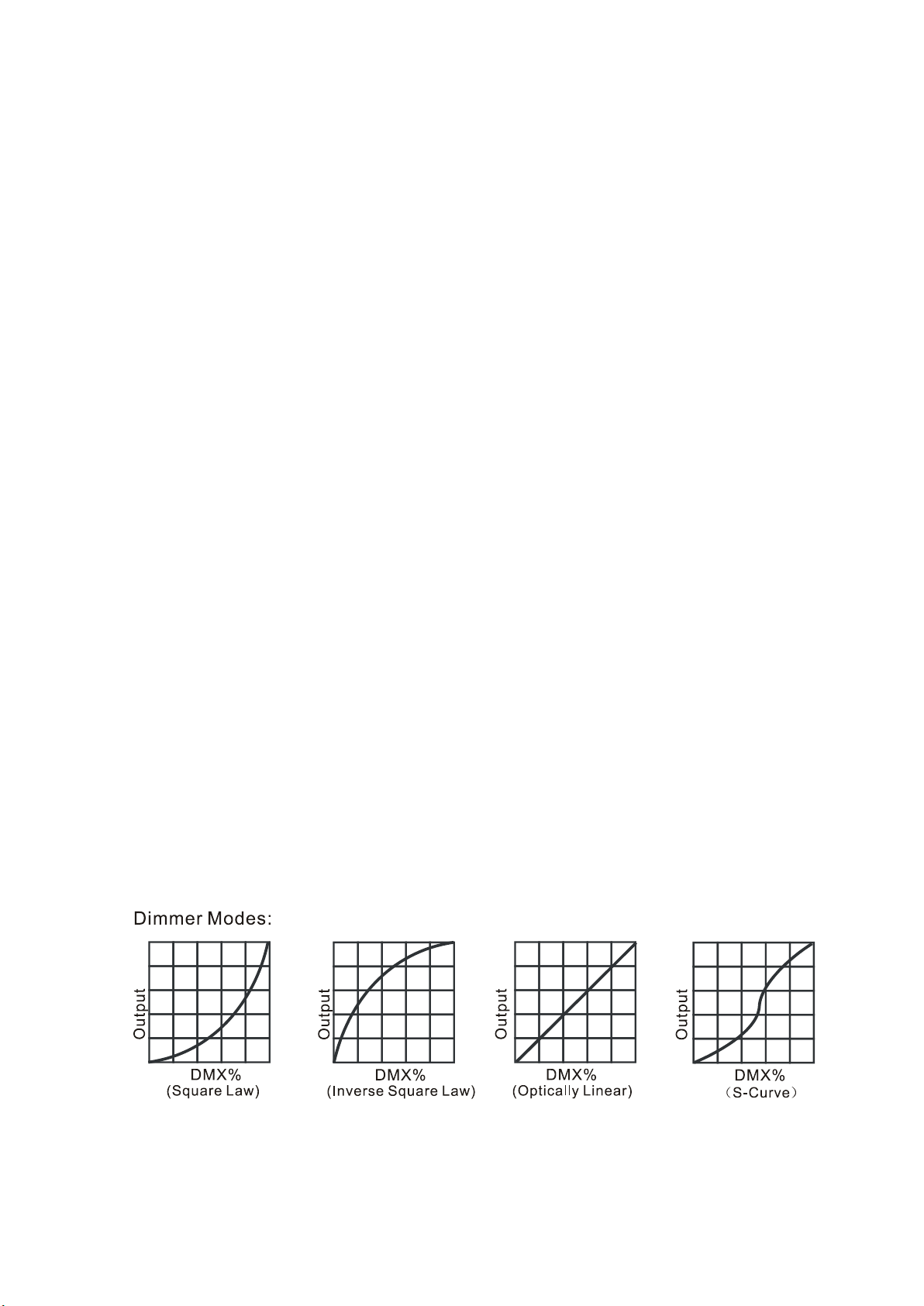

To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display, use
the UP/DOWN button to select Square Law, Inverse Squ. Linear,or S-curve. Once selected, press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
A 12B

Linear: The increase in light intensity appears to be linear as DMX value is increased.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to select Lamp
On/Off or State/Power on.
Lamp On/Off
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
Off (lamp off) or On (lamp on), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
State/Power On
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select
Off (Lamp off while power on) or On (Lamp on while power on), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Inverse,Backlight Auto Off ,Backlight Intensity ,Temperature Unit or Language.
Display Inverse
To select Display Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (display inverse), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Auto Off
To select Backlight Auto Off, press the ENTER button to confirm. Use the UP/DOWN button to
select Off or On , press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the value from 1to 10, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
A 13B

Temperature Unit
To select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Language
To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select
English or Chinese, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Fixture Test
To select F ixture Test , press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test
Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, gobo, gobo rotation, prism, prism rotation, focus,
dimmer and lamp on/off. Press the MENU button back to the last menu or exit menu mode after
auto test.
Manual Test
To select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select
Fixture Use Hour,Light Use Hour, Temperature ,Lamp State ,Fan State or Firmware Version.
A 14B

Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Light Use Hour
To select Light Use Hour, press the ENTER button to confirm, lamp on time will show on the
display, press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset Time,
press the ENTER button to confirm. Press the MENU button back to the last menu or exit menu
mode idling one minute.
Temperature
To select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select Lamp Temperature or CPU Temperature, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Fixture State
Select Fixture State, press the ENTERbutton to confirm, fixture state will show on the display,
press the MENU button to exit.
Fan State
Select Fan State, press the ENTERbutton to confirm, fixture state will show on the display, press
the MENU button to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
To select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select
Pan/Tilt,Effect or All.
Pan/Tilt —Reset Pan/Tilt
To select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes
(the unit will run built-in program to reset pan and tilt to their home positions) or No, press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
A 15B

minute to exit menu mode.
Effect
To select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset effect to their home positions) or No, and press the ENTER
button to store. Press the MENU button to exit.
All — Reset All
To select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset all motors to their home positions) or No, press ENTER button to
store. Press the MENU button to exit.
Special Functions
To select Special Functions, press the ENTER button to confirm, and select Factory Settings.
Factory Settings
Select Factory Settings,press the ENTER button to confirm, use the UP/DOWN button to select
Yes (the fixture will reset to factory settings)or No (normal), press ENTER button to store. Press
the MENU button to exit.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press and hold the ENTER button for about 3 seconds
into offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to select the submenu, press the ENTER button to store and automatically return to
the last menu. Press the MENU button to exit.
A 16B

Encoder Calibrate- Encoder Calibrate home position adjustment
Enter offset mode, select Encoder Calibrate, the fixture will calibrate the encoder. Press the MENU
button to exit.
A 17B

Pan - pan home position adjustment
Enter offset mode, select Pan, press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Tilt - Tilt home position adjustment
Enter offset mode, select Tilt, press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Shutter- Shutter home position adjustment
Enter offset mode, select Shutter, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Dimmer - Dimmer home position adjustment
Enter offset mode, select Dimmer, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Color - Color home position adjustment
Enter offset mode, select Color, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Framing -Framing home position adjustment
Enter offset mode, select Framing, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-UP1 - Blade-UP1 home position adjustment
Enter offset mode, select Blade-UP1, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-UP2 -Blade-UP2 home position adjustment
Enter offset mode, select Blade-UP2, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-DW1- Blade-DW1 home position adjustment
Enter offset mode, select Blade-DW1, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-DW2 - Blade-DW2 home position adjustment
Enter offset mode, select Blade-DW2, press the ENTER button to confirm. Use the UP/DOWN button
A 18B

to offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-LF1 - Blade-DW1 home position adjustment
Enter offset mode, select Blade-LF1, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-LF2 - Blade-LF2 home position adjustment
Enter offset mode, select Blade-LF2, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-LRG1 - Blade-LRG1 home position adjustment
Enter offset mode, select Blade-LRG1, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Blade-LRG2 -Blade-LRG2 home position adjustment
Enter offset mode, select Blade-LRG2, press the ENTER button to confirm. Use the UP/DOWN button
to offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Iris- Iris home position adjustment
Enter offset mode, select Iris, press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Prism – Prism home position adjustment
Enter offset mode, select Prism, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
R Prism – Prism rotation home position adjustment
Enter offset mode, select R Prism, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit.
Frost - Frost home position adjustment
Enter offset mode, select Frost press the ENTER button to confirm. Use the UP/DOWN button to offset
the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Focus - Focus home position adjustment
Enter offset mode, select Focus, press the ENTER button to confirm. Use the UP/DOWN button to
offset the value from 0to 255, press the ENTER button to store. Press the MENU button to exit.
Zoom - Zoom home position adjustment
A 19B
