Acorp 4S661QP User manual

0-1
Contents Motherboard 4S661QP
Motherboard 4S661QP
Package Contents ................................... 3
1. 4S661QP Specifications ....................4
1.1 Introduction ......................................................... 4
1.2 Specifications and Features ................................ 5
CPU Processor ......................................................................... 5
Chipset ...................................................................................... 5
PCI ............................................................................................ 5
Integrated LAN Controller ....................................................... 5
Universal Serial Bus ................................................................. 5
WOL (Wake On LAN) .............................................................. 5
AwardBIOS .............................................................................. 6
ATA 100/133 On Board ............................................................ 6
PCI-Based AC 97 Audio Processor .......................................... 6
VGAOn Board .......................................................................... 6
AGP 4X/8X On Board .............................................................. 7
1394A-- high performance serial bus on board ....................... 7
1.3 4S661QP Layout Diagram ................................. 8
1.4 CPU and CPU Fan Installation ......................... 10
1.4.1. CPU Installation with Socket 478 ................................ 10
1.4.2. CPU Fan Installation with P4 Fan Base ........................ 11
1.5. DDR SDRAM Installation .............................. 12
1.6 Connectors & Jumpers Setting ........................ 13
1.6.1. Back Panel I/O Connectors .......................................... 13
1.6.1.1. PS/2 Mouse / Keyboard Connectors ..................................... 1 3
1.6.1.2. 3xUSB Ports ................................................................................ 1 3
1.8.1.3. Serial Interface Port: COM1 ................................................. 1 4
1.6.1.4. Parallel Interface Port ............................................................. 1 4

0-2
Contents Motherboard 4S661QP
1.6.1.5. Audio Port Connectors ............................................................. 1 4
1.7.1.6 VGA Connector ............................................................................ 1 4
1.7.1.7 1394A Connector ......................................................................... 1 4
1.6.2. ATX Main Power Connectors: PW1/PW2 ................... 15
1.6.3. Floppy Disk Connector: FDD ....................................... 16
1.6.4. Hard Disk Connectors: IDE1/IDE2 .............................. 16

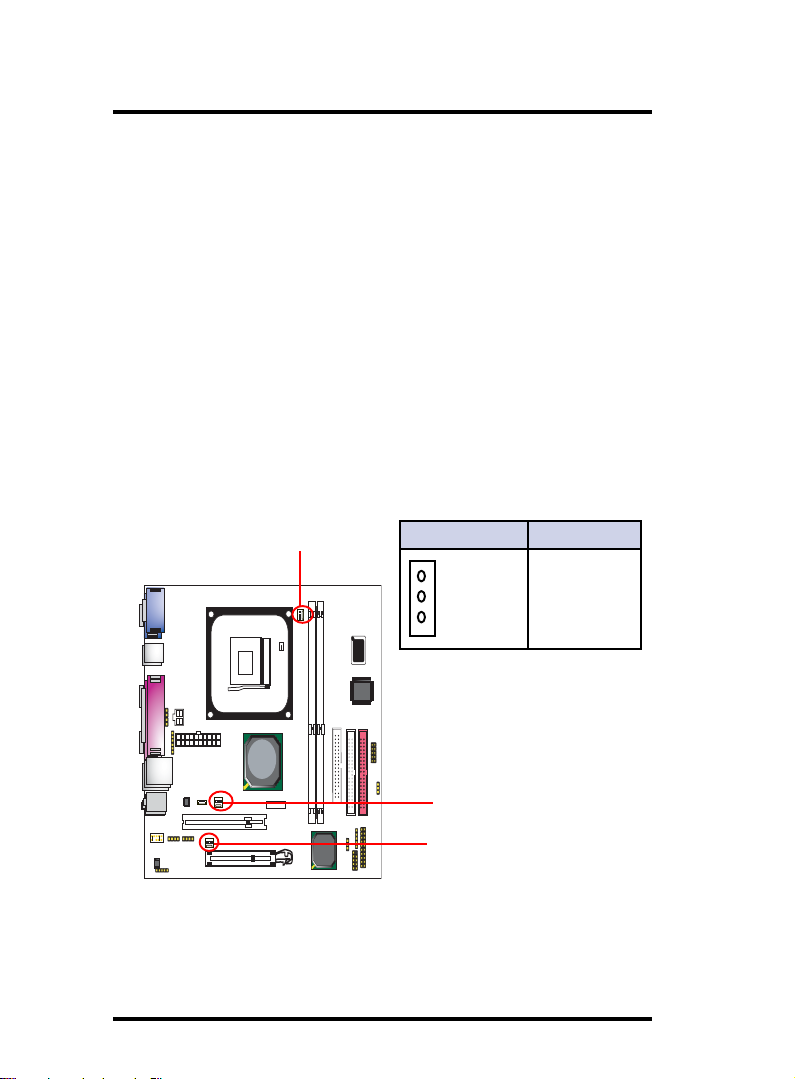

1.6.5. Fan Connectors: FAN1~3 ............................................. 16
1.6.6. Audio-In Connectors: CD1/AUX1 ................................ 17
1.6.7. Wake On LAN Connector: WOL ................................. 17
1.6.8. USB Pin Headers .......................................................... 18
1.6.9. 1394A Pin Header ........................................................ 18
1.6.10. Front Panel Connectors: PANEL1 .............................. 19
1.6.11. SPDIF Connector: SPDIF1 ........................................ 20
1.6.12. IR infrared module: IR1 Connector ........................... 20
1.6.13. FrontAudio Connector: JP1 ...................................... 21
1.6.14. CMOS Function Selector: JP4 .................................. 21
2. BIOS Setup ..................................... 22
2.1 BIOS Support .................................................... 22
2.2 Main Menu ....................................................... 25
2.3 Standard CMOS Features ................................ 28
2.4 Advanced BIOS Features ................................. 32
2.5 Advanced Chipset Features .............................. 36
2.6 Integrated Peripherals ...................................... 40
2.7 Power Management Setup................................ 45
2.8 PnP/PCI Configurations .................................... 48
2.9 PC Health Status............................................... 51
2.10 Frequency/Voltage Control............................. 52
2.11 Load Fail-Safe Defaults .................................. 54
2.12 Load Optimized Defaults ................................ 55
2.13 Set Supervisor / User Password ..................... 56
2.14 Save & Exit Setup........................................... 57

0-3
Contents Motherboard 4S661QP
2.15 Exit Without Saving ........................................ 58
3. Drivers & Utilities ............................ 59
3.1 Auto-run Menu .................................................. 59
3.2 Installing IDE Driver ........................................ 61
3.3 Installing LAN Driver ....................................... 62
3.4 Installing Audio Driver ...................................... 63
3.4.1 Installing 6-channel Driver ........................................... 63
3.4.2 Verifying 6-channel Driver ............................................ 64
3.5 Installing USB 2.0 Driver ................................. 66
3.6 Installing VGA Driver ..................................... 68
3.7 Installing AGP Driver ...................................... 70
Appendix I On Model 4S661QP ........ 72
Motherboard Compatibility Test .......................... 72
(1) CPU Compatibility Test ..................................................... 72
(2) Memory Compatibility Test ............................................... 73
(3)AGPDisplay Card Compatibility Test ............................... 74
2xUltra ATA IDE Cables
1x FDD Cable
Flash Memory with BIOS
Fully Setup Driver CD with built in utilities.
User Manual.
I/O Shielding.
Package Contents

1-4
Chapter 1 Motherboard 4S661QP
The 4S6661QP motherboard is an integration of Intel P4
CPUs in Socket-478 packaging and the North Bridge SiS661FX
supporting 800/533/400 MHz Front Side Bus.
North Bridge SiS661FX on board also supports DDR 400/
333/266/200 DRAMs and the integrated AGP 8X/4X Interface,
while the South Bridge SiS963 provides stable supports of
ULTRAATA 133/100, 6-channel Audio playback, LPC Super
I/O, USB 2.0/1.1 interface, IEEE1394A interface, PCI inter-
face as well as integrated 10/100Mbit Fast Ethernet LAN
Controller.
The resulting architecture will provide an ideal multi-task
environment to support operating systems such as MS-DOS,
Windows, WindowsNT , Windows ME, Windows 2000,Novell,
OS/2, Windows 95/98, Windows 98SE, Windows XP, UNIX,
Liunx, SCO UNIX etc. This user-friendly manual is to de-
scribe in detail how to install, configure and use this
motherboard with drivers and BIOS setup illustrations.
Chapter 1
Specifications
This manual is a general reference of the first release of this
motherboard which is subject to update without notice. If any differ-
ence is found between this manual and the motherboard you are
using, please refer to the Web Site.
1. 4S661QP Specifications
1.1 Introduction

1-5
Chapter 1 Motherboard 4S661QP
CPU Processor
| Supporting 800/533/400MHz System Interface speed.
| Single Socket 478 for Intel P4TM 1.5 to 3.2GHz or higher*
(Northwood Processor).
| Supporting Intel NetburstTM Micro-architecture.
Chipset
| SiS661FX North Bridge, supporting 800/533/400MHz FSB and
AGP 2.0/3.0 interface
| SiS963 South Bridge.
PCI
| Supporting 33MHz PCI Bus speed.
| 1 x PCI slots on board
Integrated LAN Controller
| Supporting 10/100Mbit Fast Ethernet LAN
| Supporting 1xRJ45 Connector
Universal Serial Bus
| Supporting 3 on-board Universal Serial Bus(USB) Ports
and 2 external Universal serial Bus(USB) Ports.
| Supporting USB 2.0/1.1
WOL (Wake On LAN)
| Supporting system power-on by LAN Ring-up signal.
1.2 Specifications and Features
* The higher frequency CPU should be compatible with Intel CPU
specificiation and the motherboard latest BIOS version which will
be released on the web site.

1-6
Chapter 1 Motherboard 4S661QP
Award BIOS
| Supporting Plug & Play specification which detects the
peripheral devices and expansion cards automatically
| Supporting CD-ROM, SCSI, LAN BOOT, Temperature sen-
sor, LAN, Alarm Bus CLK setup
| Supporting Desktop Management Interface (DMI) func-
tion for recording mainboard specification
ATA 100/133 On Board
| Supporting four IDE devices with 2 x IDE connectors
| Supporting PIO Mode 5, Master Mode, high performance
hard disk drives
| Dual -channel Ultra DMA 33/66/100/133 Bus Master Mode
| Supporting IDE interface with CD-ROM
| Supporting high capacity hard disk drives
| Supporting LBA mode
PCI-Based AC 97 Audio Processor
| AC 97 2.2 compatible Codec, 6-channel Audio interface.
| 18-bit Stereo Full-Duplex Codec with up to 48 KHz samp-
ling rate
| 4 Analog Line-level Stereo inputs for connection from Line,
CD, Viedo and AUX
| 2 Analog Line-level Stereo inputs for speakerphone and PC
beep
VGA On Board
| 1x 15-pin VGA connector on board
| CRT highest resolution mode: 2048x1536x32@75NI

1-7
Chapter 1 Motherboard 4S661QP
AGP 4X/8X On Board
| AGP 66MHz, 1.5V for AGP4X/8X graphic card.
| AGP 3.5/2.0 compliant
| Digital LCD/TV-out card supported
| LCD highest solution mode: 1600x1200x32@60NI
| TV highest solution mode: 1024x768x32@60NI
1394A-- high performance serial bus on board
| 1394A Interface on board
| Compliant with IEEE 1394A-2000 standard for high perfor
mance serial bus
| Supporting 2x1394 ports, 400/200/100 Mbits transfer rates

1-8
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL
ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL
8201BL
15
13
1
26
22
14
11
8
18
74
19

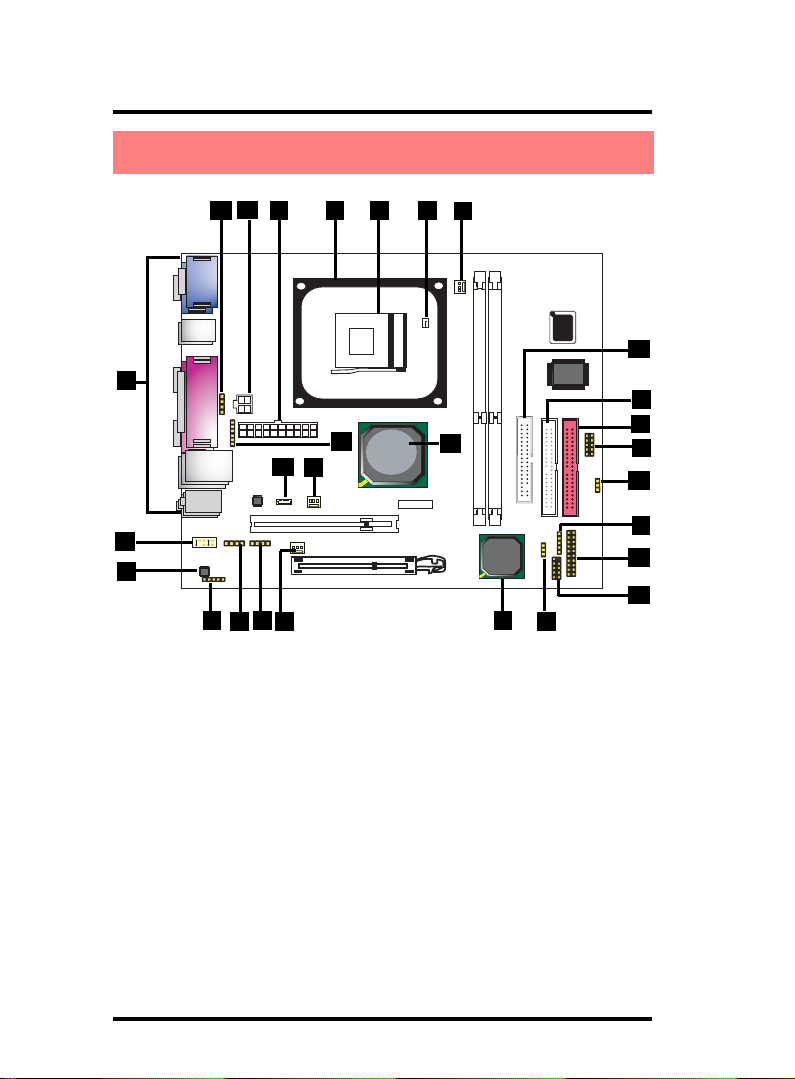

1.3 4S661QP Layout Diagram
6
16
2
PCI
DIMM 1
DIMM 2
24
27
20
AGP4X
23
21
3
10
25
95
28
12
17

1-9
Chapter 1 Motherboard 4S661QP
8. ATX Main Power Connector
9. +12V Power Connector
10. DEBUG1: Connector for Printer ERROR debug
11. Back Panel: Back Panel I/O Connectors ( Mouse, Keyboard,
COM1, VGA, Printer, 1394A Port, 3xUSB ports, Mic in, Line in,
Speaker, RJ45 )
12. JP1: Front Audio Pin-header
13. ALC650: 6-channel AC’97 Audio CODEC
14. SPDIF1: SPDIF (S/P Digital Interface Format) Connector
15. AUX1: Audio-in connector for Wave audio input
16. CD1: CD Audio-in connector
17. FAN3: Cooling Fan connector
18. South Bridge SiS963
19. JP4: Jumper for Clear CMOS Select
20. USB2 Header: USB2 Pin-header for 2 external USB ports
21. Panel1: Front Panel connectors
22. JP5: Pin Header supporting 1 external USB Port
23. JP10: Jumper for USB2 Wake-up Select
24. IR2: Connector for Infrared signal transmission/reception.
25. North Bridge SiS661FX
26. FAN2: Cooling Fan connector
27. WOL1: Wake On LAN connector
28. 1394A Header: 1393A Pin-header for 1x external 1394A port
1. IDE1: IDE Connector
2. IDE2: IDE Connector
3. FDC1: Floppy Drive Connector
4. FAN1: CPU Fan Connector
5. Thermal Detector
6. P4 CPU Socket 478
7. P4 CPU Fan Base
4S661QP Component Layout :

1-10
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
This motherboard is designed with Socket 478 for
Intel P4TM processor.
Pin 1

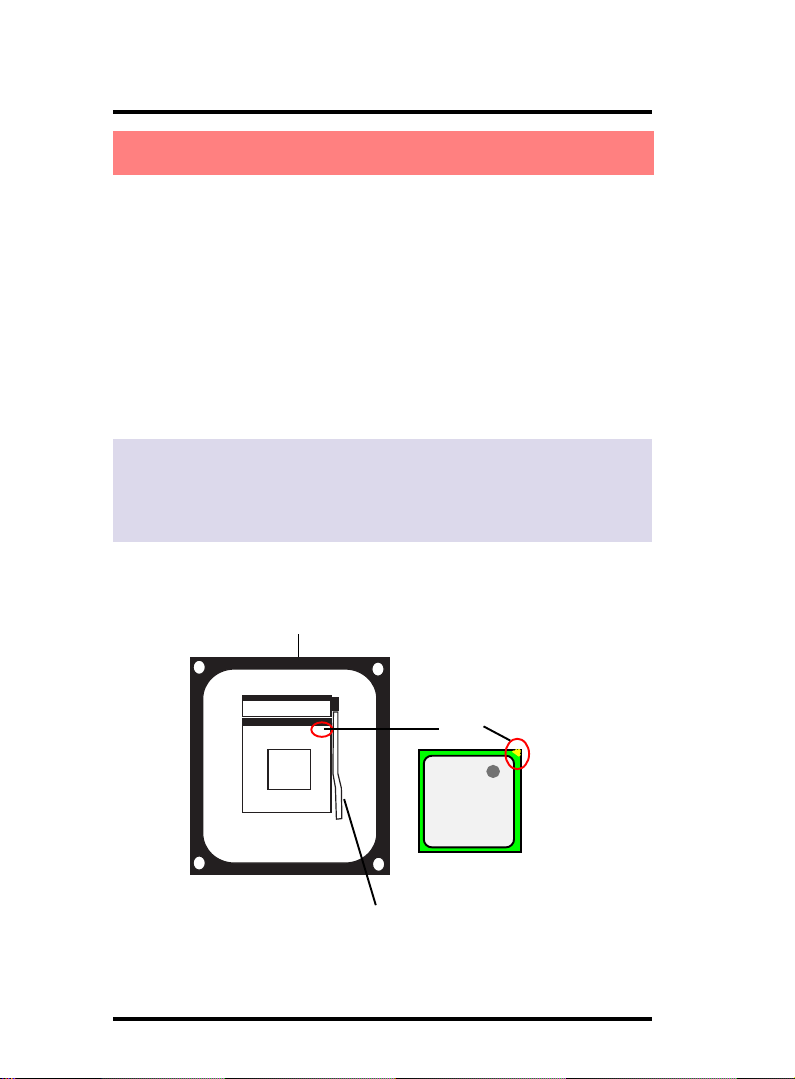

1.4 CPU and CPU Fan Installation
1. Pull the lever sideways away from the socket then raise the
lever to a 90-degree angle.
2. Locate Pin 1 in the socket Pin 1 of CPU is marked by the
yellow corner or cut edge on the CPU. Match Pin 1 of
Socket 478 and Pin 1 of CPU.
3. Pull up the lever of Socket 478 to let the CPU in and press
the lever down to lock the CPU.
4. Make sure that Pin 1 of Socket 478 is matching with Pin 1 of
CPU.
5. Make sure that all CPU pins are completely in socket before
pressing down the socket lever.
Intel
pentium 4
Lever of Socket 478
Cooling Fan Base
1.4.1. CPU Installation with Socket 478

1-11
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL 8201BL
1.4.2. CPU Fan Installation with P4 Fan Base
1. P4 CPU Fan is typically designed with 4 latches and mounted
with a thick heatsink. Please do not use other type of CPU fan
which cannot match the P4 Fan base on board.
2. Install the P4 CPU fan into the Fan base in such a way that
the 4 latches of the CPU Fan match with the 4 Supporters of
the CPU Fan Base.
3. Press down the latches to lock CPU Fan to the Fan Base.
4. Then connect the Fan Power Cable to one of the Fan con-
nectors on board.
5. Make sure that the Fan Power Cable is correctly connected
to Fan Connector.
Fan Base
4 Latch-supporters
Fan Connector for Fan Power Cable
Mainboard

1-12
Chapter 1 Motherboard 4S661QP
This motherboard supports a maximized 2GB DDR
SDRAM. It provides two184-pin unbuffered DDR sockets.
It supports 64MB to 1GB DDR memory module.
DDR SDRAM Installation Procedures:
1. The DDR socket has a “Plastic Safety Tab” and the DDR
memory module has an asymmetrical notch”, so the DDR
memory module can only fit into the slot in one direction.
2. Push the tabs out. Insert the DDR memory modules into the
socket at a 90-degree angle then push down the module
vertically to fit it into place.
3. The Mounting Holes and plastic tabs should fit over the
edge and hold the DDR memory modules in place.
Warning: Be sure to turn off system power whenever to insert or
remove a Memory Module. Otherwise, the power will damage the
module or even the system.
1.5. DDR SDRAM Installation
Bank Memory module
DIMM 1 64MB, 128MB, 256MB, 512MB, 1GB
184 pin, 2.5V DDR SDRAM
DIMM 2 64MB, 128MB, 256MB, 512MB, 1GB
184 pin , 2.5V DDR SDRAM
Total System Memory (Max 2GB)
184-pin DDR Module
DDR Module Notch
DDR Module Rib
Note: If you want to run FSB 800/533MHz on this Motherboard (with
133MHz CPU), you must use DDR 400/333/266MHz module.

1-13
Chapter 1 Motherboard 4S661QP
1.6.1. Back Panel I/O Connectors
This motherboard provides the following back panel
connectors:
1.6 Connectors & Jumpers Setting
1.6.1.1. PS/2 Mouse / Keyboard Connectors
The motherboard provides a standard PS/2 mouse / Keyboard
mini DIN connector for attaching a PS/2 mouse. You can
plug a PS/2 mouse / Keyboard directly into this connector.
1.6.1.2. 3xUSB Ports
The motherboard provides a OHCI(Open Host Controller
Interface)Universal Serial Bus Roots for attaching USB
devices such as a keyboard, mouse and other USB devices.
You can plug the USB devices directly into this connector.
PS/2 Mouse Parallel(Printer) Port
25-pin female
PS/2 Keyboard
COM1
Speaker
Line-In
Mic
(2 ports)
USB
RJ45
1394A USB
VGA

1-14
Chapter 1 Motherboard 4S661QP

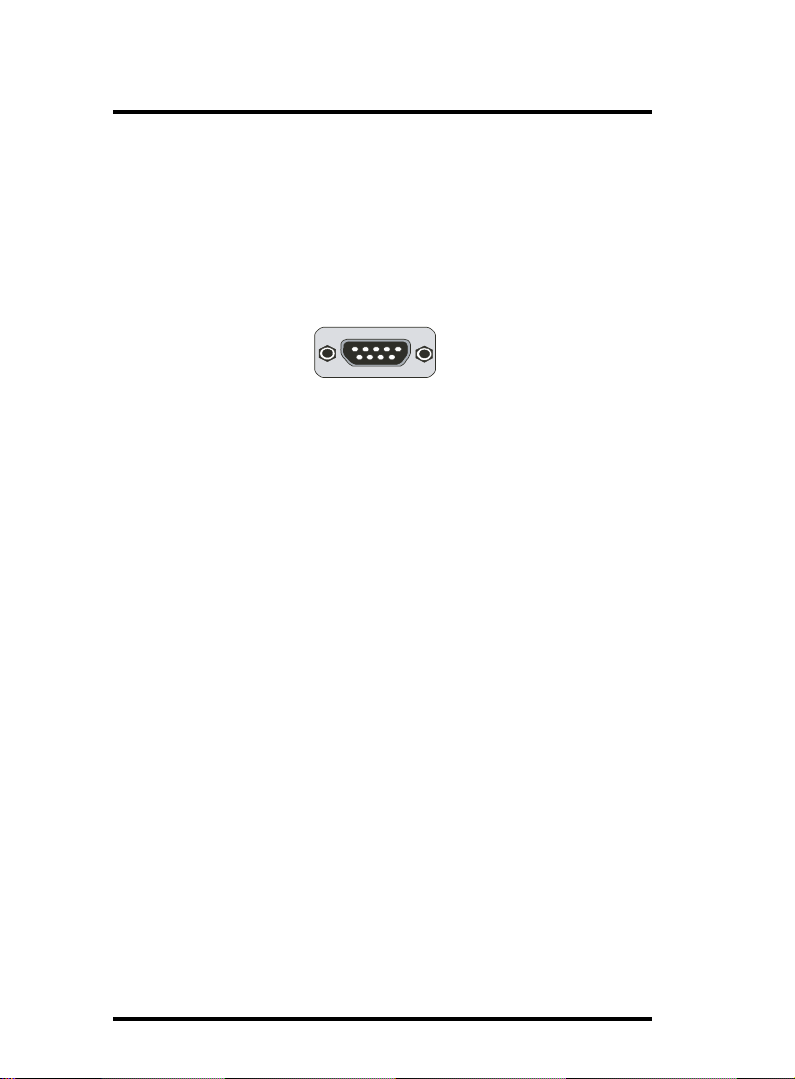

1.8.1.3. Serial Interface Port: COM1
The serial interface port is sometimes referred to as an RS-
232 port or an asynchronous communication port. Mice,
printers, modems and other peripheral devices can be
connected to a serial port. The serial port can also be used
to connect computer systems together . If you like to transfer
the contents of your hard disk to another system, it can be
accomplished with serial port.
1.6.1.4. Parallel Interface Port
Unlike serial ports, parallel interface ports have been
standardized and should not present any difficulty interfacing
peripherals to your system. Sometimes called a Centronics
port, the parallel port is almost exclusively used with printers.
The parallel port on your system is a 25-pin, DB 25 connector.
1.6.1.5. Audio Port Connectors
Speaker out is a connector for Speakers or Headphones.
Line in is used for external CD player, Tape player, or other
audio devices. Mic is a connector for the microphones.
COM1
1.7.1.6 VGA Connector
1x 15-pin VGA connector on board, supporting CRT highest
resolution mode: 2048x1536x32@75NI
1.7.1.7 1394A Connector
1394A Iconnector on board, compliant with IEEE 1394A-2000
standard for high performance serial bus, supporting 400/200/
100 Mbits transfer rates.

1-15
Chapter 1 Motherboard 4S661QP
Note:
When you set up P4 power supply, both PW1 and PW2 must
be connected to power.
Important:
To switch on your power supply, please make sure:
1. Memory Module is properly installed.
2. Power supply setup is OK.
Pin PW2 Signal Pin PW2 Signal
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS-ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW-OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V
1.6.2. ATX Main Power Connectors: PW1/PW2
This connector supports the power button on-board. Using
the ATX power supply, functions such as Modem Ring Wake-
Up and Soft Power Off are supported on this motherboard .
This power connector supports instant power-on
functionality, which means that the system will boot up
instantly when the power connector is inserted on the board.
ATX 4-pin power connector only support +12V voltage.
Pin PW1 Signal Pin PW1 Signal
1 GND 2 GND
3 +12V 4 +12V
43
12
1
10
11
20

1-16
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL
ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL
8201BL
1.6.3. Floppy Disk Connector: FDD
This connector supports the provided floppy drive ribbon
cable. After connecting the single end to the board, connect
the two plugs on the other end to the floppy drives.
1.6.4. Hard Disk Connectors: IDE1/IDE2
These connectors are provided with IDE hard disk ribbon
cable into the package . After connecting the end of cable
with single connector to the mainboard, connect the other
two connectors at the other end to your hard disk. If you
install two hard disks, you must configure the second drive
to Slave mode by setting its jumper settings. BIOS now
supports SCSI device or IDE CD-ROM boot up (see "HDD
Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS
Features Setup of the BIOS SOFTWARE).
1.6.5. Fan Connectors: FAN1~3
FAN 3
Connector
Pin Definition
1 Ground
2 +12VDC
3 Signal
1
3
2
FAN2
Connector
FAN1
Connector
FAN1, FAN2 and FAN3 connectors

1-17
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL
ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL
8201BL

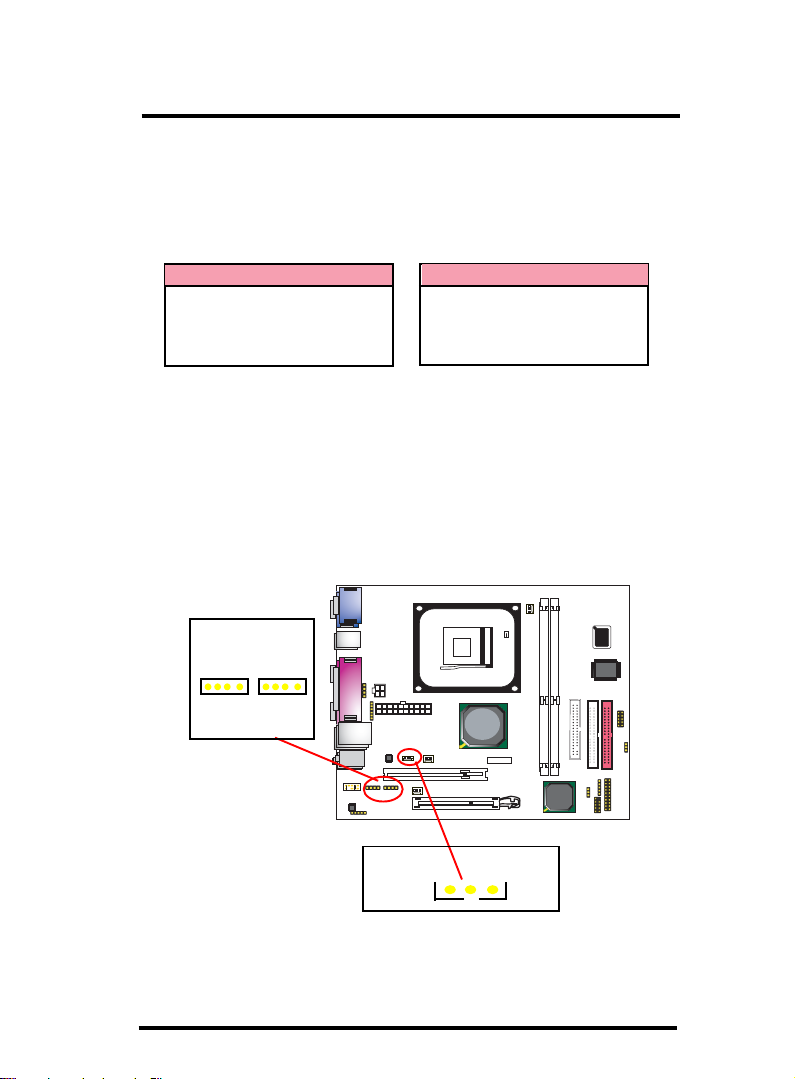

1.6.7. Wake On LAN Connector: WOL
CN2 is a Wake On LAN (WOL) connector for transmitting the
Ring signal from a PCI LAN card to wake up system. If you use
a PCI LAN card for system networking, you can connect this
Wake On LAN connector with the PCI LAN card on board for
Wake On LAN function.
CN2: Wake On LAN Connector
1.6.6. Audio-In Connectors: CD1/AUX1
CD1 and AUX1 are the connectors for CD-Audio and Wave
Input signal. Please connect them to CD-ROM CD-Audio output
connector.
Pin CD1 Definition
1 CD-L
2 GND
3 GND
4 CD-R
Pin AUX1 Definition
1WAVL
2 GND
3 GND
4WAVR
AUX 1 CD1
11

1-18
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL
ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL
8201BL

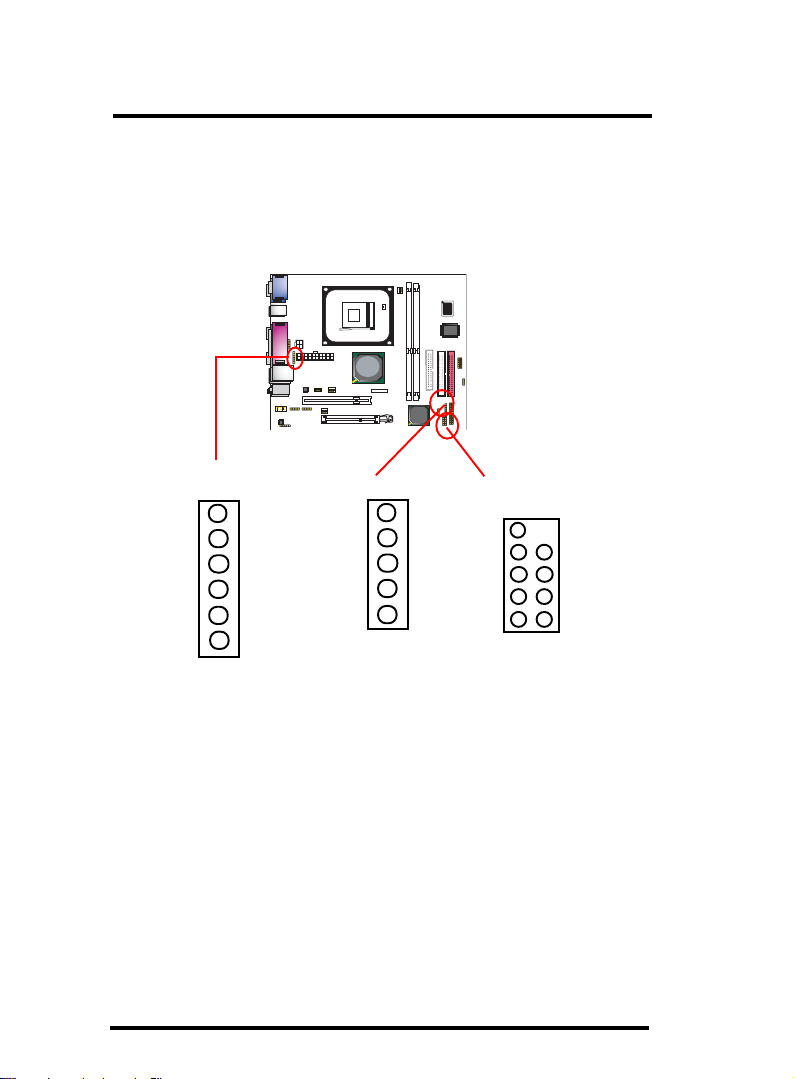

1.6.8. USB Pin Headers
USB2(for 2 ports)
USB Pin Headers support external USB ports. Each USB pin
header requires a USB cable for expansion of two or one USB
ports. This optional USB cable is available from your motherboard
dealer or vendor.
1Vcc5
USB-
USB+
GND GND
USB-
Vcc5
USB+
12
9
10
NC
5
Vcc5
USB+
GND
USB-
NC
JP5(for 1 port)
1
6
+12V
TPB-
GND
TPA-
TPB+
1394A Pin-header
(for 1 1394A Port)
TPA+
1.6.9. 1394A Pin Header
1x 1394A Pin-header on board, compliant with IEEE 1394A-2000
standard for high performance serial bus, supporting 1x1394 A
port, 400/200/100 Mbits transfer rates.

1-19
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL
ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL
8201BL
1.6.10. Front Panel Connectors: PANEL1
PSSW
The system power is controlled by a momentary switch
connected to this lead. Pushing the button once will switch
the system ON.
PowerLED Lead (PW_LED)
The system power LED lights when the system power is on.
Speaker Connector (SPEAKER)
The speaker (onboard or offboard) provides error beep code
information during the Power Self-Test when the computer
cannot use the video interface. The speaker is not connected
to the audio subsystem and does not receive output from the
audio subsystem.
Hard Drive LED Connector (HD_LED)
This connector supplies power to the cabinet IDE activity LED.
Read and write activity by devices connected to the Primary or
Secondary IDE connectors will cause the LED to light up.
Front Panel Connectors
PS SW
11
13
15
17
19
1
3
5
7
9
12
14
16
18
20
2
4
6
8
10
RST
HD LED
SPEAKER
PW LED
(+)
(+) (+)
(+)
The connector can be connected to a reset switch. Press this
reset switch to restart system.
Reset Switch Lead (RST)

1-20
Chapter 1 Motherboard 4S661QP
mPGA478B
Socket 478
RTL ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL 8201BL
mPGA478B
Socket 478
RTL ALC650
Battery
BIOS
IT8705F
ITE
SIS
963UA
SIS
661FX
RTL 8201BL
1.6.11. SPDIF Connector: SPDIF1
SPDIF1 is designed on board for Digital Audio in/out.
SPDIF1
1.6.12. IR infrared module: IR1 Connector
This connector supports the optional wireless transmission
and reception infrared module. You must configure the setting
through the BIOS setup to use the IR function.
Pin Assignment
1 +5V
2 N/A
3 IRRX
4 GND
5 IRTX
1
5
Pin Assignment
1 +5V
2 N/A
3 GND
4 SPDIFOut
5 SPDIFIN
1
5
Pin Assignment
6 NC
7 CIRRX
8 SB5V
9 GND
10 NC
10 6
