Acorp 4D845AP User manual

The information presented in this publication has been
made carefully for reliability; however, no responsibility
is assumed for inaccuracies. Specifications are subject
to change without notice.
IBM, PC/AT, and PC/XT are trademarks of
International Business Machines Corporation.
Socket478 is a trademark of Intel Corporation
AWARD is a registered trademark of Phoenix
Software Inc.
MS-DOS and WINDOWS NT are registered
trademarks of Microsoft Corporation.
Trademarks and/or registered trademarks are the
properties of their respective owners.
User's Manual Version 1.0
4D845AP
i

Table of Contents Table of Contents
IntroductionIntroduction
IntroductionIntroduction
Introduction
1. Motherboard Description1. Motherboard Description
1. Motherboard Description1. Motherboard Description
1. Motherboard Description
1.1 Introduction 1-1
1.2 Package Contents 1-1
1.3 Features 1-2
1.4 4D845AP Motherboard Layout 1-4
1.5 CPU Installation 1-7
1.6 DDR DRAM Installation 1-8
1.7 Connectors & Jumper Setting
1.7.1 Back Panel Connectors 1-9
1.7.1.1 PS/2 Mouse/Keyboard CONN. 1-9
1.7.1.2 USB Port & LAN Connector 1-9
1.7.1.3 Serial Interface ports 1-10
1.7.1.4 Parallel Interface port 1-10
1.7.1.5 Joystick / Midi Connector 1-10
1.7.1.6 Audio Port Connector 1-10
1.7.2 ATX 4-pin/20-pin Power Conn.: CN11~14 1-10
1.7.3 Floppy Disk Connector: FDC 1-12
1.7.4 Hard Disk Connectors: IDE1/IDE2 1-12
1.7.5 CPU Fan Connectors: FAN1/2/3/4/5/6 1-12
1.7.6 CD-Audio-IN Connectors: CDIN1/CDIN2 1-13
1.7.7 Front USB Port Conn.: USB2/USB3 1-14
1.7.8 Front Panel Connector: PANEL 1-15
1.7.9 CMOS Function Selection: JBAT 1-16
1.7.10 CPU Clock Freq. Setting: JCLK 1-17
1.7.11 Sound Counter/Bass Selector: J4 1-18
1.7.12 DDR OVP Select: J16 1-18
1.7.13 IR infrared module: IR 1-18
1.7.14 Smart Panel Function (optional) 1-19
1.7.14.1 Port 80 Debug Function:SP-J6 1-20
1.7.14.2 Second BIOS Connector:SP-J1 1-20
1.7.14.3 AUX LINE Connector:SP-J5 1-20
1.7.14.4 Front COM2 Connector:SP-J7 1-21
1.7.14.5 Front USB2,3 Connectr:SP-J8 1-21
2. BIOS Setup2. BIOS Setup
2. BIOS Setup2. BIOS Setup
2. BIOS Setup
2.1 Main Menu 2-4
2.2 Standard CMOS Features 2-7
2.3 Advanced BIOS Features 2-10
2.4 Advanced Chipset Features 2-14
2.5 Integrated Peripherals 2-18
2.6 Power Management Setup 2-24
2.7 PnP/PCI Configurations 2-28
2.8 PC Health Status 2-31
2.9 Frequency/Voltage Control 2-32
2.10 Load Fail-Safe Defaults 2-34
2.11 Load Optimized Defaults 2-35
2.12 Set Supervisor/User Password 2-36
2.13 Save & Exit Setup 2-38
2.14 Exit Without Saving 2-39
3. Driver Installation3. Driver Installation
3. Driver Installation3. Driver Installation
3. Driver Installation
3.1 Auto-run Menu 3-1
3.2 Installing Intel INF Driver 3-2
3.3 Installing Intel Application Accelerator Driver 3-4
3.4 Installing Audio Driver 3-8
3.5 Installing LAN Driver 3-11
3.6 Installing RAID Driver 3-14
a. Appendixa. Appendix
a. Appendixa. Appendix
a. Appendix
iiiii

1-11-1
1-11-1
1-1
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
The 4D845AP motherboard is designed for using Intel P4
Front Side Bus Frequency 400/533MHz CPU, which utilizes
the Socket-478 design and the memory size expandable to
2.0GB.
This motherboard use the latest Intel 845E chipset,
appling 266MHz (Double Data Rate) Front Side Bus frequency
and 266MHz memory interface delivers a clear upgrade path to
the future generation of 266MHz processors, PC-1600/PC-2100
DDR SDRAM. The 4D845AP motherboard offers ULTRA ATA
100 to provide speedier HDD throughout that boosts overall
system performance.
It is ideal for multi-tasking and fully supporting MS-DOS,
Windows, Windows NT , Windows ME, Windows 2000, Novell,
OS/2, Windows95/98, Windows 98SE, Windows XP, UNIX,
Liunx, SCO UNIX etc. This manual also explains how to install
the mainboard for operation, and how to setup your CMOS
configuration with the BIOS setup program.
1
Chapter
HDD UDMA66/100 Cable.
FDD Cable.
Flash Memory written for BIOS update.
USB2 Cable (Optional).
Fully Setup CD Driver built in utilities
(Ghost, Antivirus, Adobe Acrobat).
This Manual.
1.1 Introduction
1.2 Package Contents

1-21-2
1-21-2
1-2
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
CPU Processor
* Support 400/533MHz System Interface speed or higher.
* Single Socket 478 for Intel P4 TM 1.5GHz to 2.4GHz or higher
(Northwood Processor).
* Support Intel Netburst TM Micro-architecture.
Chipset
* Intel 845E North Bridge.
* Intel 82801DB South Bridge.
PCI/AGPSpeed
* Supports 33MHz PCI Bus speed.
* Supports AGP 66 MHz/1.5V for 4X device.
DDRSDRAM Memory
* Supports 64/128/256/512....MB DDR module socket.
* Supports Synchronous DRAM(2.5V)
* Supports a maximum memory size of 2GB with DDR
SDRAM.
Bus Slots
* Provide one AGP slot.
* Six 32-bit PCI bus.
Universal Serial Bus
* Supports two back Universal Serial Bus(USB)Ports
and four front Universal serial Bus(USB)Ports.
* Compliant with Universal Serial Bus(USB) specification
revision1.1&2.0.
*S1& S3 green mode wake up only support by USB1.
Integrate LAN (Optional)
* Fast Ethernet Controller 10/100 Mbps.
1.3 Features

1-31-3
1-31-3
1-3
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
BIOS
*The mainboard BIOS provides Plug & Play BIOS which
detectstheperipheraldevicesandexpansioncardsofthe
boardautomatically.
*BIOS support CD-ROM, SCSI, LAN BOOT, Temperature
sensor, Lan, Alarm Bus CLK setup with BIOS.
IDE Built-in On Board
* Supports four IDE devices.
* Supports PIO Mode 5, Master Mode, high performance
harddiskdrives.
* Support Ultra DMA 33/66/100 Bus Master Mode.
* Supports IDE interface with CD-ROM.
* Supports high capacity hard disk drives.
On-board ATA/100 IDE RAID (IDE3/IDE4 only) (Optional)
*Support DMA and PIO IDE and ATAPI device.
* Support ATA 66/100 & striping (RAID 0) or mirrioring
(RAID1).
Smart Card Reader (Optional)
*Securedstoragefacilitiesforsensitivepersonalinformation.
(such as Private keys, Account numbers, Passwords,
Medicalinformation....etc.)
Memory Stick (Optional)
* The memory stick has been a new mainstream media for
storingandtransferringdata. Itultra-smallsizeandhigh
storage capacity make it can be used in very wide variety
products, including the Audio, Video and PC.
PCI-Based AC 97 Digital Audio Processor
*Onboard CMI8738/PCI-6CH support 4.1/5.1 Speaker. C3DX
positional Audio in 4/6 Speaker Mode.
*With high speed PCI V2.1 bus controller.
*16-bit full duplex CODEC.
1.3 Features

1-41-4
1-41-4
1-4
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
1.4 4D845AP Motherboard Layout

1-51-5
1-51-5
1-5
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
1. Back Panel I/O Connectors (Mouse, Keyboard, USB1,
COM1, COM2, LAN, Printer, MIC in, Line in, Speaker out, Game
stick)
2. ATX Power Connectors (CN11/CN12/CN13/CN14)
3. CPU Processor (Socket 478)
Intel
Intel
1
JBAT
SP-J6
I/O CH IP
BIOS
478
SP-J1
T:Mouse
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:LAN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANEL
SP-J7
FAN 6
FAN 1
JCLK
1
CASE
So und CHIP
J4
FAN3 FA N 2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Opt io nal)
LAN CHIP
RAI D CHIP
20
14
10
1
10
7
17
2
19
20
2
6
10
11
18
20 12
5
2
9
8
3
1.4 4D845AP Layout
10
20
7
10
15
13
10
16
4
20

1-61-6
1-61-6
1-6
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
4. DDR SDRAM Sockets (DDR1/DDR2)
5. AGP Slot
6. Floppy Connector
7. IDE Connectors (IDE1/IDE2/ID3/ID4)
8. North Bridge (Intel 845E)
9. South Bridge (Intel 82801DB)
10. Fan Connectors (FAN1/FAN2/FAN3/FAN4/FAN5/FAN6)
11. CD Audio-In Connectors (CDIN1/CDIN2)
12. Front USB Port Connectors (USB2[SP-J8]/USB3)
13. Front Panel Connector (PANEL)
14. CMOS Function Selection (JBAT)
15. CPU Clock Frequency Setting (JCLK)
16. Support Smart card Reader (SM) (Optional)
17. Support Memory stick Reader (MS) (Optional)
18. Sound Center/Bass Selector (J4)
19. IR Connector
20. Smart Panel Function (SP-J1/SP-J6/SP-J5/SP-J7/SP-J8)
(optional)

1-71-7
1-71-7
1-7
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Intel
Intel
1
JBAT
SP-J6
I/O CHIP
BIOS
478
SP-J1
T:M ou s e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PA NE L
SP-J7
FAN 6
FA N1
JCLK
1
CASE
Sound C HIP
J4
FAN3 FAN2
FAN4
FAN5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAI D CHIP
The motherboard operates with Socket 478 for Intel P4TM
processor. The CPU should always has a Heat Sink and cooling fan
attached to prevent overheating.
CPU Installation Procedures: Socket 478
1. Pull the lever sideways away from the socket then raise
the lever to a 90-degree angle.
2. Locate Pin 1 in the socket and look for the white dot or
cut edge in the CPU. Match Pin 1 with the white dot or
cut edge then insert the CPU.
3. Press the lever down to complete the installation.
4. Make sure the spec of the cooling fan is good enough.
5. Make sure that the cooling fan and retention mechanism
assembly perfectly fits the heatsink and module
base, otherwise you can’t snap the hooks into the holes.
Socket 478
Notch
1.5 CPU Installtion

1-81-8
1-81-8
1-8
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
The motherboard supports a maximized 2GB memory. It provides
three 184-pin unbuffered DDR sockets. It supports 64MB to 1GB
DDR memory module.
DDR SDRAM Installation Procedures:
1. The DDR socket has a “Plastic Safety Tab” and the DDR
memory module has an asymmetrical notch”, so the
DDR memory module can only fit into the slot in one
direction.
2. Push the tabs out. Insert the DDR memory modules
into the socket at a 90-degree angle then push down
vertically to fit onto place.
3. The Mounting Holes and plastic tabs should fit over the
edge and hold the DDR memory modules in place.
184Pin DIMM Socket184Pin DIMM Socket 184Pin DIMM Socket184Pin DIMM Socket
184Pin DIMM Socket
80 pins 104 pins
Note:
When you plug or unplug DDR module, you must
check your power supply is OFF.
1.6 DDR SDRAM Installtion
Bank Memory module
DDR 1 64MB, 128MB, 256MB, 512MB, 1GB
( Bank 0-1 ) 184 pin, 2.5V DDR SDRAM
DDR 2 64MB, 128MB, 256MB, 512MB, 1GB
( Bank 2-3 ) 184 pin , 2.5V DDR SDRAM
Total System Memory (Max 2GB)

1-91-9
1-91-9
1-9
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
1.7.1 Back Panel I/O Connectors
This motherboard provides the following back panel
connectors:
1.7 Connectors & Jumpers Setting
PS/2 Keyboard
(6-pin Female)
Serial Port
COM1 VGA SPEAKER MIC
LINE IN
PS/2 Mouse
(Optional)
LAN
USB1
Parallel (Printer) Port
(25-pin Female)
MIDI/(GAME) Port
(15-pin Female)
1.7.1.1 PS/2 Mouse / Keyboard CONN.
The motherboard provides a standard PS/2 mouse / Keyboard
mini DIN connector for attaching a PS/2 mouse. You can
plug a PS/2 mouse / Keyboard directly into this connector.
1.7.1.2 USB Port & LAN Connectors
¡´The motherboard provides a OHCI(Universal Host
Controller Interface) & EHCI (Enhance Host Controller
Interface)Universal Serial Bus Roots for attaching USB
devices such as a keyboard, mouse and other USB devices.
¡´The RJ-45 connector is located on top of the USB
connectors.The connector allows the motherboard to
connect to a Local Area Network (LAN) through a network
hub.
RJ-45
12 34
RJ-45 10/100M LAN Port
Pin Signal
1 +5V_SB
2 USBP0-(USBP1-)
3 USBP0+(USBP1+)
4 GND
USB1

1-101-10
1-101-10
1-10
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description

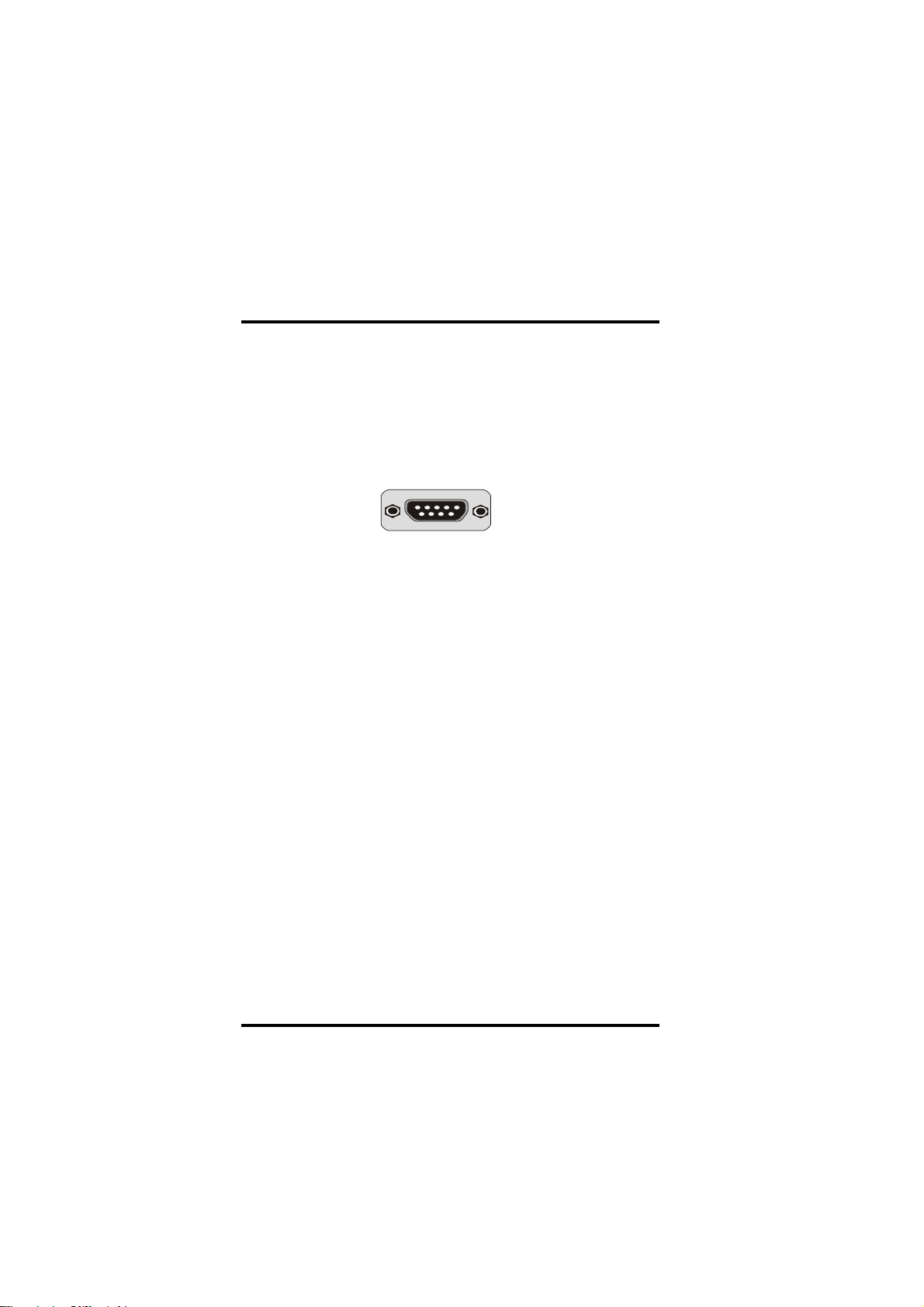

1.7.1.3 Serial Interface Ports: COM1/COM2
The serial interface port is sometimes refered to as an
RS-232 port or an asynchronous communication port. Mice,
printers, modems and other peripheral devices can be
connected to a serial port. The serial port can also be used
to connect your computer system. If you like to transfer
the contents of your hard disk to another system, it can be
accomplished by serial port.
1.7.1.4 Parallel Interface Port
Unlike serial ports, parallel interface ports have been
standardized and should not present any difficulty interfacing
peripherals to your system. Sometimes called a Centronics
port, the parallel port is almost exclusively used with printers.
The parallel port on your system has a 25-pin, DB 25
connector.
1.7.1.5 Joystick / Midi Connector
You can connect a joystick or game pad to this connector.
1.7.1.6 Audio Port Connectors
Speaker out is a connector for Speakers or Headphones. Line
in is used for external CD player, Tape player, or other audio
devices. Mic is a connector for the microphones.
1.7.2 ATX Power Connectors: CN11/CN12/CN13/CN14
¡´This connector supports the power button on-board.
Using the ATX power supply, functions such as Modem
Ring Wake-Up and Soft Power Off are supported on this
motherboard . This power connector supports instant
power-on functionality, which means that the system will
boot up instantly when the power connector is inserted on
the board.
¡´ATX 4-pin power connector only support +12V voltage.
COM1/COM2

1-111-11
1-111-11
1-11
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Important:
Before you switch on your power supply, please make
sure:
1. Memory Module installing is OK.
2. Power supply setting is OK.
3. AGP card for 2X or 4X device is OK.
Note:
1. Make sure that the ATX PIII power supply can take at
least 1Amp load on the 5Volt standby lead (5VSB).
2. When you use P4 power supply, you must plug CN12
& ATX power connector on your system.
4 2
3 1
10 20
1 11
PinCN14 Signal PinCN14 Signal
1 GND 4 +3.3V
2 GND 5 +3.3V
3 GND 6 +5V
1
2
3
4
Pin CN11Signal Pin CN11Signal
1 +12V 2 GND
3 GND 4 +5V
PinCN12 Signal PinCN12 Signal
1 GND 2 GND
3 +12V 4 +12V
PinCN13 Signal PinCN13 Signal
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS-ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW-OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V

1-121-12
1-121-12
1-12
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Intel
Intel
1
JBAT
SP-J6
I/O CHIP
BIOS
478
SP-J1
T:M ous e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANE L
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound CHI P
J4
FAN3 FAN 2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID C HIP
1.7.3 Floppy Disk Connector: FDC
This connector supports the provided floppy drive ribbon
cable. After connecting the single end to the board, connect
the two plugs on the other end to the floppy drives.
1.7.4 Hard Disk Connectors: IDE1/IDE2
These connectors support the provided IDE hard disk ribbon
cable. After connecting the single end to the board, connect
the two plugs at the other end to your hard disk.
If you install two hard disks, you must configure the second
drive to Slave mode by setting its jumper settings. BIOS now
supports SCSI device or IDE CD-ROM boot up (see "HDD
Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS
Features Setup of the BIOS SOFTWARE) (Pin 20 is removed
to prevent inserting in the wrong orientation when using
ribbon cables with pin 20 plugged).
1.7.5 Fan Connectors: FAN1~6
FAN 6
Connector
Fan2~5 Definition
1 Ground
2 +12VDC
3NC
1
3
2
FAN 5
Connector
FAN 1
Connector
FAN 2/3
Connector
FAN 4
Connector
Fan1,6 Definition
1 Signal
2 +12VDC
3 Ground
1
3
2

1-131-13
1-131-13
1-13
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
1.7.6 CD Audio-In Connectors: CDIN1/CDIN2
CDIN1/2 are the connectors for CD-Audio Input signal.
Please connect it to CD-ROM CD-Audio output connector.
Intel
Intel
1
JBAT
SP-J6
I/O C H IP
BIOS
478
SP-J1
T:M ous e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANE L
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound C HIP
J4
FAN3 FA N2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID CHIP
CDIN1/
CDIN2
These connectors support cooling fans of 1Amp or
less. Orientate the fans so that the heatsink fins allow
airflow to go across the onboard heat sink(s) instead
of the expansion slots. Depending on the fan
manufacturer, the wiring and plug may be different.
The red wire should be positive, while the black should
be ground. Connect the fan’s plug to the board taking
into consideration the polarity of the this connector.
Pin CDIN2 Definition
1 GND
2 CD-L
3 GND
4 CD-R
Pin CDIN1 Definition
1 CD-L
2 GND
3 GND
4 CD-R

1-141-14
1-141-14
1-14
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Intel
Intel
1
JBAT
SP-J6
I/O C H IP
BIOS
478
SP-J1
T:M ous e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANEL
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound C HIP
J4
FAN3 FA N2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID CHIP
Intel
Intel
1
JBAT
SP-J6
I/O CHIP
BIOS
478
SP-J1
T:M ous e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANE L
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound CHI P
J4
FAN3 FAN 2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID C HIP
1.7.7 Front USB Port Connector: USB2(SP-J8)/USB3
USB2
USB3
1.7.8 Front Panel Connector: PANEL
PANEL
USB2(SP-J8)
1
3
5
7
9
VCC
P2-
P2+
GND
GND
2
4
6
8
10
GND
GND
P3+
P3-
VCC
USB3
1
3
5
7
9
VCC
P4-
P4+
GND
GND
2
4
6
8
10
GND
GND
P5+
P5-
VCC
PANEL Connector
SPEAKER
PW_BN
2
1
RESET
HD_LED
PW_LED
++
++
20
19
S3LED
+

1-151-15
1-151-15
1-15
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
ATX Power Switch (PW_BN)
The system power is controlled by a momentary switch
connected to this lead. Pushing the button once will switch
the system ON.
Power LED Lead (PW_LED)
The system power LED lights when the system power is on.
Speaker Connector (SPEAKER)
The speaker (onboard or offboard) provides error beep code
information during the Power Self-Test when the computer
cannot use the video interface. The speaker is not connected to
the audio subsystem and does not receive output from the audio
subsystem.
Hard Drive LED Connector (HD_LED)
This connector supplies power to the cabinet IDE activity LED.
Read and write activity by devices connected to the Primary or
Secondary IDE connectors will cause the LED to light up.
Reset Switch Lead (RESET)
The connector can be connected to a momentary SPST type
switch that is normally open. When the switch is closed, the
motherboard resets and runs the POST.

1-161-16
1-161-16
1-16
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Intel
Intel
1
JBAT
SP-J6
I/O C H IP
BIOS
478
SP-J1
T:M ou s e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANE L
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound C HIP
J4
FAN3 FA N2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID CHIP
1.7.9 CMOS Function Selection: JBAT
A battery be used to retain the mainboard configuration in
CMOS RAM.
JBAT
NOTE:
(Please follow the procedure below to clear CMOS data )
(1)Remove the AC power line. (2)JBAT(2-3)Closed.
(3)Wait five seconds. (4)JBAT(1-2) Closed.
(5)AC Power on.
(6)Reset your desired password or clear CMOS data.
Pin JBAT Definition
1-2 Normal
(Default)
2-3 Clear CMOS

1-171-17
1-171-17
1-17
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Intel
Intel
1
JBAT
SP-J6
I/O C H IP
BIOS
478
SP-J1
T:M ous e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANEL
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound C HIP
J4
FAN3 FA N2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID CHIP
1.7.10 CPU Clock Frequency Setting: JCLK
Overclocking is operating a CPU/Processor beyond its
specified frequency. JCLK jumper is used for the CPU
Front Side Bus Frequencies from 100MHz to 133MHz.
JCLK
Pin JCLK CPU(MHz) PCI(MHz) Default
1-2 Auto 33.3 *
2-3 100 33.3
Open 133 33.3
Note:
We don’t recommend you overclocking, since it will
make the CPU life short and get the risk of CPU
damage.

1-181-18
1-181-18
1-18
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard DescriptionChapter 1 Motherboard Description
Chapter 1 Motherboard Description
Intel
Intel
1
JBAT
SP-J6
I/O C H IP
BIOS
478
SP-J1
T:M ous e
B:KB
PCI3
PCI4
PCI5
PCI6
PCI1
PCI2
PCI Slot
AGP SLOT
(Only 4X/1.5V Card)
AGP Slot
T:L AN
(Optional)
B:USB1
GAME1
Speak out
Line in
MIC in
COM1
COM2
Printer
DDR2
DDR1
PANEL
SP-J7
FAN6
FAN 1
JCLK
1
CASE
Sound C HIP
J4
FAN3 FA N2
FAN 4
FAN 5
J16
J1
Optional
MS
Optional
SM
(Optional)
LAN CHIP
RAID CHIP
1.7.12 DDR OVP Select: J16
1.7.13 IR infrared module: IR
This connector supports the optional wireless transmittinng
and receiving infrared module. You must configure the
setting through the BIOS setup to use the IR function.
1.7.11 Sound Center/Bass Selector: J4
J4
IR
Pin IR Assignment
1 +5V
2 N/A
3 IRRX
4 GND
5 IRTX
J16
Pin J4 Definition
1-3 Default
2-4
3-5 Inverse
4-6
Pin J16 Definition
1-2 DDR Voltage 2.5V
3-4 DDR Voltage 2.6V
5-6 DDR Voltage 2.7V
