Acorp 6M810D User manual

Chapter 1 Introduction / 1
Introduction
How This Manual is Organized
This manual is divided into the following sections:
Chapter 1 Introduction : Manual information and checklist.
Chapter 2 Features : Information and Specifications con-
cerning this mainboard.
Chapter 3 Installation : Instructions on setting up the board.
The mainboard is a high-performance mainboard based on the ad-
vanced Socket 370 microprocessor, the VGA, Audio , PCI Bus and
the Intel 810-DC100 chipset (6M810D) / Intel 810 chipset
(6M810CN) .
1
Chapter 1

2 / Chapter 1 Introduction
Package Checklist
Please check that your package is complete . If you discover any item
damaged or missing , please contact with your retailer immediately.
The 6M810D/810CN mainboard.
Serial COM2 conector with bracket
1 x IDE UDMA 66 ribbon cable.
1 x floppy ribbon cable.
6M810D/810CN drivers and utilities
This user's Manual

Chapter 2 Features / 3
2
Chapter 2
Features
Features of the 6M810D/810CN Mainboard
Intel 810-DC100 (GMCH+ICH) chipset supports 66/100MHz
FSB, UltraDMA 66. (6M810D)
Intel 810 (GMCH+ICH) chipset supports 66/100MHz FSB,
UltraDMA 66. (6M810CN)
Supports Intel's Celeron and Coppermine processor designed
for socket 370 package in PPGA,FC-PGA.
Socket 370 Celeron / Coppermine up to 700MHz/1GMHz
processor.

4 / Chapter 2 Features
Integrated Graphics controller supports 3D hyper pipelined
architecture, parallel data processing and compression, precise
pixel interpolation, full 2D hardware acceleration , and motion
video acceleration. Optional on board 4MB SDRAM display
cache allows upto 1024x768x16 bit color for 3D graphics and
1600x1200x8 bit color for 2D graphics


support "Touch Button Wake up" for soft power on/off and
suspend mode multifunction.
support Windows 95/98 system Software shutdown (power
off) automatically.


support CPU FAN ON/OFF and LED indicator under SUS-
PEND mode.


support Resume by Ring through Modem.


Uses 168-Pin DIMM modules(supports Intel PC100-compliant
SDRAMs) x2 auto banking in multiple configuration up to
512MB. (6M810D/810CN)
3 x PCI Bus slots, and 1 x AMR (Audio Modem Riser) slots.
All 3 PCI slots support Master mode.
System BIOS support 4 IDE hard disk drivers that don't need
device driver for S/W application.
PCI Bus master IDE interface on board with two connectors
support 4 IDE devices in 2 channel, the PCI IDE Controller
supports PIO Mode 0 to Mode 4, Bus master IDE DMA Mode 2
and Ultra DMA 66MB.
Support PS/2™ mouse Connector.

Chapter 2 Features / 5
Support the Universal Serial Bus (U.S.B) .
Support Floppy A .
System BIOS supports LS-120, ZIP driver firmware and
Green feature function, Plug and Play Flash ROM.


AC'97 DAC built into the audio CODEC reduces noise to im-
prove audio quality and performance for a SNR (signal to noise
ratio) of +90dB. These features greatly improve voice synthesis
and recognition. If more quality is required, an optional onboard
Crysial PCI audio improves audio quality beyond software audio.
Support Software Virus Warning in BIOS
Support ACPI functionStatic Electricity Precautions
Thermal detect (GL520SM) : option
The system's BIOS will sense CPU's temperature through
GL520SM on board. The User can watch what current tempera-
ture of CPU is & current CPU FAN status is from BIOS. To Using
LDCM software (optional ) . The user will watch the indication on
Win 95/98 environment.

6 / Chapter 2 Features
Installation
3
Chapter 3
Jumper
Jumper Refer to page
JP15 - CMOS Clear 11
JP13 - CPU bus frequency selection 16
JP1 - Wake On Keyboard 17
JP14 - BIOS Flash protection 17
JP16 - Automatic Timeout Reboot Setting 18
JP17 - Safe Mode 18
JP2/3 - TV-OUT 19
JP5 - Onboard AMR Setting 19
FAN1 - FAN Connector 23
FAN2 - FAN Connector 23
JP11 - IrDA Connector 1 25
JP12 - IrDA Connector 2 25
JP18 - Lan Card Wake Up 29
JP20 - Modem Card Wake Up 29
JP10 - SB-LINK Connector 30

Chapter 3 Installation / 7
Expansion Slot 

Which pages
PCI SLOT 1,2,3 -32bits PCI SLOT 21
AMR SLOT1 - Audio Modem Riser Slot 21
Connectors Refer to page
MS - PS/2 Mouse port (UP) 22
KB - PS/2 AT Keyboard port (DOWN) 22
COM1 - COM 1 serial port 22
COM2 - COM 2 serial port 22
USB - Universal Serial BUS Ports 1 & 2 22
PRINT - Parallel port 22
FDD - FLOPPY connector 22
IDE1 - Primary IDE connector 24
IDE2 - Secondary IDE connector 24
JP19 - HDD LED 26
JP19 - Reset Switch 26
JP19 - Power LED 26
JP19 - SMI Switch 26
JP19 - Suspend LED 26
JP19 - Speaker Connector 27
JP19 - ATX Power switch 27
PW1 - ATX Power Connector 25
CD1 - Audio Connector 28
CD2 - Audio Connector 28

8 / Chapter 3 Installation
The 6M810D&810CN Mainboard Layout
2MB SDRAM
2MB SDRAM
AUDIO
CO DE C
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K/B
B: Mouse
Printer
JP19
PA NEL
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4Mbit
Fir mw are
HU B(F WH )
I/O
Controller
HUB (ICH)
AUDIO
CO DE C
RT2
JP13
JP2
JP3

Chapter 3 Installation / 9
System Installation Setup
Before using your computer, you must finish the following steps:
1. Set jumpers on mainboard
2. Install SDRAM module.
3. Install the Processor.
4. Connect Ribbon Cables, Cabinet Wires, and Power supply.
5. Install Add on Cards.
6. Setup the BIOS software.
Static Electricity Precaution
Keep the mainboard and other system components in their anti-
static packaging until you are ready to install them.
Do all preparative work on a static-free surface with the main
board components facing up.
Unplug your computer when working on the inside.
Wear an Anti-static wrist strap.
Hold the system components, boards or cards by its edges only.
Be careful not to touch any of IC chips, circuitry, contacts or
connections, especially gold contacts on the mainboard.

10 / Chapter 3 Installation
Jumper Settings
Jumpers
Several hardware setting are made through the use of jumper caps to
connect jumper pins (Jxx) on the mainboard. See " Map of the
mainboard" for the locationed the jumpers.
The jumper settings will be described numerically such as [----], [1-
2], [2-3] for no connection, connect pins 1 & 2, and connect pins 2 &
3 respectively. Pin 1 for our mainboard is always on top one or on
the left when holding the mainboard with the keyboard away from
yourself. "P1" is written besides pin 1 on jumper with three pins. The
jumpers will also be shown graphically such as to connect pin
1&2 and to connect 2&3. Jumpers with two pins will be shown
as for Short (on )and for Open (off).For manufacturing
simplicity it may be sharing pins from other groups. Use the diagrams
in this manual instead of following the pin layout on the board. Set-
tings with two jumper numbers require that both jumpers be moved
together. To connect the pin, simply place a plastic jumper cap over
the two pins as diagrammed.

Chapter 3 Installation / 11
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3
Real Time Clock (RTC) RAM - JP15 :
The CMOS RAM is powered by the onboard button cell battery. To
clear the RTC data:
(1)Turn off your computer, (2) Move this jumper to "2-3Pin Clear
Data", (3) Move the jumper back to "Default", (4) Turn on your
computer, (5) Hold down <Delete > during bootup and enter BIOS
setup to re-enter user Preferences.
JP15 CMOS Clear
[1-2] Normal (Default)
[2-3] Enabled (Clear CMOS)

12 / Chapter 3 Installation
System Memory ( DIMM Module)
This 6M810D/810CN main board supports two 168 pins DIMM of
16 MB, 32 MB, 64 MB, 128 MB ,256MB to form a memory size
between 16MB to 256MB.
The DRAM can be either Intel PC100-compaliant SDRAMs.
(6M810D/810CN)
Install memory in any or all Banks in Combination:
Bank Memory module
DIMM 1 16MB,32MB,64MB,128MB,256MB
( Bank 0-1 ) 168 pin,3.3v SDRAM
DIMM 2 16MB,32MB,64MB,128MB,256MB
( Bank 2-3 ) 168 pin 3.3v,SDRAM
Total System Memory(Max 512MB)
Note :


The DIMM Slot does not support any 5V EDO DIMM
module.


The DIMM Slot does not support any 5V SDRAM
DIMM module.


Memory speed setup is required through "Auto Con-
figuration" in BIOS chipset Setup of BIOS SOFTWARE.
If several speed memories are used, You must set Auto
Configuration to low. Example If both 50ns, 60ns are
used, Please set Auto configuration to 60ns.


It's allowed any DIMM module put in any DIMM slot.
It's allowed there are different capacity DIMM module
in all DIMM slot.

Chapter 3 Installation / 13
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3
DIMM Memory Installation
Insert the module (s) as shown. Because the number pins are differ-
ent on either side of the breaks,the module will only fit in the orienta-
tion as shown. SDRAM DIMM modules have different pin contacts
on each side and therefore have a higher pin density.
168 Pin DIMM Socket
88 pins 60 pins 20 pins

14 / Chapter 3 Installation
The Dual Inline Memory Module (DIMM) memory module must
be 3.3v Extended Data Output (EDO) DRAM or SDRAM. You can
identify the type of DIMM module by the illustration below:
168 Pin DRAM DIMM Notch Key Definitions
The notch on the DIMM module will shift between left, center, or
right to identify the type and also to prevent the wrong type to be
inserted into the DIMM slot on the Mainboard. You must ask your
retailer for Specifications before purchasing.
Four clock signals are supported on this mainboard
RFU Unbuffered
Buffered
5.0V Reserved
3.3V
DRAM Key Position Voltage Key Position

Chapter 3 Installation / 15
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3

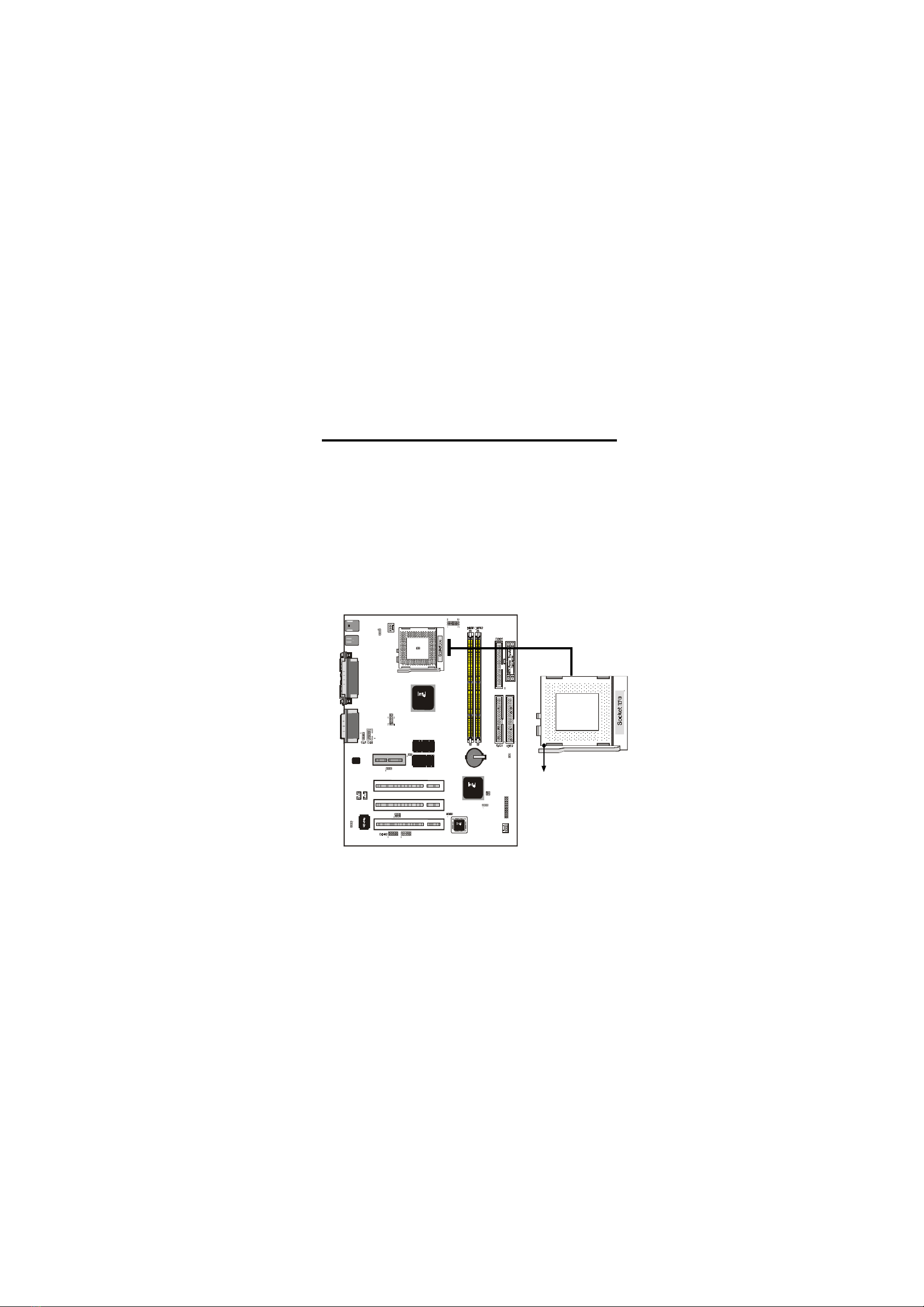

CPU Installation
The motherboard provides a ZIF socket 370. The CPU that came
with the motherboard should have a fan attached to it to prevent
overheating . If this is not the case then purchase a fan before you
turn on your system.
To install a CPU , first turn off your system and remove its cover.
Locate the ZIF socket and open it by first pulling the lever sideways
away from the socket then upwards to a 90-degree right angle. Insert
the CPU with the correct orientation shown . The notched corner
should point towards the end of the lever. Because the CPU has a
corner pin for two of the four corners, the CPU will only fit in the
orientation as shown.
Notch

16 / Chapter 3 Installation
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3
CPU External (Bus) Frequency Selection -JP13
Current PCI bus in limited to 33MHz, socket370 processors lim-
ited to 66MHz, and SDRAM limited to the DIMM type 100MHz.
(66MHz SDRAM is not supported on this motherboard.) Other set-
tings are for experienced users only.
NOTE:
Most of the CPU frequency are locked by the manufacturer.
This motherboard is able to auto-detect the CPU frequency.
JP13 CPU Type Jumper Setting
Mendocino 9-11 10-12
(Celeron)
11
12
7
8
JP13 Frequency Jumper Setting
66 MHz Only 3-5 4-6 ON
66/100 MHz 1-3 4-6 ON
1
2
5
6

Chapter 3 Installation / 17
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3
Wake On Keyboard -JP1
This allows you to disable or enable the keyboard power up
function.Set to enable if you want to use your keyboard (by
press <Spacebar> to power up your computer. This feature re-
quires an ATX power supply that can supply at least 300mA on
the +5VSB lead and the new ACPI BIOS support. The default is
set to Disable because not all computers have the appropriate
ATX power supply. Your computer will not function if you set
this to Enable and if you do not have the right ATX Power supply.
JP14 BIOS Flash Protection
[1-2] Un-LOCK (Default)
[2-3] LOCK
BIOS Flash Protection -JP14
The jumper is used to locked/unlocked BIOS Flash. This jumper
should be unlock when flashing/programming the BIOS.
JP1 Keyboard Power Up
[1-2] Disable (Default)
[2-3] Enabled (Clear CMOS)

18 / Chapter 3 Installation
Safe Mode (SAFE_MD) -JP17
Usually socket 370 processors have locked frequency multiples. In this case,
there is no way to exceed the specified multiple whether through motherboard
setting or BIOS setup. With unlocked socket 370 processors, exceeding the
specified multiple is possible through BIOS setup. Exceeding the specified
multiple may result in hanging during bootup. If this occurs, enable Safe Mode
to force a multiple of 2 in order to enter BIOS setup to correct the problem.
Automatic Timeout Reboot Setting (NO_REBOOT) -JP16
The motherboard is set that when the BIOS detects a hang(timeout)during
bootup, the motherboard will automatically reboot in order to try rebooting
again. If rebooting is repeating ineffectively, set this jumper to "No Reboot" so
that auto reboot will be disabled.
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3
JP16 Automatic timeout reboot setting
Normal (default)
No Reboot
JP16
JP16
JP17 Safe Mode
Normal (default)
Safe Mode
JP17
JP17

Chapter 3 Installation / 19
2MB SDRAM
2MB SDRAM
AUDIO
CODEC
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K / B
B: Mouse
Printer
JP19
PA NE L
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4M
b
i
t
Firmw
a
r
e
H
U
B
(
FWH
)
I/O
Co ntroller
HUB (ICH)
AUDIO
CODEC
RT2
JP13
JP2
JP3
TV-OUT - JP2/JP3
JP2: TO Selector PAL or NTSC Mode .
JP3: TV-OUT Connector pin header .
Onboard Audio Setting (available on audio model only) -JP5
The onboard Audio Codec may be enabled or disables using all of
these jumpers. disabled the onboard Audio Codec if you are using
PCI Audio card on any of the expansion slots or a primary AMR on
the AMR slot. if using an PCI Audio expansion card, onboard AC'97
Audio controller must also be disabled.
Note:
The 6M810D/810CN Disable Onboard AC'97 Sound. You
must configure the setting for "Integrated Peripherals"
in BIOS.
Choose "Integrated Peripherals" from BIOS menu:
AC97 Audio : Enabled ==> Disabled
MIDI Port Address : 330 ==> Disabled
JP2 Tv-out mode setting
Open (default) NTSC Mode
Close PAL Mode
JP5 Onboard AMR Setting
[1-2] Disabled
Primary
[2-3] Enabled(Default)
Secondary

20 / Chapter 3 Installation
Clearance Requirements
To maintain proper airflow once the processor is installed on the
mainboard, the processor and fan heatsink require certain space
clearances. The clearance above the processor must be at least 0.3
inch. The clearance on at least 3 of 4 sides of the processor and fan
heatsink must be at least 0.2 inch. All cables (for Floppy drive,Hard
drive,CD-ROM,and so on) must be routed clear of the processor
and its airspace.
Fan Exhaust
The processor must be kept cool by using a processor with heatsink
and fan attached . The temperature of the air filled with the fan/heatsink
cannot exceed 45 OC(113 OF ) . The ambient or room temperature
must be below 37 OC ( 99 OF) .
