Acorp 7KM400QP User manual

0-1
Contents Motherboard 7KM400QP
Motherboard
7KM400QP
Chapter 1 Specifications.......................3
1.1.Introduction ........................................................... 3
1.2. Package Contents ................................................. 3
1.3. Specifications and Features.................................. 4
CPU Processor ...........................................................................4
Chipset ........................................................................................4
PCI ..............................................................................................4
DDR SDRAMMemory ...............................................................4
Universal Serial Bus...................................................................4
AGP ............................................................................................. 4
VGAintegratedonboard .............................................................4
AwardBIOS ................................................................................5
ATA133 On Board ......................................................................5
IEEE1394AControlleronboard ................................................5
SATARAIDInterfaceintegrated ................................................5
WOL(WakeOnLAN) ................................................................5
1.4. 7KM400QPLayoutDiagram .............................. 6
1.5. CPU Installation.................................................... 8
1.6. DDR SDRAM Installation ................................... 8
1.7. Connectors & Jumpers Setting ............................9
1.7.1. Back Panel I/O Connectors ..............................................9
1.7.1.1. PS/2 Mouse / Keyboard CONN:............................................... 9
1.7.1.2. USB3 (2 ports)............................................................................... 9
1.7.1.3. Serial Interface Port: COM1 ................................................... 9
1.7.1.4. Parallel Interface Port ............................................................. 10
1.7.1.5. Audio Ports .................................................................................. 10
1.7.1.6. S-Video out and A-V out connectors ................................... 10
1.7.1.7. VGA connector integrated on board ................................... 10
1.7.1.8. RJ45 connector optional on board ...................................... 10
1.7.2.ATXMainPowerConnectors:ATXPWR .......................10
1.7.3.Floppy DiskConnector:FDD.......................................... 11
1.7.4.Hard DiskConnectors:IDE1/IDE2 ................................ 11
1.7.5.Fan Connectors:FAN1(CPU)/2/3 .................................. 11
1.7.6.CDAudio-InConnectors:CDIN1.................................... 11

0-2
Contents Motherboard7KM400QP
1.7.7. IRinfrared module:IR1Connector ...............................12
1.7.8. SPDIFConnector:SPDIF1 ............................................12
1.7.9. FrontAudio Connector: J8 ............................................12

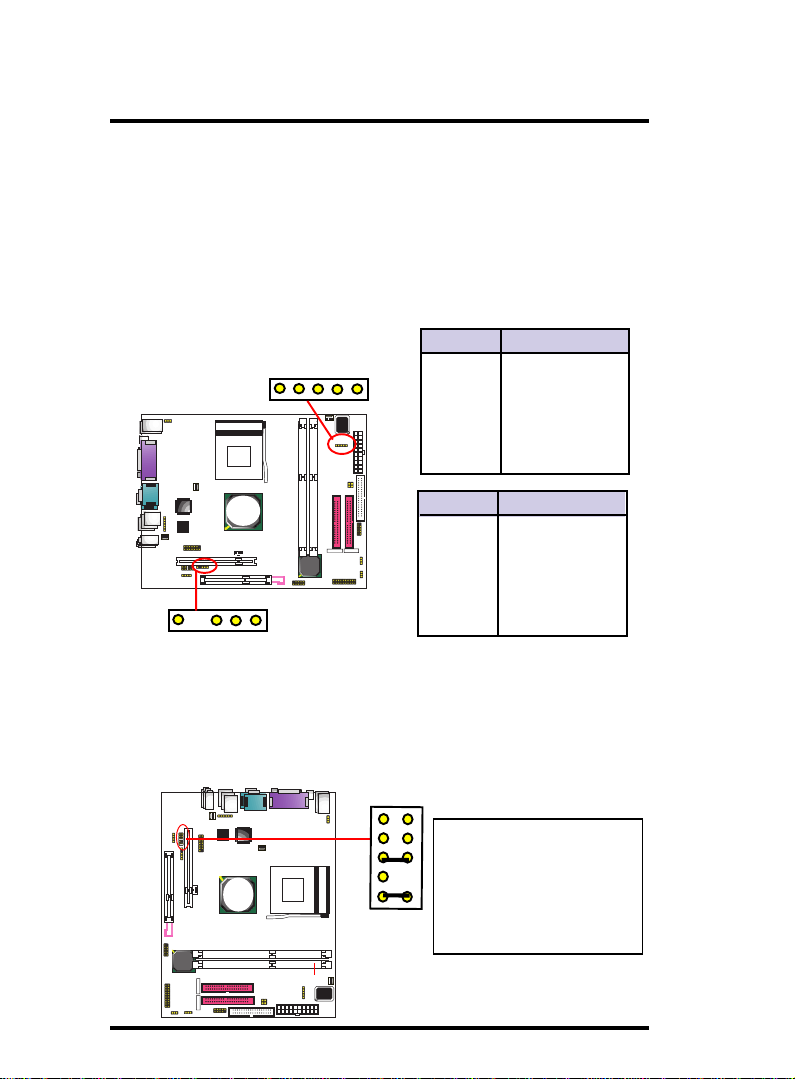

1.7.10. USB Pin Header: USB1/2 .............................................13
1.7.11. Wake On LAN Connector:WOL1 ...............................13

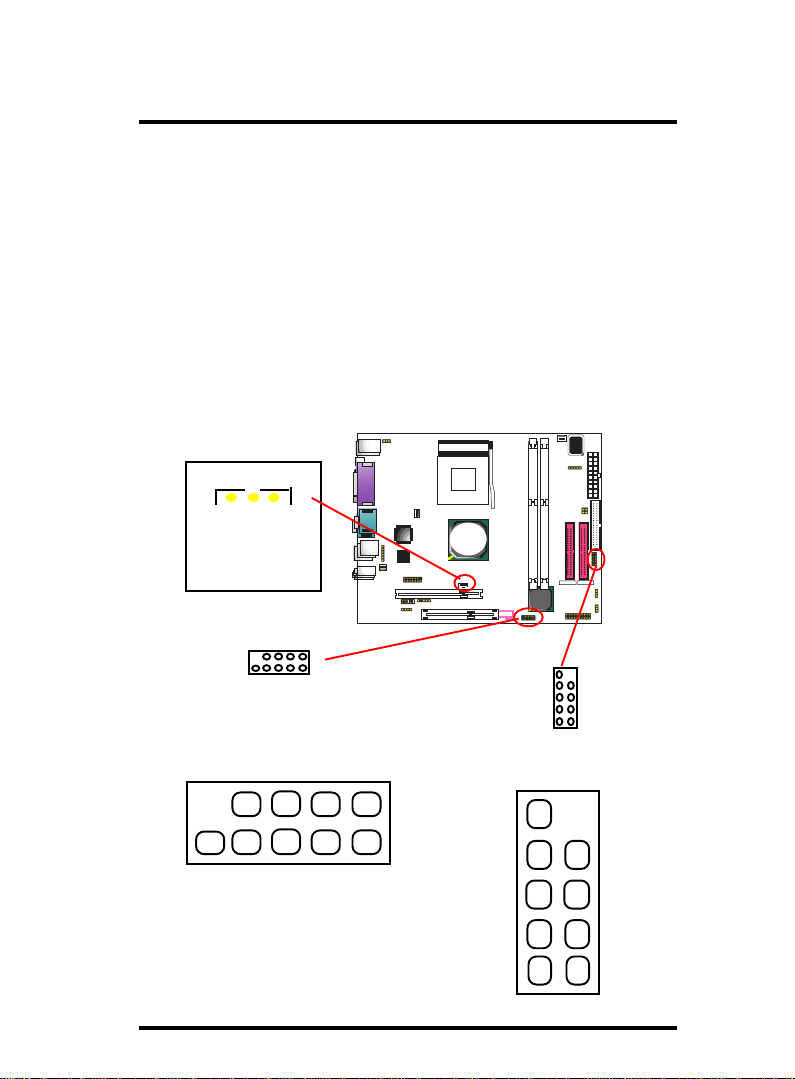

1.7.12. Front Panel Connectors:PANEL1 ................................14
1.7.13. 1394A Pin Header: J10 ...............................................15
1.7.14.ModemPin-header:J9(optional)..................................15

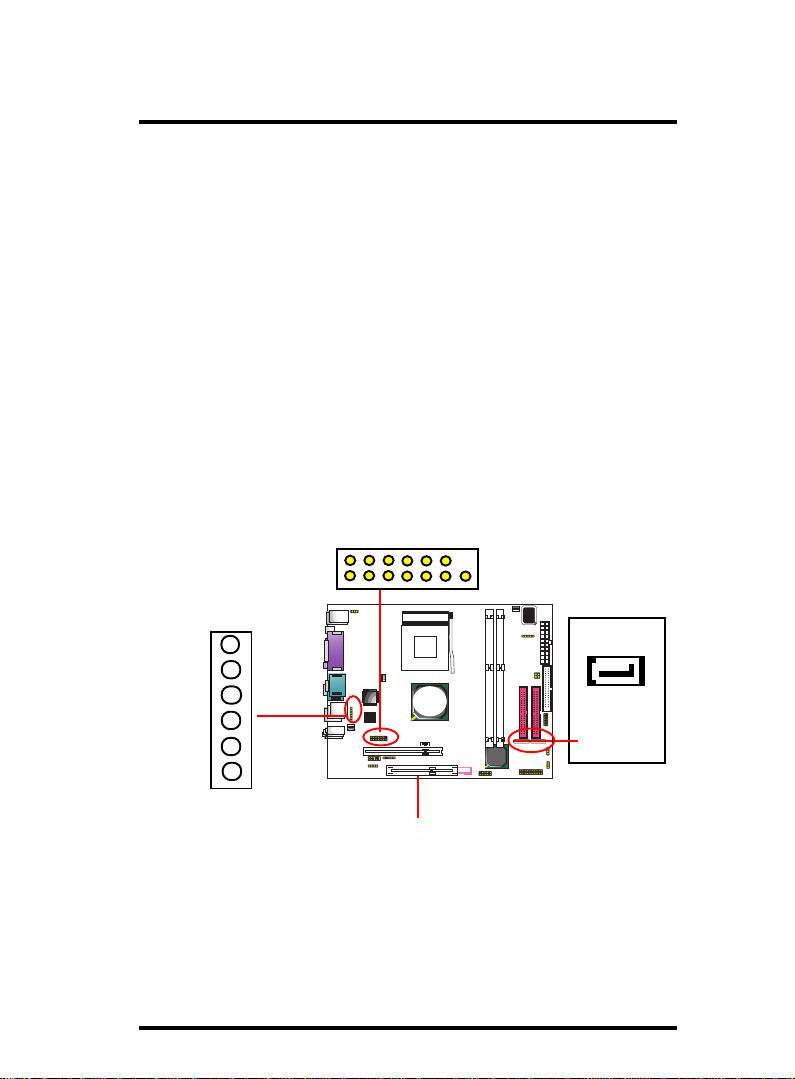

1.7.15. SerialATAConnectors: CN2/3 ....................................15
1.7.16.AGP8X/4X Slot ............................................................15

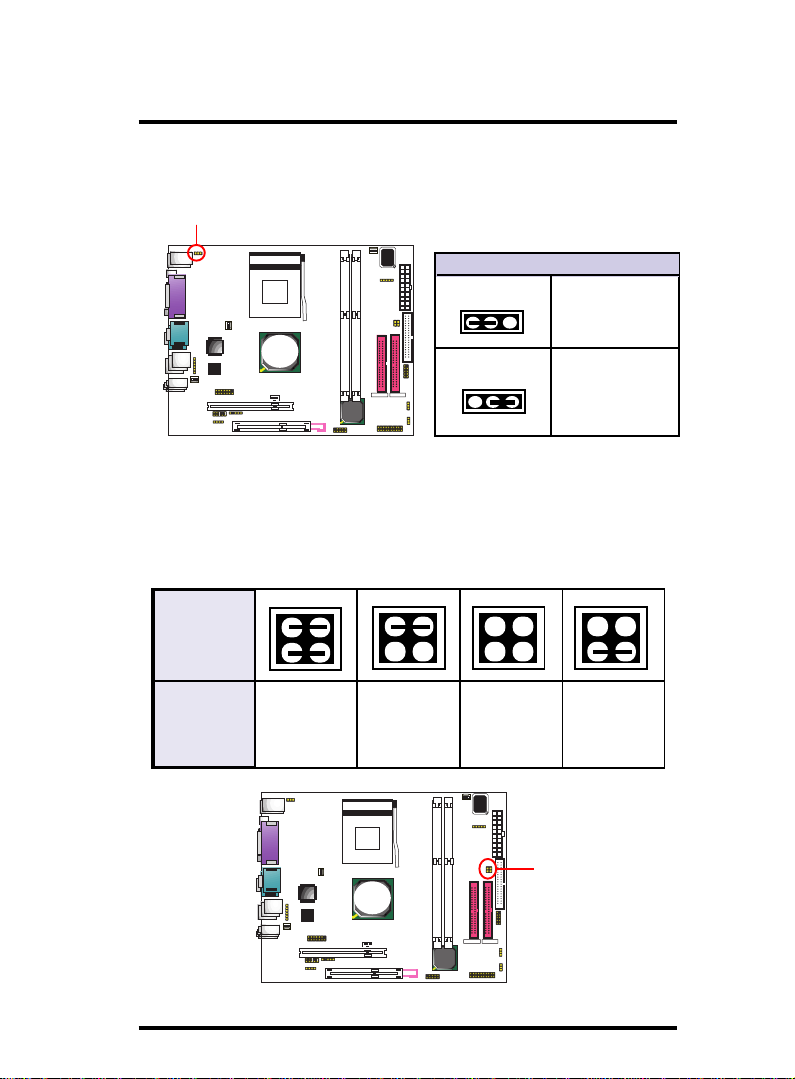

1.7.17. CMOS Function Selector: JBAT1 ...............................16
1.7.18. USB1/2 Power Selector: J7..........................................16
1.7.19. PS2 / USB3 Keyboard Power Selector: J6 ...................17
1.7.20. CPU Clock Frequency Selector: J5 ............................17
Chapter 2Drivers & Utilities .............. 18

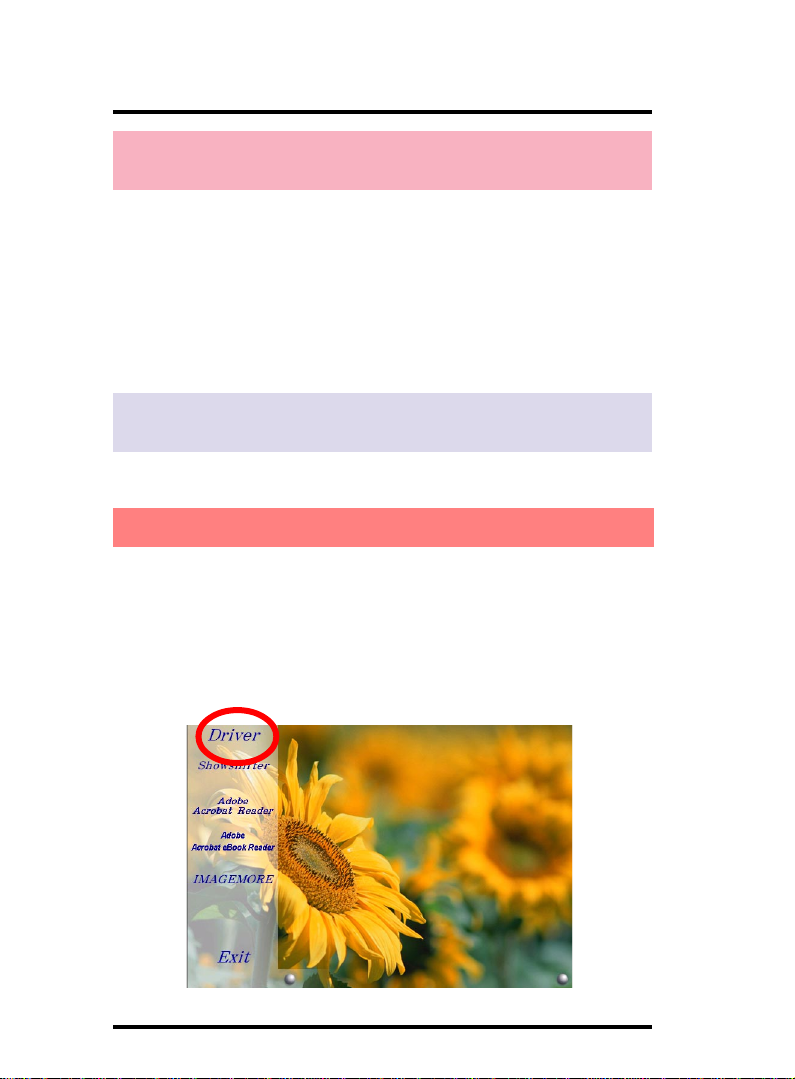

2.1.Auto-run Menu.................................................... 18

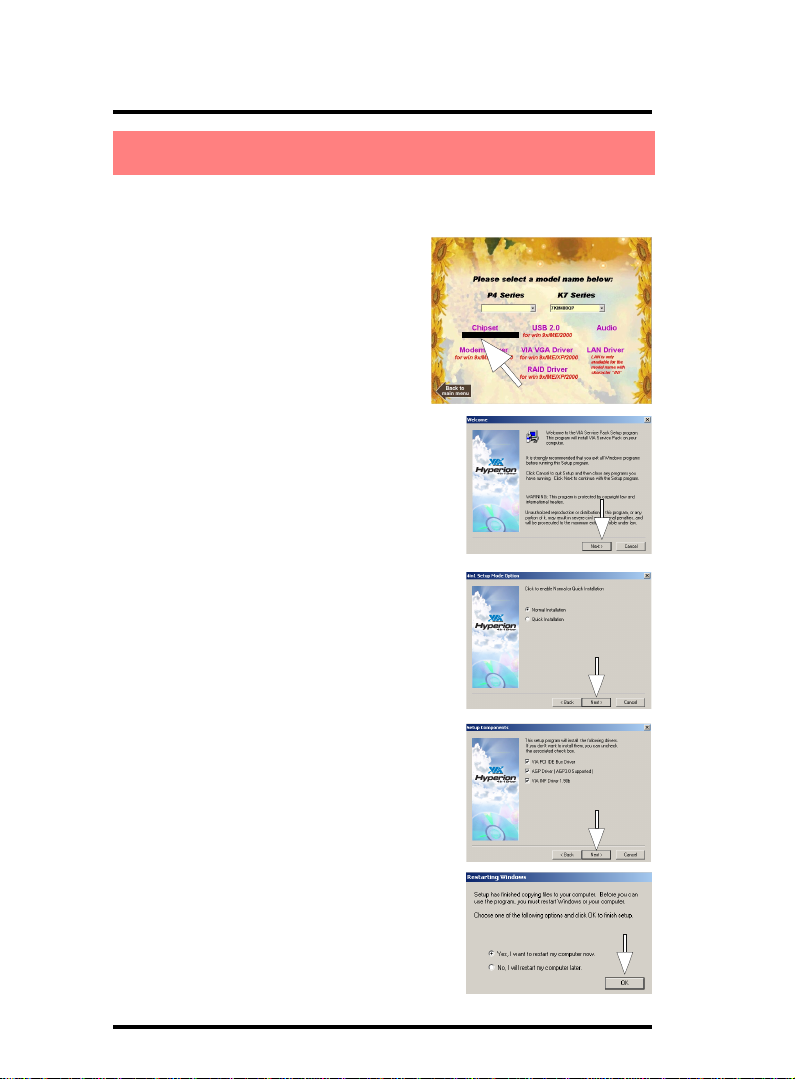

2.2. Installing VIA4-in-1 Service Pack.....................20
2.3. InstallingAudioDriver ....................................... 21
2.4. Installing VGADrivers ....................................... 22
2.5. Installing USB 2.0Driver ................................... 23
2.6. LANDrivers (optional)....................................... 24
2.7. Installing ModemDriver (optional) ................... 25
2.8. Installing RAIDDriver (optional) ...................... 26
Chapter3.CompatibilityTest............. 27
(1)CPUCompatibilityTest .......................................................27
(2)MemoryCompatibilityTest .................................................27
(3)AGPDisplayCardCompatibilityTest..................................28
Chapter 4. etBIOS to Boot System .... 29
4.1. etBIOS integrated in System BIOS................... 29
4.2. To Boot System from etBIOS Menu .................30
4.2. The etBIOSDVD Interface................................. 31

1-3
Chapter 1 Motherboard 7KM400QP
The 7KM400QP motherboard is an integration of AMD
Athlon/Duron CPU in Socket 462 packaging and the North
BridgeVIAKM400A supporting100/133/166/200MHzFront
Side Bus.
North Bridge KM400A on board also supports DDR 266/
333/400 SDRAMs, while the South Bridge VT8235 provides
stable supports of ULTRAATA133, SATA interface, 6-chan-
nel Audio playback and USB 2.0/1.1 interface.
Chapter 1
7KM400QP Specifications
HDD UDMA66/100 Cable x1.
FDDCable.
Flash Memory with BIOS.
I/O Shielding
Fully SetupDriver CDwith built in utilities.
UserManual.
1.1.Introduction
1.2. Package Contents
Chapter 1 Specifications
This manual is a general reference of the first release of this
motherboardwhichissubjecttoupdatewithoutnotice.Ifanydiffer-
ence is found between this manual and the motherboard you are
using, please visit ourWeb Site for update information.

1-4
Chapter 1 Motherboard 7KM400QP
CPU Processor
| Support 100/133/166/200 MHz System Interface speed
| Single Socket 462 forAMDTM Athlon CPUs 700MHz~3200+
or higher*, and Duron CPUs 600 ~ 1400 MHz or higher*
Chipset
| VIAKM400ANorth Bridge
| VIA VT8237 SouthBridge
PCI
| Supports 1 x PCI slots, 32-bit 33MHz PCI Bus speed.
DDR SDRAM Memory
| Supporting 64/128/256/512/1G....MB DDR module in 2 slots
| Supporting Synchronous 400/333/266MHz DDR SDRAM
| Supporting a maximum memory size of 2GB of DDR
SDRAM
Universal Serial Bus
| Supporting two on-board Universal Serial Bus(USB) Ports
and four external Universal serial Bus USB Ports.
| Supporting USB 2.0/1.1
AGP
| Supporting 1 x AGP8X slot, V3.0 compliant.
1.3. Specifications and Features
* The higher frequency CPU should be compatible with AMD CPU
specificiation and the motherboard latest BIOS version which will
be released in our Web Site (url printed on the cover page).
VGAintegratedonboard
| KM400Asupporting VGAinterface for VGAdisplay
| Supporting 1x S-Video and 1xA-Video connectors for TVdis
play

1-5
Chapter 1 Motherboard 7KM400QP
Award BIOS
| Supporting Plug & Play specification which detects the
peripheral devices and expansion cards automatically
| Supporting CD-ROM, SCSI, LAN BOOT, Temperature sen-
sor, LAN, Alarm Bus CLK setup
| Supporting Desktop Management Interface (DMI) func-
tion for recording mainboard specification
ATA133 On Board
| Supporting PIO Mode 5, Master Mode, high performance
hard disk drives.
| Supporting Ultra DMA 33/66/100/133 Bus Master Mode.
|Supporting4xIDEdevices,includingCD-ROM,CD-R, CD-RW,
LS-120 and high capacity hard disk drives with LBA mode
PCI-Based AC 97 Digital Audio Processor
| AC 97 2.2 compatible Codec, 6-channel Audio interface.
| 18-bit Stereo Full-Duplex Codec with up to 48 KHz samp-
ling rate
| 4 Analog Line-level Stereo inputs for connection from Line,
CD, Viedo and AUX
| 2 Analog Line-level Stereo inputs for speakerphone and PC
beep
IEEE1394AController onboard
|IEEE 1394A ControllerVT6307Son board
| Supporting 1 x 1394A connector for 400/200/100 Mbits trans
fer rate
SATARAIDInterface integrated
| South Bridge VT8237 supporting SATA RAID interface for
RAID system configuration
| Supporting 2 x SATA connectors for 2 RAIDHard Disks con
figuration
WOL(Wake On LAN)
| Supporting system power-on by LAN Ring-up signal.

1-6
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
15
16
1
13
14
11
19
12
43
1.4. 7KM400QPLayoutDiagram
18
17
24 20
23
5
21
2
22
25
29
87 96 10
PCI 1
26
27
28

1-7
Chapter 1 Motherboard 7KM400QP
6. AGP 8X/4X slot
7. USB1: Pin-Header for 2 USB ports
8. South Bridge VIA VT8237CD
9. 2x Serial ATA connectors
10. PANEL1: Front Panel connectors
11. J7: Jumper for USB Power Select
12. JBAT1: Jumper for clearing CMOS
13. 2 x IDE connectors
14. USB2: Pin-header for 2 x USB ports
15. FDD: Floppy Drive Connector
16. J5: Jumper for CPU Clock Select
17. IR1: Connector for Infrared signal Receive/Transmit
18.ATX2:ATX Power Connector
19. FAN2: Cooling Fan connector
20. 2 x DDR DIMM slots
21.North Bridge VIA KM400A
22. CPU Socket 462 for AMD K7 CPUs
23. FAN1: Cooling Fan connector (for CPU Fan)
24. LAN Controller RTL8101L
25. J6: Jumper for PS2 / USB1-2 Keyboard Power Select
26. J10: IEEE 1394A Pin-header
27. VT6307S: Chip for IEEE 1394 control
28. Modem Pin-header (optional)
29. WOL1: Wake-on LAN connector
1. Back Panel: Back Panel I/O Connectors ( Mouse, Keyboard, SV,AV,
Printer, 1394A, COM1, VGA, LAN, USB0/1, Mic in, Line in,
Speaker-out)
2. FAN3: Cooling Fan Connector (forAGP Fan)
3. J8: Front Audio Connector
4. CD-IN1: CD Audio In Connector
5. SPDIF1: (Sony/Philip Digital Interface Format) Audio Connector
7KM400QP Component Layout :

1-8
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
The motherboard supports a maximized 3GB memory. It pro-
vides three 184-pin unbuffered DDR sockets and each supports
64MBto1GBDDRmemorymodule.
1.6.DDR SDRAM Installation
The motherboard operates with Socket 462 for AMD AthlonTM
and DuronTM processor. The CPU should always have a Heat Sink
and cooling fan attached to prevent overheating.
CPU Installation Procedures for Socket 462
1. Pull the lever sideways away from the socket then raise the
lever to a 90-degree angle.
2. Locate Pin 1 in the socket and look for the white dot or cut edge
in the CPU. Match Pin 1 with the white dot/cut edge then
insert the CPU.
3. Press the lever down to complete the installation.
Notch
1.5. CPU Installation
184-pin DDR Module
DDR Module Notch
DDR Module Rib
Tabs
Note: Push the tabs out. Insert the DDR memory modules into
the socket at a 90-degree angle then push down vertically to fit
onto place. When you plug or unplug DDR module, you must
check your power supply is OFF.

1-9
Chapter 1 Motherboard 7KM400QP
1.7.1. Back Panel I/O Connectors
This motherboard provides the following back panel
connectors:
1.7. Connectors & Jumpers Setting
PS/2 Mouse
Parallel(Printer) Port
25-pin female
PS/2
Keyboard COM1
Speaker
Line-in
Mic
VGA
USB Pin Signal
1 5V Power
2 USBDT-
3 USBDT+
4 GND
1.7.1.1. PS/2 Mouse / Keyboard CONN:
The motherboard provides a standard PS/2 mouse / Keyboard
miniDIN connector for attaching a PS/2 mouse. You can plug a
PS/2 mouse / Keyboard directly into this connector.
1.7.1.2. USB3 (2 ports)
The motherboard provides a OHCI(Universal Host Controller
Interface)&EHCI(EnhanceHostController Interface)Universal
Serial Bus Roots for connecting USB devices such as a
keyboard, mouse and other USB devices.
AV USB1
USB0
SV
1394A
RJ45
(optional)
1.7.1.3. Serial Interface Port: COM1
The serial interface port is sometimes
referred to as an RS-232 port or an
asynchronous communication port. Mice,
printers, modems and other peripheral
devices are connected to COM1.
COM1
1234

1-10
Chapter 1 Motherboard 7KM400QP
Important:
To switch on your power supply, please make sure:
1. Memory Module is properly installed.
2. Power supply setup is OK.
Pin Signal Pin Signal
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS-ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW-OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V
1.7.2.ATX Main Power Connectors:ATXPWR
This power connector supports instant power-on functionality,
which means that the system will boot up instantly when the
power connector is inserted on the board.
1
10
11
20
1.7.1.4. Parallel Interface Port
Sometimes called a Centronics port, the parallel port is almost
exclusively used with printers. The parallel port on your
system is a 25-pin,DB 25 connector.
1.7.1.5. Audio Ports
Speaker out is a connector for Speakers or Headphones.
Line in is used for external CD player, Tape player, or other
audio devices. Mic is a connector for the microphones.
1.7.1.6. S-Video out and A-V out connectors
S-Video-out and A-Video-out connectors support Television
display directly from mainboard.
1.7.1.7. VGA connector integrated on board
VGA connector integrated on board supporting VGA display.
1.7.1.8. RJ45 connector optional on board
RJ45 connector is optionally integrated on board for support of
100/10 Ethernet LAN interface.

1-11
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.3. Floppy Disk Connector: FDD
This connector supports the provided floppy drive ribbon
cable. After connecting the single end to the board, connect
the two plugs on the other end to the floppy drives.
1.7.4. Hard Disk Connectors: IDE1/IDE2
These connectors are provided with IDE hard disk ribbon
cable into the package . After connecting the end of cable
with single connector to the mainboard, connect the other
two connectors at the other end to your hard disk. If you
install two hard disks, you must configure the second drive
to Slave mode by setting its jumper settings. BIOS now
supports SCSI device or IDE CD-ROM boot up (see "HDD
Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS
Features Setup of the BIOS SOFTWARE).
FAN /2/3 Pin Definition
1 N/C
2 +12VDC
3 Ground
1
3
2
FAN1
(CPU) FAN 2
FAN3
1.7.6. CDAudio-In Connectors: CDIN1
CDIN1is the connectors for CD-Audio Input signal. Connect it
to CD-ROM CD-Audio output connector for CD audio output.
Pin CDIN1 Definition
1 CD-L
2 GND
3 GND
4 CD-R
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
FAN 1 Pin Definition
1 GND
2 +12VDC
3 Detect
1
3
2
1.7.5. Fan Connectors: FAN1 (CPU)/2/3

1-12
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.7. IR infrared module: IR1 Connector
This connector supports the optional wireless transmission
and reception infrared module. You must configure the setting
through the BIOS setup to use the IR function.
IR1 Pin Assignment
1 +5V
2 CIRRX
3 IRRX
4 GND
5 IRTX
15
IR1
15SPDIF1
SPDIF Assignment
1 +5V
2 Key
3 SPDIFOUT
4 GND
5 SPDIFIN
1.7.9. FrontAudio Connector: J8
J8 provides connection to the Front Audio connectors of the
Front Audio Panel.
To use this Front Audio Connector, please remove the jumper
caps on it and connect it to the Front Audio Panel.
Pin 1 Mic In
Pin 3 VREFOUT
Pin 5 FR-IN
Pin 7 (NC)
Pin 9 FL-IN
Pin 2 Aud GND
Pin 4 Aud Vdd
Pin 6 FR-OUT
Pin 8 (Key)
Pin 10 FL-OUT
Remove the jumper caps to connect
this connector to the FrontAudio Panel
1
10
2
9
1.7.8. SPDIF Connector: SPDIF1
SPDIF1 is designed on board forDigitalAudio in/out.

1-13
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.10. USB Pin Header: USB1/2
USB1(2 ports)
USB1/2 is 2x5 Pin Headers for support of external USB ports.
Each USB pin header requires a USB cable for expansion of two
USB ports. This optional USB cable is available from your
motherboard dealer or vendor.
1
2
9210
WOL1: Wake On LAN
USB2(2 ports)
1
5VUSB
USBDT5-
USBDT5+
GND
5VUSB
USBDT4-
USBDT4+
GND
GND
1
5
6
10
6
KEY
510
1.7.11. Wake On LAN Connector: WOL1
CN2 is a Wake On LAN (WOL) connector for transmitting the
Ring signal from a PCI LAN card to wake up system. If you use
a PCI LAN card for system networking, you can connect this
Wake On LAN connector to the PCI LAN card on board for
Wake On LAN function.
5VUSB
USBDT2- USBDT2+
GND
5VUSB
USBDT3- USBDT3+
GND
GND
19
10
KEY
Pin1 5VSB
Pin3 LWake
Pin2 GND
1

1-14
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.12. Front Panel Connectors: PANEL1
PSSW
The system power is controlled by a momentary switch
connected to this lead. Pushing the button once will switch
the system ON.
PowerLEDLead(PW_LED)
The system power LED lights when the system power is on.
SpeakerConnector (SPEAKER)
The speaker (onboard or offboard) provides error beep code
information during the Power Self-Test when the computer
cannot use the video interface. The speaker is not connected
to the audio subsystem and does not receive output from the
audio subsystem.
HardDriveLEDConnector (HD_LED)
This connector supplies power to the cabinet IDE activity LED.
Read and write activity by devices connected to the Primary or
Secondary IDE connectors will cause the LED to light up.
The connector can be connected to a reset switch. Press this
reset switch to restart system.
ResetSwitchLead (RST)
Front Panel Connectors
PS SW
11
13
15
17
19
1
3
5
7
9
12
14
16
18
20
2
4
6
8
10
RST
HD LED
SPEAKER
PW LED
(+)
(+) (+)
(+)

1-15
Chapter 1 Motherboard 7KM400QP
1.7.13. 1394A Pin Header: J10
1x1394APin-header on board,compliant with IEEE 1394A-2000
standard for high performance serial bus, supporting 1x1394 A
port, 400/200/100 Mbits transfer rates.
1
6
+12V
TPB-
GND
TPA-
TPB+
1394A Pin-header
(for 1 1394A Port)
TPA+
1.7.15. SerialATAConnectors: CN2/3
2 SATA Ports
Two SATA Connectors are built on board for high speed data
transfer rate up to 150MB/s. HardDiskDrive with SerialATA
Interface is supported by these two SATA Connector.
SATA Port
1.7.16.AGP8X/4X Slot
AGP8X/4X Slot on board supportingAGP 8X/4X digital display
.
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.14. Modem Pin-header: J9 (optional)
J9 is a Modem Pin-header designed on board for a Modem card
setup.
CN2/3
214
13
1J9: Modem Header
AGP 8X/4 Slot supporting AGP 8X/4X Card

1-16
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.17. CMOS Function Selector: JBAT1
When you have problem with booting system, you may clear
CMOS to restore the optimum default BIOS data.
1. Remove the Jumper cap of JBAT1 from 1-2.
2.After 1 or two seconds, set JBAT1 to 2-3 closed with the jumper
cap.
3. After 1 or two seconds, restore the JP3 to 1-2 closed.
Now, the CMOS RAM has restored to the optimum default
setting.
1.7.18. USB1/2 Power Selector: J7
J4: USB2/3/4/5 Power Select
1-2 closed
1
1
(Default)
2-3 closed 5VSB select
J7 is designed to select the USB2/3/4/5 Power function.
+5V select
JBAT1 Function
1-2 Normal
closed (Default)
2-3
closed
1
1
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
Clear CMOS

1-17
Chapter 1 Motherboard 7KM400QP
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
1.7.20. CPU Clock Frequency Selector: J5
J3 & J5 are designed to detect the CPU Frequency on board.
Thismotherboardsupport200/133/166 MHz overclocking, while
100 MHz is default CPU clock.
J5
12
CPU(MHz) 166 MHz
100 MHz
(default)
43
133 MHz
J5 Setting 1
2
434
21
3
1.7.19. PS2 / USB3 Keyboard Power Selector: J6
J6: PS2/USB3 Power Select
1-2 closed
1
1
(Default)
2-3 closed 5VSB select
J6is designed toselect the PS2/ USB3 Keyboard Power function.
+5V select
VIA
VT8237
Socket 462
VIA
KM400A
BIOS
J6
200 MHz
4
21
3

2-18
Chapter 2 7KM400QPDrivers & Utilities
There are motherboard drivers and utilities included in
the disc attached in this motherboard package. You don't
have to install all of them for booting your system. But after
you have finished the hardware installation, you have to in-
stall an operation system (such as windows XP) before you
are able to install any drivers or utilities.
You can use the auto-run menu in the driver CD attached in
the motherboard package. Then choose the utility or driver and
select model name. The autorun starting screen looks like below:
Chapter 2 Drivers & Utilities
Note: Please be aware of the different Procedures for installing
driversforWindows 98/ME/XP/2000 .
2.1.Auto-runMenu
(1)
Select"Driver".

2-19
Chapter 2 7KM400QPDrivers & Utilities
(2)
Select ModelName.
(3)
ClickontheModelNameto reveal
theMainDriverMenu.

2-20
Chapter 2 7KM400QPDrivers & Utilities
(1)
Click"Chipset"Itemon
theMainMenu.
(2)
Click"Next" to continue.
(3)
Click "Yes" to continue
Enter the item "Chipset" of the Autorun program and install
the VIA Service Pack. Follow the illustrations below :
2.2. Installing VIA4-in-1 Service Pack
(4)
Click"Next" to install VIA
ATAPIVenderSupport
Driver,AGPDriverandVIA
INFDriver.
(5)
TicktheRestartbutton and
click "OK" to restart
system andcompletethe
Chipsetdriversetup.
