Before you proceed:

Take note of the following precautions before you install device

on motherboard:

1. Please check up motherboard connector & jumper (see the

figure below). The 6VIA85X motherboard doesn’t

support AMR set function on page 1-17, so don’t use

this funciton.

2. Because 6VIA85X M/B doesn’t support AMR slot, please

modify BIOS item on page 2-17 (see the below).

“Onchip sound” & “Onchip Modem”

The choices: Disabled(default), Auto.

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI 1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

Delete

1-11-1

1-1

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

Introduction

System Overview

This manual was written to help you start using this product

as quickly and smoothly as possbile. Inside, you will find

the answers to solve most problems. In order for this

reference material to be of greatest use, refer to the

“expanded table of contents” to find relevant topics.

This board provides a total PC solution by incorporating the

System , I/O , and PCI IDE. The mainboard is designed for

Intel PIII/Celeron/Coppermine processors base PC ATX

system, support single processors with ISA Bus, AMR Bus,

PCI Local Bus, and AGP Bus to support upgrades to your

system performance. It is ideal for multi-tasking and fully

supports MS-DOS, Windows, Windows NT , Windows ME,

Windows 2000 , Novell, OS/2, Windows95/98 , UNIX ,

Windows98SE, SCO UNIX etc.

This manual also explains how to install the mainboard for

operation, and how to setup your CMOS configuration with

the BIOS setup program.

1-11-1

1-1

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.Motherboard Description

1.1 Features

1.1.1 Hardware

CPU

-Socket 370 for Intel PPGA/FC-PGA PII/PIII processor.

-Intel FC-PGA/PPGA Celeron Processors 300MHz

~800MHz or higher processor with 66MHz FSB.

-Intel FC-PGA Pentium III Processors 500MHz~1GHz

or higher processor with 100/133MHz FSB.

-VIA Cyrix III Processors.

Chipset

-North Bridge System Chipset : VT82C694X

-Sourth Bridge System Chipset: VT82C686B

Biggest memory capacity

6VIA85X is equipped with three DIMM socket to support

(16MB, 32MB, 64MB, 128MB, 256MB) 168 pin 3.3v

SDRAM SPD(Special Presence Detect). Maximum

memory up to 1.536GB.

AGP for fast VGA solution

-AGP specification compliant.

-AGP 66 MHz 3.3v/1.5v for 2X/4X device support.

Note:

If an unstable issue occurs, after installing " VIA 4 in 1

driver ". We suggest you to re-install " VIA 4 in 1 driver ",

and then select " install VIA AGP VxD in Standard mode "

at " VIA_GART AGP Driver " item.

PCI Expansion Slot

Provide one 16 bit ISA, one AMR slot, one AGP slot, and

three 32 bit PCI slots.

1-31-3

1-3

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

On-Board IDE

-An IDE controller on the VIA VT82C686B Chipset

provides IDE HDD/CD-ROM with PIO, Bus Master and

Ultra DMA 33/66/100 operation modes.

-Can connect up to four IDE devices.

On-Board Peripherals:

-1 floppy port supports 2 FDD with 360K, 720K, 1.2M,

1.44M and 2.88M byte.

-2 serial ports (COM1+COM2).

-1 parallel port supports SPP/EPP/ECP mode.

-1 IrDA/HP connector for SIR.

BIOS

-The mainboard BIOS provides “Plug & Play” BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

-The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard

specifications.

-BIOS support CD-ROM, SCSI, LAN BOOT, Temperature

sensor, Wake on LAN, Alarm Bus CLK setup with BIOS.

WOL (Wake On LAN)

Supports system power up from LAN ring up.

IrDA Port

Support this serial fast communication up to 115.2Kbps.

Support Ring on by LAN/Alarm on (ATX only)

Support System power up from LAN ring up or timer of

System. Required enabled in Ring on by modem and Alarm

on in BIOS.

1-41-4

1-4

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

Supports ACPI function for ATX Power.

Support AT/ATX Power supply (20pin) connector.

1.1.2 Software

BIOS

-AWARD legal BIOS.

-Supports APM 1.2.

-Supports USB Function.

-Supports ACPI

Operation System

-Offers the highest performance for MS-DOS, Windows,

Windows NT, Windows ME, Windows 2000, Novell, OS/2,

Windows95/98, Windows98SE, UNIX, SCO UNIX etc.

1.1.3 Attachments

-HDD UDMA 66/100 Cable.

-FDD Cable.

-Flash Memory Written for BIOS Update.

-USB Cable. (optional)

-PS2/Print Port Cable.

-COM1/COM2 Cable.

-Fully Setup CD Driver built in Utility (Ghost, Anitivirus,

Adobe Acrobat...).

-This manual.

1-51-5

1-5

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.2 Motherboard Installation

1.2.1 Motherboard Map

1-61-6

1-6

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.2 Motherboard Installation

1.2.1 Motherboard Layout

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1-71-7

1-7

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

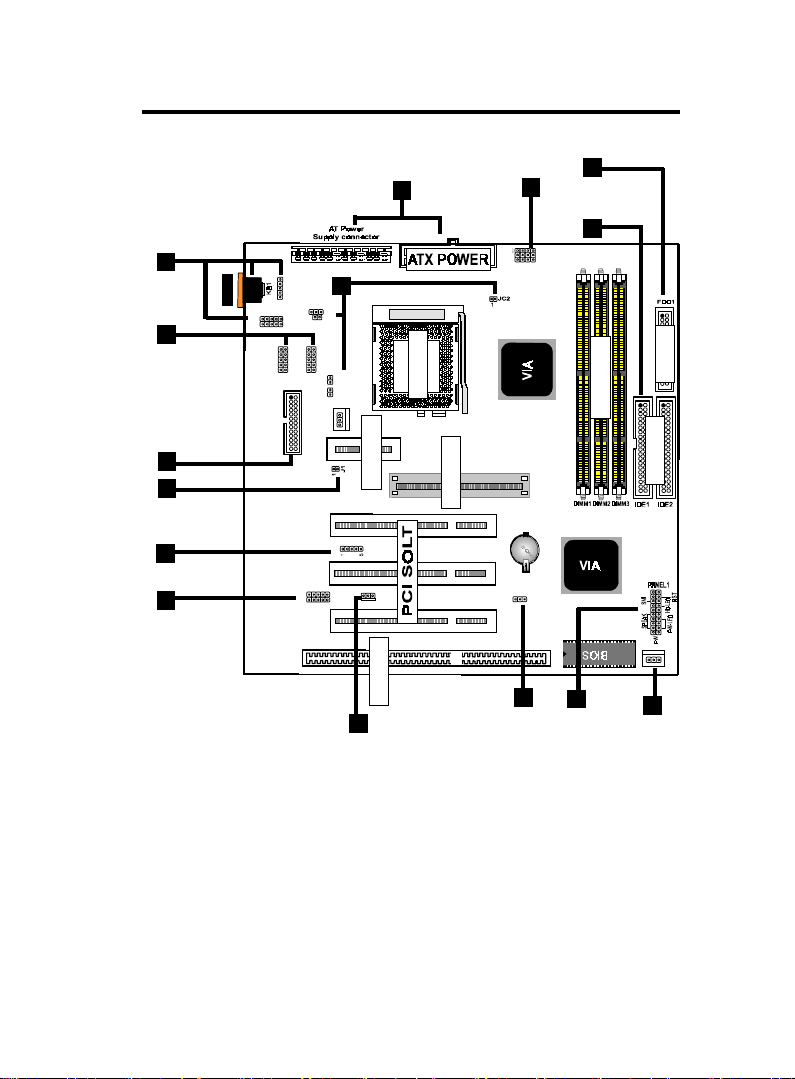

1.3 Motherboard Connectors

1.Babk OandkI.OCnnndbsnrr1.Babk OandkI.OCnnndbsnrr

1.Babk OandkI.OCnnndbsnrr1.IRCnnndbsnr1.IRCnnndbsnr

1.IRCnnndbsnr1.IRCnnndbsnr

1.IRCnnndbsnr

3.AMRCOCDC Etnbshnn(J1(3.AMRCOCDC Etnbshnn(J1(

3.AMRCOCDC Etnbshnn(J1(4.Wakd-On-LAN Cnnndbsnr4.Wakd-On-LAN Cnnndbsnr

4.Wakd-On-LAN Cnnndbsnr4.Wakd-On-LAN Cnnndbsnr

4.Wakd-On-LAN Cnnndbsnr

5.Ernns COM1.1 Cnnndbsnrr5.Ernns COM1.1 Cnnndbsnrr

5.Ernns COM1.1 Cnnndbsnrr6.Ernns OandkCnnndbsnr6.Ernns OandkCnnndbsnr

6.Ernns OandkCnnndbsnr6.Ernns OandkCnnndbsnr

6.Ernns OandkCnnndbsnr

7.EanCnnndbsnrr(Ean1.1(7.EanCnnndbsnrr(Ean1.1(

7.EanCnnndbsnrr(Ean1.1( 8.ICD Cnnndbsnrr8.ICD Cnnndbsnrr

8.ICD Cnnndbsnrr8.ICD Cnnndbsnrr

8.ICD Cnnndbsnrr

9.Eknooy Cnnndbsnr9.Eknooy Cnnndbsnr

9.Eknooy Cnnndbsnr 1/.AT.ATX Onwdr Cnnndbsnr1/.AT.ATX Onwdr Cnnndbsnr

1/.AT.ATX Onwdr Cnnndbsnr1/.AT.ATX Onwdr Cnnndbsnr

1/.AT.ATX Onwdr Cnnndbsnr

11.COU Cknbk Sdkdbshnn(JCJ1~JCJ4,JC1,JC3(11.COU Cknbk Sdkdbshnn(JCJ1~JCJ4,JC1,JC3(

11.COU Cknbk Sdkdbshnn(JCJ1~JCJ4,JC1,JC3(

11.COU Tyod Sdkdbs(JC1~JC1,JC4~JC5(11.COU Tyod Sdkdbs(JC1~JC1,JC4~JC5(

11.COU Tyod Sdkdbs(JC1~JC1,JC4~JC5(

13.CMOSEtnbshnnSdkdbshnn(JBAT1(13.CMOSEtnbshnnSdkdbshnn(JBAT1(

13.CMOSEtnbshnnSdkdbshnn(JBAT1(

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1-81-8

1-8

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

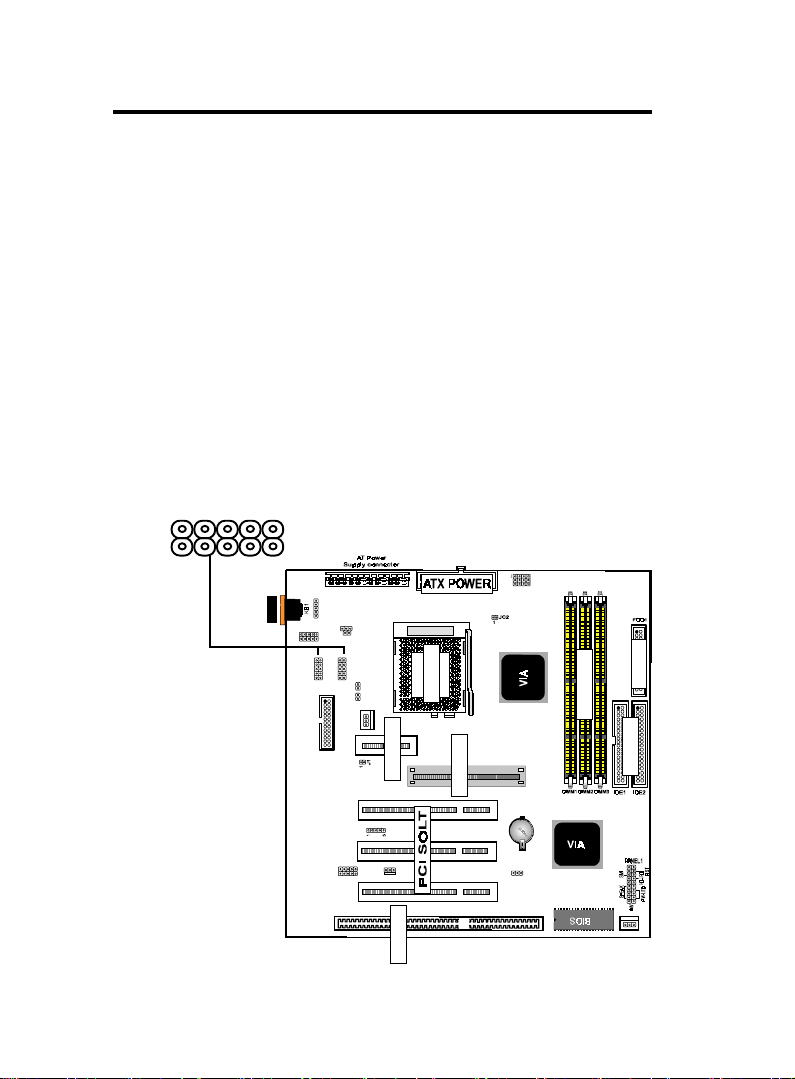

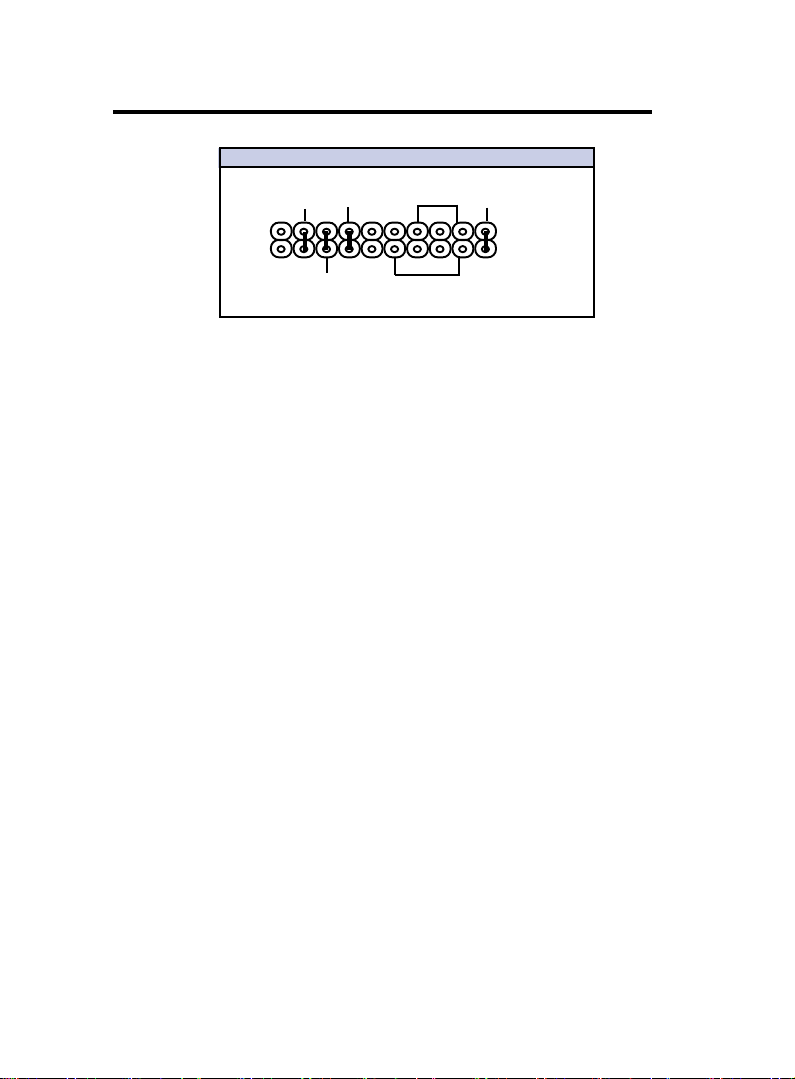

1.3.1 Front Panel Connector (PANEL1)

PANEL1 Connector

Speaker Connector (SPK)

An offboard speaker can be installed onto the motherboard as a

manufacturing option. An offboard speaker can be connected to

the motherboard at the front pannel connector. The speaker

(onboard or offboard) provides error beep code information

during the Power Self-Test when the computer cannot use the

video interface. The speaker is not connected to the audio

subsystem and does not receive output from the audio subsystem.

Hard Drive LED Connector (HDD)

This connector supplies power to the cabinet IDE activity LED.

Read and write activity by devices connected to the Primary or

Secondary IDE connectors will cause the LED to light up.

SMI Suspend Switch Lead (SMI)

This allows the user to manually place the system into a suspend

mode of Green mode. System activity will be instantly decreased

to save electricity and expand the life of certain components

when the system is not in use. This 2-pin connector (see the

figure ) connects to the case-mounted suspend switch. If you do

not have a switch for the connector, you may use the "Turbo

Switch” instead since it does not have a function. SMI is

activated when it detects a short. It may require one or two

pushes depending on the position of the switch. Wake-up can be

controlled by settings in the BIOS but the keyboard will always

allow wake-up (the SMI Suspend Switch Lead cannot wake-up

the system). If you want to use this connector, the "Suspend

Switch" in the Power Management Setup of the BIOS SOFT-

WARE section should be on the default setting of Enable.

SPK

PW_BN

RST HDD PW_LED

SMI

1-91-9

1-9

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

ATX Power Switch (PW_BN)

The system power is controlled by a momentary switch

connected to this lead. Pushing the button once will switch

the system ON. The system power LED lights when the

system's power is on .

Power LED Lead (PW_LED)

The system power LED lights when the system power is on.

Reset Switch Lead (RST)

The connector can be connected to a momentary SPST type

switch that is normally open. When the switch is closed,the

motherboard resets and runs the POST.

1.3.2 Floppy Disk Connector (FDD1)

This connector supports the provided floppy drive ribbon

cable. After connecting the single end to the board, connect

the two plugs on the other end to the floppy drives.

1.3.3 Hard Disk Connectors (IDE1/IDE2)

These connectors support the provided IDE hard disk ribbon

cable. After connecting the single end to the board, connect

the two plugs at the other end to your hard disk.

If you install two hard disks, you must configure the second

drive to Slave mode by setting its jumper settings. BIOS now

supports SCSI device or IDE CD-ROM boot up (see "HDD

Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS

Features Setup of the BIOS SOFTWARE) (Pin 20 is removed

to prevent inserting in the wrong orientation when using

ribbon cables with pin 20 plugged) .

1-1/1-1/

1-1/

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.3.4 ATX/AT Power Supply Connector (20-pin block)

(PW1/PW2)

This connector supports the power button on-board. Using

the ATX power supply, functions such as Modem Ring Wake-

Up and Soft Power Off are supported on this motherboard.

This power connector supports instant power-on

functionality, which means that the system will boot up

instantly when the power connector is inserted on the board.

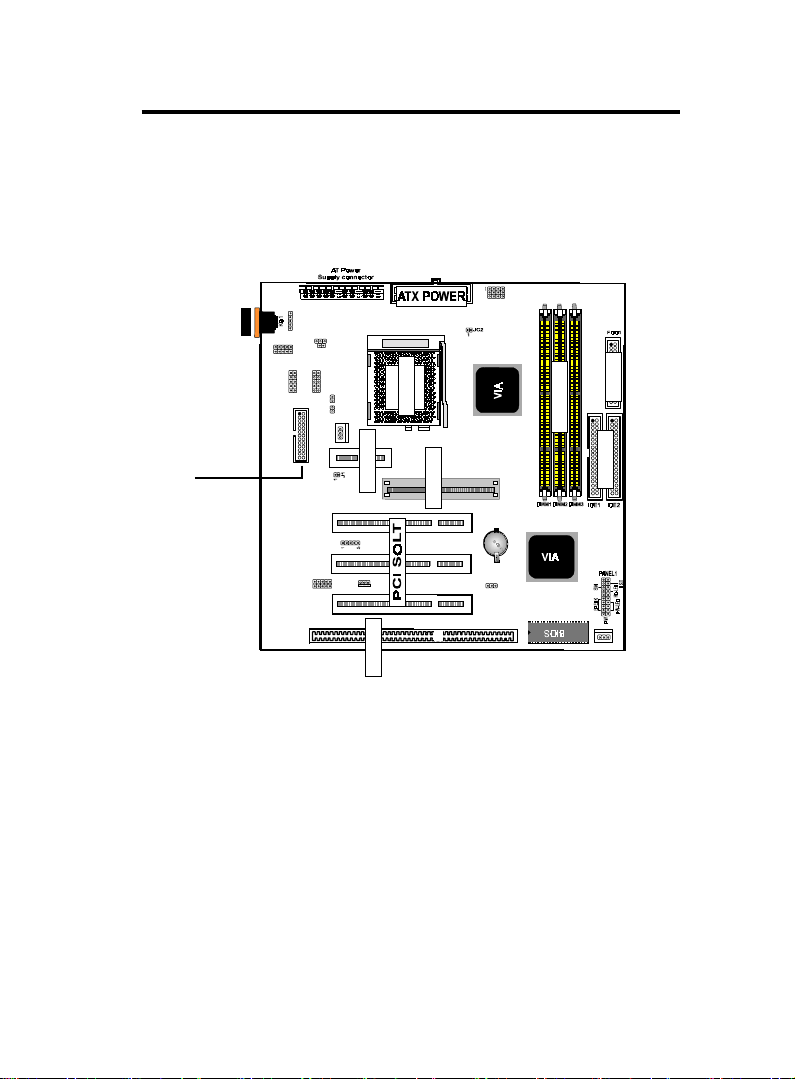

1.3.5 Infrared Connector (IR)

After the IrDA interface is configured, files can be

transferred from or to portable devices such as laptops,

PDAs, and printers using application software.

Pin Signal Pin Signal

1 3.3V 11 3.3V

2 3.3V 12 -12V

3 GND 13 GND

4 5V 14 PS-ON

5 GND 15 GND

6 5V 16 GND

7 GND 17 GND

8 PW-OK 18 -5V

9 5V_SB 19 5V

10 12V 20 5V

1-111-11

1-11

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1.4 Back Panel Connectors

1.4.1 Keyboard CONN.

This connector will compatible with standard at AT size (large

DIN) keyboard plugs. You may use a DIN to mini DIN adapter

on standard AT keyboards.

Mouse Port

This system will direct IRQ12 to PS/2 mouse.

1.4.2 USB Connectors: USB1/USB2

The motherboard provides a OHCI(Open Host Controller

Interface)Universal Serial Bus Roots for attaching USB

devices such as a keyboard, mouse and other USB devices.

You can plug the USB devices directly into this connector.

Four USB ports are available on the back panel.Therefore,

we have a solution to provide a 10 pin ribbon cable with

bracket to connect Built-in on-board USB header by optional.

VCC

P0-

P0+

GND

P1+

P1-

VCC

1-111-11

1-11

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1.5 Serial and Parallel Interface Ports

This system comes equipped with two serial ports and one

parallel port. Both types of interface ports will be explained

in this chapter.

The Serial Interfaces: COM1/COM2

The serial interface port is sometimes refered to as an RS-

232 port or an asynchronous communication port. Mice,

printers, modems and other peripheral devices can be

connected to a serial port. The serial port can also be used

to connect your computer system. If you wish to transfer

the contents of your hard disk to another system it can be

accomplished by using each machine’s serial port.

COM1/COM2

1-131-13

1-13

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

Parallel Interface Port

Unlike serial ports, parallel interface ports have been

standardized and should not present any difficulty interfacing

peripherals to your system. Sometimes called a Centronics port,

the parallel port is almost exclusively used with printers.

LPT

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1-141-14

1-14

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.6 CPU Installation

1.6.1 CPU Installation Procedure: Socket 370

1. Pull the lever sideways away from the socket then raise

the lever to a 90-degree angle.

2. Locate Pin 1 in the socket and look for the white dot or

cut edge in the CPU. Match Pin 1 with the white dot/cut

edge then insert the CPU.

3. Press the lever down to complete the installation.

4.Make sure the spec of the heatsink is good enough, or

the processor and motherboard will damage.

Notch

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1-151-15

1-15

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

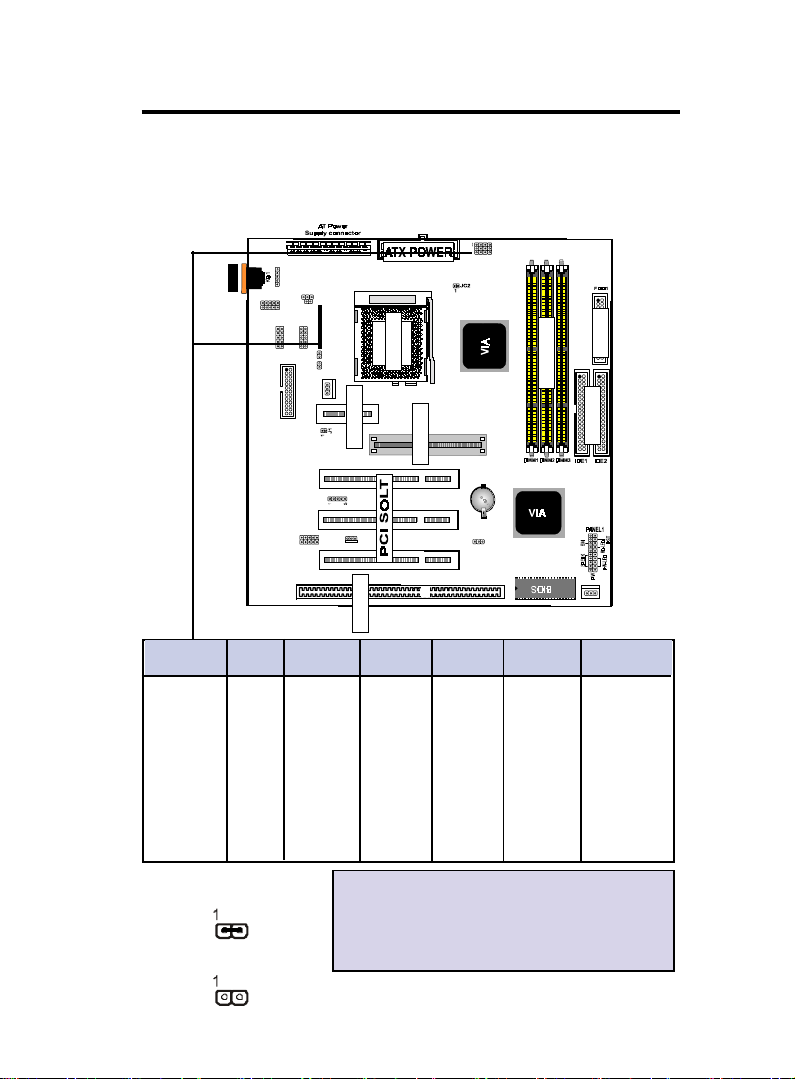

1.6.2 CPU Clock Selection: JCK1~JCK4, JC1, JC3

The JCK1~4 jumpers are used to set the PCI and CPU external bus

clock. JCK1~4 jumper is used for the CPU Front Side Bus Frequencies

from 66MHz to 133MHz.

Note:

Please select Auto (Intel) in jumper

setting if you use VIA Cyrix III

samuel 2 processor.

FEQ. JCK1 JCK2 JCK3 JCK4 JC1 JC3

66MHz 1-2 1-2 2-3 2-3 OPEN OPEN

100MHz 1-2 1-2 1-2 2-3 OPEN OPEN

133MHz 1-2 1-2 1-2 1-2 OPEN OPEN

Auto 1-2 1-2 OPEN OPEN 2-3 CLOSE

(Intel)

Auto 1-2 1-2 OPEN OPEN 1-2 CLOSE

(VIA-Cyrix)

samuel 1

Close: (SHORT)

Open:

1-161-16

1-16

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE

FDD

AMR SOLT

JCK4

JCK3

JCK2

JCK1

1.7 Jumper Setting

A jumper has two or more pins that can be covered by a

plastic jumper cap, allowing you to select different system

options.

1.7.1 CPU/System Fan Connectors: Fan1/2

Pin Assignment

1 Ground

2 +12VDC

3 Signal

FAN 2

Connector

WOL1

Connector

JBAT1

FAN 1

Connector

JC2

JC1

JC3

JC4

JC5

Table of contents

Popular Motherboard manuals by other brands

ASROCK

ASROCK X99 X99 Extreme3 user manual

Advantech

Advantech PPC-MB-8260AE Startup manual

Magic-Pro

Magic-Pro MP-VIP-4A user manual

EBS

EBS MINI-PROG-BT INSTALLATION REFERENCE

Axiom

Axiom M52221DEMO Hardware user's guide

DFI

DFI CMS310-W480E user manual

Biostar

Biostar TA770A2SE Setup manual

Alcad

Alcad 905-TO Series manual

Intel

Intel I815E user manual

Commell

Commell LV-67N-G user manual

Gigabyte

Gigabyte H410M H user manual

MSK

MSK MSK4364 user guide

Intel

Intel D848PMB Product guide

Linear

Linear DC1630A Demo Manual

Humandata

Humandata XCM-110 Series user manual

Anadigm

Anadigm AnadigmApex AN231K04-DVLP3 manual

Linear Technology

Linear Technology DC1472A Demo Manual

Linear Technology

Linear Technology DC2191A Demo Manual

Acorp 6VIA85X User manual

Popular Motherboard manuals by other brands
