Acorp 4S651M User manual

0-1
Contents Motherboard 4S651M/4S651MN
Motherboard
4S651M/4S651MN
1. 4S651M/4S651MN Specification ......4
1.1 Introduction ......................................................... 4
1.2 Package Contents ............................................... 5
1.3 Specifications and Features ................................ 6
CPU Processor ......................................................................... 6
Chipset ...................................................................................... 6
VGA ........................................................................................... 6
PCI ............................................................................................ 6
Integrated LAN Controller (for 4S651MN only) ..................... 6
Universal Serial Bus ................................................................. 6
AwardBIOS .............................................................................. 7
ATA 100/133 On Board ............................................................ 7
PCI-Based AC 97 Digital Audio Codec ..................................... 7
AGP 4X On Board .................................................................... 7
CNR Slot On Board .................................................................. 7
1.4 4S651M/4S651MN Layout Diagram ................ 8
1.5 CPU and CPU Fan Installation ......................... 10
1.5.1 CPU Installation with Socket 478 ................................. 10
1.5.2 CPU Fan Installation with P4 Fan Base ......................... 11
1.6 DDR SDRAM Installation ............................... 12
1.7 Connectors & Jumpers Setting ........................ 13
1.7.1 Back Panel I/O Connectors ........................................... 13

0-2
Contents Motherboard 4S651M/4S651MN
1.7.1.1 PS/2 Mouse / Keyboard CONN. .............................................. 1 3
1.7.1.2 USB Ports ...................................................................................... 1 3
1.7.1.3 Serial Interface Port: COM1 .................................................. 1 4
1.7.1.4 Parallel Interface Port .............................................................. 1 4
1.7.1.5 Audio Port Connectors .............................................................. 1 4

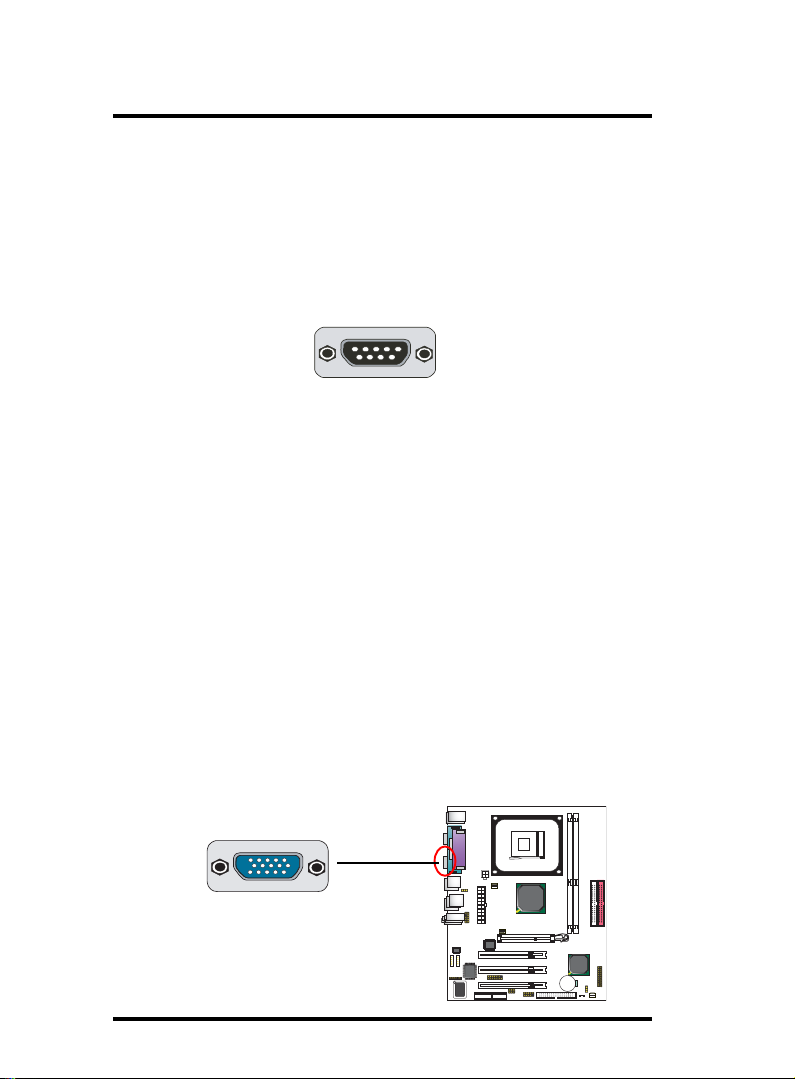

1.7.1.6 VGA Connector ............................................................................ 1 4
1.7.1.7 LAN Connector (4S651MN only): RJ45 ............................... 1 5
1.7.2 ATX Main Power Connectors: PW1/PW2 .................... 16
1.7.3 Floppy Disk Connector: FDD ........................................ 17
1.7.4 Hard Disk Connectors: IDE1/IDE2 .............................. 17
1.7.5 Fan Connectors: FAN1/2/3 ............................................ 17
1.7.6Audio-In Connectors: CD1/AUX1 ................................. 18
1.7.7 Wake On LAN Connector: WOL1 ................................ 18
1.7.8 USB Pin Header: USB6 ................................................. 19
1.7.9 Front Panel Connectors: PANEL1 ................................. 20
1.7.10 Modem Connector: JP4 .............................................. 21
1.7.11 IR infrared module: IR1 Connector ............................ 22
1.7.12 Front Audio Connector: F-J1 ...................................... 22
1.7.13 AGP4X : AGP4X Slot ................................................. 23
1.7.14 Modem/Sound Card: CNR Slot ................................... 23
1.7.15 CMOS Function Selector: JP3 ................................... 24
1.7.16 Keyboard & USB5/RJUSB1 Wake-up: Jp11 .............. 24
1.7.17 USB6 Wake-up Selector: Jp10 .................................. 25
1.7.18 CNR Slot Select: Jp1 ................................................... 25
2. BIOS Setup ..................................... 26
2.1 BIOS Support .................................................... 26
2.2 Main Menu ....................................................... 29
2.3 Standard CMOS Features ................................ 32
2.4 Advanced BIOS Features ................................. 36

0-3
Contents Motherboard 4S651M/4S651MN
2.5 Advanced Chipset Features .............................. 40
2.6 Integrated Peripherals ...................................... 43
2.7 Power Management Setup................................ 48
2.8 PnP/PCI Configurations .................................... 51
2.9 PC Health Status............................................... 54
2.10 Frequency/Voltage Control............................. 55
2.11 Load Fail-Safe Defaults .................................. 56
2.12 Load Optimized Defaults ................................ 57
2.13 Set Supervisor / User Password ..................... 58
2.14 Save & Exit Setup........................................... 59
2.15 Exit Without Saving ........................................ 60
3. Drivers & Utilities ............................ 61
3.1 Auto-run Menu .................................................. 61
3.2 Installing SiS VGADriver ................................. 63
3.3 LAN Driver (for 4S651MN only) ..................... 65
3.4 Installing Audio Driver ...................................... 66
3.4.1 Installing 6-channel Driver ........................................... 66
3.4.2 Verifying 6-channel Driver ............................................ 66
3.5 Installing USB 2.0 Driver ................................. 68
3.7 Installing Modem Driver (optional) ............... 70
Appendices .......................................... 71
Motherboard Compatibility Test .......................... 71
(1) CPU Compatibility Test ..................................................... 71
(2)AGPDisplay Card Compatibility Test ............................... 72
(3) Memory Compatibility Test ............................................... 73

1-4
Chapter 1 Motherboard 4S651M/4S651MN
The 4S651M/4S651MN motherboard is an integration of
Intel P4 CPUs in Socket-478 packaging and the North Bridge
SiS650GX supporting 533/400 MHz Front Side Bus.
North Bridge SiS650GX on board also supports DDR 333/
266/200 DRAMs, integrated VGA and the integrated AGP 4X
Interface, while the South Bridge SiS962L provides stable sup-
ports of ULTRAATA 133/100, 6-channel Audio playback, LPC
Super I/O, USB 2.0/1.1 interface, PCI interface as well as
integrated 10/100Mbit Fast Ethernet LAN Controller (on
4S651MN).
The resulting architecture will provide an ideal multi-task
environment to support operating systems such as MS-DOS,
Windows, Windows NT , Windows ME, Windows 2000,Novell,
OS/2, Windows 95/98, Windows 98SE, Windows XP, UNIX,
Liunx, SCO UNIX etc. This user-friendly manual is to de-
scribe in detail how to install, configure and use this
motherboard with drivers and BIOS setup illustrations.
Chapter 1
4S651M/4S651MN
1. 4S651M/4S651MN Specification
1.1 Introduction
This manual is a general reference of the first release of this
motherboard which is subject to update without notice. If any differ-
ence is found between this manual and the motherboard you are
using, please refer to the Web Site for latest update.

1-5
Chapter 1 Motherboard 4S651M/4S651MN
HDD Cable.
FDD Cable.
Flash Memory with BIOS
Fully Setup Driver CD with built in utilities.
User Manual.
I/O Shielding.
1.2 Package Contents

1-6
Chapter 1 Motherboard 4S651M/4S651MN
PCI
| Supports 33MHz PCI Bus speed.
| 3 x PCI slots on board
Integrated LAN Controller (for 4S651MN only)
| Supporting 10/100Mbit Fast Ethernet LAN
| Supporting 1xRJ45 Connector (for 4S651MN motherboard only)
Universal Serial Bus
| Supporting 4 on-board Universal Serial Bus(USB) Ports
and 2 external Universal serial Bus(USB) Ports.
| Supporting USB 2.0/1.1
CPU Processor
| Support 533/400MHz System Interface speed.
| Single Socket 478 for Intel P4TM 1.5 to 2.8GHz or higher*
(Northwood Processor).
| Support Intel NetburstTM Micro-architecture.
Chipset
| SiS650GX North Bridge, supporting 533/400MHz FSB andAGP
2.0 interface
| SiS962L South Bridge.
1.3 Specifications and Features
* The higher frequency CPU should be compatible with Intel CPU
specificiation as well as the motherboard latest BIOS version
released on the web site.
VGA
| VGA Interface built in
| 1x 15-pin VGA connector built in for VGA display

1-7
Chapter 1 Motherboard 4S651M/4S651MN
Award BIOS
| Supporting Plug & Play specification which detects the
peripheral devices and expansion cards automatically
| Supporting CD-ROM, SCSI, LAN BOOT, Temperature sen-
sor, LAN, Alarm Bus CLK setup
| Supporting Desktop Management Interface (DMI) func-
tion for recording mainboard specification
ATA 100/133 On Board
| Supporting four IDE devices with 2 x IDE connectors
| Supporting PIO Mode 5, Master Mode, high performance
hard disk drives
| Dual -channel Ultra DMA 33/66/100/133 Bus Master Mode
| Supporting IDE interface with CD-ROM
| Supporting high capacity hard disk drives
| Supporting LBA mode
PCI-Based AC 97 Digital Audio Codec
| AC 97 2.2 compatible Codec, 6-channel Audio interface.
| 18-bit Stereo Full-Duplex Codec with up to 48 KHz samp-
ling rate
| 4 Analog Line-level Stereo inputs for connection from Line,
CD, Viedo and AUX
| 2 Analog Line-level Stereo inputs for speakerphone and PC
beep
AGP 4X On Board
| AGP 66MHz, 1.5V for AGP4X graphic card.
CNR Slot On Board
| CNR(Communication and Network Riser) slot on board, sup-
porting Analog Modem/Multi-channel/Sound card

1-8
Chapter 1 Motherboard 4S651M/4S651MN
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
1
26
22
11
4
19
1.4 4S651M/4S651MN Layout Diagram
16
2
24
27
20 2321
3
10
25
9
12
8
7 6 5
28
29
15
14
13
17 18

1-9
Chapter 1 Motherboard 4S651M/4S651MN
8. Back Panel: Back Panel I/O Connectors ( Mouse, Keyboard, COM1,
VGA, Printer, RJ45 (for 4S651MN motherboard only), USB5, RJUSB1,
Mic in, Speaker-out, Line-in.
9. F-J1: Front Audio Connector
10. FAN2: Cooling Fan Connector
11. RTL8101L : LAN Controller
12. ALC650: 6-channel AC’97 Audio Codec
13. AUX1: Audio Input Connector
14. CD1: Pin Header for CD Audio-in
15. IR1: Connector for Infrared signal transmission
16. IT8705F: LPC Super I/O Chip
17. CNR1: Communication Slot
18. JP1: Jumper for CNR Slot Select
19. JP10: Jumper for USB6 Wake-up Select
20. USB6: USB Device Pin-header for 2 two USB ports
21. FDC1: Floppy Drive Connector
22. WOL1: Connector for Wake-on-LAN function
23. FAN3: Cooling Fan Connector
24. JP3: Jumper for Clear CMOS Select
25. Panel1: Front Panel Pin-header
26. South Bridge SiS 962L
27. North Bridge SiS 650GX
28. FAN1: Cooling Fan Connector
29. JP4: Modem Card Connector
1. IDE1: IDE Connector
2. IDE2: IDE Connector
3. P4 CPU Socket 478
4. P4 CPU Fan Base
5. +12V Power Connector
6. ATX Main Power Connector
7. JP11: Jumper for Keyboard and USB(USB5/RJUSB1)Wake-up
4S651M/4S651MN Component Layout :

1-10
Chapter 1 Motherboard 4S651M/4S651MN
mPGA478B
Socket 478
This motherboard is designed with Socket 478 for
Intel P4TM processors.
Pin 1
1.5 CPU and CPU Fan Installation
1. Pull the lever sideways away from the socket then raise the
lever to a 90-degree angle.
2. Locate Pin 1 in the socket Pin 1 of CPU is marked by the
yellow corner or cut edge on the CPU. Match Pin 1 of
Socket 478 and Pin 1 of CPU.
3. Pull up the lever of Socket 478 to let the CPU in and press
the lever down to lock the CPU.
4. Make sure that Pin 1 of Socket 478 is matching with Pin 1 of
CPU.
5. Make sure that all CPU pins are completely in socket before
pressing down the socket lever.
Intel
pentium 4
Lever of Socket 478
Cooling Fan Base
1.5.1 CPU Installation with Socket 478

1-11
Chapter 1 Motherboard 4S651M/4S651MN
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
1.5.2 CPU Fan Installation with P4 Fan Base
1. P4 CPU Fan is typically designed with 4 latches and mounted
with a thick heatsink. Please do not use other type of CPU fan
which cannot match the P4 Fan base on board.
2. Install the P4 CPU fan into the Fan base in such a way that
the 4 latches of the CPU Fan match with the 4 Supporters of
the CPU Fan Base.
3. Press down the latches to lock CPU Fan to the Fan Base.
4. Then connect the Fan Power Cable to one of the Fan con-
nectors on board.
5. Make sure that the Fan Power Cable is correctly connected
to Fan Connector.
Fan Base
4 Latch-supporters
Fan Connector for
Fan Power Cable

1-12
Chapter 1 Motherboard 4S651M/4S651MN
This motherboard supports a maximized 2GB DDR
SDRAM. It provides two184-pin unbuffered DDR sockets.
It supports 64MB to 1GB DDR memory module.
DDR SDRAM Installation Procedures:
1. The DDR socket has a “Plastic Safety Tab” and the DDR
memory module has an asymmetrical notch”, so the DDR
memory module can only fit into the slot in one direction.
2. Push the tabs out. Insert the DDR memory modules into the
socket at a 90-degree angle then push down the module
vertically to fit it into place.
3. The Mounting Holes and plastic tabs should fit over the
edge and hold the DDR memory modules in place.
Warning: Be sure to turn off system power whenever to insert or
remove a Memory Module. Otherwise, the power will damage the
module or even the system.
1.6 DDR SDRAM Installation
Bank Memory module
DIMM 1 64MB, 128MB, 256MB, 512MB, 1GB
184 pin, 2.5V DDR SDRAM
DIMM 2 64MB, 128MB, 256MB, 512MB, 1GB
184 pin , 2.5V DDR SDRAM
Total System Memory (Max 2GB)
184-pin DDR Module
DDR Module Notch
DDR Module Rib

1-13
Chapter 1 Motherboard 4S651M/4S651MN
1.7.1 Back Panel I/O Connectors
This motherboard provides the following back panel
connectors:
1.7 Connectors & Jumpers Setting
1.7.1.1 PS/2 Mouse / Keyboard CONN.
The motherboard provides a standard PS/2 mouse / Keyboard
mini DIN connector for attaching a PS/2 mouse. You can
plug a PS/2 mouse / Keyboard directly into this connector.
1.7.1.2 USB Ports
The motherboard provides a OHCI(Open Host Controller
Interface)Universal Serial Bus Roots for attaching USB
devices such as a keyboard, mouse and other USB devices.
You can plug the USB devices directly into this connector.
PS/2 Mouse
Parallel(Printer) Port
25-pin female
PS/2 Keyboard COM1 VGA Speaker
Line-in
Mic-in
(2 ports)
(6-pin female)
USB
(Optional)
RJ45
(2 ports)
USB

1-14
Chapter 1 Motherboard 4S651M/4S651MN
1.7.1.3 Serial Interface Port: COM1
The serial interface port is sometimes referred to as an RS-
232 port or an asynchronous communication port. Mice,
printers, modems and other peripheral devices can be
connected to a serial port. The serial port can also be used
to connect computer systems together . If you like to transfer
the contents of your hard disk to another system, it can be
accomplished with serial port.
1.7.1.4 Parallel Interface Port
Unlike serial ports, parallel interface ports have been
standardized and should not present any difficulty interfacing
peripherals to your system. Sometimes called a Centronics
port, the parallel port is almost exclusively used with printers.
The parallel port on your system is a 25-pin, DB 25 connector.
1.7.1.5 Audio Port Connectors
Speaker out is a connector for Speakers or Headphones.
Line in is used for external CD player, Tape player, or other
audio devices. Mic is a connector for the microphones.
COM1
1.7.1.6 VGA Connector
15-pin VGA connector is on board for analog display.
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
VGA

1-15
Chapter 1 Motherboard 4S651M/4S651MN
RJ45: LAN Connector
One RJ45 connector is on Back Panel for network connection.
Transmission LED
(Green)
Connection LED
(Yellow)
1.7.1.7 LAN Connector (4S651MN only): RJ45

1-16
Chapter 1 Motherboard 4S651M/4S651MN
Note:
When you set up P4 power supply, both PW1 and PW2 must
be connected to power.
Important:
To switch on your power supply, please make sure:
1. Memory Module is properly installed.
2. Power supply setup is OK.
Pin PW2 Signal Pin PW2 Signal
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS-ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW-OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V
1.7.2 ATX Main Power Connectors: PW1/PW2
This connector supports the power button on-board. Using
the ATX power supply, functions such as Modem Ring Wake-
Up and Soft Power Off are supported on this motherboard .
This power connector supports instant power-on
functionality, which means that the system will boot up
instantly when the power connector is inserted on the board.
ATX 4-pin power connector only support +12V voltage.
Pin PW1 Signal Pin PW1 Signal
1 GND 2 GND
3 +12V 4 +12V
43
12
1
10
11
20

1-17
Chapter 1 Motherboard 4S651M/4S651MN
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
1.7.3 Floppy Disk Connector: FDD
This connector supports the provided floppy drive ribbon
cable. After connecting the single end to the board, connect
the two plugs on the other end to the floppy drives.
1.7.4 Hard Disk Connectors: IDE1/IDE2
These connectors are provided with IDE hard disk ribbon
cable into the package . After connecting the end of cable
with single connector to the mainboard, connect the other
two connectors at the other end to your hard disk. If you
install two hard disks, you must configure the second drive
to Slave mode by setting its jumper settings. BIOS now
supports SCSI device or IDE CD-ROM boot up (see "HDD
Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS
Features Setup of the BIOS SOFTWARE).
1.7.5 Fan Connectors: FAN1/2/3
FAN 3
Connector
Pin Definition
1 Ground
2 +12VDC
3 Signal
1
3
2
FAN2
Connector
FAN1
Connector
FAN1, FAN2 and FAN3 connectors

1-18
Chapter 1 Motherboard 4S651M/4S651MN
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
1.7.7 Wake On LAN Connector: WOL1
WOL1 is an Wake On LAN (WOL) connector for transmitting
the Ring signal from a PCI LAN card to wake up system. If you
use a PCI LAN card for system networking, you can connect
this Wake On LAN connector with the PCI LAN card on board
for Wake On LAN function.
WOL1: Wake On LAN Connector
1.7.6 Audio-In Connectors: CD1/AUX1
CD1 and AUX1 are the connectors for CD-Audio Input signal.
Please connect CD1 to CD-ROM CD-Audio output connector,
and connect AUX1 to Wave Audio source.
Pin CD1 Definition
1 XCDINL
2 XCDGND
3 XCDGND
4 XCDINR
Pin AUX1 Definition
1 WAV-L
2 GND
3 GND
4WAV-R
AUX 1 CD1
1 1

1-19
Chapter 1 Motherboard 4S651M/4S651MN
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
1.7.8 USB Pin Header: USB6
USB6
USB6 2x5 Pin Headers for support of external USB ports. Each
USB pin header requires a USB cable for expansion of two USB
ports. This optional USB cable is available from your motherboard
dealer or vendor.
+5V
UV1-
UV0+
GND GND
+5V
UV0-
NC
UV1+
12
910

1-20
Chapter 1 Motherboard 4S651M/4S651MN
SiS
962L
mPGA478B
Socket 478
PCI1
PCI2
DIMM1
DIMM2
AGP8X/4X
BIOS
JU9816G
ALC650
PCI3
RTL8101L
SiS
650GX
Battery
1.7.9 Front Panel Connectors: PANEL1
PSSW
The system power is controlled by a momentary switch
connected to this lead. Pushing the button once will switch
the system ON.
PowerLEDLead(PW_LED)
The system power LED lights when the system power is on.
Speaker Connector (SPEAKER)
The speaker (onboard or offboard) provides error beep code
information during the Power Self-Test when the computer
cannot use the video interface. The speaker is not connected
to the audio subsystem and does not receive output from the
audio subsystem.
Hard Drive LED Connector (HD_LED)
This connector supplies power to the cabinet IDE activity LED.
Read and write activity by devices connected to the Primary or
Secondary IDE connectors will cause the LED to light up.
Front Panel Connectors
PS SW
11
13
15
17
19
1
3
5
7
9
12
14
16
18
20
2
4
6
8
10
RST
HD LED
SPEAKER
PW LED
(+)
(+) (+)
(+)
