Activ8rlives Pulse Oximeter Bluetooth 4.0 User manual

www.acv8rlives.com
Works with: iOS 7.1 and above (iPhone 4s or later & iPad 3 or later)
and select Android devices running Android 4.3 and above.
Being acve, eang well and staying healthy.
Cardiovascular and Pulmonary Health

2
Acv8rlives
We are a healthcare company. Our mission is to empower you to take care of
your health and that of your family by self-management through self-
monitoring.
From tracking levels of physical acvity, weight, food intake, cardiovascular
and lung funcon, to a new generaon of at-home tesng for long-term lung
disease, we provide the devices and web-based tools to help you be acve,
eat well and stay healthy. Learn more at www.acv8rlives.com

3
Summary: Acv8rlives Pulse Oximeter Bluetooth 4.0
Please read this manual carefully before you use your
new device so that you do not injure yourself or oth-
ers, or cause damage to your new device through im-
proper use.
The Acv8rlives Pulse Oximeter Bluetooth 4.0 is a sim-
ple device which allows you to monitor aspects of your
cardiovascular funcon—especially if you have Asth-
ma, Chronic Obstrucve Pulmonary Disease (COPD),
Cysc Fibrosis (CF) and need to track you oxygen satu-
raon levels and pulse rate.
It sends informaon to your private personal Acv8rlives account via your Bluetooth 4.0
enabled Smartphone or Tablet so that you can see how well you are doing and keep track
of your health and wellbeing. You can stay commied to your goals by forming groups with
other members of your family, club, school or by joining our online communies. By work-
ing together in groups, we are more successful in achieving our health goals. Acv8rlives is
designed to help you achieve this.
The Acv8rlives Pulse Oximeter Bluetooth 4.0 helps you understand how your cardiovascu-
lar funcon can change throughout the week, during periods of ill health or as you change
your weight and acvity levels. It measures your oxygen saturaon levels of your blood
and your pulse rate using non-invasive monitoring technology.
When used with the Acv8rlives website, this device will help you to work out how close to
your target values you are at any given me. This manual shows you how to quickly set-up
your Acv8rlives Pulse Oximeter — it will take just 5 minutes if you follow this guide
through.
Included is a FREE Smartphone App and website, which also tracks your food intake via our
photo-based Food Diary and these images are sent directly to your Free Acv8rlives ac-
count. Your acvity, body composion and food intake can then all be viewed on a single
page. Talk about cause and eect—very powerful.

4

5
How does the Acv8rlives Pulse Oximeter
Bluetooth 4.0 work?
The Acv8rlives Pulse Oximeter Bluetooth 4.0 is a non-invasive method allowing the
monitoring of the saturaon of a haemoglobin in your blood.
A sensor is placed on a thin part of your body, usually a ngerp or earlobe (separate
adapter required).
Light of two wavelengths is passed through the nger (or earlobe) to a
photodetector. The changing absorbance at each of the two wavelengths (600 nm
and 880nm) is measured, allowing determinaon of the absorbances due to the
pulsing arterial blood alone (the blood owing from the heart and lungs), and
excludes venous blood (the blood returning to the heart and lungs), skin, bone,
muscle, fat, and in most cases nail polish.
A blood-oxygen monitor displays the percentage of arterial haemaglobin in the
oxyhaemoglobin conguraon. Acceptable normal ranges for paents without COPD
with a hypoxic drive problem are from 95-99 percent (%), in those with a hypoxic
drive problem would expect values between 88-94%. Values of 100% can indicate
carbon monoxide poisoning. For a paent breathing room air at sea level, an
esmate of arterial oxygen saturaon levels (pO2) can be made from the blood-
oxygen monitor SpO2 reading.
The monitored signal uctuates in me with the heart beat because the arterial
blood vessels expand and contract with each heart beat. By examining only the
varying part of the absorpon spectrum (essenally subtracng minimum absorpon
from peak absorpon), a monitor can ignore other ssues or nail polish (though black
nail polish tends to distort readings) and discern only the absorpon caused by
arterial blood. Detecng a pulse is therefore essenal to the operaon of the
Acv8rlives Pulse Oximeter Bluetooth 4.0 and it will not funcon if there isn’t one.
Your Pulse Oximeter will therefore give you two important pieces of informaon:
your oxygen saturaon levels and your pulse rate.
If in doubt, contact your Doctor for advice.

6
Display and Buon
Your Acv8rlives Pulse Oximeter has two parts, the DISPLAY (LCD) and the on/o BUTTON. It
is also supplied with a storage box and Quick Guide Instrucon manual.
Your Acv8rlives Pulse Oximeter also has a nger size adjustment which can accommodate
larger circumference ngers to be measures.
LCD Display
On/O Buon
1

7
Adding the Baeries
Your Acv8rlives Pulse Oximeter Bluetooth 4.0 uses two AAA baeries, which are supplied.
These are non-rechargeable baeries and no aempt should be made to recharge these.
Remove the back cover and add the
2 x AAA baeries in the direcon indicated.
Replace the cover. The DISPLAY should light up now.
If not used, it will power o aer about 30 seconds. A
faulty operaon would make it power o.
Remove the baeries if you are planning to store the
device for a long period of me. We hope you use your
device for many years of course, but long periods of
storage with the baeries in place may damage the
device and will cause the baeries to discharge.
Replace the set of baeries (2 x AAA) in the right direcon
when the baery sign on the DISPLAY is shown as “LO”.
2
Note: Do not tamper or aempt to open the unit in which the
baery is housed, your warranty will be invalidated. Substances
contained within the baery may damage the environment or
human health if handled and thus is a risk of electrical shock or
burns. When disposing of this product, ensure that it is collected
separately for special treatment and not as normal household
waste.

8

9
IMPORTANT NOTE: The Pulse Oximeter Bluetooth 4.0 uploads your data
directly to your FREE Acv8rlives account via your Smartphone or Tablet
which must be Bluetooth 4.0 enabled. Included is a FREE Smartphone
App (iOS 7.1 and above and Android 4.3 and above for select Android
devices with Bluetooth 4.0). The Pulse Oximeter Bluetooth 4.0 will not
work fully if you do not have a Bluetooth 4.0 enabled Smartphone or
Tablet.
An iOS 7.1 and above (iPhone 4s or later and iPad 3 or later). Android 4.3
and above for selected Android devices with Bluetooth 4.0 are required to
synchronise with your Body Analyser.
Your Bluetooth 4.0 Smartphone or Tablet
Wireless connecvity uses Bluetooth 4.0 to Smartphones and Tablets.
These operang systems are compable with the Acv8rlives App:
 iOS 7.1 and above. Must be run on an iPhone 4S or later or an iPad
3 or later. Earlier versions of these devices are not Bluetooth 4.0
enabled.
 Android 4.3 and above for selected Android devices with
Bluetooth 4.0.
 Many non-Bluetooth devices can be made to communicate with
the Pulse Oximeter using our POGO device, which plugs into the
earphone socket of your Smartphone or Tablet and is sold
separately. See our website (www.acv8rlives.com) for further
informaon.
Compable Bluetooth 4.0 Smartphones
or Tablets
3

10
3
The Contactless Thermometer Bluetooth 4.0 uploads and downloads informaon directly to
and from your FREE Acv8rlives account each me your Bluetooth 4.0 Smartphone or Tablet
is connected to it.
Download the FREE Acv8rlives Smartphone App from the App Store appropriate to your
device. Search for Acv8rlives.
Apple App Store
iOS 7.1 or higher and iPhone (4s or later) and iPad (3
or later). Earlier versions do not support Bluetooth
4.0.
Google Play Store
Select Android devices running the Android 4.3 or
later. Devices must support Bluetooth 4.0. See our
website for a list of supported Android Smartphones
and Tablets.
Installing the FREE Acv8rlives App on Your
Smartphone or Tablet (requires Bluetooth 4.0
enabled device)

11
Register for your FREE
Acv8rlives Account
Once you have installed the Acv8rlives App, open
the App making sure your Smartphone or Tablet is
connected to the internet with Bluetooth 4.0
switched on.
If you have already Registered, you can Login to your
Acv8rlives account, click the Login icon.
If you have not previously Registered for your FREE
Acv8rlives Account, then click the Register icon at
the boom right-hand corner of the App screen.
Compleng your Registraon
To complete the Registraon for your FREE
Acv8rlives Account, add in the correct details for
yourself by following the instrucons on the App and
selecng Next at the top of each page.
As you complete the informaon, your Acv8rlives
account begins to learn more about you and your
health. These data are used to help you with your
self-management through self-monitoring. You can
always edit these data later if you make an error, but
please try to be accurate in entering your weight,
height and age. These are important data. A
conversion chart to assist you can be found on our
website under the Informaon tab in the top menu.
Remember your Username (email) and Password
details associated with your account and keep these
safe.
4

12

13
Taking a Measurement
Open the Acv8rlives App on your
Smartphone or Tablet and ensure that
Bluetooth 4.0 switched on.
Insert your index (rst) nger into your
Acv8rlives
Press the
If you want to change the orientaon of
the screen, press the
to rotate the screen.
Wait now unl the trace line becomes
stable, this may take up to 30 seconds. The
Pulse Oximeter will automacally adjust its
sengs to your nger size.
Remain sll.
Make sure you don
with your
Bluetooth 4.0 in direct sunlight or near
bright lights.
5
Navigaon on the App
The Food Diary is the default page on the
App.
By pressing this in the top lehand
corner it will allow you to navigate via the
App menu.
If you need informaon, press for help
on each page.
Press for MAIN MENU

14

15
Ready to Take Pulse
Oximeter Reading
 Ensure Bluetooth 4.0 is turned on
your Smartphone or Tablet.
 Press the On/O Buon on the Pulse
Oximeter to reawaken the device.
 Ensure the Acv8rlives App is turned
on.

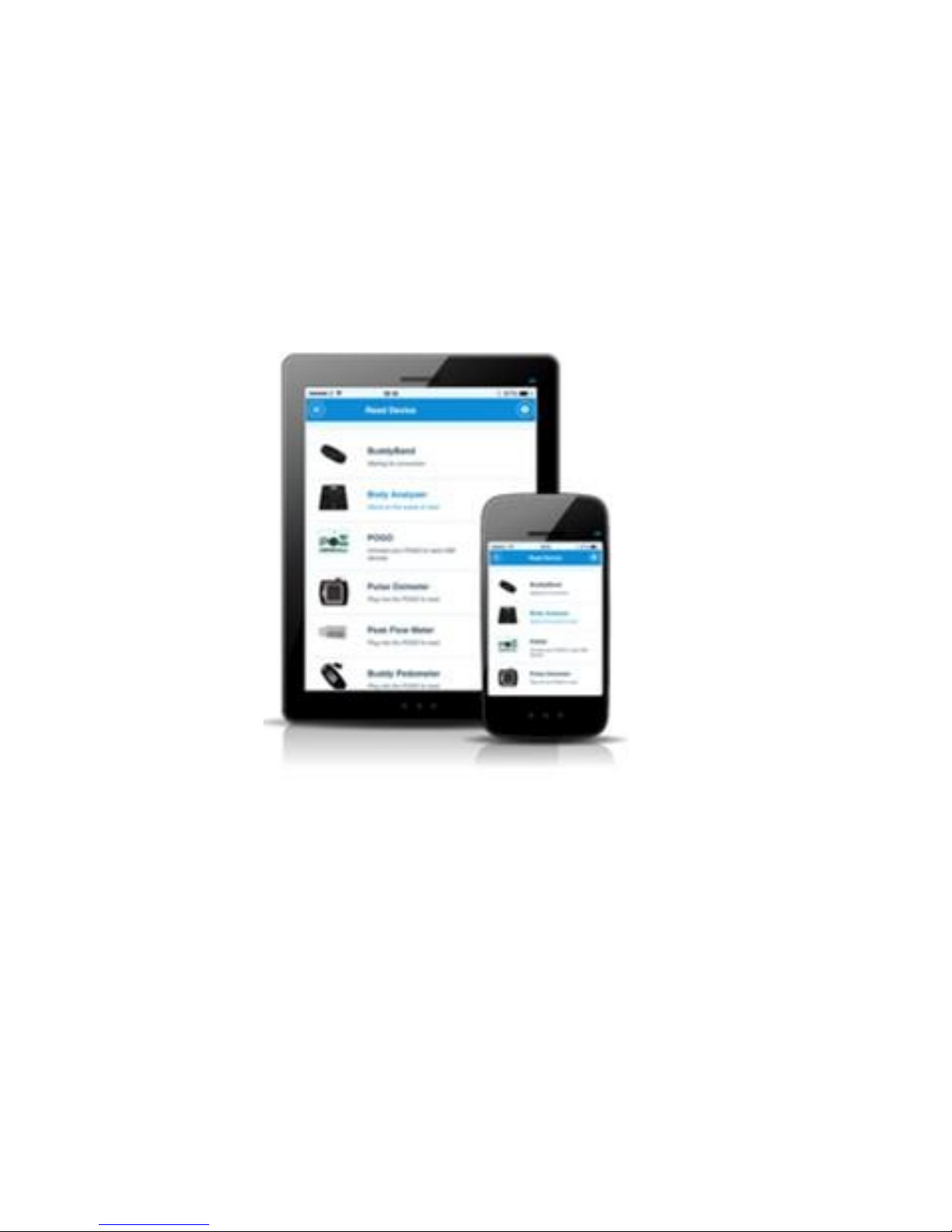

 With the Upload devices page open
on your Acv8rlives App the Blue-
tooth symbol will ash.
 Once connecon is made, the Blue-
tooth Symbol remains and stops
ashing.
 The Acv8rlives App is now talking
with your Pulse Oximeter.
Taking Measurement
Now insert your index nger into the device so
that the p overlies the reading window on
the inside of the nger cu.
Press the On/O BUTTON once.
You will need to wait for the traceline to be-
come stable (up to 30 seconds) and remain
sll throughout.
Press

16

17
Reading the Data from
the Pulse Oximeter
The App will ask
“Do you want to read from the Bluetooth
Pulse Oximeter now?”
Select Yes.
Remain sll while the Pulse Oximeter
measures your blood oxygen saturaon
and pulse rate.
This takes a few seconds and when
complete, the display on the Pulse
Oximeter switches o to save power.
Once the data has been captured on your
Smartphone, the Pulse Oximeter image
indicates a GREEN ck/check mark to
indicate that the data has been
successfully uploaded.
A summary of your data is also displayed.
Easy! No buons, no programming and
you can use this for all the members of the
family who can each have their own
Acv8rlives account.
7

18
Sending your Data to the Cloud
If your Smartphone or Tablet is connected to
the internet by WiFi, your data will upload to
your online Acv8rlives account
automacally.
If you are connected by the cellular network,
you have the choice whether to upload now
or later, perhaps when you are connected by
WiFi.
When on a cellular network, noce the
Cloud symbol is now alternang GREEN and
RED, indicang that there is data to Upload.
Touch the Cloud and you will be asked
whether you want to Upload Now.
With the data stored in the Cloud, this
means that you can view your data (from
today, yesterday, a week, a month or years
ago) at any me via Smartphone App or via
the main Acv8rlives website
(www.acv8rlives.com). Use the same
Username and Password that you used for
your App to Login to your account on the
main website in any browser.
The website has a lot more features than
can be incorporated into an App.
john
8

19
Viewing your Pulse Oximeter Data on Smartphone
Health Data
From the menu of the Acv8rlives App you
can view your Health Data.
From this screen, you can select and
deselect which data you want to show in
this top graph. Within this secon you can
start to see trends of what aects the other
health parameters, and you begin to learn
good behaviours.
Along with the Acv8rlives Pulse Oximeter,
you can monitor and adjust your levels of
physical acvity (BuddyBand), body
composion (from the Body Analyser
Bluetooth 4.0) and food intake can also be
viewed on a single page. Talk about cause
and eect - very powerful.
9

20
