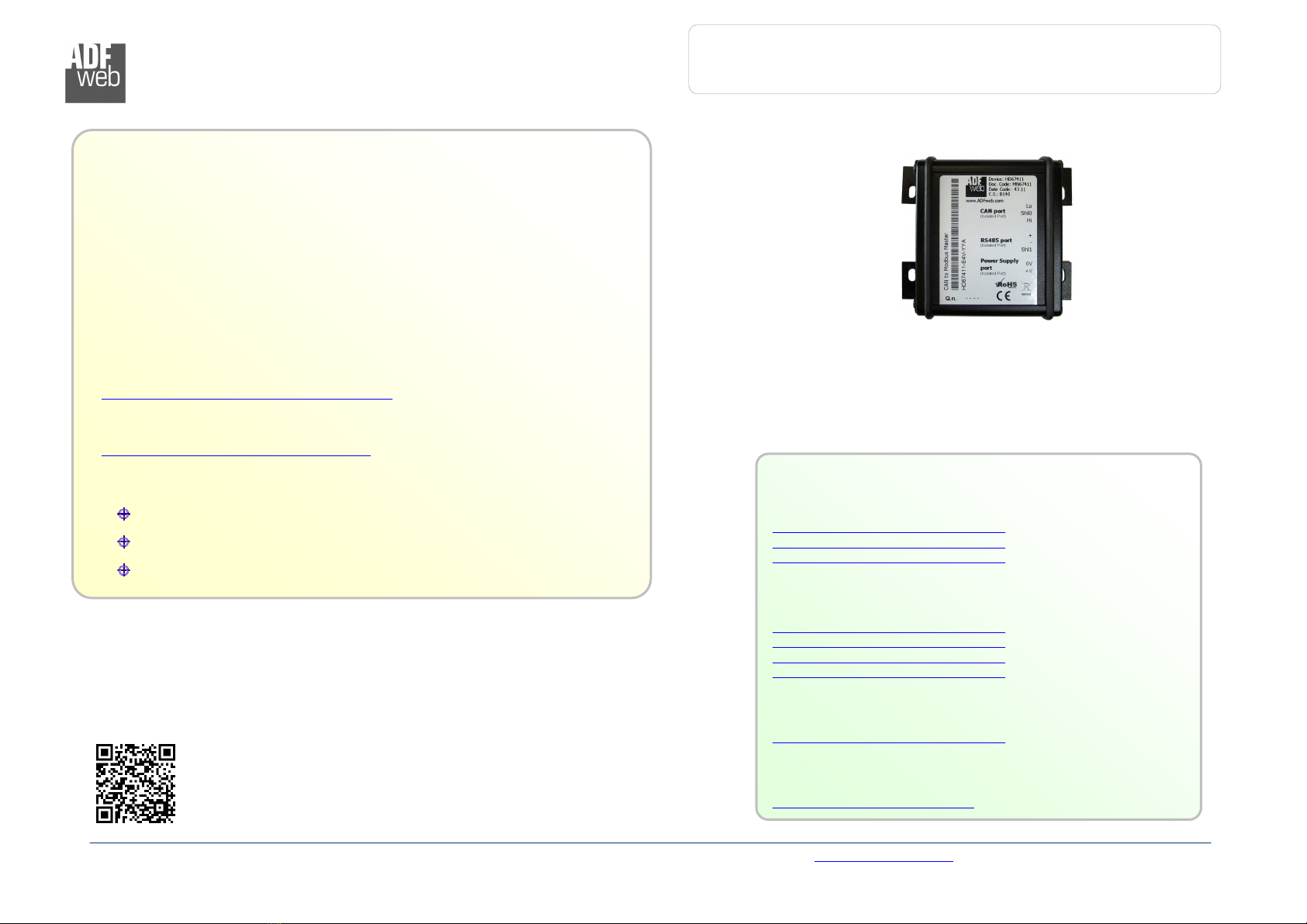

ADF Web HD67458 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 1 of 31
User Manual
Revision 1 000
English
NMEA 2000 / EtherNet/IP –
Converter
(Order Code: HD67458)
for Website information:
www adfweb com?Product=HD67458
for Price information:
www adfweb com?Price=HD67458
Benefits and Main Features:
Very easy to configure
Isolation between two buses
Temperature range: -40°C / +105°C (-40°F / +221°F)
For other Gateways / Bridges:
CAN from/to Modbus
See also the following links:
www adfweb com?product=HD67012 (Modbus RTU Slave)
www adfweb com?product=HD67514 (Modbus TCP Master)
www adfweb com?product=HD67515 (Modbus TCP Slave)
CANo en from/to Modbus
See also the following links:
www adfweb com?product=HD67001 (Modbus RTU Master)
www adfweb com?product=HD67502 (Modbus RTU Slave)
www adfweb com?product=HD67504 (Modbus TCP Master)
www adfweb com?product=HD67505 (Modbus TCP Slave)
Do you have an your customer protocol?
See the following links:
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 2 of 31
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
LEDS 9
ETHERNET/IP 10
NMEA 11
USB 11
USE OF COMPOSITOR SW67458 12
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
RECEIVE NMEA 2000 FRAMES 17
SEND NMEA 2000 FRAMES 18
UPDATE DEVICE 19
PLC CONFIGURATION 21
MECHANICAL DIMENSIONS 25
ORDER CODE 29
ACCESSORIES 29
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SUPPORT 31
RETURN POLICY 31
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision Date Author Cha ter Descri tion
1 000 04/09/2019 Ff All First release version
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 3 of 31
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 4 of 31

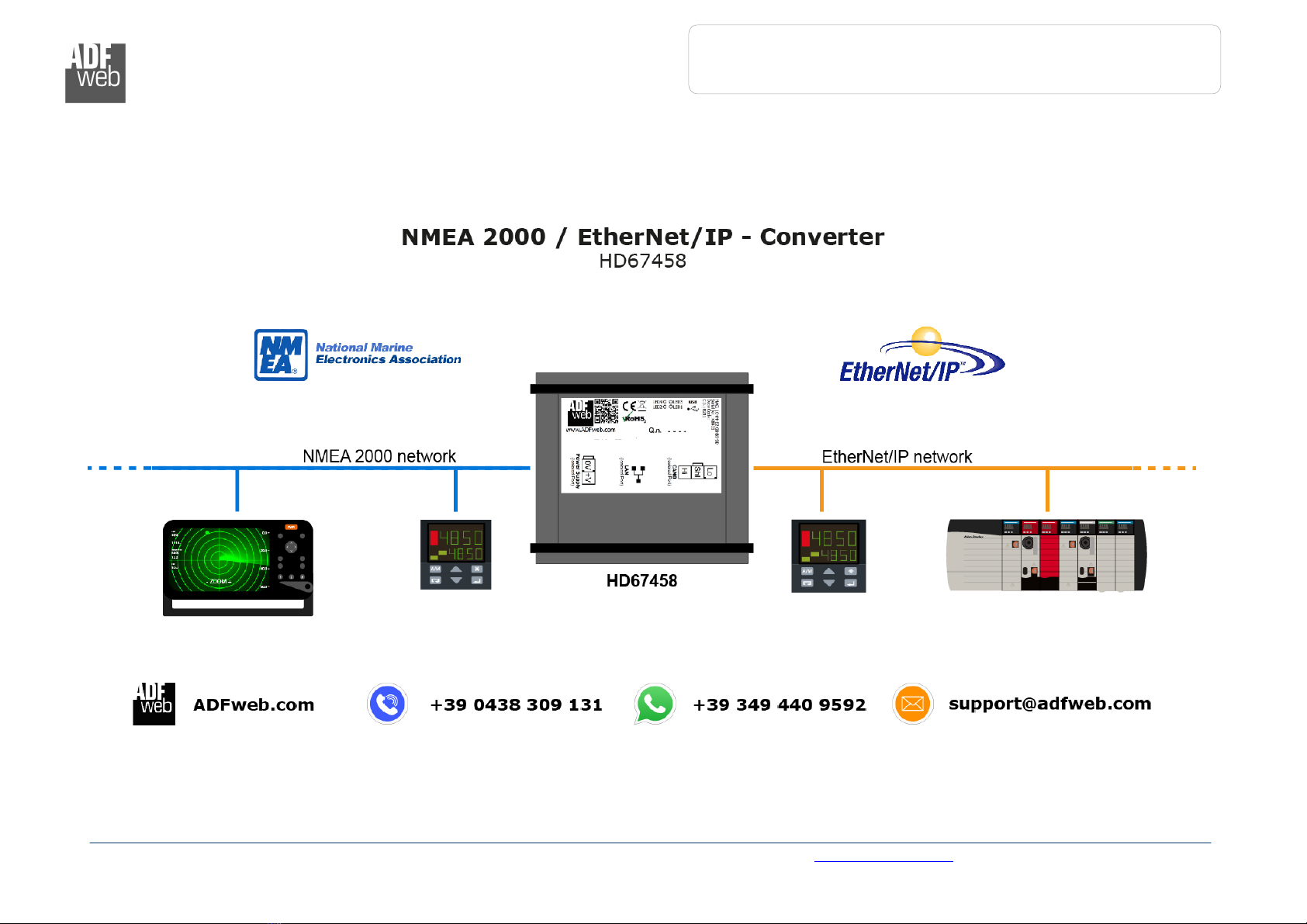

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 5 of 31
CONNECTION SCHEME:

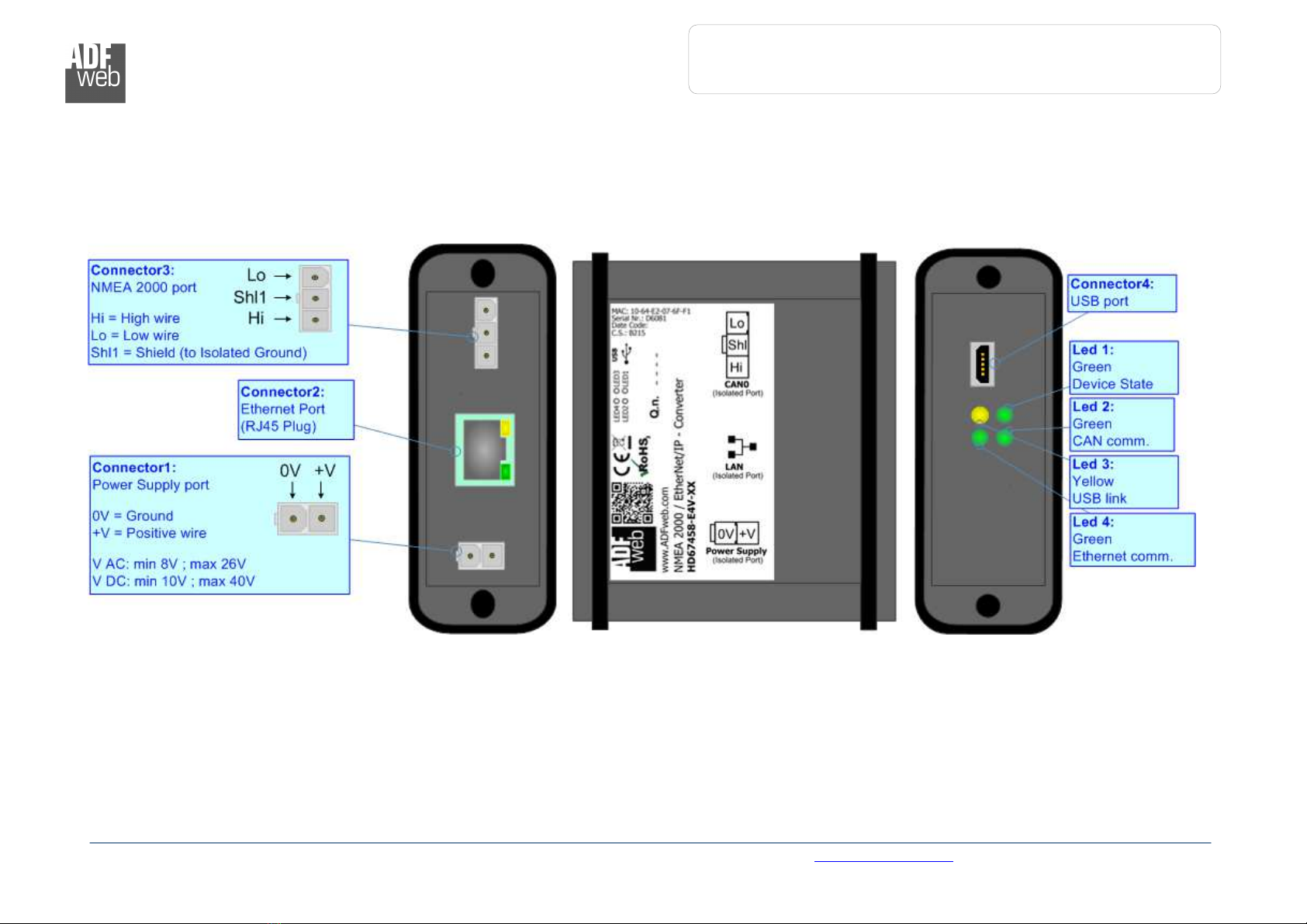

Figure 1a: Connection scheme for HD67458-E4x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 6 of 31

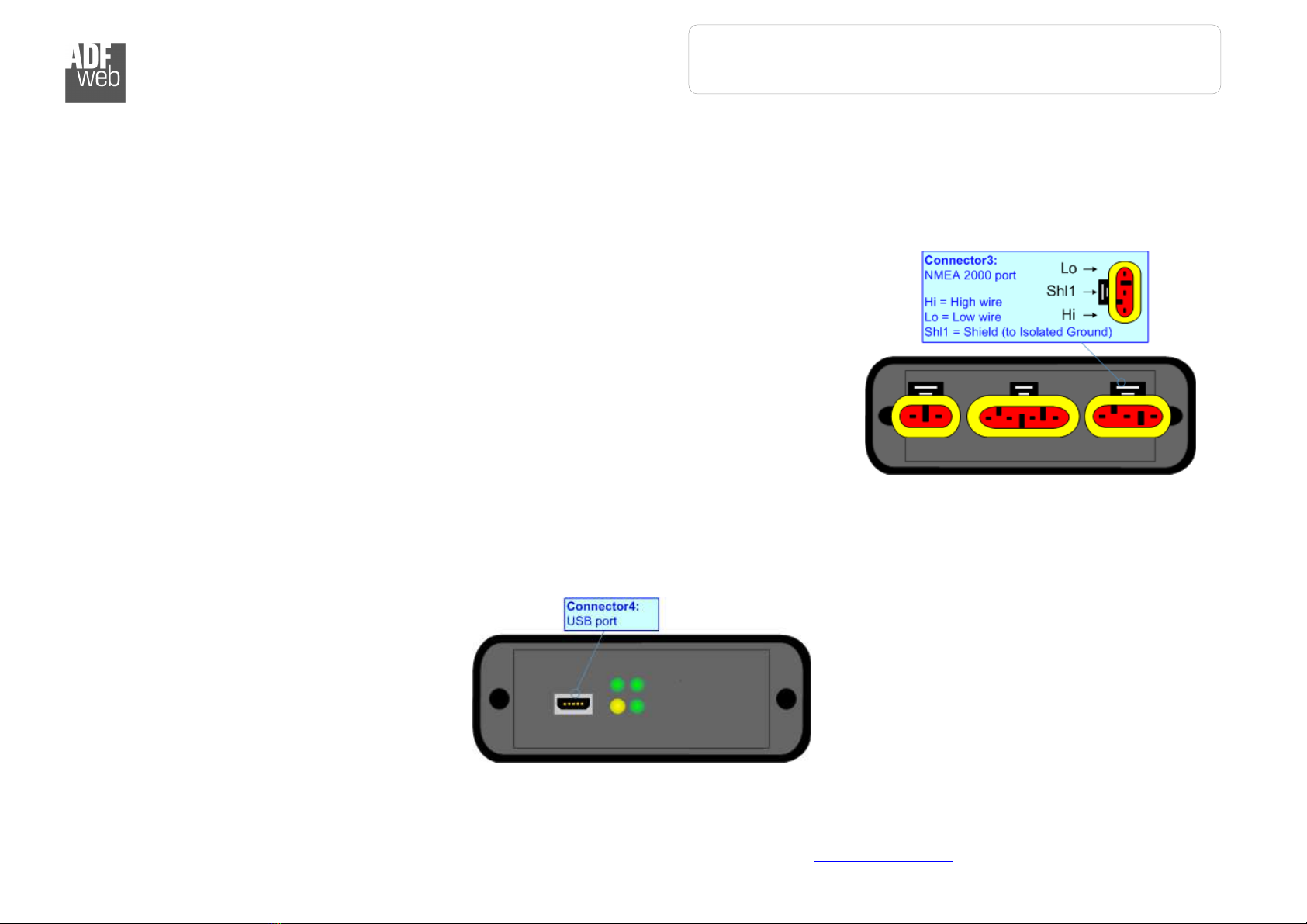

Figure 1b: Connection scheme for HD67458-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 7 of 31
CHARACTERISTICS:
The “HD67458” series are rugged devices used to interface EtherNet/IP Master with a NMEA 2000 network
With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,
vertical, oblique)
It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1 5”
connectors If is resined, the enclosure, like the “AMP SuperSeal 1 5" connectors, is waterproof (IP63)
The device have these characteristics:
Triple 4kV isolation between Power Supply / Ethernet / CAN;
Varnished / Resined (optionally);
Wide power supply input range: 8…26V AC | 10…40V DC;
Mini-Fit® / AMP SuperSeal 1 5 connectors;
Metal enclosure with fixing lugs;
Possibility to use Metal hose clamps for fixing it without using lugs;
Microprocessor for data control;
Wide temperature range: -40°C / 105°C (-40°F / 221°F)
CONFIGURATION:
You need Compositor SW67458 software on your PC in order to perform the following:
Define the parameter of the EtherNet/IP bus;
Define the parameter of the NMEA 2000 bus;
Define the list of NMEA2000 messages in reception and transmission ;
Update the Firmware and/or the Project

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 8 of 31

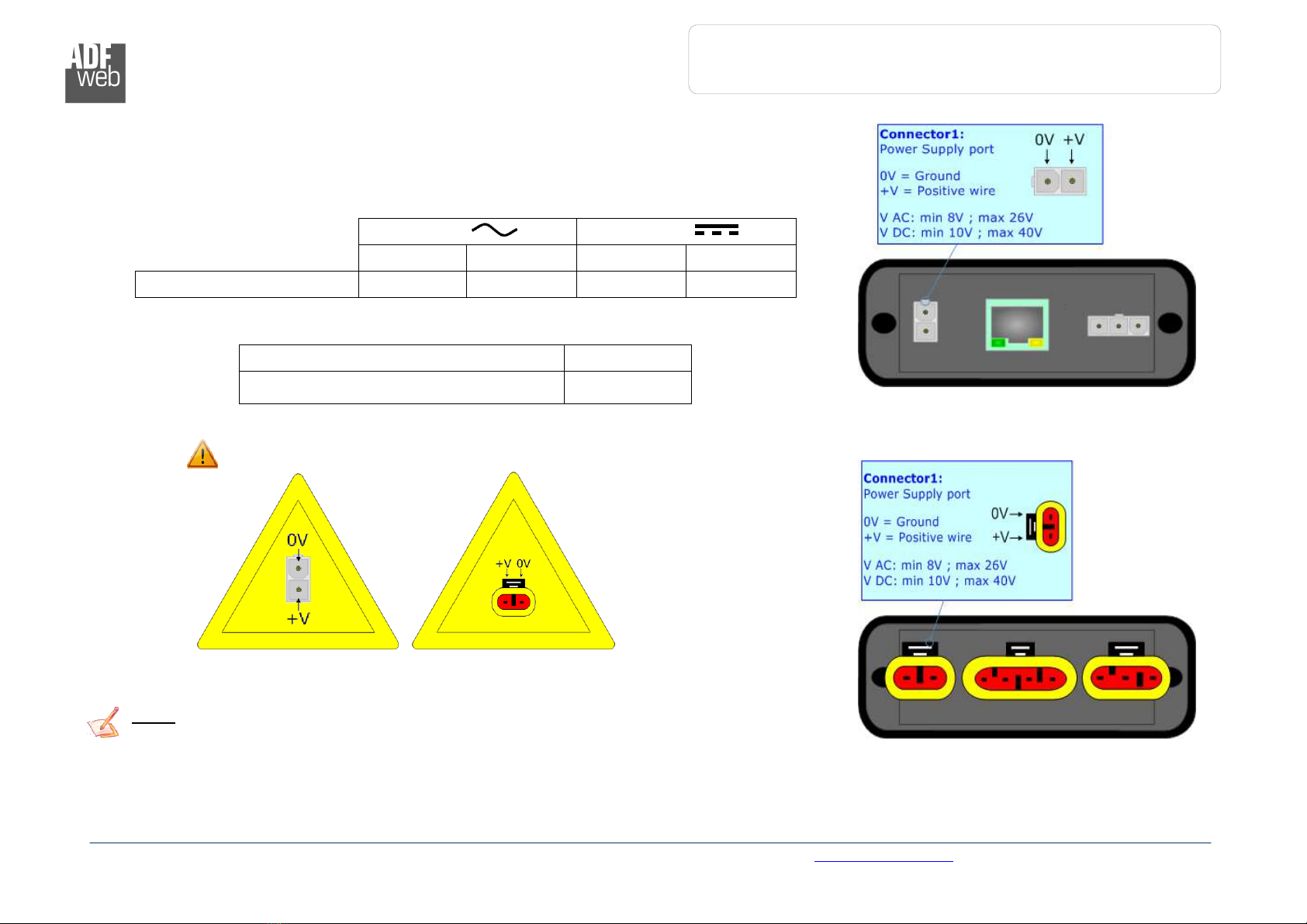

POWER SUPPLY:
The devices can be powered between a wide range of tensions For more details see the two
tables below
VAC
VDC
Vmin Vmax Vmin Vmax
HD67458-Exx-xx 8V 26V 10V 40V
Consumption at 24V DC:
Device W/VA
HD67458-Exx-xx 4
Note: It is possible to use also negative tensions In this case the polarity must be
inverted
Caution: Not reverse the olarity ower
HD67458-E4x-xx
HD67458-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 9 of 31
LEDS:
The device has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: CAN Communication
(green) Blinks when NMEA 2000 frames are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: USB link (yellow) OFF ON
4: Ethernet communication
(green)
Blinks when the EtherNet/IP communication is
working
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 10 of 31

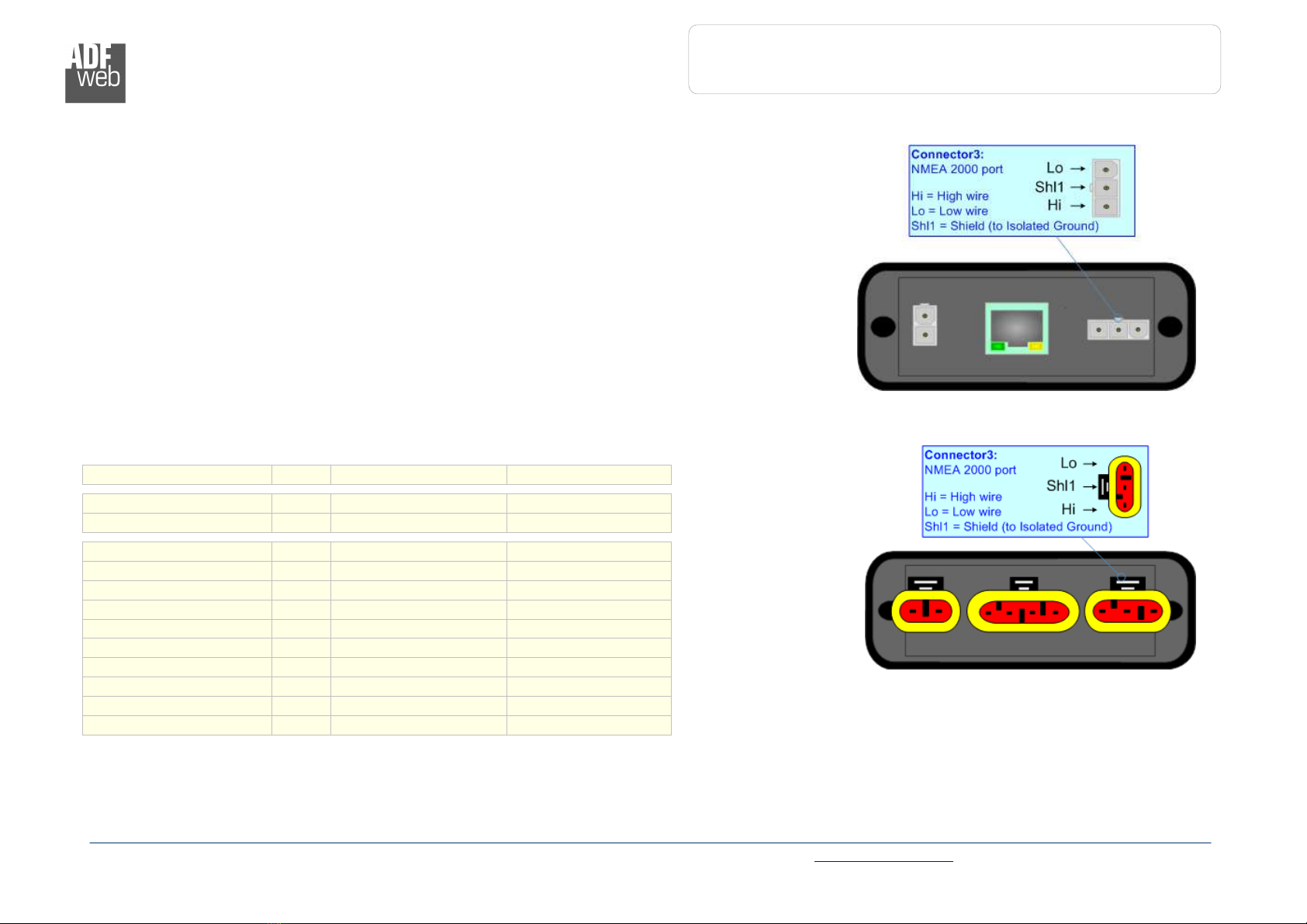

NMEA 2000:
The connection of the NMEA 2000 in the HD67458-E4x-xx device must be made with a 3way
MiniFit Female connector The pinout of Male MiniFit connector of the board is at right side of
the page
The connection of the NMEA 2000 in the HD67458-E7x-xx device must be made with a AMP
SuperSeal 1 5 Male connector The pinout of Female connector of the board is at right side of
the page
The termination of NMEA 2000 line, with a 120Ω resistor, in the HD67458-Exx-xx is made
internally of the device; when the order is performed If the device have the EtherNet/IP
terminated the code is the follow: HD67458-Exx-Yx; otherwise is this other: HD67458-Exx-Nx
Cable characteristics:
DC arameter: Impedance 70 Ohm/m
AC arameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [b s] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 11 of 31
ETHERNET:
The connection of EtherNet/IP in the HD67458 device must be made with at least a Category 5E cable The maximum length of the cable
should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the device
to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable
The connection of EtherNet/IP in the HD67458-E4x-xx device must be made with RJ45
connector
The connection of the EtherNet/IP in the HD67458-E7x-xx device must be made with a AMP
SuperSeal 1 5 Male connector The pinout of Female connector of the board is at right side of the
page
USB:
The USB port is used to start the converter in Boot Mode It is necessary to use a Micro USB type B cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 12 of 31
USE OF COMPOSITOR SW67458:
To configure the Converter, use the available software that runs with Windows called SW67458 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67458, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
F
igure 2: Main window for SW67458

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 13 of 31

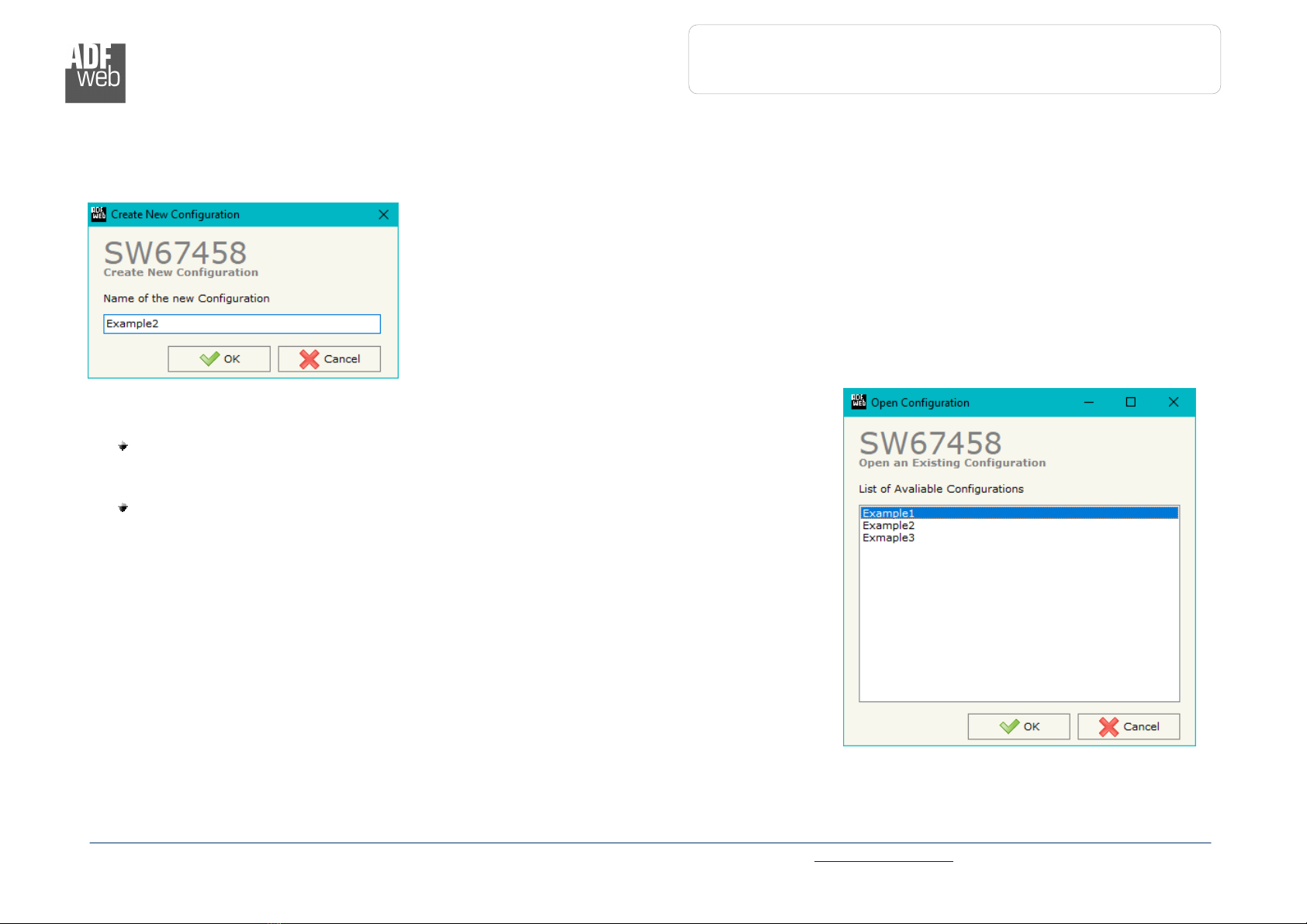

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “NMEA 2000 / EtherNet/IP - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “O en Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 14 of 31
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software U date at Start of Program”, the
SW67458 checks automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 15 of 31
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 16 of 31
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, NMEA 2000 and
EtherNet/IP
By Pressing the “Set Communication” button from the main window for SW67458 (Fig 2) the window
“Set Communication” appears (Fig 3)
The window is divided in two sections, one for the EtherNet/IP and the other for the NMEA 2000
The means of the fields for “EtherNet/IP” are:
In the field “IP ADDRESS” the IP address of the EtherNet/IP side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of the EtherNet/IP side of the converter is defined;
In the field “GATEWAY” the default gateway of the network is defined This feature can be
enabled or disabled pressing the Check Box field This feature is used for going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined The port has a fixed
value of 34964;
In the field “Number Byte In ut” the number of byte from the EtherNet/IP to the converter is
defined (at maximum it is possible to use 496 byte);
In the field “Number Byte In ut” the number of byte from the converter to the EtherNet/IP is
defined (at maximum it is possible to use 496 byte)
The means of the fields for the “NMEA 2000” section are:
In the field “Baud Rate” the baud rate of the NMEA 2000 is defined;
In the field “Time Out Data (s)” the timeout of the data is defined If this time is elapsed, the
value of the data of the NMEA 2000 frame become “0xFF” (if the “Cancel Data” field is checked in
the “Receive NMEA 2000” section);
If the field “Enable Peer to Peer” is checked, the gateway accepts all the ID that have the
PGN inserted in the “Receive Frames” section

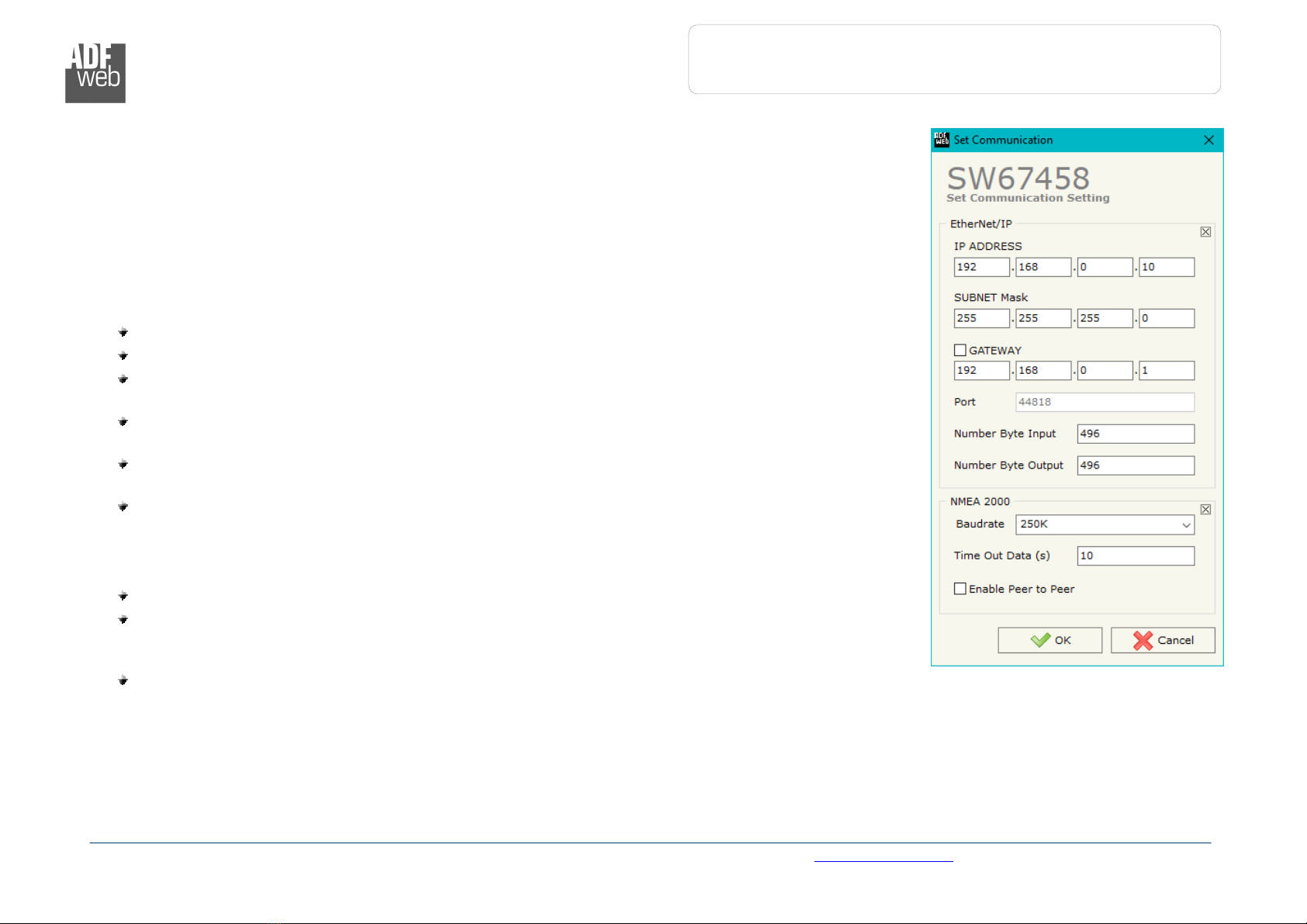

Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 17 of 31
Figure 4: “Receive Frames” window
RECEIVE NMEA 2000 FRAMES:
The means of the fields are:
In the field “PGN” the PGN of the NMEA 2000 message to receive is defined (in the NMEA 2000 protocol, the PGN is an identifier);
In the field “Source Address” the address of the device that sends the frame is defined
If the field “Trans ort Protocol” is checked, the frame can use transport protocol functions;
If the field “Fast Packet” is checked, the frame will use the Fast Packet functions;
In the field “Start Byte” the starting byte to save internal memory array is defined;
In the field “N Bytes” the number of consecutive byte from the starting one is defined For example, if the Start Byte is ‘20’ and Num
Bytes is ‘10’, it is possible to read the byte from 20 to 30;
If the field “Cancel Data” is checked, when the data is oldest of the time inserted in the “TimeOut Data”, the converter sets “0xFF” in
the bytes of the internal memory array reserved for the PGN;
In the field “Mnemonic” the description for the frame is defined

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 18 of 31
Figure 5: “Send Frames” window
TRANSMIT NMEA 2000 FRAMES
The means of the fields are:
In the field “Priority” the priority of the NMEA 2000 message is defined In NMEA 2000 protocol, the priority is a number between 0
and 7 ‘0’ is the highest priority and ‘7’ is the lowest;
In the field “PGN” the PGN of the NMEA 2000 message to send is defined (in NMEA 2000 protocol the PGN is an identifier);
In the field “Source Address” the address of the device that sends the frame is defined;
If the field “Fast Packet” is checked, the frame will use the Fast Packet functions;
In the field “Num Byte” the number of bytes of the NMEA 2000 message is defined;
In the field “Transmition Ty e” the transmission type is defined:
oOn Data Change: NMEA 2000 message is sent only when the data from EtherNet/IP are changed;
oOn Timer: NMEA 2000 message is sent cyclically;
In the field “Send Timer” the delay (in milliseconds) with which sending the NMEA 2000 message is defined (for “On Timer”
transmission type);
In the field “Mnemonic” a description for the frame is defined

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 19 of 31
UPDATE DEVICE:
By pressing the “U date Device” button it is possible to load the created Configuration into the
device; and also the Firmware, if is necessary
If you don’t know the actual IP address of the device you have to use this procedure:
Connect the USB cable;
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Turn ON the device;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute u date firmware” button to start the upload
When all the operations are “OK”, the updating is done;
Remove the USB cable
If you know the actual IP address of the device you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute u date firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode
Figure
6
: “
Update device
” window
s

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
NMEA 200
0
/
Ether
N
et/IP
-
Converter
Document code: MN67458_ENG Revision 1 000 Page 20 of 31
Note:
When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67458
Note:
When you receive the device, for the first time, you have to update also the Firmware in the HD67458 device
Warning:
If the Fig 7 appears when you try to do the Update before require assistance try
these points:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 10 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet For
do this you have to launch the "Command Prompt" and write the command "arp -d"
Pay attention that with Windows Vista, Seven, 8 or 10 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock
In the case of HD67458 you have to use the software “SW67458”: www adfweb com\download\filefold\SW67458 zip
Figure
7
: “
rotection” error
