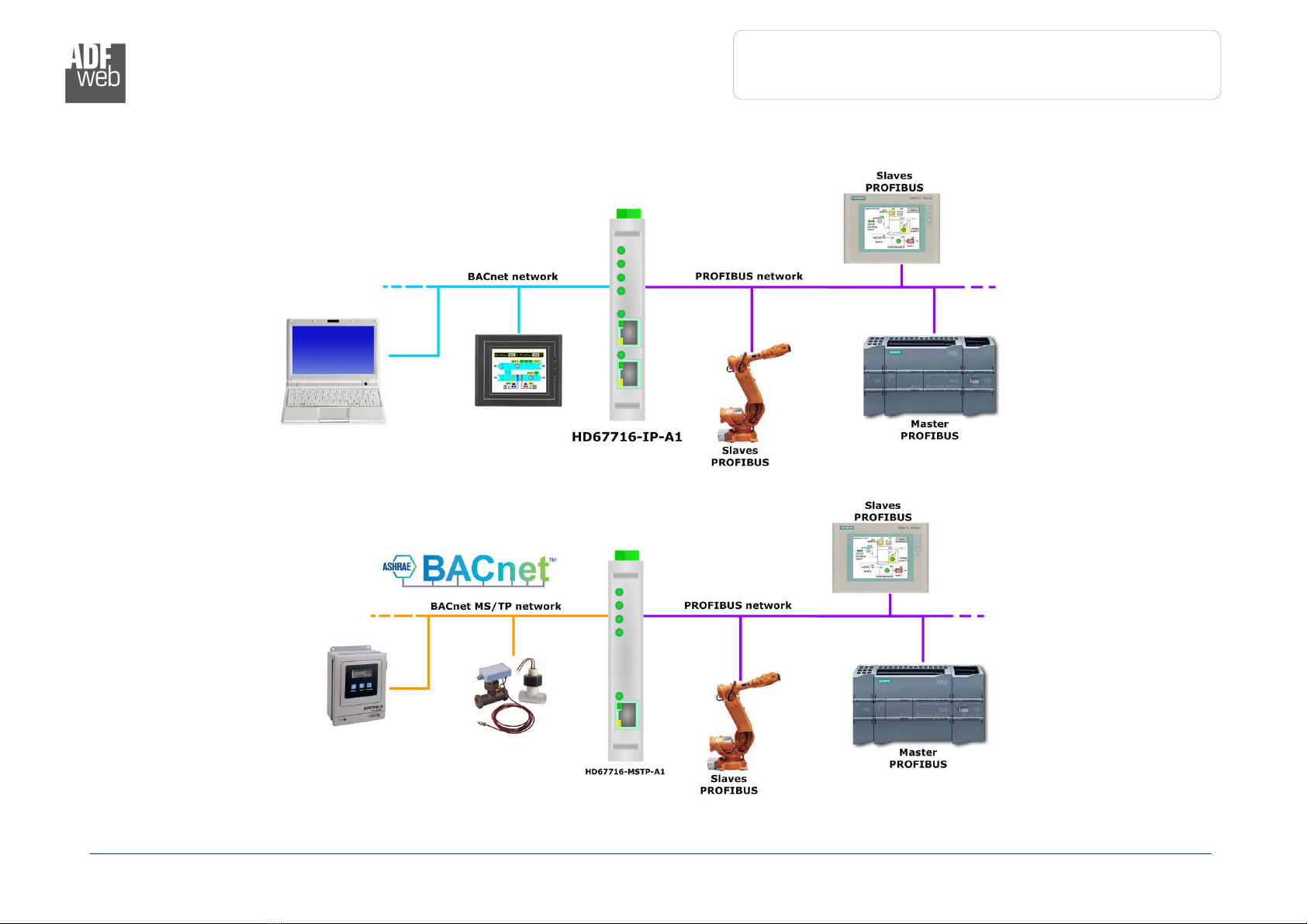

EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 5 of 28
CONNECTION SCHEME:
Figure 1a: Connection scheme for HD67716-I -A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 6 of 28
Figure 1b: Connection scheme for HD67716-MST -A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 7 of 28
CHARACTERISTICS:
The HD67716 is a BACnet Master / PROFIBUS Slave - Converter.
They allows the followin characteristics:
Up to 512 BACnet objects in readin and 512 objects in writin ;
Triple isolation between PROFIBUS - Power Supply, PROFIBUS - BACnet, BACnet - Power Supply;
Two-directional information between PROFIBUS bus and BACnet bus;
Mountable on 35mm Rail DIN;
Wide power supply input ran e: 8…24V AC or 12…35V DC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67716 software on your PC in order to perform the followin :
Define the parameters of BACnet line;
Define the parameters of PROFIBUS line;
Define the BACnet data that the converter reads;
Define the BACnet data that the converter writes;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 8 of 28
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67716-IP-A1 3.5
HD67716-MSTP-A1 3.5
HD67716-IP-A1
HD67716-MSTP-A1
Caution:
Do n
ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 9 of 28
FUNCTION MODES:

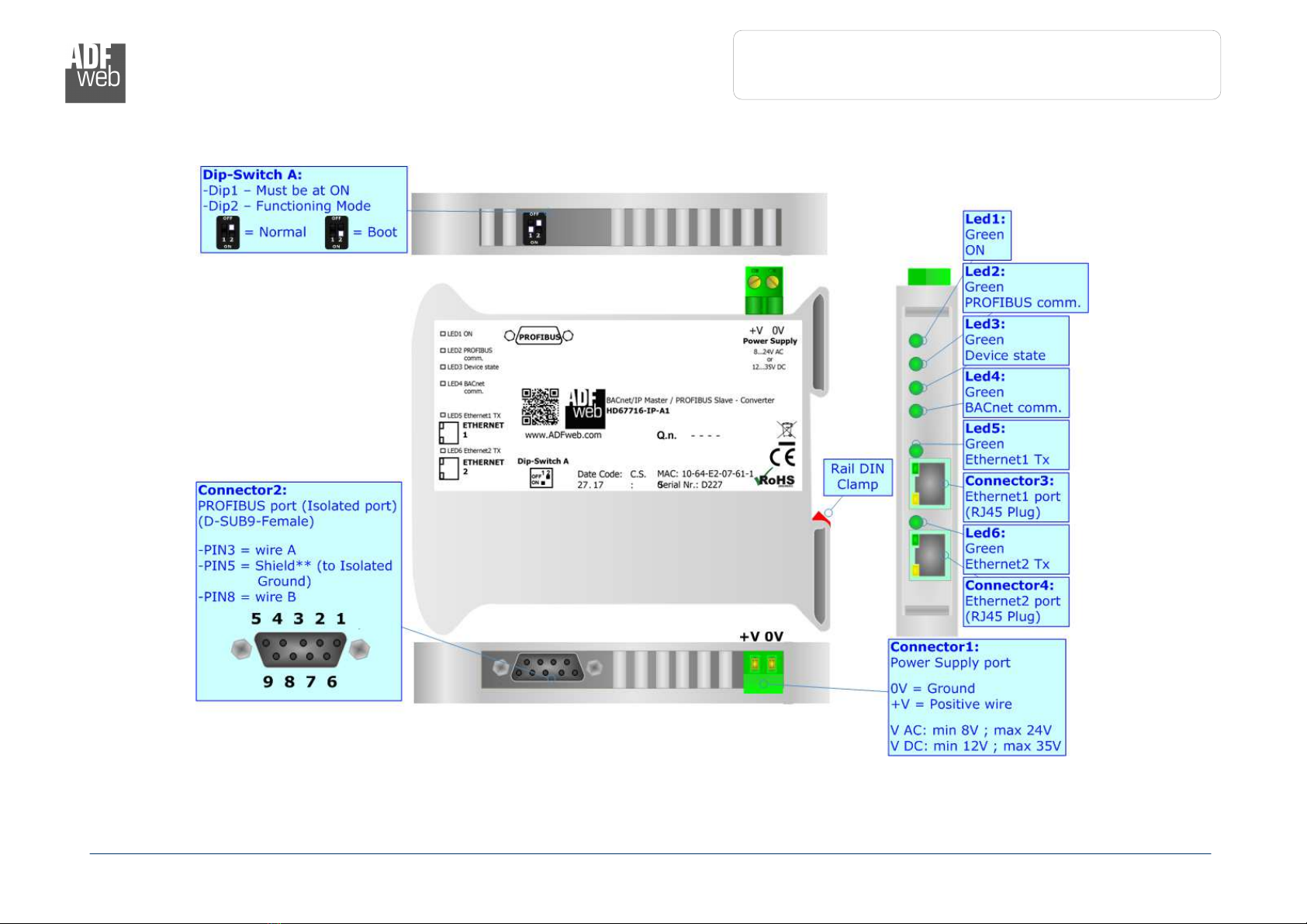

The device has ot two function modes dependin on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploadin the Project and/or Firmware.
For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.
Accordin to the functionin mode, the LEDs will have specific functions, see ‘LEDS’ section.
Warnin :
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 10 of 28
LEDS:
The device has ot six LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply volta e ]
( reen)
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in pro ress
2: PROFIBUS comm. ( reen) Blinks quickly when PROFIBUS communication is
workin
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in pro ress
3: Device state ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in pro ress
4: BACnet comm. ( reen) Blinks quickly when a BACnet response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in pro ress
5: Ethernet1 Tx (only for
BACnet/IP version) Blinks when Ethernet frames are transmitted Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in pro ress
6: Ethernet2 Tx Blinks when Ethernet frames are transmitted Blinks quickly: Boot state
Blinks very slowly (~0.5Hz : update in pro ress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 11 of 28
ETHERNET:
The BACnet/IP connection must be made usin Connector3 and/or Connector4 of HD67716-IP-A1 with at least a Cate ory 5E cable. The
maximum len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
100 Mbps. To connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is
recommended the use of a cross cable.
RS485:
The BACnet MS/TP connection must be made usin Connector5 of HD67716-MSTP-A1.
To terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in fi ure.
The maximum len th of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 12 of 28
PROFIBUS:

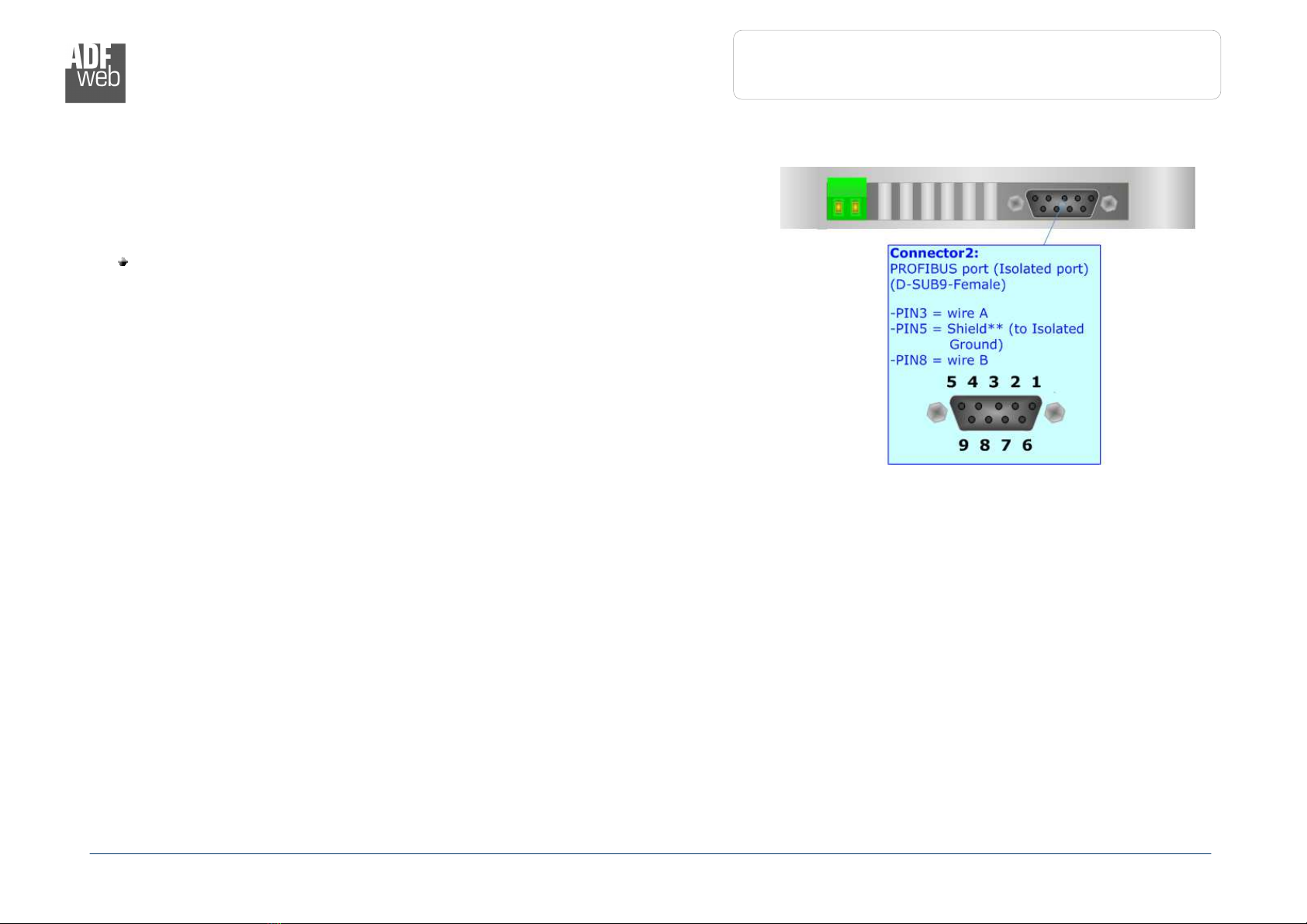

The PROFIBUS uses a 9-pin D-SUB connector. The pin assi nment is defined like in
the ri ht fi ure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50 PROFIBUS
Cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 13 of 28
USE OF COMPOSITOR SW67716:
To confi ure the Converter, use the available software that runs with Windows called SW67716. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).

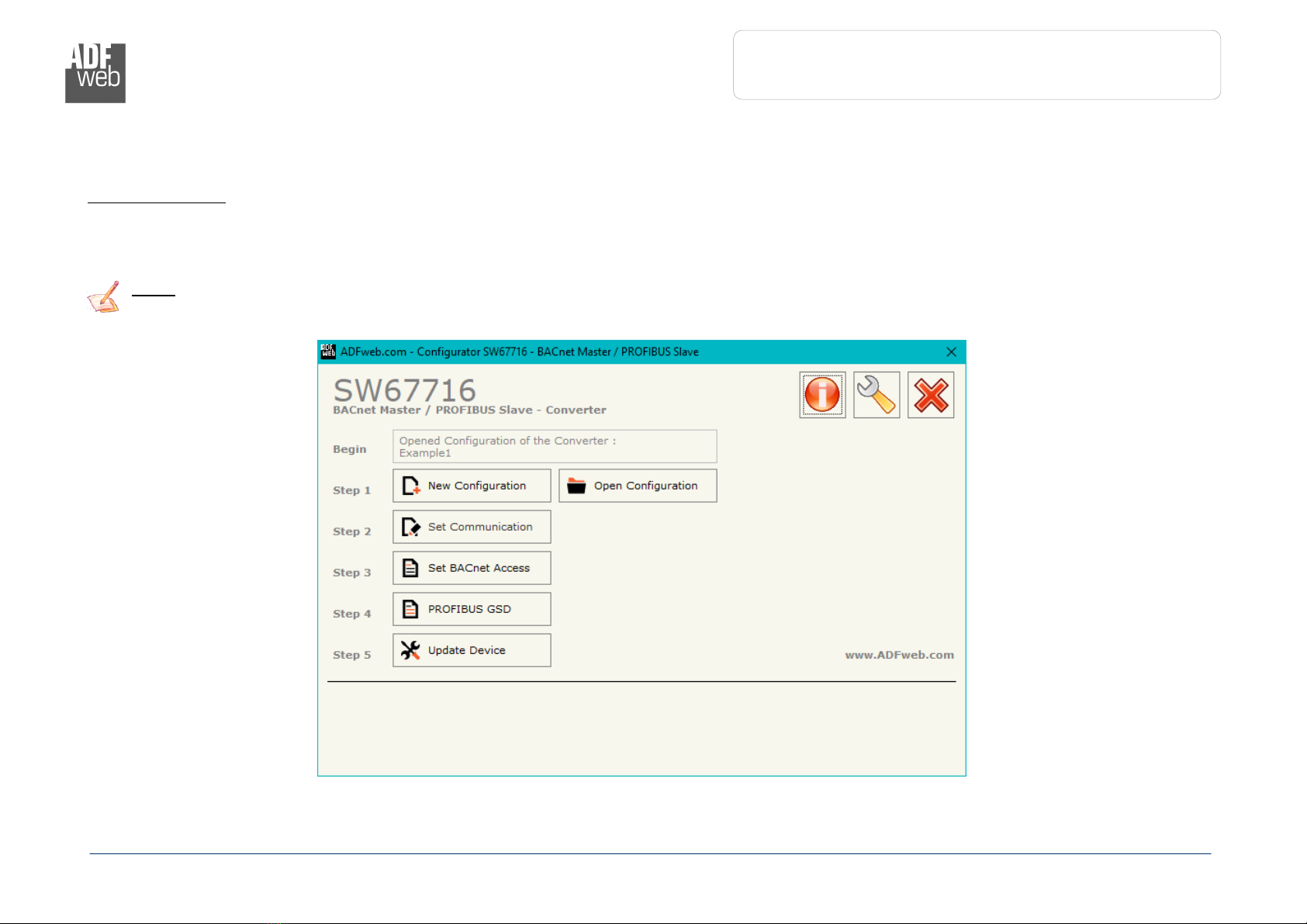

When launchin the SW67716, the window below appears (Fi . 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67716

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 14 of 28
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s confi uration.
A device’s confi uration can also be imported or exported:
To clone the confi urations of a pro rammable “BACnet Master / PROFIBUS Slave -
Converter” in order to confi ure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 15 of 28
SOFTWARE OPTIONS:

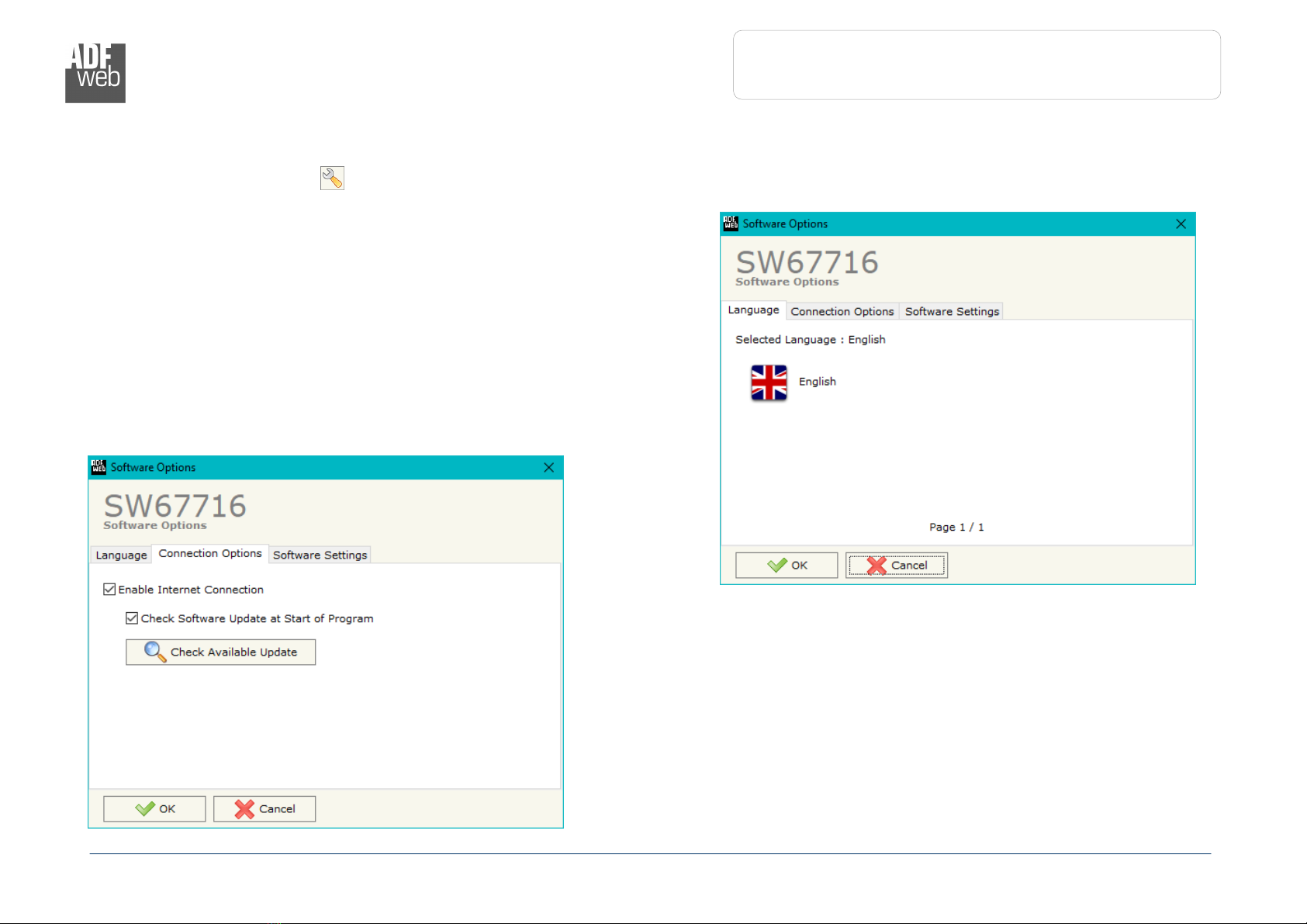

By pressin the “Settings” ( ) button there is the possibility to chan e the lan ua e of the software and check the updatin s for the
compositor.
In the section “Lan ua e” it is possible to chan e the lan ua e of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatin s of the software compositor in ADFweb.com website.
Checkin the option “Check Software Update at Start of Program”, the
SW67716 check automatically if there are updatin s when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 16 of 28
In the section “Software Settin s”, it is possible to enable/disable some
keyboard’s commands for an easier navi ation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 17 of 28
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, BACnet and PROFIBUS.
By Pressin the “Set Communication” button from the main window for SW67716 (Fi . 2) the window
“Set Communication” appears (Fi . 3).
The window is divided in three sections, one for selectin the type of BACnet (in relation to the device
used), one for the BACnet parameters and the other for the PROFIBUS parameters.
In the section “BACnet Type” is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
The means of the fields for “BACnet” are:
In the field “IP ADDRESS” the IP address of BACnet/IP side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default ateway of the net is defined. This feature can be enabled
or disabled pressin the Check Box field. This feature is used for oin out of the net;
In the field “Port” the port used for BACnet communication is defined;
In the field "BACnet Device Name" the name of the BACnet side of the converter is defined;
In the field “Device Identifier” the identifier of the BACnet side of the converter is defined.
The means of the fields for the “PROFIBUS Slave” section are:
In the field “ID Device” the ID for the PROFIBUS side is defined.
In the field “Baudrate” the baudrate is defined (fixed to ‘Auto Baudrate’);
In the field “Number Byte IN” the number of input bytes of PROFIBUS side is defined (up to
244 bytes);
In the field “Number Byte OUT” the number of output bytes of PROFIBUS side is defined (up to
244 bytes).

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 18 of 28
If selected “BACnet MS/TP”, the means of the fields for “BACnet” are:
In the field “Baudrate” the data rate of the BACnet line is defined;
In the field “Parity” the parity of the line is defined;
In the field “BACnet Device Name” the name to ive to the BACnet node is defined;
In the field “MAC Address” the MAC of BACnet node (from 0 to 254) is defined;
The field “Max Master” specifies the hi hest allowable address for master nodes. The value shall
be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information frames the node may
send before it must pass the token;
In the field “Device Instance” the of the BACnet MS/TP side of the converter is defined.
The means of the fields for the “Ethernet Update” section are:
In the fields “IP ADDRESS” the IP address of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of the converter is defined;
In the fields “GATEWAY” the default ateway of the network is defined. This feature can be
enabled or disabled pressin the Check Box field. This feature is used for oin out of the net.
These information are used for pro rammin the Converter.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 19 of 28

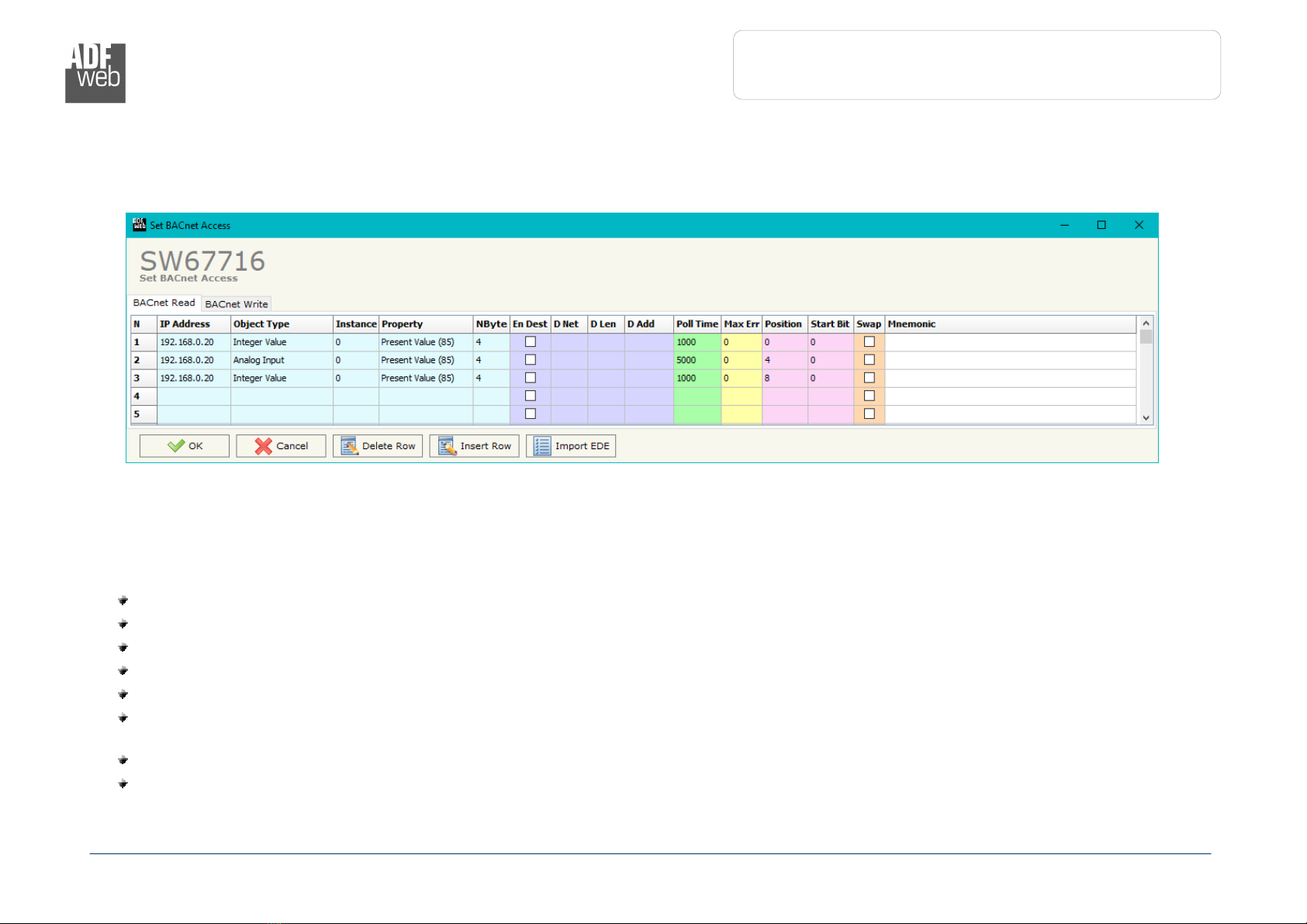

Figure
4a
:
“BACnet Set Access

BACnet Read” window
SET BACNET ACCESS:
By Pressin the “Set BACnet Access ” button from the main window of SW67716 (Fi . 2), the window “Set BACnet Access” appears (Fi .
4).
The window is divided in two parts, the “BACnet Read” that contains the BACnet objects that the converter reads from the slaves and
“BACnet Write” that contains the BACnet objects that the converter writes into the slaves.
The means of the fields in the window (Read) are the follows:
In the field “IP Address/ID” the IP address/ID of the slave that contains the data to be read is defined;
In the field “Object Type” the BACnet object to read is defined;
In the field “Instance”, the instance number of the object is defined;
In the field “Property” the property to use for the readin is defined;
In the field “NByte the number of bytes reserved for savin the information on PROFIBUS array is defined;
By checkin the field “En Dest” it is possible to enable the Destination Network (D Net), Destination Len th (D Len) and Destination
Address (D Adr). These informations are used for make a request to other se ments of network;
In the field “D Net” the destination network (from 1 to 65535) is defined;
In the field “D Len” the len th of “D Add” field is defined;

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
BACnet Master / PROFIBUS Slave
Document code: MN67716_ENG Revision 1.001 Pa e 20 of 28
In the field “D Adr” the address of the endpoint is defined. If “D Len” is ‘1’, it is possible to insert a number from 1 to 255; if “D Len”
is ‘2’, it is possible to insert a number from 1 to 65535; if “D Len” is ‘6’, it is possible to insert an IP and port in this format
“192.168.2.188:47808”;
In the field “Poll Time” the frequency of the request is defined;
In the field “Max Error” the number of consecutive errors that the Master waits before discard the row from the cycle of requests is
defined;
In the field “Position” it is possible to select the position/byte where savin the data into the PROFIBUS array is defined;
The field “Start Bit” is used for the Binary BACnet objects. It is possible to select the bit in the byte where savin the data;
By checkin the field “Swap” it is possible to swap the order of data read from BACnet slave;
In the field “Mnemonic” a description of the data inserted in the row is defined.
