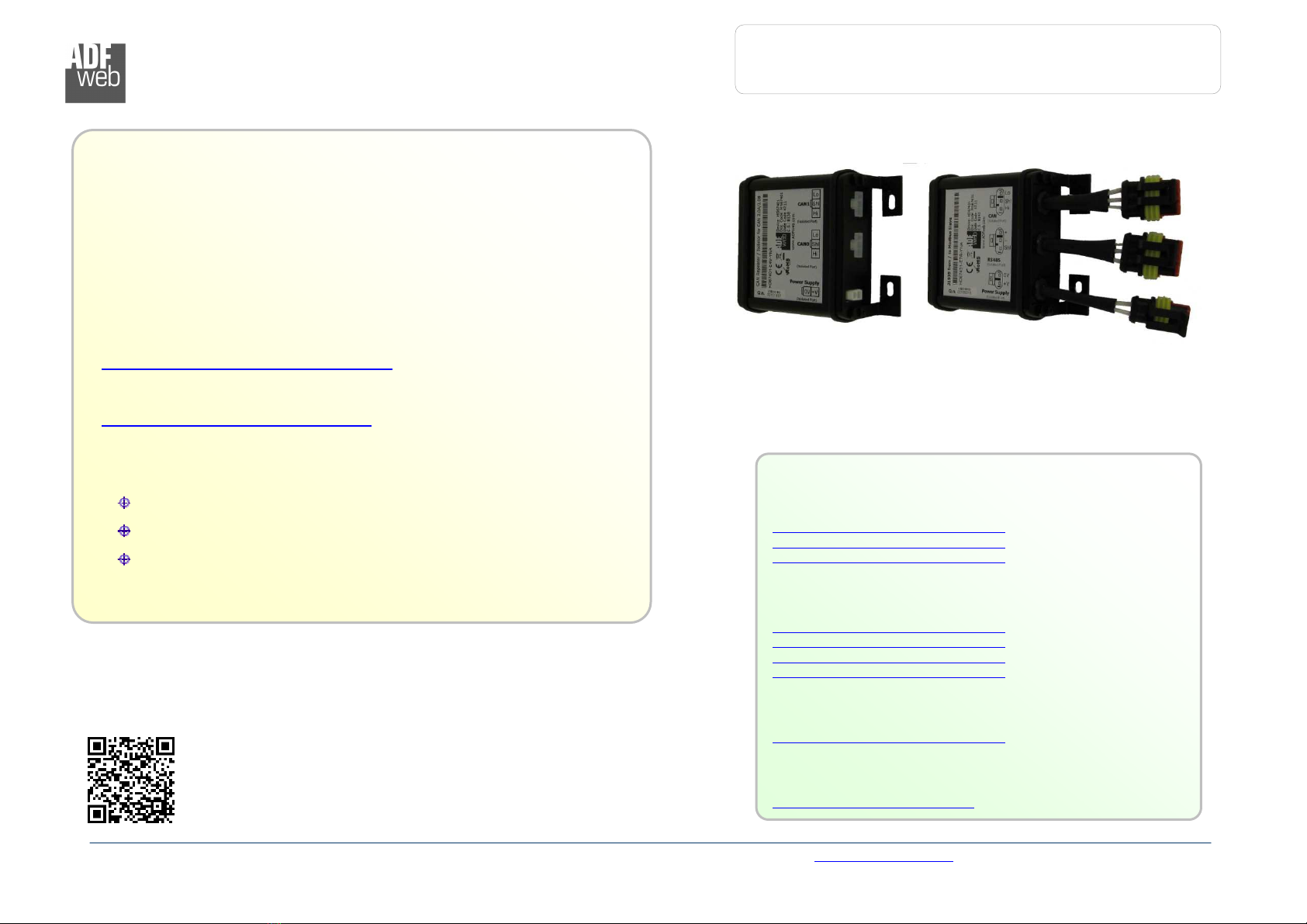

ADF Web HD67446 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 1 of 31
User Manual
Revision 1.00
English
PROFINET / J1939 – Converter
(Order Code: HD67446)
for Website information:
www.adfweb.com?Product=HD67446
for Price information:
www.adfweb.com?Price=HD67446
Benefits and Main Features
Very easy to configure
Isolation between two buses
Temperature range: -40°C / +105°C (-40°F / + 1°F)
For other Gateways / Bridges:
CAN from/to Modbus
See also the following links:
www.adfweb.com?product=HD6701 (Modbus RTU Slave)
www.adfweb.com?product=HD67514 (Modbus TCP Master)
www.adfweb.com?product=HD67515 (Modbus TCP Slave)
CANopen from/to Modbus
See also the following links:
www.adfweb.com?product=HD67001 (Modbus RTU Master)
www.adfweb.com?product=HD6750 (Modbus RTU Slave)
www.adfweb.com?product=HD67504 (Modbus TCP Master)
www.adfweb.com?product=HD67505 (Modbus TCP Slave)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page of 31
INDEX
Page
INDEX
UPDATED DOCUMENTATION
REVISION LIST
WARNING
TRADEMARKS
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
LEDS 9
J1939 10
PROFINET 11
USB 11
USE OF COMPOSITOR SW67446 1
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 15

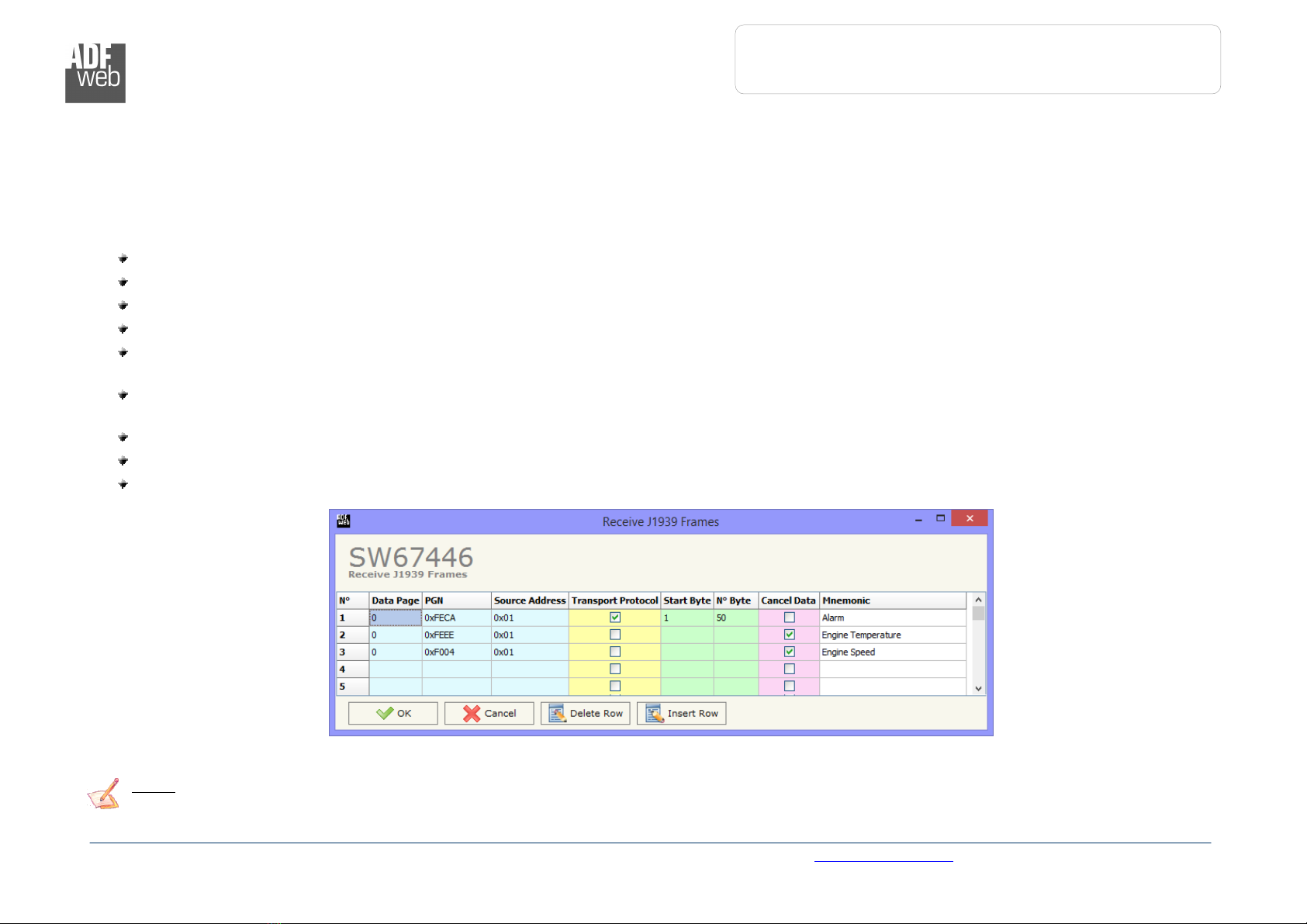

RECEIVE FRAMES 16
SEND FRAMES 17

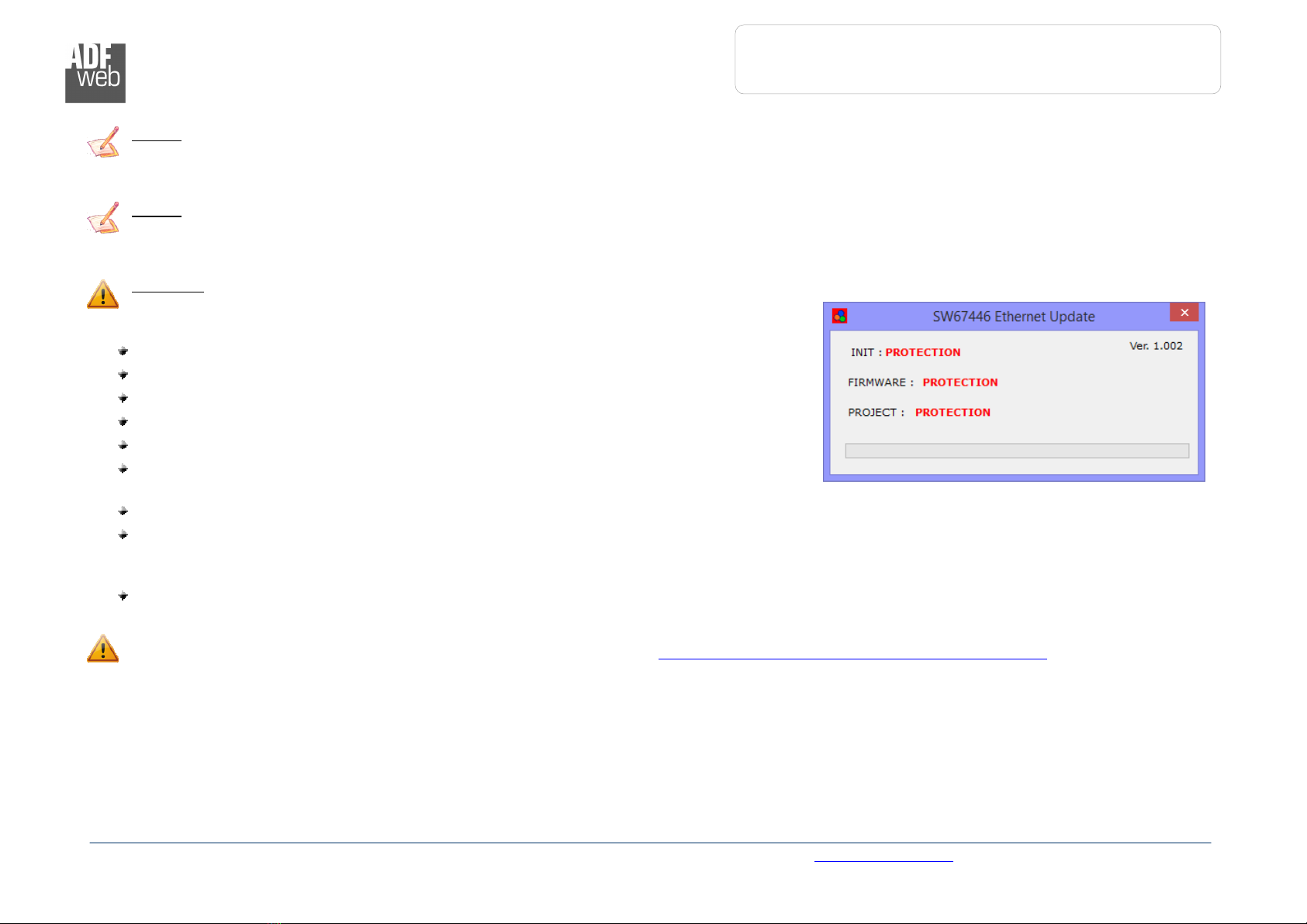

UPDATE DEVICE 18
MECHANICAL DIMENSIONS 0
ORDER CODE 4
ACCESSORIES 4
PLC CONFIGURATION 5
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SUPPORT 31
RETURN POLICY 31
UPDATED DOCUMENTATION
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST
Revision Date Author Chapter Description
1.000 04/09/ 014 Ff All First release version
1.001 09/05/ 016 Ff All New hardware version
1.00 13/03/ 017 Ff All Revision
WARNING
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 3 of 31
SECURITY ALERT
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 4 of 31

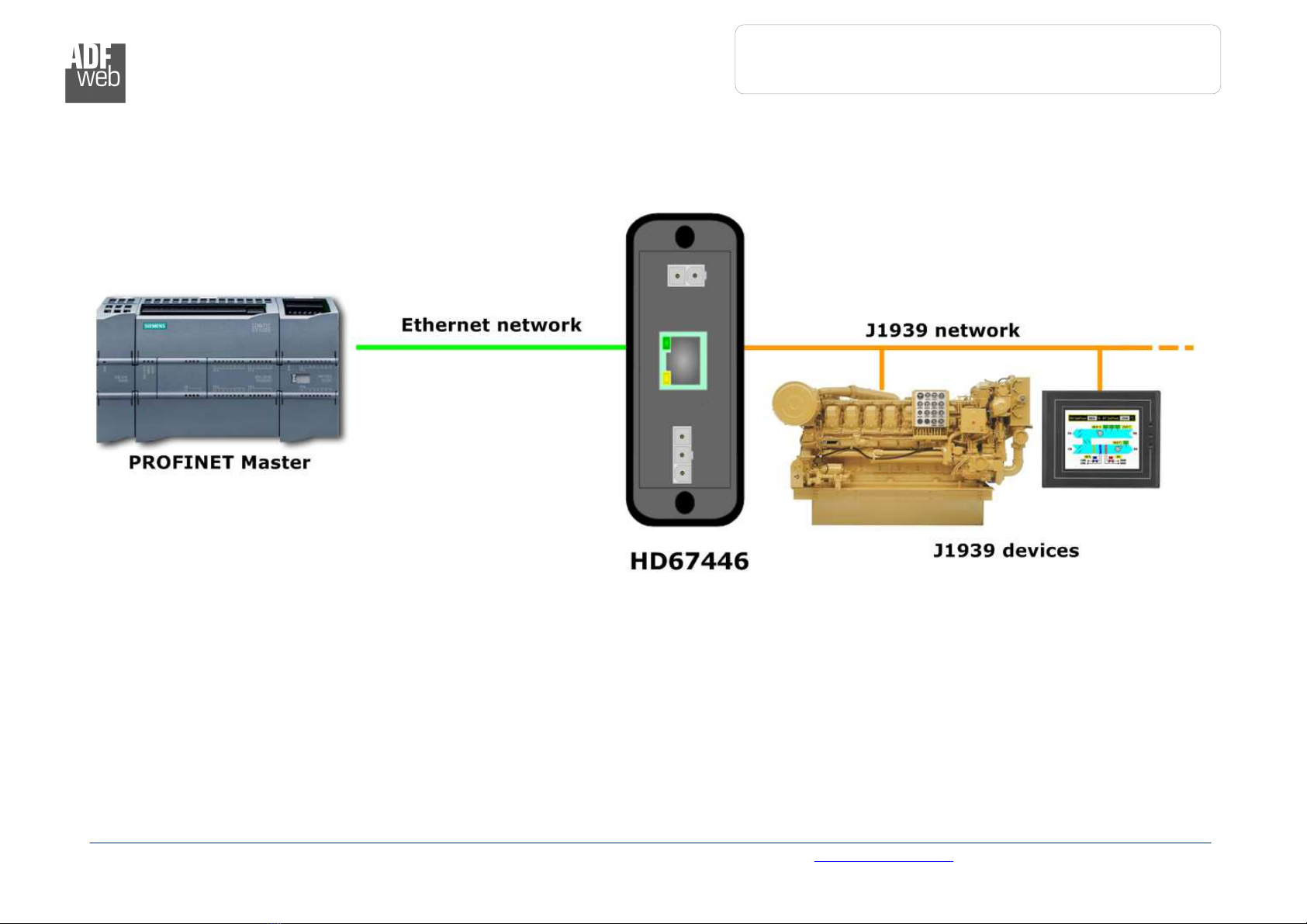

EXAMPLE OF CONNECTION

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 5 of 31

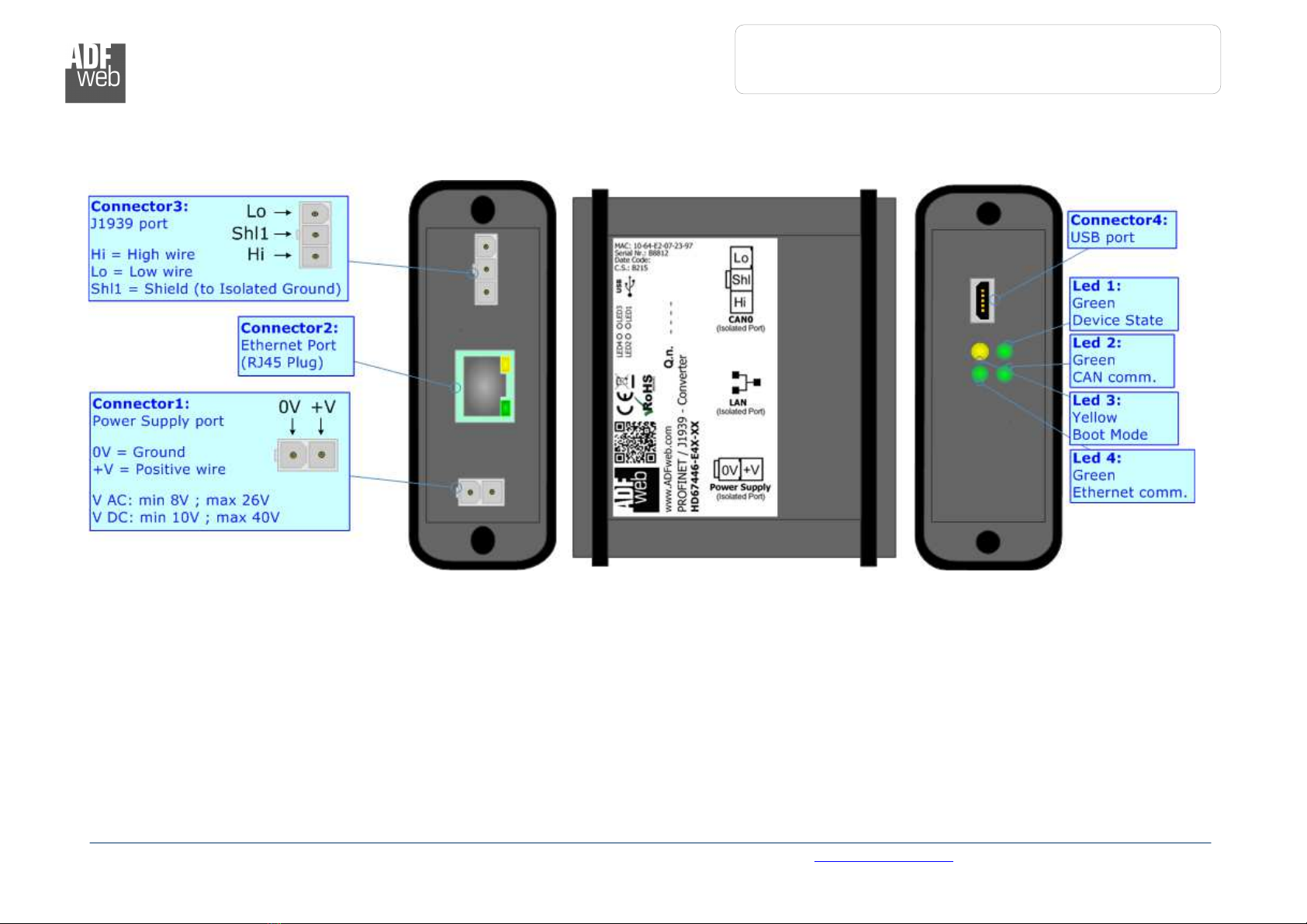

CONNECTION SCHEME
Figure 1a: Connection scheme for HD67446-E4x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 6 of 31
Figure 1b: Connection scheme for HD67446-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 7 of 31
CHARACTERISTICS
The “HD67446” series are rugged devices used to interface J1939 devices with a PROFINET Master.
With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,
vertical, oblique).
It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1.5”
connectors. If is resined, the enclosure, like the “AMP SuperSeal 1.5" connectors, is waterproof (IP63).
The device have these characteristics:
Triple 4kV isolation between Power Supply / Ethernet / CAN;
Varnished / Resined (optionally);
Wide power supply input range: 8… 6V AC | 10…40V DC;
Mini-Fit® / AMP SuperSeal 1.5 connectors;
Metal enclosure with fixing lugs;
Possibility to use Metal hose clamps for fixing it without using lugs;
Microprocessor for data control;
Wide temperature range: -40°C / 105°C (-40°F / 1°F).
CONFIGURATION
You need Compositor SW67446 software on your PC in order to perform the following:
Define the parameter of the J1939 bus;
Define the parameter of the PROFINET bus;
Define a list of PGNs in reception and transmission;
Update the Firmware and/or the Project.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 8 of 31
POWER SUPPLY
The devices can be powered between a wide range of tensions. For more details see the two
tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67446-Exx-xx 8V 26V 10V 40V
Consumption at 4V DC:
Device W/VA
HD67446-Exx-xx 4
Note: It is possible to use also negative tensions. In this case the polarity must be
inverted.
Caution Not reverse the polarity power
HD67446-E4x-xx
HD67446-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 9 of 31
LEDS
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress
: CAN Communication
(green) Blinks when J1939 frames are received Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress
3: Boot Mode (yellow) OFF ON
4: Ethernet communication
(green)
Blinks when the PROFINET communication is
working
Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 10 of 31

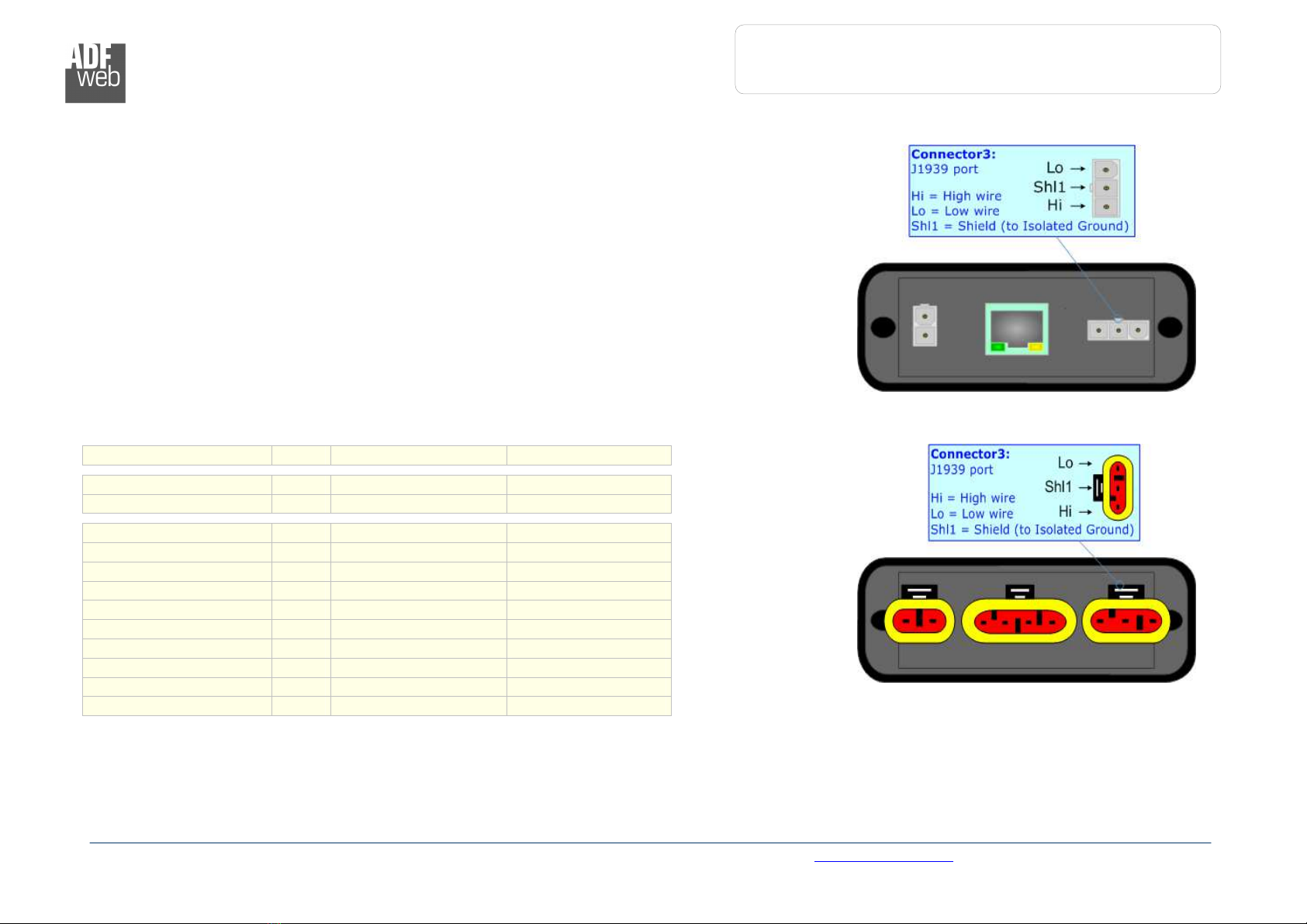

J1939
The connection of the J1939 in the HD67446-E4x-xx device must be made with a 3way MiniFit
Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
The connection of the J1939 in the HD67446-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of
the page.
The termination of J1939 line, with a 1 0Ω resistor, in the HD67446-Exx-xx is made internally
of the device; when the order is performed. If the device have the J1939 terminated the code is
the follow: HD67446-Exx-Yx; otherwise is this other: HD67446-Exx-Nx.
Cable characteristics:
DC parameter Impedance 70 Ohm/m
AC parameters Impedance 1 0 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
10 K 5000
0 K 500
50 K 1000
100 K 650
1 5 K 500
50 K 50
500 K 100
800 K 50
1000 K 5

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 11 of 31
PROFINET
The connection of PROFINET in the HD67446 device must be made with at least a Category 5E cable. The maximum length of the cable
should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device
to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable.
The connection of PROFINET in the HD67446-E4x-xx device must be made with RJ45 connector.
The connection of the PROFINET in the HD67446-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of the
page.
USB
The USB port is used to start the converter in Boot Mode. It is necessary to use a Micro USB type B cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 1 of 31
USE OF COMPOSITOR SW67446
To configure the Converter, use the available software that runs with Windows called SW67446. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 3 /64bit).

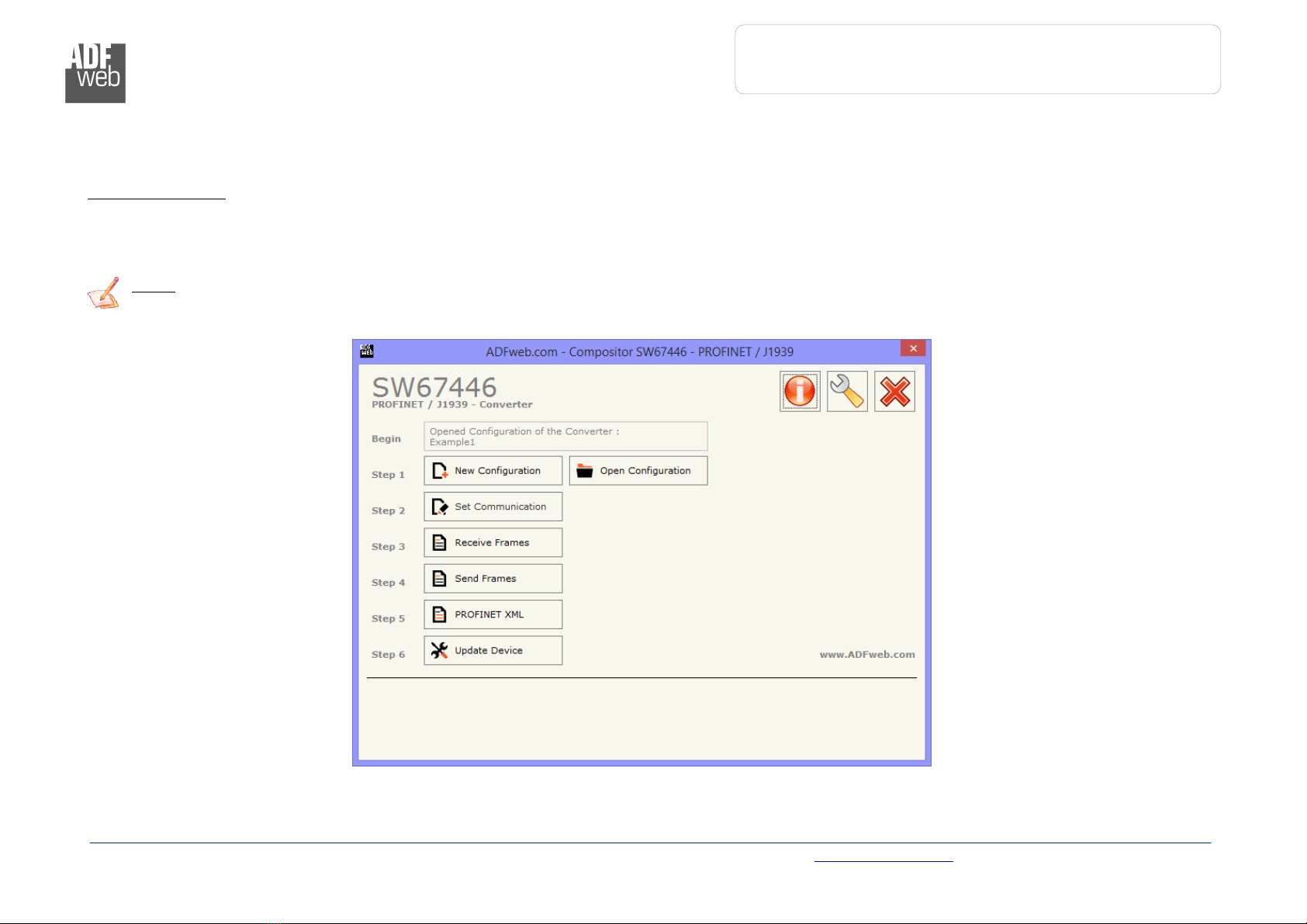

When launching the SW67446, the window below appears (Fig. ).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67446

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 13 of 31
NEW CONFIGURATION / OPEN CONFIGURATION
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “PROFINET / J1939 - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient
to duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 14 of 31

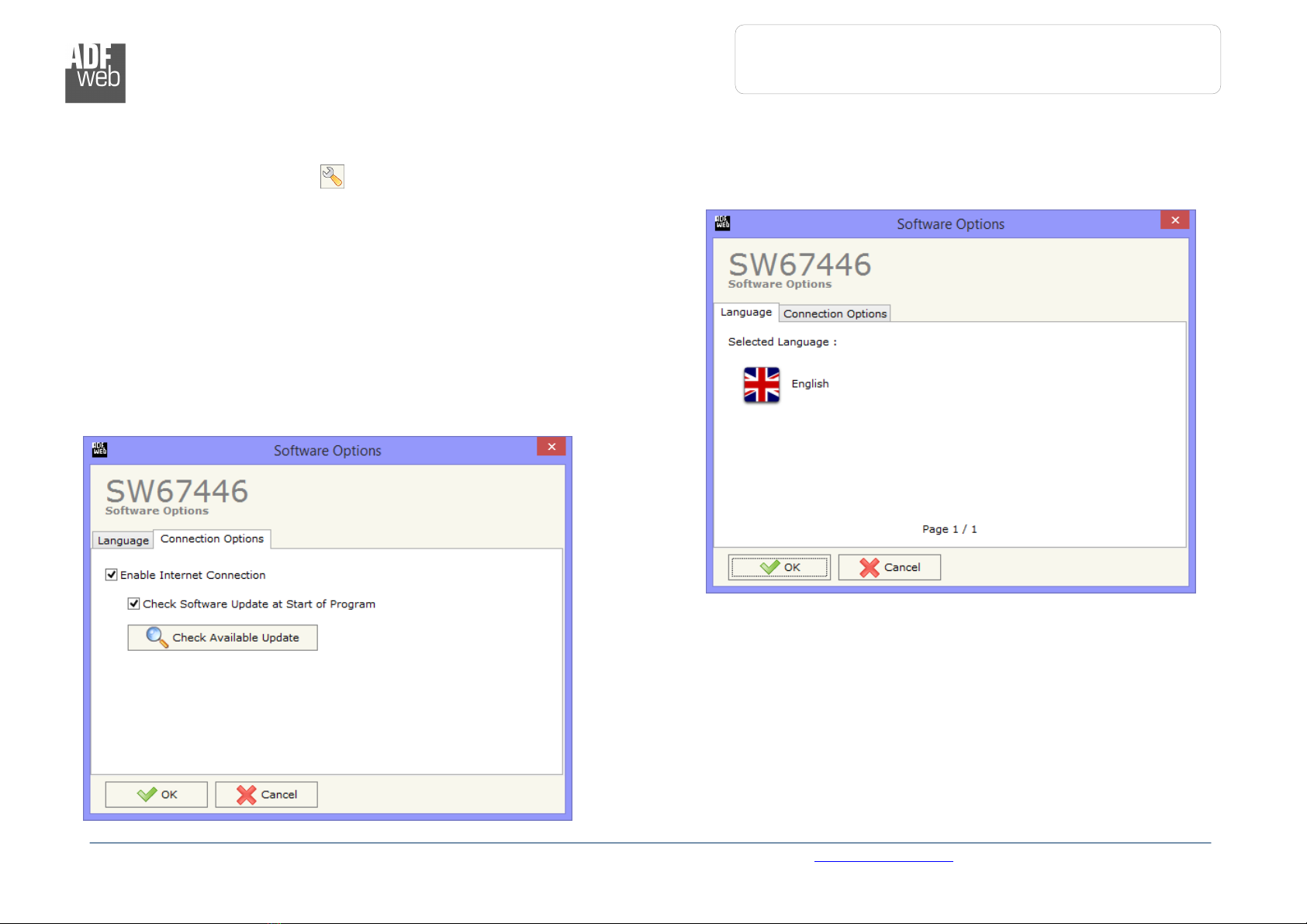

SOFTWARE OPTIONS
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67446 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 15 of 31
SET COMMUNICATION
This section define the fundamental communication parameters of two buses, PROFINET and J1939.
By Pressing the “Set Communication” button from the main window for SW67446 (Fig. ) the
window “Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the PROFINET and the other for the J1939.
The means of the fields for “PROFINET” are:
In the fields “IP ADDRESS” insert the IP address that you want to give to the Converter;
In the fields “SUBNET Mask” insert the SubNet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going out of the
net;
In the field “Port” the port used for PROFINET communication is defined. The port has a
fixed value of 34964;
In the field "PROFINET Name of Station" is possible to assign a name to the PROFINET
node.
The means of the fields for the “J1939” section are:
In the “Baudrate” field the J1939 baudrate is defined;
In the field “TimeOut Data” insert a time; when this time is elapsed and the data isn’t
reliable, in the PROFINET data array you read “0”. It is possible to use this function only for
the “Receive Frames”;
If the field “Enable Peer to Peer” is checked, the gateway accepts all the ID that have the
PGN inserted in the “Receive Frames” section.
Note:
The number of Input byte and Output byte of PROFINET is calculated automatically by the Compositor in relation of the J1939
frames defined.
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 16 of 31
RECEIVE FRAMES
By pressing the “Receive Frames” button from the main window for SW67446 (Fig. ) the “Receive J1939 Frames” window appears (Fig.
4). The J1939 frames inserted in this table contains the Output data of PROFINET. These frames are accepted by the gateway.
The data of the columns have the following meanings:
In the field “Data Page” insert the Data Page, the value is 0 or 1 (usually is 0);
In the field “PGN” insert the PGN of the data you would like to read from PROFINET to J1939 (it is an identifier);
In the field “Source Address” insert the address of the device that sends the frame;
If the field “Transport Protocol” is checked the frame use transport protocol functions;
In the field “Start Byte” insert the byte which you would start read, this field is enable only when the field Transport Protocol is
checked;
In the field “N° Byte” insert the number of byte you would read, for example your start byte is 0 an N°byte is 10, you can read the
byte from 0 to 30;
If the field “Cancel Data” is checked, the data in the frame will be erased after the expiration of the “TimeOut Data” defined in
“Set Communication” section;
In the field “Mnemonic” it is possible to insert a brief description.
Note:
It is possible to configure a maximum of 6 frames in the “Receive Frames” section.
Figure 4: “Receive
J1939
Frames” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 17 of 31
SEND FRAMES
By pressing the “Send Frames” button from the main window for SW67446 (Fig. ) the “Send J1939 frames” window appears (Fig. 5).
The J1939 frames inserted in this table contains the Input data of PROFINET. These frames are sent by the gateway.
The data of the columns have the following meanings:
In the field “Priority” insert the priority of the Frame: in J1939 protocol it is a number among 0,1, ,3,4,5,6,7. The number “0” is the
highest priority and “7” is the lowest;
In the field “Data Page” insert the data page, the value is 0 or 1 (usually is 0);
In the field “PGN” insert the PGN of the data you would like to write from PROFINET to J1939 (in J1939 protocol the PGN is an
identifier);
In the field “Source Address” insert the address of the device that sends the frame;
In the field “Num Byte” insert the dimension of the PGN (number of bytes). If it is bigger than 8, the Transport Protocol will be used;
If the option “Request” is checked, the PGN is transmitted when a J1939 request is sent (On Request);
If the option “Data Change” is checked, the PGN is transmitted when the data of the PGN changes;
If the option “On Timer” is checked, the PGN is transmitted cyclically;
In the field “Send Timer” insert the interval used for the “Send Frame Type  On Timer”. The time is in milliseconds;
In the field “Mnemonic” it is possible to insert a brief description.
Note:
It is possible to configure a maximum of 6 frames in the “Send Frames” section.
Figure 5
: “
Send J1939 Frames
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 18 of 31

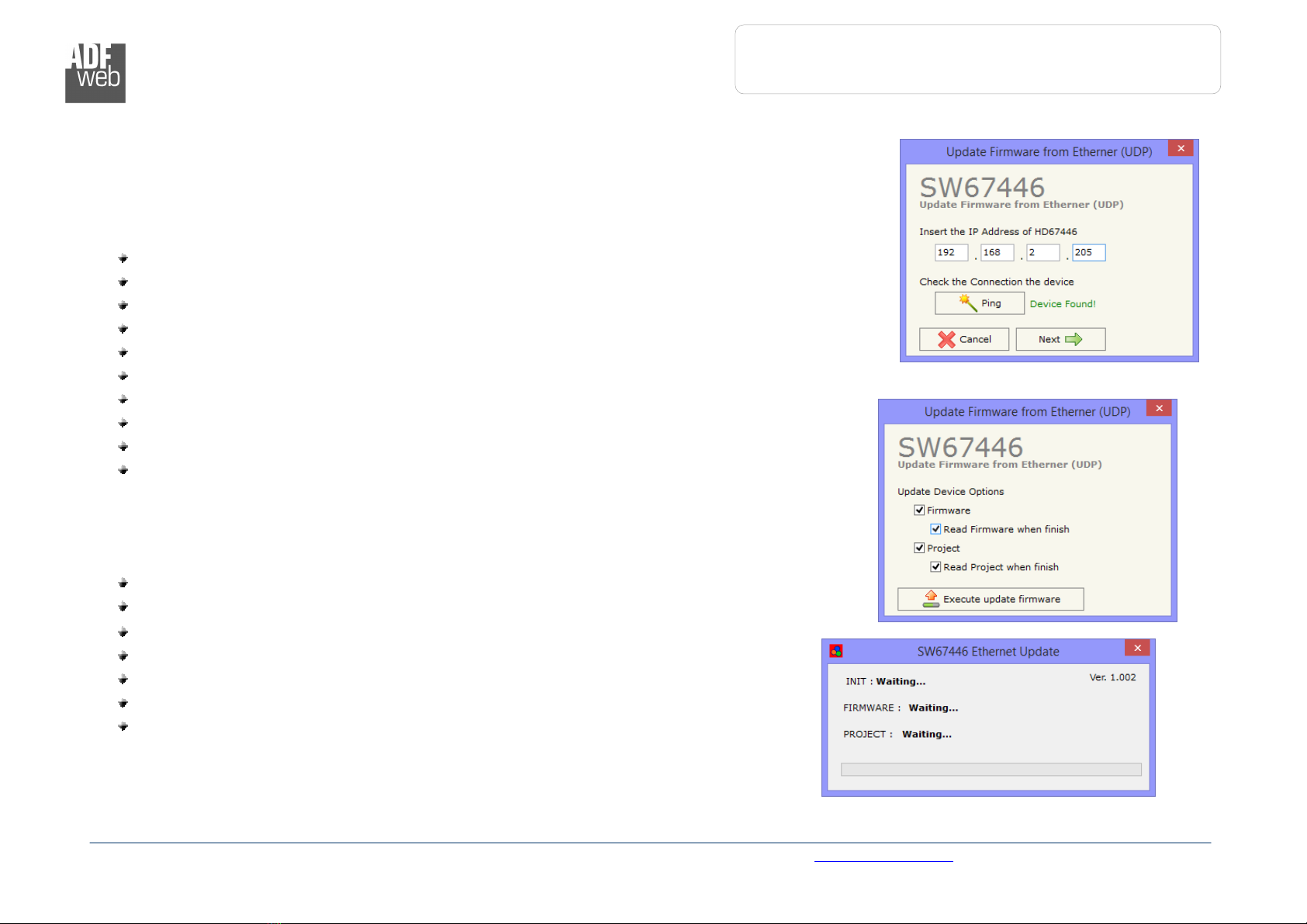

UPDATE DEVICE
By pressing the “Update Device” button it is possible to load the created Configuration into the
device; and also the Firmware, if is necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Connect the USB cable;
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Turn on the device;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload.
When all the operations are “OK”, the updating is done;
Remove the USB cable.
If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
Figure 6: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 19 of 31
Note:
When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67446.
Note:
When you receive the device, for the first time, you have to update also the Firmware in the HD67446 device.
Warning:
If the Fig. 7 appears when you try to do the Update before require assistance try
these points:
Try to repeat the operations for the updating;
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 10 make sure that you have the administrator privileges;
In case you have to program more than one device, using the "UDP Update", you have to cancel the ARP table every time you
connect a new device on Ethernet. For do this you have to launch the "Command Prompt" and write the command "arp -d". Pay
attention that with Windows Vista, Seven, 8 or 10 you have to launch the "Command Prompt" with Administrator Rights;
Pay attention at Firewall lock.
In the case of HD67446 you have to use the software “SW67446”: www.adfweb.com\download\filefold\SW67446.zip.
Figure
7
: “
rotection” error

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET /
J1939
-
Converter
Document code: MN67446_ENG Revision 1.00 Page 0 of 31
MECHANICAL DIMENSIONS
