CHARACTERISTICS:
The HD67B08-B2 is a OPC UA Client / Serial converter
It allows the following characteristics:
Up to 1500 bytes in reading and 1500 bytes in writing;
Two-directional information between Serial and OPC UA;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CO FIGURATIO :
You need Compositor SW67B08 software on your PC in order to perform the following:
Define the parameter of the OPC UA;
Define the parameter of the Serial;
Define the list of OPC UA servers connected to the converter;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 8 of 33
POWER SUPPLY:
The devices can be powered between a wide range of tensions For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
HD67B08-x-B2 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B08-x-B2 4
Caution: ot reverse the polarity power
HD67B08-x-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 9 of 33
FU CTIO MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device
The second, with Dip1 in On position, is used for upload the Project/Firmware
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section)
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section)

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 10 of 33
LEDS:
The device has got six LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED ormal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: OPC UA comm (yellow) Flashing: OPC UA response
OFF: No OPC UA response
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Serial comm (yellow) Flashing: Serial request
OFF: No Serial request
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) O : At least one OPC UA Server is disconnected
OFF: all OPC UA Servers are connected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Link Ethernet (green) O : Ethernet cable connected
OFF: Ethernet cable disconnected
O : Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 11 of 33
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer)
must be made with a Null Modem cable (a serial cable where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 12 of 33
RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 13 of 33
ETHER ET:
The Ethernet connection must be made using Connector3 of HD67B08-x-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 14 of 33
USE OF COMPOSITOR SW67B08:
To configure the Converter, use the available software that runs with Windows called SW67B08 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67B08, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
F
igure 2: Main window for SW67B08

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 15 of 33
EW CO FIGURATIO / OPE CO FIGURATIO :
The “ ew Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “OPC UA Client / Serial - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 16 of 33
SOFTWARE OPTIO S:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67B08 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 17 of 33
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 18 of 33
SET COMMU ICATIO :
This section define the fundamental communication parameters of two buses, OPC UA and
Serial
By Pressing the “Set Communication” button from the main window for SW67B08 (Fig 2)
the window “Set Communication” appears (Fig 3)
The means of the fields for “OPC UA Client” are:
In the field “IP Address” the IP address for OPC UA side of the converter is defined;
In the field “Sub et Mask” the SubNet Mask for OPC UA side of the converter is
defined;
In the field “Gateway” the default gateway of the net is defined This feature can be
enabled or disabled pressing the Check Box field This feature is used for going out
of the net;
In the field “D S” the IP Address of the DNS server is defined This feature can be
enabled or disabled pressing the Check Box field
The means of the fields for “Serial” are:
In the field “Serial” the serial line to use for serial communication is defined;
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits is defined
The means of the fields for “NTP (Network Time Protocol)” are:
In the field “Server URL” the URL or the IP Address of the NTP Server is defined;
In the field “Poll Time (seconds)” the polling time for the time synchronization is
defined
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 19 of 33
Figure 4: “
O C UA Cli
ent Access
” window
OPC UA ACCESS:
By Pressing the “OPC UA Client Access” button from the main window for SW67B08 (Fig 2) the window “OPC UA Client Access” appears
(Fig 4)
This section is used to define the list of the OPC UA Servers to read/write with the OPC UA Client

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA Client /
Serial
Document code: MN67B08_ENG Revision 1 001 Page 20 of 33

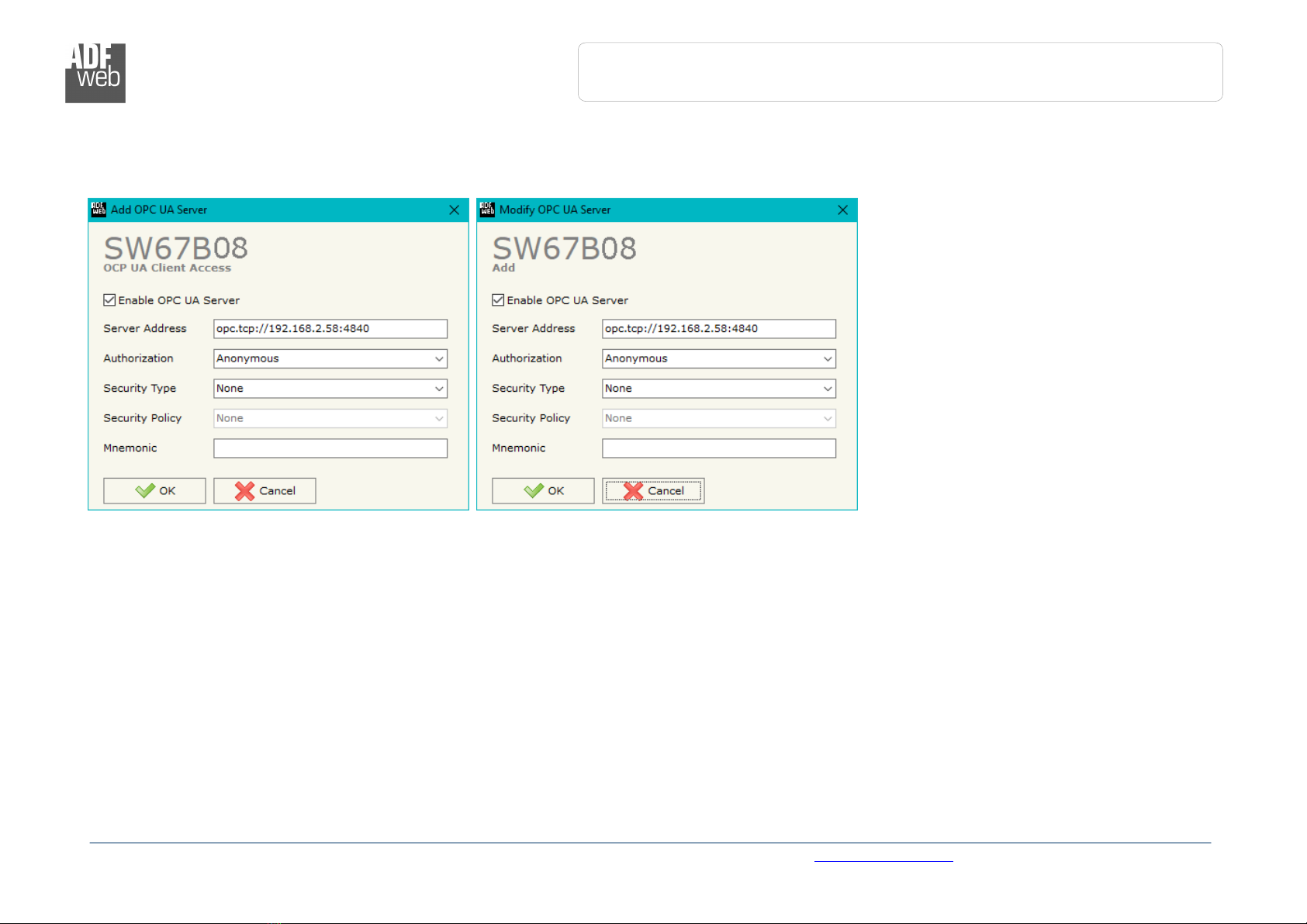

Figure 5: “Add O C UA Server” Figure 6: “Modify O C UA Server”
By clicking on “Add”, it is possible to add a new OPC UA Server inserting its characteristics (Server Address, Authorization, Security Type…)
The window “Add OPC UA Server” appears (Fig 5) By clicking on “Modify”, it is possible to change these characteristics for the selected
Server The window “Modify OPC UA Server” appears (Fig 6)
