ADF Web HD67597-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 1 di 25
User Manual
Revision 1. 11
English
EtherNet/IP / DeviceNet Master -
Converter
(Order Code: HD67597-A1)
for Website information:
www.adfweb.com?Product=HD67597
for Price information:
www.adfweb.com?Price=HD67597-A1
Benefits and Main Features:
Very easy to configure
Two Ethernet/IP ports
Temperature range: -4 °C/85°C (-4 °F/185°F)
For others Ethernet/IP products see also the following link:
Converter Ethernet/IP to
www.adfweb.com?Product=HD67 77 (M-Bus)
www.adfweb.com?Product=HD67595 (CAN)
www.adfweb.com?Product=HD67598 (DeviceNet S ave)
www.adfweb.com?Product=HD67599 (J1939)
www.adfweb.com?Product=HD67589 (NMEA2000)
www.adfweb.com?Product=HD6759 (Seria RS232)
www.adfweb.com?Product=HD6759 (Seria RS485)
www.adfweb.com?Product=HD67591 (Modbus Master RS232)
www.adfweb.com?Product=HD67591 (Modbus Master RS485)
www.adfweb.com?Product=HD67592 (Modbus S ave RS232)
www.adfweb.com?Product=HD67592 (Modbus S ave RS485)
Do you have an your customer protocol?
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Other
Products
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 2 di 25
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET/IP 1
USB 1
CAN 11
USE OF COMPOSITOR SW67597 12
NEW PROJECT / OPEN PROJECT 12
SET COMMUNICATION 13
DEVICENET NETWORK 14
DEFINE BYTE 15
UPDATE DEVICE VIA UDP 16
MECHANICAL DIMENSIONS 18
ORDERING INFORMATIONS 19
ACCESSORIES 19
PLC CONFIGURATION 2
DISCLAIMER 24
OTHER REGULATIONS AND STANDARDS 24
WARRANTIES AND TECHNICAL SUPPORT 25
RETURN POLICY 25
PRODUCTS AND RELATED DOCUMENTS 25
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
To obtain the updated documentation for the product that you own, note
the “Document Code” (Abbreviated written "Doc. Code" on the label on the
product) and download the updated from our web site
www.adfweb.com/download/
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 2 / 6/2 12 Fl All First release version
1. 1 13/12/2 12 Fl All Software changed (v1. )
1. 11 9/ 1/2 13 Nt All Added new chapters

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 3 di 25
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for
each individual application, legal and safety regulation. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who
have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated
by personnel untrained. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the
possibility of damage.
CE CONFORMITY
The declaration is made by us. You can send an email to [e-mail] or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 4 di 25
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 5 di 25
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67597-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 6 di 25
CHARACTERISTICS:
The HD67597-A1 is a EtherNet/IP / DeviceNet Master Converter.
It allows the following characteristics:
Up to 5 bytes in reading and 5 bytes in writing;
Two-directional information between CAN bus and EtherNet/IP bus;
Mountable on 35mm Rail DIN;
Power Supply 8…24V AC or 12…35V DC;
Temperature range -4 °C to 85°C.
CONFIGURATION:
You need Compositor SW67597 software on your PC in order to perform the following:
Define the parameter of EtherNet/IP line;
Define the parameter of DeviceNet line;
Determinate which EtherNet/IP byte transfer in DeviceNet and vice versa;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 7 di 25
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67597-A1 3.5
HD67597
-
A1
Caution: Not reverse the po arity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 8 di 25
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position for working even if the Ethernet cable isn’t inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 9 di 25
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: DeviceNet State
(green)
Blinks quickly when there is
communication with the slaves
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: Ethernet1 Tx (green) Blinks quickly for a short time
when sends Ethernet frames
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: Ethernet2 Tx (green) Blinks quickly for a short time
when sends Ethernet frames
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 1 di 25
ETHERNET/IP:
The EtherNet/IP connection must be made using Connector3 and/or Connector4 of HD67597-A1 with at least a Category 5E cable. The
maximum length of the cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
1 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is
recommended the use of a cross cable.
USB:
The USB connection, must be made with a USB cable with a USB Mini B plug.
Note:
The USB port is not used in this moment.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 11 di 25
DeviceNet:
For terminate the CAN line with a 12 Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ is at ON position.
Cable characteristics:
DC parameter: Impedance 7 Ohm/m
AC parameters: Impedance 12 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
125 K 5
25 K 25
5 K 1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 12 di 25
USE OF COMPOSITOR SW67597:
To configure the Converter, use the available software that runs with
Windows, called SW67597. It is downloadable on the site
www.adfweb.com and its operation is described in this document.
(This manual is referenced to the last version of the software present
on our web site). The software works with MSWindows (MS 2 , XP,
Vista, Seven, 8; 32/64bit).
When launching the SW67595 the right window appears (Fig. 2).
NEW PROJECT / OPEN PROJECT:
The “New Project” button creates the folder which contains the entire device configuration.
A device configuration can also be imported or exported:
To clone the configurations of a programmable “EtherNet/IP / DeviceNet Master –
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Project”.
Figure 2: Main window for SW67597

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 13 di 25
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, EtherNet/IP and DeviceNet.

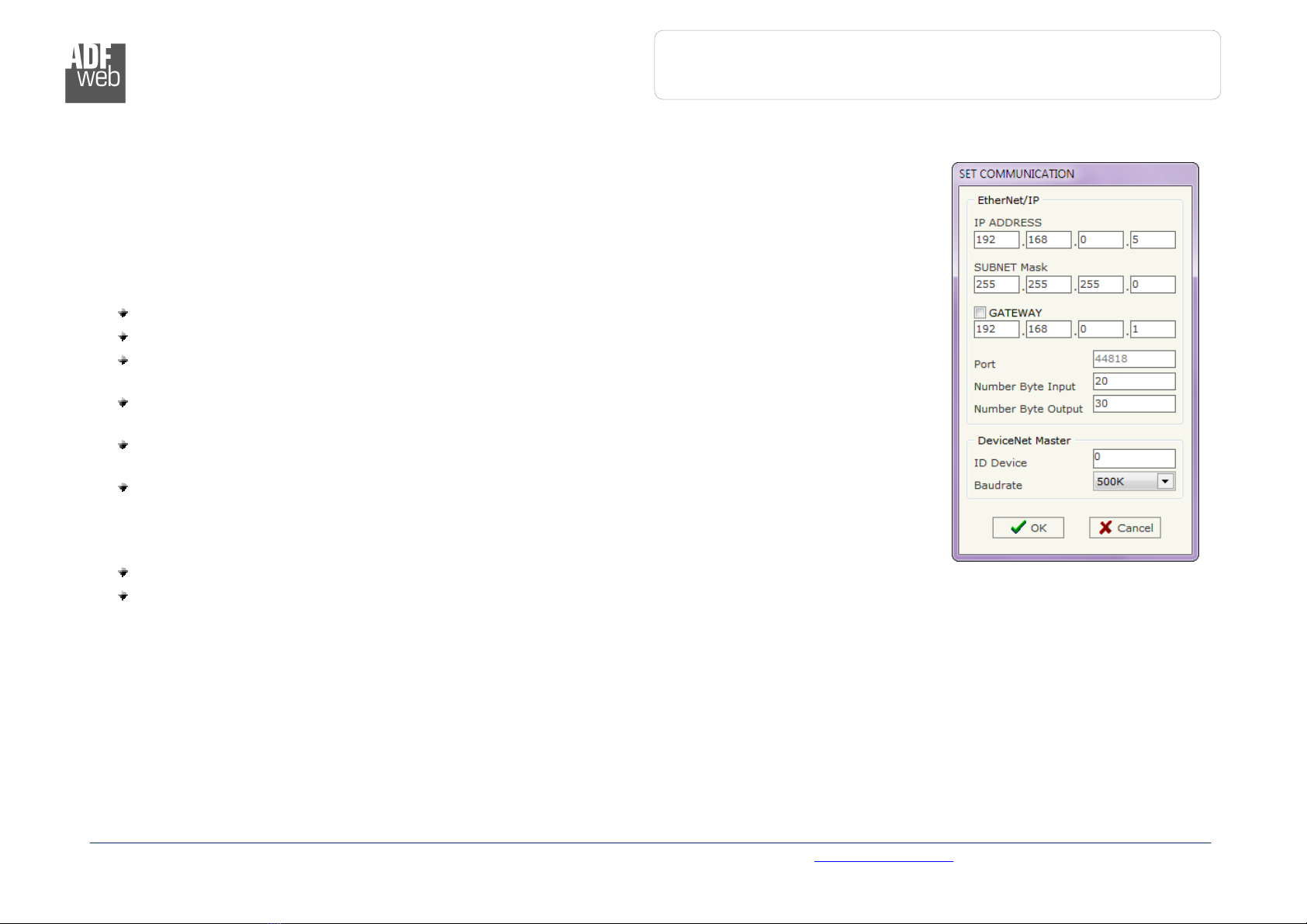

By Pressing the “Set Communication” button from the main window for SW67597 (Fig. 2) the window
“Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the EtherNet/IP and the other for the DeviceNet.
The means of the fields for “EtherNet/IP” are:
In the fields “IP ADDRESS” insert the IP address that you want to give to the Converter;
In the fields “SUBNET Mask” insert the SubNet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can be
enabled of disabled pressing the Check Box field;
In the field “Port” the port used for EtherNet/IP communication is defined. The port has a fixed
value of 44818;
In the field "Number Byte Input" the number of byte from the EtherNet/IP to the Converter is
defined (at maximum it is possible to use 5 byte);
In the field "Number Byte Output" the number of byte from the Converter to the EtherNet/IP is
defined (at maximum it is possible to use 5 byte).
The means of the fields for the “DeviceNet” section are:
In the field “ID Dev.” the address for the DeviceNet Master is defined;
In the field “Baud Rate” the velocity of the DeviceNet bus is defined.
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 14 di 25
DEVICENET NETWORK:
By pressing the “DeviceNet Network” button from the main window for SW67597 (Fig. 2) the window “DeviceNet Network” appears (Fig.
4).
The data of the columns have the following meanings:
In the field “ID” the ID of a slave DeviceNet device is defined;
In the field “N BYTE IN” the number of input byte of the slave DeviceNet is defined;
In the field “N BYTE OUT” the number of output byte of the slave DeviceNet is defined;
In the field “Mnemonic” is possible to insert a description. It isn’t necessary compiling this field, is only a label.

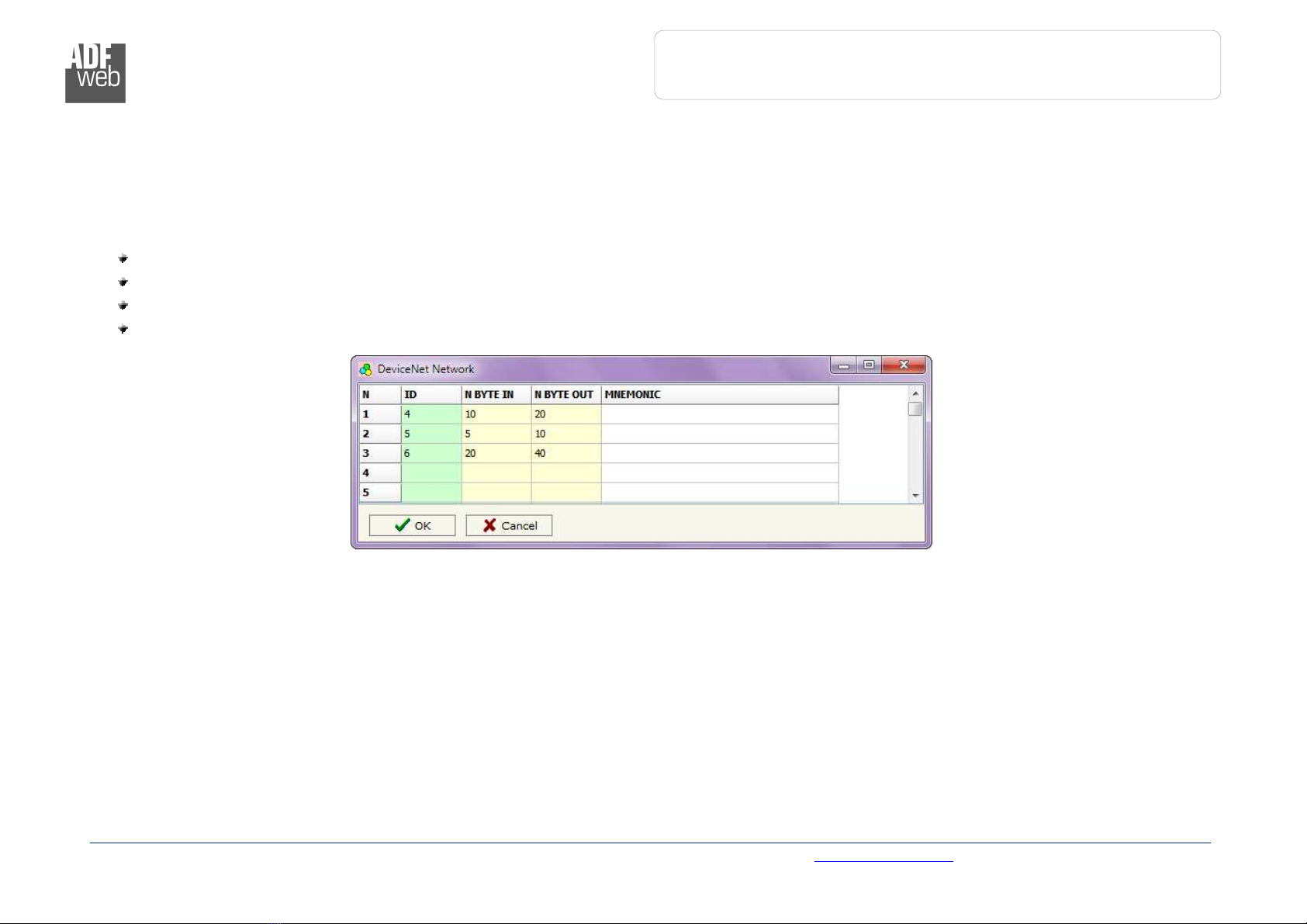

Figure 4: “DeviceNet Network” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 15 di 25
DEFINE BYTE:
By pressing the “Define Byte” button from the main window for SW67597 (Fig. 2) the window “Define Offset” appears (Fig. 5).
In the field “Select the Slave DeviceNet” it is possible to select the slave to configure between those defined in the “DeviceNet Network”
step.
The data of the column have the following meanings:
Byte IN side:
In the column “Offset” it is possible to select
the desired byte of DeviceNet which will be
written from the EtherNet/IP Master;
In the column “Mnemonic” is possible to
insert a description. It isn’t necessary
compiling this field, is only a label.
Byte OUT side:
In the column “Offset” it is possible to select
the desired byte of DeviceNet which will be
read from the EtherNet/IP Master;
In the column “Mnemonic” is possible to
insert a description. It isn’t necessary
compiling this field, is only a label.
Figure 5: “Define Offset” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 16 di 25
UPDATE DEVICE:
By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is
necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip2 of ‘Dip-Switch A’ at ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
Put Dip2 of ‘Dip-Switch A’ at OFF position;
Turn on the device.
At this point the configuration/firmware on the device is correctly updated.
Figure 6: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 17 di 25
If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at
Normal Mode.
At this point the configuration/firmware on the device is correctly update.
Note:
When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67597-A1
device.
Note:
When you receive the device, for the first time, you have to update also the Firmware in the HD67597-A1 device.
Warning:
If the Fig. 7 appears when you try to do the Update before require assistance try
these points:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven or Vista or 8, make sure that you have the
administrator privileges;
Take attention at Firewall lock;
Check the LAN settings.
In the case of HD67597-A1 you have to use the software “SW67597”: www.adfweb.com\download\filefold\SW67597.zip.
Figure 7: “ rotection” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 18 di 25
MECHANICAL DIMENSIONS:
Figure 8: Mechanical dimensions scheme for HD67597-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 19 di 25
ORDERING INFORMATIONS:
The ordering part number is formed by a valid combination of the following:
HD67597 – A 1
Connectors Type
1: Removable 5mm Screw Terminal
Enc osure Type
A: 1M, 35mm DIN Rail mounting
Device Fami y
HD67597: EtherNet/IP / DeviceNet Master - Converter
Order Code: HD670597-A1 - EtherNet/IP / DeviceNet Master - Converter
ACCESSORIES:
Order Code: AC34001 - 35mm Rail DIN - Power Supply 22 /24 V AC 5 /6 Hz – 12 V AC
Order Code: AC34002 - 35mm Rail DIN - Power Supply 11 V AC 5 /6 Hz – 12 V AC

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP / DeviceNet Master
-
Converter
Document code: MN67597_ENG Revision 1. 11 Pagina 2 di 25
PLC CONFIGURATION:
The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of
the “RSLogix 5 ” software of Rockwell Automation. In case of using a control system from another supplier please attend to the
associated documentation.
These are the steps to follow:
1) Create a "Generic Ethernet Module" under the Ethernet section in the I/O Configuration tree.
