User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 1 di 28
User Manual
Revision 1. 2
English
Modbus Master / KNX - Converter
(Order Code: HD67812-KNX-232-B2, HD67812-KNX-485-B2)
for Website information:
www.adfweb.com?Product=HD67812
for Price information:
www.adfweb.com?Price=HD67812-KNX-232-B2
www.adfweb.com?Price=HD67812-KNX-485-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -4 °C/85°C (-4 °F/185°F)
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com?Product=HD678 1 (BACnet Master)
www.adfweb.com?Product=HD678 2 (BACnet Slave)
www.adfweb.com?Product=HD678 3 (CAN)
www.adfweb.com?Product=HD678 4 (CANopen)
www.adfweb.com?Product=HD678 7 (EtherNet/ P)
www.adfweb.com?Product=HD678 8 (DeviceNet Master)
www.adfweb.com?Product=HD678 9 (DeviceNet Slave)
www.adfweb.com?Product=HD6781 (J1939)
www.adfweb.com?Product=HD67811 (M-Bus Master/wM-Bus)
www.adfweb.com?Product=HD67813 (Modbus Slave)
www.adfweb.com?Product=HD67814 (Modbus TCP Master)
www.adfweb.com?Product=HD67815 (Modbus TCP Slave)
www.adfweb.com?Product=HD67818 (PROF NET Slave)
www.adfweb.com?Product=HD6782 (SNMP)
www.adfweb.com?Product=HD67821 (DMX)
Do you have an your customer protocol?
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 2 di 28
NDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 1
RS232 11
RS485 12
KNX 13
ETHERNET 14
USE OF COMPOSITOR SW67812 15
NEW PROJECT / OPEN PROJECT 16
SOFTWARE OPTIONS 17
SET COMMUNICATION 18
KNX ACCESS 19
SET ACCESS 21
UPDATE DEVICE 23
MECHANICAL DIMENSIONS 25
ORDERING INFORMATIONS 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SUPPORT 28
RETURN POLICY 28
UPDATED DOCUMENTAT ON:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REV S ON L ST:
WARN NG:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 2 / 4/2 15 Ff All First Release
1. 1 15/ 6/2 15 Ff All Revision
1. 2 25/ 6/2 15 Ff All Revision

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 3 di 28
SECUR TY ALERT:
G ENERAL NFORMAT ON
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UAL F ED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ES DUAL R SKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORM TY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 4 di 28

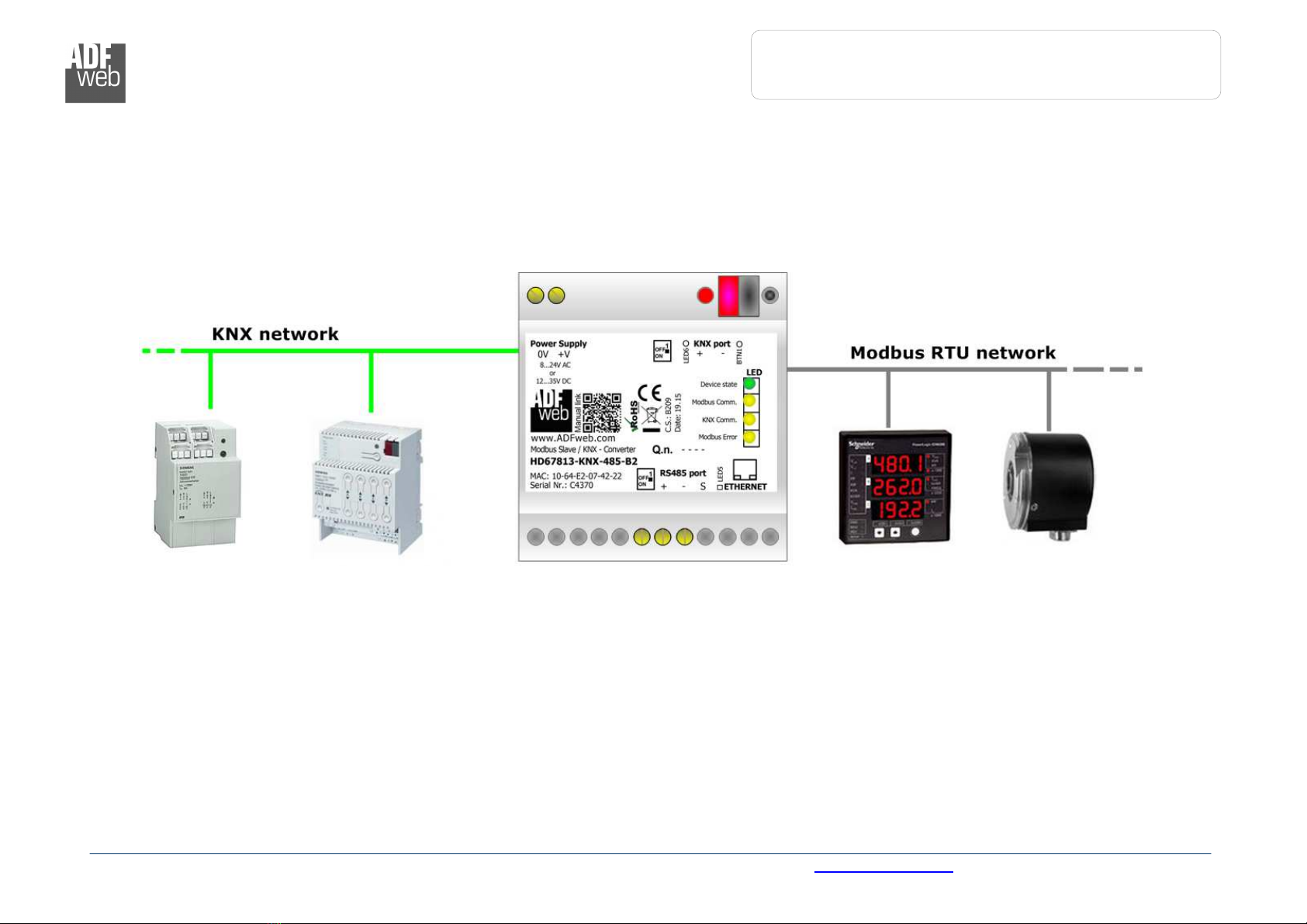

EXAMPLE OF CONNECT ON:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 5 di 28
CONNECT ON SCHEME:
Figure 1a: Connection scheme for HD67812-KNX-232-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 6 di 28
Figure 1b: Connection scheme for HD67812-KNX-485-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 7 di 28
CHARACTER ST CS:
The HD67812 is a Modbus Master / KNX Converter.
It has the following characteristics:
Up to 144 bytes in reading and 144 bytes in writing;
Triple isolation between KNX - Power Supply, KNX – Serial, Power Supply - Serial.
Two-directional information between KNX bus and Modbus bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONF GURAT ON:
You need Compositor SW67812 software on your PC in order to perform the following:
Define the parameter of Modbus line;
Define the parameter of KNX line;
Define the KNX messages that the Converter can accept;
Define the KNX frames that the Converter sends trough the KNX line;
Define the map of KNX byte that must be written in the Modbus side;
Define the map of which Modbus registers must be written in KNX messages;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 8 di 28

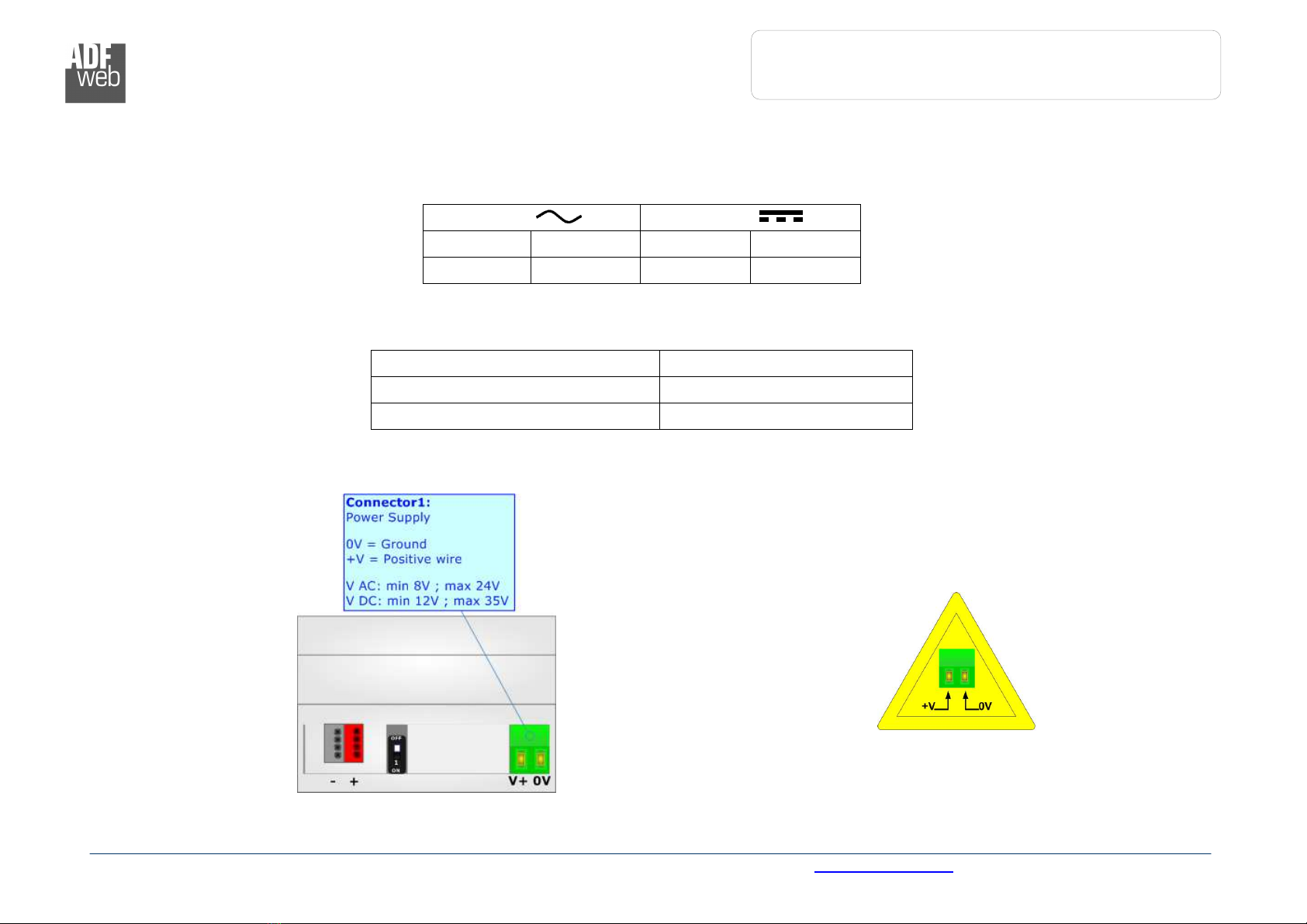

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67812-KNX-232-B2 3.5
HD67812-KNX-485-B2 3.5
HD67812-KNX-232-B2
HD67812-KNX-485-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 9 di 28

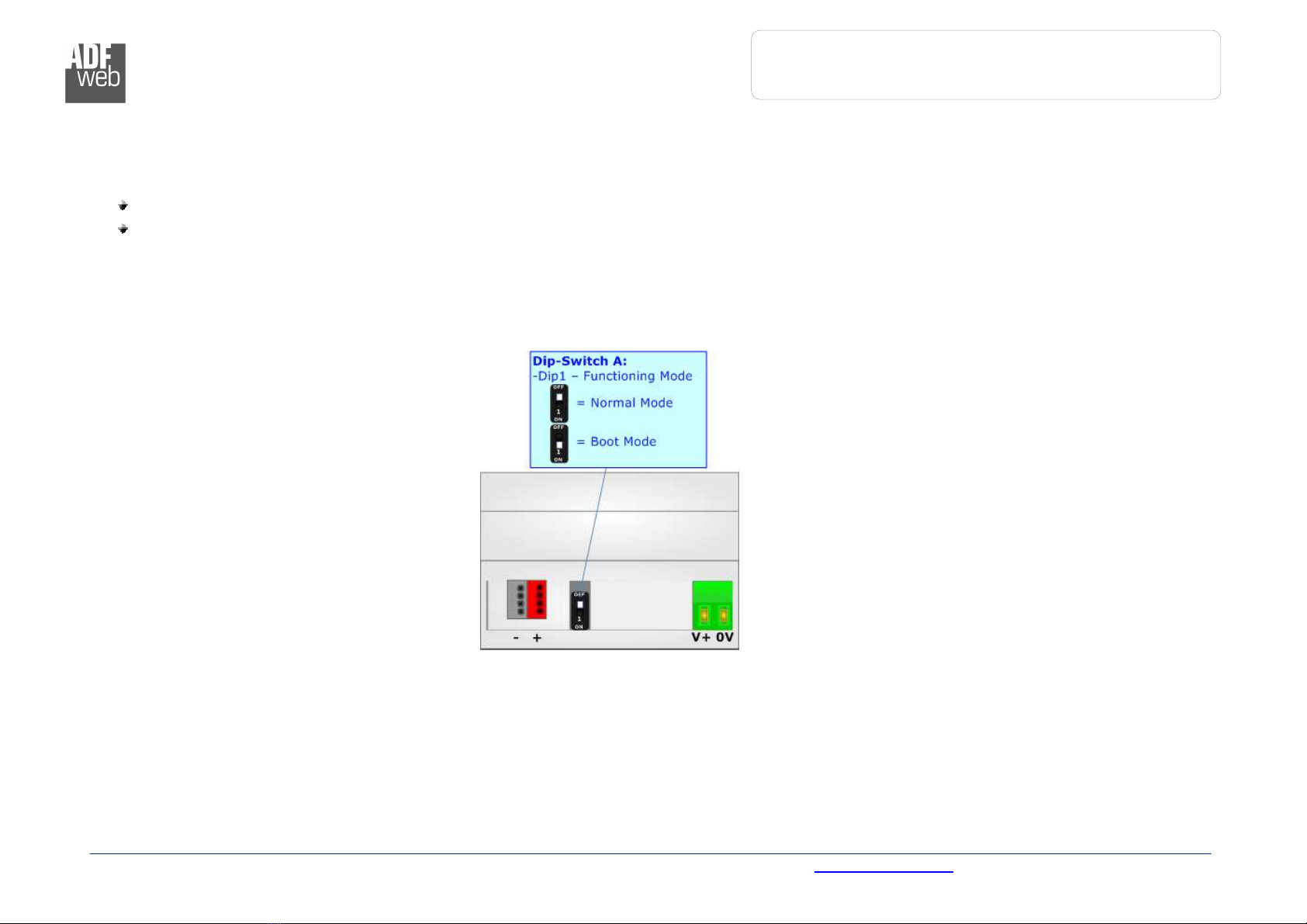

FUNCT ON MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 1 di 28
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) ON: Device powered
OFF: Device not powered
2: Modbus communication
(yellow) Blinks when Modbus frame (RS232/RS485) is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: KNX communication
(yellow) Blinks when KNX frame is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus error (yellow)
ON: At least one Modbus request hasn’t a correct
response
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
6: KNX Programmation (red) ON: KNX Programmation activated
OFF: KNX Programmation not activated
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 11 di 28

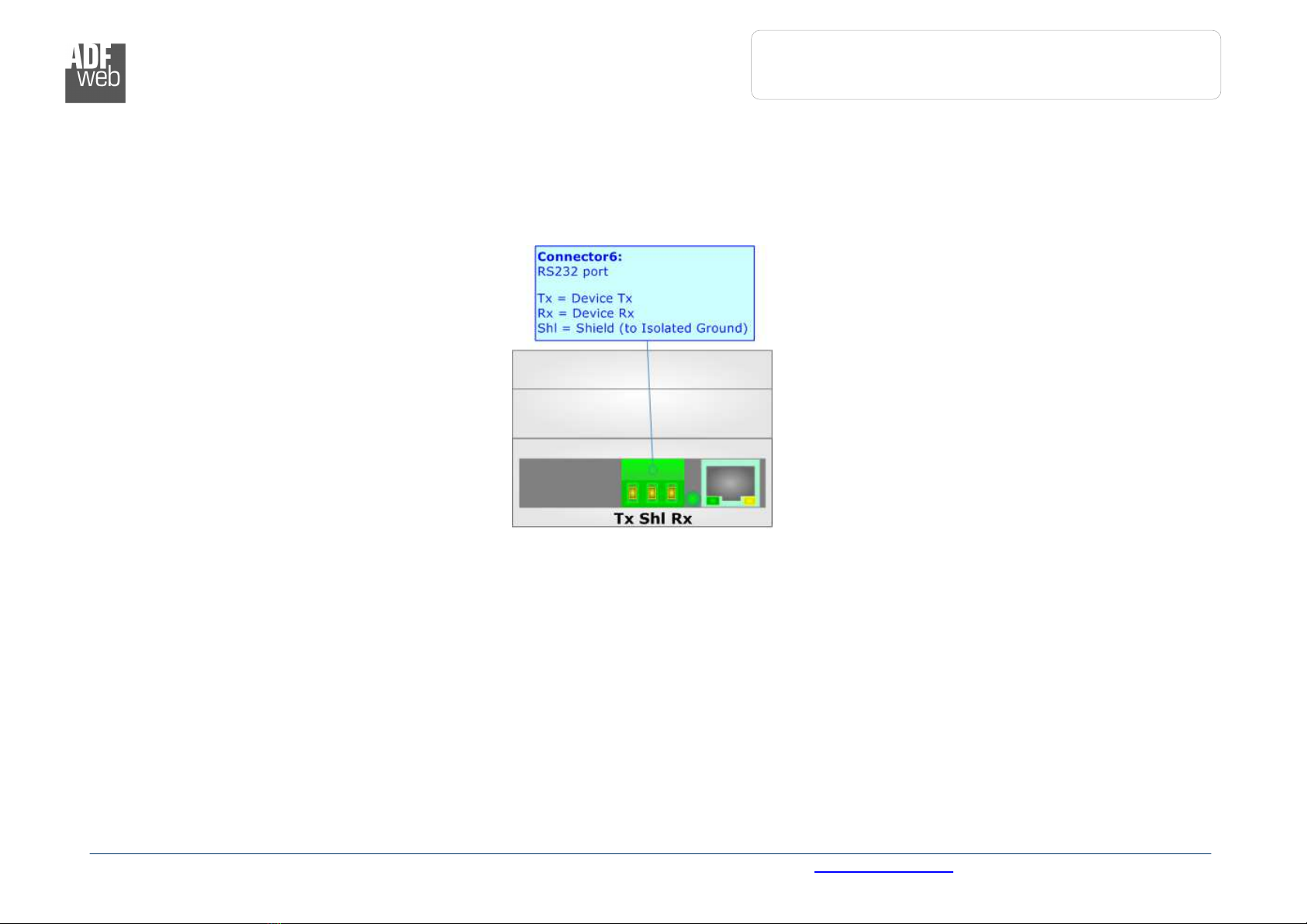

RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a
serial cable where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 12 di 28
RS485:
For terminate the RS485 line with a 22 Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 12 m (4 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 13 di 28

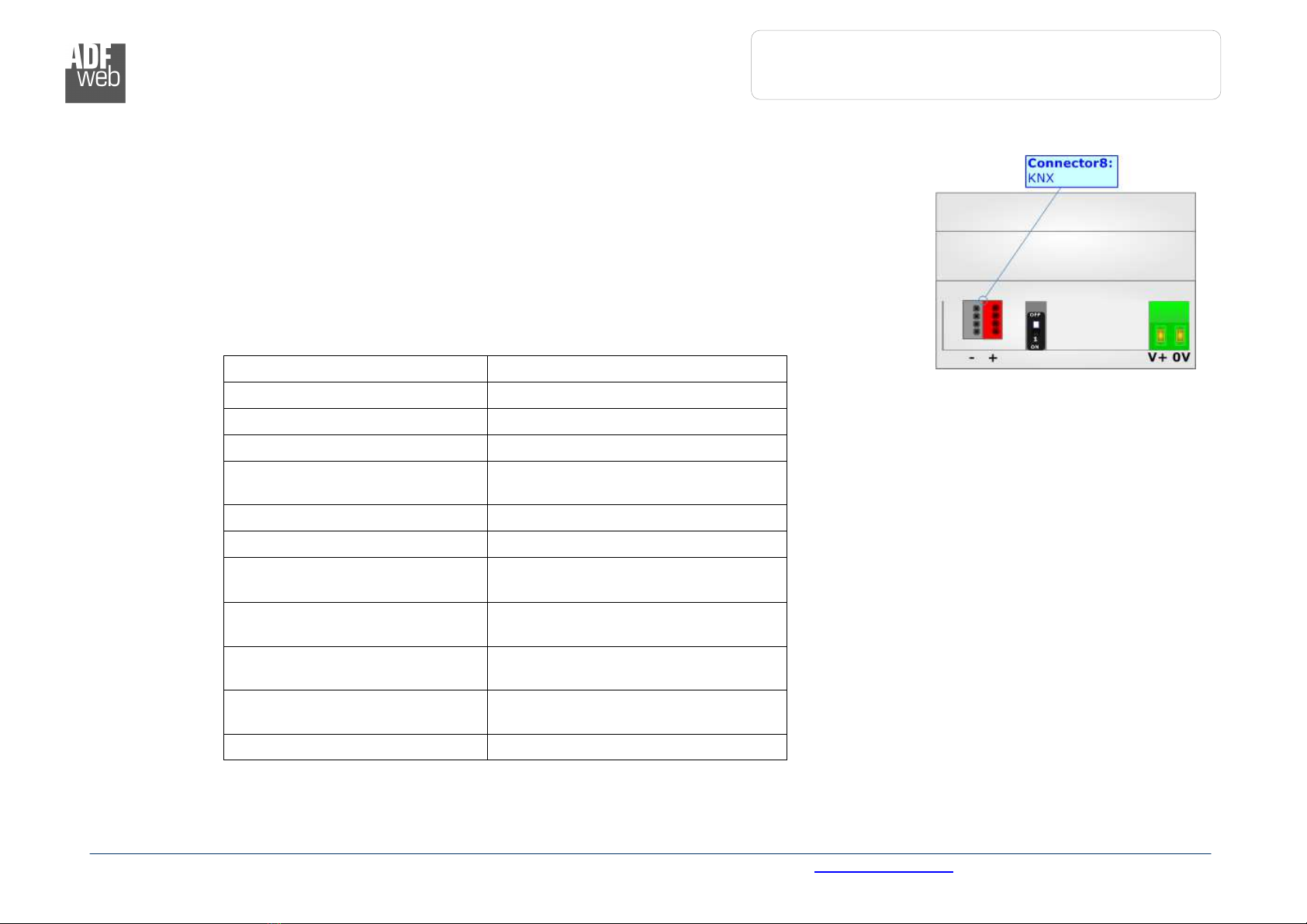

KNX:
KNX is the standard that allows the automated and decentralized management of the technologic plans of
a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on.
KNX can be used in all the applications and functions for the building automations: from lighting to control
dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms,
to energy management and so on.
Characteristics Description TP1-256
Medium Shielded Twisted Pair
Topology Linear, Star, Tree or mixed
Baudrate 96 bps
Device supplying Normal: bus powered devices
Optional: remote powered devices
Device power consumption 3 mA- 12 mA
Power Supply Unit (PSU) DC 3 V
Number of PSU’s per physical
Segment Max. 2
Number of connectable devices
per physical Segment Max. 256
Number of addressable devices
per physical Segment Max. 255
Total cable length per physical
Segment Max. 1 m
Distance between two devices Max. 7 m
(*) Taken from KNX specifications

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 14 di 28
ETHERNET (PROGRAMM NG PORT):
The Ethernet ports are used for programming the device.
The Ethernet connection must be made using Connector2 of HD67812-KNX-xxx-B2 with at least a Category 5E cable. The maximum length
of the cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 15 di 28
USE OF COMPOS TOR SW67812:
To configure the Converter, use the available software that runs with Windows called SW67812. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8; 32/64bit).
When launching the SW67812, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67812

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 16 di 28

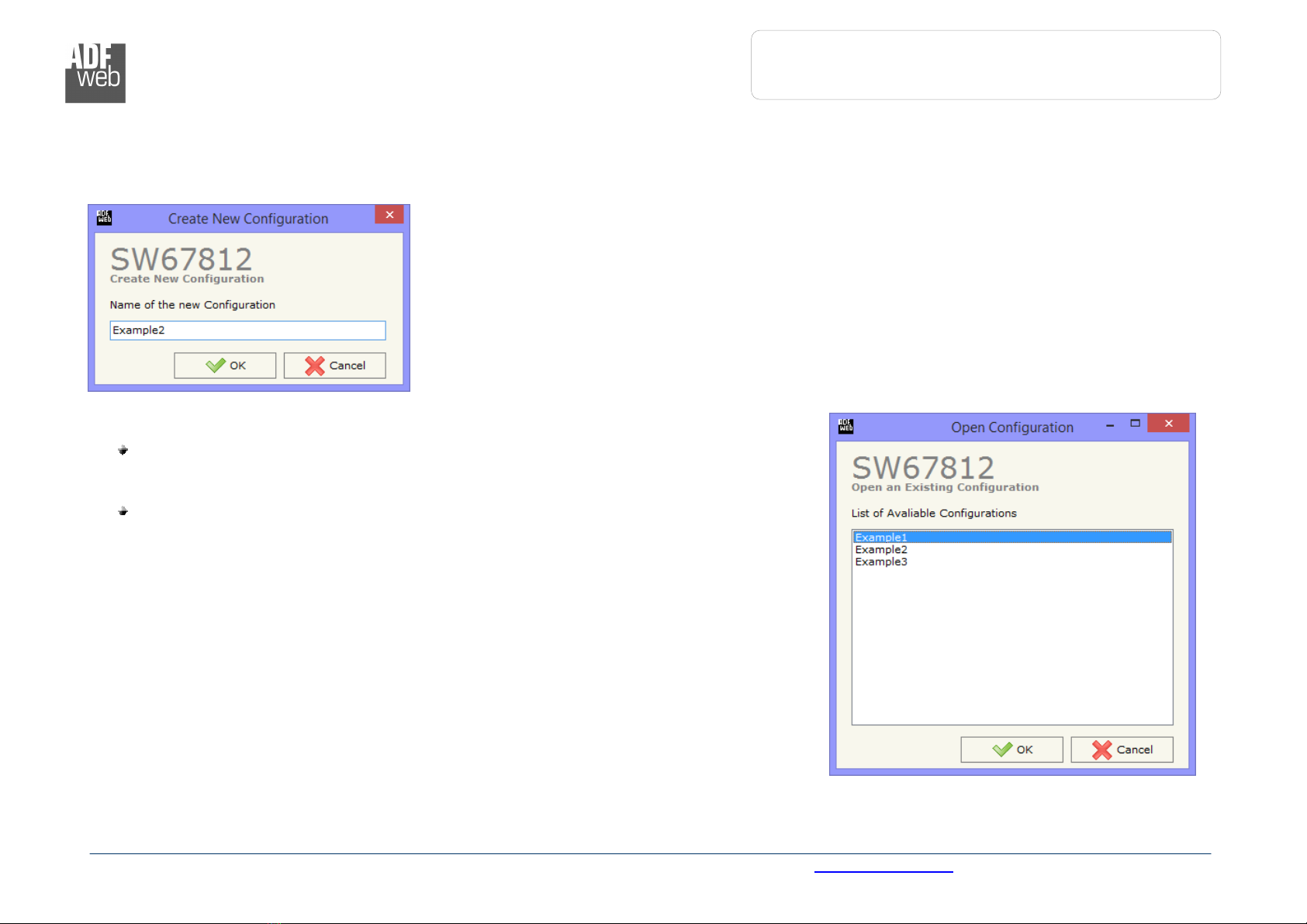

NEW CONF GURAT ON / OPEN CONF GURAT ON:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “Modbus Master / KNX - Converter” in
order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient
to duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 17 di 28
SOFTWARE OPT ONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67812 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 18 di 28
SET COMMUN CAT ON:
This section define the fundamental communication parameters of two buses, KNX and Modbus.
By Pressing the “Set Communication” button from the main window for SW67812 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The window is divided in three sections, one for the KNX, one for the Modbus and the other for
Ethernet.
The means of the fields for “KNX” are:
In the field “Type” the type of KNX is defined (fixd to ‘KNX TP’);
In the field “ D Device” the ID of the KNX side of the converter is defined.
The means of the fields for the “Modbus Master” section are:
In the field “Serial” the serial to use is defined (RS232 or RS485);
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits of the serial line is defined;
In the field “TimeOut (ms)” there is the maximum time that the device attends for the
answer from the Slave interrogated;
In the field “Communication dle Time (ms)” the minimun delay between two polls is
defined.
The means of the fields for “Ethernet” are:
In the fields “ P ADDRESS” insert the IP address that you want to give to the Converter;
In the fields “SUBNET Mask” insert the SubNet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going out of the
net.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 19 di 28

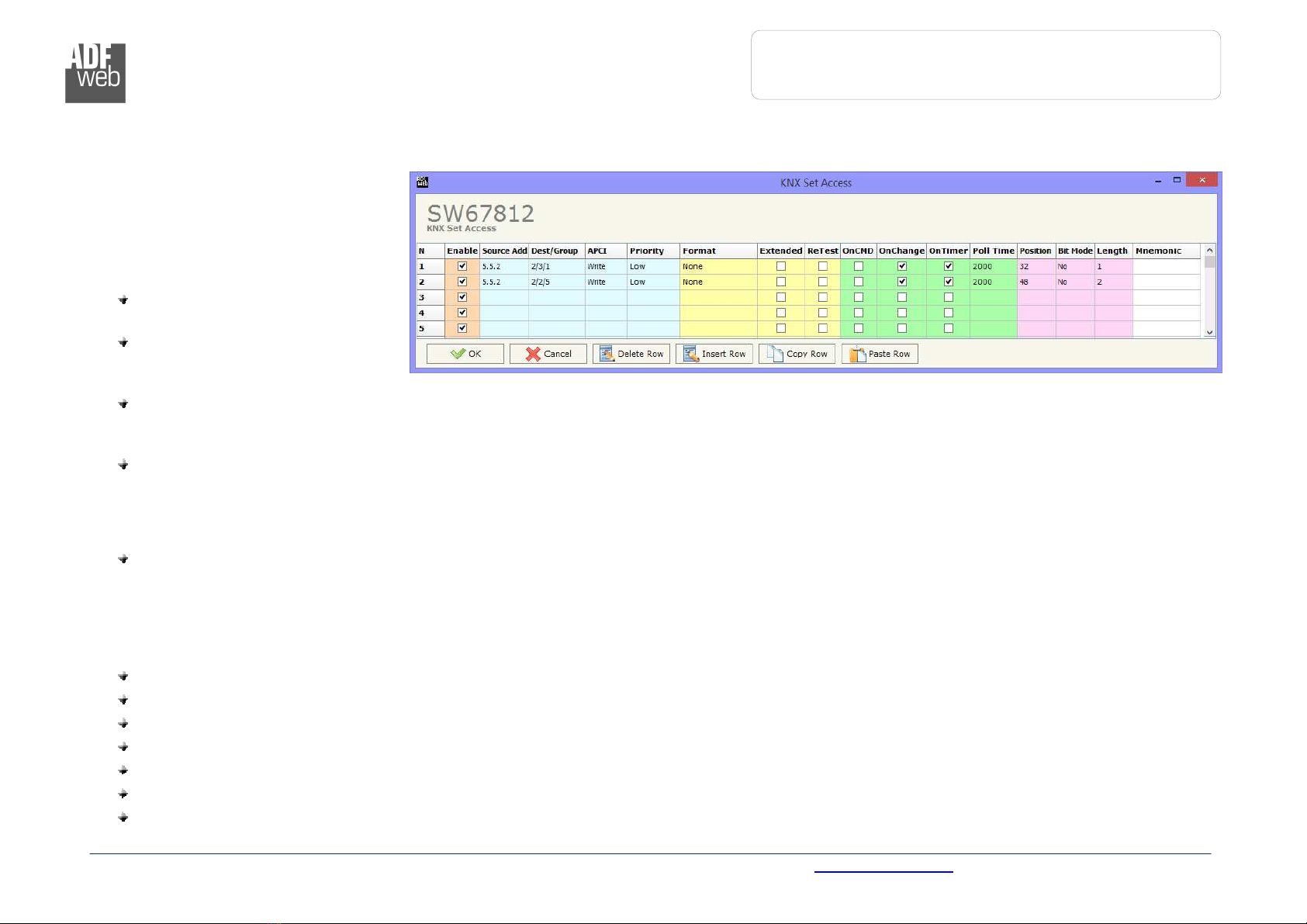

KNX ACCESS:
By pressing the “KNX Access” button
from the main window for SW67812
(Fig. 2) the “KNX Access” window
appears (Fig. 4).
The means of the fields are:
If the field “Enable” is checked,
the KNX message is enabled;
In the field “Source Address”
the Source Address to assign to
the KNX message is defined;
In the field “Dest/Group the Group address (2 level structure, 3 level structure or free address structure) or the device address is
defined. In case of Group address, the levels must be separated by ‘/’, in case of Device address, the parts of the address must be
separated by ‘.’;
In the field “APC ” the APCI of the KNX message is defined. You can choose between the following:
oRead: it is used to send a reading request to a KNX device;
oWrite: it is used to send a writing request to a KNX device;
oSpecific value (edited manually).
In the field “Priority” the Priority of the KNX message is defined. You can choose between the following:
oSystem (Highest);
oUrgent;
oNormal;
oLow (Lowest).
In the field “Format” the data format of the KNX message is defined;
If the field “Extended” is checked, the extended format of the KNX message is used;
If the field “ReTest” is checked, the KNX message is re-sent in case of not correct response;
If the field “OnCMD” is checked, the KNX request is sent when a Modbus request is received;
If the field “On Change” is checked, the gateway sends the KNX command when the data on Modbus change the value;
If the field “On Timer” is checked, the gateway sends the KNX command cyclically;
In the field “Poll Time” the delay in ms between two KNX commands is defined (if “On Timer” is checked);

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
Modbus Master / KNX
Document code: MN67812_ENG Revision 1. 2 Pagina 2 di 28
In the field “Position” insert the address of the internal array where placing the information;
In the field “Bit Mode” insert the start bit of the first byte of the field “Position” where start to insert the data read;
In the field “Lenght” the dimension of the KNX message is defined;
In the field “Mnemonic” the description for the request is defined.
Note:
If the field “On change” is checked and the “Poll Time” is different from , the converter sends the KNX command cyclically and also
when the data is changed.
Note:
If the field “OnCMD”, “OnChange” and “OnTimer” are not checked, the converter only sniffs the bus in order to monitor the status of
the KNX message.
