ADF Web BACnet Slave / S7comm User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 1 of 33
User Manual
Revision 1.000
English
BACnet Slave / S7comm - Converter
(Order Code: HD67630-I -A1, HD67630-MST -A1,
HD67630-MST -B2)
for Website information:
http://www.adfweb.com/? roduct=HD67630
for rice information:
http://www.adfweb.com/? rice=HD67630-I -A1
http://www.adfweb.com/? rice=HD67630-MST -A1
http://www.adfweb.com/? rice=HD67630-MST -B2
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others S7comm devices, see also the following links:
S7comm from/to …
www.adfweb.com? roduct=HD67618 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67619 (PR FIBUS Slave)
www.adfweb.com? roduct=HD67620 (IEC61850 Server)
www.adfweb.com? roduct=HD67621 (Serial)
www.adfweb.com? roduct=HD67622 (Modbus Slave)
www.adfweb.com? roduct=HD67623 (CAN)
www.adfweb.com? roduct=HD67624 (CANopen)
www.adfweb.com? roduct=HD67625 (DeviceNet Slave)
www.adfweb.com? roduct=HD67626 (SNMP Agent)
www.adfweb.com? roduct=HD67627 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67628 (KNX)
www.adfweb.com? roduct=HD67629 (MQTT)
www.adfweb.com? roduct=HD67631 (Ethernet)
www.adfweb.com? roduct=HD67632 ( PC UA Server)
www.adfweb.com? roduct=HD67633 (PR FINET Slave)
www.adfweb.com? roduct=HD67D39 (LoRaWAN)
www.adfweb.com? roduct=HD67E28 (EtherCAT Slave)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 2 of 33
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 8
CONFIGURATION 8
OWER SU LY 9
FUNCTION MODES 10
LEDS (for HD67630-I -A1) 11
LEDS (for HD67630-MST -XX) 12
ETHERNET 13
RS485 (for BACnet MS/T ) 14
USE OF COM OSITOR SW67630 15
NEW ROJECT / O EN ROJECT 16
SOFTWARE O TIONS 17
SET COMMUNICATION 19
S7COMM ACCESS 21
SET BACNET ACCESS 24
BACNET EDE FILE 25
U DATE DEVICE 26
MECHANICAL DIMENSIONS 28
ORDERING INFORMATIONS 31
ACCESSORIES 31
DISCLAIMER 32
OTHER REGULATIONS AND STANDARDS 32
WARRANTIES AND TECHNICAL SU ORT 33
RETURN OLICY 33
Pagina 2 di 33
UPDATED D CUMENTATI N:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISI N LIST:
Revision Date Author Chapter Description
1.000 13/03/2020 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 3 of 33
SECURITY ALERT:
G ENERAL I NF RMATI N
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERS NNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE C NF RMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 4 of 33
EXAMPLE F C NNECTI N:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 5 of 33
C NNECTI N SCHEME:
Figure
1
a
: Connection scheme for HD67
630
-
I
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 6 of 33
Figure
1
b
: Connection scheme for HD67
630
-
MST
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 7 of 33
Figure
1
c
: Connection sch
eme for HD67
630
-
MST
-
B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 8 of 33
CHARACTERISTICS:
The HD67630 is a BACnet Slave / S7comm Converter.
It allows the following characteristics:
Two-directional information between S7comm and BACnet;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
C NFIGURATI N:
You need Compositor SW67630 software on your C in order to perform the following:
Define the parameter of the BACnet;
Define the parameter of the S7comm;
Define the S7comm requests to send to the S7comm servers;
Define the BACnet objects accessible by the external Master;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 9 of 33
P WER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67630-xxxx-xx 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67630-xxxx-xx 4
Caution: Not reverse the polarity power
HD67630-MST -B2 HD67630-I -A1
HD67630-MST -A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 10 of 33
FUNCTI N M DES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 11 of 33
LEDS (for HD67630-IP-A1):
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
N: Device powered
FF: Device not powered
N: Device powered
FF: Device not powered
2: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BACnet communication
(green) Blinks when a BACnet request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: S7comm communication
(green) Blinks when a S7comm response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (green) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Not used (green) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 12 of 33
LEDS (for HD67630-MSTP-XX):
The device has five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: BACnet comm. (green) Blinks when a BACnet request is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Link Ethernet (green) N: Ethernet cable connected
FF: Ethernet cable disconnected
N: Ethernet cable connected
FF: Ethernet cable disconnected
4: S7comm comm. (yellow) Blinks quickly when a S7comm response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (yellow)
(only for HD67630-MST -B2) OFF Blinks quickly: Boot state Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 13 of 33
ETHERNET:
The Ethernet connection must be made using Connector3/Connector4/Connector5 of HD67630-xxxx-xx with at least a Category 5E cable.
The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up
to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is
recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 14 of 33

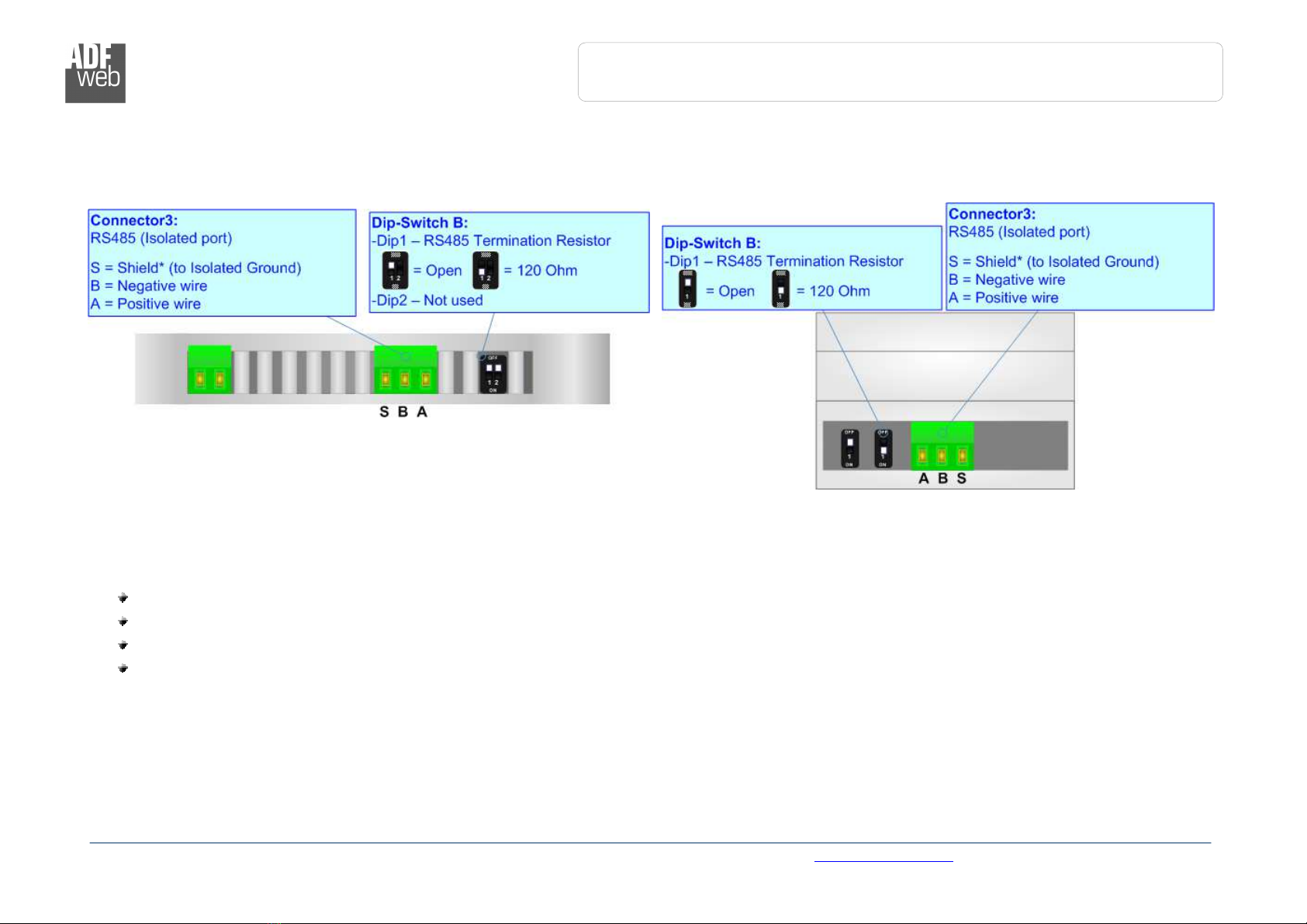

RS485 (for BACnet MS/TP):
To terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden: p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 15 of 33
USE F C MP SIT R SW67630:
To configure the Converter, use the available software that runs with Windows called SW67630. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67630, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67630

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 16 of 33
NEW C NFIGURATI N / PEN C NFIGURATI N:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “BACnet Slave / S7comm - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “ pen Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 17 of 33
S FTWARE PTI NS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67630 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 18 of 33
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 19 of 33
Figure 3a: “Set Communication” window
SET C MMUNICATI N:
This section define the fundamental communication parameters of two buses, BACnet and
S7comm.
By ressing the “Set Communication” button from the main window for SW67632 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “S7comm” are:
In the fields “IP ADDRESS” the I address for S7comm side of the converter is
defined;
In the fields “SUBNET Mask” the SubNet Mask for S7comm side of the converter is
defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going out
of the net.
In the field “BACnet Type” is possible to select the type of BACnet to use from:
BACnet/I (over Ethernet);
BACnet MS/T (over RS485).
If selected “BACnet/I ”, the means of the fields for “BACnet” are:
In the fields “IP ADDRESS” the I address of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of the converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field “Port” the port used for BACnet communication is defined. The default
port used for BACnet communication is 47808, but it is possible to insert any value (except 10000 and 10001);
In the field "BACnet Device Name" the name of BACnet/I side of the converter is defined;
In the field “Device Identifier” the ID of BACnet/I side of the converter is defined;

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
BACnet Slave
/ S7comm
Document code: MN67630_ENG Revision 1.000 age 20 of 33
Figure 3b: “Set Communication” window
If the field “BACnet description up to 32 chars” is checked, the description for the BACnet Objects can be up to 32 chars long;
If selected “BACnet MS/T ”, the means of the fields for “BACnet” are:
In the field “Baudrate” the data rate of the BACnet line is defined;
In the field “Parity” the parity of the line is defined;
In the field “BACnet Device Name” the name to give to the BACnet node is
defined;
In the field “MAC Address” the MAC of BACnet node (from 0 to 254) is defined;
The field “Max Master” specifies the highest allowable address for master nodes.
The value shall be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information frames
the node may send before it must pass the token;
In the field “Device Instance” the of the BACnet MS/T side of the converter is
defined;
In the field “Network” the BACnet MS/T network number is defined;
If the field “BACnet description up to 32 chars” is checked, the description for
the BACnet Objects can be up to 32 chars long.
