CHARACTERISTICS:
The HD67C54-B2 is a EnOcean / Modbus TCP Slave Converter
It allows the following characteristics:
Electrical isolation between Ethernet and Power Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CO FIGURATIO :
You need Compositor SW67C54 software on your PC in order to perform the following:
Define the parameter of Modbus TCP line;
Define the parameter of EnOcean line;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 7 of 27
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C54-B2 3 5
HD67C54-B2
Caution: ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 8 of 27
FU CTIO MODES:

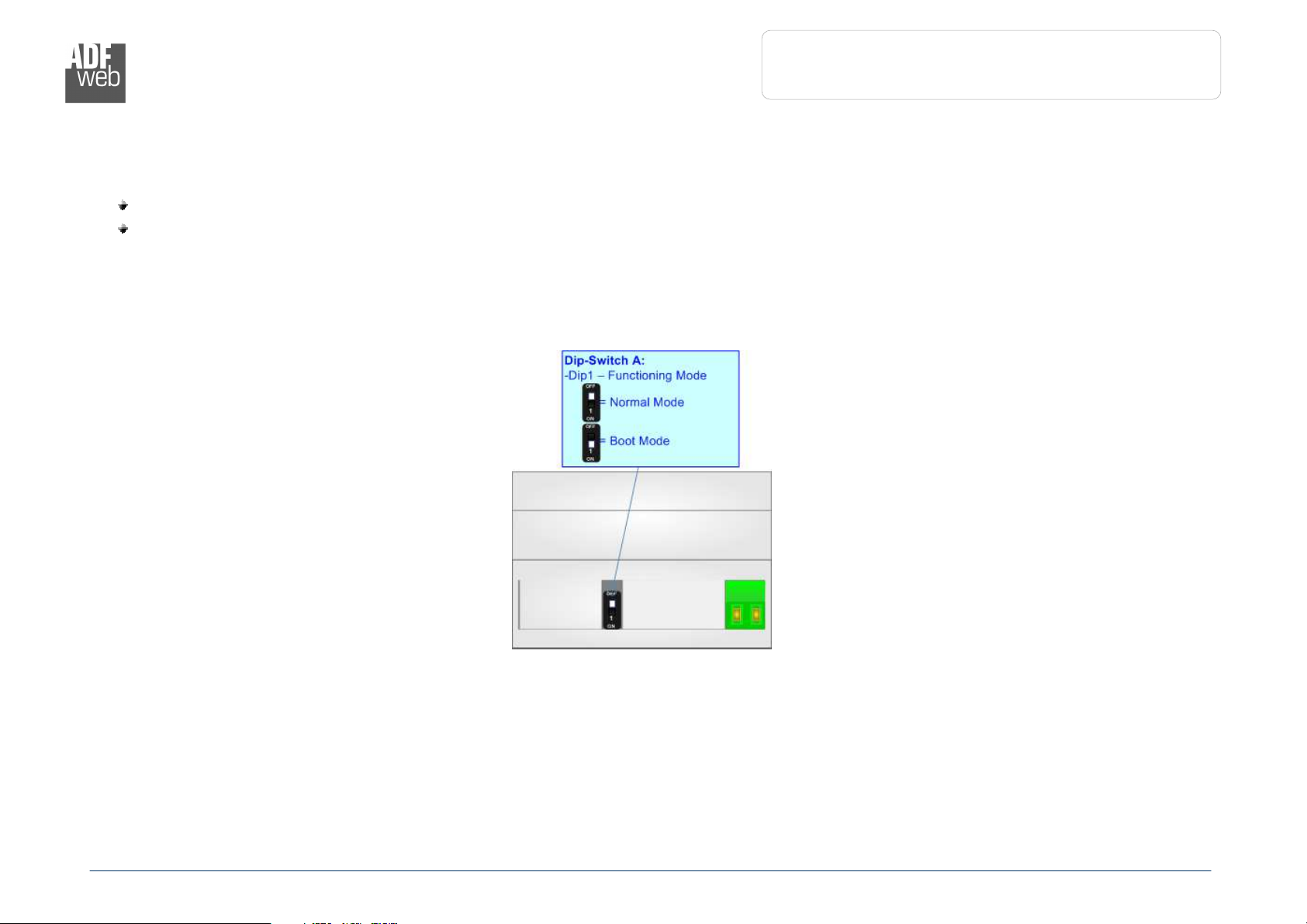

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 9 of 27
LEDS:
The device has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED ormal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: EnOcean communication
(yellow) Blinks when EnOcean data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Modbus TCP
communication (yellow) Blinks when Modbus TCP communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) O : An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 10 of 27
ETHER ET:
The Ethernet port is used for programming the device and for Modbus TCP communication
The Ethernet connection must be made using Connector2 of HD67C54-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 11 of 27
E OCEA :
EnOcean is a protocol designed for energy harvesting devices communication The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field
EnOcean products include solutions for environment monitoring, smart metering and
lighting Each device uses a unique ID for identification and one of the standardized profiles
(EEPs) for data transmission Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode)
EnOcean is based on wireless communication on 868 3 MHz ASK
It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknowledge
The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 12 of 27
USE OF COMPOSITOR SW67C54:
To configure the Converter, use the available software that runs with Windows called SW67C54 It is downloadable on the site
www adfweb com and its operation is described in this document The software works with MS Windows (XP, Vista, Seven, 8, 10; 32/64bit)

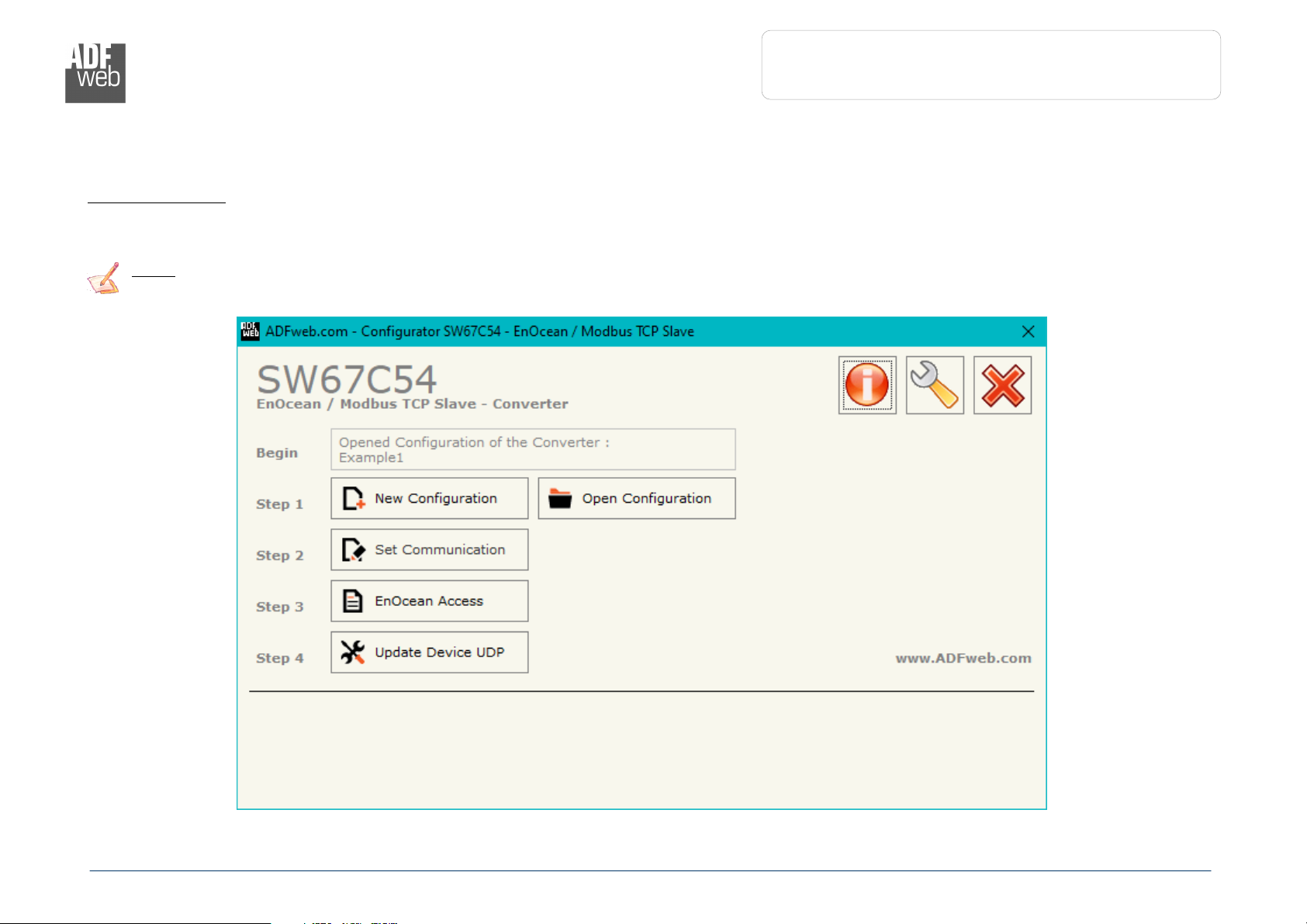

When launching the SW67C54, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main w
indow for SW67
C54

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 13 of 27
EW CO FIGURATIO / OPE CO FIGURATIO :

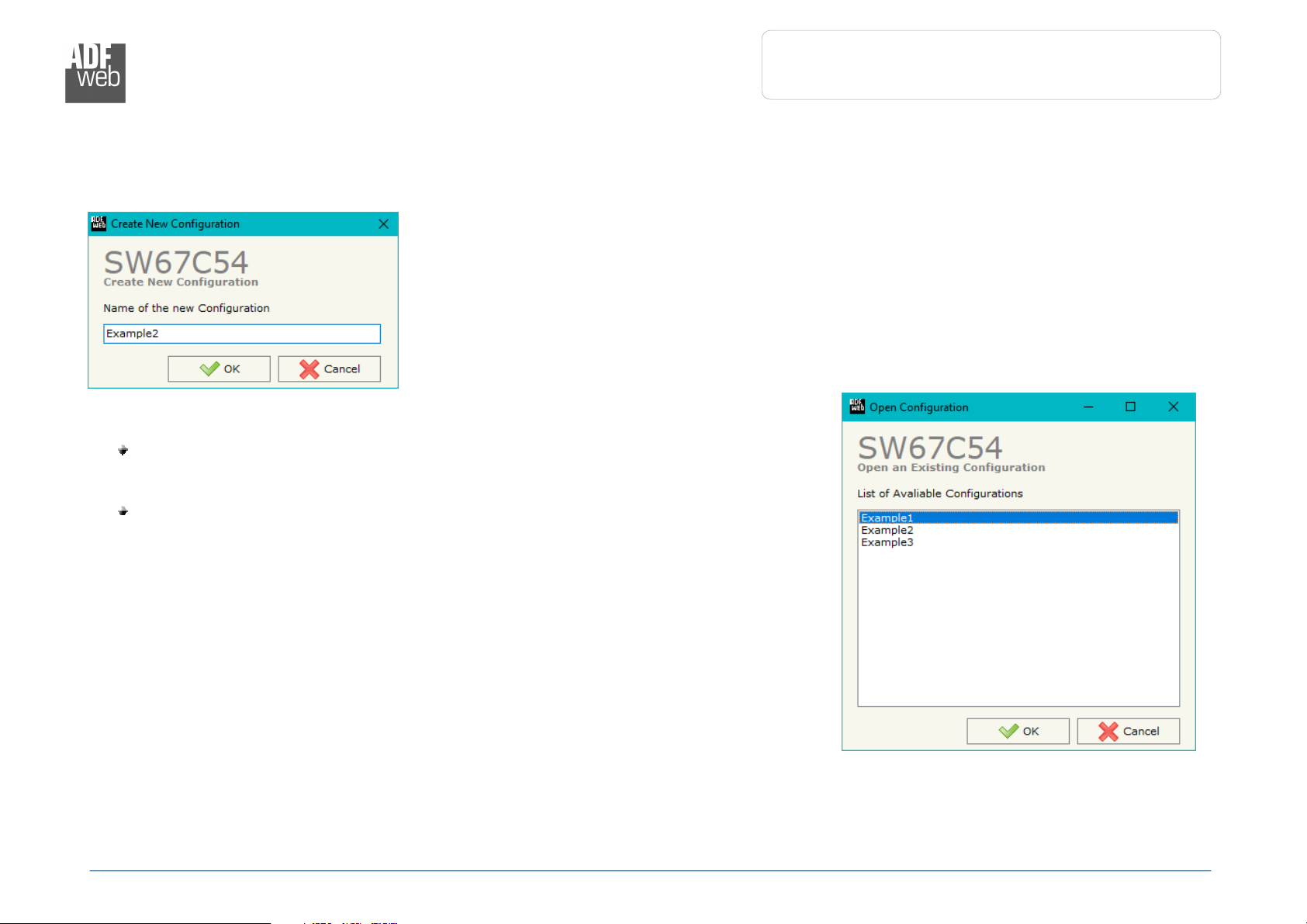

The “ ew Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “EnOcean / Modbus TCP Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 14 of 27
SOFTWARE OPTIO S:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67C54 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 15 of 27
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 16 of 27
SET COMMU ICATIO :
By Pressing the “Set Communication” button from the main window for SW67C54 (Fig 2)
the window “Set Communication” appears (Fig 3)
The means of the fields for the “Modbus TCP Slave” section are:
In the fields “IP ADDRESS” the IP address of Modbus TCP side of the converter is
defined;
In the fields “SUB ET Mask” the SubNet Mask of Modbus TCP side of the converter is
defined;
In the fields “GATEWAY” the default gateway of the network is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used for going
out of the net;
In the field “Port” the port used for Modbus TCP communication is defined
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 17 of 27
Figure 4: “
EnOcean
Access
” window
E OCEA ACCESS:
By Pressing the “EnOcean Set Access” button from the main window for SW67C54 (Fig 2) the window “EnOcean Set Access” appears (Fig
4) This section is used to define the list of the EnOcean devices to read/write

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 18 of 27
Figure 5: “Add/Modify EnOcean device”
window
By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics The
window “Add/Modify EnOcean device” appears (Fig 5)
The means of the fields are:
In the field “Device ID” the ID of the EnOcean device is defined;
In the field “Secure Type ” the type of EnOcean communication is defined;
In the field “Key” the key used for encryption of frames in Secure Mode is defined;
In the field “Rolling Code” the Rolling Code for the EnOcean communication is
defined;
In the field “Rolling Code Algorithm” the type of Rolling Code is defined;
In the field “Rolling Code Tx” the transmission of the Rolling Code is
enabled/disabled;
In the field “CMAC Algorithm” the MAC field at the end of the EnOcean frame is
defined;
In the field “Data Encrypted” the encryption of the data is enabled/disabled;
In the field “PTM” the type of EnOcean device is defined

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 19 of 27
Figure 6: “Add/Modify EnOcean variable”
window
By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID The window “Add/Modify EnOcean variable”
appears (Fig 6)
The means of the EEP fields are:
In the field “Rorg” the type of EnOcean telegram is defined;
In the field “Func” the type of EnOcean instance is defined;
In the field “Type” the type of event is defined
The means of the Variable fields are:
In the field “Case” the format of the EnOcean telegram is defined;
In the field “Variable” the variable to read/write is defined;
In the field “Position” the starting byte of the internal array where
mapping/taking the variable is defined;
In the field “Bit Start” the starting bit of the defined Position where
mapping/taking the variable is defined

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
Mod
bus TCP
Slave
Document code: MN67C54_ENG Revision 1 000 Page 20 of 27
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary This by using the
Ethernet port
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in OFF position;
Turn ON the device
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode
At this point the configuration/firmware on the device is correctly updated
Figure
7
: “Update device” windows
