ADF Web AXIS HD67177-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 1 di 22
User Manual
Revision 1.000
En lish
PROFIBUS Slave / SNMP Manager -
Converter
(Order Code: HD67177-A1)
for Website information:
www.adfweb.com?Product=HD67177
for Price information:
www.adfweb.com?Price=HD67177-A1
Benefits and Main Features:
Very easy to confi ure
Electrical isolation
Temperature ran e: -40°C/85°C (-40°F/185°F)
For others SNMP products, see also the followin links:
Converter SNMP Manager to
www.adfweb.com?Product=HD67170 (BACnet Slave)
www.adfweb.com?Product=HD67171 (CAN)
www.adfweb.com?Product=HD67172 (CANo en)
www.adfweb.com?Product=HD67173 (DeviceNet Slave)
www.adfweb.com?Product=HD67174 (EtherNet/IP)
www.adfweb.com?Product=HD67175 (Modbus Slave)
www.adfweb.com?Product=HD67176 (Modbus TCP Slave)
www.adfweb.com?Product=HD67178 (PROFINET)
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 2 di 22
INDEX:
Pa e
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
PROFIBUS 10
ETHERNET 10
USE OF COMPOSITOR SW67177 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 14
SNMP MANAGER 15
UPDATE DEVICE 17
MECHANICAL DIMENSIONS 19
ORDERING INFORMATIONS 20
ACCESSORIES 20
DISCLAIMER 21
OTHER REGULATIONS AND STANDARDS 21
WARRANTIES AND TECHNICAL SUPPORT 22
RETURN POLICY 22
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the followin document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top ri ht-hand corner of each pa e of this document.
With this “Document Code” o to web pa e www.adfweb.com/download/
and search for the correspondin code on the pa e. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the ri ht to chan e information in this manual about
our product without warnin .
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belon to their respective
owners.
Revision Date Author Cha ter Descri tion
1.000 09/02/2015 Ff All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 3 di 22
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and
safety re ulation are required for each individual application. The same applies also when usin accessories.
I NTENDED U SE
Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the followin symbol:
This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or
death and / or the possibility of dama e.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 4 di 22
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 5 di 22

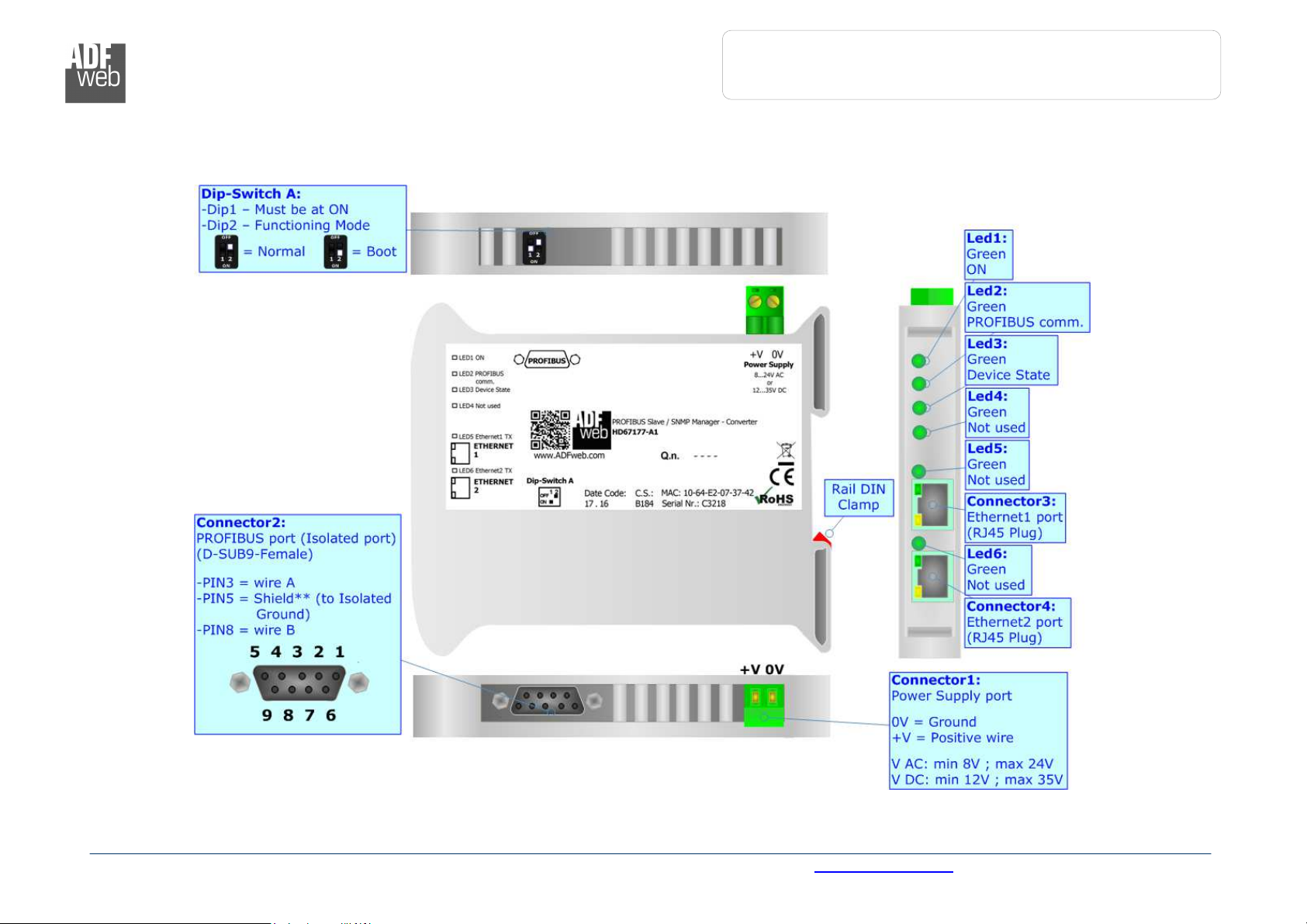

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67177-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 6 di 22
CHARACTERISTICS:
The HD67177-A1 is a PROFIBUS Slave / SNMP Mana er - Converter.
It has the followin characteristics:
Up to 244 bytes in readin and 244 bytes in writin ;
Isolation between Power Supply – Ethernet - PROFIBUS.
Two-directional information between PROFIBUS bus and SNMP bus;
Mountable on 35mm Rail DIN;
Wide power supply input ran e: 8…24V AC or 12…35V DC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67177 software on your PC in order to perform the followin :
Define the parameter of SNMP line;
Define the parameter of PROFIBUS line;
Define the SNMP requests to send to the SNMP A ents;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 7 di 22
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consum tion [W/VA]
HD67177-A1 3.5
Caution: Not reverse the
olarity ower
HD67177
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 8 di 22
FUNCTION MODES:
The device has ot two functions mode dependin of the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.
Accordin to the functionin mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Warnin :
Dip1 of ‘Dip-Switch A’ must be at ON position for workin even if the Ethernet cable isn’t inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 9 di 22
LEDS:
The devices have ot six LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
1: ON [supply volta e ]
( reen)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: PROFIBUS comm. ( reen) Blinks when PROFIBUS communication is workin Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
3: Device state ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
4: Not used ( reen) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
5: Not used ( reen) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
6: Not used ( reen) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 10 di 22
PROFIBUS:
The PROFIBUS uses a 9-pin D-SUB connector. The pin assi nment is defined
like in the ri ht fi ure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50
PROFIBUS Cable.
ETHERNET:
The SNMP communication and the firmware/confi uration updatin must be made usin Connector3 or Connector4 of HD67177-A1 with at
least a Cate ory 5E cable. The maximum len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative
to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the
device to a PC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 11 di 22
USE OF COMPOSITOR SW67177:
To confi ure the Converter, use the available software that runs with Windows called SW67177. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).

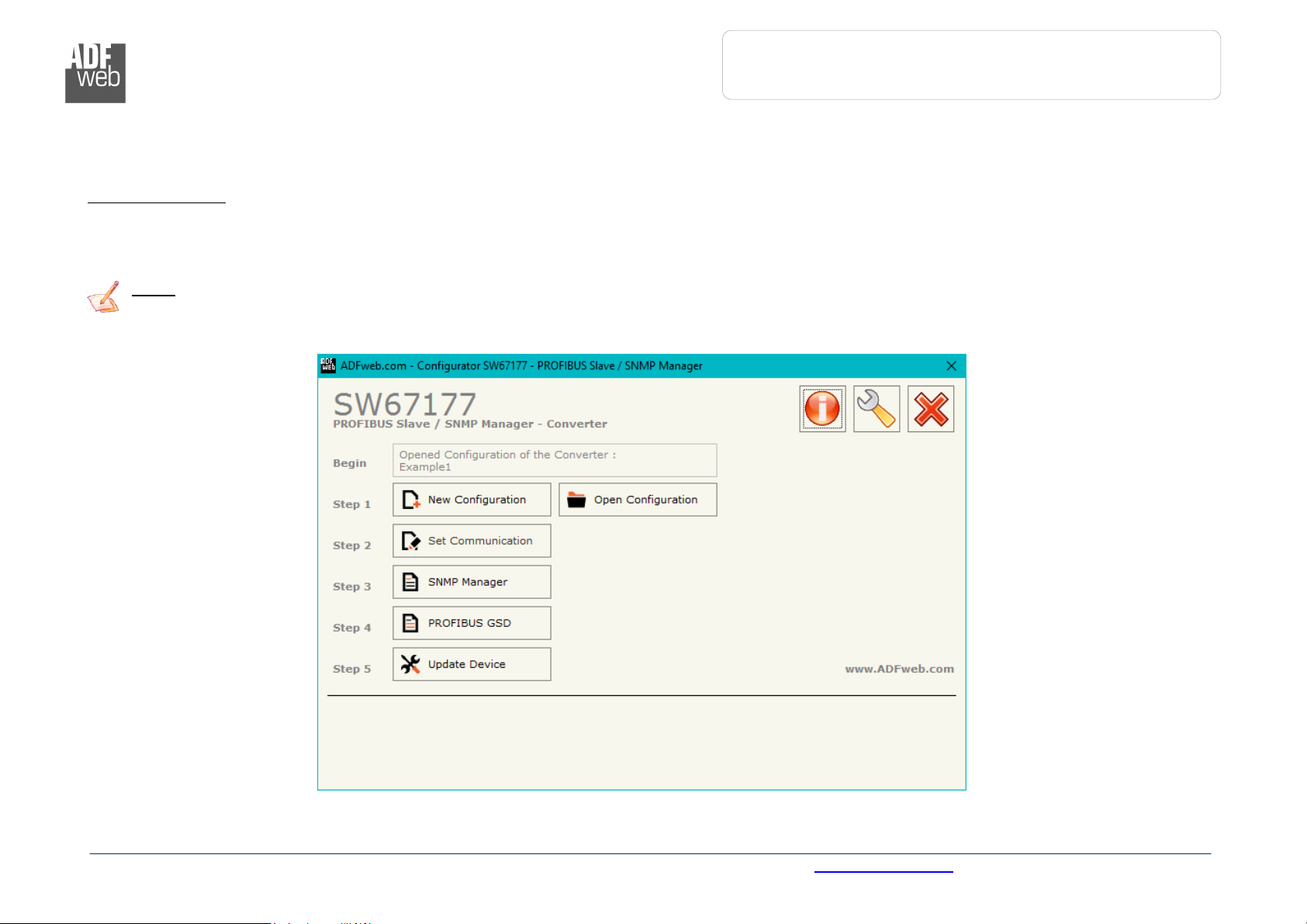

When launchin the SW67177, the window below appears (Fi . 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67177

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 12 di 22
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s confi uration.
A device’s confi uration can also be imported or exported:
To clone the confi urations of a Pro rammable “PROFIBUS Slave / SNMP Mana er -
Converter” in order to confi ure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “O en Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 13 di 22
SOFTWARE OPTIONS:
By pressin the “Settings” ( ) button there is the possibility to chan e the lan ua e of the software and check the updatin s for the
compositor.
In the section “Lan ua e” it is possible to chan e the lan ua e of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatin s of the software compositor in ADFweb.com website.
Checkin the option “Check Software U date at Start of Program”, the
SW67177 check automatically if there are updatin s when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 14 di 22
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, SNMP and PROFIBUS.
By Pressin the “Set Communication” button from the main window for SW67177 (Fi . 2) the window
“Set Communication” appears (Fi . 3).
The window is divided in two sections, one for the SNMP Mana er and the other for the PROFIBUS
Slave.
The means of the fields for “SNMP Mana er” are:
In the field “IP ADDRESS” insert the IP address that you want to ive to the Converter;
In the field “SUBNET Mask” insert the SubNet Mask;
In the field “GATEWAY” insert the default ateway that you want to use. This feature can be
enabled or disabled pressin the Check Box field. This feature is used for oin out of the net;
In the field "SNMP Name of Station" is possible to assi n a name to the SNMP node.
The means of the fields for the “PROFIBUS Slave” section are:
In the field “ID Device” the PROFIBUS Slave ID is defined.
In the field “Baudrate” the PROFIBUS Slave baudrate is defined (fixed to Auto Baudrate).
In the field “Number Byte IN” the number input bytes of PROFIBUS Slave is defined (at max
244 bytes);
In the field “Number Byte OUT” the number output bytes of PROFIBUS Slave is defined (at
max 244 bytes).
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 15 di 22
SNMP MANAGER:
By Pressin the “SNMP Manager” button from the main window for SW67177 (Fi . 2) the window “Set SNMP Mana er Access” appears
(Fi . 4).
The meanin of the fields in the window are the follows:
If the field “Enable” is checked, the SNMP request is enabled;
In the field “IP Address” the address of the SNMP A ent device that you have to read/write is defined;
In the field “Version” the SNMP version used to send the SNMP request (1, 2 or 3) is defined;
In the field “Community Name” the Community Name used for the SNMP request (‘Public’ or ‘Private’ or editable manually) is
defined;
In the field “OID” the OID to read/write from/to the SNMP A ent device is defined;
In the field “Address” the start address of the re ister/status to read/write is defined;
In the field “Ty e” the type of data to read/write (‘Strin ’ or ‘Int’) is defined;
In the field “Mode” the type of SNMP request used (‘Get’, ‘Set’ or ‘Trap’) is defined;
By checkin the field “On Change” the SNMP request (only for the ‘Set’ Mode) is made only if Modbus data written by the Master are
chan ed;
If the field “On Timer” is checked, the SNMP request is sent cyclically;
In the field “Time” the delay in ms between two SNMP requests is defined (if “On Timer” is checked);
Figure 4: “Set SNM Manager Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 16 di 22
In the field “Position” it is possible to select the position where take/save the data from/to the PROFIBUS arrays;
In the field “Num Bytes” it is possible to select define the dimension of the SNMP Data;
In the field “Convertion” it is possible to select the type of data conversion to apply to the data read/written from/to SNMP side;
In the field “Mnemonic” a description of the data inserted in the row is defined.
Note:
If the field “On chan e” and “On Timer” is checked and the “Poll Time” is different from 0, the converter sends the SNMP writin
request cyclically and also when the data is chan ed.
Note:
If the “Trap” mode is used, the fields “On CMD”, “On Chan e” and “On Timer” must be disabled.
PROFIBUS GSD:
By pressin the “PROFIBUS GSD” button it is possible to save the GSD file for the PROFIBUS side.
With this feature you can save the confi uration of the converter of the PROFIBUS side.
Note:
When you import the . sd file on your Master PROFIBUS you have to add all the modules that are present inside it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 17 di 22
UPDATE DEVICE:
By pressin the “U date Device” button, it is possible to load the created Confi uration into the device; and also the Firmware, if
necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip2 of ‘Dip-Switch A’ in ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Press the “Ping” button, “Device Found!” must appear;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute u date firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
Put Dip2 of ‘Dip-Switch A’ at OFF position;
Turn on the device.
At this point the confi uration/firmware on the device is correctly updated.
Figure 5: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 18 di 22
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute u date firmware” button to start the upload;
When all the operations are “OK” the device automatically oes at
Normal Mode.
At this point the confi uration/firmware on the device is correctly update.
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67177-
A1 device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67177-A1 device.
Warnin :
If Fi . 6 appears when you try to do the Update try these points before seekin
assistance:
Try to repeat the operations for the updatin ;
Try with another PC;
Try to restart the PC;
If you are usin the pro ram inside a Virtual Machine, try to use in the main
Operatin System;
If you are usin Windows Seven or Vista or 8 or 10, make sure that you have the
administrator privile es;
Take attention at Firewall lock;
Check the LAN settin s.
In the case of HD67177-A1 you have to use the software “SW67177”: www.adfweb.com\download\filefold\SW67177.zip.
Figure 6: “ rotection” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 19 di 22
MECHANICAL DIMENSIONS:

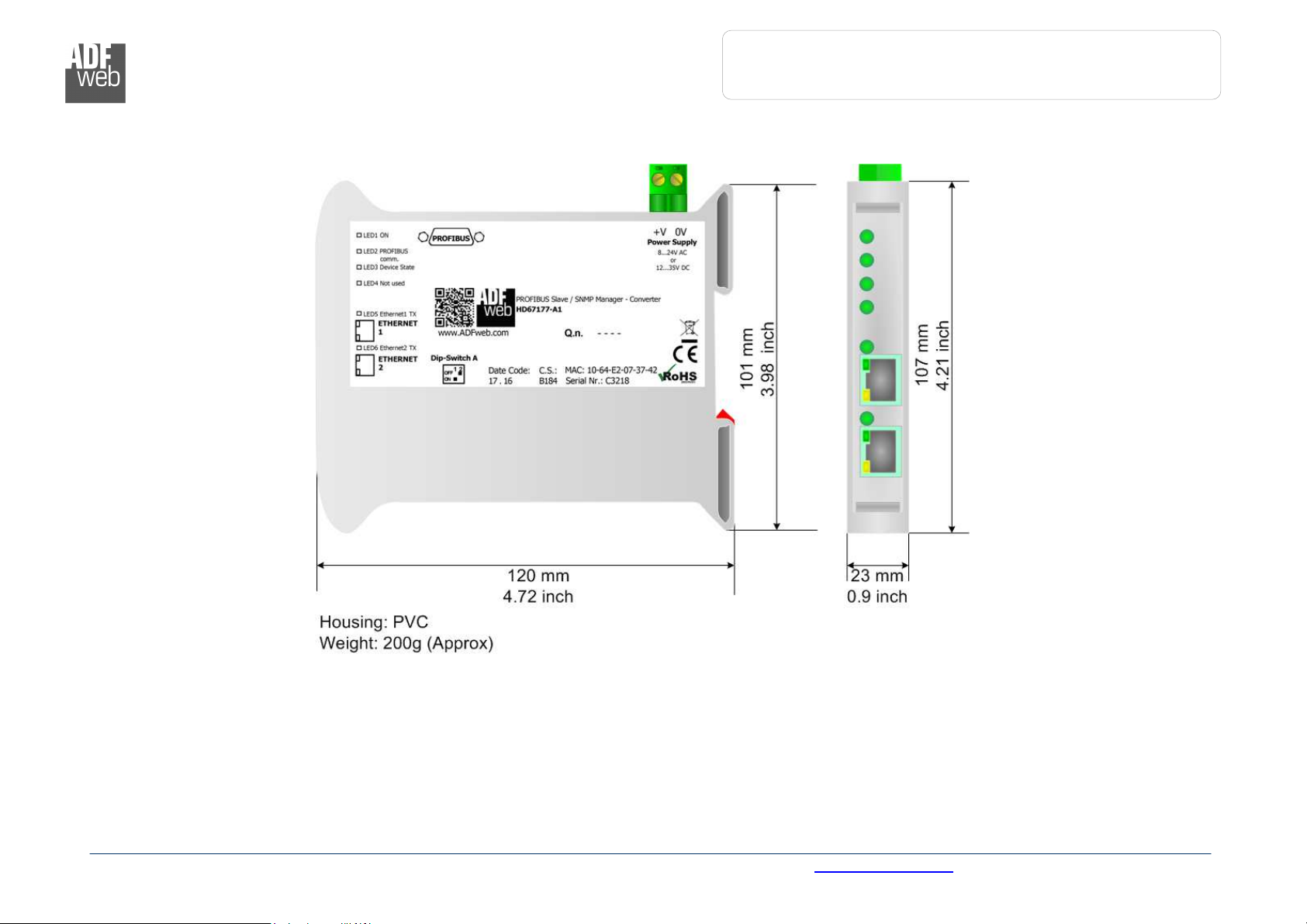

Figure 7: Mechanical dimensions scheme for HD67177-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG Revision 1.000 Pa ina 20 di 22
ORDERING INFORMATIONS:
The orderin part number is formed by a valid combination of the followin :
HD67177 - x x
Connectors Ty e
1: Removable 5mm Screw Terminal
Enclosure Ty e
A: 1M, 35mm DIN Rail mountin
Device Family
HD67177: PROFIBUS Slave / SNMP Mana er - Converter
Order Code: HD67177-A1 - PROFIBUS Slave / SNMP Mana er - Converter
ACCESSORIES:
Order Code: AC34001 - 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC
Order Code: AC34002 - 35mm Rail DIN - Power Supply 110V AC 50/60Hz – 12 V AC
