ADF Web HD67767-IP-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 1 of 32
User Manual
Revision 1.000
En lish
IEC61850 Client / BACnet Slave -
Converter
(Order Code: HD67767-IP-A1, HD67767-MSTP-A1)
for Website information:
http://www.adfweb.com/?Product=HD67767
for Price information:
http://www.adfweb.com/?Price=HD67767-IP-A1
http://www.adfweb.com/?Price=HD67767-MSTP-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature ran e: -40°C/+85°C (-40°F/+185°F)
For others IEC61850 Client devices, see also the followin links:
IEC61850 Client from/to
www.adfweb.com?Product=HD67D34 (LoRaWAN)
www.adfweb.com?Product=HD67E14 (EtherCAT)
www.adfweb.com?Product=HD67765 (Modbus Slave)
www.adfweb.com?Product=HD67766 (Modbus TCP Slave)
www.adfweb.com?Product=HD67768 (CAN)
www.adfweb.com?Product=HD67769 (CANopen)
www.adfweb.com?Product=HD67770 (DeviceNet Slave)
www.adfweb.com?Product=HD67771 (EtherNet/IP Slave)
www.adfweb.com?Product=HD67772 (J1939)
www.adfweb.com?Product=HD67773 (KNX)
www.adfweb.com?Product=HD67774 (MQTT)
www.adfweb.com?Product=HD67775 (NMEA0183)
www.adfweb.com?Product=HD67776 (NMEA2000)
www.adfweb.com?Product=HD67777 (PROFIBUS)
www.adfweb.com?Product=HD67778 (PROFINET)
www.adfweb.com?Product=HD67779 (SNMP Agent)
www.adfweb.com?Product=HD67780 (Serial)
www.adfweb.com?Product=HD67781 (Ethernet)
Do you have an your customer protocol?
See the followin links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the followin link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 2 of 32
INDEX:
Pa e
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 10
ETHERNET 11
RS485 12
USE OF COMPOSITOR SW67767 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
IEC61850 ACCESS 19
SET BACNET ACCESS 24
UPDATE DEVICE 27
MECHANICAL DIMENSIONS 29
ORDERING INFORMATIONS 30
ACCESSORIES 30
DISCLAIMER 31
OTHER REGULATIONS AND STANDARDS 31
WARRANTIES AND TECHNICAL SUPPORT 32
RETURN POLICY 32
Pagina 2 di 32
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the followin document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top ri ht-hand corner of each pa e of this document.
With this “Document Code” o to web pa e www.adfweb.com/download/
and search for the correspondin code on the pa e. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 13/03/2020 VDB All First release version
WARNING:
ADFweb.com reserves the ri ht to chan e information in this manual about
our product without warnin .
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belon to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 3 of 32
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and
safety re ulation are required for each individual application. The same applies also when usin accessories.
I NTENDED U SE
Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the followin symbol:
This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or
death and / or the possibility of dama e.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 4 of 32
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 5 of 32
CONNECTION SCHEME:
Figure
1
a
: Connection scheme for HD67
7
67
-
I
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 6 of 32
Figure
1
b
: Connection scheme for HD67
767
-
MST
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 7 of 32
CHARACTERISTICS:
The HD67767-A1 is a IEC61850 Client / BACnet Slave converter.
It allows the followin characteristics:
Two-directional information between BACnet and IEC61850;
Mountable on 35mm Rail DIN;
Wide power supply input ran e: 8…24V AC or 12…35V DC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67767 software on your PC in order to perform the followin :
Define the parameters of the IEC61850;
Define the parameters of the BACnet;
Define IEC61850 variables to be read by the BACnet master;
Define IEC61850 variables to be written by the BACnet master;
Define the list of BACnet objects accessible by the external BACnet Master;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 8 of 32

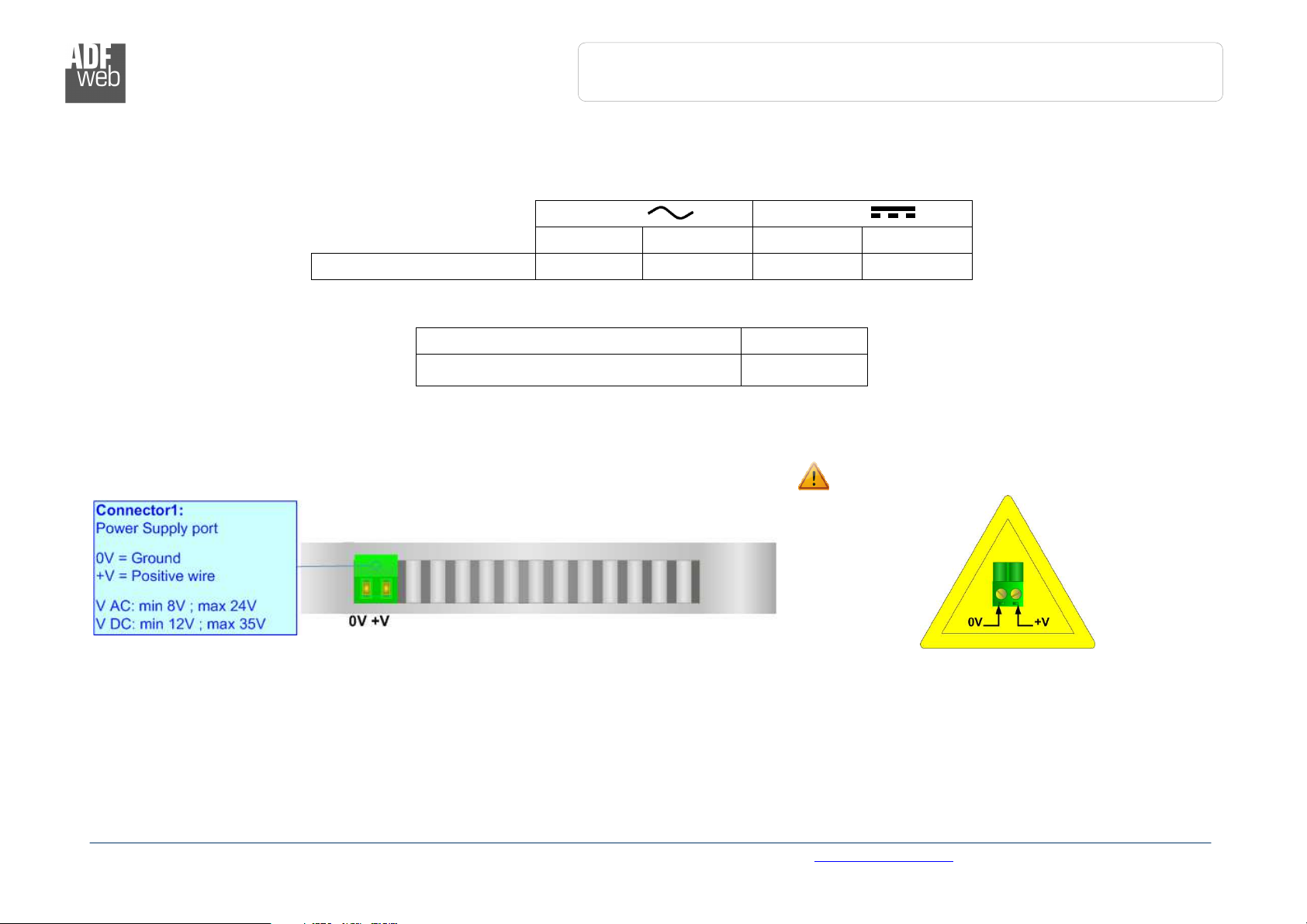

POWER SUPPLY:
The devices can be powered between a wide ran e of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67767-xxxx-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67767-xxxx-A1 4
Cauti
on: Not reverse the polarity power
HD67767-xxxx-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 9 of 32
FUNCTION MODES:

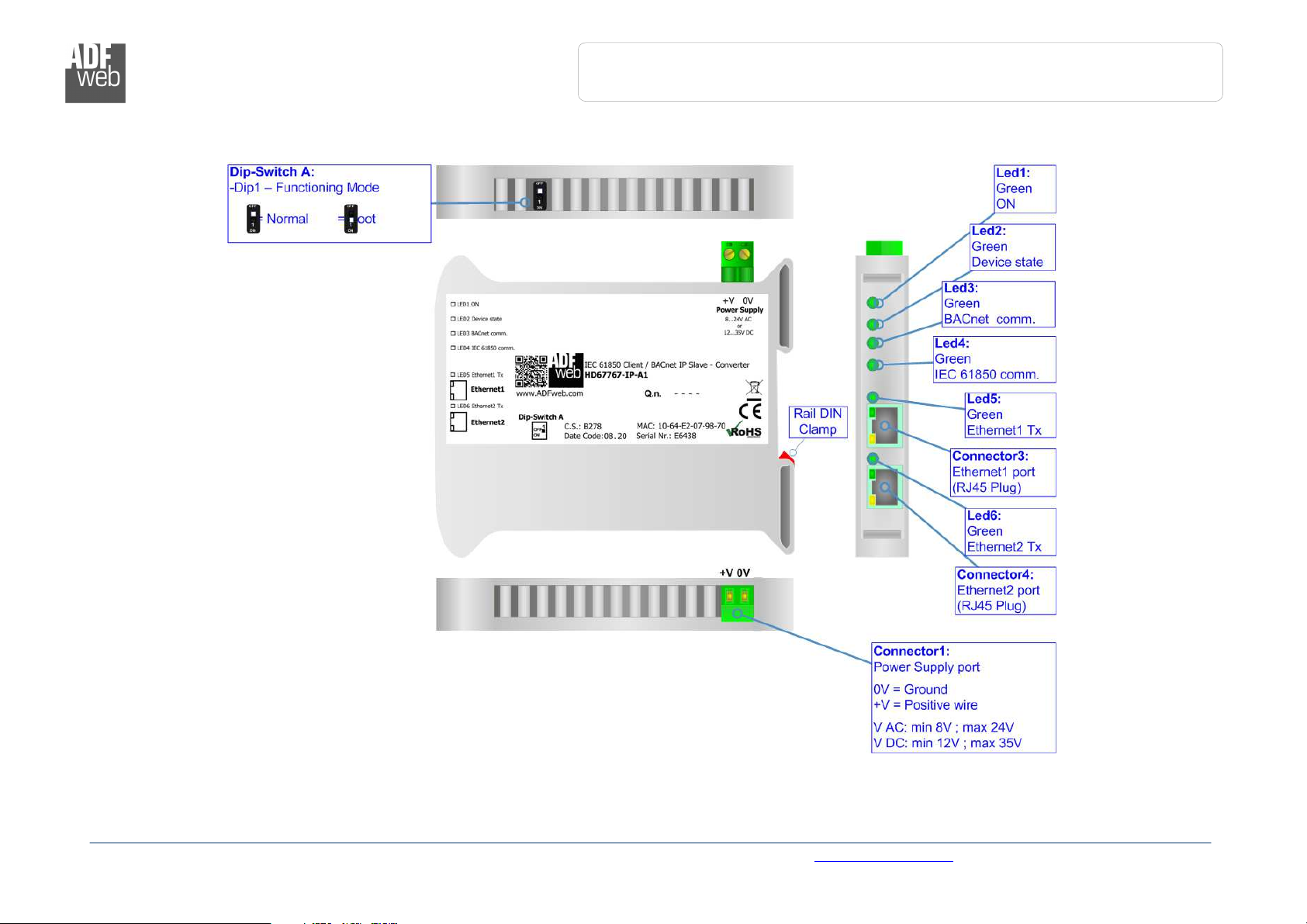

The device has ot two functions mode dependin of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory settin ), is used for the normal workin of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updatin (see ‘UPDATE DEVICE’ section).
Accordin to the functionin mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 10 of 32
LEDS:

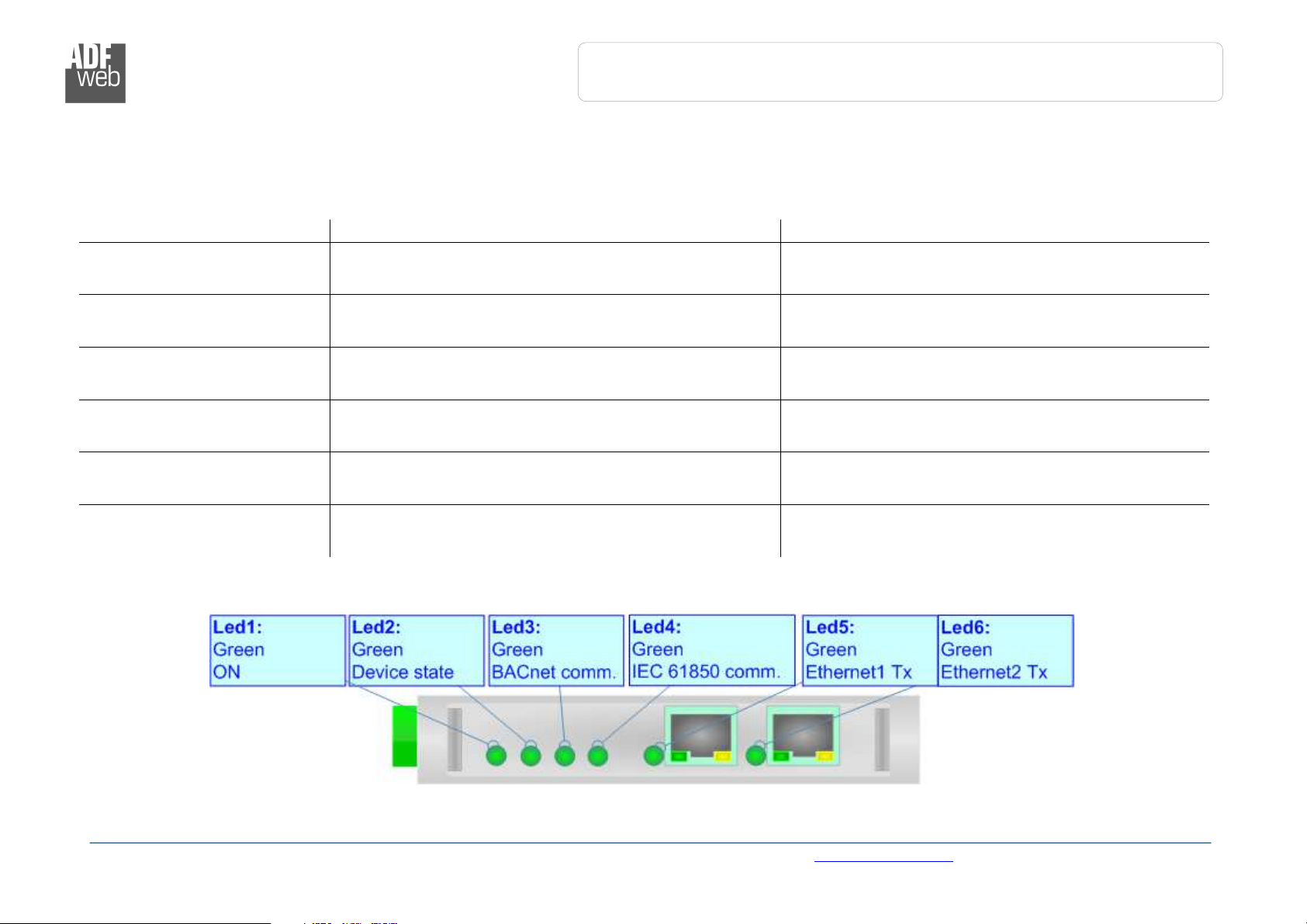

The device has ot six LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply volta e ]
( reen)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
3: BACnet comm. ( reen) It blinks when BACnet communication is runnin Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
4: IEC61850 comm. ( reen) It blinks when a IEC 61850 response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
5: Ethernet1 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
6: Ethernet2 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 11 of 32
ETHERNET:
The Ethernet connection must be made usin Connector3 or Connector4 of HD67767-xxxx-A1 with at least a Cate ory 5E cable. The
maximum len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
100 Mbps. To connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is
recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 12 of 32
RS485 (for BACnet MS/TP):
To terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in fi ure.
The maximum len th of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden: p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 13 of 32
USE OF COMPOSITOR SW67767:
To confi ure the Converter, use the available software that runs with Windows called SW67767. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).

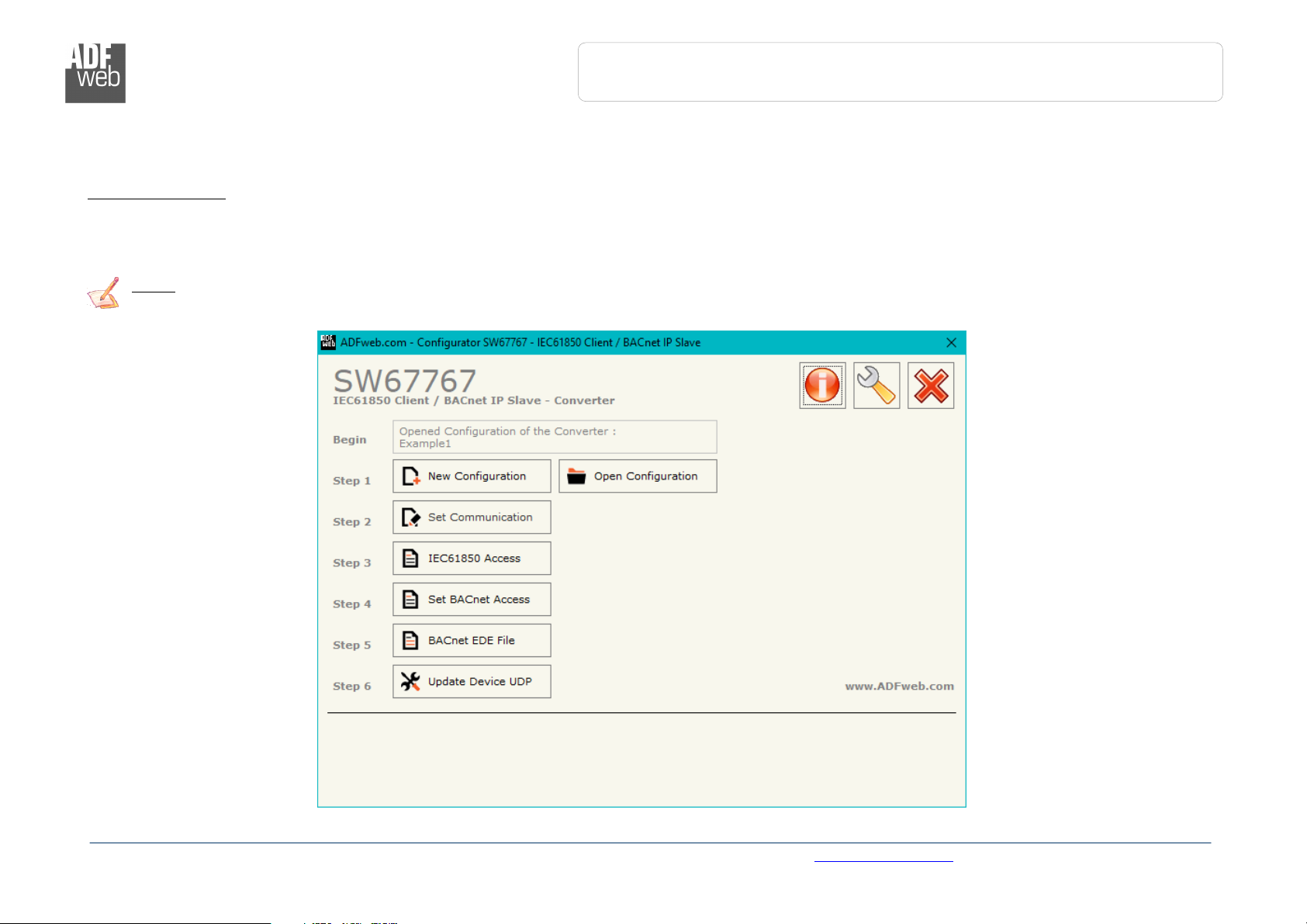

When launchin the SW67767, the window below appears (Fi . 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW677
6
7

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 14 of 32
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s confi uration.
A device’s confi uration can also be imported or exported:
To clone the confi urations of a pro rammable “IEC61850 Client / BACnet Slave -
Converter” in order to confi ure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 15 of 32

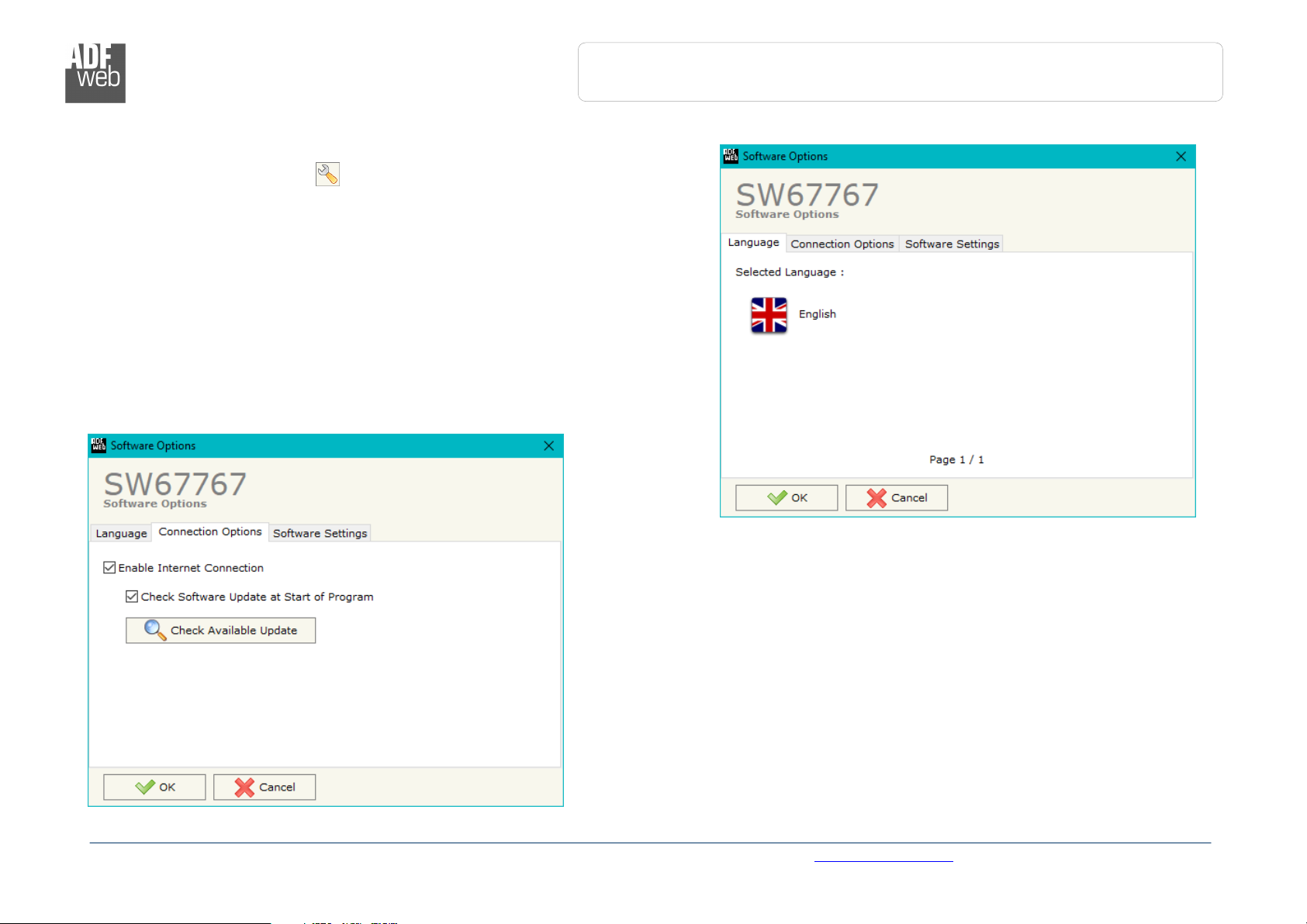

SOFTWARE OPTIONS:
By pressin the “Settings” ( ) button there is the possibility to chan e the
lan ua e of the software and check the updatin s for the compositor.
In the section “Lan ua e” it is possible to chan e the lan ua e of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatin s of the software compositor in ADFweb.com website.
Checkin the option “Check Software Update at Start of Program”, the
SW67767 check automatically if there are updatin s when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 16 of 32
In the section “Software Settin s”, it is possible to enable/disable some
keyboard’s commands for an easier navi ation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 17 of 32
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, IEC61850
and BACnet.
By Pressin the “Set Communication” button from the main window for SW67767
(Fi . 2) the window “Set Communication” appears (Fi . 3).
The means of the fields for “IEC61850 Client” are:
In the fields “IP Address” the IP address for IEC61850 side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for IEC61850 side of the
converter is defined;
In the fields “Gateway” the default ateway of the net is defined. This feature
can be enabled or disabled pressin the Check Box field. This feature is used for
oin out of the net;
In the field "VLAN" the identifier for the VLAN is defined;
In the field “Application ID” the Goose identification strin is defined.
In the section “BACnet Master” it is possible to select the type of BACnet to use from:
BACnet/IP (it uses Ethernet);
BACnet MS/TP (it uses RS485).
If selected “BACnet/IP” the means of the fields for “BACnet” are:
In the fields “IP ADDRESS” the IP address of BACnet/IP side of the converter is
defined;
In the fields “SUBNET Mask” the SubNet Mask of BACnet/IP side of the
converter is defined;
In the fields “GATEWAY” the default ateway of the network is defined. This
feature can be enabled or disabled pressin the Check Box field. This feature is
used for oin out of the net;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 18 of 32
In the field “Port” the port used for BACnet communication is defined. The default port used for BACnet communication is 47808, but
is possible to insert any value;
In the field "BACnet Device Name" the name of BACnet/IP side of the converter is defined;
In the field “Device Identifier” the device instance of BACnet/IP side of the converter is defined;
If the field “BACnet description up to 32 chars” is checked, the description of the BACnet objects can be up to 32 chars.
If selected “BACnet MS/TP” the means of the fields for “BACnet” are:
In the field “Baudrate” the baudrate of BACnet MS/TP side of the converter is defined;
In the field “Parity” the parity of BACnet MS/TP side of the converter is defined;
In the field “BACnet Device Name” the name of BACnet MS/TP side of the converter is defined;
In the field “MAC Address” the MAC of BACnet MS/TP side of the converter is defined;
The field “Max Masters” specifies the hi hest allowable address for master nodes. The value shall be less than or equal to 127;
The field “Max Info Frames” specifies the maximum number of information frames the node may send before it must pass the
token;
In the field “Device Istance” it is possible to assi n a number to the BACnet node (used for the Device Istance);
In the field “Network” the BACnet MS/TP network number is defined;
If the field “BACnet description up to 32 chars” is checked, the description of the BACnet objects can be up to 32 chars.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 19 of 32
Figure 4: “
IEC61850 Client Set Access
” window
IEC61850 ACCESS:
By Pressin the “IEC61850 Access” button from the main window for SW67767 (Fi . 2) the window “IEC61850 Client Set Access” appears
(Fi . 4).
This section is used to define the list of IEC61850 variables from/to which take/map the data of BACnet.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
BACnet
Slave
Document code: MN67767_ENG Revision 1.000 Pa e 20 of 32
Figure 5: functional structure
By clickin on “ADD IEC Device”, it is possible to add a new IEC61850 Server. A SCL file has to be selected (the allowed extensions are
.scd, .ssd, .sed, .icd, .iid or .cid). The functional structure of the Server (Lo ical Devices, Lo ical Nodes, Data Objects and Data Attributes)
will be visible (Fi . 5). The last leaves in the branches of the structure are the variables which can be added to the “Variables” section on the
ri ht (Fi . 6).
