ADF Web HD67842-B2-Y User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 1 di 43
User Manual
Revision 1 000
English
DALI / Modbus Master - Converter
(Order Code: HD67842-B2-Y, HD67842-B2-N)
for Website information:
www adfweb com?Product=HD67842
for Price information:
www adfweb com?Price=HD67842-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others DALI products, see also the following links:
Converter DALI to
www adfweb com?Product=HD67822 (KNX)
www adfweb com?Product=HD67831 (R 485)
www adfweb com?Product=HD67832 (BACnet/IP Master)
www adfweb com?Product=HD67833 (BACnet/IP lave)
www adfweb com?Product=HD67834 (CAN)
www adfweb com?Product=HD67835 (CANopen)
www adfweb com?Product=HD67836 (DeviceNet Master)
www adfweb com?Product=HD67837 (DeviceNet lave)
www adfweb com?Product=HD67838 (DMX)
www adfweb com?Product=HD67839 (Ethernet)
www adfweb com?Product=HD67840 (EtherNet/IP)
www adfweb com?Product=HD67843 (Modbus lave)
www adfweb com?Product=HD67844 (Modbus TCP Master)
www adfweb com?Product=HD67845 (Modbus TCP lave)
www adfweb com?Product=HD67848 (PROFINET)
www adfweb com?Product=HD67849 ( NMP Manager)
www adfweb com?Product=HD67850 ( NMP Agent)
www adfweb com?Product=HD67941 (MQTT)
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 2 di 43
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
DALI 10
RS485 11
ETHERNET 12
USE OF COMPOSITOR SW67842 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
DALI ACCESS 18
SET MODBUS ACCESS 19
UPDATE DEVICE 21
USE OF DALI CONSOLE SOFTWARE 23
STRUCTURE OF THE SOFTWARE 24
SETUP 25
NETWORK SETTING 26
DATA MAPPING 31
MECHANICAL DIMENSIONS 40
ORDERING INFORMATIONS 41
ACCESSORIES 41
DISCLAIMER 42
OTHER REGULATIONS AND STANDARDS 42
WARRANTIES AND TECHNICAL SUPPORT 43
RETURN POLICY 43
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVI ION LI T:
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARK :
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 05/04/2017 Ff All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 3 di 43
ECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U E
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ER ONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R E IDUAL R I K
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 4 di 43
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 5 di 43
CONNECTION CHEME:
Figure 1: Connection scheme for HD67842-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 6 di 43
CHARACTERI TIC :
The HD67842 is a DALI / Modbus Master - Converter
It has the following characteristics:
Up to 64 devices on DALI bus;
Configurator for DALI network/devices;
Isolation between DALI – RS485, Power Supply – RS485 Additional isolation Power Supply – DALI for HD67842-B2-N version;
Two-directional information between DALI bus and Modbus bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need “DALI Console” software on your PC in order to perform the following:
Configure the DALI network;
Setup the DALI devices (groups, scenes, IDs, …);
Test DALI communication
You need Compositor SW67842 software on your PC in order to perform the following:
Define the parameter of Modbus line;
Define the parameter of DALI line;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 7 di 43

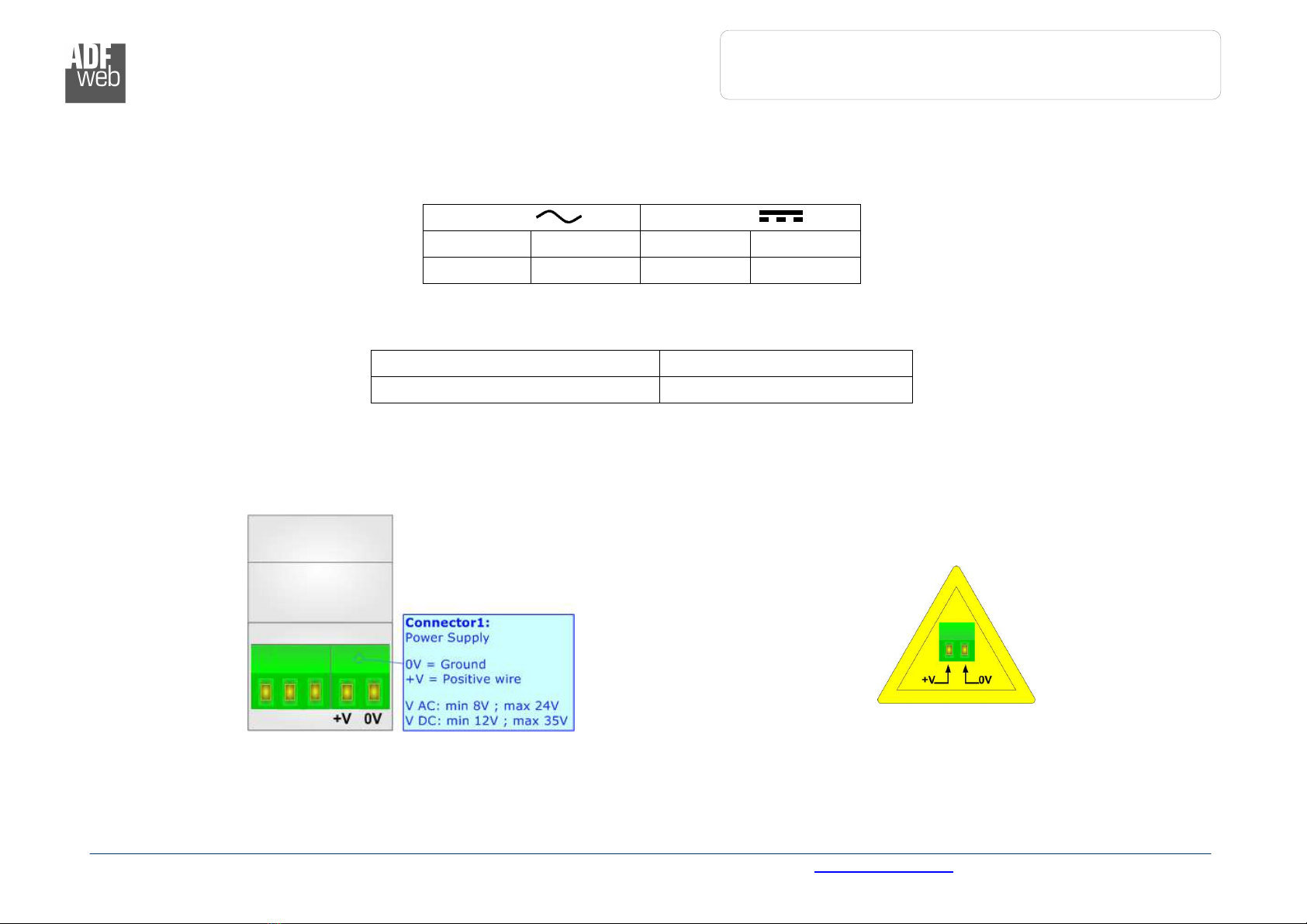

POWER UPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67842-B2 3 5
HD67842-B2
Caution: Not reverse the pola
rity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 8 di 43
FUNCTION MODE :
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 9 di 43
LED :
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Serial communication
(yellow) Blinks when Modbus communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: DALI communication
(yellow) Blinks when DALI communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Comm error (yellow) Turns ON when DALI or Modbus is in error Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 10 di 43
DALI:
DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc )
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources Using ADFweb com’s DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light
Characteristics Description
Medium Shielded Twisted Pair
Topology Linear, Star or mixed
Device power consumption Max 250 mA
DALI voltage 9 5 V – 22 5 V (typical 16 V)
Maximum cable length 300 m (1 5 mm2 wire)
Maximum number of DALI
devices 64
Baud rate 1200 bps
Maximum number of DALI
groups 16
Maximum number of DALI
scenes 16

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 11 di 43
R 485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 12 di 43

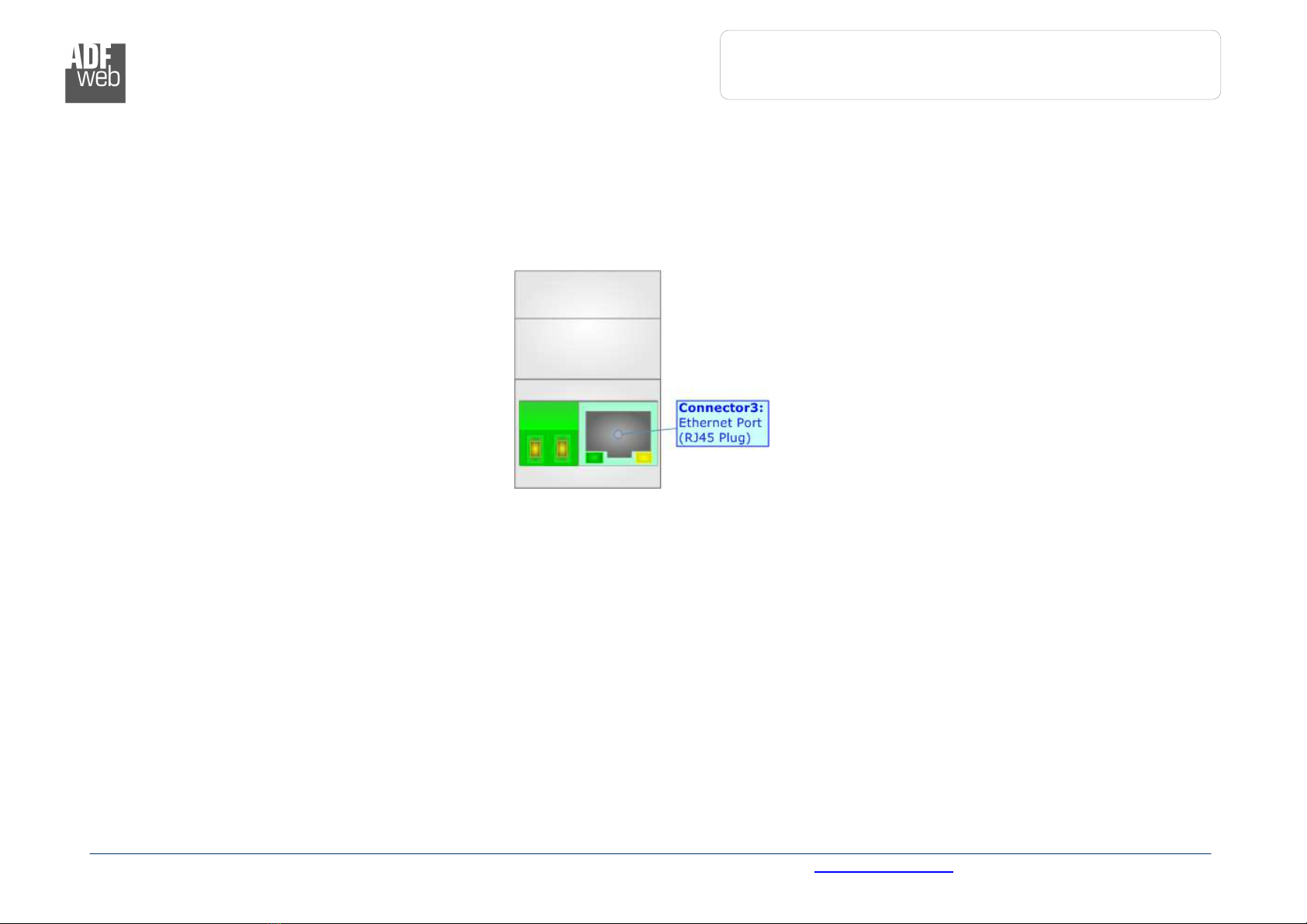

ETHERNET:
The Ethernet port is used for programming DALI network and for programming the device

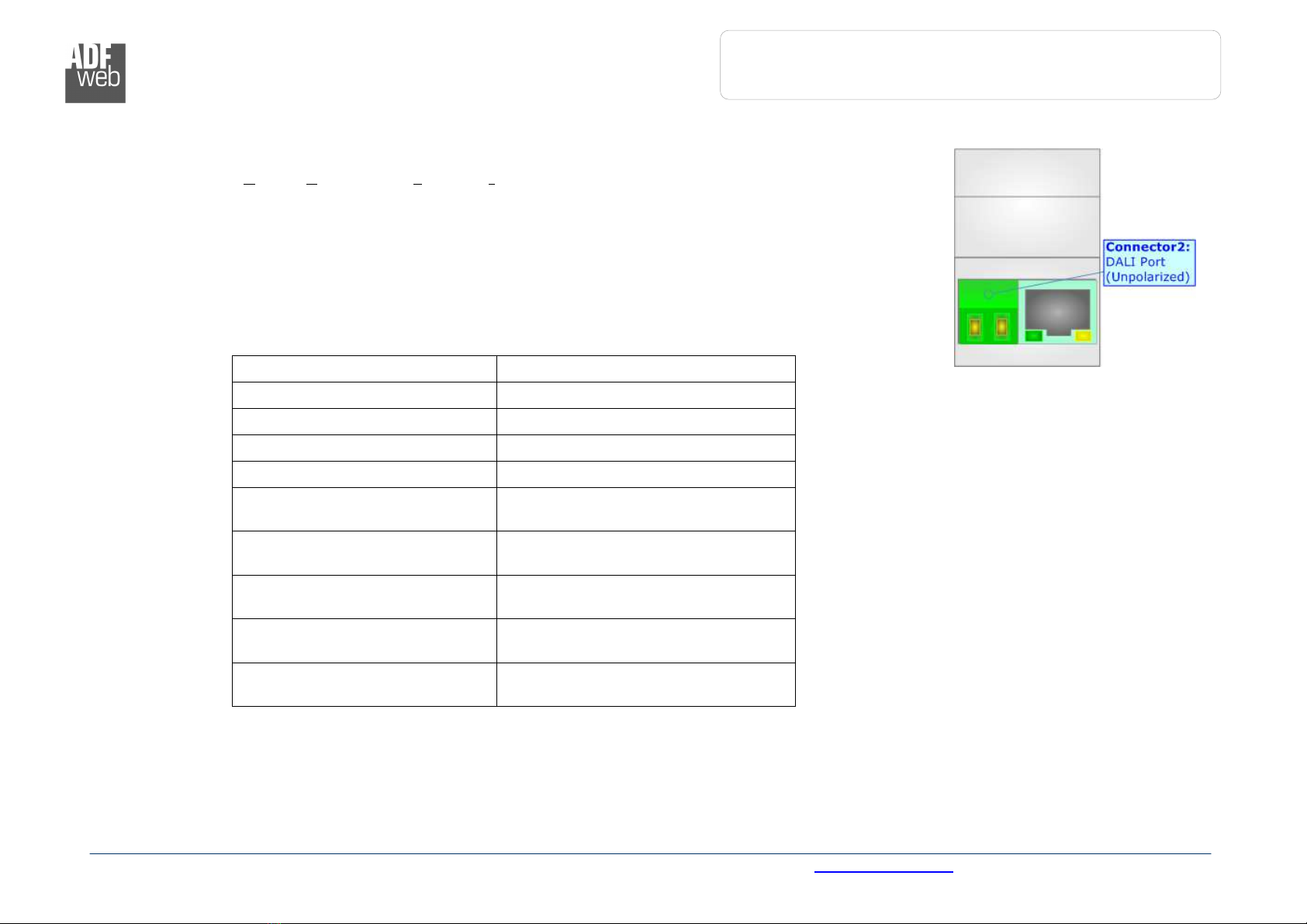

The Ethernet connection must be made using Connector2 of HD67842-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 13 di 43
U E OF COMPO ITOR W67842:
To configure the Converter, use the available software that runs with Windows called SW67842 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)

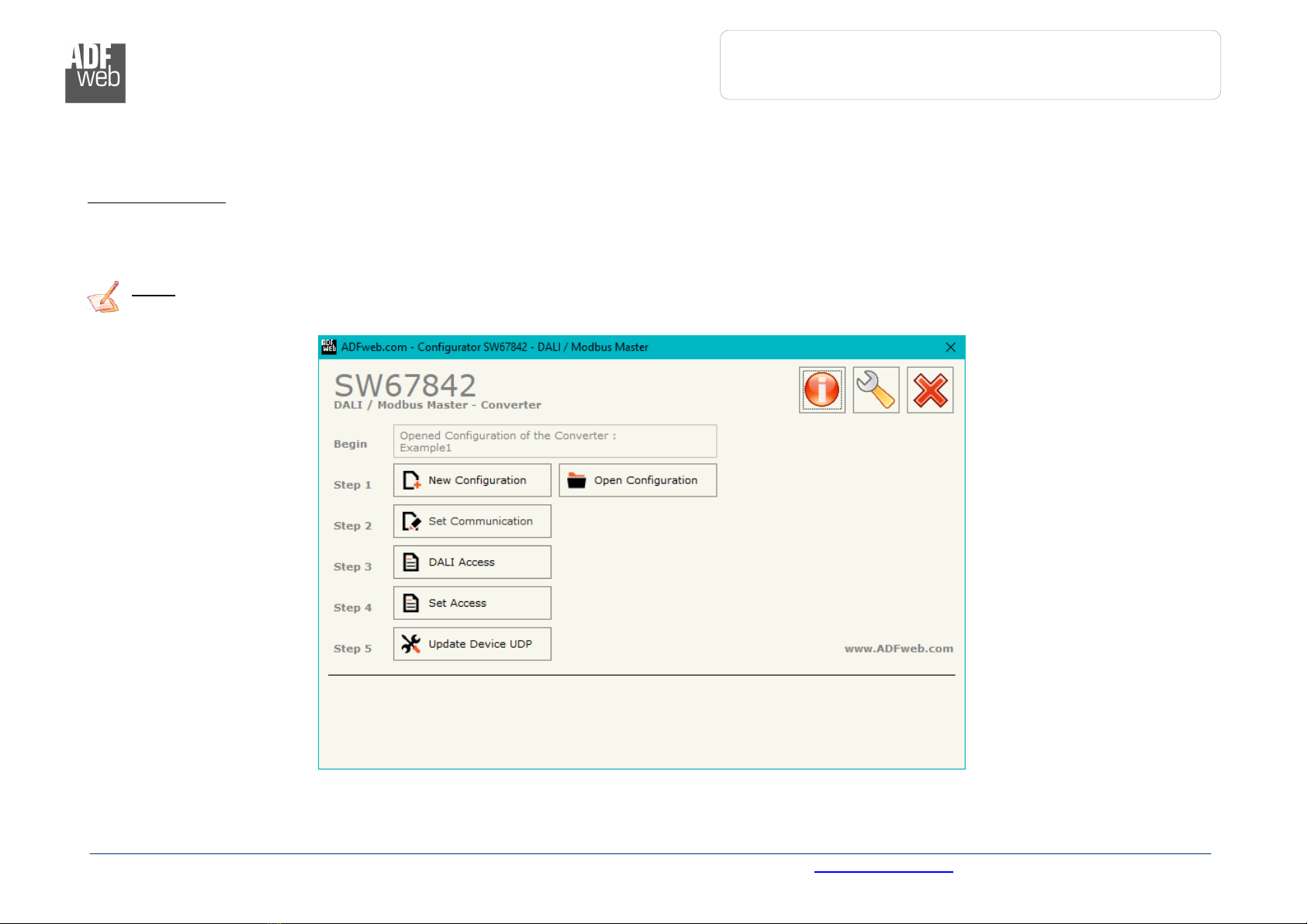

When launching the SW67842, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67842

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 14 di 43
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “DALI / Modbus Master - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 15 di 43
OFTWARE OPTION :

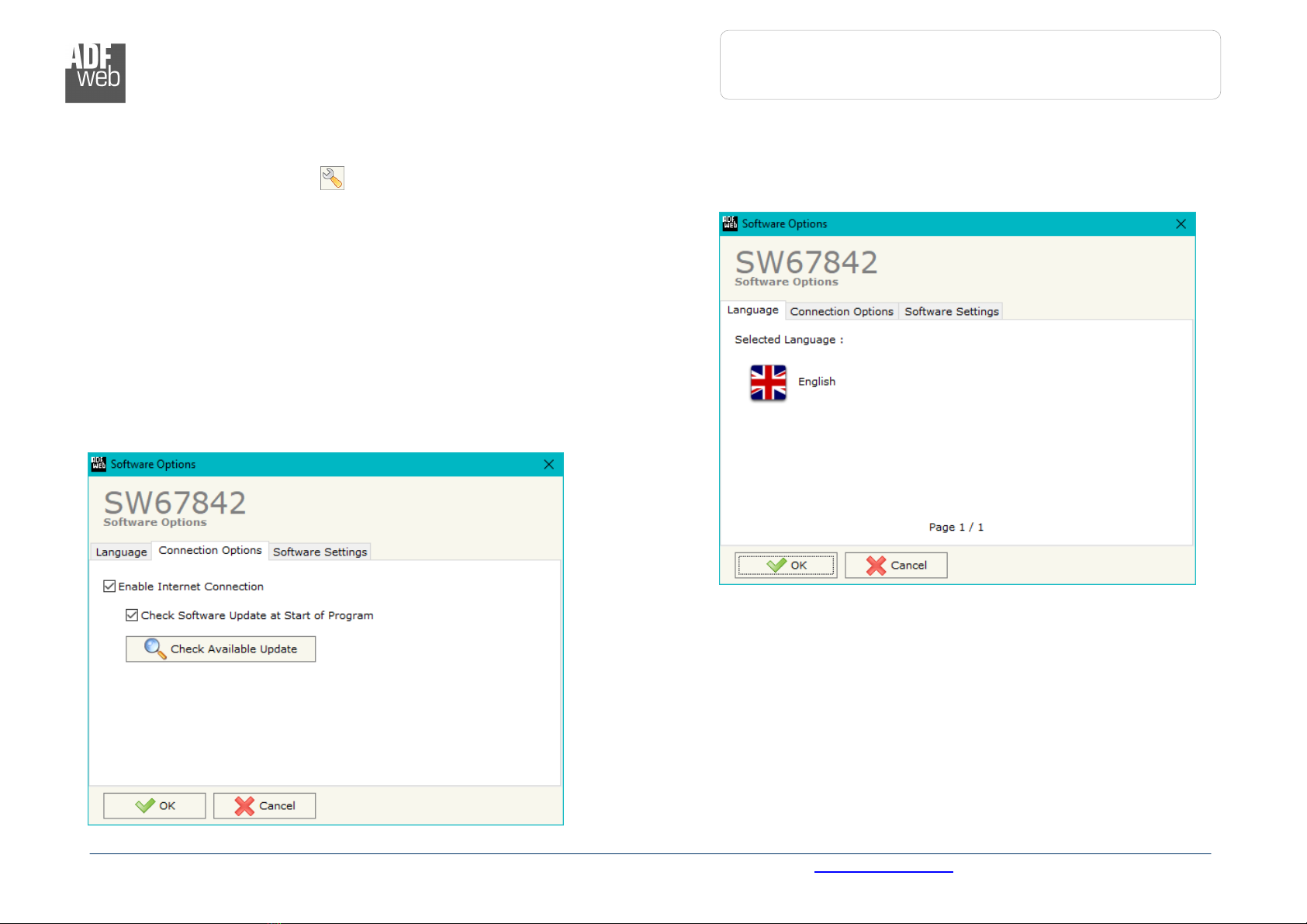

By pressing the “ ettings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check oftware Update at tart of Program”, the
SW67842 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 16 di 43

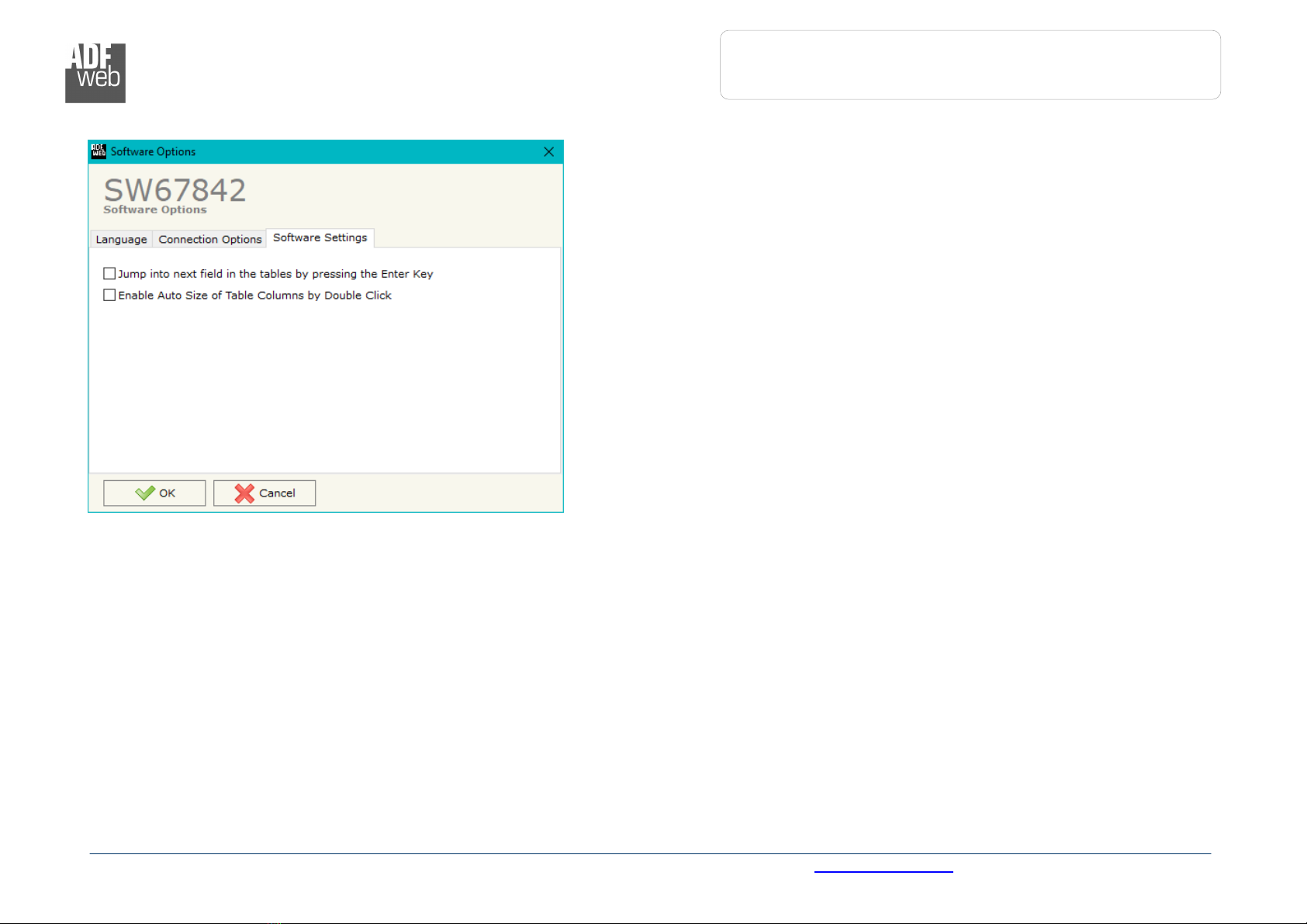

In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 17 di 43
ET COMMUNICATION:
This section define the fundamental communication parameters of Modbus and DALI bus
By Pressing the “ et Communication” button from the main window for SW67842 (Fig 2) the window “Set
Communication” appears (Fig 3)
The means of the fields for the “Modbus Slave” section are:
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “ID Device” the ID of the Modbus side is defined;
In the “TimeOut (ms)” the maximum time that the converter attends for the answer from the slave
interrogated is defined;
In the field “Cyclic Delay (ms)” the delay between two requests is defined
The means of the fields for the “DALI” section are:
In the field “DALI Console Port” the UDP port used for the communication with ‘DALI Console’
software is defined;
If the field “ witch off DALI on Timeout” is checked, the DALI line is switched OFF if there is no
communication with the Modbus slaves for the “TimeOut (ms)” defined below
The means of the fields for the “Ethernet” section are:
In the field “IP ADDRE ” the IP address of the converter is defined;
In the field “ UBNET Mask” the SubNet Mask is defined;
In the field “GATEWAY” the default gateway of the Ethernet network is defined This feature can be
enabled or disabled pressing the Check Box field This feature is used for going out of the net;

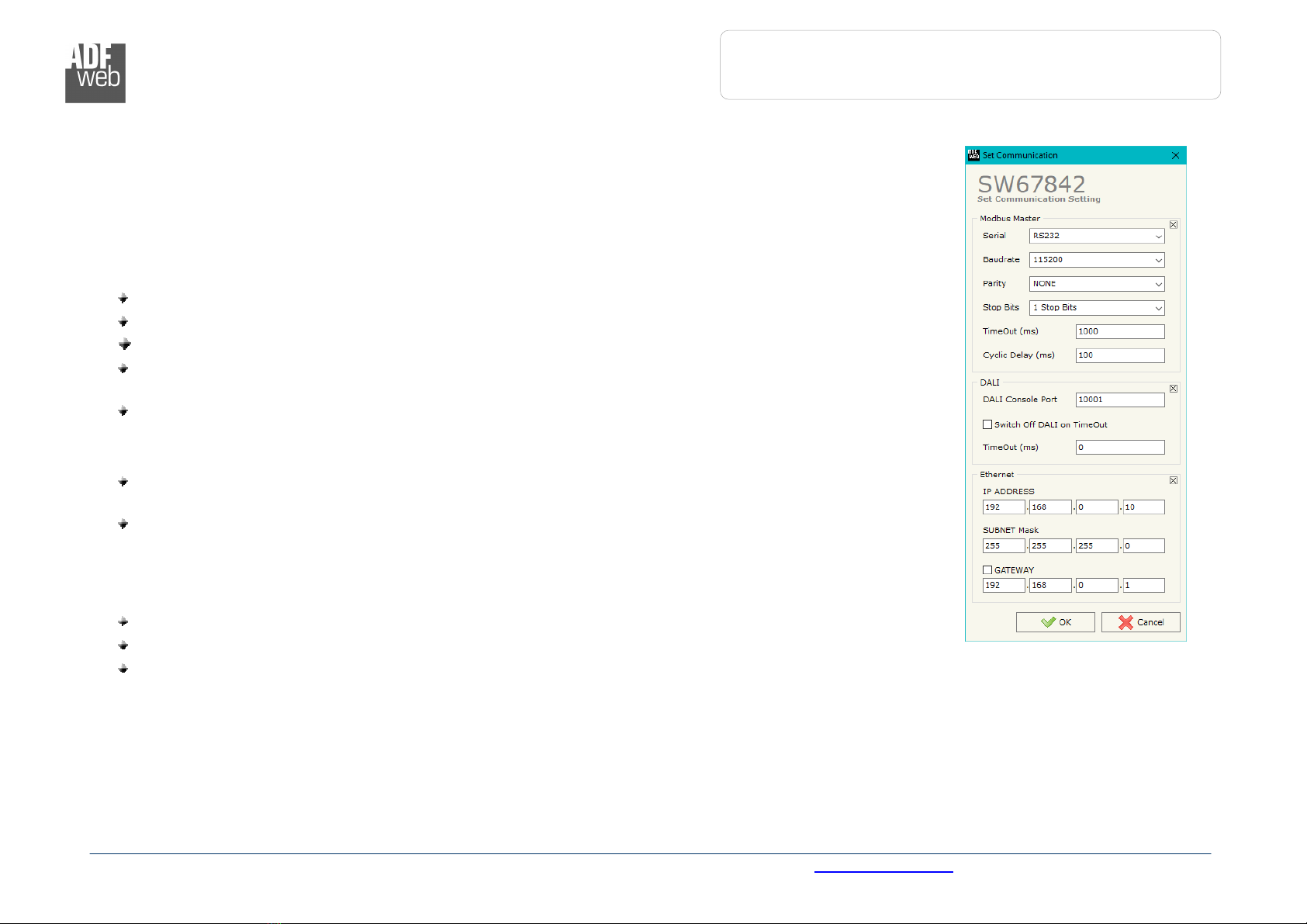

Figure 3: “Set
Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 18 di 43
DALI ACCE :
By pressing the “DALI Access” button from the main window for SW67842 (Fig 2) the window “Select the DALI Device Present in the
Network” appears (Fig 4)
This section is used to define the DALI devices connected to the converter It is enough to check/uncheck the connected/unconnected DALI
devices
Figure
4
:
“DALI Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 19 di 43
ET MODBU ACCE :
By Pressing the “ et Modbus Access ” button from the main window for SW67842 (Fig 2) the window “Set Access” appears (Fig 4)
Figure 5: “Set Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI / Mod
bus
Master
-
Converter
Document code: MN67842_ENG Revision 1 000 Pagina 20 di 43
The window is divided in two parts, the “Modbus Read” that contains the Modbus registers/status readable by the converter and “Modbus
Write” that contains the Modbus registers/status writeable by the converter
The meaning of the fields in the window are the follows:
If the field “Enable” is checked, the Modbus request is enabled;
In the field “ lave ID” the address of the Modbus device to read/write is defined;
In the field “Type” the data type of the Register to read/write is defined It is possible to choose between the following:
oCoil Status;
oInput Status (only readable);
oHolding Register;
oInput Register (only readable)
In the field “Address” the starting address of the register/status to read/write is defined;
In the field “NPoint” the number of consecutive registers/status to read/write is defined;
In the field “Poll Time” the time (expressed in milliseconds) used to read/write the register/status is defined If ‘0’, the request isn’t
sent;
In the field “Max Error” the number of consecutive errors that the Master waits before discarding the row from the cycle of requests
is defined;
In the field “Position” the position (byte) where taking/saving the data from/to the internal arrays of the converter is defined;
The field “ tart Bit” allows to select which bit of the selected Position using;
If the field “ wap” is checked, the bytes of the value read/written are exchanged between them;
In the field “Mnemonic” a description of the data inserted in the row is defined
