ADJ UB 12H User manual

User Manual
UB 12H

2
©2023 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and instructions
herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers
herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product
names used in this document may be trademarks or registered trademarks of their respective companies and
are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered
trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property, equipment,
building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with
the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe,
insufcient and negligent assembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are
not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use.
Thank you!
Date Document
Version
Software
Version DMX Channels Notes
08/04/2017 1 1.01 6/10/12/36 Ch Initial release
07/12/2023 1.01 N/C No Change
Updated Introduction, Features, Primary-
Secondary Configuration, UC IR Control,
Specifications
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual

CONTENTS
Introduction 4
Features | Installation | Warranty Registration 5
Limited Warranty 6
Safety Precautions 7
DMX Set Up 9
Operating Instructions 11
Primary-Secondary Conguration | Multiple Unit Power Linking 15
UC IR Control 16
DMX Traits 17
Section Mode | Dimming Curves 20
Color Macro Chart 21
Magnetic Quick Align 22
Fuse Replacement | Trouble Shooting | Cleaning 23
Specications 24
Dimensional Drawings 25
3

INTRODUCTION
Unpacking: Thank you for purchasing the UB 12H by ADJ Products, LLC. Every unit has been
thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the carton appears to have been damaged,
carefully inspect your xture for any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event that damage has been found or parts are missing, please contact our
toll free customer support number for further instructions. Please do not return this unit to your dealer
without contacting customer support rst.
Introduction: The UB 12H is a DMX intelligent, LED bar xture. This xture can be used in a stand
alone mode or connected in a primary/secondary conguration. This xture has six operating modes:
Static Color mode, RGBWA+UV Dimmer mode, Program mode, Auto mode, Sound Active mode, and
DMX control mode.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit http://parts.adj.com
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: [phone] | Fax: +31
45 546 85 96 | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V.
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
4

FEATURES
• Multi Colors
• Six Operating Modes
• Electronic Dimming 0-100%
• Built In Microphone
• DMX-12 Protocol
• 3-Pin DMX Connection
• Magnetic Quick Align (see Magnetic Quick Align section of this manual)
• 4 DMX Modes: 6-, 10-, 12-, and 36-channel mode
• ADJ UC IR Compatible
• Multiple Unit Power Linking (see Multiple Unit Power Linking section of this manual)
The unit should be installed using a mounting clamp (not provided), and afxing it to the mounting
bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid vibration and
slipping during operation. Always ensure that the structure to which you are attaching the unit is secure
and able to support at least 10 times the unit’s weight. Also, always use a safety cable that can hold 12
times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be installed in a place where it is out of
the reach of the general public’s grasp.
INSTALLATION
The UB 12H carries a 2 year limited warranty. Please ll out the enclosed warranty card to validate
your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and
accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the
outside of the return package. A brief description of the problem, as well as the R.A. number, must also
be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you
must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting
our customer support team on our customer support number. All packages returned to the service
department not displaying an R.A. number on the outside of the package will be returned to the shipper.
WARRANTY REGISTRATION
5

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be
free of manufacturing defects in material and workmanship for a prescribed period from the date of
purchase (see specic warranty period on reverse). This warranty shall be valid only if the product
is purchased within the United States of America, including possessions and territories. It is the
owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the
time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#) before sending back the
product, please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product
only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested
repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products,
LLC will pay return shipping charges only to a designated point within the United States. If the entire
instrument is sent, it must be shipped in it’s original package. No accessories should be shipped
with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no
liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modied
in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC
factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the
product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintenance cleaning or periodic
check up. During the period specied above, ADJ Products, LLC will replace defective parts at its
expense with new or refurbished parts, and will absorb all expenses for warranty service and repair
labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC
under this warranty shall be limited to the repair of the product, or replacement thereof, including
parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were
manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its
products without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with products described above. Except to the extent prohibited by applicable law, all implied
warranties made by ADJ Products, LLC in connection with this product, including warranties of
merchantability or tness, are limited in duration to the warranty period set forth above. And no
warranties, whether expressed or implied, including warranties of merchantability or tness, shall
apply to this product after said period has expired. The consumer’s and/or Dealer’s sole remedy
shall be such repair or replacement as is expressly provided above; and under no circumstances
shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the
use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes
all prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS
• Non L.E.D. Lighting Products = 1-year (365 days) Limited Warranty (Such as: Special Effect
Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls,
Par Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
• Laser Products = 1 Year (365 Days) Limited Warranty (excluding laser diodes which have a 6
month limited warranty)
• LED Products = 2-year (730 days) Limited Warranty (excluding batteries which have a 180 day
limited warranty). Note: 2 Year Warranty only applies to purchases within the United States
• StarTec Series = 1 Year Limited Warranty (excluding batteries which have a 180 day limited
warranty).
• ADJ DMX Controllers = 2 Year (730 Days) Limited Warranty
LIMITED WARRANTY
6

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Be sure that the voltage of the power sources matches the unit’s required voltage.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover for any reason. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Never plug this unit into a dimmer pack.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only, and use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect this unit from main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the appliance.
• Cleaning - The xture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for detailed information.
• Heat - This xture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when:
A. The power supply cord and/or the plug has been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
SAFETY PRECAUTIONS
7

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!
FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 390NM -
410NM.
WEAR PROPER EYE AND SKIN PROTECTION.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER PROTECTIVE
LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION MAY EXPERIENCE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
SAFETY PRECAUTIONS
8

Power Supply: This unit contains an automatic voltage switch, which will automatically sense the
voltage when it is plugged into the power source. With this switch, there is no need to worry about the
correct power voltage, and this unit can be plugged in almost anywhere.

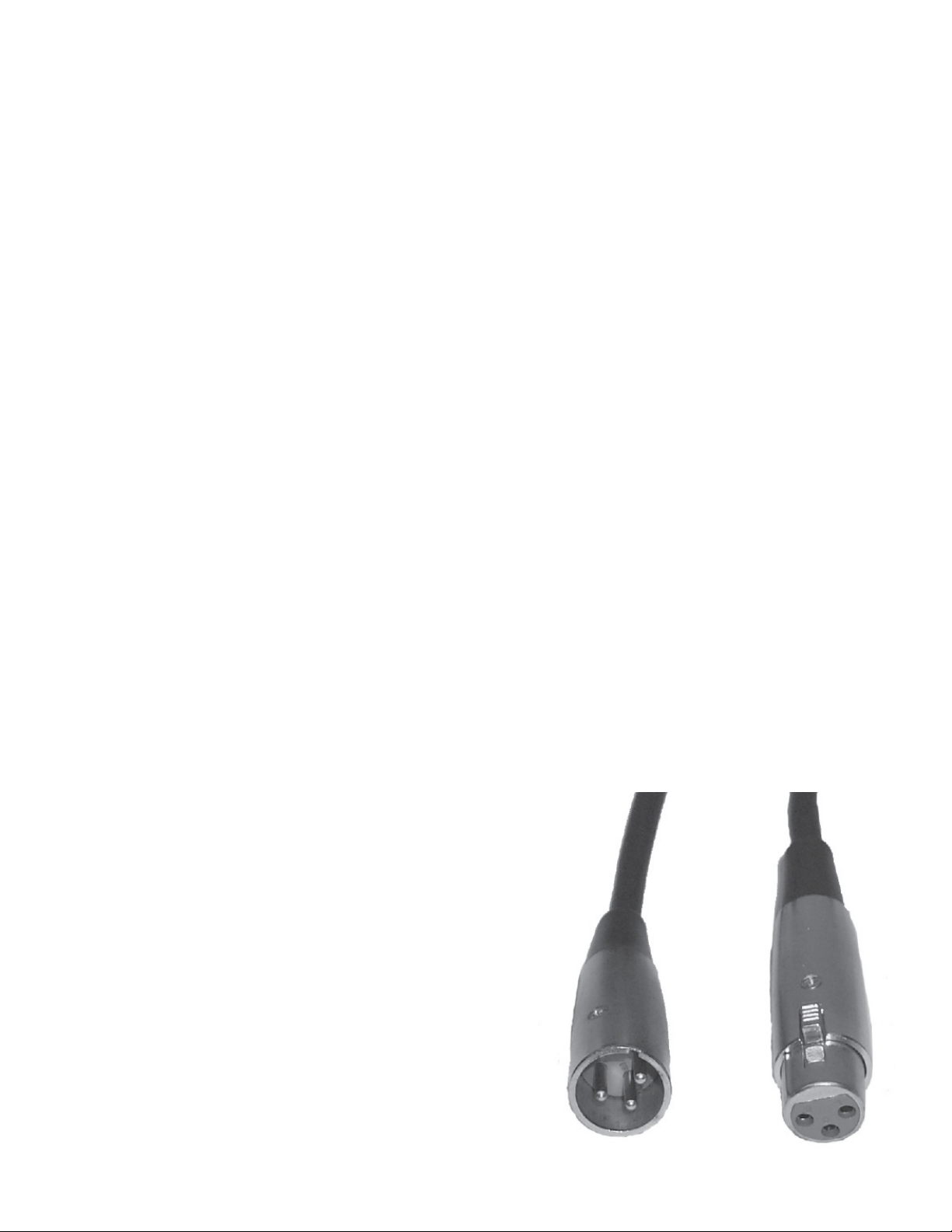

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufacturers as a form of communication between intelligent xtures and controllers. A
DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as serial
data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals located on all
DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when
linking several DMX xtures together. The order in which xtures are connected in a DMX line does
not inuence the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): This unit has 4 DMX channel
modes, and the DMX address is set on the back panel. Your unit and your DMX controller require
an approved DMX-512 110 Ohm Data cable for data input
and data output (Figure 1). We recommend Accu-Cable
DMX cables. If you are making your own cables, besure
to use standard 110-120 Ohm shielded cable (This cable
may be purchased at almost all professional sound and
lighting stores). Your cables should be made with a male
XLR connector at one end and a female XLR connector at
the other. Also remember that DMX cable must be daisy
chained and cannot be split.
DMX SET UP
9

Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator
on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
1 Ground
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
DMX-512 OUT 3-PIN XLR
XLR Male Socket
2 Cold
DMX-512 IN 3-PIN XLR
COMMON
DMX +
DMX -
13
2
1
32
3 Hot
XLR Female Socket
1 Ground
3 Hot
2 Cold
3
1
2
Termination reduces signal errors and avoids signal
transmission problems and interference. It is always
advisable to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3
(DMX +) of the last xture.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA
transmission in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line by using a
cable adapter, which can readily be found at most electronics stores. The chart below details a proper
cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Ground/Shield Pin 1 Pin 1
Data Compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Do Not Use
Not Used Do Not Use
DMX SET UP
10

LED Display On/Off:
To set the LED display to turn off after 10 seconds of inactivity, press the MODE button until “don” is
displayed, then press the UP button to toggle the display to “doff”. Now the display will disappear after
10s of inactivity. Press any button to turn the display on again.
LED Display Inversion:
Follow these instructions to ip the display 180° so that the display can be read upside down.
1. Plug the xture in and press the MODE button until “dXX” is displayed. “XX” represents either “on”
or “oFF”.
2. Press the SET UP button until “Stnd” is displayed.
3. Press the UP or DOWN buttons to “ip” the display 180°.
Operating Modes:
This unit has 6 operating modes to choose from:
• Static Color Mode - Choose 1 of 63 color macros.
• RGBWA+UV Dimmer mode - Choose one of the six colors to remain static, or adjust the intensity of
each color to make a custom color.
• Built-In Program - There are 22 built-in programs to choose from with multiple adjustments.
• Auto Run - An automatic program will run with adjustable fade speed and strobe.
• Sound Active mode - The unit will react to sound, chasing through the built in programs.
• DMX control mode - Control each individual xture trait with a standard DMX 512 controller.
Static Color Mode:
1. Plug the xture in and press the MODE button until “CLxx” is displayed.
2. Select your desired color from the 63 available optionsby pressing the UP and DOWN buttons.
3. Press the SET UP button to enter the Flash (Strobe) setup mode. “FS.xx” should now be displayed
on the screen. Adjust the ash/strobe to your desired value. “FS.00” turns ash/strobing off, while
“FS.15” is the fastest strobe speed.
RGBWA+UV Dimmer Mode:
In this mode you can select and adjust the intensity of the red, green, blue, white, amber, or UV colors
to create a custom color.
1. Plug the xture in and press the MODE button until one of the color options is displayed. The default
selection is red, which will display as “r.xxx”.
2. Cycle through each color dimming mode. Use the UP and DOWN buttons to adjust intensity, then
press SET UP to cycle to the next color dimming mode. Colors are indicated as follows:
• r.XXX = Red Dimming Mode
• G.XXX = Green Dimming Mode
• b.XXX = Blue Dimming Mode
• U.XXX = White Dimming Mode
• A.XXX = Amber Dimming Mode
• u.XXX = UV Dimming Mode
3. Next, activate strobing by pressing the SET UP button to enter the strobe mode. “FSXX” will be
displayed, indicating that the unit is in strobe mode. The strobe can be adjusted between “FS.00”
(ash off) to “FS.15” (fastest ash).
OPERATING INSTRUCTIONS
11

Auto Run Mode:
In this mode, the unit will run an auto program.
1. Plug the xture in and press the MODE button until “AUTO” is displayed.
2. Press the SET UP button to adjust the fade time. “FdXX” should be displayed. Use the UP or DOWN
buttons to set the fade speed to either “Fd.00” (fade off) or between “Fd.01” (fastest speed) and
“Fd99” (slowest speed).
3. Press SET UP to activate the Flash mode. “FS.XX” will now be displayed, indicating that the unit
is in Flash mode. The Flash can be adjusted between “FS.00” (ash off) to “FS.15” (fastest ash).
Built-In Program Mode:
1. Plug the xture in and press the MODE button until “Pr.XX” is displayed. “XX” represents a number
from 1-22. Use the UP or DOWN buttons to scroll through the 22 programs. Please note that
programs 21 and 22 have adjustable base and scrolling colors. Press the SET UP button to select
the desired program.
2. Pressing the SET UP button will display “SP.XX”. When this is displayed, you can adjust the running
speed of your selected program. Use the UP or DOWN button to adjust the speed between “SP.01”
(slowest) and “SP99” (fastest).
3. Press the SET UP button to to enter the Fade adjustment mode. The screen should now display “Fd.
XX”. Use the UP or DOWN button to adjust the fade speed between “Fd.01” (fastest) and “Fd.99”
(slowest) or “Fd00” (Off).
4. Press the SET UP button to enter the Flash (Strobe) mode. “FS.XX” will be displayed, indicating
that the unit is now in Flash mode. The Flash can be adjusted between “FS.00” (ash off) to “FS.15”
(fastest ash).
NOTE: PROGRAMS 21 & 22 - If you have chosen programs 21 or 22, after the setting up Flash mode,
press the SET UP button. “C1.XX” will be displayed, allowing the user to select the base color. Use the
UP and DOWN buttons to scroll through the 7 colors. Once you have chosen your base color, press the
SET UP button again so that “C2.XX” is displayed, allowing the user to select the scrolling color. Use
the UP and DOWN buttons to scroll through the 7 colors.
Sound Active Mode:
1. Plug the xture in and press the MODE button until “SU.XX” is displayed. “XX” represents the sound
sensitivity level.
2. Use the UP or DOWN buttons to adjust the sound sensitivity. “SU.00” is off, “SU.01” is the lowest
sensitivity, and “SU.31” is the highest sensitivity.
3. Press SET UP if you wish to activate the Flash mode. “FS.XX” will now be displayed, indicating that
the unit is in Flash mode. The Flash can be adjusted between “FS.00” (ash off) to “FS.15” (fastest
ash).
OPERATING INSTRUCTIONS
12

DMX Mode:
There are four DMX Modes to choose from: 6 Channels, 10 Channels, 12 Channels, and 36 Channels.
Operating through a DMX controller give the user the freedom to create custom programs tailored to
the user’s individual needs.
1. Press the MODE button until “d.XXX” is displayed. “XXX” represents the displayed DMX address.
Use the UP and DOWN buttons to nd your desired DMX address.
2. Once you have found your desired DMX address, press the SET UP button to select the desired
DMX channel mode. Use the UP and DOWN buttons to nd you desired channel mode. Selectable
options include 6-Channel Mode (Ch.06), 10-Channel Mode (Ch.10), 12-Channel Mode (Ch.12),
or 36-Channel Mode (Ch.36). Please refer to the DMX Traits section of this manual for detailed
information.
3. After you have found your desired DMX mode and set the DMX address, use the XLR connections
to link the xture to any standard DMX controller.
ADJ Remote Activation:
This function is used to activate and deactivate the IR sensor. When this function is activated, you
can control the xture using the ADJ UC IR. Please see the UC IR Remote section of this manual for
detailed information.
1. Press the SETUP button until “Ir.XX” is displayed. “XX” represents either “on” or “oF”.
2. Press the UP or DOWN buttons to either activate the remote function (On) or deactivate it (Off).
DMX State:
This mode denes how the xture will behave in the event that the DMX signal is lost or interrupted. You
can also set this as the operating mode you would like the unit to default to when powered on.
1. Plug the xture in and press the MODE button until “d.XXX” is displayed. “XXX” represents the
current displayed DMX address.
2. Press the SET UP button so that “nodn” is displayed. Use the UP and DOWN buttons to scroll
through the DMX states.
• “bLAC” (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go into
stand by mode.
• “LASt” (Last State) - If the DMX signal is lost or interrupted, the xture will stay in the last DMX
set up. If power is applied and this mode is set, the unit will automatically go into the last DMX
set up.
• “ProG” (Auto Run) - If the DMX signal is lost or interrupted, the unit will automatically go into Auto
Run mode.
3. Use the UP and DOWN buttons to nd your desired DMX state and press SET UP to conrm and
exit.
OPERATING INSTRUCTIONS
13

OPERATING INSTRUCTIONS
Dimmer Curve:
This setting is used to set the dimming curve used with DMX mode. See the Dimming Curves section
of this manual for detailed information.
1. Plug the xture in and press the MODE button until the current DMX address is displayed.
2. Press the SET UP button until “dr-X” is displayed. “X” represents the displayed dimmer curve (0-4).
• 0 - Standard
• 1 - Stage
• 2 - TV
• 3 - Architectural
• 4 - Theatre
3. Press the UP or DOWN buttons to scroll through and select your desired dimming curve.
Default Running Mode:
This is a default running mode. When this mode is activated, all settings will return to their default
settings and an auto program will run.
1. Plug the xture in and press the MODE button until “d.XX” is displayed. “XX” represents either “on”
or “oFF”.
2. Press the SET UP button until “dEFA” is displayed.
3. Press the UP and DOWN buttons at the same time.
14

This function allows units to be linked together to run in a Primary-Secondary set up, in which one unit
will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any unit
can act as a Primary or as a Secondary, but only one unit can be programmed to act as the Primary.
Connections and Settings:
1. Daisy chain your units together via the XLR connectors on the rear of each unit. Use standard XLR
data cables to link your units together. Remember that the male XLR connector is the input, and
the female XLR connector is the output. The rst unit in the chain (primary) will use the female XLR
connector only, while the last unit in the chain will use the male XLR connector only.
2. Set the “Primary” unit to your desired operating mode, then connect the “Secondary” unit or units.
3. For the “Secondary” unit(s), press the MODE button until “SEcd” is displayed. The “Secondary”
unit(s) will now follow the “Primary” unit.
PRIMARY-SECONDARY CONFIGURATION
This feature allows the xtures to be linked to one another using the power input and output sockets.
The maximum number of xtures that can be linked in this manner is as follows:
• 7 units @ 120V
• 13 units @ 240V
After this number has been reached, a new power socket will be required in order to accommodate
additional xtures.
NOTE: USE CAUTION WHEN POWER LINKING FIXTURES OF DIFFERENT MAKE AND MODEL
TYPES, AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY FROM
MODEL TO MODEL!
MULTIPLE UNIT POWER LINKING
15

The UC IR infrared remote gives the user control of various functions, as listed below. To control the
xture, the remote must be aimed at the front of the xture. Maximum range is 30 feet. To use the ADJ
UC IR, the xture’s infrared sensor must rst be activated, as described in the Operating Instructions
section of this manual.
STAND BY - Press this button to blackout the xture. Press again to return to the initial state.
FULL ON - Press this button to fully illuminate the unit. Press again to return to the unit back to its
previous state.
FADE/GOBO - Press this button to activate fade mode, then use buttons 1-3 to adjust fade speed.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity.
STROBE - Press this button to activate strobing. Use buttons 1-4 to adjust the strobe speed. “1” is the
slowest, and “4” is the fastest. Press this button again to deactivate strobing.
COLOR - Press this button to activate color mode. Use buttons 1-9 to nd your desired color.
1-9 - Use buttons 1-9 to select your desired color when in color mode, or your desired program when in
show mode. Use buttons 1-4 to select your desired strobe speed when in strobe mode.
SOUND ON & OFF - Use the buttons to activate and deactivate sound active mode.
SHOW 0 - Press this button to activate show mode. Use buttons 1-9 to select your desired show. Press
this button twice for show 10. Press button 1 twice for show 11.
UC IR CONTROL
16

CHANNEL DMX
VALUES FUNCTION
6Ch 10Ch 12Ch 36Ch
1 1 1 000 - 255 Red, 0% to 100%
222 000 - 255 Green, 0% to 100%
3 3 3 000 - 255 Blue, 0% to 100%
4 4 4 000 - 255 White, 0% to 100%
5 5 5 000 - 255 Amber, 0% to 100%
666 000 - 255 UV, 0% to 100%
7 7 000 - 255 Color Macros, see Color Macro Chart section of
this manual
8
Programs
000 - 015 Off
016 - 025 Program 1
026 - 035 Program 2
036 - 045 Program 3
046 - 055 Program 4
056 - 065 Program 5
066 - 075 Program 6
076 - 085 Program 7
086 - 095 Program 8
096 - 105 Program 9
106 - 115 Program 10
116 - 125 Program 11
126 - 135 Program 12
136 - 145 Program 13
146 - 155 Program 14
156 - 165 Program 15
166 - 175 Program 16
176 - 185 Program 17
186 - 195 Program 18
196 - 205 Program 19
206 - 215 Program 20
216 - 225 Program 21
226 - 235 Program 22
236 - 245 Auto Run
246 - 255 Sound Active
9 000 - 255 Program Speed / Sound Sensitivity
CONTINUED ON NEXT PAGE
DMX TRAITS
17

CHANNEL DMX
VALUES FUNCTION
6Ch 10Ch 12Ch 36Ch
8 10
Strobing
000 - 031 LED Off
032 - 063 LED On
064 - 095 Strobing, slow to fast
096 - 127 LED On
128 - 159 Pulse Strobing, slow to fast
160 - 191 LED On
192 - 223 Random Strobing, slow to fast
224 - 255 LED On
911 000 - 255 Master Dimmer, 0% to 100%
10 12
Dimmer Curves
000 - 020 Standard
021 - 040 Stage
041 - 060 TV
061 - 080 Architectural
081 - 100 Theatre
101 - 255 Default to unit setting
1 000 - 255 Red 1, 0% to 100%
2000 - 255 Green 1, 0% to 100%
3 000 - 255 Blue 1, 0% to 100%
4 000 - 255 White 1, 0% to 100%
5 000 - 255 Amber 1, 0% to 100%
6000 - 255 UV 1, 0% to 100%
7 000 - 255 Red 2, 0% to 100%
8 000 - 255 Green 2, 0% to 100%
9 000 - 255 Blue 2, 0% to 100%
10 000 - 255 White 2, 0% to 100%
11 000 - 255 Amber 2, 0% to 100%
12 000 - 255 UV 2, 0% to 100%
13 000 - 255 Red 3, 0% to 100%
14 000 - 255 Green 3, 0% to 100%
15 000 - 255 Blue 3, 0% to 100%
16 000 - 255 White 3, 0% to 100%
17 000 - 255 Amber 3, 0% to 100%
18 000 - 255 UV 3, 0% to 100%
19 000 - 255 Red 4, 0% to 100%
20 000 - 255 Green 4, 0% to 100%
CONTINUED ON NEXT PAGE
DMX TRAITS
18

CHANEL DMX
VALUES FUNCTION
6Ch 10Ch 12Ch 36Ch
21 000 - 255 Blue 4, 0% to 100%
22 000 - 255 White 4, 0% to 100%
23 000 - 255 Amber 4, 0% to 100%
24 000 - 255 UV 4, 0% to 100%
25 000 - 255 Red 5, 0% to 100%
26 000 - 255 Green 5, 0% to 100%
27 000 - 255 Blue 5, 0% to 100%
28 000 - 255 White 5, 0% to 100%
29 000 - 255 Amber 5, 0% to 100%
30 000 - 255 UV 5, 0% to 100%
31 000 - 255 Red 6, 0% to 100%
32 000 - 255 Green 6, 0% to 100%
33 000 - 255 Blue 6, 0% to 100%
34 000 - 255 White 6, 0% to 100%
35 000 - 255 Amber 6, 0% to 100%
36 000 - 255 UV 6, 0% to 100%
DMX TRAITS
19

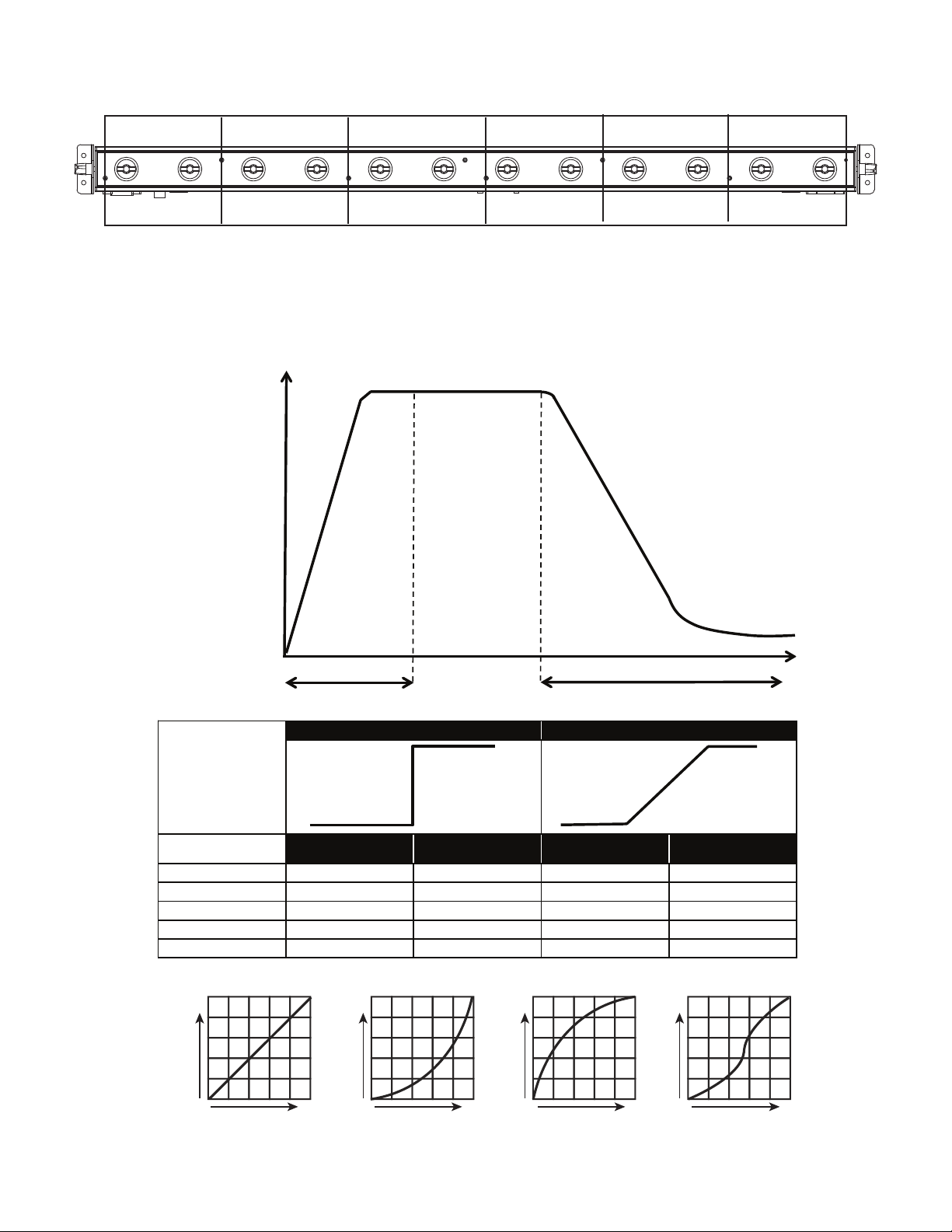

SECTION MODE
Section 1 Section 2 Section 3 Section 4 Section 5 Section 6
DIMMING CURVES
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec
255 255
0 0
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Dimming Curve
Ramp Effect
Rise Time Down Time
0 sec Fade Time 1 sec Fade Time
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Output
0
100%
Output
0
100%
Output
0
100%
Output
0
100%
DMX % DMX % DMX % DMX %
LINEAR SQUARE INVERSE SQUARE S-CURVE
20
