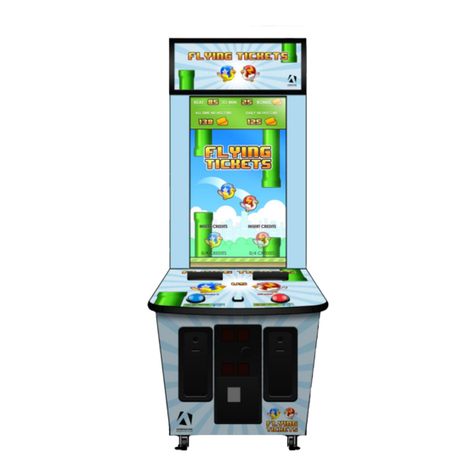

Adrenaline Flying Tickets Installation and operating instructions

Flying Tickets
FT-65-1001
Operation & Service Manual
Version 4.0
* Read this manual before use

Flying Ticket Manual V4.0
2
General Remark
If you encounter any difficulties or if you need support on how to update and/ or install your
Flying Tickets product, we invite you to contact your local distributor or reach us at
[email protected] or by calling our support line [phone]
Adrenaline Amusements Team
Adrenaline Amusements
1150 Levis, Suite 302
Terrebonne, Qc
Canada
J6W 5S6

Flying Ticket Manual V4.0
3
Table of Contents
Contents
General Remark..................................................................................................2
Table of Contents................................................................................................3
Chapter 01 - Preface ...........................................................................................5
Precaution for Game Operation.................................................................................................. 5
Safety........................................................................................................................................... 6
Environmental Conditions........................................................................................................... 6
Chapter 02 - Game Features................................................................................7
How to Play ................................................................................................................................. 7
Chapter 3 –Unit Features ...................................................................................8
Hardware Features...................................................................................................................... 8
Cabinet Facts ............................................................................................................................... 8
Voltage ........................................................................................................................................ 8
Chapter 04 - Unit & Headers Installation.............................................................9
Assembling your Flying Tickets Unit............................................................................................ 9
Headers Installation .................................................................................................................. 12
Chapter 05 –Operator Menu ............................................................................15
Operator Menu ......................................................................................................................... 15
Chapter 06 - Service & Repair............................................................................17
Computer Connections ............................................................................................................. 17
Troubleshooting ........................................................................................................................ 18
Video Troubleshooting........................................................................................................................18
Audio Troubleshooting .......................................................................................................................19
Wireless Internet Configuration................................................................................................ 20
Chapter 07 - Parts .............................................................................................23
Cabinet Parts ............................................................................................................................. 23

Flying Ticket Manual V4.0
4
Cash Box Parts........................................................................................................................... 24
Computer & Electronics ............................................................................................................ 25
Decal Prints................................................................................................................................ 26
Header Parts.............................................................................................................................. 27
Cabling....................................................................................................................................... 28
Wiring Harness .......................................................................................................................... 28
Computer Parts ......................................................................................................................... 28
Monitor Parts ............................................................................................................................ 28
Chapter 08 –Diagrams & Schematics................................................................29
Power Distribution .................................................................................................................... 29
I/0 board INV-04-1201 .............................................................................................................. 30
I/O Board Wiring ....................................................................................................................... 32
RGB LED Controller Power Wiring Diagram .............................................................................. 34
RGB LED Wiring Diagram........................................................................................................... 35
Chapter 09 –Software Recovery.......................................................................36
Chapter 10 –Card Reader .................................................................................37
Embed System........................................................................................................................... 38
Limited Warranty Policies ......................................................................39

Flying Ticket Manual V4.0
Chapter 01 - Preface
5
Chapter 01 - Preface
Please read this page before preparing your Flying Tickets product for game
play.
The following safety instructions apply to all game operators and service personnel. Specific
warnings and cautions will be included throughout this manual.
Use the following safety guidelines to help protect the system from potential damage and to
ensure your personal safety:
Electronic components in the game cabinet run on 110V AC 60Hz (220V/ 50Hz in most of
Europe, the Middle East and the Far East delivered units).
To help prevent electric shock, plug the system into a properly grounded power source.
These cables are equipped with 3-prong plugs to help ensure proper grounding. Do not
use adapter plugs or remove the grounding prong from a cable. If you must use an
extension cable, use a 3-wire cable with properly grounded plugs.
To help protect your system from sudden increases and decreases in electrical power,
use a surge suppressor, line conditioner or Uninterruptible Power Supply (UPS).
Be sure nothing rests on the system’s cables and that the cables are not located where
they can be stepped on or tripped over.
Keep your system far away from radiators and other heat sources.
Do not block cooling vents.
Precaution for Game Operation
Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games.
Operators should be aware that certain health and physical conditions may make people
susceptible to injury when playing video games.

Flying Ticket Manual V4.0
Chapter 01 - Preface
6
Safety
To avoid electrical shock, unplug the cabinet before performing
installation or service procedures.
If a power cord is damaged, it must be replaced by the equivalent
power cord available from your distributor.
Adrenaline Amusement Inc. assumes no liability for any damages or
injuries incurred while setting up or servicing the cabinet. Only qualified
service personnel should perform installation or service procedures.
Environmental Conditions
Cabinet is intended for indoor use only. Be sure to keep the cabinet dry and maintain operating
temperatures of 59° - 86° (15° - 30°C).

Flying Ticket Manual V4.0
Chapter 02 –Game Features
Chapter 02 - Game Features
Win a lot of tickets!
How to Play
Tap the button to “flap” your bird through the pipes.
The green pipes worth 1 ticket, the red/white pipes worth 5 tickets.
100% Skill game.
Challenge your friends; 2 players game play.
Skill Bonus; beat the target score and win a bonus of 100 to 1000 tickets

Flying Ticket Manual V4.0
Chapter 03 - Unit Features
8
Chapter 3 – Unit Features
Hardware Features
65” Monitor
2 Players Game
Dual Ticket Dispenser
Cabinet Facts
Cabinet Dimensions
Height = 102”/ 2.59m
Depth = 41’’ / 1.04m Width = 38’’ /0.96m
Shipping Dimensions
Width = 45” Depth = 57” Height = 85”
Weight = 650lbs
Voltage
Voltage
Operating
110V AC
4 AMP
220V AC
2 AMP

Flying Ticket Manual V4.0
Chapter 04 - Unit & Headers Installation
9
Chapter 04 - Unit & Headers Installation
Assembling your Flying Tickets Unit
1. Carefully remove the Cabinet from the shipping container, giving you enough space.
2. Move the cabinet to the desired location.
** For your security, minimum 2 persons are needed to complete the installation **
Fig. 1
3. Before installing the monitor, locate the 6 bolt holes as seen on figure 1.

Flying Ticket Manual V4.0
Chapter 04 - Unit & Headers Installation
10
Fig. 2
4. Place the bottom back of the TV over the security support before lifting it vertically.

Flying Ticket Manual V4.0
Chapter 04 - Unit & Headers Installation
11
Fig. 3
5. Affix the 6 bolts 1/4-20 x 1" and tighten them.

Flying Ticket Manual V4.0
Chapter 04 - Unit & Headers Installation
12
Headers Installation
Fig. 4
-Using a ladder, fix the header to the monitor using the 4 bolts M6 X 12. The header
will be slightly in front of the LED strips.
-Connect the 12V LED Panel barrel connector.

Flying Ticket Manual V4.0
Chapter 04 - Unit & Headers Installation
13
Fig. 5
- Run the monitor DVI cable, the 4-pins 5V/12V cable and the AC cable through the
bottom hole.
-Connect the DVI monitor cable to the computer inside the cabinet.
-Connect the AC power cable to the Surge Protection Power Bar.

Flying Ticket Manual V4.0
Chapter 04 - Unit & Headers Installation
14
-Connect the 4-pins 5V/12V Molex extension between the Fan inside the cabinet
and the RGB LED controller from the monitor.

Flying Ticket Manual V4.0
Chapter 05 –Operator Menu
15
Chapter 05 – Operator Menu
Operator Menu
Access the Operator Menu by pressing the switch button located inside the top coin
door.
Player 1 Button: Scroll Up/Increase Value
Start Button: Select
Player 2 Button: Scroll Down/Decrease Value
Fig. 6

Flying Ticket Manual V4.0
Chapter 05 –Operator Menu
16
Operator Menu
Values
What it does
Credits Per Game
0 –20
Adjusts the number of credits required to play. “0”
sets the unit in free play mode.
Game Audio Volume
0 –20
Adjusts the in-game audio volume. “0” will mute
the game.
Attract Audio Volume
0 –20
Adjusts the audio volume of the attract loop. “0”
will mute the attract loop.
TicketValue
1 –2
Adjusts the value of physical tickets. Physical tickets
are either worth “1” ticket or “2” tickets.
Red Pipe Frequency %
1-50
Adjusts the % frequency of Red Pipe
(5 Tickets Value)
PaymentType
Credit/Card
Changes the credit type. “Credits” = Coins and
“Card” = Card Reader. This will change the in-game
text accordingly.
Redemption Mode
False/True
Adjusts the tickets redemption availability.
(Default: True)
Activate Bonus
False / True
Adjusts the Bonus availability
Bonus Ticket Value
50-1000
Adjusts the number of tickets given when the
Bonus is reached
Average games for Bonus
10-1000
Sets how frequently the Bonus will be awarded
(Default: 250)
Minimum Tickets
0
Adjusts the minimum ticket payout for each game
E-Tickets
True/False
Adjusts the ticket distribution mode
(False: during the game; True: At the end of the
game).
If you have a Card Reader please use TRUE.
Credits Sharing
False/True
Adjusts the credit sharing option between each
players. (False: Sharing Disabled // True: Sharing
Enabled)
If you have a Card Reader please use FALSE.
Stats
N/A
Shows the Stats Screen.
Resume
N/A
Exits the Operator Menu and returns to the game.
Quit
N/A
Exits the game and returns to the Windows
desktop.

Flying Ticket Manual V4.0
Chapter 06 –Service & Repair
17
Chapter 06 - Service & Repair
Computer Connections

Flying Ticket Manual V4.0
Chapter 06 –Service & Repair
18
Troubleshooting
* NOTE: When requesting a warranty replacement you will be asked to
give the unit’s serial number from the back of the unit.
Video Troubleshooting
No Picture and Sound
To change between Portrait and Landscape mode, press
ALT-P (Portrait) or ALT-L (Landscape) or ALT-i (Portrait Inverted) using
a USB keyboard.
There are loose or faulty connections between the monitor and the
computer. Make sure the DVI cable is connected properly to both the
computer and to the DVI connector of the LCD monitor.
No power to computer.
Verify the computer is ON.
Open the front service door and press the RED or WHITE power
button.
Make sure that the power plug is well connected.
If the computer does not power automatically when the unit is
powered on, the Bios settings have changed. Follow those steps:
Open the cabinet and plug a USB keyboard in one of the remaining
USB ports.
Press and hold the “Delete” key on the keyboard and then turn the
unit on. Keep holding the “Delete” key until the Bios screen appears.
Using the arrows, select the “Advanced” tab.
Using the arrows, scroll down to the Chipset Configuration option
and press the “Enter” key.
Using the arrows, scroll down to the Restore on AC/Power Loss
option and press the “Enter” key.
Using the arrows, select the Power On option and press the “Enter”
key.
Press the “F10” key then the “Enter” key to exit the Bios screen.

Flying Ticket Manual V4.0
Chapter 06 –Service & Repair
19
Audio Troubleshooting
Low Volume / No
Sound
Increase the volume in the game by pressing the Operator Button and
adjusting the volume options in the Operator Menu. You might also
Quit the game to Windows desktop and increase the volume via the
Speaker icon on the bottom right of your screen.
Verify that the 1/8’’ plug is plugged in the computer’s green sound
input jack and that the other end is plugged in the sound amplifier. To
verify if it’s plugged properly, power up the unit and try touching the
plug at the computer’s end. If you hear a grounding sound it is
connected.
Dongle not found
The USB License Dongle can’t be found. Make sure that the USB
Dongle is connected to the computer in a black USB port.

Flying Ticket Manual V4.0
Chapter 06 –Service & Repair
20
Wireless Internet Configuration
Your network can be configured via Ethernet cable or Wireless 802.11b/g.
If you have an Ethernet cable available to be plugged in, insert it into the motherboard LAN
RJ45 connector.
If not, here’s how to configure your wireless network with your own existing Wi-Fi network.
-Start the unit.
-There will be Adrenaline Amusements wallpaper with a 150 seconds delay before the attract
mode shows up. It gives enough time for a wireless network to connect.
(This delay will be present on each reboot if you don’t connect your unit to the Internet)*.
-Open the coin door and press the Operator button.
-Choose QUIT to Windows.
-Connect the USB keyboard and USB mouse.
- Open Connect to a Network by clicking the network icon ( ) in the lower right corner of the
screen.
-In the list of networks, click the network you want to connect to and click connect.
-Enter your security key.
-Once connected, double-click the Flying Tickets Gamelauncher shortcut on the desktop.
Having your unit connected to the Internet includes free software live update!
*If you do not connect your unit to the Internet, you can double-click the Disable_Network
shortcut on the Windows desktop to bypass the 150seconds Internet lookup delay.
