ADTRAN NT1 ACE4 User manual

NT1 ACE4
User Manual
1200242L1: NT1 ACE4
336012VUR01: Power Supply 12 VDC/800 mA
61200242L1-1A
September 2000

901 Explorer Boulevard
P.O. Box 140000
Huntsville, AL 35814-4000
[phone]
© 2000 ADTRAN, Inc.
All Rights Reserved.
Printed in U.S.A.

61200242L1-1 NT1 ACE4User Manual iii
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety pre-
cautions should always be followed to reduce the risk of
fire, electric shock and injury to persons. The precautions
are listed below.
1. Donotusethisproductnearwater(forexam-
ple,nearabathtub,washbowl,kitchensinkor
laundry tub, in a wet basement or near a swim-
ming pool).
2. Never install telephone jacks in wet locations un-
lessthejackisspecificallydesignedforwetloca-
tions.
3. Avoid using a telephone (other than a cordless
type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
4. Donotusethetelephonetoreportagasleakinthe
vicinity of the leak.
5. Use only the power cord, power supply, and/or
batteries indicated in the manual. Do not dispose
of batteries in a fire. They may explode. Check lo-
cal codes for any special disposal instructions.
6. Never touch uninsulated telephone wires or ter-
minals unless the telephone line has been discon-
nected at the network interface.
7. Use caution when installing or modifying tele-
phone lines.
SAVE THESE INSTRUCTIONS.

iv NT1 ACE4User Manual 61200242L1-1
AFFIDAVIT REQUIREMENTS FOR CONNECTION TO
DIGITAL SERVICES
• An affidavit is required to be given to the telephone
company whenever digital terminal equipment with-
out encoded analog content and billing protection is
used to transmit digital signals containing encoded
analog content which are intended for eventual con-
version into voiceband analog signals and transmitted
on the network.
• The affidavit shall affirm that either no encoded ana-
log content or billing information is being transmitted
or that the output of the device meets Part 68 encoded
analog content or billing protection specifications.
• End user/customer will be responsible to file an affi-
davit with the local exchange carrier when connecting
unprotected CPE to a 1.544 Mbps or subrate digital
services.
• Until such time as subrate digital terminal equipment
is registered for voice applications, the affidavit re-
quirement for subrate services is waived.

61200242L1-1 NT1 ACE4User Manual v
AFFIDAVIT FOR CONNECTION OF CUSTOMER
PREMISES EQUIPMENT TO 1.544 MBPS AND/OR
SUBRATE DIGITAL SERVICES
For the work to be performed in the certified territory of
_______________
(telco name)
State of ___________________
County of _________________
I, ______________________________(name),
________________________________(business address),
______________________ (telephone number) being duly
sworn, state:
Ihaveresponsibilityfortheoperationandmaintenanceof
the terminal equipment to be connected to 1.544 Mbps
and/or ________ subrate digital services. The terminal
equipment to be connected complies with Part 68 of the
FCC rules except for the encoded analog content and bill-
ing protection specifications. With respect to encoded an-
alog content and billing protection:
( ) I attest that all operations associated with the estab-
lishment,maintenance,andadjustmentof thedigitalCPE
with respect to analog content and encoded billing pro-
tection information continuously complies with Part 68 of
the FCC Rules and Regulations.
( ) The digital CPE does not transmit digital signals containing
encodedanalogcontentorbillinginformationwhichisintended
to be decoded within the telecommunications network.

vi NT1 ACE4User Manual 61200242L1-1
( ) The encoded analog content and billing protection is
factory set and is not under the control of the customer.
I attest that the operator(s)/maintainer(s) of the digital
CPE responsible for the establishment, maintenance, and
adjustment of the encoded analog content and billing in-
formation has (have) been trained to perform these func-
tionsbysuccessfullyhavingcompletedoneofthe
following (check appropriate blocks):
( ) A. A training course provided by the manufacturer/
grantee of the equipment used to encode analog signals;
or
( ) B. A training course provided by the customer or au-
thorized representative, using training materials and in-
structions provided by the manufacturer/grantee of the
equipment used to encode analog signals; or
( ) C. An independent training course (e.g., trade school
or technical institution) recognized by the manufacturer/
grantee of the equipment used to encode analog signals;
or
( ) D. In lieu of the preceding training requirements, the
operator(s)/maintainer(s) is (are) under the control of a
supervisor trained in accordance with _________ (circle
one) above.
I agree to provide _________________ (telco's name) with
proper documentation to demonstrate compliance with
the information as provided in the preceding paragraph,
if so requested.

61200242L1-1 NT1 ACE4User Manual vii
_________________________________Signature
_________________________________Title
_________________________________ Date
Transcribed and sworn to before me
This ________ day of ________, 199___
_________________________________
Notary Public
My commission expires:
_________________________________

viii NT1 ACE4User Manual 61200242L1-1
FCC INFORMATION
This device complies with Part 15 of the FCC rules. Oper-
ation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications to this unit not ex-
pressly approved by the party responsible for
compliance could void the user's authority to op-
erate the equipment.
Canadian Standards Association
This device must be powered by a CSA approved power
supply or a power supply meeting the requirements of
CS03, Part I Section 1.4.2.
FCC regulations require that the following
informationbeprovidedinthismanual:
1. This equipment complies with Part 68 of the FCC
rules. On the bottom of the equipment housing is a la-
bel that shows the FCC registration number for this
equipment. If requested, provide this information to
the telephone company.

61200242L1-1 NT1 ACE4User Manual ix
2. If this equipment causes harm to the telephone network,
the telephone company may temporarily discontinue
service. If possible, advance notification is given; oth-
erwise, notification is given as soon as possible. The
telephone companywilladvisethecustomeroftheright
to file a complaint with the FCC.
3. The telephone company may make changes in its facili-
ties, equipment, operations, or procedures that could af-
fect the proper operation of this equipment; advance
notification and the opportunity to maintain uninter-
rupted service is given.
4. If experiencing difficulty with this equipment, please con-
tact ADTRAN for repair and warranty information. The
telephone company may requirethisequipment to be dis-
connected from the network until the problem is correct-
ed, or it is certain the equipment is not malfunctioning.
5. This unit contains no user-serviceable parts.
6. An FCC compliant telephone cord with a modular plug
is provided with this equipment. In addition, an FCC
compliant cable appropriate for the dial backup option
orderedisprovidedwiththisequipment. Thisequip-
ment is designed to be connected to the telephone net-
work or premises wiring using an FCC compatible
modular jack, which is Part 68 compliant.

xNT1ACE
4User Manual 61200242L1-1
7. The following information may be required when ap-
plying to the local telephone company for leased line
facilities.
8. The FCC recommends that the AC outlet, to which
equipment requiring AC power is to be installed, is pro-
videdwithanACsurgearrester.
Service
Type Digital Facility Interface Code Service Order Code Network Jacks
ISDN 02IS5 6.0N RJ-49C

61200242L1-1 NT1 ACE4User Manual xi
CANADIAN EMISSIONS REQUIREMENTS
This digital apparatus does not exceed the Class B limits
for radio noise emissions from digital apparatus as set
out in the interference-causing equipment standard enti-
tled "Digital Apparatus," ICES-003 of the Department of
Communications.
Cet appareil numerique respecte les limites de bruits
radioelectriques applicables aux appareils numeriques
de Class B prescrites dans la norme sur le materiel brouil-
leur: "Appareils Numeriques," NMB-003 edictee par le
ministre des Communications.
CANADIAN EQUIPMENT LIMITATIONS
Notice: The Canadian Industry and Science Canada
label identifies certified equipment. This certification
means that the equipment meets certain telecommunica-
tions network protective, operational, and safety require-
ments. The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, ensure that it is permissi-
ble to be connected to the facilities of the local telecommuni-
cations company. The equipment must also be installed
using an acceptable method of connection. In some cases,
the company’s inside wiring associated with a single-line
individual service may be extended by means of a certified

xii NT1 ACE4User Manual 61200242L1-1
connector assembly (telephone extension cord). Compli-
ance with the above conditions may not prevent degrada-
tion of service in some situations.
Repairs to certified equipment should be made by an
authorized Canadian maintenance facility designated by
the supplier. Any repairs or alterations made by the user
to this equipment, or equipment malfunctions, may give
the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility, tele-
phone lines, and internal metallic water pipe system, if
present, are connected together. This precaution may be
particularly important in rural areas.
Users should not attempt to make such connections
themselves, but should contact the appropriate elec-
tric inspection authority, or an electrician, as
appropriate.
TheLoadNumber(LN)assignedtoeachterminaldevice
denotes the percentage of the total load to be connected
to a telephone loop which is used by the device, to pre-
vent overloading. The termination on a loop may consist
of any combination of devices subject only to the require-
ment that the total of the Load Numbers of all devices
does not exceed 100.

61200242L1-1 NT1 ACE4User Manual xiii
WARRANTY AND CUSTOMER SERVICE
ADTRAN will repair or replace this product within five
years from the date of shipment if it does not meet its pub-
lished specifications or fails while in service. For detailed
warranty, repair, and return information, refer to the ADT-
RAN Equipment Warranty and Repair and Return Policy
Procedure. Return Material Authorization (RMA) is re-
quired prior to returning equipment to ADTRAN.
LIMITED PRODUCT WARRANTY
ADTRAN warrants that for five years from the date of ship-
ment to Customer, all products manufactured by ADTRAN
will be free from defects in materials and workmanship.
ADTRAN also warrants that products will conform to the
applicable specifications and drawings for such products,
as contained in the Product Manual or in ADTRAN's inter-
nal specifications and drawings for such products (which
may or may not be reflected in the Product Manual). This
warranty only applies if Customer gives ADTRAN written
notice of defects during the warranty period. Upon such
notice, ADTRAN will, at its option, either repair or replace
the defective item. If ADTRAN is unable, in a reasonable
time, to repair or replace any equipment to a condition as
warranted, Customer is entitled to a full refund of the pur-
chase price upon return of the equipment to ADTRAN.
This warranty applies only to the original purchaser and is

xiv NT1 ACE4User Manual 61200242L1-1
not transferable without ADTRAN's express written per-
mission. This warranty becomes null and void if Customer
modifies or alters the equipment in any way, other than as
specifically authorized by ADTRAN.
EXCEPT FOR THE LIMITEDWARRANTY DESCRIBED
ABOVE, THE FOREGOING CONSTITUTES THE SOLE
AND EXCLUSIVE REMEDY OF THE CUSTOMER AND
THE EXCLUSIVE LIABILITY OF ADTRAN AND IS IN
LIEU OF ANY AND ALL OTHER WARRANTIES
(EXPRESSED OR IMPLIED). ADTRAN SPECIFICALLY
DISCLAIMS ALL OTHER WARRANTIES, INCLUDING
(WITHOUT LIMITATION), ALL WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SOME STATES DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES, SO THIS
EXCLUSION MAY NOT APPLY TO CUSTOMER.
In no event will ADTRAN or its suppliers be liable to Cus-
tomer for any incidental, special, punitive, exemplary or con-
sequential damages experienced by either Customer or a
third party (including, but not limited to, loss of data or infor-
mation, loss of profits, or loss of use). ADTRAN is not liable
for damages for any cause whatsoever (whether based in
contract, tort, or otherwise) in excess of the amount paid for
the item. Some states do not allow the limitation or exclusion
of liability for incidental or consequential damages, so the
above limitation or exclusion may not apply to Customer.

61200242L1-1 NT1 ACE4User Manual xv
Table of Contents
Unit Overview .............................................................................. 1
LED Indicators ............................................................................. 2
Inspection ...................................................................................... 3
Maintenance ................................................................................. 3
Remote Testing ............................................................................. 3
Repair and Return ........................................................................ 3
Connections .................................................................................. 4
Powering with the NT1 ACE4Power Supply .......................... 6
Connecting the Terminal Equipment ....................................... 7
Typical Configuration ................................................................. 7
Troubleshooting ........................................................................... 8
Specifications .............................................................................. 10
Network Interface (U) ........................................................ 10
Customer Interface (S/T) .................................................. 10
Faceplate Indicators ............................................................ 10
Network Compatibility ...................................................... 10
Mechanical ........................................................................... 11
Power .................................................................................... 11
Environment ........................................................................ 11
Power Supply Specifications ............................................. 11

xvi NT1 ACE4User Manual 61200242L1-1
Table of Contents
Figures
Figure 1-1. ADTRAN NT1 ACE4............................................... 1
Figure 1-2. Interface Connectors .................................................1
Figure 1-3. Network Connector (RJ-45)......................................4
Figure 1-4. Local Bus Connector (RJ-45) ....................................5
Figure 1-5. Power Supply Connection .......................................6
Figure 1-6. Typical Configuration...............................................8
Tables
Table 1-1. Status Indicators..........................................................2
Table 1-2. Network Connector Pin Assignments......................4
Table 1-3. Local Bus Connector Pin Assignments ....................5

61200242L1-1 NT1 ACE4User Manual 1
NT1 ACE4User Manual
Unit Overview
The ADTRAN NT1 ACE4provides up to four basic rate
interfaces between customer ISDN terminal equipment (S/T)
and the basic rate ISDN network (U). Figure 1-1 is an illus-
tration of the NT1 ACE4.

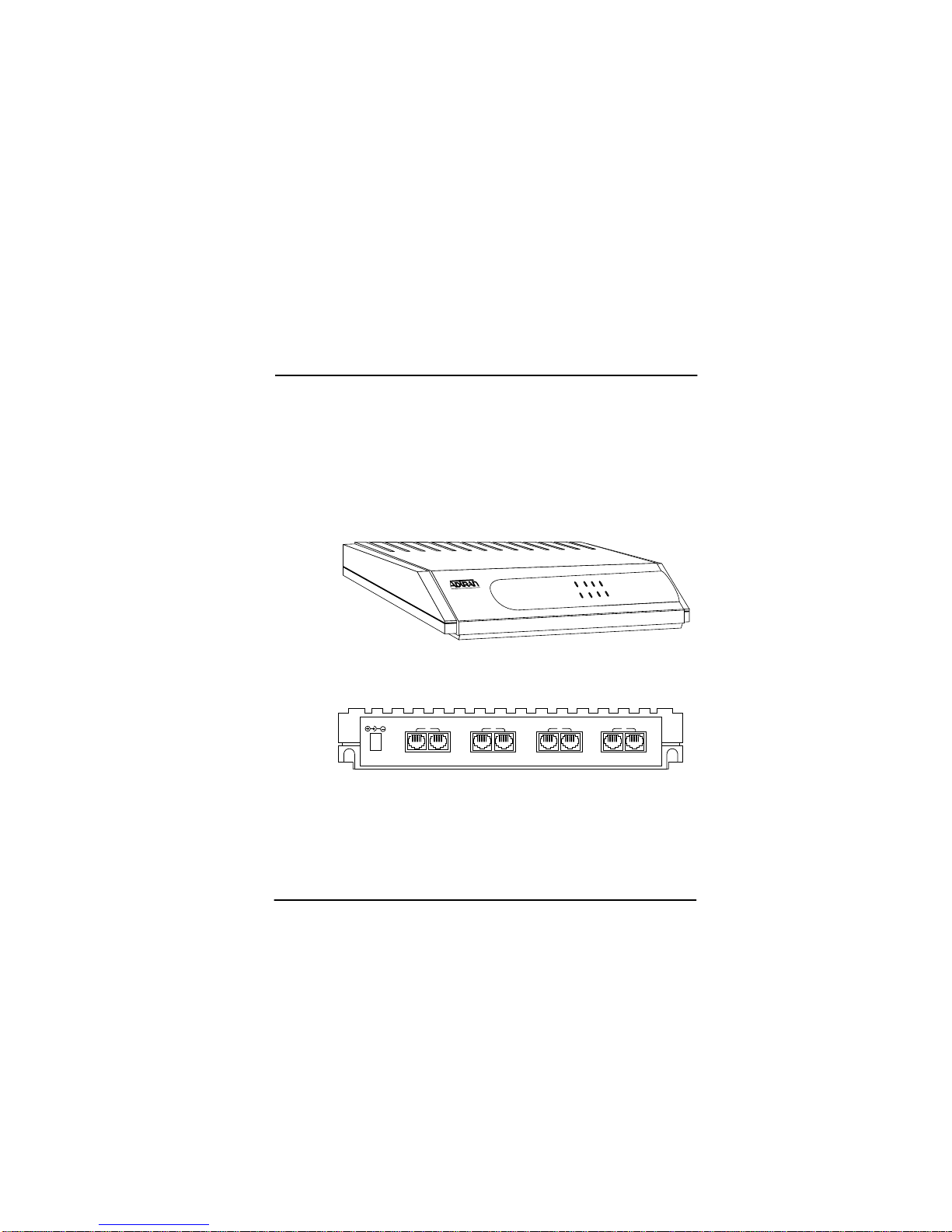

Figure 1-1. ADTRAN NT1 ACE4
Figure 1-2 shows the interface connectors.
Figure 1-2. Interface Connectors
The four RJ-45 connectors labeled Uconnect to the ISDN
network. The RJ-45 connectors labeled S/T connect to the
terminal equipment.
NT1ACE
4
3
1
READY
ERROR
24
POWER
12VDC
S/T
3
U S/T
2
U S/T
1
U
S/T U
4

NT1 ACE4User Manual
2NT1ACE
4User Manual 61200242L1-1
The U interface complies with ANSI T1.601 and ITU-
T1.430 Recommendation Standard. The S/T interface com-
plies with ANSI T1.605 and ETSI ETS 300012 Standard.
The ADTRAN NT1 ACE4is a stand-alone unit and is pow-
ered by an external power supply (the ADTRAN power
supply, part number 336012VUR01).
LED Indicators
Table 1-1 describes the status of the LEDs located on the
front panel of the NT1 ACE4.ThereisaREADY and
ERROR indicator for each port of the NT1 ACE4.
Table 1-1. Status Indicators
If an ERROR indicator is illuminated, check the flash rate of
the READY indicator to determine the source of the error. A
faster 8 Hz flash rate (8 flashes per second) indicates a net-
work problem. A slower 1 Hz flash rate (1 flash per second)
indicates an S/T interface problem.
LED Color Description
READY Green S/T and U interfaces are
ready to place call.
ERROR Red S/T or U interface not
ready.

61200242L1-1 NT1 ACE4User Manual 3
NT1 ACE4User Manual
If an ERROR indicator is not illuminated and the READY
indicator is flashing, a network test is in progress. Network
command tests cause a faster 8 Hz flash rate.
Inspection
After unpacking the NT1 ACE4, carefully inspect it for ship-
ping damage. If damage is suspected, file a claim immedi-
ately with the carrier and contact ADTRAN Technical
Support. If possible, keep the original shipping container
for use in shipping the NT1 ACE4forrepairorforverifica-
tion of damage during shipment.
Maintenance
The NT1 ACE4requires no routine maintenance to operate.
In case of equipment malfunction, refer to the sections
Remote Testing and Repair and Return below or remove the
unit and replace it with another unit optioned in an identi-
cal manner.
Remote Testing
Network test features include a loopback test initiated at the
central office. This test confirms network integrity to the
NT1 ACE4.
Repair and Return
Repairs should not be performed in the field. Repair ser-
vices can be obtained by returning the unit to the ADTRAN

NT1 ACE4User Manual
4NT1ACE
4User Manual 61200242L1-1
Customer and Product Service (CAPS) Department at the
address listed in the back of this manual.
Connections
The NT1 ACE4is optioned for standard 100 ohm termina-
tion. Tables 1-2 and 1-3 give the connector pin assignments,
and Figures 1-3 and 1-4 show the connectors.
Table 1-2. Network Connector Pin Assignments
Figure 1-3. Network Connector (RJ-45)
Pin Description
1 No connection
2 No connection
3 No connection
4 U-interface network connection
5 U-interface network connection
6 No connection
7 No connection
8 No connection
PIN 1 PIN 8
