Original instructions
Originalbetriebsanleitung
Notice originale
Istruzioni originali
Manual original
Manual original
Oorspronkelijke gebruiksaanwijzing
Original brugsanvisning
Original bruksanvisning
Bruksanvisning i original
Alkuperäiset ohjeet
Πρωτότυπο οδηγιών χρήσης
Orijinal işletme talimatı
Původním návodem k používání
Pôvodný návod na použitie
Instrukcją oryginalną
Eredeti használati utasítás
Izvirna navodila
Originalne pogonske upute
Instrukcijâm oriěinâlvalodâ
Originali instrukcija
Algupärane kasutusjuhend
Оригинальное руководство по
эксплуатации
Оригинално ръководство за
експлоатация
Instrucţiuni de folosire originale
Оригинален прирачник за работа
Оригінал інструкції з експлуатації
WS 10-115, WS 10-125,
WS 12-115, WS 12-125, WS 13-125 XE
Автотовары «130»
130.com.ua

Technical Data,Safety Instructions, Specied Conditions of Use,
Mains connection, Maintenance, Symbols Please read and save these instructions!
English
14
Technische Daten, Sicherheitshinweise, Bestimmungsgemäße Verwendung,
Netzanschluss, Wartung, Symbole Bitte lesen und aufbewahren!
Deutsch
18
Caractéristiques techniques, Instructions de sécurité, Utilisation conforme aux
prescriptions, Branchement secteur, Entretien, Symboles A lire et à conserver soigneusement
Français
22
Dati tecnici,Norme di sicurezza,Utilizzo conforme, Collegamento alla rete,
Manutenzione, Simboli Si prega di leggere e conservare le istruzioni!
Italiano
26
Datos técnicos, Instrucciones de seguridad, Aplicación de acuerdo a la nalidad,
Conexión eléctrica, Mantenimiento, Símbolos Lea y conserve estas instrucciones por favor!
Español
30
Características técnicas, Instruções de segurança, Utilização autorizada,
Ligação à rede, Manutenção, Symbole Por favor leia e conserve em seu poder!
Português
34
Technische gegevens, Veiligheidsadviezen, Voorgeschreven gebruik van het
systeem, Netaansluiting,Onderhoud, Symbolen Lees en let goed op deze adviezen!
Nederlands
38
Tekniske data, Sikkerhedshenvisninger, Tiltænkt formål, Nettilslutning,
Vedligeholdelse, Symboler Vær venlig at læse og Opbevare!
Dansk
42
Tekniske data, Spesielle sikkerhetshenvisninger, Formålsmessig bruk,
Nettilkopling, Vedlikehold, Symboler Vennligst les og oppbevar!
Norsk
46
Tekniska data, Säkerhetsutrustning, Använd maskinen Enligt anvisningarna,
Nätanslutning, Skötsel, Symboler Läs igenom och spara!
Svenska
50
Tekniset arvot, Turvallisuusohjeet, Tarkoituksenmukainen käyttö,
Verkkoliitäntä, Huolto, Symbolit Lue ja säilytö!
Suomi
54
Τεχνικά στοιχεία, Ειδικές υποδείξεις ασφάλειας, Χρήση σύμφωνα με το σκοπό
προορισμού, Μπαταρίες, Χαρακτηριστικά, Συντήρηση, Σύμβολα.
Ελληνικά
58
Teknik veriler, Güvenliğiniz için talimatlar, Kullanim, Şebeke bağlantisi,
Bakim, Semboller Lütfen okuyun ve saklayın
Türkçe
63
Technická data, Speciální bezpečnostní upozornění, Oblast využití,
Připojení na sít, Údržba, Symboly Po přečtení uschovejte
Česky
67
Technické údaje, Špeciálne bezpčènostné pokyny, Použitie podl’a predpisov,
Siet’ová prípojka, Údrzba, Symboly Prosím prečítať a uschovať!
Slovensky
71
Dane techniczne, Specjalne zalecenia dotyczące bezpiecze´nstwa,
Użytkowanie zgodne z przeznaczeniem, Podłączenie do sieci, Gwarancja, Symbole Należy uważnie przeczytać i zachować do wglądu!
Polski
75
Műszaki adatok, Különleges biztonsági tudnivalók, Rendeltetésszerű használat,
Hálózati csatlakoztatás, Karbantartás, Szimbólumok Olvassa el és őrizze meg
Magyar
79
Tehnični podatki, Specialni varnostni napotki, Uporaba v skladu z namembnostjo,
Omrežni priključek, Vzdrževanje, Simboli Prosimo preberite in shranite!
Slovensko
83
Tehnički podaci, Specijalne sigurnosne upute, Propisna upotreba,
Priključak na mrežu, Održavanje, Simboli Molimo pročitati i sačuvati
Hrvatski
87
Tehniskie dati, Speciālie drošības noteikumi, Noteikumiem atbilstošs izmantojums,
Tīkla pieslēgums, Apkope, Simboli Pielikums lietošanas pamācībai
Latviski
91
Techniniai duomenys, Ypatingos saugumo nuorodos, Naudojimas pagal paskirti,
Elektros tinklo jungtis, Techninis aptarnavimas, Simboliai Prašome perskaityti ir neišmesti!
Lietuviškai
95
Tehnilised andmed, Spetsiaalsed turvajuhised, Kasutamine vastavalt otstarbele,
Võrku ühendamine, Hooldus, Sümbolid Palun lugege läbi ja hoidke alal!
Eesti
99
Òåõíè÷åñêèå äàííûå, Ðåêîìåíäàöèè ïî òåõíèêå áåçîïàñíîñòè,
Èñïîëüçî- âàíèå, Îáñëóæèâàíèå, Ñèìâîëû
Пожалуйста прочтите и
сохраните эту инструкцию.
Pусский
103
Òåõíè÷åñêè äàííè, Ñïåöèàëíè óêàçàíèÿ çà áåçîïàñíîñò, Èçïîëçâàíå ïî
ïðåäíàçíà÷åíèå, Ñâúðçâàíå êúì ìðåæàòà, Ïîääðúæêà, Ñèìâîëè Моля прочетете и запазете!
Български
108
Date tehnice, Instrucţiuni de securitate, Condiţii de utilizare specifcate,
Acumulatori, Intreţinere, Simboluri Va rugăm citiţi şi păstraţi aceste instrucţiuni
Română
112
Òåõíè÷êè Ïîäàòîöè, Óïàòñòâî Çà Óïîòðåáà, Ñïåöèôèöèðàíè Óñëîâè
Íà Óïîòðåáà, БАТЕРИИ, Îäðæóâàњå, Ñèìáîëè
Ве мoлиме прочитаjте го и
чувајте го ова упатство!
Мaкeдohcки
116
Технічні характеристики, Вказівки З Техніки Безпеки, Використання за призначенням,
Підключення до мережі, Обслуговування, Символи Прочитайте та збережіть цю інструкцію.
Українська
120
 
       
127
Автотовары «130»
130.com.ua

TIP
VII
IX
V
IV
VIII
I II III
VI
Accessory
Zubehör
Accessoires
Accessorio
Accessorio Acessório
Toebehoren Tilbehør
Tilbehør Tillbehör
Lisälaite 
Aksesuar Příslušenství
Príslušenstv 
Azokat a tartozékokat
Oprema Piederumi
Priedas Tarvikud
Äîïîëíèòåëü

Accesoriu 
 

Автотовары «130»
130.com.ua

2
I
A B
Автотовары «130»
130.com.ua

3
II
1. 2.
4.3.
1
2
Автотовары «130»
130.com.ua

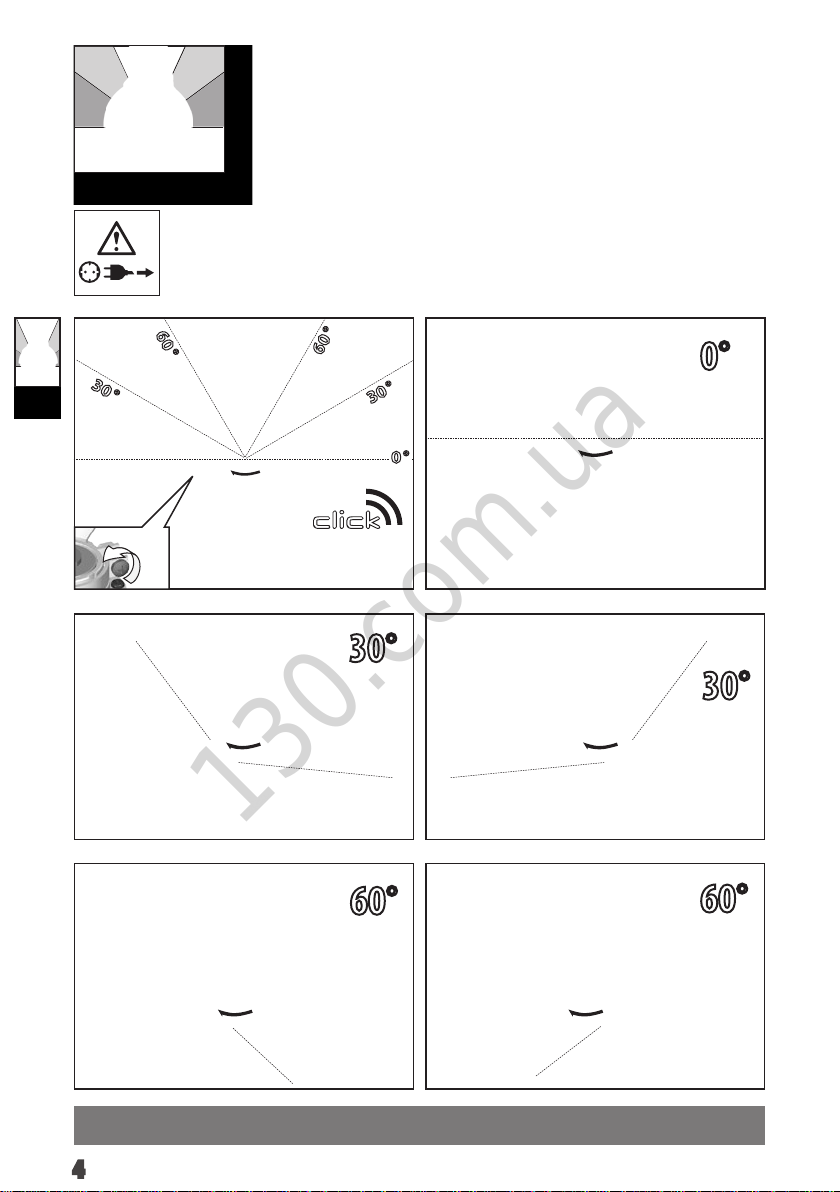

4
III
0°
30°
60° 60°
30
°
60
°
30
°
60
°
0
°
30°
Автотовары «130»
130.com.ua

5
IV
2.
1.
3.
< 6 mm
> 6 mm
4.
Автотовары «130»
130.com.ua

6
IV
3.
2.1.
Автотовары «130»
130.com.ua

7
IV
1. 2.
1. 2.
3.
WS ...-... X...
Автотовары «130»
130.com.ua

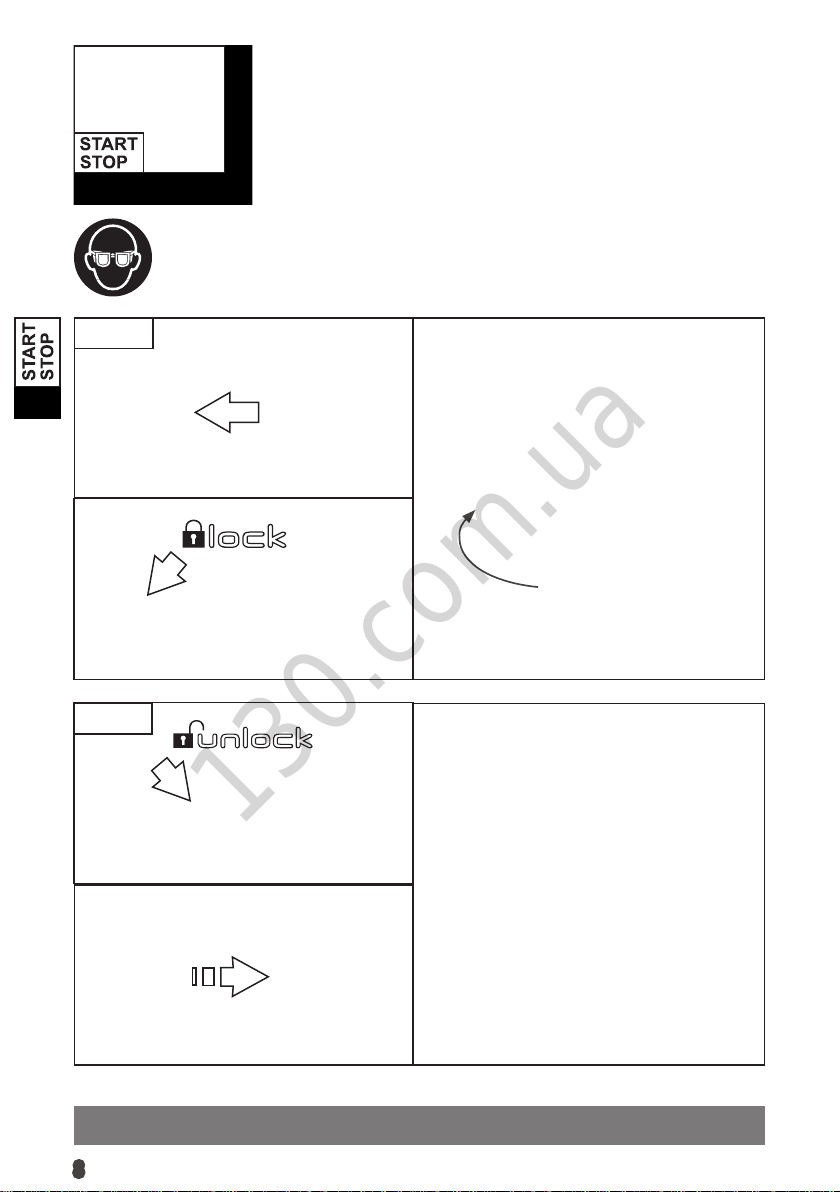

8
V
Stop
Start
Автотовары «130»
130.com.ua

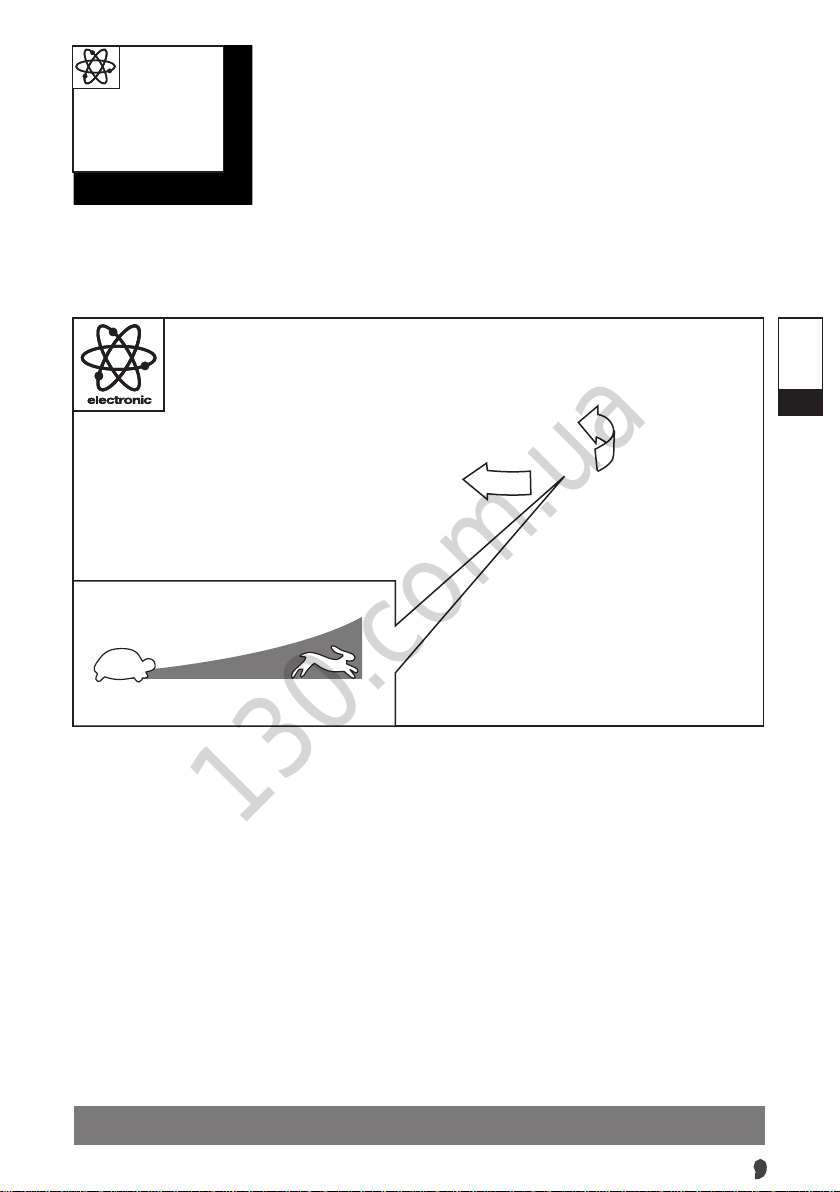

9
VI
A...B...C...D...E
C
WS ...-... E...
Автотовары «130»
130.com.ua

10
TIP
< 30°
TIP
TIP
VII
Автотовары «130»
130.com.ua

11
VIII
1. 2.
1. 2.
Accessory
Zubehör
Accessoires
Accessorio
Accessorio
Acessório
Toebehoren
Tilbehør
Tilbehør
Tillbehör
Lisälaite

Aksesuar

Príslušenstv

Tartozékokat
Oprema
Piederumi
Prieda
Tarvikud
Aksessuaarid
Äîïîëíèòåëü

Accesoriu



Автотовары «130»
130.com.ua

12
VIII
Accessory
Zubehör
Accessoires
Accessorio
Accessorio
Acessório
Toebehoren
Tilbehør
Tilbehør
Tillbehör
Lisälaite

Aksesuar

Príslušenstv

Tartozékokat
Oprema
Piederumi
Prieda
Tarvikud
Aksessuaarid
Äîïîëíèòåëü

Accesoriu



1.
3.
2.
Автотовары «130»
130.com.ua

13
VIII
3.
2.1.
Accessory
Zubehör
Accessoires
Accessorio
Accessorio
Acessório
Toebehoren
Tilbehør
Tilbehør
Tillbehör
Lisälaite

Aksesuar

Príslušenstv

Tartozékokat
Oprema
Piederumi
Prieda
Tarvikud
Aksessuaarid
Äîïîëíèòåëü

Accesoriu



Автотовары «130»
130.com.ua

14
GB
English
TECHNICAL DATA
Angle Grinder WS 10-115 WS 10-125 WS 12-115 WS 12-125 WS 13-125 XE
Rated input 1000W 1000 W 1200W 1200W 1300 W
Rated speed 11500 min -1 11500 min -1 11500 min -1 11500 min -1 2800 - 11500 min -1
D= Grinding disk diameter max.
d= Grinding disk hole diameter
115 mm
22,2 mm 125 mm 22,2 mm 115 mm 22,2 mm 125 mm 22,2 mm 125 mm 22,2 mm
b= Cutting disk thickness min. / max. 1/3 mm 1/3 mm 1/3 mm 1/3 mm 1/3 mm
b= Grinding disk thickness max. 6 mm 6 mm 6 mm 6 mm 6 mm
D= Grinding surface diameter max. 115 mm 125 mm 115 mm 125 mm 125 mm
D= Wiring brush diameter max. 75 mm 75 mm 75 mm 75 mm 75 mm
Thread of work spindle M 14 M 14 M 14 M 14 M 14
Weight according EPTA-Procedure 01/2003 2,3 kg 2,3 kg 2,4 kg 2,4 kg 2,4 kg
Noise information
Measured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:
Sound pressure level (Uncertainty K=3dB(A)) 87,1 dB (A) 87,1 dB (A) 87,1 dB (A) 87,1 dB (A) 90,1 dB (A)
Sound power level (Uncertainty K=3dB(A)) 98,1 dB (A) 98,1 dB (A) 98,1 dB (A) 98,1 dB (A) 101,1 dB (A)
Wear ear protectors!
Vibration information
Vibration total values (triaxial vector sum) determined according to EN 60745
Surface grinding:
Vibration emission value ah,SG
Uncertainty K=
6,2 m/s2
1,5 m/s2
6,2 m/s2
1,5 m/s2
6,2 m/s2
1,5 m/s2
6,2 m/s2
1,5 m/s2
8,0 m/s2
1,5 m/s2
Disk sanding:
Vibration emission value ah,DS
Uncertainty K=
6,0 m/s2
1,5 m/s2
6,0 m/s2
1,5 m/s2
6,0 m/s2
1,5 m/s2
6,0 m/s2
1,5 m/s2
7,5 m/s2
1,5 m/s2
For other applications, e.g. Abrasive Cutting-O Operations or Wire Brushing other vibration values could occur.
WARNING!
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745
and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for dierent applications,
with dierent accessories or poorly maintained, the vibration emission may dier. This may signicantly increase the exposure level over
the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched o or when it is
running but not actually doing the job. This may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration such as: maintain the tool and the accessories,
keep the hands warm, organisation of work patterns.
WARNING!
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock,
re and/or serious injury.
Save all warnings and instructions for future reference.
ANGLE GRINDER SAFETY WARNINGS
Safety Warnings Common for Grinding, Sanding, Wire
Brushing or Abrasive Cutting-O Operations:
a) This power tool is intended to function as a grinder,
sander, wire brush or cut-o tool. Read all safety warnings,
instructions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
b) Operations such as polishing are not recommended
to be performed with this power tool.Operations for which
the power tool was not designed may create a hazard and cause
personal injury.
c) Do not use accessories which are not specically
designed and recommended by the tool manufacturer. Just
because the accessory can be attached to your power tool, it does
not assure safe operation.
d) The rated speed of the accessory must be at least equal
to the maximum speed marked on the power tool. Accesso-
ries running faster than their rated speed can break and y apart.
Автотовары «130»
130.com.ua

15
GB
English
e) The outside diameter and the thickness of your
accessory must be within the capacity rating of your power
tool. Incorrectly sized accessories cannot be adequately guarded
or controlled.
f) Threaded mounting of accessories must match the grin-
der spindle thread. For accessories mounted by anges, the
arbour hole of the accessory must t the locating diameter
of the ange. Accessories that do not match the mounting hard-
ware of the power tool will run out of balance, vibrate excessively
and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect
the accessory such as abrasive wheels for chips and cracks,
backing pad for cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped,
inspect for damage or install an undamagedaccessory.After
inspecting and installing an accessory, position yourself and
bystanders away from the plane of the rotating accessory
and run the power tool at maximum no-load speed for one
minute. Damaged accessories will normally break apart during this
test time.
h) Wear personal protective equipment.Depending on
application, use faceshield, safety goggles or safety glasses.
As appropriate, wear dust mask, hearing protectors, gloves
and shop apron capable of stopping small abrasiveor
workpiecefragments.The eye protection must be capable of
stopping ying debris generated by various operations. The dust
mask or respirator must be capable of ltrating particles generated
by your operation. Prolonged exposure to high intensity noise may
cause hearing loss.
i) Keep bystanders a safe distance away from work area.
Anyoneenteringthe work areamustwear personal protec-
tiveequipment. Fragments of workpiece or of a broken accessory
may y away and cause injury beyond immediate area of operation.
j) Hold the power tool by insulated gripping surfaces only,
when performing an operationwhere the cutting accessory
may contact hidden wiring or its own cord. Cutting accessory
contacting a „live“ wire may make exposed metal parts of the power
tool „live“ and could give the operator an electric shock.
k) Positionthe cordclearof the spinningaccessory. If you lose
control, the cord may be cut or snagged and your hand or arm may be
pulled into the spinning wheel.
l) Never lay the power tool down until the accessory has
come to a complete stop. The spinning accessory may grab the
surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side.
Accidental contact with the spinning accessory could snag your
clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s fan
will draw the dust inside the housing and excessive accumulation of
powdered metal may cause electrical hazards.
o) Do notoperate thepowertool nearammable materials.
Sparks could ignite these materials.
p) Donot use accessoriesthatrequire liquid coolants.Using
water or other liquid coolants may result in electrocution or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating
wheel, backing pad, brush or any other accessory. Pinching or snag-
ging causes rapid stalling of the rotating accessory which in turn
causes the uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the
workpiece, the edge of the wheel that is entering into the pinch
point can dig into the surface of the material causing the wheel
to climb out or kick out. The wheel may either jump toward or
away from the operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels may also break
under these conditions.
Kickback is the result of power tool misuse and/or incorrect opera-
ting procedures or conditions and can be avoided by taking proper
precautions as given below.
a) Maintain a rm grip on the power tool and position your
body and arm to allow you to resist kickback forces. Always
use auxiliary handle, if provided, for maximum control over
kickback or torque reaction during start-up. The operator can
control torque reactions or kickback forces, if proper precautions
are taken.
b) Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
c) Do not position your body in the area where power tool
will move if kickback occurs. Kickback will propel the tool in
direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc.
Avoid bouncing and snagging the accessory. Corners, sharp
edges or bouncing have a tendency to snag the rotating accessory
and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed
saw blade. Such blades create frequent kickback and loss of control.
Safety Warnings Specic for Grinding and Abrasive Cutting-
O Operations:
a) Use only wheel types that are recommended for your
power tool and the specic guard designed for the selected
wheel. Wheels for which the power tool was not designed cannot be
adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool
and positioned for maximum safety, so the least amount
of wheel is exposed towards the operator. The guard helps
to protect the operator from broken wheel fragments, accidental
contact with wheel and sparks that could ignite clothing.
c) Wheels must be used onlyfor recommended applications.
For example: do not grind with the side of cut-o wheel. Abra-
sive cut-o wheels are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
d) Always use undamaged wheel anges that are of correct
size and shape for your selected wheel. Proper wheel anges
support the wheel thus reducing the possibility of wheel breakage.
Flanges for cut-o wheels may be dierent from grinding wheel
anges.
e) Do not use worn down wheels from larger power tools.
Wheel intended for larger power tool is not suitable for the higher
speed of a smaller tool and may burst.
Additional Safety Warnings Specic for Abrasive Cutting-O
Operations:
a) Do not “jam” thecut-o wheel orapply excessive pressure.
Do not attempt to make an excessive depth of cut. Overstressing
the wheel increases the loading and susceptibility to twisting or
Автотовары «130»
130.com.ua

16
GB
English
binding of the wheel in the cut and the possibility of kickback or wheel
breakage.
b) Do not position your body in line with and behind the
rotating wheel. When the wheel, at the point of operation, is moving
away from your body, the possible kickback may propel the spinning
wheel and the power tool directly at you.
c) When wheel isbinding or when interrupting a cut forany
reason, switch o the power tool and hold the power tool
motionless until the wheel comes to a complete stop. Never
attempt to remove the cut-o wheel from thecut while the
wheel is in motion otherwise kickback may occur. Investigate
and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let
the wheel reach full speed and carefully re-enter the cut. The
wheel may bind, walk up or kickback if the power tool is restarted in
the workpiece.
e) Support panels or anyoversizedworkpiece to minimize the
risk of wheel pinching and kickback. Large workpieces tend to sag
under their own weight. Supports must be placed under the workpiece
near the line of cut and near the edge of the workpiece on both sides
of the wheel.
f) Use extra caution when making a “pocket cut” into existing
wallsor otherblind areas.The protruding wheel may cut gas or
water pipes, electrical wiring or objects that can cause kickback.
Safety Warnings Specic for Sanding Operations:
a) Do not use excessively oversized sanding disc paper.
Follow manufacturers recommendations, when selecting
sanding paper. Larger sanding paper extending beyond the
sanding pad presents a laceration hazard and may cause snagging,
tearing of the disc or kickback.
Safety Warnings Specic for Wire Brushing Operations:
a) Be aware that wire bristles are thrown by the brush
even during ordinary operation. Do not overstress the wires
by applying excessive load to the brush. The wire bristles can
easily penetrate light clothing and/or skin.
b) If the use of a guard is recommended for wire brushing,
do not allow any interference of the wire wheel or brush
with the guard. Wire wheel or brush may expand in diameter due
to work load and centrifugal forces.
Additional Safety and Working Instructions
When grinding metal, ying sparks are produced. Take care that
no persons are endangered. Because of the danger of re, no
combustible materials should be located in the vicinity (spark ight
zone). Do not use dust extraction.
Avoid ying sparks and sanding dust hit your body.
Never reach into the danger area of the machine when it is running.
Immediately switch o the machine in case of considerable vibra-
tions or if other malfunctions occur. Check the machine in order to
nd out the cause.
Under extreme conditions (e.g. smooth-grinding metals with
the arbour and vulcanized bre grinding disk), signicant
contamination can build up on the inside of the angle grinder. For
safety reasons, in such conditions a ground fault interrupter must
be connected in series. If the ground fault interrupter trips the
machine must be sent for service.
Chips and splinters must not be removed while the machine is
running.
MAINS CONNECTION
Connect only to single-phase AC system voltage as indicated on
the rating plate. It is also possible to connect to sockets without an
earthing contact as the design conforms to safety class II.
Appliances used at many dierent locations including wet room
and open air must be connected via a residual current device (FI,
RCD, PRCD) of 30mA or less.
Only plug-in when machine is switched o.
Do not let any metal parts enter the airing slots - danger of short
circuit!
Inrush currents cause short-time voltage drops. Under unfavoura-
ble power supply conditions, other equipment may be aected. If
the system impedance of the power supply is lower than 0,2 Ohm,
disturbances are unlikely to occur.
SPECIFIED CONDITIONS OF USE
The angle grinder is intended for grinding and cutting metal, stone
and ceramicmaterials as well as sanding and wire brushing.
Use the cutting guard from the accessories range for cutting
application.
Please refer to the instructions supplied by the accessory
manufacturer.
The machine is suitable only for working without water.
WORKING INSTRUCTIONS
For accessories intended to be tted with threaded hole wheel,
ensure that the thread in the wheel is long enough to accept the
spindle length.
Always use and store the cutting and grinding disks according to
the manufacturer‘s instructions.
Always use the correct guard for cutting and grinding.
The grinding surface of the centre depressed disks must be moun-
ted min. 2 mm below the plane of the guard lip.
The adjusting nut must be tightened before starting to work with
the machine.
Always use the auxiliary handle.
The workpiece must be xed if it is not heavy enough to be steady.
Never move the workpiece towards the rotating disk by hand.
The ange nut must be securely tightened before the machine is
started.
If the tool is not securely tightened with the ange nut, it is pos-
sible that the tool will lose the required clamping force when it is
decelerated.
In the event that a power failure occurs whilst the machine is
operating, the brake function will be inoperative.
ELECTRONICS
WS 13-125 XE: The built-in electronic will keep a constant speed
even under increased load. In case of overload, the rotational speed
is being reduced until machine stops.
Electronic smooth start for save use prevents jerky run-up of the
machine.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
If the supply cord of this power tool is damaged, it must be
replaced by a specially prepared cord available through the service
organization.
Автотовары «130»
130.com.ua

17
GB
English
Use only AEG accessories and spare parts. Should components need to
be replaced which have not been described, please contact one of our
AEG service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label
and order the drawing at your local service agents or directly at:
Techtronic Industries GmbH, Max-Eyth-Straße10, 71364Winnen-
den, Germany.
SYMBOLS
CAUTION! WARNING! DANGER!
Please read the instructions carefully before starting the
machine.
Always wear goggles when using the machine.
Wear gloves!
Always disconnect the plug from the socket before
carrying out any work on the machine.
Do not use force.
Only for cutting work.
Only for grinding.
Accessory - Not included in standard equipment, availa-
ble as an accessory.
Do not dispose of electric tools together with household
waste material. Electric tools andelectronic equipment
that have reached the end of their life must be collected
separately andreturned toan environmentallycompatible
recycling facility. Check with your local authority or retailer
for recycling adviceand collection point.
Class II tool. Tool in which protection against electric
shock does not rely on basic insulation only, but in which
additional safety precautions, such as double insulation
or reinforced insulation, are provided. There being
no provision for protective earthing or reliance upon
installation conditions.
UkrSEPRO Conformity Mark
EurAsian Conformity Mark
Автотовары «130»
130.com.ua
