AEMC 5212 User manual

Digital Multimeter
Models 5212,
5215 & 5217
ENGLISH User Manual
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Copyright © Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments. All rights reserved.
No part of this documentation may be reproduced in any form or by any means (including electronic
storage and retrieval or translation into any other language) without prior agreement and written consent
from Chauvin Arnoux®, Inc., as governed by United States and International copyright laws.
This documentation is provided “as is,” without warranty of any kind, expressed, implied, or otherwise.
Chauvin Arnoux®, Inc. has made every reasonable e󰀨ort to ensure that this documentation is accurate;
but does not warrant the accuracy or completeness of the text, graphics, or other information contained
in this documentation. Chauvin Arnoux®, Inc. shall not be liable for any damages, special, indirect,
incidental, or inconsequential; including (but not limited to) physical, emotional, or monetary damages
due to lost revenues or lost prots that may result from the use of this documentation, whether or not the
user of the documentation has been advised of the possibility of such damages.
Chauvin Arnoux®, Inc., AEMC®, are registered trademarks of Chauvin Arnoux®, Inc.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Statement of Compliance
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
certifies that this instrument has been calibrated
using standards and instruments traceable to
international standards.
We guarantee that at the time of shipping your
instrument has met its published specifications.
An N.I.S.T. traceable certificate may be
requested at the time of purchase, or obtained
by returning the instrument to our repair and
calibration facility, for a nominal charge.
The recommended calibration interval for this
instrument is 12 months and begins on the date of
receipt by the customer.
Serial #: ________________________________
Catalog #: 2154.07/2154.08/2154.09
Model #: 5212/5215/5217
Please fill in the appropriate date as indicated:
Date Received: _________________________________
Date Calibration Due: _______________________
Chauvin Arnoux®, Inc.
d.b.a AEMC®Instruments
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Multimeter Models 5212/5215/5217 1
Thank you for purchasing the AEMC Multimeter.
For best results from your instrument and for your safety, read the enclosed
operating instructions carefully and comply with the precautions for use. These
products must be only used by qualied and trained users.
Signifies that the instrument is protected by double or reinforced insulation.
This symbol on the instrument indicates a WARNING that the operator must
refer to the user manual for instructions before operating the instrument. In
this manual, the symbol preceding instructions indicates that if the instructions
are not followed, bodily injury, installation/sample and/or product damage may
result.
Compliance with the Low Voltage & Electromagnetic Compatibility European
directives (73/23/CEE & 89/336/CEE)
AC – Alternating current
AC or DC – Alternating or direct current
Risk of electric shock. The voltage at the parts marked with this symbol may be
dangerous.
Important instructions to read and understand completely.
Important information to acknowledge.
Ground/Earth symbol
In conformity with WEEE 2002/96/EC
Denition of Measurement Categories (CAT)
CAT IV Measurement category IV corresponds to measurements taken at the
source of low-voltage installations.
Example: power feeders, counters and protection devices.
CAT III Measurement category III corresponds to measurements on building
installations.
Example: distribution panel, circuit-breakers, machines or xed
industrial devices.
CAT II Measurement category II corresponds to measurements taken on
circuits directly connected to low-voltage installations.
Example: power supply to domestic electrical appliances and portable
tools.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

2Multimeter Models 5212/5215/5217
PRECAUTIONS FOR USE
The protection obtained by the instrument can be compromised if it is used
in a way that is not recommended by the manufacturer. Carefully read and
understand all required precautions when using this instrument.
Failure to comply with these safety instructions can create a risk of electric shock,
re, and explosion; resulting in destruction of the instrument, injury to the user,
and damage to the facility. If the instrument is used other than as specied in this
manual, the protection provided by the instrument may be impaired.
■Before using the instrument, make sure it functions properly by measuring a
known voltage, and check continuity by short-circuiting both test leads.
■Do not use the instrument in an explosive atmosphere or in the presence of
ammable gas or smoke.
■Do not use the instrument on electrical networks with a rated voltage or
category higher than those listed for the instrument.
■Respect the maximum rated voltages and currents between terminals and in
relation to ground/earth.
■Do not use the instrument if it appears damaged, incomplete, or incorrectly
closed.
■Before each use, check the condition of the insulation of the leads, the
instrument, and all accessories. Any insulation that appears damaged (even
partially) must be taken out of service for repair or disposal.
■Use leads and accessories for voltage according to IEC 61010-031 and
measurement categories at least equal to those of the instrument. An
accessory with a lower category reduces the category of the combined
multimeter/accessory combination to that of the accessory.
■Respect the environmental conditions of use listed in this manual.
■ Strictly comply with the fuse specications. Disconnect all cables before
opening the fuse access cover.
■Do not modify the instrument or replace components using substitute parts.
Repairs and adjustments must be performed by AEMC®Instruments.
■Replace the battery immediately if the symbol appears on the display.
Disconnect all leads before opening the battery access cover.
■Use personal protection equipment when conditions require it.
■ Keep hands and ngers away from unused terminals.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Multimeter Models 5212/5215/5217 3
Table of Contents
1. INTRODUCTION .............................................................................................5
1.1 Receiving Your Shipment......................................................................5
1.2 Ordering Information.............................................................................5
1.2.1 Replacement Parts...................................................................5
1.3 Introducing the Models 5212, 5215 & 5217..........................................6

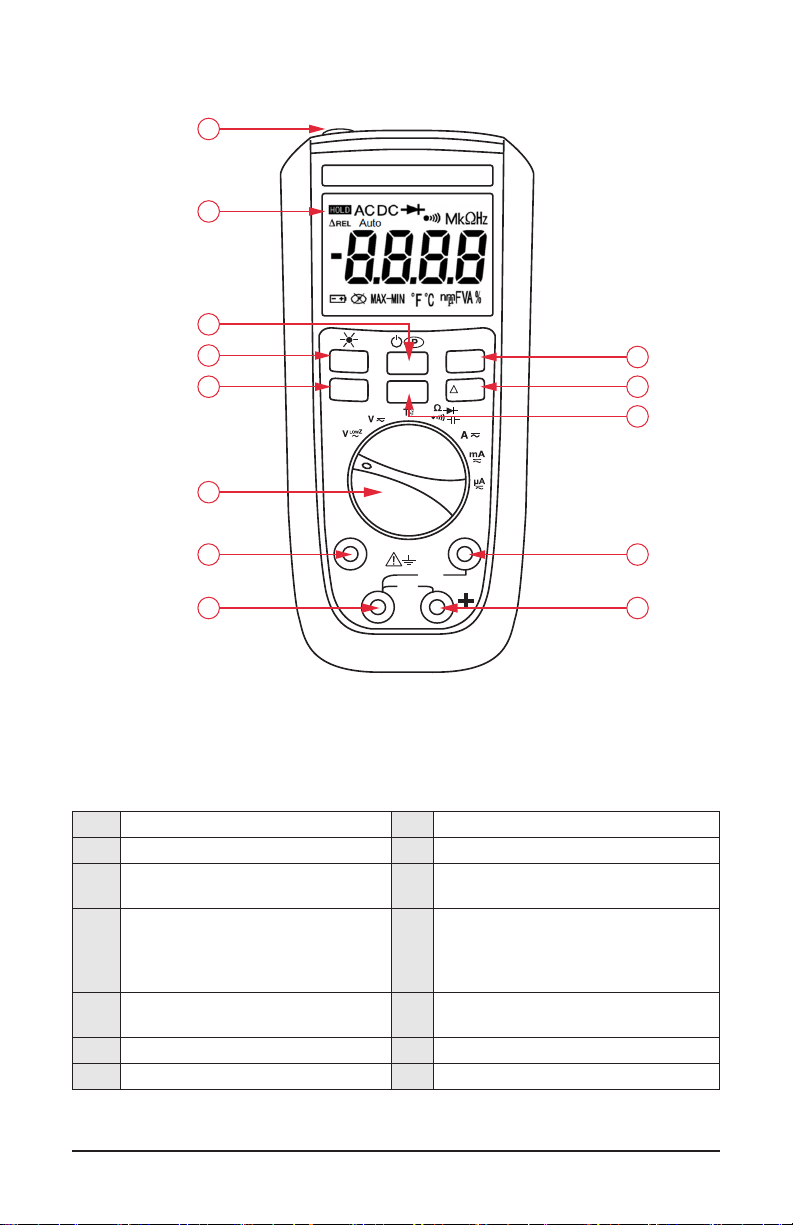

1.4 Front Panel ...........................................................................................8
1.5 LCD Screen ..........................................................................................9

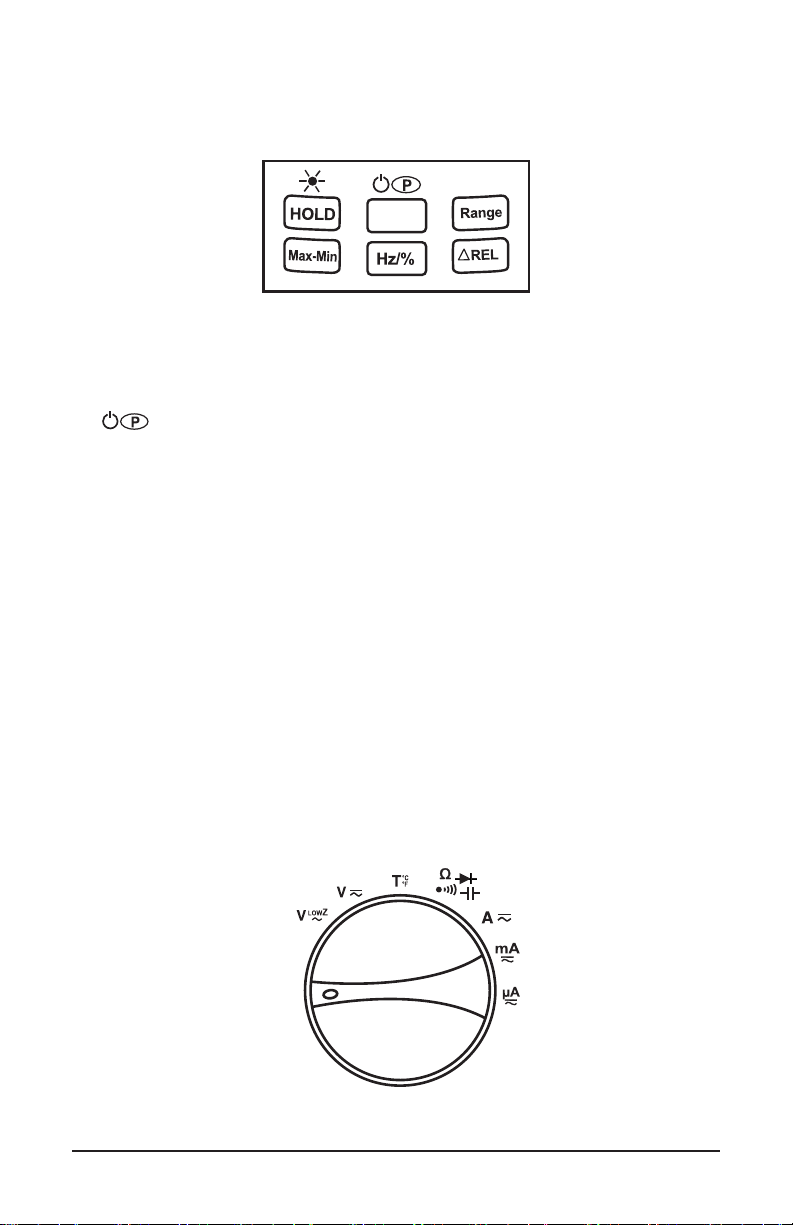

1.6 Buttons ...............................................................................................10
1.7 Selection Dial......................................................................................10
1.8 Terminals ............................................................................................11
2. SET UP & OPERATION .................................................................................12
2.1 Setup ..................................................................................................12
2.1.1 Installing Batteries ..................................................................12
2.1.2 Mounting.................................................................................13
2.1.3 Instrument Check ...................................................................14
2.2 Measurement Options ........................................................................14
2.2.1 Manual Range and Auto Range .............................................15
2.2.2 Display Hold ...........................................................................15
2.2.3 Max-Min Spread (Models 5215 and 5217) .............................15
2.2.4 Relative Measurement (Models 5215 and 5217) ...................16
2.3 Operation............................................................................................16
2.3.1 Non-Contact Voltage Detection (NCV) ...................................17
2.3.2 Voltage Measurement.............................................................18
2.3.3 DC and AC Current Measurement..........................................19
2.3.4 Continuity Check ....................................................................20
2.3.5 Resistance Measurement.......................................................21
2.3.6 Diode Test...............................................................................22
2.3.7 Capacitance Measurement.....................................................23
2.3.8 Frequency & Duty Cycle Measurement (Model 5217)............24
2.3.9 Temperature Measurement (Model 5217) ..............................24
3. SPECIFICATIONS .........................................................................................25
3.1 Reference Conditions .........................................................................25
3.2 General Specications........................................................................25
3.3 Measurement Resolution and Accuracy .............................................26
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4Multimeter Models 5212/5215/5217
4. MAINTENANCE............................................................................................28
4.1 Battery Check .....................................................................................28
4.2 Cleaning..............................................................................................28
4.3 Testing and Replacing Fuses..............................................................28
4.3.1 Testing the 10A Fuse ..............................................................28
4.3.2 Testing the 630mA Fuse .........................................................29
4.3.3 Replacing a Fuse....................................................................29
4.4 Metrological Check and Calibration....................................................30
4.6 Limited Warranty.................................................................................31
4.7 Warranty Repairs................................................................................31
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Multimeter Models 5212/5215/5217 5
1. INTRODUCTION
1.1 Receiving Your Shipment
Upon receiving your shipment, make sure that the contents are consistent with the
packing list. Notify your distributor of any missing items. If the equipment appears
to be damaged, le a claim immediately with the carrier and notify your distributor
at once, giving a detailed description of any damage. Save the damaged packing
container to substantiate your claim.
1.2 Ordering Information
Multimeter Model 5212...................................................................Cat. #2154.07
Multimeter Model 5215...................................................................Cat. #2154.08
Multimeter Model 5217...................................................................Cat. #2154.09
Includes meter, soft carrying pouch, set of 2 color-coded leads (red/black), K-Thermocouple
adapter (Model 5217), two 1.5V AA batteries and a user manual.
1.2.1 Accessories
Lead - Set of 2, 5 ft (1.5m) Color-coded (Red/Black) Silicone Leads,
Test Probes & Alligator Clips {Rated 1000V CAT IV}........................Cat. #2152.05
MultiFix (universal mounting system) ...............................................Cat. #5000.44
1.2.2 Replacement Parts
Soft Carrying Pouch .........................................................................Cat. #2154.71
Lead - Set of 2, 5 ft (1.5m) Needle Tip Color-coded (Red/Black) w/4mm Right-angle
Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o sheild} ..Cat. #2154.74
K-Thermocouple w/4mm integrated adapter ....................................Cat. #2139.71
Fuse - Set of 5, 10A, 1000V (Fast Blow), 30kA,
0.4 x 1.2" (10 x 30mm) .....................................................................Cat. #2154.75
Fuse - Set of 5, 0.63A, 1000V (Fast Blow), 10kA,
0.25 x 1.26" (6.3 x 32mm) ................................................................Cat. #2154.76
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6Multimeter Models 5212/5215/5217
1.3 Introducing the Models 5212, 5215 & 5217
The Digital Multimeter Models 5212, 5215, and 5217 measure electrical and
physical quantities, including:
■AC and DC Voltage
■AC and DC Current
■Resistance and Continuity
■Capacitance
■Frequency and duty cycle (Model 5217)
■Temperature (Model 5217)
The instrument can also perform continuity checks, voltage detection, and diode
testing (including forward bias voltage). Measurement features include Auto
Range mode, which enables the instrument to select the best range for the input
detected, and a Data Hold function.
The following table lists the various features respectively:
Model 5212 Model 5215 Model 5217
TRMS ● ● ●
LCD 4000 cts 6000 cts 6000 cts
NCV ● ● ●
VLowZ ● ● ●
VAC ● ● ●
VDC ● ● ●
mVAC ● ●
mVDC ● ●
AAC ● ● ●
ADC ● ● ●
mAAC ● ●
mADC ● ●
µAAC ● ●
µADC ● ●
Temperature °C & °F ●
Resistance ● ● ●
Diode test ● ● ●
Continuity ● ● ●
Capacitance ● ● ●
HOLD ● ● ●
Backlight ● ● ●
Flashlight ● ● ●
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
