AeroPlus EXTRA 330SC 60CC User manual

www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


EXTRA330SC60CC
ItemNo：H‐G060011
Specifications
WingSpan  92"(2347mm)
Length  841/2"(2060mm)
WingArea 1526.8sqin(98.5sqdm)
FlyingWeight 16‐17lbs(7300‐7800g)
Gasoline 50‐60ccgasDA50,DA60,DLE55,DLE60(twin),3W55
Radio  4CH/6S

Description
CarbonFibre:  wingtubeandsleeves,landinggear,tailgear;
Fibreglassservoarms,hornandreinforcedU/Cmounting
Fiberglassservoarmsandhorn;
built‐intunedpipeorcanistertunnel;
RemoveableWings,StabsandRudders;
Adjustablepushrods;
RingedCowl;
Predrilledhinges

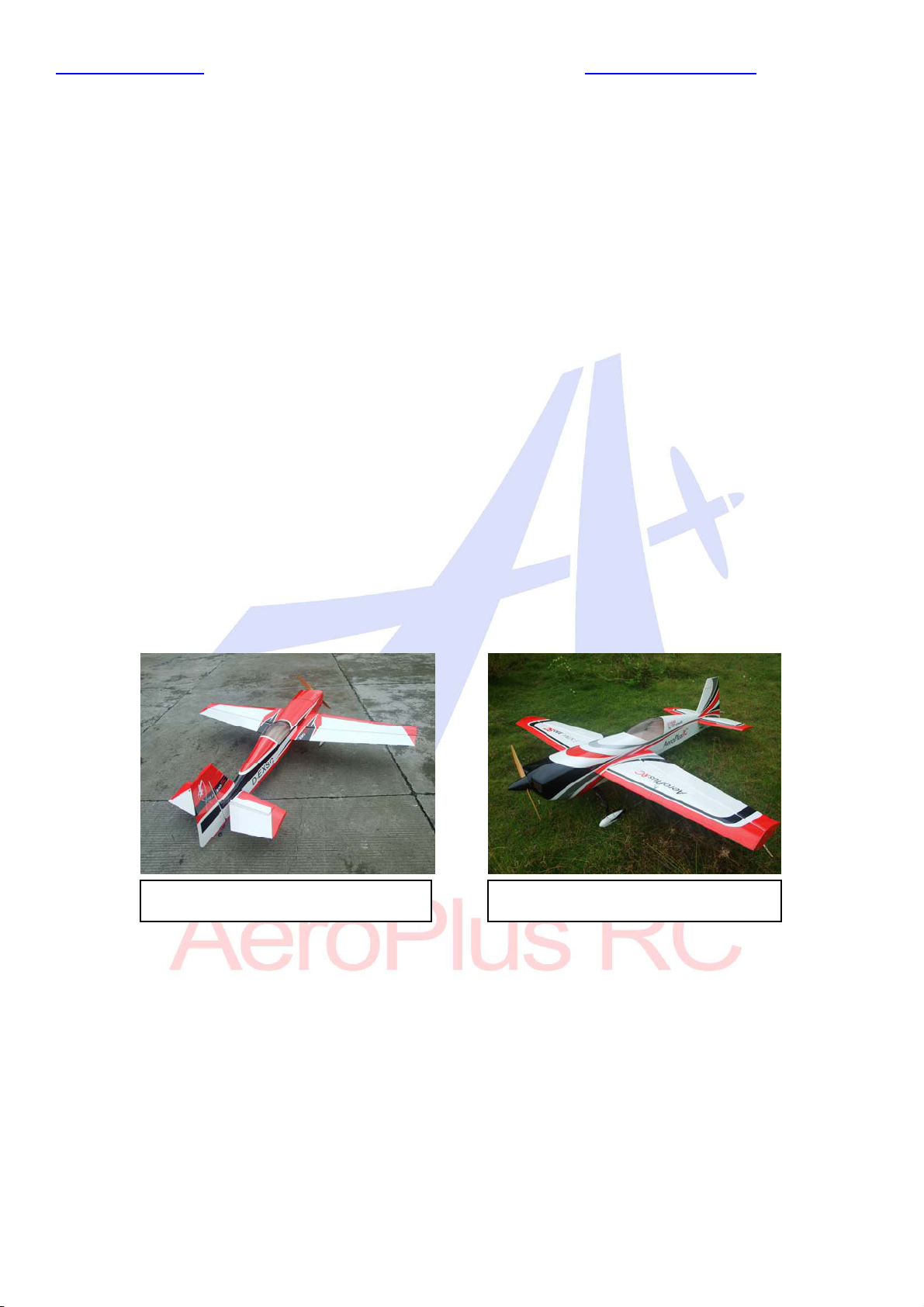

2Colourschemes

  




SCHEMEBSCHEMEA

www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



Unpacking

Carefullyunpackthemodelmakingsurethatifyouuseasharpknifetoopenbags,nottocutanycovering
onthemodel.Inspecteachitemtomakesurenotransitdamagehashappened.Ifyouarenothappywithany
partorareunsurepleasecontacttheDealerthatyoupurchasedfrom.

Covering

Duetothemodelspendingtimeindifferentclimateszonesfromthefactoryonitswaytoyou,someof
thecoveringmayhavewrinkles.Wehighlyrecommendthatyoutaketimetore‐sealallcoveringedgeswithan
ironandtouseaheatguntoremoveanywrinklesandre‐tightenthecovering.Itisbesttodothisnowwhilethe
planeisnotassembled,remembertonotletanyheatgetnearanypartslikethecanopyorcowlasthismaycause
damage.
Note:Donotletanyheatgetnearpartslikethecanopyorcowlasthismaycausedamage.

AssemblyTips

Wealsorecommendthatyougooveralltheaccessiblejointswithcyanoglue.Wickglueintoareasof
highstressaroundtheU/Cplateandmotorbox.

Useathreadlockeronallmetal‐to‐metaljoints.Evenifyouareusingelectricwithlowvibration
levelsitwillmakesurethatthingsdonotdropoffyourairplane!


www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


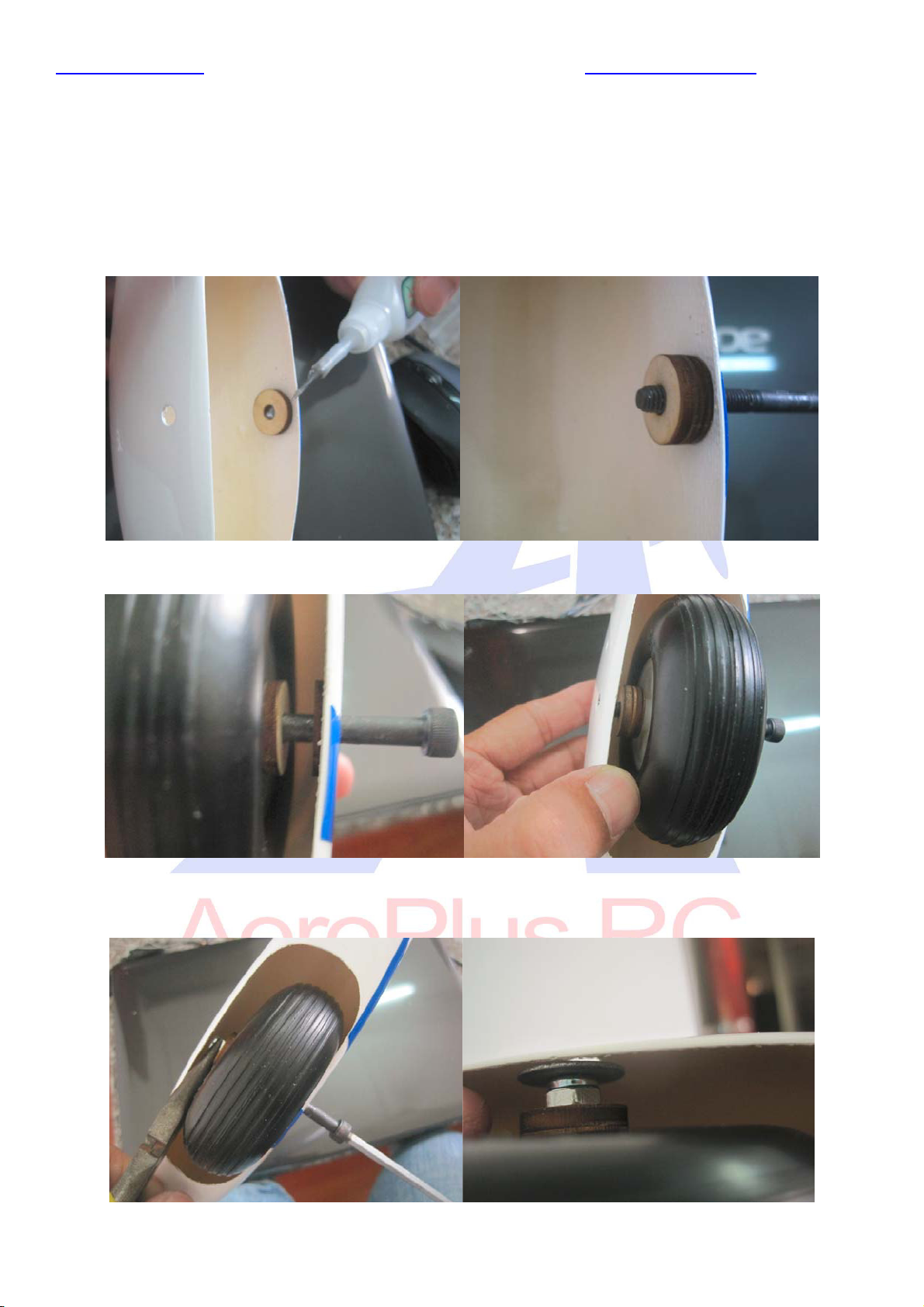

LandingGearAssembly
Tohelppreventthefuselagefrombeingdamagedwhilethemodelisbeing
assembledwe
Note‐Beforebeginningassemblybesuretodetermineyourleftandrightwheelspants.
First,gluethethinwoodwheelspacertotheinsideofthewheelpantonwhatwillbe
theoutersideofthepant.Usethebolttohelpcentrethespacer


Next,inserttheboltfromwhatwillbetheoutsideofthewheelpant;putonethicker
woodspacerontotheaxlebolt,followedbythewheelandonemorewoodspacer.

Installalockwasherontotheaxle‐bolt,followedbyawasher.
Note‐youmustplacethewashernowasitwillbeimpossibletoplaceoncetheaxleis
tightened.



www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


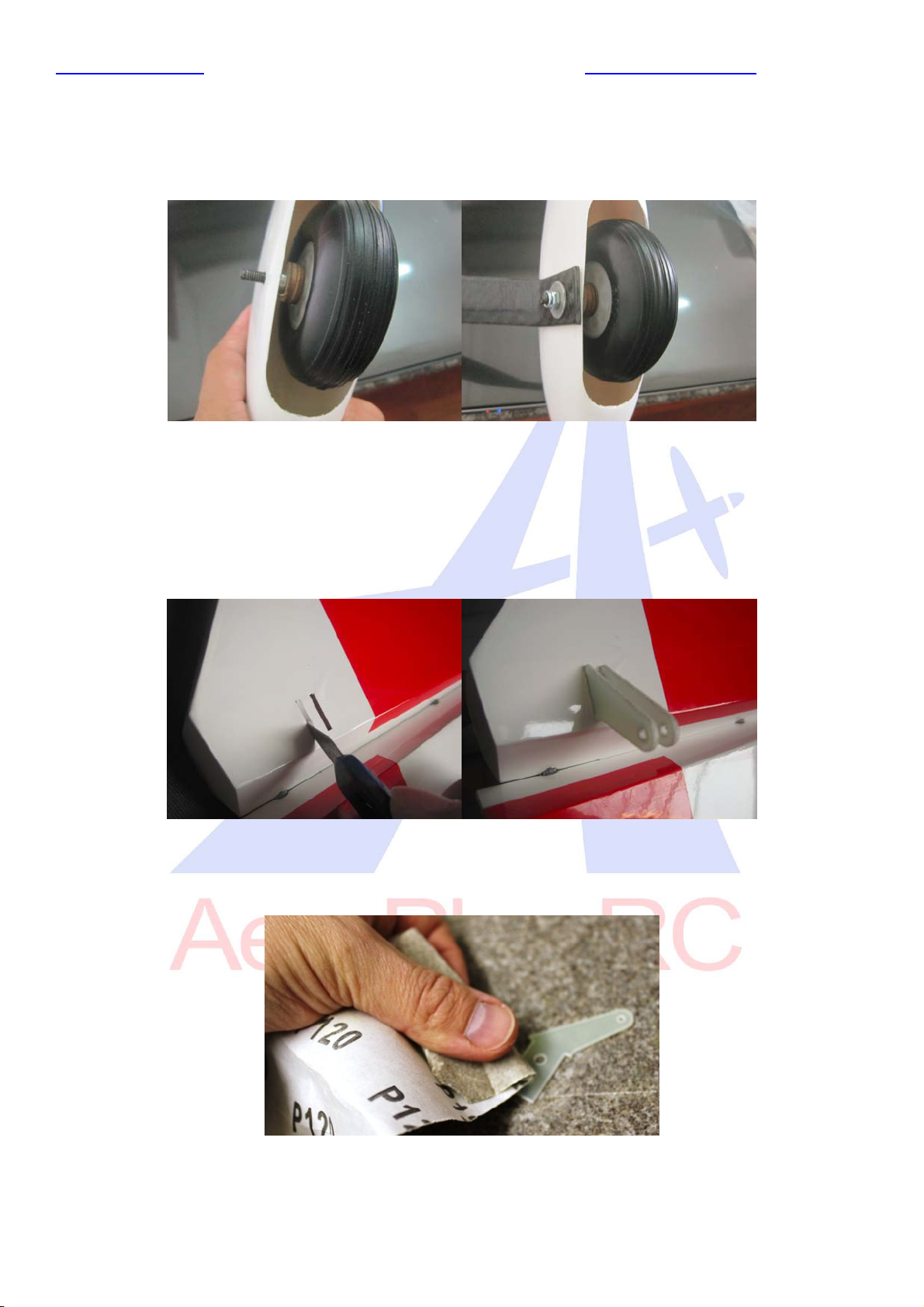

Tightendowntheboltholdingthelocknut.
Note–Donotovertighten.Thiswillpreventthewheelfromturning.
Inserttheprotrudingboltsthroughthelandinggearhole.
Tightenupusingawasherandlocknut.


Repeatforotherside.



HorizontalStab

First,removethecoveringwheretheelevatorhornsfitintothestab,useeithera
solderingironorasharphobbyknife.


Testfitthehornsbeforegluing;someadjustmentmaybeneeded.
Theareaofthehornsthatgoesinsidetheelevatorneedstoberoughedupwith
sandpaperbeforegluing.Thiswillresultinabettergluejoint.








www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



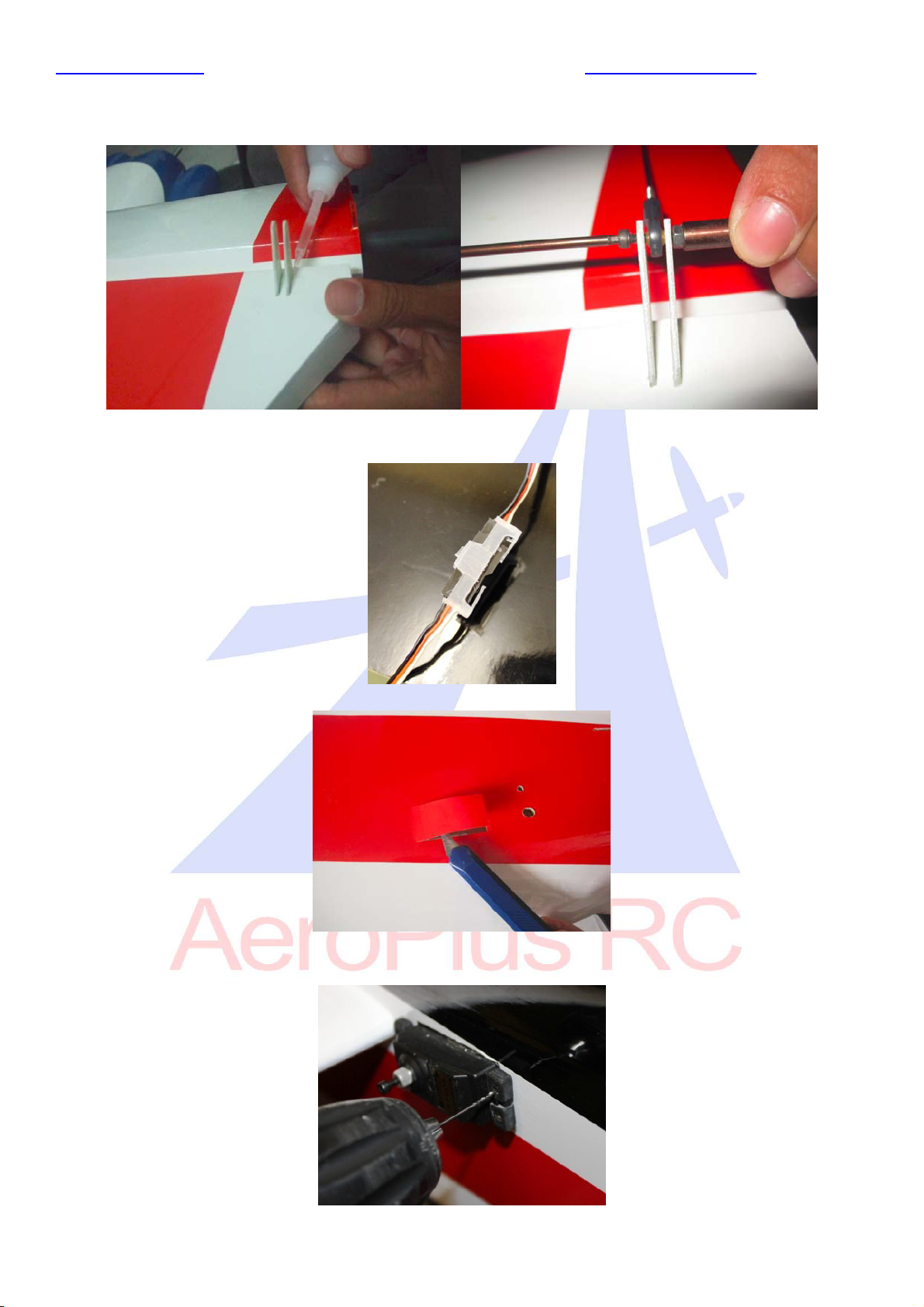

GluethehornsinplaceusingepoxyglueorCA.Putaboltthroughtheballjointhole
tomakesurethatthehornsstayinalignmentwhiledrying.

Beforefittingtheelevatorservofixanextensionleadsothatthewirecanberouted
throughthethefuselage.Besuretosecurethecoupling.

Removethecoveringfortheelevatorservo

FittheElevatorServoand,usingafinedrill,drillholesfortheservoscrews.Remove
theservoanddropthinC.A.intoall4holesafterfirstthreadingtheservo..


www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



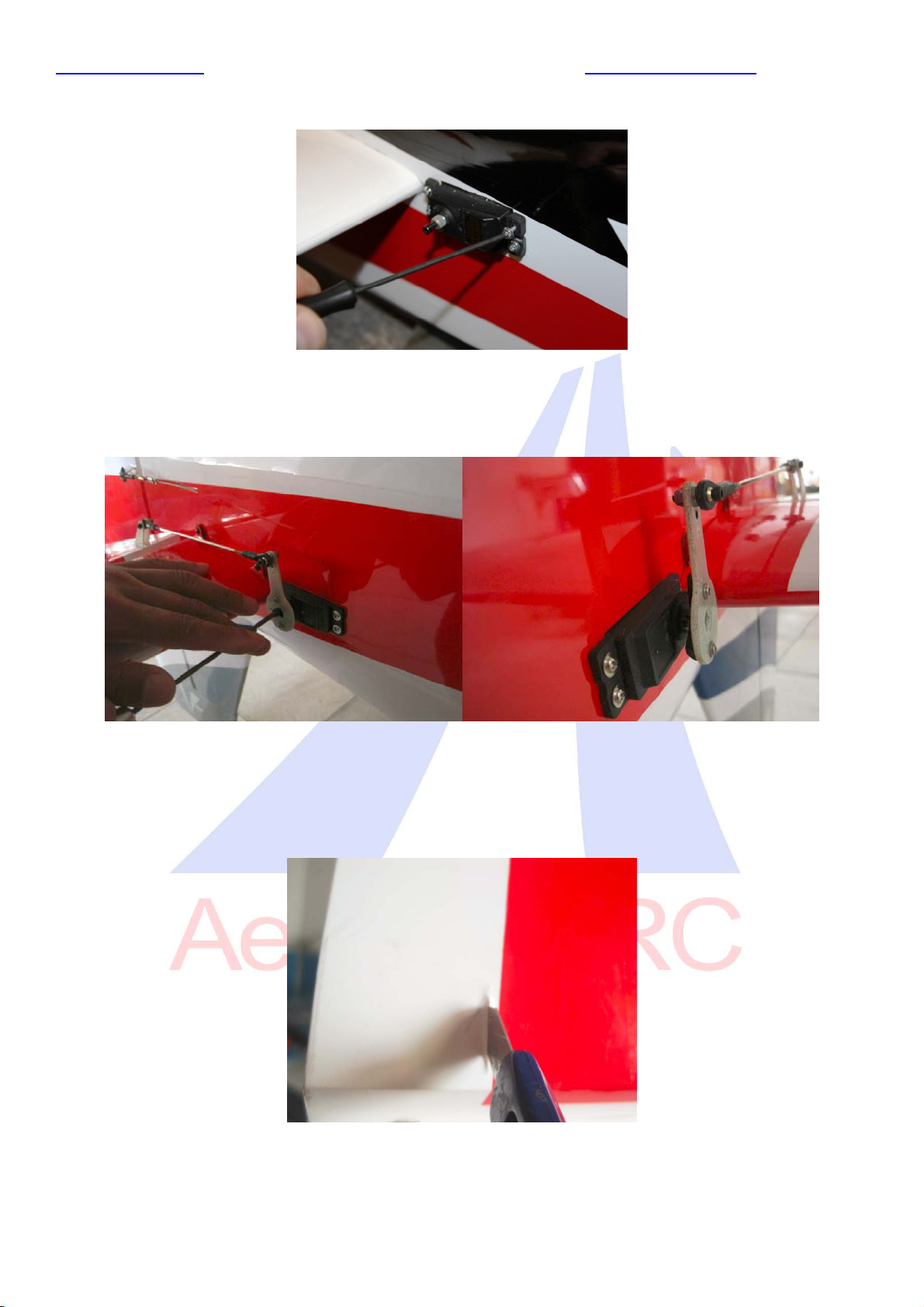

Re‐fittheelevatorservoandsecureitinwithservoscrewsafterthe.Gluefullydries.

CentretheservousingyourTX,andfitaservoarm.Useeitheranaftermarketarmor
attachthearmsthatweresuppliedtoaservohead.Screwballjointsontothe
pushrod(useplierstoholdpushrod)andboltinplacewithsuppliedbolts.Centreof
servoshouldalignwithelevatorflattothestab.


Rudder

Removethecoveringwheretherudderhornspushthroughwitheitheraknifeor
solderingiron.






www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



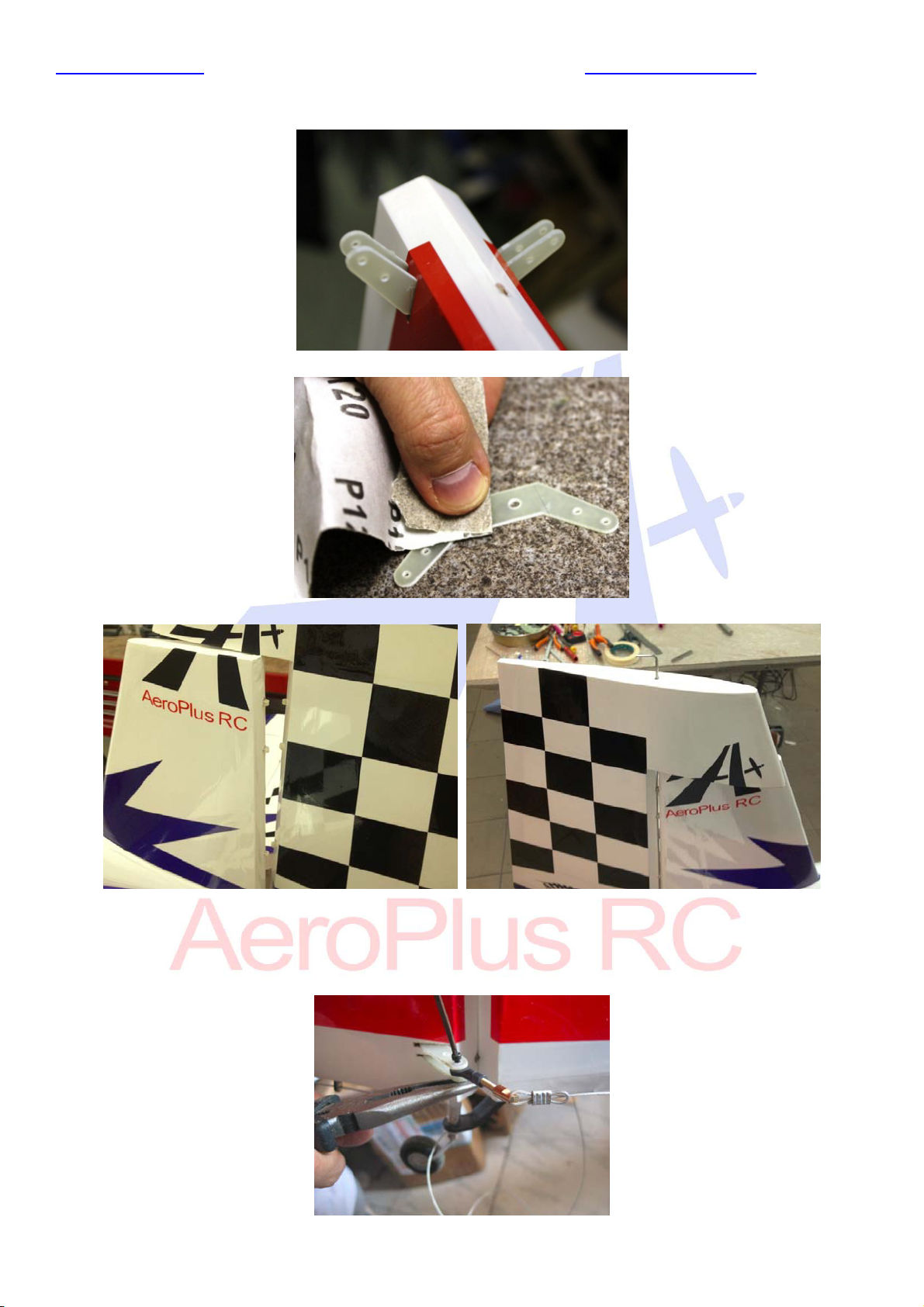

Testfittherudderhorns

Sandtheareaonthehornthatfitsinsidetheruddersothegluebondsbetter

Inserttheeasyremovalpinintothepinhinges.
 
Gluetherudderhornsthroughtherudderwithepoxy;wipeoffexcessgluewhileitis
wet.Usetheballjointandboltwhilegluingtomaintainalignment.Whilestill
movable,measurethatthesameamountpushesouteachside.Careneedstobe
takenhere,otherwiseyourruddergeometrywillbeincorrect.


www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Assembletherudderservocontrolarmasbelow,drillholesforscrewsandusecyno
tostopthenutsfromcomingloose.

Fittherudderservoanddrillholesusingafinedrillfortheservoscrews,dropthin
cynointotheholestostrengthenthewood.

Usingservoscrewsfixtheservoinplace,notethesplineistowardsthefrontofthe
plane

Theclosedloopwiresareassembledintheplane;attachtherearballjointstothe
rudder.Dothistobothsides.



www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Fitthearmontotherudderservoandcrimpthewirestoatauttension


TailGear

Locateallpartsasinpicture.Whenassembling,remembertodoathreadlockeron
allparts

AssembletheGearasperphoto










www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved




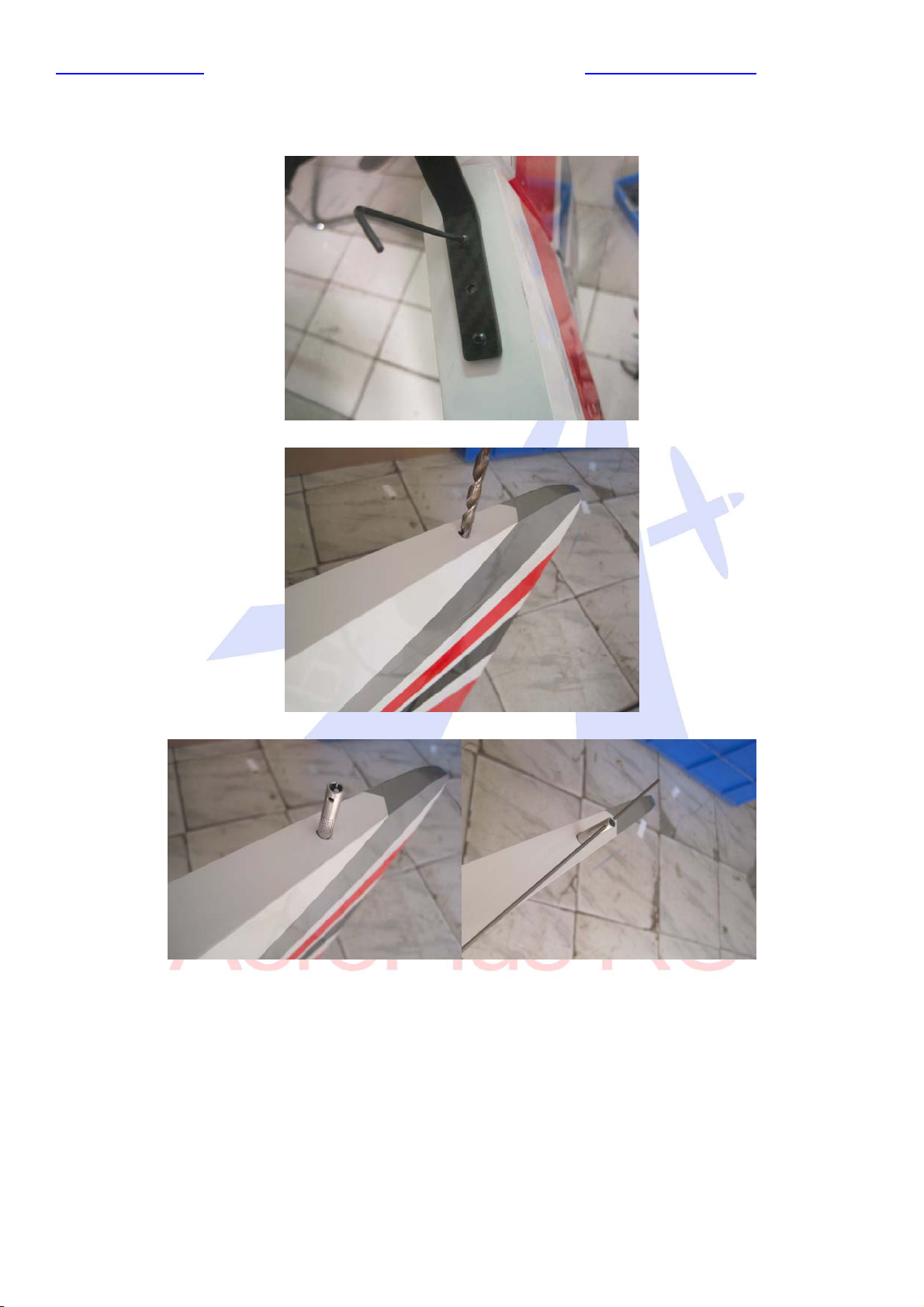

ScrewtheCFgearonwiththethreesuppliedselftapingscrews.

Drillaholeinthebaseoftherudderfortheruddersteeringguide.

Beforegluingwithcyano,placeitoverthethinrod.










www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



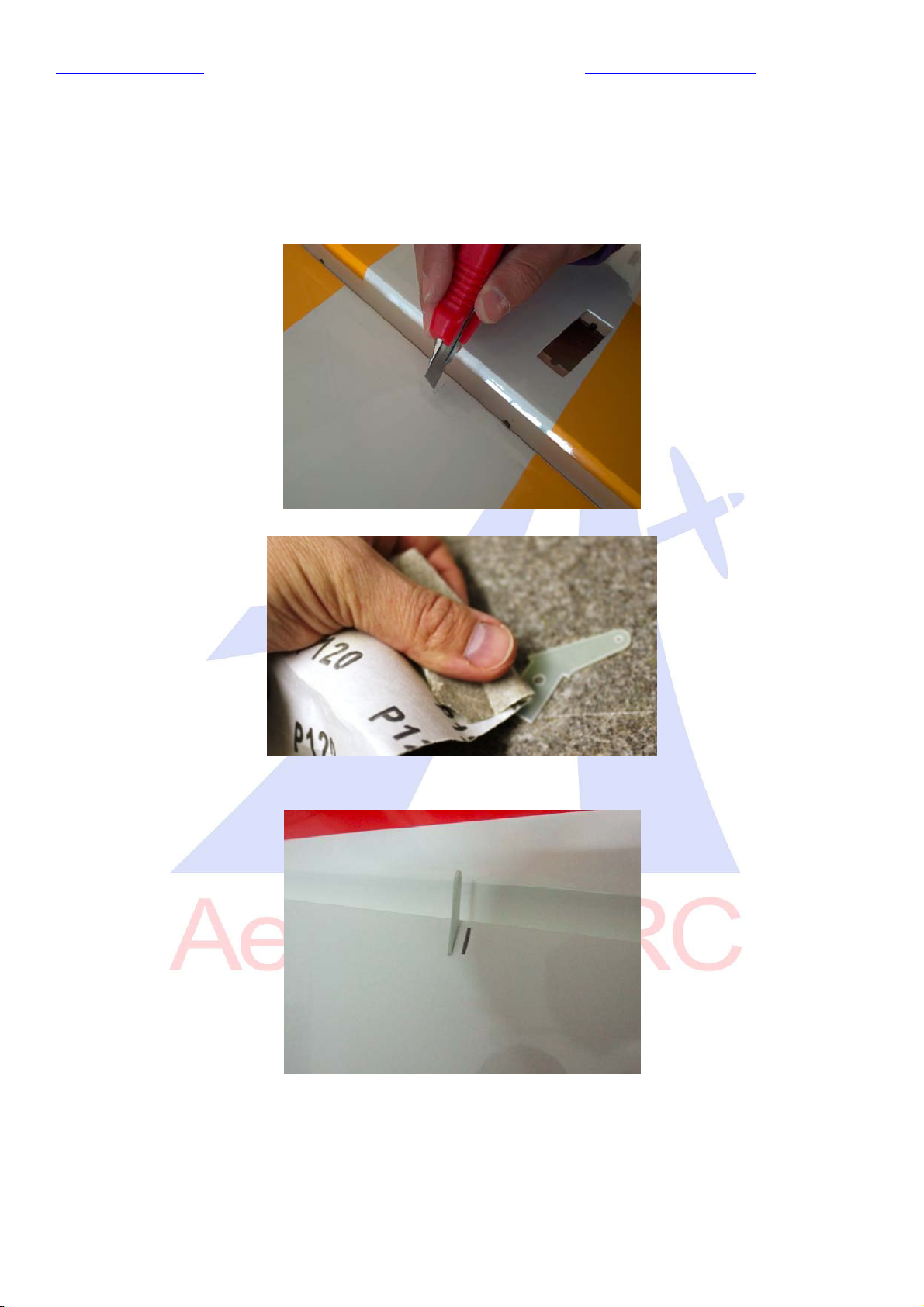

AileronServos
Theaileronsonthewingsarepre‐glued.Checkeachonebygentlypullingtomake
surethattheyaresecure
Removethecoveringwheretheaileronhornsaregluedinplace.Useeithera
solderingironorasharpknife

Usingsandpaperroughtheareathatwillbegluedintotheaileron.

Gluebothhornsinwithepoxyglue,useaboltthroughthehornswhengluingto
makesurethealignmentiscorrect.







www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved

Fittheaileronservoanddrillfineholeswheretheservoscrewswillfit.Thenapply
thincyanotostrengthentheholes.
 
Ifrequiredinstallaservoextensionleadontotheservo,remembertouseaservo
plugclip.

Fittheservoandcentretheservoarm.
 
Usingthepushrodsuppliedscrewballjointsontoeachend.Thecorrectlengthwill
leavetheaileronlineduptotheinnerpartstillattachedtothewing.



www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



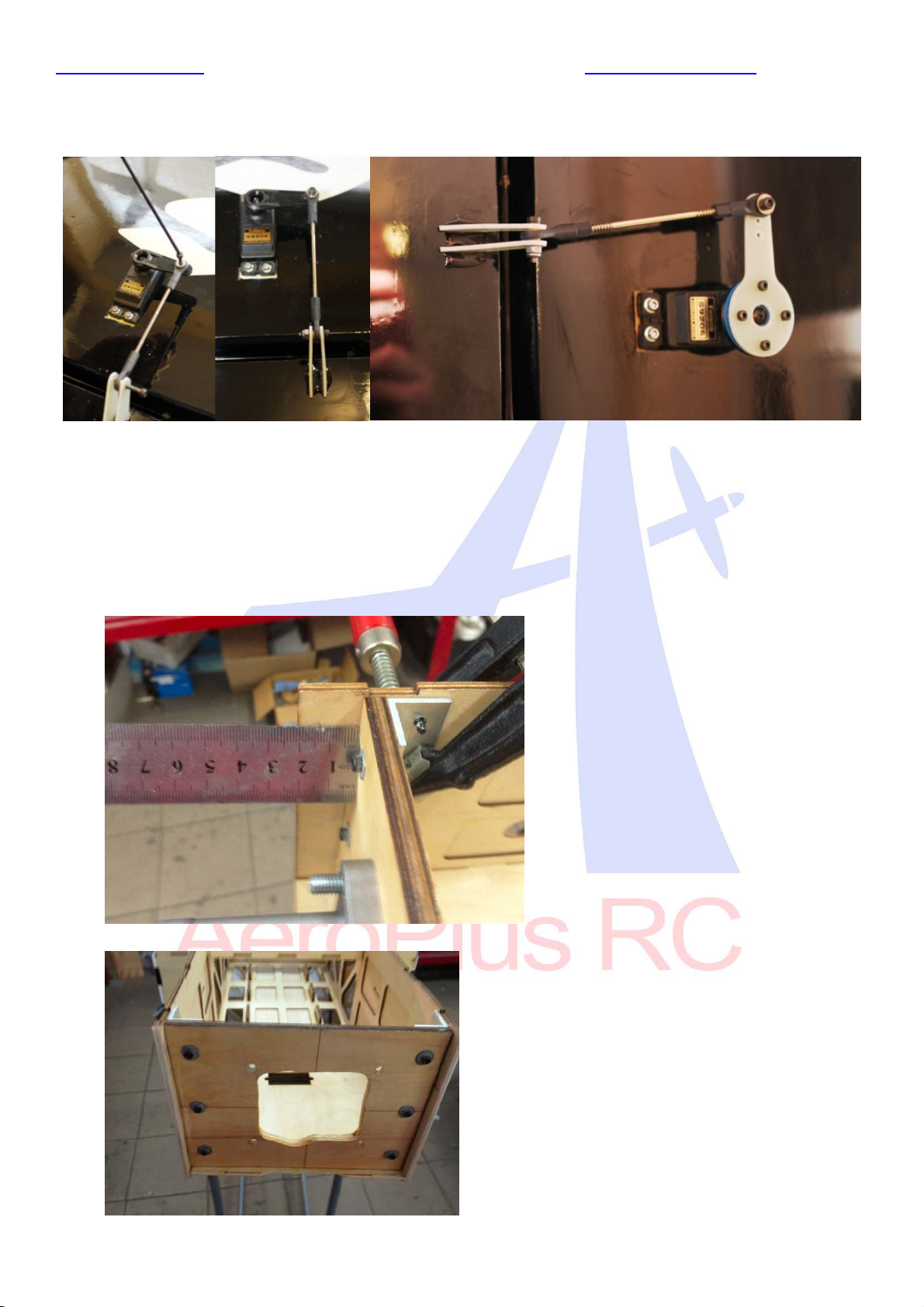

Usingsuppliedboltsattachthepushrodatbothends.Checktoseeyouhave
sufficientmovementoftheaileron.Ifnotadjust.

Carryoutthesameprocedureontheotherwing.


GasEngine
Measurethelengthoftheengine(fromthefirewalltothepropthrustwasher),the
cowlandtheengineboxfortheproperdistanceallowing1/4”to1/2”fromtheedge
ofthecowl.Thenmarkthelocation

Removeifnecessary


www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


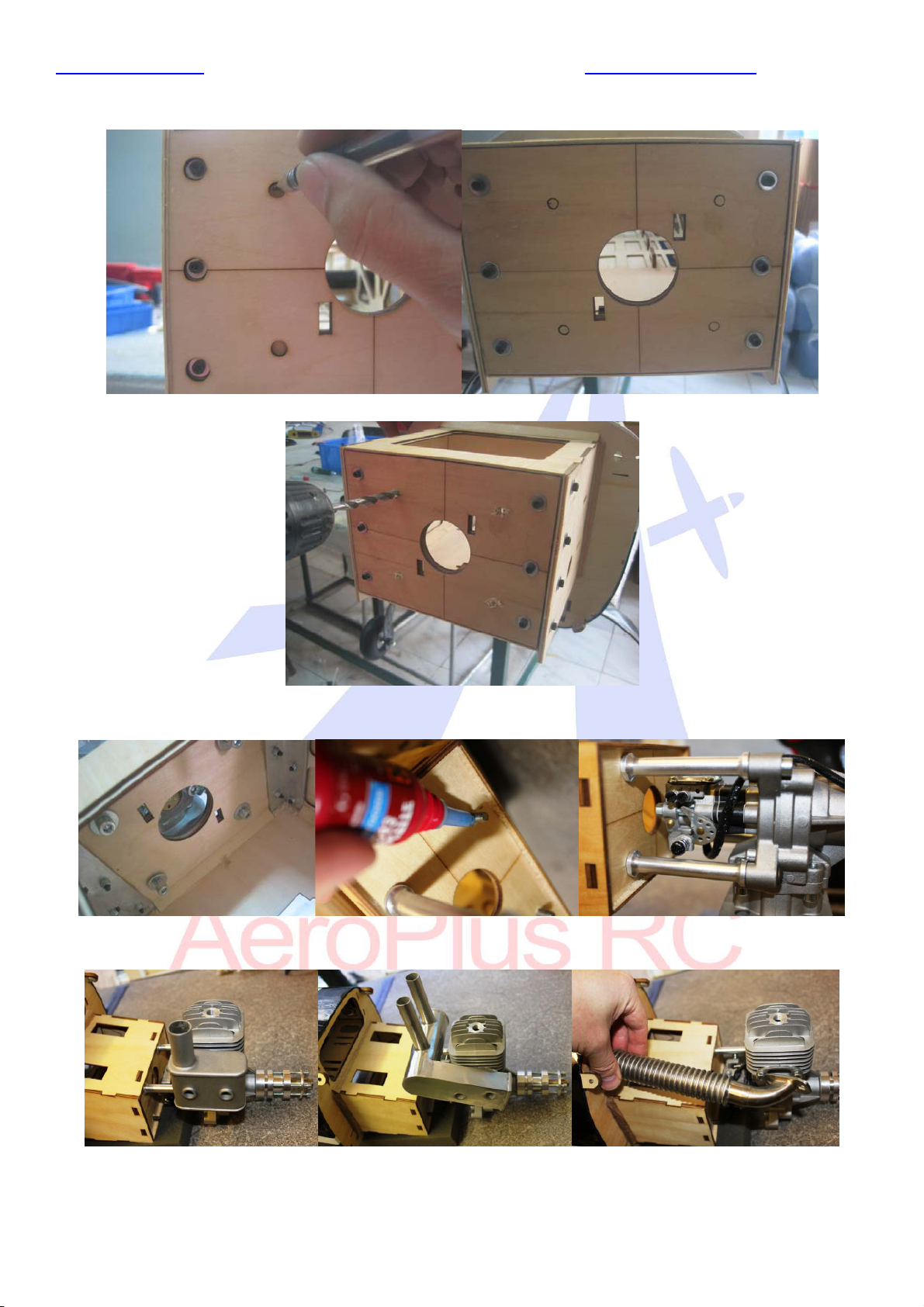

Fromthetemplatethatcamewiththeengine,usingthecrossaxisontheenginebox
markthemountingholes.

Checkthediameteroftherequiredboltsanddrillaccordingly.

Mounttheenginewiththestandoffstothebulkhead.Remembertouselarge
washersontheinsidetospreadtheloadanduseplentyofnutlock.

Exhaustoptions.Dependingontheenginemanyexhaustoptionsareavailable.
Standardmuffler,PittsExhaustofcanisterwithheader.





www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved

Cutouttheareafortheenginecylinderheadandtheexhaustoutletonapieceof
thincardandtapethistothefuselageatoneend.

Removetheengineandfitthecowl,thenfoldthecardbackover.

Marktheareaandcutoutusingadremel.Ensurethatenoughaircangetoutofthe
cowl.Therationisusually,3timeoutto1in.
Fittheignitiononthesideofthemotorbox.UseVelcroandalsoastraptoensureit
doesnotcomeoffwithvibration.
Thecowlisfixedin4places,2atthetopand2atthebottom.Placemaskingtape
overthebottom2andpiercewheretheblindnutholeis.






www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Refitthecowlanddrillwherethemarkedholewas.

Thefueltankispre‐installed.Attachpetrolproofpipeasperlabellingontank

Usethesuppliedpushrodwithaballjointtoconnecttothethrottlearmonthe
engine.Thenfindaconvenientplacetolocatethethrottleservousingthesupplied
mount.











www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Installtheengineboxcoverplateonceallconnectionshavebeenmadeforthe
engine.



Switch
Oneachsideofthefuselagenearthecanopyboltsareareasforswitchestobe
mounted.


RX
AconvienientplacetomounttheRXisjustinfrontoftherudderservo.Ensurethat
itismountedonvelcoandstrappeddown.



www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Canopy
Thecanopyisheldinplacewiththe2thumbscrews,ensurethesearetightbefore
flying



Set‐up
Wehighlyrecommendtheuseofbothdualratesandexponential.Thiswillallowthe
modeltoflybothprecisionand3Dattheflickofaswitch.

LowRates ExponentialHighRate Exponential
Elevator15‐20deg 15‐20% 35‐45deg 45‐60%
Ailerons15‐20deg 15‐20% 35‐45deg 45‐60%
Rudder25‐30deg 15‐20% 35‐45deg 45‐60%

Fortestflightsalwaysuselowrates,rememberthat+and–exponentialisdifferentper
manufacturer,checkyourTXmanual.
Alwayschecktherangeonyourmodelbeforethemaidenflight.Carryoutashortflight
thengoovereverythingtomakesurenothinghascomeloose.

CGLocation
WesuggestforinitialtestflightssettheCG145mmor511/16inchesfromtheleading
edgeofthewing.
Adjustafterfirstflightstopersonalpreference.





www.modellmarkt24.chwww.modellmarkt24.ch
www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



EnjoyFlying!!




