AeroPlus Edge 540 V3 35CC User manual

www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Edge540V335CC
ItemNo：L‐G035016
Specifications
WingSpan  76”(1930mm)
Length  74”(1879mm)
WingArea 1200sqin(77.4sqdm)
FlyingWeight 9.9‐12lbs(4.5‐5.5kg)
Glow  91‐1.20(2C)1.10‐1.40(4C）
Gasoline 20‐40ccgasDLE30/35RAMLD35JC30Evo
Electric  AXI5320‐53306‐8SLipo
Radio  4CH/5‐6servos

Description
CarbonFibre: Wingtubeandsleeves,landinggear,tailgear;
Fibreglassservoarms,hornandreinforcedU/Cmounting
Scalereaddeck
Canisterreadytunnel
Preplumbedtank
Adjustablepushrods
Ringedcowl
Predrilledhinges
RemoveableWings,Stabs

Colourschemes


SchemeA


www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



Unpacking

Carefullyunpackthemodelmakingsurethatifyouuseasharpknifetoopenbags,nottocutanycovering
onthemodel.Inspecteachitemtomakesurenotransitdamagehashappened.Ifyouarenothappywithany
partorareunsurepleasecontacttheDealerthatyoupurchasedfrom.

Covering

Duetothemodelspendingtimeindifferentclimateszonesfromthefactoryonitswaytoyou,someof
thecoveringmayhavewrinkles.Wehighlyrecommendthatyoutaketimetore‐sealallcoveringedgeswithan
ironandtouseaheatguntoremoveanywrinklesandre‐tightenthecovering.Itisbesttodothisnowwhilethe
planeisnotassembled,remembertonotletanyheatgetnearanypartslikethecanopyorcowlasthismaycause
damage.
Note:Donotletanyheatgetnearpartslikethecanopyorcowlasthismaycausedamage.

AssemblyTips

Wealsorecommendthatyougooveralltheaccessiblejointswithcyanoglue.Wickglueintoareasof
highstressaroundtheU/Cplateandmotorbox.

Useathreadlockeronallmetal‐to‐metaljoints.Evenifyouareusingelectricwithlowvibration
levelsitwillmakesurethatthingsdonotdropoffyourairplane!


www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved

LandingGearAssembly
Tohelppreventthefuselagefrombeingdamagedwhilethemodelisbeing
assembledwe
Note‐Beforebeginningassemblybesuretodetermineyourleftandrightwheelspants.
First,gluethethinwoodwheelspacertotheinsideofthewheelpantonwhatwillbe
theoutersideofthepant.Usethebolttohelpcentrethespacer


Next,inserttheboltfromwhatwillbetheoutsideofthewheelpant;putonethicker
woodspacerontotheaxlebolt,followedbythewheelandonemorewoodspacer.

Installalockwasherontotheaxle‐bolt,followedbyawasher.
Note‐youmustplacethewashernowasitwillbeimpossibletoplaceoncetheaxleis
tightened.



www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved

Tightendowntheboltholdingthelocknut.
Note–Donotovertighten.Thiswillpreventthewheelfromturning.
Inserttheprotrudingboltsthroughthelandinggearhole.
Tightenupusingawasherandlocknut.


Repeatforotherside.



HorizontalStab

First,removethecoveringwheretheelevatorhornsfitintothestab,useeithera
solderingironorasharphobbyknife.


Testfitthehornsbeforegluing;someadjustmentmaybeneeded.
Theareaofthehornsthatgoesinsidetheelevatorneedstoberoughedupwith
sandpaperbeforegluing.Thiswillresultinabettergluejoint.








www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



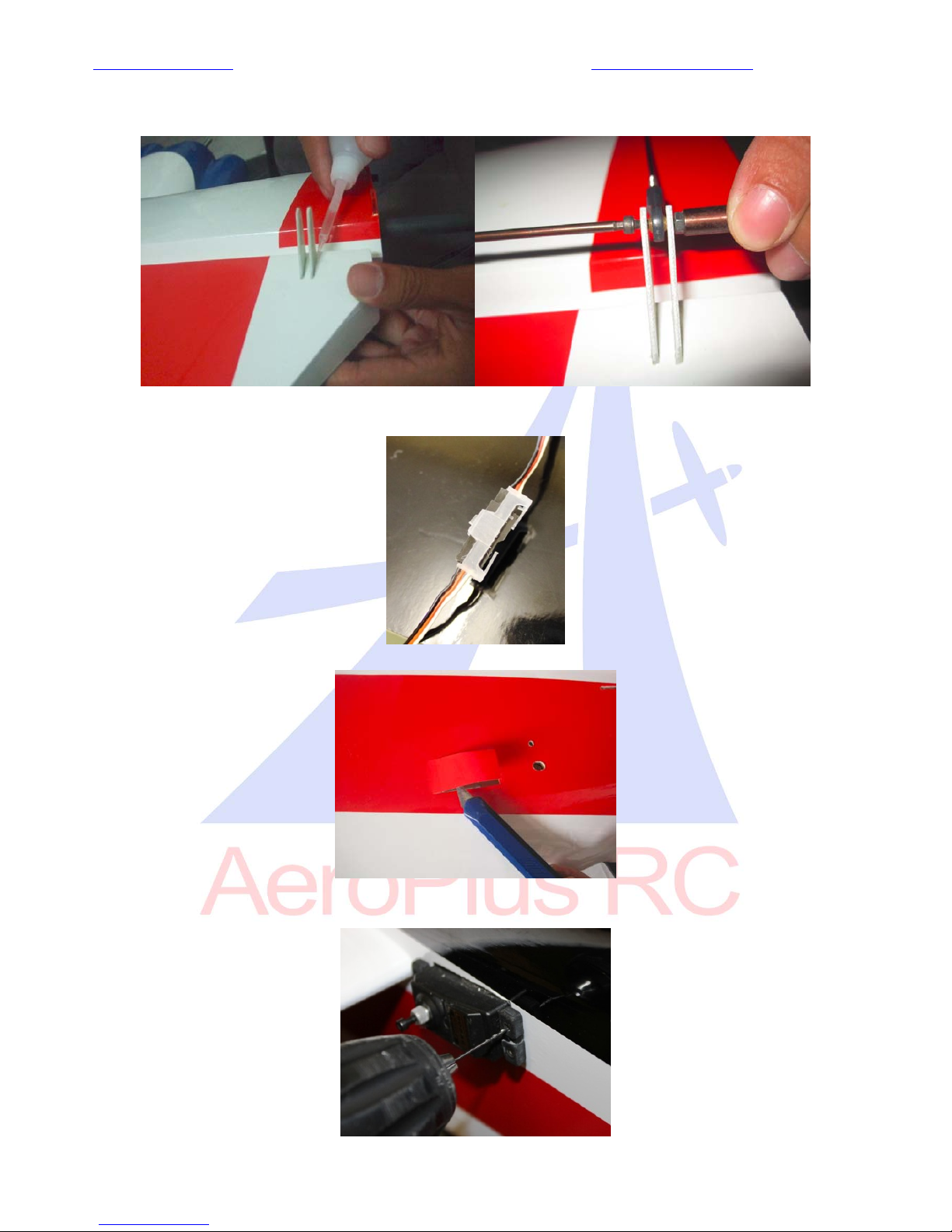

GluethehornsinplaceusingepoxyglueorCA.Putaboltthroughtheballjointhole
tomakesurethatthehornsstayinalignmentwhiledrying.

Beforefittingtheelevatorservofixanextensionleadsothatthewirecanberouted
throughthethefuselage.Besuretosecurethecoupling.

Removethecoveringfortheelevatorservo

FittheElevatorServoand,usingafinedrill,drillholesfortheservoscrews.Remove
theservoanddropthinC.A.intoall4holesafterfirstthreadingtheservo..


www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Re‐fittheelevatorservoandsecureitinwithservoscrewsafterthe.Gluefullydries.

CentretheservousingyourTX,andfitaservoarm.Useeitheranaftermarketarmor
attachthearmsthatweresuppliedtoaservohead.Screwballjointsontothe
pushrod(useplierstoholdpushrod)andboltinplacewithsuppliedbolts.Centreof
servoshouldalignwithelevatorflattothestab.


Rudder

Removethecoveringwheretherudderhornspushthroughwitheitheraknifeor
solderingiron.






www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Testfittherudderhorns

Sandtheareaonthehornthatfitsinsidetheruddersothegluebondsbetter

Gluetherudderhingesintoboththerudderandfinusingepoxyglue.Rememberto
useVaselineonthehingejoint.Whiledrying,usetapetokeepitinalignment..

Gluetherudderhornsthroughtherudderwithepoxy;wipeoffexcessgluewhileitis
wet.Usetheballjointandboltwhilegluingtomaintainalignment.Whilestill
movable,measurethatthesameamountpushesouteachside.Careneedstobe
takenhere,otherwiseyourruddergeometrywillbeincorrect.


www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved

Assembletherudderservocontrolarmasbelow,drillholesforscrewsandusecyno
tostopthenutsfromcomingloose.

Fittherudderservoanddrillholesusingafinedrillfortheservoscrews,dropthin
cynointotheholestostrengthenthewood.

Usingservoscrewsfixtheservoinplace,notethesplineistowardsthefrontofthe
plane

Theclosedloopwiresareassembledintheplane;attachtherearballjointstothe
rudder.Dothistobothsides.




www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Fitthearmontotherudderservoandcrimpthewirestoatauttension



TailGear

Locateallpartsasinpicture.Whenassembling,remembertodoathreadlockeron
allparts

AssembletheGearasperphoto









www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



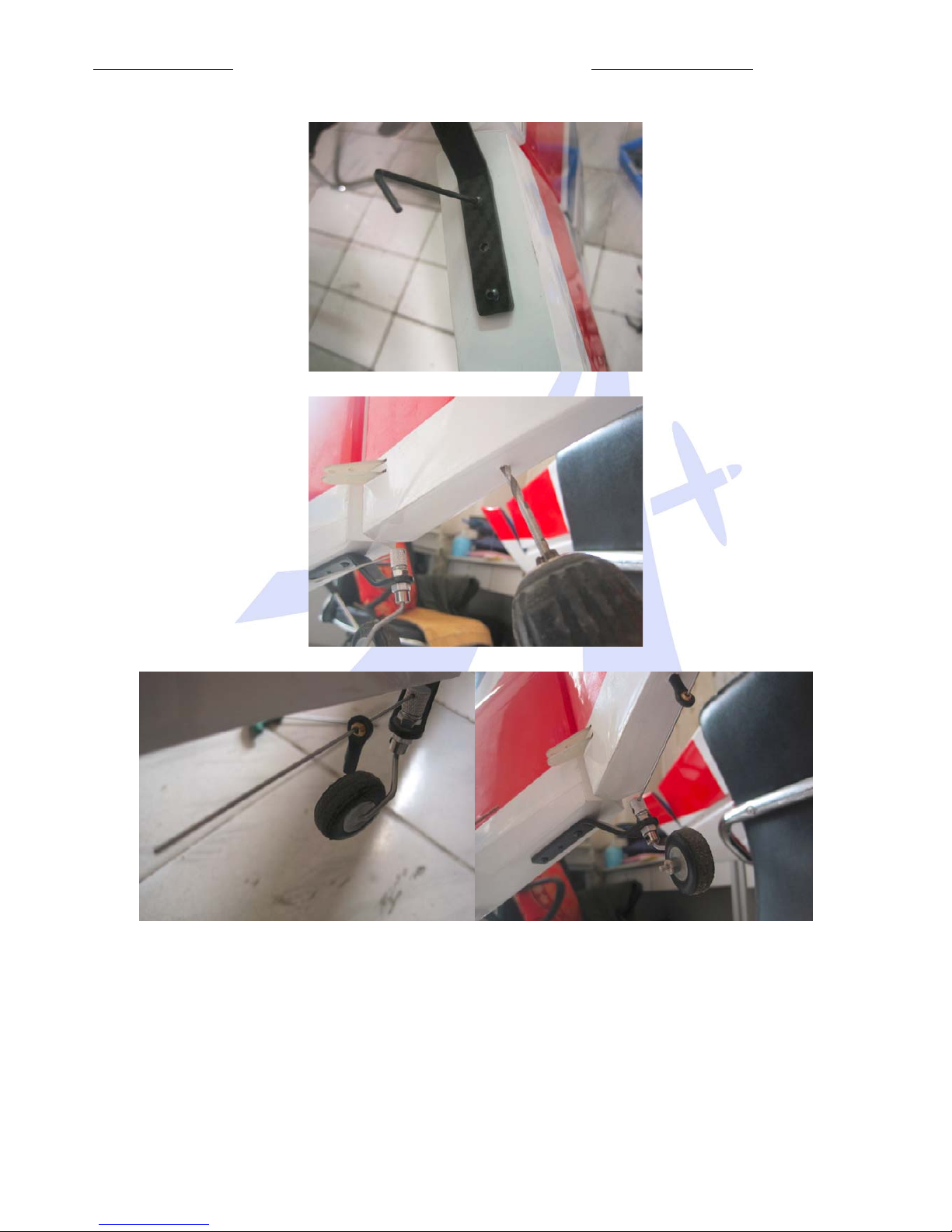

ScrewtheCFgearonwiththethreesuppliedselftapingscrews.

Drillaholeinthebaseoftherudderfortheruddersteeringguide.

Beforegluingwithcyano,placeitoverthethinrod.









www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


AileronServos
Theaileronsonthewingsarepre‐glued.Checkeachonebygentlypullingtomake
surethattheyaresecure
Removethecoveringwheretheaileronhornsaregluedinplace.Useeithera
solderingironorasharpknife

Usingsandpaperroughtheareathatwillbegluedintotheaileron.

Gluebothhornsinwithepoxyglue,useaboltthroughthehornswhengluingto
makesurethealignmentiscorrect.







www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved

Fittheaileronservoanddrillfineholeswheretheservoscrewswillfit.Thenapply
thincyanotostrengthentheholes.
 
Ifrequiredinstallaservoextensionleadontotheservo,remembertouseaservo
plugclip.

Fittheservoandcentretheservoarm.
 
Usingthepushrodsuppliedscrewballjointsontoeachend.Thecorrectlengthwill
leavetheaileronlineduptotheinnerpartstillattachedtothewing.



www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Usingsuppliedboltsattachthepushrodatbothends.Checktoseeyouhave
sufficientmovementoftheaileron.Ifnotadjust.

Carryoutthesameprocedureontheotherwing.


GasEngine
Fromthetemplatethatcamewiththeengine,usingthecrossaxisontheenginebox
markthemountingholes.

Checkthediameteroftherequiredboltsanddrillaccordingly.





www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Mounttheenginewiththestandoffstothebulkhead.Remembertouselarge
washersontheinsidetospreadtheloadanduseplentyofnutlock.

Exhaustoptions.Dependingontheenginemanyexhaustoptionsareavailable.
Standardmuffler,PittsExhaustofcanisterwithheader.

Ifusingacanisterabracketisalreadyinsidethemodel.Usingsilicontubingitwill
holdtheendofthecanister.
 

Thefrontoutletofthecanisterwillpopoutofthebottomofthecowl




www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Cutouttheareafortheenginecylinderheadandtheexhaustoutletonapieceof
thincardandtapethistothefuselageatoneend.

Removetheengineandfitthecowl,thenfoldthecardbackover.

Marktheareaandcutoutusingadremel.Ensurethatenoughaircangetoutofthe
cowl.Therationisusually,3timeoutto1in.
Fittheignitiononthesideofthemotorbox.UseVelcroandalsoastraptoensureit
doesnotcomeoffwithvibration.
Thecowlisfixedin4places,2atthetopand2atthebottom.Placemaskingtape
overthebottom2andpiercewheretheblindnutholeis.





www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Refitthecowlanddrillwherethemarkedholewas.

Thefueltankispre‐installed.Attachpetrolproofpipeasperlabellingontank
 
Usethesuppliedpushrodwithaballjointtoconnecttothethrottlearmonthe
engine.Thenfindaconvenientplacetolocatethethrottleservousingthesupplied
mount.
 
Installtheengineboxcoverplateonceallconnectionshavebeenmadeforthe
engine.


www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved



Electric
Assemblethesuppliedelectricmotorboxandbolttotheenginebulkhead.
 
Dependingonthelengthofyourmotoryoumayneedtousethesuppliedround
plywoodspacerstoachievethecorrectlengthforthemotor.

MounttheESCinairflowonthesideoftheelectricmotormount,usingavelcostrap.

Withtheremovalofthefueltankitleavesalargeareawherethebatteriescanbe
mounted.





www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Switch
Oneachsideofthefuselagenearthecanopyboltsareareasforswitchestobe
mounted.


RX
AconvienientplacetomounttheRXisjustinfrontoftherudderservo.Ensurethat
itismountedonvelcoandstrappeddown.


Canopy
Thecanopyisheldinplacewiththe2thumbscrews,ensurethesearetightbefore
flying



www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved


Set‐up
Wehighlyrecommendtheuseofbothdualratesandexponential.Thiswillallowthe
modeltoflybothprecisionand3Dattheflickofaswitch.

LowRates ExponentialHighRate Exponential
Elevator15‐20deg 15‐20% 35‐45deg 45‐60%
Ailerons15‐20deg 15‐20% 35‐45deg 45‐60%
Rudder25‐30deg 15‐20% 35‐45deg 45‐60%

Fortestflightsalwaysuselowrates,rememberthat+and–exponentialisdifferentper
manufacturer,checkyourTXmanual.
Alwayschecktherangeonyourmodelbeforethemaidenflight.Carryoutashortflight
thengoovereverythingtomakesurenothinghascomeloose.

CGLocation
WesuggestforinitialtestflightssettheCG100mmor4inchesfromtheleadingedgeofthe
wing.
Adjustafterfirstflightstopersonalpreference.















www.aeroplusrc.com[email protected]
AeroPlusRCCopyright2013©AllRightsReserved









EnjoyFlying!!


