Aeroplus Corvus racer 540 59 User manual

www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



CorvusRacer54059”

ItemNo：A‐E050003

Specifications

WINGSPAN:59"(1500mm)

LENGTH:54.1"(1374mm)

WINGAREA:654sq.in.(42.2sq.dm.)

FLYINGWEIGHT:4.6‐5.3lbs(2000‐2300g)

Electric:Brushlessoutrunner8Oz.PROPAPC16x10E‐17x8ELI‐POLY5‐6S3700‐5000mAh

Glow:.46‐.522C.52‐.824C

RADIO:4CH/5Sor4s1ESC（70A)



2Colourschemes



 



 B

A

www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Unpacking



Carefullyunpackthemodelmakingsurethatifyouuseasharpknifetoopenbags,nottocutanycoveringonthe

model.Inspecteachitemtomakesurenotransitdamagehashappened.Ifyouarenothappywithanypartor

areunsurepleasecontacttheDealerthatyoupurchasedfrom.



Covering



Duetothemodelspendingtimeindifferentclimateszonesfromthefactoryonitswaytoyou,someofthe

coveringmayhavewrinkles.Wehighlyrecommendthatyoutaketimetore‐sealallcoveringedgeswithaniron

andtouseaheatguntoremoveanywrinklesandre‐tightenthecovering.Itisbesttodothisnowwhiletheplane

isnotassembled,remembertonotletanyheatgetnearanypartslikethecanopyorcowlasthismaycause

damage.



AssemblyTips



Wealsorecommendthatyougooveralltheaccessiblejointswithcyanoglue.Wickglueintoareasofhighstress

aroundtheU/Cplateandmotorbox.



UseNutlockonallmetaltometaljoints.Evenifyouareusingelectricwithlowvibrationlevelsitwillmakesure

thatthingsdonotdropoffyourairplane!!



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



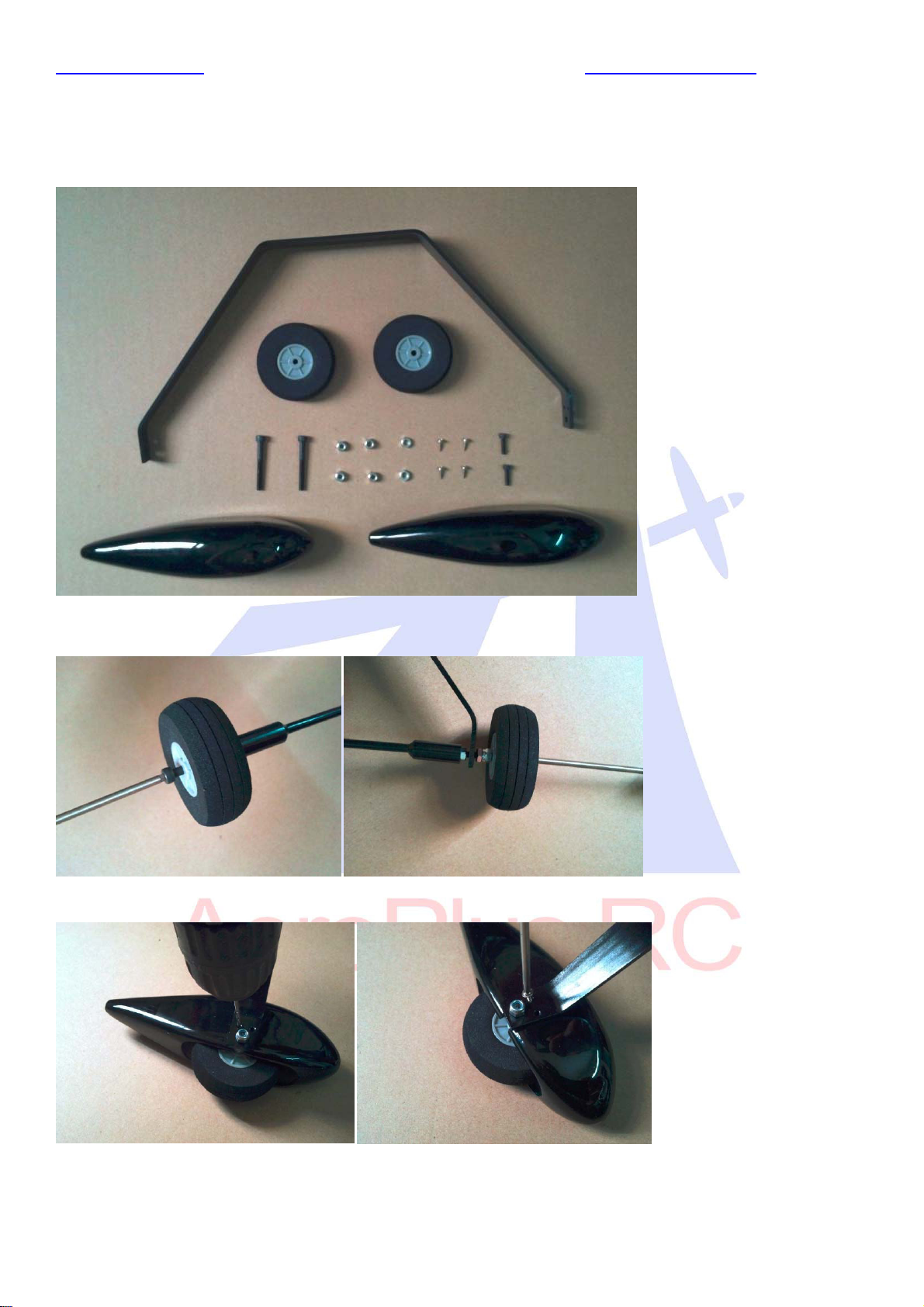

LandingGearAssembly



Tostopthefuselagegettingdamagedwhilethemodelisassembledwerecommendfittingthelandinggearfirst.



Pusheachaxlethroughthewheelholes,andtightenupwith1xselflockingnutand1xblindnut.Thenpasstheaxlethoughtheholeoflandinggear,

andtightenupwith1xselflockingnut.



 



TheU/Crakesforwardsousethecorrectwheelpantperside,andusingafinedrill,drillholesforthescrews.

 



Nowlineupthewheelinthecentreofthewheelpantopeningandtightenthecollets.Remembertousenutlockandtomakesurethewheelcan

movefreely.



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



RearStab

Removetheelevatorsandhingesfromtherearstabandplaceitintheopening.

Itisimportantthatcareistakenwhenaligningtherearstab.Measureeachsidetomakesurethatanequalamountshowsoneachside.

FittheCFwingtubeandlookingfromthefrontandbackcheckthattheelevatorplateisinhorizontalalignmenttotherearstab.Ifitisnotthentrim

theopeningsothatitisequal.

Fitthewingsandmeasurefromtheendofthewingtotheelevatorstabtomakesurethatbothsidesareequal



Glueing–Onceyouthinkyouarereadytoglue,measureagain.Werecommend2methodsforgluing.Eitherremovethecoveringontheareathatis

coveredbythefuselageandgluewithCAorepoxy,orleavethecoveringonandgluewiththincyno.Wickinginthinfirst,ifalargegapisvisiblethen

usemediumorthick.Remembertowickinsmallamountsatatimekeepingtheplanelevel,thiswillensurethegluestayswhereitneedstobe.

  

Dependingonifyouarefitting1or2elevatorservo’syoumayneedtofittheelevatorjoiningbar.



Gluethejoinerbarinto1oftheelevatorhalveswithepoxy.

Nowwecanhingeoneoftheelevatorswiththejoinerbargluedin.

UsethinCAtogluethehingesinplace,makingsurethatequalamountcangointoeachhalf.Flexthehingesonceglued.

Dryfittheotherelevatorhalfwiththehingesandmakesurethatbothhalvesaligntothestab.Trimwherethejoinerbarsitsifrequired.

Gluethehingesinbothstabandelevatoragain.Whilegluingusetapetokeepitinalignment

  



Removethecoveringfortheelevatorservo



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Removethecoveringwheretheelevatorhornsfit,useeitherasolderingironorasharpknife.



Theareaonthehornsthatgoesinsidetheelevatorneedstoberoughedupwithsandpaper.Thisallowsabettergluejoint.



GluethehornsinplacewithepoxyglueorCA.

Beforefittingtheelevatorservofixanextensionleadsothatthewirecanberoutedthroughthefuselage.Ontheservoleadjointaddaservoplug

clip.



FittheElevatorServoservoandusingafinedrill,drillholesfortheservoscrews.Removetheservoanddropthincynointoall4holes.



Re‐fittheelevatorservoandsecureitinwithservoscrews.

CentretheservousingyourTX,andfitaservoarm.Screwballjointsontothepushrod(useplierstoholdpushrod)andboltinplacewithsupplied

bolts.Centreofservoshouldalignwithelevatorflattothestab.

 

Ifyouareusingdualelevatorservosthenrepeattheprocessontheotherside.



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Rudder

Removethecoveringwheretherudderhornspushthroughwitheitheraknifeorsolderingiron.



Testfittherudderhorns

 

Sandtheareaonthehornthatfitsinsidetheruddersothegluebondsbetter



GluetherudderhingesintoboththerudderusingCA.Whiledryingusetapetokeepitinalignment.

 

GluetherudderhornsthroughtherudderwithCA.



Assembletherudderservocontrolarmasbelow,drillholesforscrewsandusecynotostopthenutsfromcomingloose.

 

www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



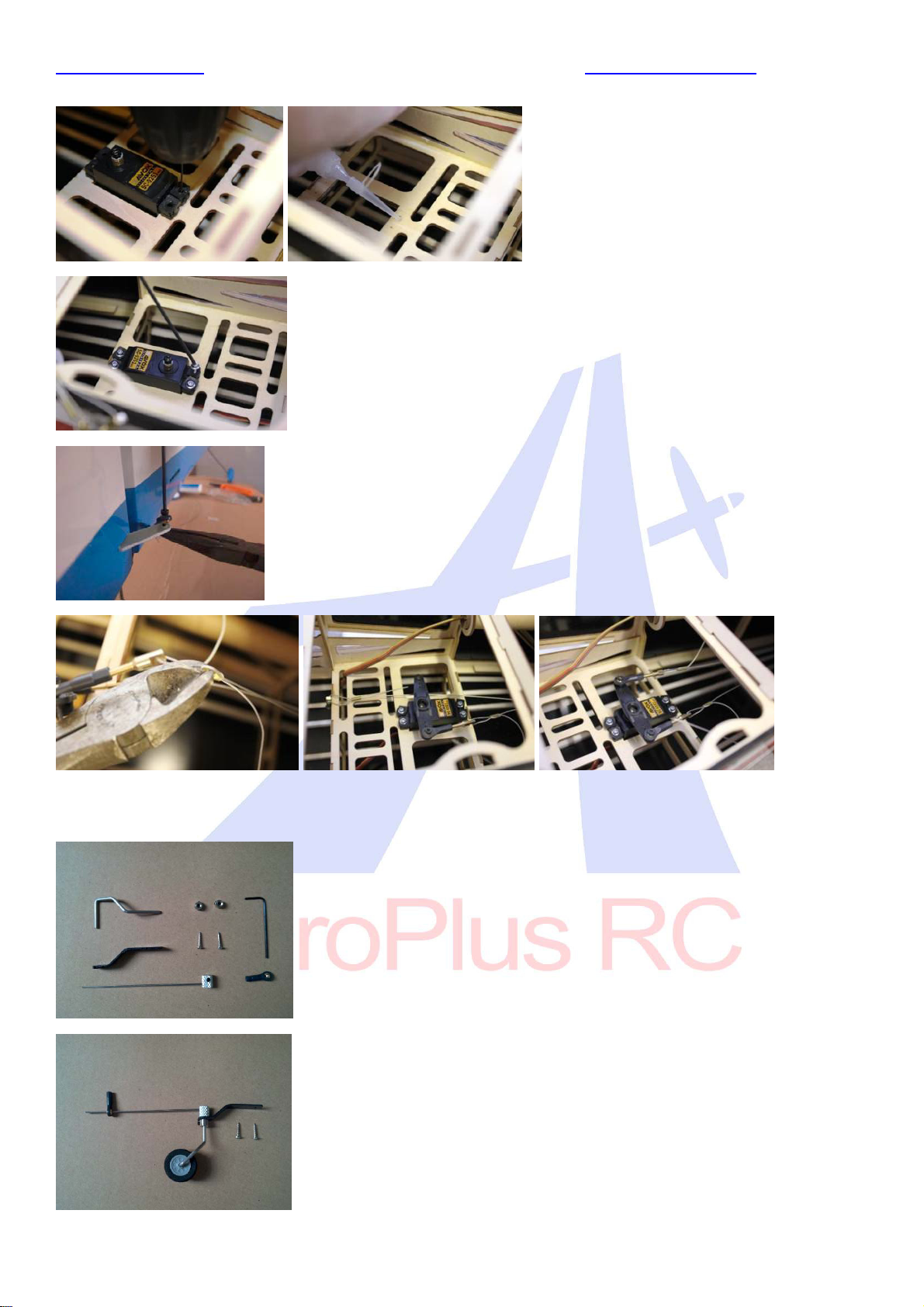

Fittherudderservoanddrillholesusingafinedrillfortheservoscrews,dropthincynointotheholestostrengthenthewood.

 

Usingservoscrewsfixtheservoinplace,notethesplineistowardsthefrontoftheplane



Theclosedloopwiresareassembledintheplane;attachtherearballjointstotherudder.Dothistobothsides.



Fitthearmontotherudderservoandcrimpthewirestoatauttension

  



TailGear



Locateallpartsasinpicture,whenassemblingremembertonutlockallparts



AssembletheGearasperphoto



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Attherearofthefuselageyouwillfindaplywoodarea,laytheCFgearonthisandmarkthe3holes.Takingcaretomakesureitisstraight.

Drilleachholewithafinedrillanddropthincynointotheholestostrengthenthewood.

 

Screwthegearonwiththesuppliedselftapingscrews.



Drillaholeinthebaseoftherudderfortheruddersteeringguide.



Beforegluingwithcyano,placeitoverthethinrod.

 



AileronServos

Theaileronsonthewingsarepre‐glued.Checkeachonebygentlypullingtomakesurethattheyaresecure

Removethecoveringwheretheaileronhornsaregluedinplace.Useeitherasolderingironorasharpknife



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Usingsandpaperroughtheareathatwillbegluedintotheaileron.



GluebothhornsinwithCA.



Fittheaileronservoanddrillfineholeswheretheservoscrewswillfit,theninstalltheservo.



Ifrequiredinstallaservoextensionleadontotheservo,remembertouseaservoplugclip.



Fittheservoandcentretheservoarm.



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Usingthepushrodsuppliedscrewballjointsontoeachend.Thecorrectlengthwillleavetheaileronlineduptotheinnerpartstillattachedtothe

wing.



Usingsuppliedboltsattachthepushrodatbothends.Checktoseeyouhavesufficientmovementoftheaileron.Ifnotadjust.

 

Carryoutthesameprocedureontheotherwing.



Electric

Usingthelinesonthefirewall,markusingyourmountasaguide.Thendrillsuitableholes.

 

Dependingonthelengthofyourmotoryoumayneedtousethesuppliedroundplywoodspacerstoachievethecorrectlengthforthemotor.

 

MounttheESCinairflowonthesideoftheelectricmotormount,usingavelcostrap.

Thecowlisfixedin4places,2atthetopand2atthebottom.Placemaskingtapeoverthebottom2andpiercewheretheblindnutholeis.



www.modellmarkt24.ch

www.aeroplusrc.com[email protected]

AeroPlusRCCopyright2013©AllRightsReserved



Refitthecowlanddrillwherethemarkedholewas.



RX

AconvienientplacetomounttheRXisjustinfrontoftherudderservo.Ensurethatitismountedonvelcoandstrappeddown.



Canopy

Thecanopyisheldinplacewiththelock.Ensurethatitisfullyengagedbeforeflying.



Set‐up

Wehighlyrecommendtheuseofbothdualratesandexponential.Thiswillallowthemodeltoflybothprecisionand3Dattheflickofaswitch.



LowRates ExponentialHighRate Exponential

Elevator15‐20deg 15‐20% 35‐45deg 45‐60%

Ailerons15‐20deg 15‐20% 35‐45deg 45‐60%

Rudder25‐30deg 15‐20% 35‐45deg 45‐60%



Fortestflightsalwaysuselowrates,rememberthat+and–exponentialisdifferentpermanufacturer,checkyourTXmanual.

Alwayschecktherangeonyourmodelbeforethemaidenflight.Carryoutashortflightthengoovereverythingtomakesurenothinghascomeloose.



CGLocation
