Aerotech PRO225SL User manual

Revision 2.01
PRO225SL and SLEMechanical Bearing,
Ball-Screw Stage
HARDWAREMANUAL

GLOBALTECHNICALSUPPORT
Go to the Global Technical Support Portal for information and support about your
Aerotech, Inc. products. The website supplies software, product manuals, Help files,
training schedules, and PC-to-PC remote technical support. If necessary, you can
complete Product Return (RMA) forms and get information about repairs and spare
or replacement parts. To get help immediately, contact a service office or your sales
representative. Include your customer order number in your email or have it
available before you call.
This manual contains proprietary information and may not be reproduced,
disclosed, or used in whole or in part without the express written permission of
Aerotech, Inc. Product names mentioned herein are used for identification purposes
only and may be trademarks of their respective companies.
Copyright © 2008-2023, Aerotech, Inc., All rights reserved.

Table of Contents
PRO225SL and SLEMechanical Bearing, Ball-Screw Stage 1
Table of Contents 3
List of Figures 4
List of Tables 5
EU Declaration of Incorporation 6
UKCADeclaration of Incorporation 7
Safety Procedures and Warnings 8
Installation and Operation 9
Electrical Warnings 10
Motor-Related Warnings 11
Pinch Points 12
Handling and Storage 13
Chapter 1: Overview 15
1.1. Environmental Specifications 17
1.2. Accuracy and Temperature Effects 18
1.3. Basic Specifications 19
1.4. Vacuum Operation 21
Chapter 2: Installation 23
2.1. Dimensions 23
2.2. Securing the Stage to the Mounting Surface 28
2.3. Attaching the Payload to the Stage 29
Chapter 3: Electrical Installation 33
3.1. Motor and Feedback Connectors 34
3.2. Motor and Feedback Wiring 38
3.3. Motor and Feedback Specifications 40
3.4. Limits, Marker, and Machine Direction 44
3.5. Motor and Feedback Phasing 45
Chapter 4: Maintenance 47
4.1. Service and Inspection Schedule 47
4.2. Cleaning and Lubrication 48
4.3. Motor Mounting 52
4.4. Side Seal Belt Replacement 55
4.5. Foldback Motor Belt Adjustment 63
4.6. Troubleshooting 66
Appendix A: Warranty and Field Service 67
Appendix B: Revision History 69
Index 71
Hardware Manual PRO225SL/SLE
www.aerotech.com 3

List of Figures
Figure 2-1: PRO225SL Dimensions 23
Figure 2-2: PRO225SL Tabletop Dimensions (-TT2/-TT3 Option) 24
Figure 2-3: PRO225SLE Dimensions 25
Figure 2-4: PRO225SLE Tabletop Dimensions (-TT3 Option) 26
Figure 2-5: Z-Axis Bracket Dimensions 27
Figure 2-6: Stage Orientations 30
Figure 2-7: Cantilevered Load Capability 31
Figure 2-8: Load Torque Equation 31
Figure 2-9: Torque Required to Turn Ball Screw in Vertical Orientation 31
Figure 3-1: Brushless Motor and Feedback Wiring [-SL Option] 38
Figure 3-2: Brushless Motor and Feedback Wiring [-SLE Option] 39
Figure 3-3: Machine Direction 44
Figure 3-4: Hall Phasing Diagram 45
Figure 3-5: Encoder Phasing Reference Diagram (Standard/Square Wave) 46
Figure 3-6: Digital Encoder Phasing Reference Diagram (Sine Wave) 46
Figure 4-1: Hardcover Rear End Plate Removal 50
Figure 4-2: Hardcover Screw Removal 50
Figure 4-3: Hardcover Removal 51
Figure 4-4: Motor Mounting Overview 52
Figure 4-5: Attach the Coupling Adapter to the Motor Shaft 53
Figure 4-6: Attach the Motor the Stage 53
Figure 4-7: Tighten the Shaft Coupling to the Drive Screw 54
Figure 4-8: Belt Removal at the Attachment Pins 56
Figure 4-9: Spring Location Detail 57
Figure 4-10: PullThrough Method 58
Figure 4-11: Stage Table Cover Plate Removal 59
Figure 4-12: Manual Feed Method 60
Figure 4-13: Belt Wrap 60
Figure 4-14: Belt Alignment 61
Figure 4-15: Belt Trim 62
Figure 4-16: Foldback Motor Cover Removal 64
Figure 4-17: Foldback Motor Part Callouts 65
Figure 4-18: Lubricate the Pulley Flanges 65
PRO225SL/SLE Hardware Manual
4 www.aerotech.com

List of Tables
Table 1-1: Model Numbers and Ordering Options 15
Table 1-2: Environmental Specifications 17
Table 1-3: PRO225SL/SLE Series Specifications (-0100 to -0300) 19
Table 1-4: PRO225SL/SLE Series Specifications (-0400 to -1000) 20
Table 2-1: Stage Mounting Surface Flatness Requirement 28
Table 2-2: Stage to Mounting Surface Hardware 28
Table 2-3: Payload Mounting Surface Flatness Requirement 29
Table 3-1: Brushless Motor Connector Pinout 35
Table 3-2: Mating Connector Part Numbers for the Brushless Motor Connector 35
Table 3-3: Brushless Motor Feedback Connector Pinout 35
Table 3-4: Mating Connector Part Numbers for the Brushless Motor Feedback Connector 35
Table 3-5: Linear Encoder Connector Pinout (-SLE only) 36
Table 3-6: Mating Connector Part Numbers for the Encoder Connector 36
Table 3-7: Limit Connector Wiring 37
Table 3-8: Mating Connector Part Numbers for the Limit Connector 37
Table 3-9: Hall-Effect Sensor Specifications 40
Table 3-10: Thermistor Specifications (BMSMotor Options) 40
Table 3-11: Encoder Specifications 40
Table 3-12: Rotary Encoder Resolution Specifications 40
Table 3-13: Linear Encoder Resolution Specifications 41
Table 3-14: Limit Switch Specifications 41
Table 3-15: Brake Specifications 41
Table 3-16: PRO225SL/SLE Motor Specifications (BMS280) 42
Table 3-17: PRO225SL/SLE Motor Specifications (BM250) 43
Table 4-1: Hardware Requirements 52
Table 4-2: Side Seal Belt Replacement Kit Ordering Guide 55
Hardware Manual PRO225SL/SLE
www.aerotech.com 5

EU Declaration of Incorporation
Manufacturer Aerotech, Inc.
101 Zeta Drive
Pittsburgh, PA 15238-2811
USA
herewith declares that the product:
PRO225SL/SLE stage
is intended to be incorporated into machinery to constitute machinery covered by the Directive 2006/42/EC
as amended; and that the following harmonized European standards have been applied:
EN ISO 12100:2010
Safety of Machinery - Basic concepts, general principles for design
EN 60204-1:2010
Safety of Machinery - Electrical equipment of machines - Part 1:General
requirements
and further more declares that
it is not allowed to put the equipment into service until the machinery into which it is to
be incorporated or of which it is to be a component has been found and declared to
be in conformity with the provisions of the Directive 2006/42/EC and with national
implementing legislation, for example, as a whole, including the equipment referred
to in this Declaration.
This is to certify that the aforementioned product is in accordance with the applicable requirements
of the following directive(s):
EU 2015/863 Directive, Restricted Substances (RoHS 3)
Authorized
Representative: / Norbert Ludwig
Managing Director
Aerotech GmbH
Gustav-Weißkopf-Str.18
90768 Fürth
Germany
Engineer Verifying
Compliance / Alex Weibel
Aerotech, Inc.
101 Zeta Drive
Pittsburgh, PA 15238-2811
USA
Date 7/20/2023
PRO225SL/SLE Hardware Manual
6 www.aerotech.com

UKCADeclaration of Incorporation
Manufacturer Aerotech, Inc.
101 Zeta Drive
Pittsburgh, PA 15238-2811
USA
herewith declares that the product:
PRO225SL/SLE stage
To which this declaration relates, meets the essential health and safety requirements and is in
conformity with the relevant UK Legislation listed below:
Supply of Machinery (Safety) Regulations 2008
Hazardous Substances in Electrical and Electronic Equipment Regulations
2012
Using the relevant section of the following UK Designated Standards and other normative
documents when installed in accordance with the installation instructions supplied by the
manufacturer.
EN ISO 12100:2010
Safety of Machinery - Basic concepts, general principles for design
EN 60204-1:2010
Safety of Machinery - Electrical equipment of machines - Part 1:General
requirements
and furthermore declares that it is not allowed to put the product into service until the machinery
into which it is to be incorporated or of which it is to be a component has been found and declared
to be in conformity with the provisions of the Supply of Machinery (Safety) Regulations 2008 UK
Legislation and with national implementing legislation, for example, as a whole, including the
equipment referred to in this Declaration.
Authorized
Representative: / Simon Smith
Managing Director
Aerotech Ltd
The Old Brick Kiln, Ramsdell, Tadley
Hampshire RG26 5PR
UK
Engineer Verifying
Compliance / Alex Weibel
Aerotech, Inc.
101 Zeta Drive
Pittsburgh, PA 15238-2811
USA
Date 7/20/2023
Hardware Manual PRO225SL/SLE
www.aerotech.com 7

Safety Procedures and Warnings
IMPORTANT: This manual tells you how to carefully and correctly use and operate the
stage.
lRead all parts of this manual before you install or operate the stage or before you do
maintenance to your system.
lTo prevent injury to you and damage to the equipment, obey the precautions in this
manual.
lAll specifications and illustrations are for reference only and were complete and
accurate as of the release of this manual. To find the newest information about this
product, refer to www.aerotech.com.
If you do not understand the information in this manual, contact Aerotech Global
Technical Support.
IMPORTANT: This product has been designed for light industrial manufacturing or
laboratory environments. If the product is used in a manner not specified by the
manufacturer:
lThe protection provided by the equipment could be impaired.
lThe life expectancy of the product could be decreased.
Safety notes and symbols are placed throughout this manual to warn you of the potential risks at the
moment of the safety note or if you fail to obey the safety note.
Shock/Electrocution Hazard Pinch, Shear, or Crush Hazard
General/Conditional Awareness Rotational Machinery Hazard
Hot Surface Hazard Pinch/Entanglement Hazard
Magnetic Field Hazard Trip Hazard
Heavy, Bulky Lifting Hazard Appropriate Equipment Required
Pressure/Explosive Atmosphere
Hazard Electrostatic Discharge Hazard
A blue circle symbol is an action or tip that you should obey. Some examples include:
General tip Read the manual/section
Wear personal protective equipment
(PPE): Safety Glasses If applicable, do not lift unassisted
Wear personal protective equipment
(PPE): Gloves
Wear personal protective equipment
(PPE): Hearing Protection
PRO225SL/SLE Hardware Manual
8 www.aerotech.com

Installation and Operation
To decrease the risk of damage to the equipment, you must obey the precautions that follow.

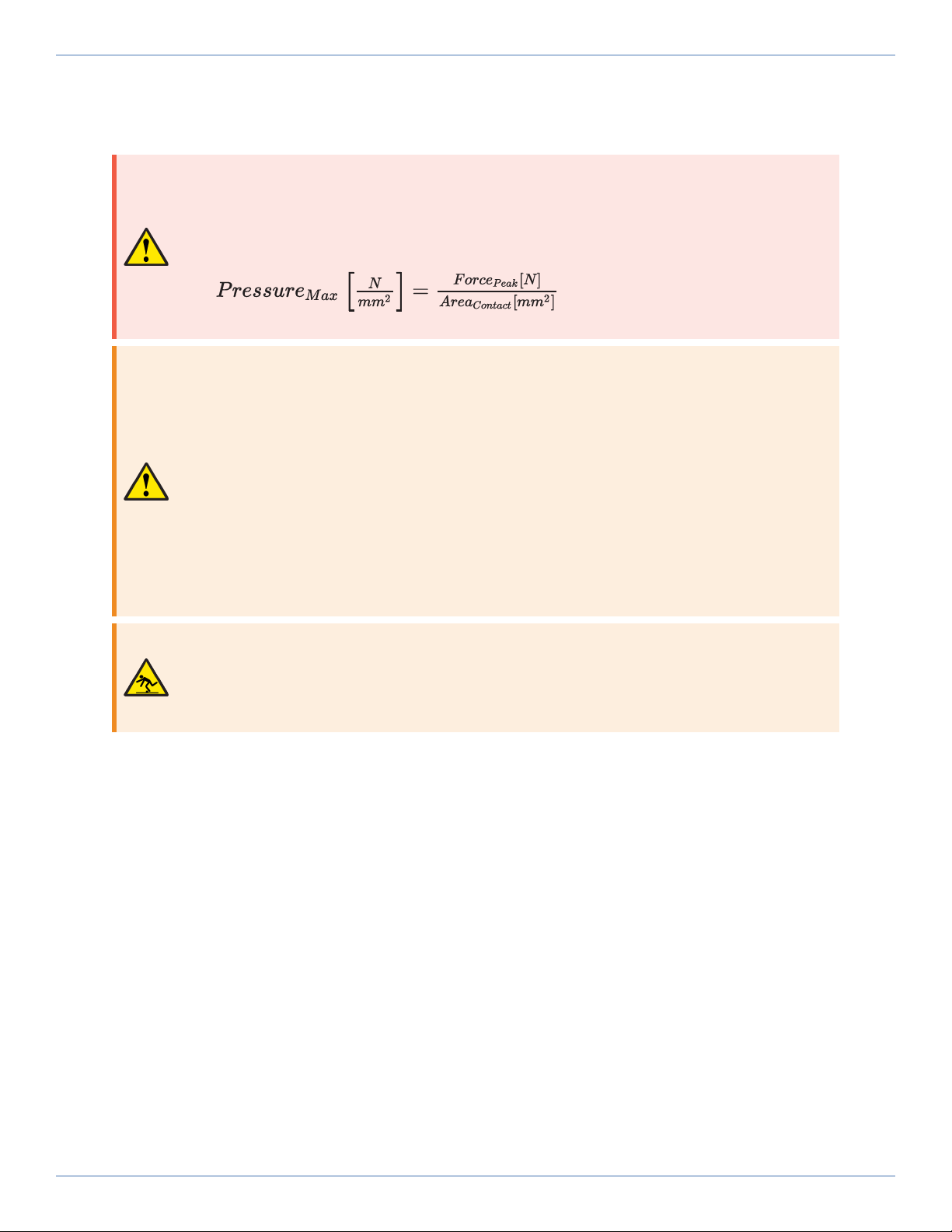

DANGER: General Hazard Warning!
This product can produce high forces and move at velocities that could cause injury.
The user is responsible for its safe operation. The following general equation is
provided to assist with risk assessments in regards to contact and pinch points:
WARNING: General Hazard Warning!
lOnly trained operators should operate this equipment.
lAll service and maintenance must be done by approved personnel.
lUse this product only in environments and operating conditions that are approved in
this manual.
lNever install or operate equipment that appears to be damaged.
lOn stages with BMSmotors: the motor over-temperature sensor must be monitored
by the drive. Use it to shut down the drive if the motor overheats.
lMake sure that the product is securely mounted before you operate it.
lMake sure that all pneumatic lines are securely connected.
lUse care when you move the stage or you could negatively affect the performance of
it.
WARNING:Trip Hazard!
Route, house, and secure all cables, duct work, air, or water lines. Failure to do so could
introduce trip hazards around the system that could result in physical injury or could
damage the equipment.
Hardware Manual PRO225SL/SLE
www.aerotech.com 9

Electrical Warnings
To decrease the risk of electrical shock, injury, death, and damage to the equipment, obey the
precautions that follow.
DANGER: Electrical Shock Hazard!
lStage motor phase voltage levels could be hazardous live.
lPersonnel are protected from hazardous voltages unless electrical interconnections,
protective bonding (safety ground), or motor/stage enclosures are compromised.
lDo not connect or disconnect stage/motor interconnections while connected to a live
electrical power source.
lBefore you set up or do maintenance, disconnect electrical power.
lIt is the responsibility of the End User/System Integrator to make sure that stages are
properly connected and grounded per Engineering Standards and applicable safety
requirements.
lIt is the responsibility of the End User/System Integrator to configure the system
drive or controller within the Aerotech motor/stage electrical and mechanical
specifications.
PRO225SL/SLE Hardware Manual
10 www.aerotech.com

Motor-Related Warnings
Aerotech motors are capable of producing high forces and velocities. Obey all warnings and all
applicable codes and standards when you operate a system that incorporates Aerotech motors.
DANGER: Mechanical Hazard!
Personnel must be made aware of the mechanical hazards during set up or when you
do service to the stage.
lUnintentional manual movement into the stage "end-of-travel" stops, could damage
the stage or undo precision alignments.
lStage movement could create pinch points, entanglement hazards, or rotational
mechanical hazards.
DANGER: Hot Surface Hazard!
lThe stage/motor frame temperature could exceed 70°C in some applications.
lDo not touch the stage/motor frame while it is in operation.
lWait until the stage/motor has cooled before you touch it.

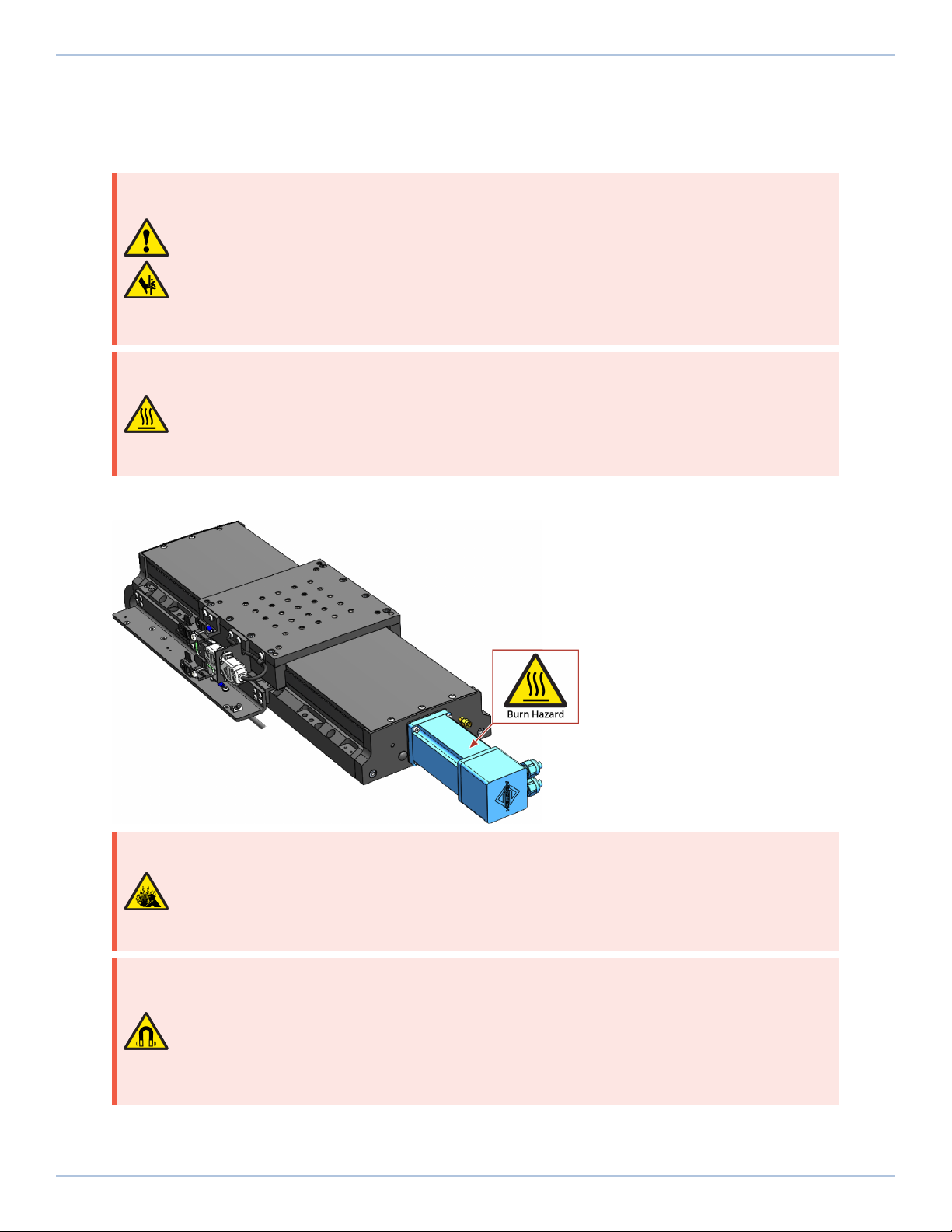

Figure 1: Motor Location
DANGER:Risk in Explosive Atmosphere!
lStandard Aerotech stage/motors are not rated for applications with explosive
atmospheres such as airborne dust or combustible vapors.
lDo not operate stage/motors outside of Aerotech environmental specifications.
DANGER: Magnetic Field Hazard!
Aerotech stage/motors contain magnets which can present a Magnetic Field Hazard.
lDo not disassemble a stage motor under any circumstances.
lStrong magnetic fields could interfere with external/internal medical devices.
lStrong magnetic fields could present mechanical hazards such as pinch points.
Hardware Manual PRO225SL/SLE
www.aerotech.com 11

Pinch Points
A pinch point is a mechanical hazard that can occur when there are exposed parts of the stage or
system that can move. For example, the travel of a stage tabletop could expose the user to a pinch
point between the tabletop and the stage housing. The images that follow will show you typical
external and internal pinch point locations.
DANGER: Mechanical Hazard!
lSystem travel can cause crush, shear, or pinch injuries.
lOnly trained operators should operate this equipment.
lDo not put yourself in the travel path of machinery.
lRestrict access to all motor and stage parts
owhen the system moves under power (during normal operation, for example).
owhen the system is moved manually (during the installation process or when you
do maintenance, for example).
lMotors are capable of very high speeds and acceleration rates.
Figure 2: Typical Pinch Point Locations
PRO225SL/SLE Hardware Manual
12 www.aerotech.com

Handling and Storage
IMPORTANT: It is the responsibility of the customer to safely and carefully lift and
move the stage.
lBe careful when you move or transport the stage.
lRetain the shipping materials for future use.
lTransport or store the stage in its protective packaging.
WARNING: Electrostatic Discharge (ESD) Sensitive Components!
Wear an ESDwrist strap when you handle, install, or do service to the system assembly.
You could damage the power supply or drives if you fail to observe the correct
ESDpractices.
Inspect the shipping container for any evidence of shipping damage. If any damage exists, notify the
shipping carrier immediately.
Remove the packing list from the shipping container. Make sure that all the items specified on the
packing list are contained within the package.
The documentation for the stage is on the included installation device. The documents include
manuals, interconnection drawings, and other documentation pertaining to the system. Save this
information for future reference.
Each stage has a label listing the system part number and serial number. These numbers contain
information necessary for maintenance or system hardware and software updates. Locate this label
and record the information for later reference.
Unpacking and Handling
It is the responsibility of the customer to safely and carefully lift and move the stage.
IMPORTANT: All electronic equipment and instrumentation is wrapped in antistatic
material and packaged with desiccant. Ensure that the antistatic material is not
damaged during unpacking.
DANGER:Lifting Hazard! Use care when you move the stage or you could negatively
affect the performance of it.
lUse the correct lifting techniques, mechanical assistance, or additional help to lift or
move this product.
lDo not use the cables or the connectors to lift or move this product.
lMake sure that all moving parts are secure before you move the stage. Unsecured
moving parts could shift and cause injury or damage to the equipment.
lIf the stage is heavy, a single person lift could cause injury. Use assistance when you
lift or move it.
oRefer to Section 2.1. Dimensions for dimensions
oRefer to Section 1.3. Basic Specificationsfor weight specifications.
Carefully remove the stagefrom its protective shipping container.
lLift this product only by the base.
lUse lifting hardware if it has been provided (refer to Figure 3).
lFor multi-axis assemblies, always lift the system by the lower axis.
lUse a cart, dolly, or similar device to move the stage to a new location.
Hardware Manual PRO225SL/SLE
www.aerotech.com 13

Gently set the stage on a smooth, flat, and clean surface. Use compressed nitrogen or clean, dry, oil-
free air to remove any dust or debris that has collected during shipping.
Before you operate the stage, let it stabilize at room temperature for at least 12 hours. This will
ensure that all of the alignments, preloads, and tolerances are the same as they were when they
were tested at Aerotech.
Each stage has a label listing the system part number and serial number. These numbers contain
information necessary for maintenance or system hardware and software updates. Locate this label
and record the information for later reference.
Lifting Features
The lifting kit includes four eyebolts and four standoffs. Thread the eyebolts onto the standoffs and
thread the standoffs into the stage base. Remove the lifting hardware by turning a wrench on the
flats of the standoffs (see Figure 3). If the stage is part of a multi-axis system, the lifting hardware
should be attached to the lower axis. The lifting hardware must be removed before the stage can be
operated.
Figure 3: Lifting Features
Storage
Store the stage in the original shipping container. If the original packaging included ESDprotective
packaging, make sure to store the stage in it. The storage location must be dry, free of dust, free of
vibrations, and flat.
Refer to Section 1.1. Environmental Specifications
PRO225SL/SLE Hardware Manual
14 www.aerotech.com

Chapter 1: Overview
The specifications in this manual pertain to the second generation of PRO SL/SLE stages. Second
generation stages can be distinguished from their first generation counterparts by the curved
hardcover on the second generation. Contact Aerotech if you need a first generation manual.
Table 1-1: Model Numbers and Ordering Options
PRO225SL and PRO225SLE Series Linear Ball-Screw Stage
Direct Linear Feedback (-SLEonly)
-E1 Incremental linear encoder; 1 Vpp
-E2 Incremental linear encoder; 0.1 µm digital RS422 output
-E3 Absolute linear encoder; EnDat 2.2
-E4 Incremental linear encoder; 0.5 µm digital RS422 output
Travel (Required)
-0100 100 mm travel stage
-0150 150 mm travel stage
-0200 200 mm travel stage
-0250 250 mm travel stage
-0300 300 mm travel stage
-0400 400 mm travel stage
-0500 500 mm travel stage
-0600 600 mm travel stage
-0800 800 mm travel stage
-1000 1000 mm travel stage
Mounting Orientation (Required)
Normal mounting orientation
-MT1 Side-mounted or vertical orientation
-MT2 Inverted mounting orientation
Tabletop (Optional for SL Stages; Required for SLE Stages)
-TT1 Tabletop with metric dimension mounting
-TT2 Tabletop with English dimension mounting
-TT3 Accessory tabletop with mounting for select rotary stages
-TT4 Tabletop with metric dimension mounting and wiper brushes
-TT5 Tabletop with English dimension mounting and wiper brushes
-TT6 Accessory tabletop with mounting pattern for select rotary stages and wipers
Motor (Optional)
-M1 BMS280 brushless servomotor and 2500-Line digital RS422 encoder
-M2 BMS280 brushless servomotor, 2500-Line digital RS422 encoder, and brake
-M3 BMS280 brushless servomotor and 1000-Line 1 Vpp encoder
-M4 BMS280 brushless servomotor, 1000-Line 1 Vpp encoder, and brake
-M5 BM250 brushless servomotor, 2500-Line 1 Vpp encoder, and brake
-M6 BM250 brushless servomotor, 2500-Line digital RS422 encoder, and brake
-M7 BM250 brushless servomotor and 1000-Line 1 Vpp encoder
-M8 BM250 brushless servomotor, 1000-Line 1 Vpp encoder, and brake
Hardware Manual PRO225SL/SLE
www.aerotech.com 15

PRO225SL and PRO225SLE Series Linear Ball-Screw Stage (continued)
Foldback (Optional)
-FB1 Foldback kit for 1/2" diameter shaft NEMA 34 motor
Motor Orientation (Optional)
-2 Bottom cable exit, optional orientation
-3 Left-side cable exit, standard orientation
-4 Top cable exit, optional orientation
-5 Right-side cable exit, optional orientation
-8 Right-side foldback, standard orientation
-12 Left-side foldback, optional orientation
Limits (Required)
-LI1 Normally-closed limit switches; 5 VDC with 9-pin D connector
-LI2 Normally-open limit switches; 5 VDC with 9-pin D connector
-LI3 Normally-closed limit switches; 24 VDC with 9-pin D connector
Coupling (Optional)
-CP1 Coupling for 1/2" diameter shaft
LiftingHardware (Optional)
-LF Lifting hardware
NOTE: Lifting option only available on travels 300 mm and greater. Lifting should never be ordered on the upper-axis of an
XY set (only order on lower-axis).
ThermoComp™ (Optional)
-TCMP ThermoComp™ integrated thermal compensation unit
NOTE: You must use an Automation1 or A3200 controller with the -TCMP option.
Metrology (Required)
-PL0 No metrology performance plots
-PL1 Uncalibrated with performance plots
-PL2 Calibrated with performance plots
Accessories (To be Ordered as a Separate Line Item)
ALIGN-NPA Non-precision XY assembly
ALIGN-NPAZ Non-precision XZ or YZ assembly
ALIGN-PA10 XY assembly; 10 arc sec orthogonality; alignment to within 7 µm orthogonality for short
travel stages
ALIGN-PA10Z XZ or YZ assembly with L-bracket; 10 arc second orthogonality; alignment to within 10 µm
orthogonality for short travel stages
ALIGN-PA5 XY assembly; 5 arc sec orthogonality; alignment to within 3 µm orthogonality for short
travel stages
ALIGN-PA5Z XZ or YZ assembly with L-bracket; 5 arc second orthogonality; alignment to within 5 µm
orthogonality for short travel stages
HDZ225 Right angle L-bracket for 100 mm, 150 mm, and 200 mm travels only
PRO225SL/SLE Hardware Manual
16 www.aerotech.com

1.1. Environmental Specifications
WARNING:General Hazard Warning! Do not expose this product to environments or
conditions outside of the listed specifications. You could damage the equipment if you
exceed the environmental or operating specifications.
DANGER:Risk in Explosive Atmosphere!
lStandard Aerotech stage/motors are not rated for applications with explosive
atmospheres such as airborne dust or combustible vapors.
lDo not operate stage/motors outside of Aerotech environmental specifications.
Table 1-2: Environmental Specifications
Ambient
Temperature
Operating: 10° to 35° C (50° to 95° F)
The optimal operating temperature is 20° C ±2° C (68° F ±4° F). If at any time the
operating temperature deviates from 20° C degradation in performance could
occur.
Storage: 0° to 40° C (32° to 104° F) in original shipping packaging
Humidity Operating: 20% to 60% RH
Storage: 10% to 70% RH, non-condensing in original packaging.
The stage should be packaged with desiccant if it is to be stored for an extended
time.
Altitude Operating: 0 m to 2,000 m (0 ft to 6,562 ft) above sea level
Contact Aerotech if your specific application involves use above 2,000 m or below
sea level.
Vibration Use the system in a low vibration environment. Floor or acoustical vibration can
affect system performance. Contact Aerotech for information regarding your
specific application.
Protection
Rating
These stages have limited protection against dust, but not water. This equates to
an ingress protection rating of IP50.
Use Indoor use only
Hardware Manual PRO225SL/SLE
www.aerotech.com 17

1.2. Accuracy and Temperature Effects
Aerotech products are designed for and built in a 20°C (68°F) environment. Temperature changes
could cause a decrease in performance or permanent damage to the stage. At a minimum, the
environmental temperature must be controlled to within 0.25ºC per 24 hours to ensure the stage
specifications are repeatable over an extended period of time. The severity of temperature effects
on all specifications depends on many different environmental conditions, which include how the
stage is mounted. Contact the factory for more details.
The accuracy specification of stage is measured 25 mm above the table with the stage in an
unloaded condition. The stage is assumed to be fully supported by a mounting surface meeting or
exceeding the specification in Section 2.2.
The accuracy of the screw is a key element in the overall positioning accuracy of the SLstage. A scale
error can be expected if temperature of the screw differs from 20° C (68° F). The greater the
temperature difference, the greater the error. The temperature of the screw depends on the speed
and duty cycle of the stage. The faster the movement and higher the duty cycle, the more the stage
accuracy will be affected by heat. The thermal expansion coefficient of the screw is 11.7 ppm/°C.
SLEstages contain a linear encoder for direct feedback of the carriage position. The stage travel as
seen by the linear encoder will expand at the rate of 3.25 ppm/°C as the temperature of the encoder
scale deviates from 20°C.
The ThermoComp™ option is a hardware and software solution that uses the functionality of the
Automation1 or A3200 controller to mitigate the effects of changing temperature by detecting and
compensating for thermal changes. ThermoComp™ is effective at compensating for both self-
heating and environmental temperature changes.
PRO225SL/SLE Hardware Manual
18 www.aerotech.com

1.3. Basic Specifications
Resolution is dependent on screw pitch, encoder resolution, and controller interpolation.
Table 1-3: PRO225SL/SLE Series Specifications (-0100 to -0300)
-0100 -0150 -0200 -0250 -0300
Travel 100 mm 150 mm 200 mm 250 mm 300 mm
Accuracy (1)
SL Standard ±6 µm ±7 µm ±8 µm ±9 µm ±9.5 µm
Calibrated ±1 µm ±1 µm ±1 µm ±1.5 µm ±1.5 µm
SLE Standard ±4 µm ±6 µm ±8 µm ±9 µm ±10 µm
Calibrated ±1 µm
Resolution
(Minimum
Incremental
Motion)
SL 0.1 µm (2), 1.0 µm (3)
SLE 0.05 µm (-E1/-E3 encoder), 0.2 µm (-E2 encoder), 1.0 µm (-E4
encoder)
Bidirectional
Repeatability (1)
SL ±1 µm
SLE ±0.5 µm
Horizontal Straightness (1) ±2 µm ±2.5 µm ±2.5 µm ±3 µm ±3.5 µm
Vertical Straightness (1) ±2 µm ±2.5 µm ±2.5 µm ±3 µm ±3.5 µm
Pitch 29 µrad
(6 arc·sec)
29 µrad
(6 arc·sec)
39 µrad
(8 arc·sec)
49 µrad
(10.1
arc·sec)
50 µrad
(10.3
arc·sec)
Roll 29 µrad
(6 arc·sec)
29 µrad
(6 arc·sec)
39 µrad
(8 arc·sec)
49 µrad
(10.1
arc·sec)
50 µrad
(10.3
arc·sec)
Yaw 29 µrad
(6 arc·sec)
29 µrad
(6 arc·sec)
39 µrad
(8 arc·sec)
49 µrad
(10.1
arc·sec)
50 µrad
(10.3
arc·sec)
Ball Screw Lead 5 mm/rev
Maximum Speed (4) 220 mm/s
Maximum Acceleration (4) Function of motor, amplifier, payload, and maximum axial load
Load Capacity (5)
Horizontal 100 kg
Vertical (Axial) 60 kg
Side 100 kg
Moving Mass
(with tabletop)
SL 7.3 kg
SLE 7.5 kg
Stage Mass
(no motor)
SL 19.8 kg 21.0 kg 22.2 kg 23.3 kg 24.5 kg
SLE 20.5 kg 21.7 kg 22.9 kg 24.1 kg 25.3 kg
Material Anodized Aluminum
Mean Time Before Failure (MTBF) 20,000 Hours
1. Certified with -PL1 and -PL2 option.
2. Achieved with Aerotech rotary motor with amplified sine encoder.
3. Achieved with Aerotech rotary motor with 2500 counts/rev digital encoder.
4. Requires the selection of an applicable amplifier with sufficient voltage and current.
5. Axis orientation for on-axis loading is listed.
6. Specifications are for single-axis systems measured 25 mm above the tabletop; performance of multi-axis system
depend upon the payload and workpoint. Consult the Aerotech factory for multi-axis or non-standard applications.
7. Specifications listed are non-foldback kit options. Contact the factory for specifications when a foldback kit (-FBx) is used.
Hardware Manual PRO225SL/SLE
www.aerotech.com 19

Table 1-4: PRO225SL/SLE Series Specifications (-0400 to -1000)
-0400 -0500 -0600 -0800 -1000
Travel 400 mm 500 mm 600 mm 800 mm 1000 mm
Accuracy (1)
SL Standard ±11 µm ±13 µm ±15 µm ±17 µm ±18 µm
Calibrated ±1.5 µm ±2 µm ±2 µm ±2.5 µm ±3 µm
SLE Standard ±12 µm ±14 µm ±15.5 µm ±17 µm ±18 µm
Calibrated ±1 µm ±1.5 µm ±1.5 µm ±1.5 µm ±1.5 µm
Resolution
(Minimum
Incremental
Motion)
SL 0.1 µm (2), 1.0 µm (3)
SLE 0.05 µm (-E1/-E3 encoder), 0.2 µm (-E2 encoder), 1.0 µm (-E4
encoder)
Bidirectional
Repeatability (1)
SL ±1 µm
SLE ±0.5 µm ±0.5 µm ±0.5 µm ±0.75 µm ±0.75 µm
Horizontal Straightness (1) ±4.5 µm ±5.5 µm ±6.5 µm ±8 µm ±9.5 µm
Vertical Straightness (1) ±4.5 µm ±5.5 µm ±6.5 µm ±8 µm ±9.5 µm
Pitch
60 µrad
(12.4
arc·sec)
70 µrad
(14.4
arc·sec)
80 µrad
(16.5
arc·sec)
90 µrad
(18.6
arc·sec)
110 µrad
(22.7
arc·sec)
Roll
60 µrad
(12.4
arc·sec)
70 µrad
(14.4
arc·sec)
80 µrad
(16.5
arc·sec)
90 µrad
(18.6
arc·sec)
110 µrad
(22.7
arc·sec)
Yaw
60 µrad
(12.4
arc·sec)
70 µrad
(14.4
arc·sec)
80 µrad
(16.5
arc·sec)
90 µrad
(18.6
arc·sec)
110 µrad
(22.7
arc·sec)
Ball Screw Lead 5 mm/rev
Maximum Speed (4) 220 mm/s 220 mm/s 220 mm/s 220 mm/s 140 mm/s
Maximum Acceleration (4) Function of motor, amplifier, payload, and maximum axial load
Load Capacity (5)
Horizontal 100 kg
Vertical (Axial) 60 kg
Side 100 kg
Moving Mass
(with tabletop)
SL 7.3 kg
SLE 7.5 kg
Stage Mass
(no motor)
SL 26.9 kg 29.2 kg 31.5 kg 36.2 kg 40.9 kg
SLE 27.8 kg 30.2 kg 32.6 kg 37.5 kg 42.3 kg
Material Anodized Aluminum
Mean Time Before Failure (MTBF) 20,000 Hours
1. Certified with -PL1 and -PL2 option.
2. Achieved with Aerotech rotary motor with amplified sine encoder.
3. Achieved with Aerotech rotary motor with 2500 counts/rev digital encoder.
4. Requires the selection of an applicable amplifier with sufficient voltage and current.
5. Axis orientation for on-axis loading is listed.
6. Specifications are for single-axis systems measured 25 mm above the tabletop; performance of multi-axis system
depend upon the payload and workpoint. Consult the Aerotech factory for multi-axis or non-standard applications.
7. Specifications listed are non-foldback kit options. Contact the factory for specifications when a foldback kit (-FBx) is used.
PRO225SL/SLE Hardware Manual
20 www.aerotech.com
