Aerus LUX LEGACY User manual

947-1594 EA-02555
FOR HOUSEHOLD USE
BEFORE OPERATING YOUR VACUUM, PLEASE READ THESE INSTRUCTIONS CAREFULLY.
Upright Vacuum Cleaner
for floors and carpets

2
Important Safety Instructions
When using an electrical appliance, basic precautions should always be taken.
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire, electrical shock or injury:
•U
se only as described in this manual.
•U
se only manufacturer's recommended attachments.
•T
urn off appliance before connecting or disconnecting hose or power attachments.
•D
o not use if hose is damaged,cut,or punctured.Avoid vacuuming sharp objects.
•Do not use without filter bag and/or exhaust afterfilter in place.
•Do not put any object into openings. Do not use with any opening blocked.Keep free of dust, lint, hair, or other materials
that may reduce airflow.
•D
o not handle plug or appliance with wet hands.
•Do not allow to be used as a toy.
•Do not allow appliance to be operated by or near children.
•U
se extra care when cleaning on stairs.
•Do not use outdoors or on wet surfaces.
•Do not use to vacuum flammable or combustible liquids such as gasoline.Do not use in areas where such liquids may
be present.
•Do not vacuum anything that is burning or smoking,such as cigarettes,matches,or hot ashes.
•Keep hair,loose clothing,fingers,and all parts of body away from openings and moving parts.
•D
o not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
•Do not change the plug in any way. Do not use adapters.To reduce risk of electrical shock, this appliance has a polarized
plug.This plug will fit in an electrical outlet only one way. If it does not fit, contact a qualified electrician to install the
proper outlet.
•Turn off all controls before unplugging.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•H
old plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
•Unplug before connecting non-electrical mechanical accessories.
•Do not use with damaged cord or plug.
•D
o not pull or carry by cord, use cord as a handle,close door on cord, or pull cord around sharp edges or corners.
Do not run appliance over cord. Keep cord away from heated surfaces.
•Do not attempt to service this unit.Return appliance to an authorized Aerus center if it is not working properly, has been
dropped, damaged, left outdoors, or dropped into water.
Save These Instructions

3
3
5
7
10
9
4
12
13
8
11
1
2
6
15
14
Welcome to the Aerus World of
E x c e l l e n c e !
1Combination Cord Cleat/Cord Release
2Handle
3Bag Compartment Release Button
4Power Cord
5Handle Mounting Screw
6Carry Handle
7Lower Cord Wrap
8Reset Button
9Accessory Receptacle
10 Bulkhead
11 Control Switch
12 Accessory Hose Port
13 Bag Change Indicator
14 Bag Compartment Lid
15 Exhaust Afterfilter Housing Door
Your new Aerus Lux® Legacy has been designed and built
to provide you with the best in cleaning power, conven-
ience and durability.
With its powerful, two-motor cleaning system, light weight
and maneuverability, this deluxe upright will provide you
with years of easy and trouble-free vacuum cleaning.
Used with a variety of optional attachments, your Aerus
Lux® Legacy becomes a complete home cleaning system,
able to handle everything from big cleaning chores to
quick tidying.
The following pages are designed to answer questions
concerning the use of your Aerus Lux® Legacy.For addi-
tional information regarding this or any of our fine products
please contact your local Aerus representative; or call Aerus
customer service toll-free at:
1-800-243-9078 (in the U.S.)
1-800-668-0763 (in Canada)
FEATURES
Fill In and Save
Locate the serial number of your new upright vacuum cleaner behind the handle, above the recessed electrical receptacle.
Write it here and retain for future reference.
Serial No. _____________________________________________________________________________
Model No. ____________________________________________________________________________
Date of Purchase ______________________________________________________________________

4

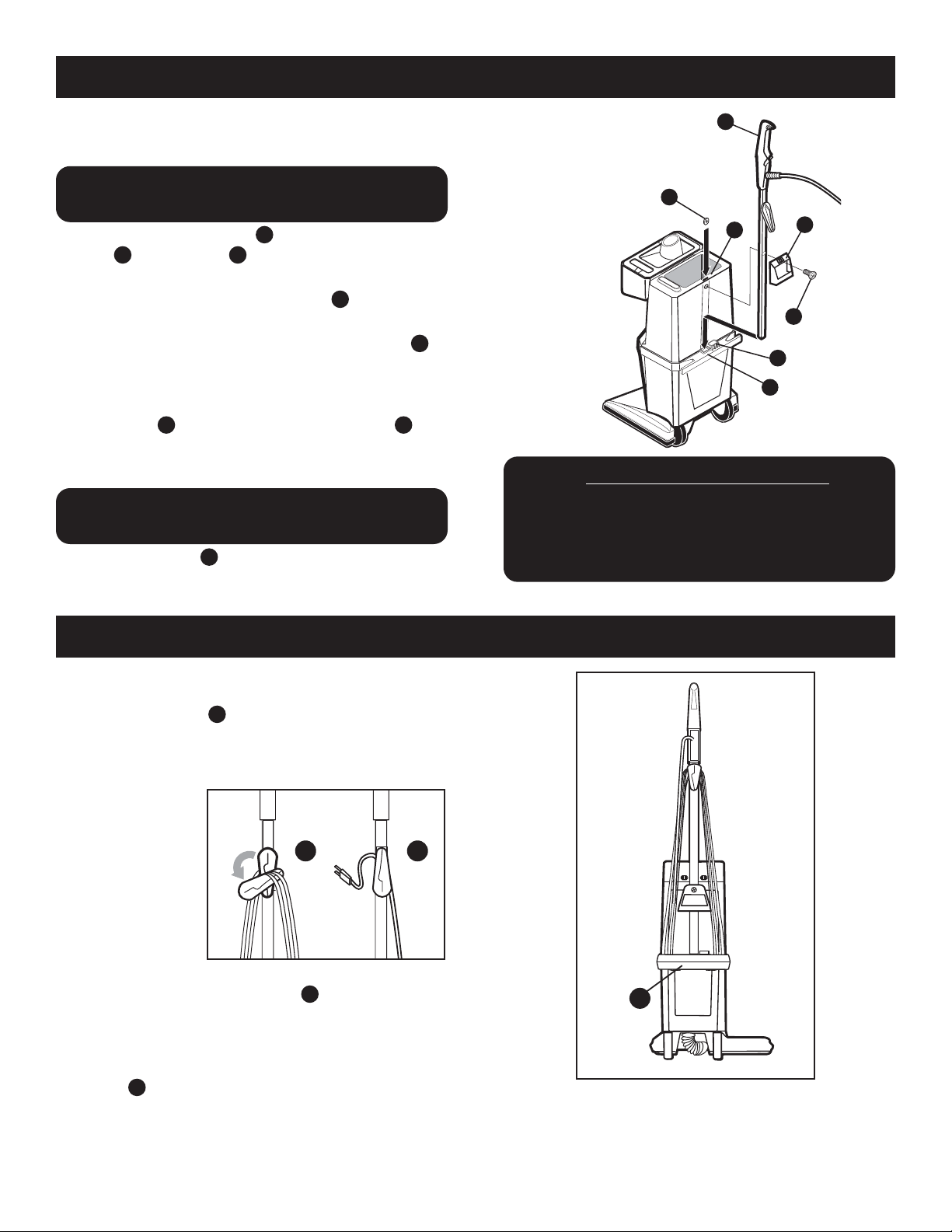

The operating handle of your new Lux® Legacy can
easily be attached to your cleaner as follows:
CAUTION: Be sure unit is NOT plugged in
before assembling handle.
•Locate the handle assembly . Remove the mounting
screw and nut plate from the handle.
•Open the cleaner bag compartment lid, remove the filter
bag. Place the nut plate into the pocket inside the bag
compartment as shown.
•Fit the end of the handle into the handle receptacle
IMPORTANT: Press down firmly when plugging handle
into the receptacle.
•Hold the handle against the bag compartment, attach the
carry handle and thread the mounting screw
through the handles into the nut plate.
•Tighten the mounting screw securely using a screwdriver.
NOTE: The handle must be properly inserted into the
receptacle for the screw to engage the nut plate(2).
•The accessory plug is an electrical connection for
powered accessories such as the Sidekick®.
NOTE: This appliance has a polarized plug (one
blade is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
5
67
4
3
26
1
1
2
3
6
5
4
7
HANDLE ASSEMBLY
Your cleaner includes a Combination Cord Cleat/Cord
Holder: To remove the cord rotate the cord cleat until the
power cord is released . Remove the cord from the lower
cord wrap. Connect the cord plug into a 120V/60Hz
power supply.
As an additional
feature the cord
cleat serves as a
cord holder while
the cleaner is in use.
Rotate the cord
cleat until it snaps
into the "Release"
position, the top
portion of the cord
cleat forms a cord
holder. Snap the cord into the holder and the cord will
be held out of the way while you vacuum.
To store the cord: Rotate the cord cleat into the "Storage"
position. Wrap the cord around the cord cleat and the lower
cord wrap . Snap the end of the cord plug over the cord
for secure storage.
C
B
A
POWER CORD STORAGE
K
A B
C

If an object becomes caught in the rotating agitator brush,
the brush motor will automatically shut off. This automatic
shut-off protects your cleaner from overheating and
enables you to remove the caught object.
•Turn the cleaner OFF.
•Unplug the cleaner from the wall outlet.
•Place the cleaner on its side or back and gently remove
the caught object from the agitator brush area .
•Replug the electric cord, and press the RESET button on
the base of the cleaner as shown .
•Switch the cleaner on to continue vacuuming.
HINT: Inspect the rotating brush occasionally and
remove any debris wrapped around the brush.
I
H
5
WARNING:Electric shock could occur if used
outdoors or on wet surfaces. Do not operate your
cleaner in the presence of explosive or flammable
material or fumes.
Plug cord into a standard 120 V. A.C. outlet. Be sure unit
switch is in the OFF position.
The control switch has three positions: 0FF (O),
FLOOR (I),and CARPET (II).
OAlways set the switch to OFF (0) when the cleaner is
not in use.
ISet the switch to FLOOR (I) to stop the rotating
brush, using the powerful air flow alone to clean
hard floors, delicate antique rugs and for above-the-
floor cleaning.
II Set the switch to CARPET (II) for deep cleaning rugs
and carpets.
The cleaner automatically locks in the upright position.
To release the handle, place foot lightly on the base of
the machine and gently pull operating handle back-
wards. Once the lock is disengaged, the handle will
move up and down freely as you clean.
If the brush does not rotate when switch is set to CAR-
PET (II),press the RESET button (F) located on the base
of the cleaner. Do not pull on cord to unplug unit.
Carefully grasp plug and pull from outlet.
The upright position should be used when carrying or
storing the cleaner.Your cleaner will roll easily from
room to room, over carpets and sills, when you lock the
handle and tilt the machine onto its rear wheels.
G
F
E
D
BASIC OPERATION
Reset
AUTOMATIC SHUT-OFF FOR CAUGHT OBJECTS
Reset
D E
F G
H
I

6
For best control and ease of maneuverability, always keep
one hand on vacuum cleaner handle while using above-
the-floor attachments.The cleaner will roll easily while the
machine is locked in the upright position and tilted onto its
rear wheels .
After completing above-the-floor cleaning, remove hose
and close the adapter access plug. When closing plug, be
certain that all plug edges are firmly sealed .
To reduce suction when cleaning curtains and light
draperies, open suction control valve on hose handle .
Combination dusting brush/upholstery tool : May be
attached directly to the hose handle or wand. Twist slightly
to secure. Use the brush end to clean hard surfaces such as
end tables. Reverse the tool to clean upholstery or fabrics.
You may adjust the wings to the contour of your furniture.
For narrow, hard to reach areas, the crevice nozzle may be
used on the wand or directly on the hose handle .
Slip the handle end of the flexible hose into the flared end
of the wand .
For longer reach, assemble the two lightweight wands as
shown .
R
Q
P
O
N
M
L
ABOVE-THE-FLOOR CLEANING
TIPS FOR ABOVE-THE-FLOOR CLEANING
To use your above-the-floor attachments
•Turn control switch to "OFF" and be certain cleaner is
locked in the upright position.
•Lift open the adapter access plug located on top of
the bag compartment lid. Insert hose as shown and firmly
push into position, twisting slightly as you push. Hose is in
proper position when it can go in no further. Insert acces-
sory plug into accessory receptacle located beside
handle receptacle.
CAUTION:Your vacuum cleaner may be imbalanced
while using above the floor attachments and prone
to fall. Be sure and support your cleaner by either
holding the handle with a free hand or leaning the
handle assembly against a wall for extra support (L).
•Plug vacuum cleaner power cord into electrical receptacle.
•Turn control switch to "FLOOR" position to begin cleaning.
NOTE: The Full Bag Indicator does not work when
the accessory hose is attached.
CAUTION: When using above-the-floor cleaning
attachments, the vacuum cleaner control switch
must be in the "FLOOR" position. Using the "CARPET"
position while cleaning above-the-floor may cause
unnecessary wear and tear to carpets.
K
J
➤
O
L M
N
P
R
Q
J
K

7
USING THE SIDEKICK®
To further your cleaning capabilities, Aerus gives you the
newest advancement in the cleaning world. The Sidekick®
accessory is a revolutionary new tool powered by its own
motor that combines superior cleaning action with easy
maneuverability. The Sidekick®has a trim design that
allows cleaning hard-to-reach areas like stairs,
car interiors, bathrooms, upholstery and
mattresses, easier than ever before.
POWER ON/OFF
The Sidekick®has two positions:
• “I” turns the Sidekick®ON.
•“O”turns the Sidekick®OFF.
CAUTION: Always turn cleaner OFF before
connecting or disconnecting Sidekick®.
SIDEKICK®ASSEMBLY
To attach the Sidekick®:
•Turn cleaner OFF and unplug
cord from outlet.
•Disconnect wand or power
nozzle attachment from hose.
•Turn the Sidekick®switch to
the OFF position.
•Align the Sidekick®and hose
connections and slip the
Sidekick®onto handgrip until it snaps into place.
•Plug power cord into outlet, turn machine ON,turn the
Sidekick®ON and resume cleaning.
To remove the Sidekick®:
•Turn both the Sidekick®and the cleaner OFF, then unplug
power cord.
•Press release and detach the Sidekick®from handgrip.
CAUGHT OBJECTS
If an object becomes caught in the Sidekick®,immediately
turn the Sidekick®OFF.
To restart, follow these instructions:
•Turn cleaner OFF and unplug power cord from wall outlet.
•Remove caught object from the Sidekick®.
-If the object is caught in the revolving brush turn the
Sidekick®over and gently remove the caught object from
the brush.
-If object is caught further in the unit, detach the handgrip
and remove the object through the rear of the unit.
-If obstruction cannot be cleared, take to an authorized
Aerus location.
•After obstructions are cleared, plug power cord into outlet,
turn cleaner ON,turn the Sidekick®ON and resume cleaning.
CAUTION: To prevent the Sidekick®motor from over-
heating, do not use if vacuum cleaner motor shuts OFF.
WARNING: Keep hands away from the Sidekick®
brush while in use and when turning cleaner
and the Sidekick®ON or OFF.
S
ACCESSORIES CADDY
The Accessories Caddy is a compact and convenient way
to organize and store your accessories.This lightweight tote
will hold all of your Aerus above-the-floor tools including
the amazing Sidekick®.
T
T
S

8

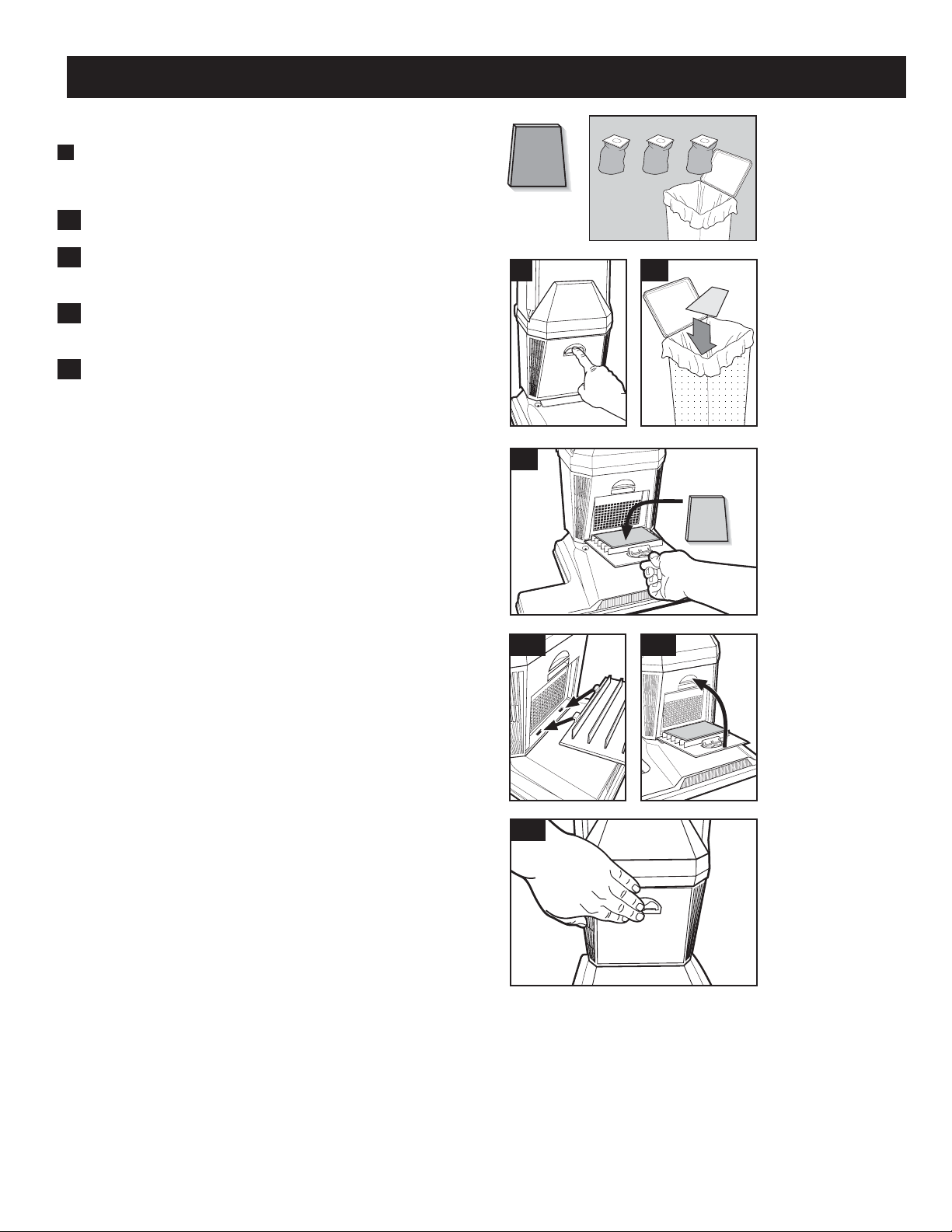

TO CHANGE FILTER BAGS
CLEANING THE AFTER BAG FILTER
Protect your Warranty! Always use genuine Aerus™ high-
efficiency, four-ply, self-sealing filter bags. Used exclusively,
Aerus™ filter bags will promote longer motor life and more
efficient cleaner operation.
NOTE: This cleaner is equipped with a device that
prevents operation without a filter bag properly
installed. Should you attempt to operate the cleaner
without a filter bag the unit will not start. Be sure the
filter bag is in place before operating the machine.
Changing bags is quick and easy:
•Press and hold either button on the back of the bag
compartment lid as you open the lid.
•As the cover opens, the filter bag seals itself for removal
.Throw the old bag away - never attempt to reuse
filter bags .
•Install a new filter bag and close lid.
Bag Change Indicator: Located on the top of the bag cover,
the indicator monitors air flow through the filter bag
and cleaner. As the bag fills, air flow is reduced. As air flow is
reduced, the indicator will gradually move until the window
appears totaly red .When this occurs, stop vacuuming
and replace your filter bag.
Remember that the indicator monitors air flow in the clean-
er. When vacuuming fine particles such as powder and soot
the bag may not seem "Full," however, the air flow has been
greatly reduced and a bag change is required for peak
cleaning performance.
Note: The Bag Change Indicator does not work
while the accessory hose is attached.
W
V
U2
U1
U
This upright cleaner is supplied with an after bag filter
that helps protect the motor from foreign objects that may
accidently be dropped into the bag compartment. This
foam filter is in the bottom of the housing directly under
the filter bag . The after bag filter should be washed out
after every sixth bag change.To do this, carefully lift the
filter by the edges and wash in a warm mild detergent
solution .
NOTE: Make certain the filter has dried completely
before replacing it in the vacuum.
Y
X
XY
U1
W
U2
V
U

9
Replace the exhaust afterfilter after every 3 filter bags.
To access the exhaust filter, depress latch button on
front of afterfilter door and remove door by swinging
it outward.
Remove used afterfilter from door ribs and discard.
Place new afterfilter on door. Afterfilter is trapezoidal
in shape and will only fit over vents one way.
Insert posts on bottom of filter door into appropriate
holes and close door.
Firmly press on the latch button to insure a positive
lock of the door to the afterfilter housing.
DD
CC
BB
AA
Z
123
=
EXHAUST AFTERFILTER REPLACEMENT
ZAA
BB
DD
CC1 CC2

10
SERVICE
For prompt service, call the nearest Aerus location listed in your
telephone directory.Your authorized Aerus location offers you
the best in service both during and after the warranty period,
as well as genuine Aerus™ parts and supplies.
If you have further questions, contact Aerus Customer Service
at 1-800-243-9078 in the U.S.A. and 1-800-668-0763 in
Canada.Or visit our website at www.aerusonline.com.
Every effort is made to ensure that customers receive an up-to-
date instruction manual on the use of Aerus™ products;
however, from time to time, modifications to our products may
without notice make the information contained herein subject
to alteration.
All power units of the Aerus™ Home Care System are certified
by the Canadian Standards Association and listed by
Underwriters Laboratories Incorporated.

11
FULL 10/5 YEAR WARRANTY
What is Covered by this Warranty - Aerus warrants its products to the consumer, subject to the conditions below, against
defects in workmanship or material, provided that the products are returned to an authorized Aerus location within the following
time periods: Lux® Legacy™ upright vacuum cleaner, motors and fan unit - within 10 years of date of purchase. Attachments
and accessories - within 5 years of date of purchase.
How to Obtain Warranty Service - Upon contacting and returning, at consumer’s sole cost and expense, the products with
proof of purchase (including purchase date) to an Aerus location within the above time periods, Aerus will repair or replace and
return the product without charge within a reasonable period of time, subject to the conditions in the above paragraph, if its
examination shall disclose any part to be defective in workmanship or material. If Aerus, in its discretion, is unable to repair the
product after a reasonable number of attempts, Aerus will provide either a refund of the purchase price or a replacement unit, at
the company’s option.
What is Not Covered by this Warranty - This product is intended for household use only. Ordinary wear and tear shall not be
considered a defect in workmanship or material.These warranties do not apply for loss or damage caused by accident, fire, abuse,
misuse,modification, misapplication, commercial use,or by any repairs other than those provided by an authorized Aerus™ Service
Center. The warranty with respect to the motor and fan unit is null and void if it is damaged as a result of vacuuming damp or wet
surfaces, or dirt leakage through a filter bag other than an Aerus™ filter bag.
Exclusion of Other Warranties and Conditions - EXCEPT AS PROVIDED HEREIN, AERUS MAKES NO REPRESENTATION OR
WARRANTY OF ANY KIND. ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Limitation of Liability for Special, Incidental or Consequential Damages - AERUS SHALL NOT IN ANY CASE BE LIABLE FOR
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM BREACH OF EXPRESSED OR IMPLIED WARRANTIES,
CONDITIONS, GUARANTEES OR REPRESENTATIONS, BREACH OF CONTRACT, NEGLIGENCE OR ANY OTHER LEGAL THEORY. Such
excluded damages include, but are not limited to, loss of profits or revenue and loss of the use of the products.
For U.S. Application Only - This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.Some states do not allow limitations on warranties, or on remedies for breach.In such states, the above limitations may not
apply to you.
For Canadian Application Only - Exclusion of Subsequent Owners:Except as otherwise required by applicable legislation, this
warranty is not transferable. This warranty gives you specific legal rights and you may also have other rights which vary from
province to province. Some provinces and territories do not allow limitations on warranties, or on remedies for breach. In such
provinces or territories, the above limitations may not apply to you.
If any provision of this warranty or part thereof is held by a court of competent jurisdiction to be invalid, illegal or unenforceable,
the validity, legality and enforceability of the remaining provisions or parts thereof will not in any way be affected or impaired
within the jurisdiction of that court. This entire warranty shall continue to be valid, legal and enforceable in any jurisdiction where
a similar determination has not been made.

12
Aerus LLC 5956 Sherry Lane, Suite 1500, Dallas, Texas 75225
Aerus Canada, Inc. 3480 Laird Road, Suite 2-7, Mississauga (Ontario) L5L 5Y4
www.aerusonline.com
Aerus™ is a trademark owned by Aerus Concepts, L.P. Electrolux®and Lux®are registered trademarks of Aktiebolaget Electrolux and are licensed for use by Aerus LLC, Aerus Canada, Inc. and their affiliates.
For information regarding the use
of this product please call our
toll-free hotline:
1-800-243-9078 (in U.S.)
1-800-668-0763 (in Canada)
Pour toute question sur l’utilisation de
cet appareil, appeler sans frais :
le 1 800 243-9078 (aux É.-U.)
ou le 1 800 668-0763 (au Canada)
Si desea información relacionada con
el uso de este producto, llame a nuestra línea
directa sin costo:
1-800-243-9078 (en EE.UU.)
1-800-668-0763 (en Canadá)
The Aerus Story
A fresh approach to a familiar idea.
CLEANER AIR THEN – ELECTROLUX
Since 1924, the name Electrolux has been synonymous
with the best floor care in homes throughout North
America. When it was introduced, its unique design became
the standard of excellence almost overnight.
Electrolux, often referred to simply as Lux, also presented a
higher measure of customer service. Loyal customers
have become repeat customers not only because we have
the best products, but also because we follow up with the
best customer care. That is why Electrolux/Lux products
have been proudly owned and serviced by over 50 million
households and businesses.
And from the beginning,
Electrolux customers have
always been left with more
than just clean floors. Their
homes were left with
cleaner air. Even 80 years
ago, our products were
helping to eliminate household dust, mold spores, pollen
and pet dander. When you think about it, we’ve been
cleaning the air in people’s homes for a very long time.
CLEANER AIR TOMORROW – AERUS
After being inside millions of homes and talking with
millions of people, we learned quite a bit about how
cleaner air creates a healthy living environment. This
insight developed into an opportunity for us to evolve
from Electrolux to our new company name Aerus. Based
on the Greek word for “air,” the name Aerus illustrates
our mission to not only make homes cleaner, but to help
make the lives of our customers better. Built on the
foundation of our Electrolux heritage, Aerus is now
positioned to help families live life well.
HEALTHIER LIVING FOREVER
Aerus doesn't just sell products and services to make
homes cleaner. We are helping people take better care
of their families. We are creating home environments
that are safer, healthier and more inviting. Working
with our personable and knowledgeable direct selling
team, our customers will learn about new ways of
living better. Our
mission is to
affect lives, not
just homes.
Along with our
innovative new
products, we continue to offer our high-quality floor
care products to deliver solutions that you want and
need to protect your home. Aerus is focused on
building upon that heritage of premium products
featuring effective, cutting edge technologies in the
indoor wellness space.
Welcome to the next generation of quality products.
Aerus is committed to helping you live life well,
building on over 8 decades of expertise, service, and
trust under our Electrolux and Lux heritage.
