AETEK H51-044-91-250 User manual

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 150W/250W.
Outdoor L2 Gigabit PoE Switches
Quick Installation Guide
The H51 series is a 4/8 port 10/100/1000BaseT at PoE or PoH/bt switch capable of feeding 15.4/30W or 15.4/30//60/90W
(54V max. per port) power to Power over Ethernet (PoE) devices. It comes with another 2x GbE TP port + 2xGbE SFP port
or 4xGbE SFP port. The switch is capable of a total of 120W/240 Watts PoE power budget.
IMPORTANT:
INTRODUCTION
* 1x PoE switch * 1x Quick Installation Guide * 1x Console cable
* 1x T25 L-wrench, 4x wall anchors
PACKAGE CONTENTS
5. Digital output (relay): ON/OFF, support 24VDC/1A. Digital input: level 0(Low), level 1(High).
Reset button
Task Method SYS LED Behavior Port Status LED Behavior
Reset Press 2 ~ 7 seconds Blinking Green All LEDs Off.
Restore Defaults Press 7 ~ 12 seconds Blinking Green All LEDS On.
P/N:A625012401G

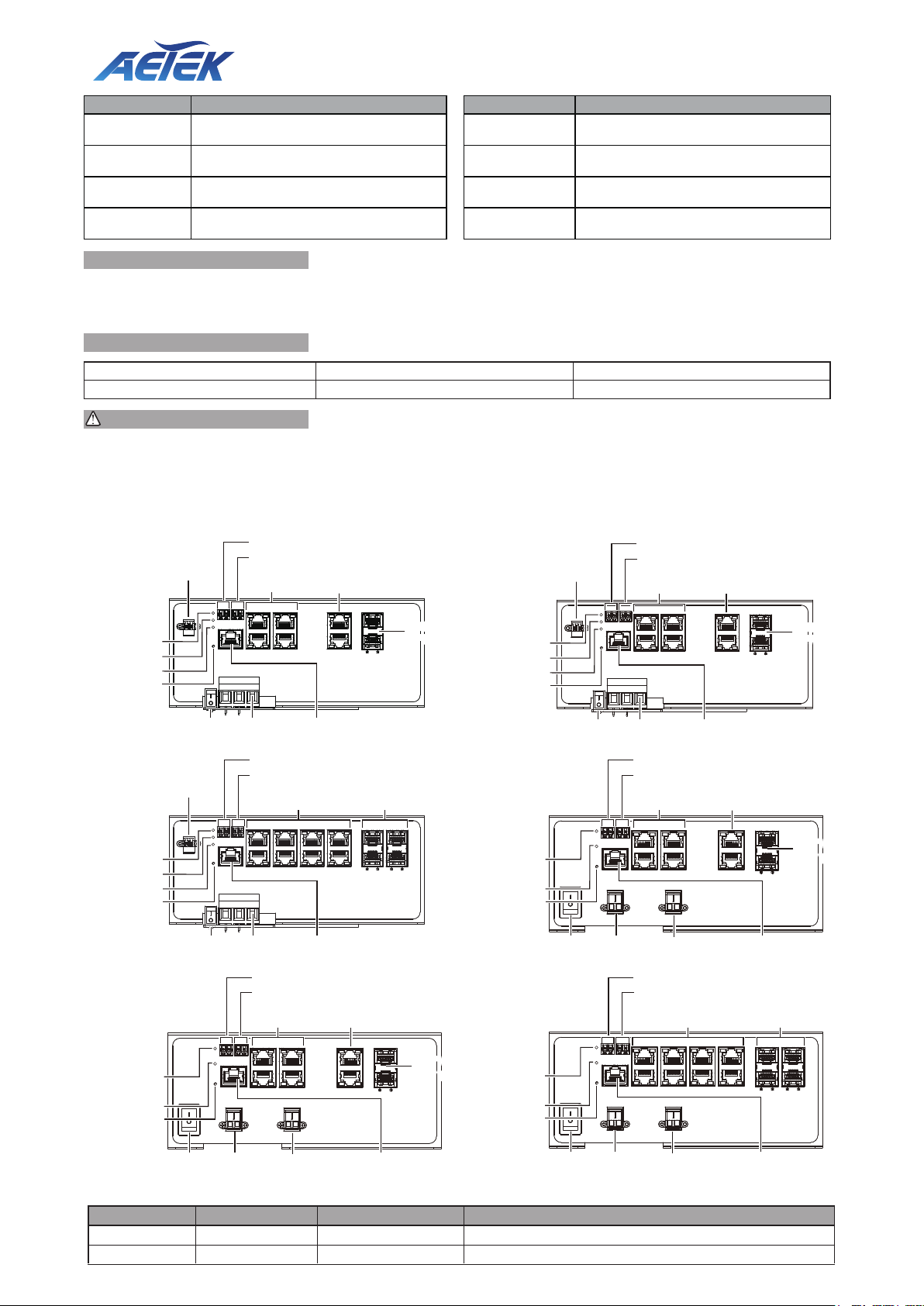

Model Description
H51-044-30-150 4xGbE 30W PoE+2xGbE SFP+
2xGbE RJ45 100-240 VAC Input
H51-044-90-250 4xGbE 90W PoH PoE+2xGbE SFP+
2xGbE RJ45 100-240 VAC Input
H51-084-30-250 8xGbE 30W PoE+4xGbE SFP
100-240 VAC Input
Model Description
H51-044-30-DC 4xGbE 30W PoE+2xGbE SFP+
2xGbE RJ45 12-56 VDC Input
H51-044-90-DC 4xGbE 90W PoH PoE+2xGbE SFP+
2xGbE RJ45 12-56 VDC Input
H51-044-91-250 4xGbE 90W bt PoE+2xGbE SFP+
2xGbE RJ45 100-240 VAC Input H51-044-91-DC 4xGbE 90W bt PoE+2xGbE SFP+
2xGbE RJ45 12-56 VDC Input
H51-084-30-DC 8xGbE 30W PoE+4xGbE SFP
12-56 VDC Input
H51-044-30-150 Digital input
Digital output relay
Console port
Reset button
Power1 LED
Power2 LED
DO LED
10/100/1000
PoE RJ45 ports
48~56VDC Input
100~240VAC
AC on/off switch
H51-044-30-DC Digital input
Digital output relay
Console port
Reset button
Power LED
DO LED
10/100/1000
PoE RJ45 ports
12~56VDC
Input
12~56VDC
Output
DC on/off switch
Console port12~56VDC
Input
12~56VDC
Output
DC on/off switch
H51-084-30-250
100/1000
SFP ports
Digital input
Digital output relay
Console port
Reset button
Power1 LED
Power2 LED
DO LED
10/100/1000
PoE RJ45 ports
48~56VDC Input
100~240VACAC on/off switch
H51-084-30-DC
100/1000
SFP ports
Digital input
Digital output relay
10/100/1000
PoE RJ45 ports
H51-044-90-250
H51-044-91-250 Digital input
Digital output relay
Console port
Reset button
Power1 LED
Power2 LED
DO LED
10/100/1000
PoE RJ45 ports
10/100/1000
RJ45 ports
48~56VDC Input
100~240VAC
AC on/off switch
H51-044-90-DC
H51-044-91-DC
100/1000
SFP ports
100/1000
SFP ports
10/100/1000
RJ45 ports
100/1000
SFP ports
100/1000
SFP ports
10/100/1000
RJ45 ports
100/1000
SFP ports
100/1000
SFP ports
Digital input
Digital output relay
Console port
Reset button
Power LED
DO LED
10/100/1000
PoE RJ45 ports
Reset button
Power LED
DO LED
12~56VDC
Input
12~56VDC
Output
DC on/off switch
10/100/1000
RJ45 ports
100/1000
SFP ports
100/1000
SFP ports

AETEK INC.
6F, No.192-1, Lien-Cheng Rd., Chung-Ho, New TaipeiCity, 235, Taiwan, R.O.C.
|T:[phone]|W:www.aetektec.com|E:[email protected]om
Copyright © 2022 AETEK INC. All rights reserved.
IP Address 192.168.1.1
Subnet Mask 255.255.255.0
User Name admin
Password admin
DEFAULTS
Power LEDs
LED Color State Description
Power1 Green On Powered on correctly.
Off Not receiving power from power1.
Power2 Green On Powered on correctly.
Off Not receiving power from power1.
DO LED
LED Color State Description
System Yellow On DO ON
Off DO OFF
Baud rate 115200
Stop bits 1
Data bits 8
Parity N
Flow control none
Console Port Defaults
Port Status LEDs
LED Color State Description
RJ45 Ports
Up (PoE)
Amber On The port is enabled and supplying power to connected device.
- Off The port has no active connection, or it is not connected to a PoE PD device. Otherwise, the port may
have been disabled through the switch user interface.
RJ45 Ports
Down (LAN)
Green On The port is enabled and established a link to connected device.
- Off The port has no active network connection, or it has no established link to connected device.
Otherwise, the port may have been disabled through the switch user interface.
SFP Ports Green On The port is enabled and established a link to connected device,
Green Blinking
Green Blinking
The port is transmitting/receiving packets.
The port is transmitting/receiving packets.
- Off The port has no active network connection, or it has no established link to connected device.
Otherwise, the port may have been disabled through the switch user interface.
AC Power Cable Spec.
Wire Size 10~18AWG
Wire Strip Length 8mm
8mm
AC Power Cable
DC Power Cable Spec.
Wire Size 10~18AWG
Wire Strip Length 8mm
8mm
DC Power Cable
Outdoor PoE switch:
H51-044-30-150
H51-044-90-250
H51-044-91-250
H51-084-30-250
H51-044-30-DC
H51-044-90-DC
H51-044-91-DC
H51-084-30-DC
3/4” conduit
M8
The cabinet must be grounded using a
ground wire between the ground screw
and earth ground.
DI+
DI-
DO+
DO-
12VDC
Switch
+ -
12V device
+ -
100-240VAC Input
DI/DO Connection Diagram
100-240VAC Input
DI+
DI-
DO+
DO-
Switch
AC or DC
device
12V Relay AC or DC
- -
+ +
AC or DC
Power
12VDC
+ -
DI/DO Connection Diagram w/ AC or DC Relay
