AG SPRAY FSSS-60-12V User manual

Page 1
www.agspray.com
[5194610 (12/22)]

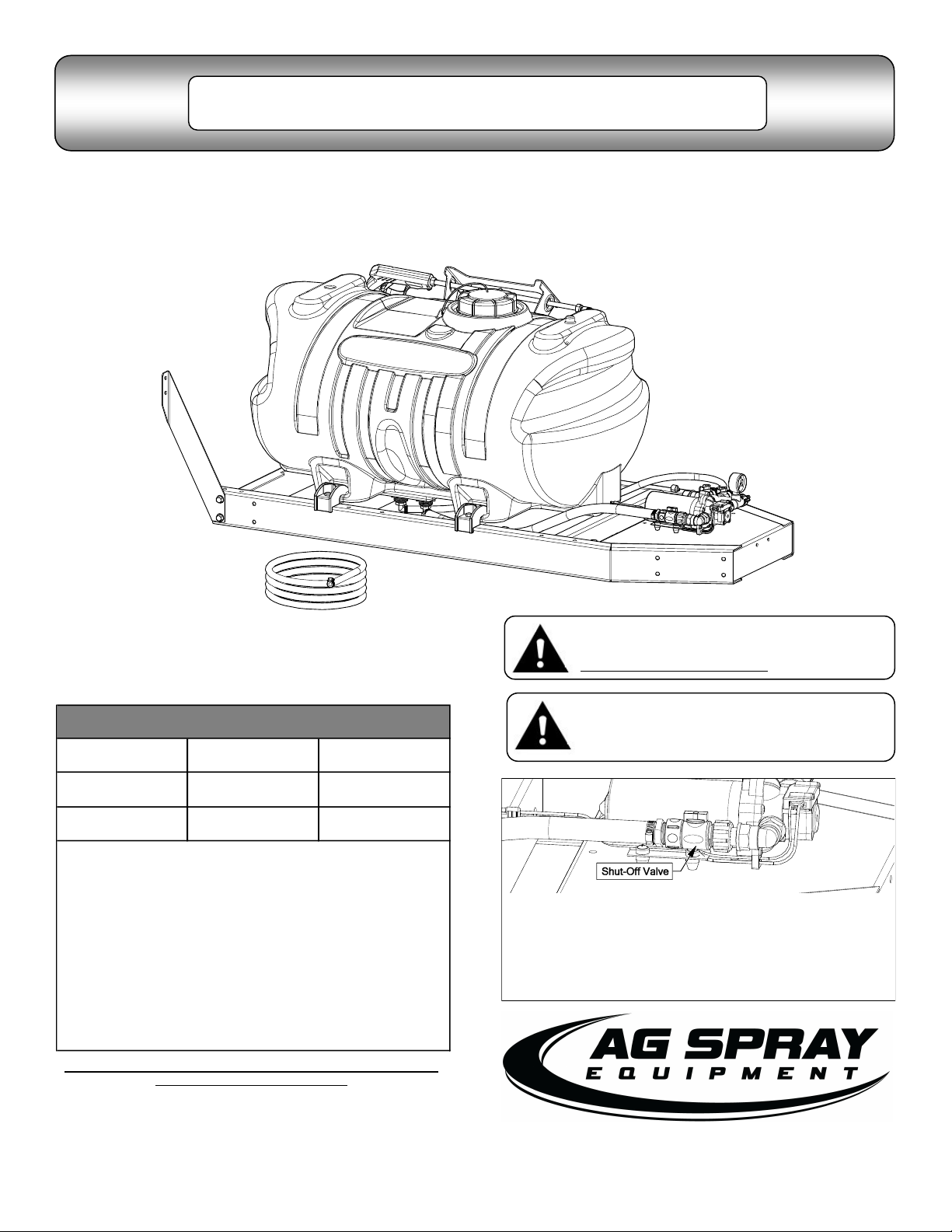

IMPORTANT:
This sprayer comes with an On/Off (shut-off) valve
located on the inlet line, just before the pump. Make
sure the valve is in the “open” position before using
this sprayer.
OWNER’S MANUAL
Model: FSSS-60-12V
(5301445-BLK) (5301445-BLU)
(60 Gallon Skid Sprayer, Boom-Ready)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
skid sprayer.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.
If you should have a question or experience a problem with
your Ag Spray Product: Visit our website @ www.agspray.com or
call the Toll free number above. Our technical support
representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
BAKERSFIELD, CA
COLUMBUS, NE
DOTHAN, AL
877-724-2236
800-274-1025
800-227-4098
FARGO, ND
HOPKINSVILLE, KY
MANKATO, MN
701-280-2862
800-637-7172
507-388-6295
NEWTON, KS
PASCO, WA
TEMPE, AZ
800-394-7662
800-634-2026
877-974-7166
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
WARNING: Cancer and Reproducve Harm.
www.P65Warnings.ca.gov
WARNING: To reduce the risk of injury, the
user must read and understand the operator’s
manual before using this product.

Page 2
Contents
Technical Specicaons and Assembly Instrucons ..............2Troubleshoong.................................................................5
Operaon ...............................................................................3Sprayer Exploded Views/Part List .................................6 - 7
Maintenance, Tank Care and Winter Storage ........................4Sprayer Dimensions ...........................................................7

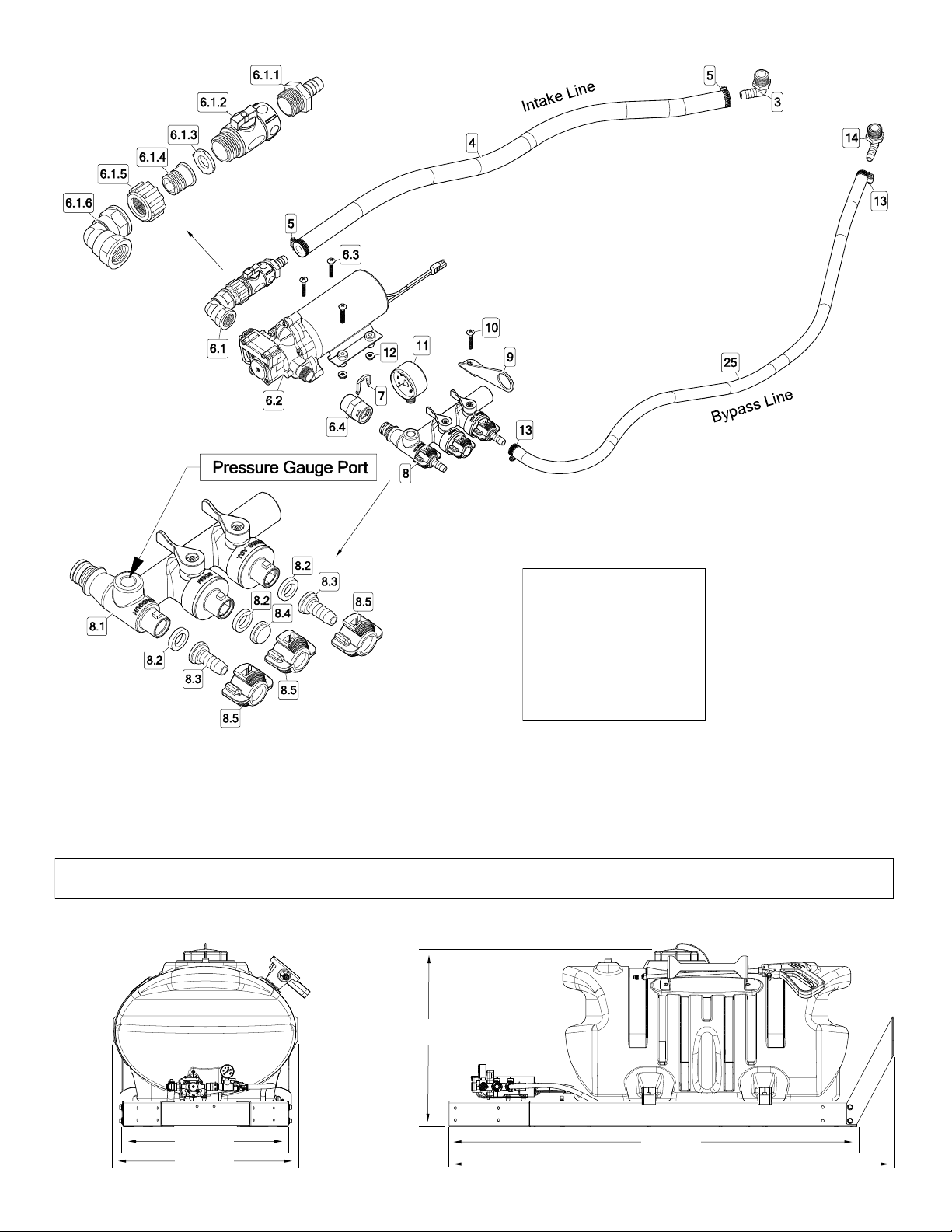

Pump Exploded View/Parts List .............................................5Warranty............................................................................8
Model: FSSS-60-12V
(5301445-BLK) (5301445-BLU)
(60 Gallon Skid Sprayer, Boom-Ready)
Technical Specicaons
• 60 Gallon Corrosion-Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump, 4.0 GPM, 45 PSI
• Pistol Grip Handgun
• 15 Ft. Handgun Hose
• Oponal Trailer & Boom Kits Available
CAUTION: When fully lled with water, this sprayer will weigh approx. 655 Lbs.
Always check the vehicle load rang before using this sprayer. Do not exceed the recommended rang.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~IMPORTANT~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue
before lling with water to test.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~IMPORTANT~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
It is VERY important to test this sprayer with plain water before actual spraying is aempted. This will enable you to
familiarize yourself with the sprayer and check for leaks without the possibility of losing any expensive chemicals.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~WARNING~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Read and Understand the Owner’s Manual before using this sprayer. Test and use in accordance to instrucons.
Read and Follow chemical label instrucons and wear protecve gear when lling, using, cleaning and servicing the
sprayer.
Exercise Cauon in vehicle handling when towing/hauling a lled sprayer to avoid loss of control or overturning.
Keep Sprayer and Spray materials away from other people, children and pets.
Do Not Turn on Power to the sprayer, unl ready to spray in order to avoid unintenonal spray release.
Do Not Use on steep slopes. A full sprayer could cause loss of control or overturn sprayer and vehicle.
Always operate up and down a slope, never across the face of a slope.
Keep all movement on slopes slow and gradual. Do not make sudden changes in speed, direcons or turning. Do not start or stop
suddenly when going uphill or downhill.
Stop on level ground, set the parking brake and shut o engine before leaving the operator’s posion for any reason.
Keep all parts in good condion and properly installed. Fix damaged or worn parts immediately.
Cauon should be taken when towing and/or using any sprayer. This sprayer combined with the weight distribuon, turning radius
and speed of vehicle can result in damage to vehicle and/or sprayer or severe injury or death, if not used properly.
Improper use of this sprayer or handling of chemicals could result in serious injury or illness, or could cause damage to the envi-
ronment.
Assembly Instrucons
The sprayer comes mostly assembled from the factory.
• The only assembly necessary is to install the pressure gauge. Using pipe sealant or plumber’s
Teon tape, hand ghten securely. **Do Not Over-Tighten. **
• Make sure all hose clamps are ght before tesng or spraying for the rst me.
• One requirement will be to hook up the baery leads to a fully charged 12 Volt baery.
• Also, the boom mount brackets will need to be aached with the hardware provided, if you’re
going to aach a boom.
**The Sprayer is now ready to TEST w/plain water before actual use**

Page 3
IMPORTANT: Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank
residue before lling with water to test.
Tesng the Sprayer
NOTE:
It is VERY important to test this sprayer with plain water before actual spraying is aempted. This will enable you to check the
sprayer for leaks without the possibility of losing any expensive chemicals.
Fill the tank about 1/2 full with plain water. Open the sucon line valve (located next to the
pump).
There are two valves on the manifold. One is a shut o for a potenal boom and the other is
used to bypass soluon back into the tank, thus decreasing the overall system’s pressure. You
may now start the sprayer. If you’ve connected a boom assembly, inially have the boom line
open (Detail A), so that the air in the line will be purged and soluon will begin spraying from
the ps of the boom. Check the enre system for leaks.
Adjust the pressure by turning the “ON/OFF” valve lever on the pressure adjust valve (Detail
B). Make sure your paern is sucient. You may down-pressure the system by ‘bypassing’
soluon back into the tank. This is achieved by opening the pressure adjust valve. Regulang
pressure is done in this manner.
Operaon
The pumping system draws soluon from the tank, through the strainer and to the pump. The
pump forces the soluon under pressure to the handgun or boom nozzles, if applicable.
Fill the tank part way with water and then add the desired amount of chemical to be sprayed.
Finish lling tank to proper level.
Only ll the tank with what you’re going to spray in a day, never leave chemicals sit in tank.
Connect the lead wire to a fully charged 12 volt baery. You may use either a stand-alone
baery or the baery on your towing vehicle. Connect to the posive (red) terminal rst, then
connect to the negave (black) terminal. Then connect the end of the lead wire to the end of
the pump. When disconnecng, disconnect the end of the pump wire from the lead wire, then
disconnect the negave (black) connecon and nally the posive (red) connecon. Lead wire
has an On/O switch to acvate the pump. “-” is on and “O” is o. Turn the pump on by
depressing the “-” side of the rocker switch.
The pump is equipped with a pressure switch that is pre-set at the factory to shut the pump
o when all discharges are closed.
The pump will turn back on when one of the following acons occurs:
 Boom valve is opened to broadcast spray with the boom, if applicable.
 Pressure adjust valve is opened to re-circulate soluon back into the tank.
Inially begin spraying by closing the ‘Pressure Adjust’ valve and opening the boom line valve, if applicable (Detail A). This will
enable the air in the line to be eliminated (purged) through all the ps, while building pressure. When everything tests all right (no
leaks and good pressure), add the desired chemicals to the mixture and water combinaon and start your spraying operaon.
Adjust the pressure and spray as you did in the tesng procedure.
Condions of weather and terrain must be considered when seng the sprayer.
Do not spray on windy days. Protecve clothing must be worn in some cases.
Be sure to read the chemical label(s) before applicaon!
For the safest and most ecient chemical applicaon with a boom, you will need to calibrate your sprayer following the manual
supplied with the boom to determine pressure to be used and speed charts. Once you have determined the proper speed and
pressure sengs, you will need to consult your chemical label for the amount of chemical to be added to the tank. Read the enre
label.
Manifold Valves CLOSED
Detail A
Detail B

Page 4
Maintenance During/Aer Spraying
Periodically check the strainer and clean the screen on your intake line.
If sprayer becomes clogged during use, disconnue use immediately. DO NOT aempt to service while chemicals are in the sprayer
and power is connected.
Proper care and maintenance will prolong the life of your sprayer.
Aer use, drain the tank and store or dispose of chemical properly. Fill the sprayer half way with clean water. Start the pump and
allow the water to pump through the enre plumbing system and nozzles. Drain and then rell half full, add the recommended
amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may subs-
tute dish soap for this step, about 1-2 oz. per gallon). But a neutralizer/cleaner should be used to thoroughly clean the system.
Turn pump on and circulate through system for 15 minutes and then spray out through boom and handgun nozzles. Rell sprayer
half way with clean water and repeat. Follow the chemical manufacturer’s disposal instrucons of all wash or rinsing water.
If boom (if applicable) or handgun nozzles need cleaning, remove them from the sprayer and soak in warm soapy water. Clean with
a so bristled brush or toothpick if necessary. Never use a metal object. Even the slightest damage can change the ow rate and
spray distribuon. Water rinse and dry the ps before storing.
WARNING: Some chemicals will damage the pump valves if allowed to soak untreated for a length of me! ALWAYS ush the
pump as instructed aer each use. DO NOT allow chemicals to sit in the pump for extended mes of idleness.
Follow the chemical manufacturer’s instrucons on disposal of all waste water from the sprayer.
Tank Care & Maintenance
Warning: Do not use the tank as a container for fuel oils, kerosene, gasoline or any other petroleum disllate product. All polyole-
ns are soened and permeated by such products. In an enclosed area the vaporizaon of these materials from the outside
surface of the tank could create a dangerous condion.
The tank should not be used as a pressure vessel nor used with chemicals or soluons having a weight of more than 12 pounds per
gallon.
Store the tank in a dry dark place when not in use. Storage out of sunlight will prolong the life of the tank.
Do not drop, strike or kick the tank, especially at low temperatures. Tanks become brile and are subject to cracking at tempera-
tures below 20° Fahrenheit.
Always ush the tank with water and a neutralizing agent at the end of each use, to prevent contaminaon of soluons.
Winter Storage
Prepare the sprayer for end-of-season storage by running RV anfreeze through the system. This will keep internal parts lubricat-
ed, protect against corrosion and keep the unit from freezing. Note: RV anfreeze is non-toxic and biodegradable and generally
safer for the environment than automove anfreeze.
Before storing your sprayer for winter or long term storage, thoroughly clean and drain it as much as possible. Then pour enough
pink RV anfreeze into the tank so that when the pump is turned on you can pump the anfreeze throughout the enre plumbing
system, including the pressure adjust (bypass) line. Make sure to operate the boom and handgun unl you see pink uid spraying
from the nozzles. Leave any remaining anfreeze in the tank. Before your next usage, rinse the anfreeze from the sprayer with
clean water.
It is nearly impossible to drain all of the water from the sprayer and any trapped water can freeze in cold weather and damage
parts of the sprayer. Pumping the anfreeze through the system will displace the water and help prevent this damage.
Removing from storage: drain the anfreeze. Fill the tank with fresh water and run through the system. Dispose of anfreeze and
ush water proper

Page 5
DO
• Clean and rinse your pump after each use with Fimco Tank
Neutralizer.
• Winterize your pump or sprayer by rinsing, draining and
running RV Antifreeze through it before storing for the winter.
• Use clean water for your spray mixture.
• Store inside a building when not in use.
DON’T
• Use to pump bleach.
• Use to pump petroleum products such as diesel fuel, gaso-
line or kerosene.
• Use to pump chemicals w/petroleum distillates or surfactants.
• Leave pump sit with spray mixture in it for extended periods.
• Use dirty or unfiltered water for spraying.
Check the fuse spray pattern
Check for defective pressure switch
12 Volt Power Source
Discharge hose may be too long
Check for clogged strainer/filter
Check for restriction in discharge line
Check for empty product supply
Check for Low Voltage
Check for leaks in the discharge line
Check for cracks in the pump housing Check for defective pressure switch
Check for air leaks in supply line System has leaks
Check for open bypass valve (if equipped)
Try another 12-Volt battery Check for defective or dirty check valve
Fuse blows:
Improper adjustment of pressure switch
Damaged or defective wiring harness
Defective pressure switch
Check for debris in check valve assembly
Check for defective check valve
Pump surges:
Air trapped in outlet line or pump head
Pump continues
to run:
Low Pressure/
Low Flow:
Check for a clogged strainer
Check for proper voltage
Check for leaks in the discharge line
Excessive voltage
Check for restrictions in the discharge line
Check for debris in intake
Check for debris in nozzle orifice
Check to see if connected to good
Check for leaks in the discharge line
Check for debris in nozzle orifice
Check for Low Voltage
Pump Does Not
Prime
(No Discharge
w/Motor
Running)
Check for clogged strainer/filter
Check for kinked inlet/outlet hoses
Check for empty product supply
Troubleshooting
Pump
will not run:
Check for loose wiring
Low flow may cause pump to surge
Make sure the ON/OFF switch is on
Spray Wand is adjusted to small or fine of a
Check for defective pressure switch
Ref. # Mfg. Part # Description Qty.
1 94-230-56 Pressure Switch Assembly 1
2 94-237-05 Check Valve Assembly 1
3 94-231-30 Upper Housing 1
4 94-232-05 Valve Assembly 1
594-226-17 Drive Assembly 1
Exploded View/Parts List:
SHURo Pump
(Model: 5151066)
Base Plate Grommets (Pkg/4): #5075019
Before Troubleshoong or Aempng to Service the Pump:
 Review Troubleshoong Chart: Do Not aempt to repair unl steps below are followed.
 Personal Protecve Gear: Wear protecve gear when servicing pump.
 Disconnect Power: Disconnect the power to the pump and relieve the pressure from the system.
 Empty and Flush the pump system with water, never aempt to service the pump unl it has been emped and ushed.
 Perform Repairs: Follow direcons provided in the troubleshoong secon to repair the pump.
 Test: Always test the pump for leaks with plain water aer any repairs before using.

Page 6
See Plumbing Detail
Next Page
Exploded View/Parts List
FSSS-60-12V
(5301445-BLK)
(5301445-BLU)
-* = Specify -BLK (Black) or -BLU (Blue)

Page 7
Refer to the Parts List
Previous Page
for Part Numbers.
Plumbing Detail
67.563”
59.813”
26.081”
67.563”
59.813”
Approx. Dimensions:

Page 8
Warranty
LIMITED WARRANTY FOR NEW AG SPRAY EQUIPMENT
WHO MAY USE THIS LIMITED WARRANTY. This limited warranty (the “Limited Warranty”) is provided by Ag Spray Equipment to the original pur-
chaser (“you”) of the Equipment (as dened below) from Ag Spray Equipment or one of Ag Spray Equipment’s authorized dealers. This Limited
Warranty does not apply to any subsequent owner or other transferee of the Equipment. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
WHAT THIS LIMITED WARRANTY COVERS AND FOR HOW LONG. Ag Spray Equipment warrants that any new Equipment will be free from defects
in material and workmanship for a period of one (1) year (homeowner), 90 days (commercial user), aer delivery of the Equipment to you (the
“Warranty Period”). The Warranty Period is not extended if Ag Spray Equipment repairs or replaces the Equipment.
WHAT IS NOT COVERED BY THIS LIMITED WARRANTY. This Limited Warranty does not apply to: (1) used Equipment; (2) any Equipment that has
been altered, changed, repaired or treated since its delivery to you, other than by Ag Spray Equipment or its authorized dealers; (3) damage or
depreciaon due to normal wear and tear; (4) defects or damage due to failure to follow Ag Spray Equipment’s operator’s manual, specicaons
or other wrien instrucons, or improper storage, operaon, maintenance, applicaon or installaon of parts; (5) defects or damage due to mis-
use, accident or neglect, “acts of God” or other events beyond Ag Spray Equipment’s reasonable control; (6) accessories, aachments, tools or
parts that were not manufactured by Ag Spray Equipment, whether or not sold or operated with the Equipment; or (7) rubber parts, such as res,
hoses and grommets.
HOW TO OBTAIN WARRANTY SERVICE. To obtain warranty service under this Limited Warranty, you must (1) provide wrien noce to Ag Spray
Equipment of the defect during the Warranty Period and within thirty (30) days aer the defect becomes apparent or the repair becomes neces-
sary, at the following address: Ag Spray Equipment, 1000 Fimco Lane, North Sioux City, SD 57049; and (2) make the Equipment available to
Ag Spray Equipment or an authorized dealer within a reasonable period of me. For more informaon about this Limited Warranty,
please call: 800-274-1025 or your local Ag Spray locaon.
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the condions set forth above are fullled and the Equipment or any part
thereof is found to be defecve, Ag Spray Equipment shall, at its own cost, and at its opon, either repair or replace the defecve Equipment or
part. Ag Spray Equipment will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES,
AND AG SPRAY EQUIPMENT’S SOLE LIABILITY, FOR ANY BREACH OF THIS LIMITED WARRANTY. TO THE EXTENT APPLICABLE, ANY IMPLIED WAR-
RANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED IN DURATION TO THE WARRANTY PERIOD, AND THE REMEDIES AVAILABLE FOR BREACH THEREOF SHALL BE LIMITED TO THE
REMEDIES AVAILABLE UNDER THIS EXPRESS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL AG SPRAY EQUIPMENT’S LIABILITY UNDER THIS LIMITED
WARRANTY EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE EQUIPMENT, NOR SHALL AG SPRAY EQUIPMENT BE LIABLE, UNDER
ANY CIRCUMSTANCES, FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
